Allen BradleyMPL-B1520F-V-X216Allen-Bradley MPL-B1520F-V-X216 Kinetix Servo Motor MP Electric Cylinder 460V

Product Description

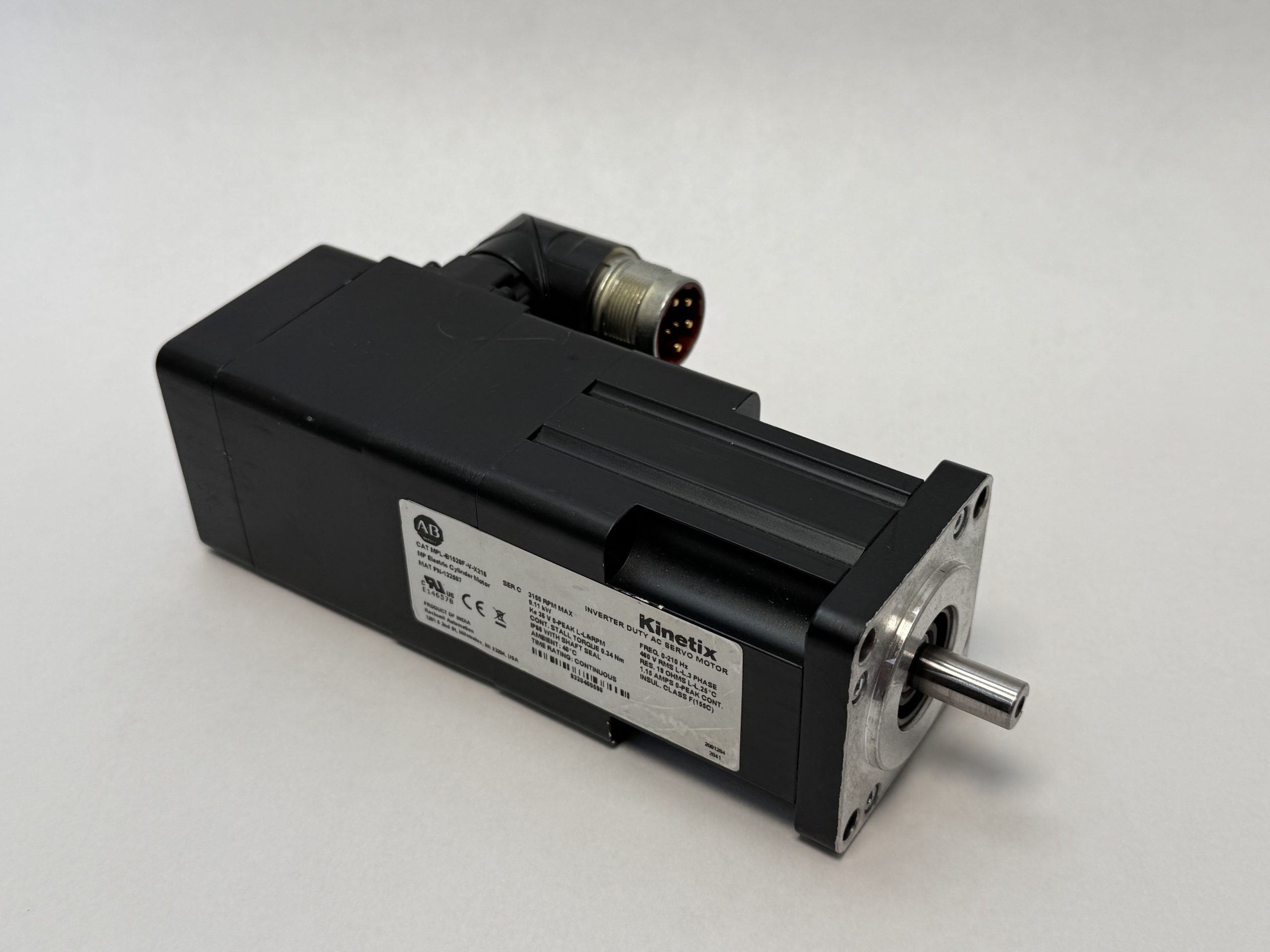

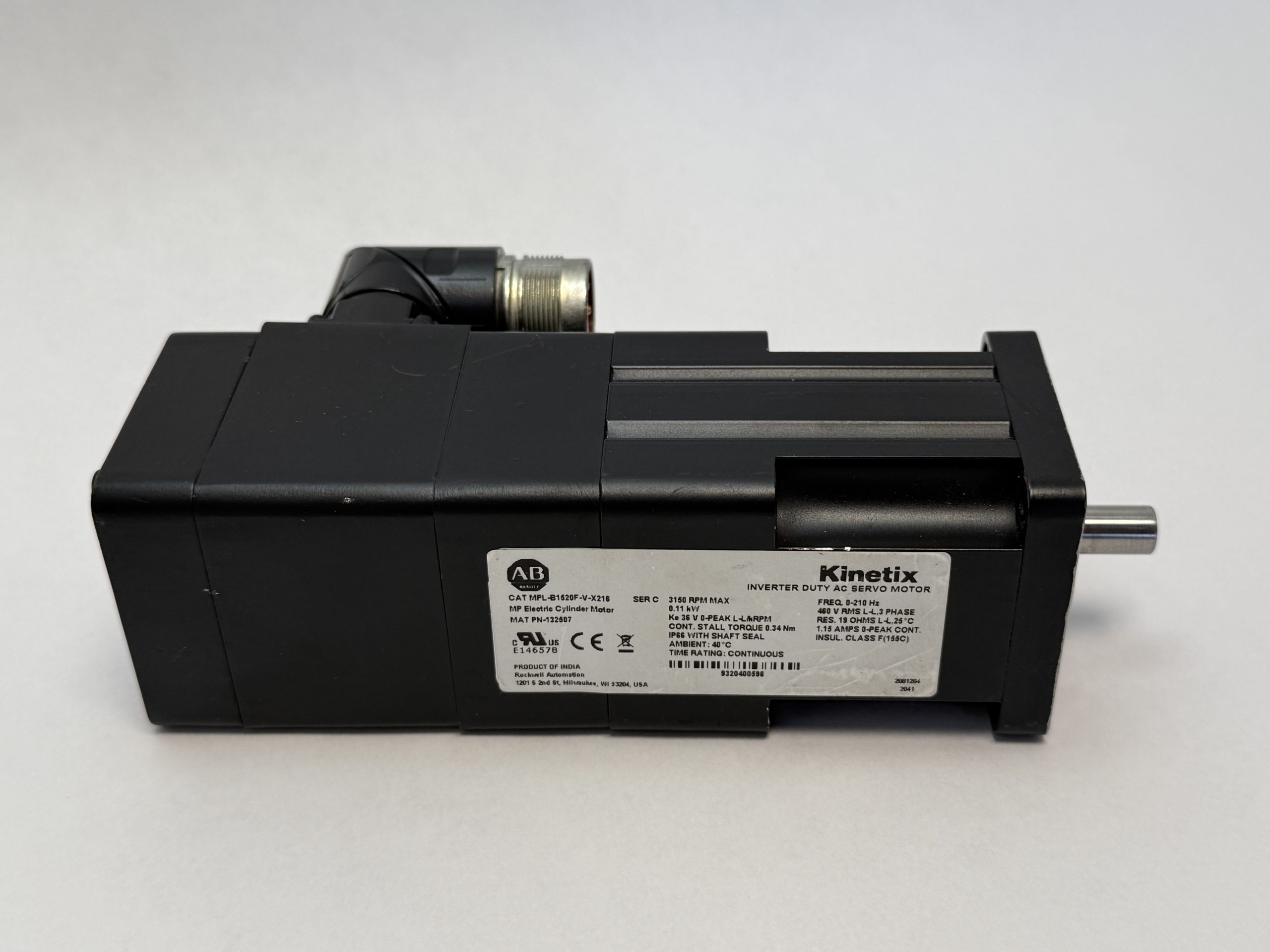

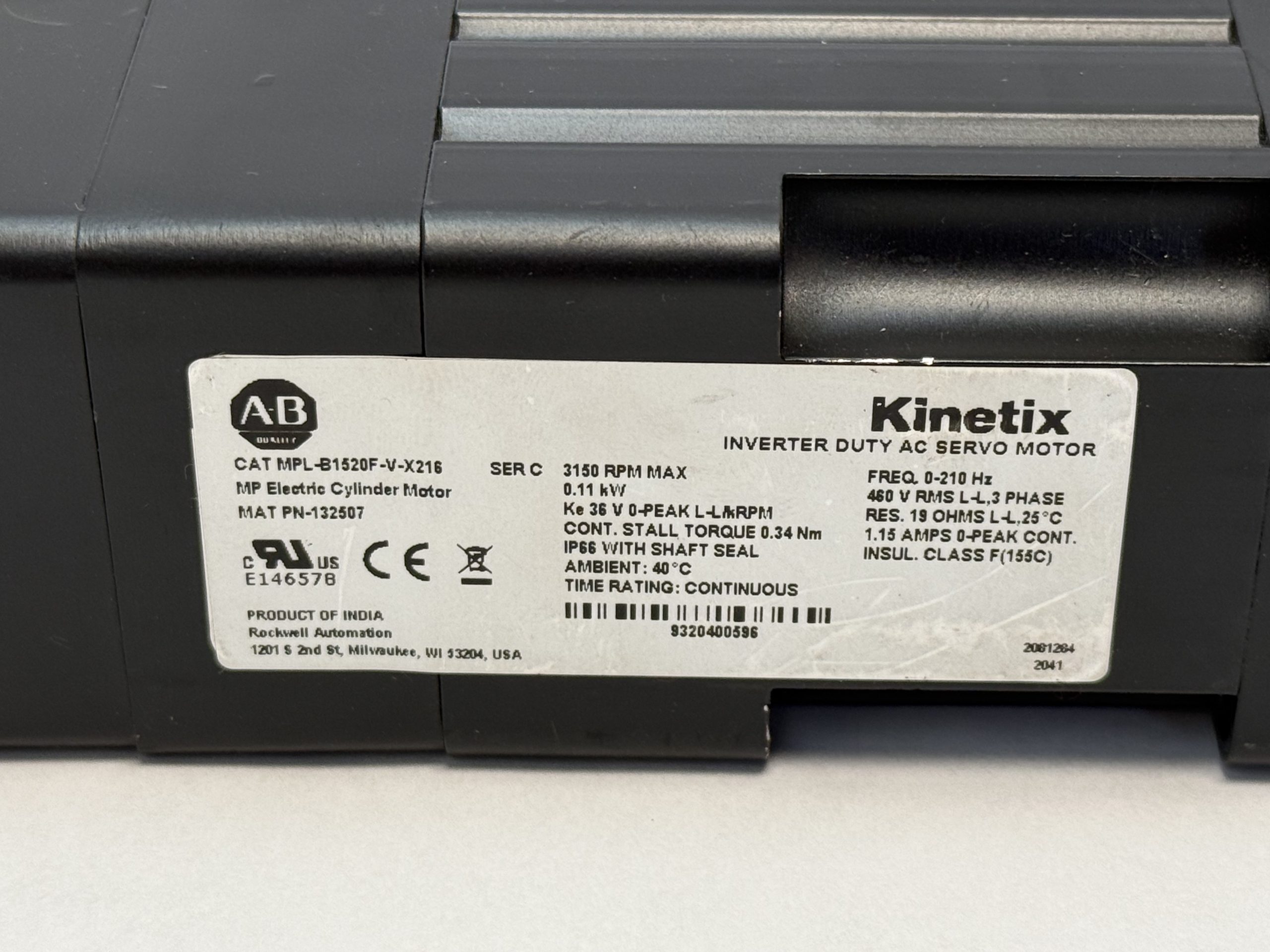

What this isOne (1) Allen-Bradley Kinetix MPL-B1520F-V-X216 inverter duty AC servo motor, Series C, material number PN-132507. The nameplate calls it an “MP Electric Cylinder Motor”: it is the 460 V replacement motor for Allen-Bradley MP-Series electric cylinders. Rockwell’s replacement parts instructions (publication MPAR-IN002) list it for MPAR-B1xxxB-x4x cylinders and give it a 24 V brake. The 200 V version is the MPL-A1520F-V-X204, and the no-brake version is the MPL-B1520F-V-X215.

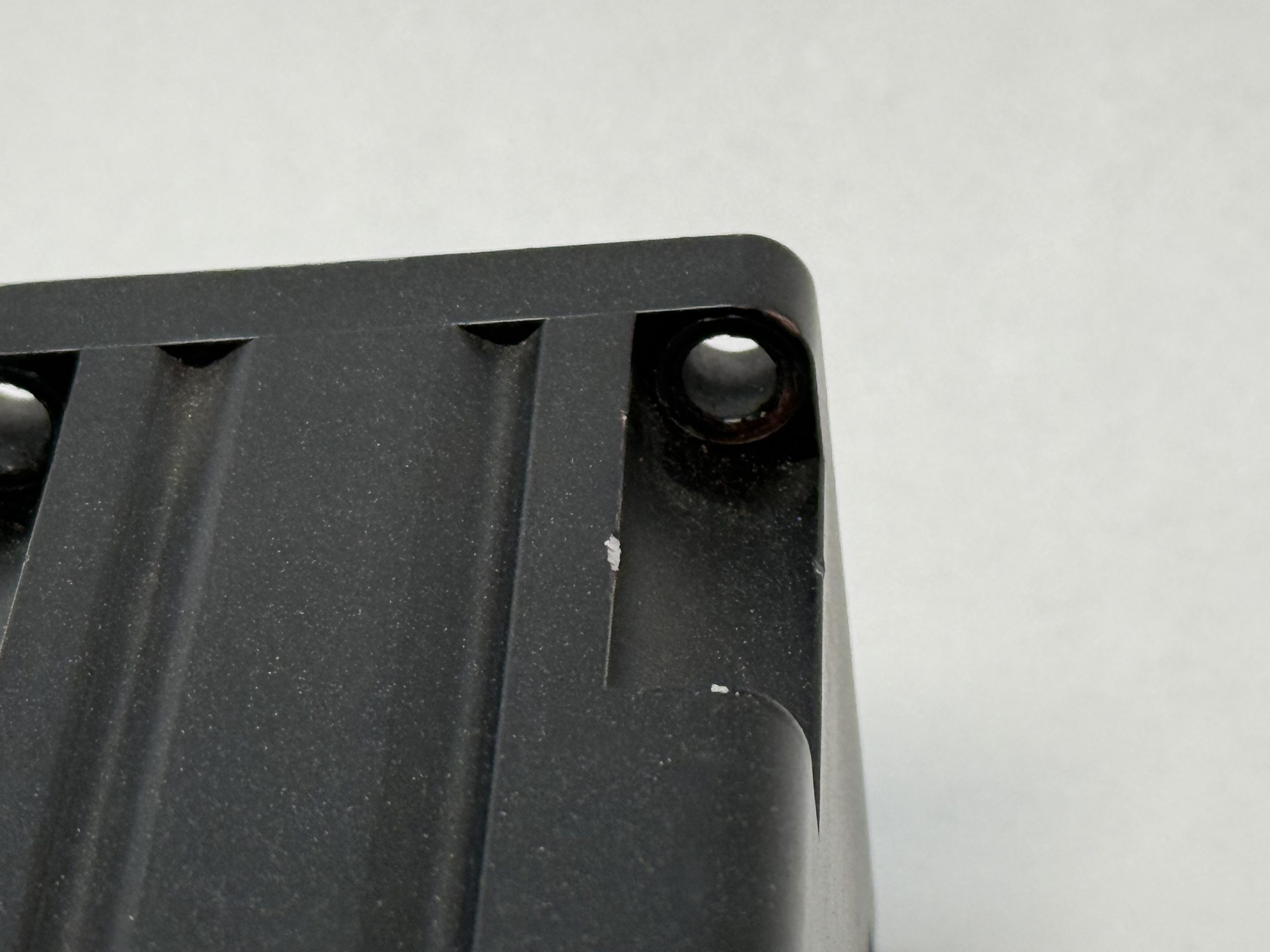

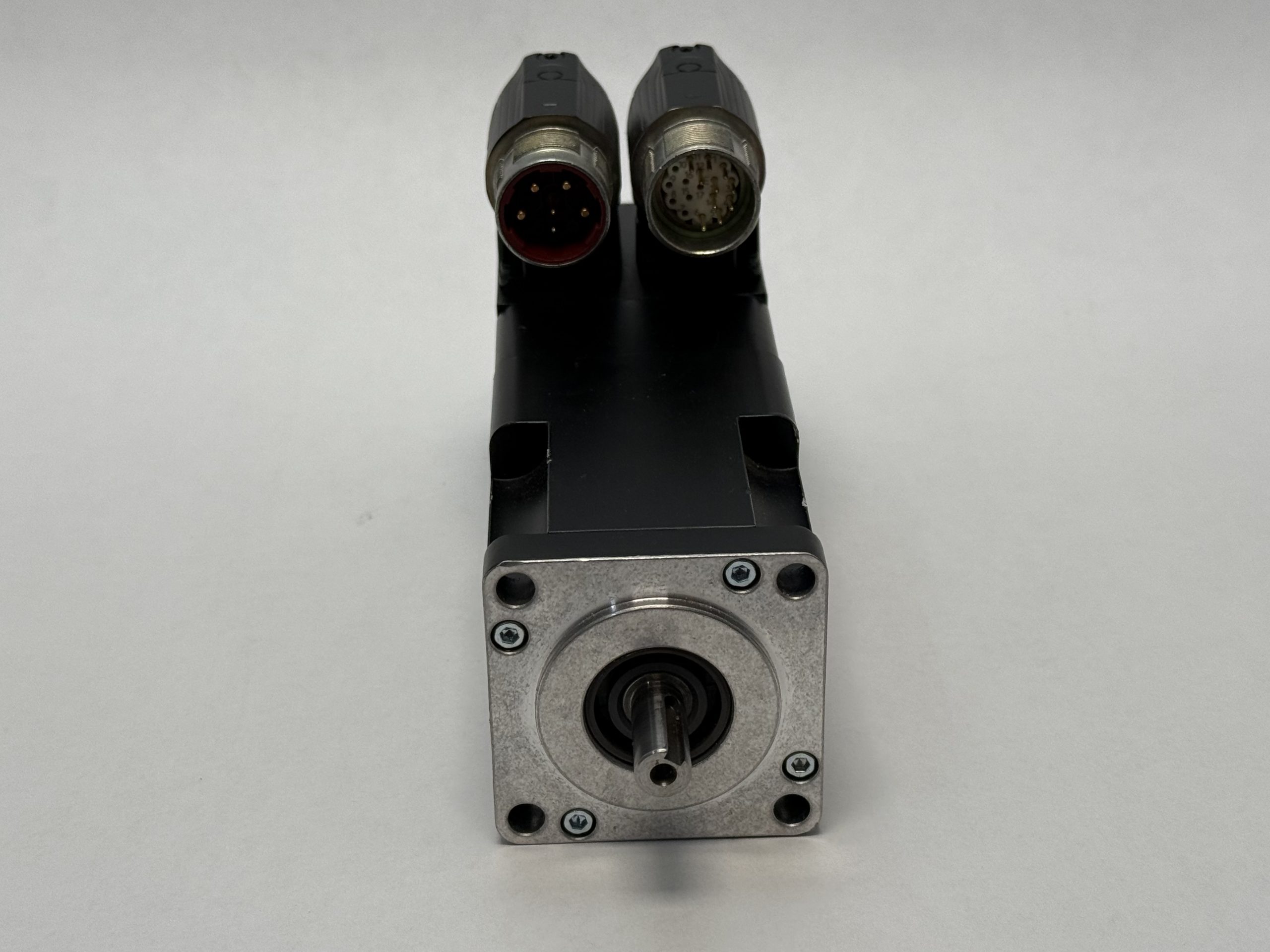

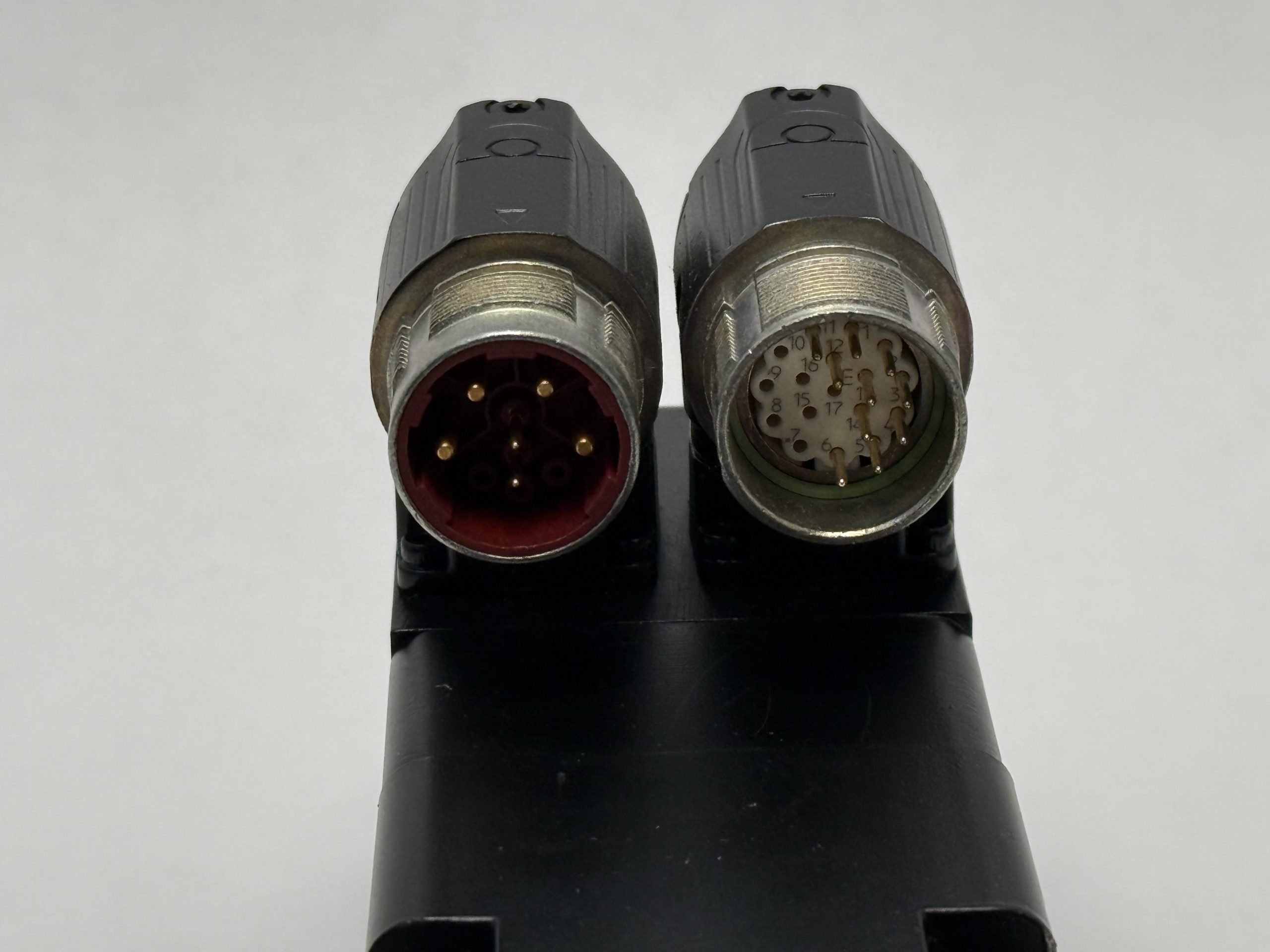

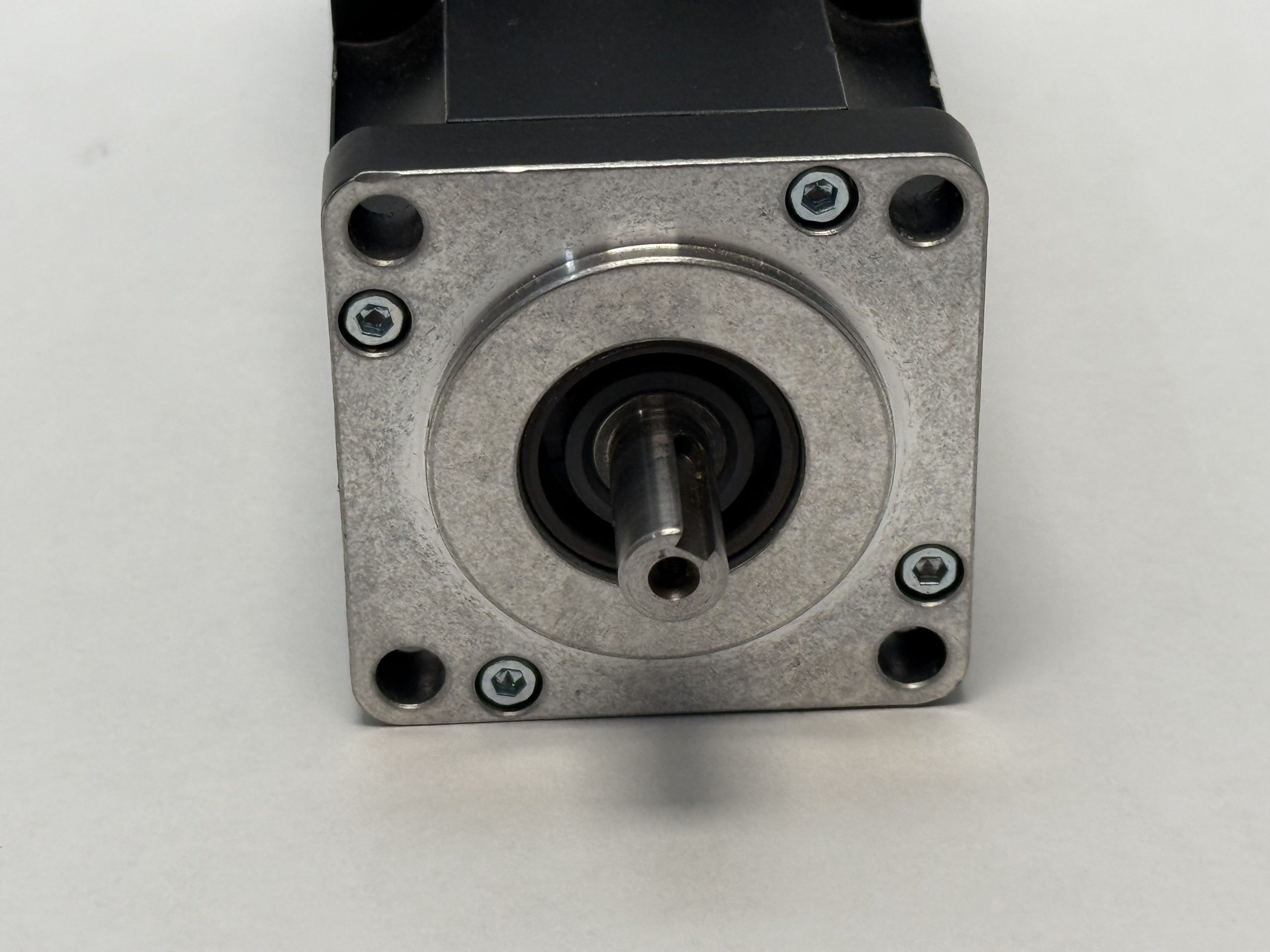

Used, removed from service. Product of India per the nameplate. There is a small paint chip on one flange corner, shown in the photos. Power and feedback connectors are intact.

How the part number breaks downMPL — Kinetix MP-Series low-inertia servo motor.

B — 400/460 V class.

1520 — frame and magnet stack size.

F — rated speed winding (3150 rpm max per nameplate).

V — feedback type.

X216 — Rockwell’s catalog code for this electric cylinder replacement motor with the 24 V brake.

Also sold and searched as MPLB1520FVX216 and MPL-B1520F-V-X216 Ser C.

Item SpecificationsBrand: Allen-Bradley (Rockwell Automation)Model: MPL-B1520F-V-X216, Series CMaterial number: PN-132507Type: Kinetix inverter duty AC servo motor, MP electric cylinder motorVoltage: 460 V RMS L-L, 3 phaseOutput: 0.11 kWContinuous stall torque: 0.34 NmContinuous current: 1.15 A 0-peakMaximum speed: 3150 rpmVoltage constant Ke: 36 V 0-peak L-L/kRPMResistance: 19 ohms L-L at 25 °CFrequency: 0-210 HzBrake: 24 V (per Rockwell MPAR-IN002)Insulation: Class F (155 °C)Protection: IP66 with shaft sealAmbient: 40 °CDuty: ContinuousCountry of origin: India
