Availability:
1 in stock

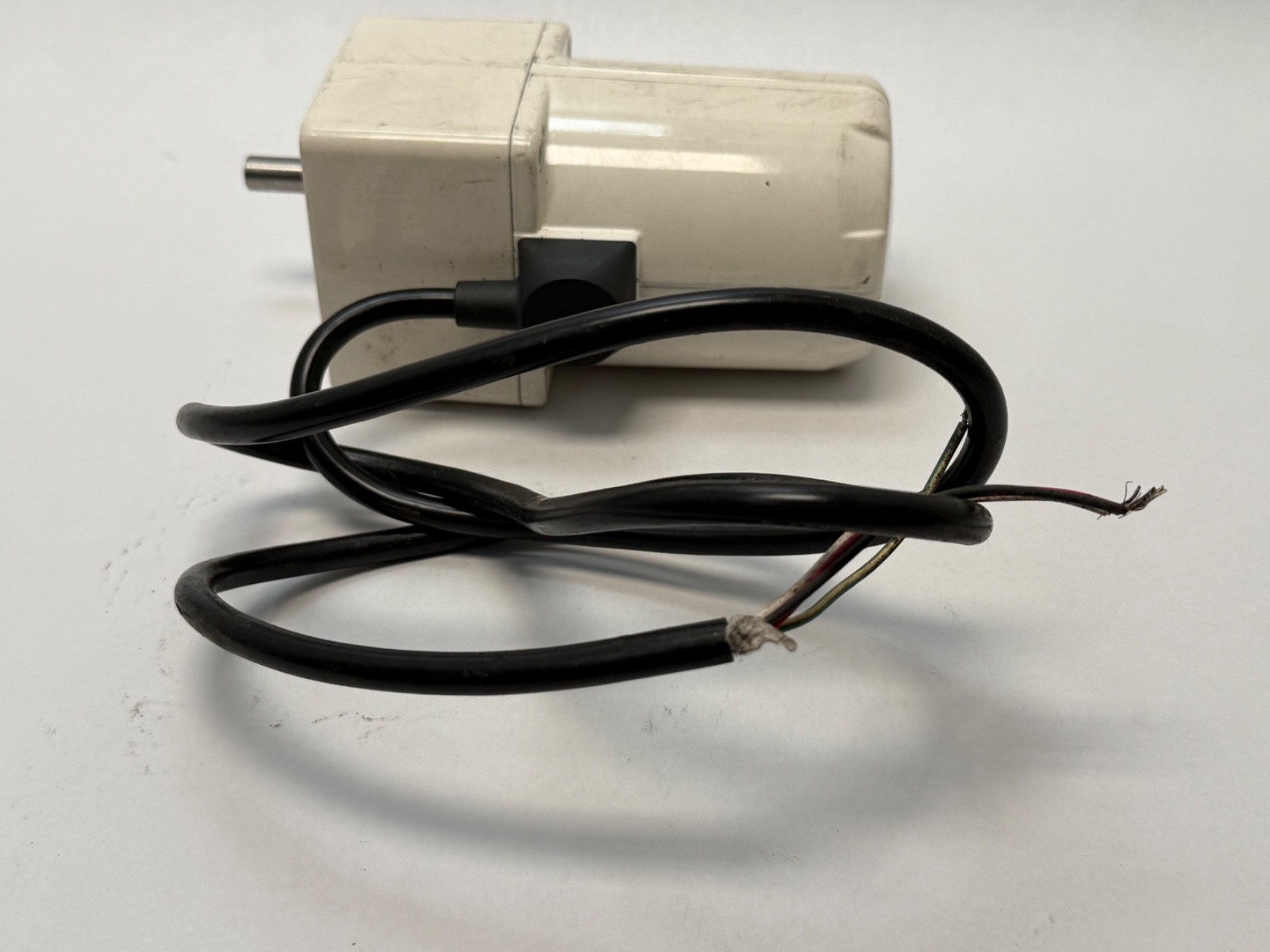

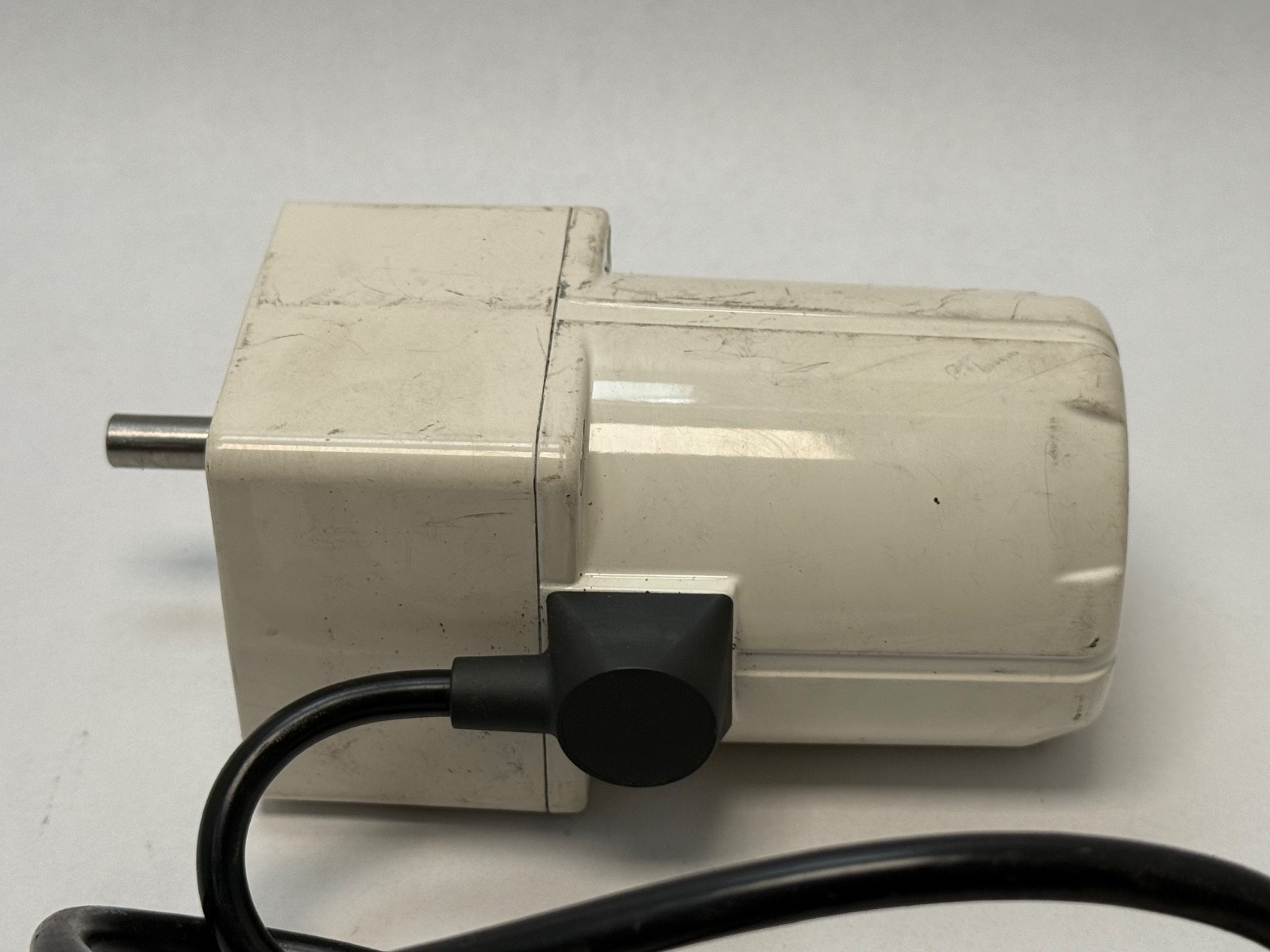

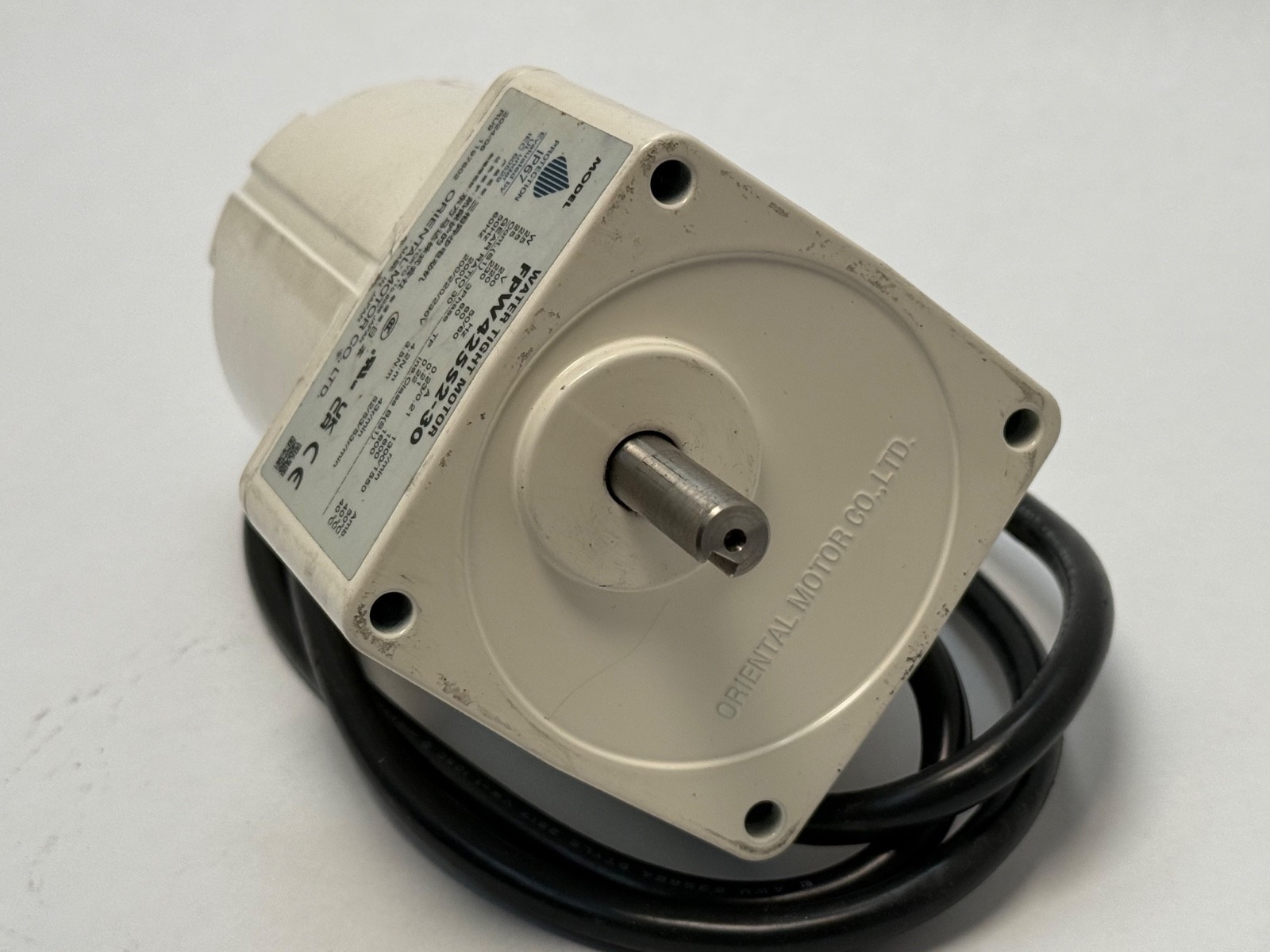

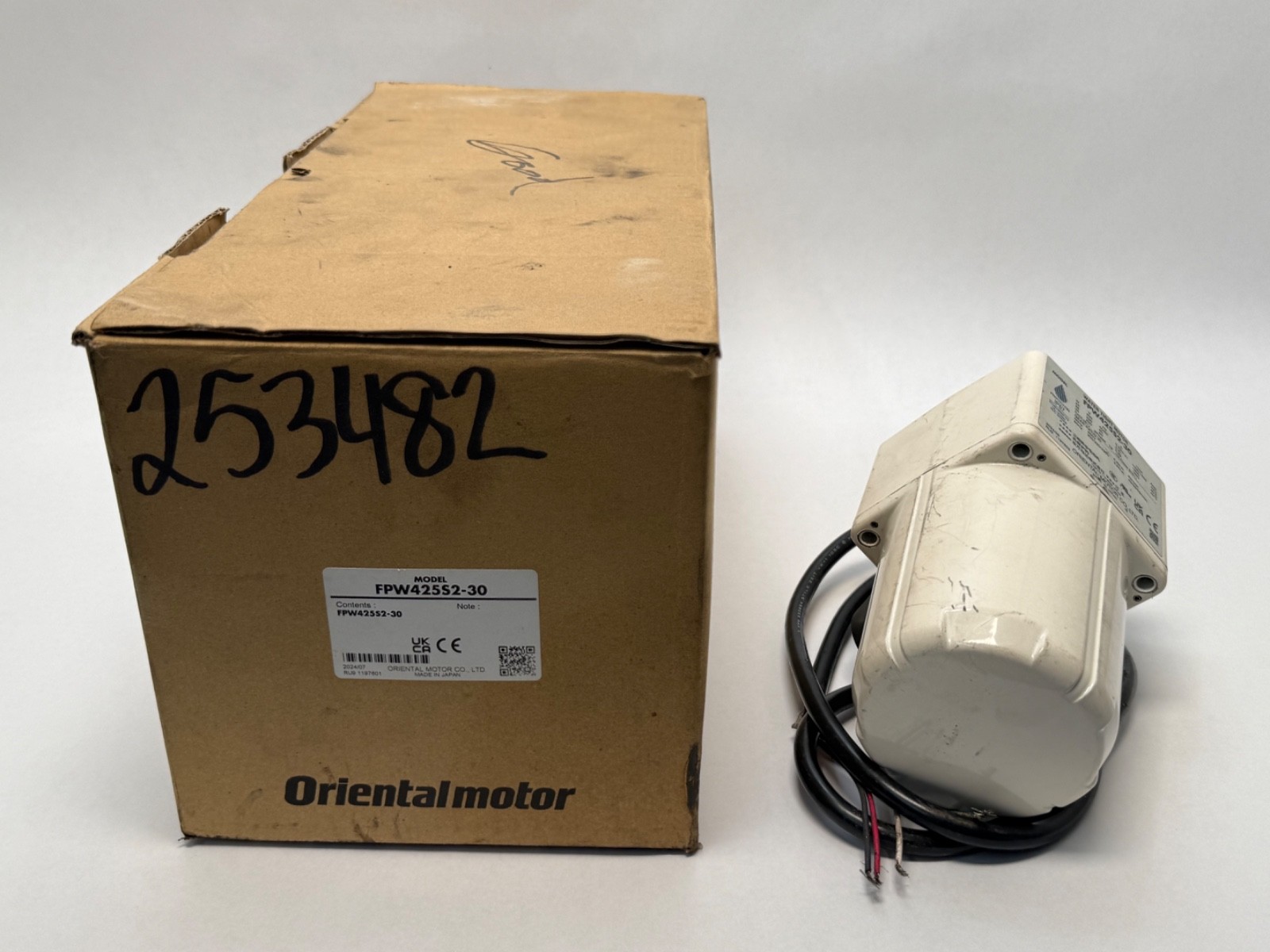

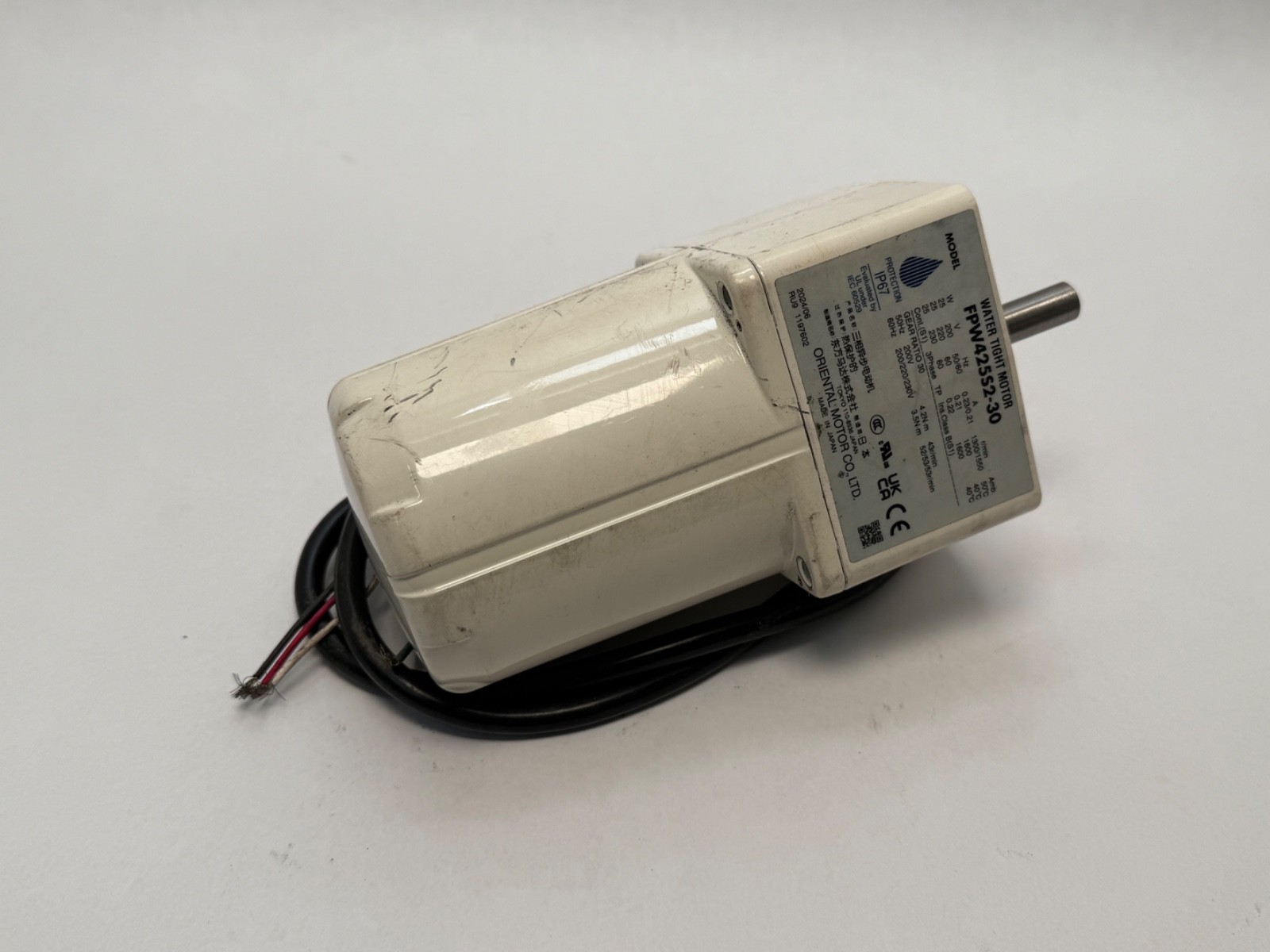

Oriental Motor FPW425S2-30 IP67 washdown gear motor, 25 W, 30:1, three-phase 200/230 VAC, 3.5 N-m rated torque at 60 rpm, 10 mm shaft. Tested working.
List Price
$84.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Oriental Motor |
|---|---|
| MPN | FPW425S2-30 |
| Model | FPW425S2-30 |
| Current Type | AC |
|---|---|
| Ip Rating | IP67 |
| Gear Ratio | 30:1 |
| Ac Phase | Three Phase |
| Base Number | FPW425S2 |
| Industry Terms | washdown gearmotor; IP67 gear motor; watertight motor; AC induction gear motor; food grade washdown motor; three phase gearmotor |
| Common Misspellings | Oriental-Motor FPW425S2-30; FPW425-S2-30; FPW 425S2 30; Orientalmotor; gearmoter |
| Application Types | Food and beverage processing; washdown conveyors; packaging; outdoor and wet-area equipment |
| Mpn Variants | FPW425S2-30; FPW425S230; FPW425S2 30; FPW425S2-30A |
| Compatible With Replaces | Fits FPW425S2 series mounts; cables CC05AC43P, CC10AC43P |
| Additional Attributes | Output: 25 W (1/30 HP); Voltage: 3-phase 200/220/230 VAC 50/60 Hz; Ratio: 30:1; Rated torque: 3.5 N-m (60 Hz), 4.2 N-m (50 Hz); Rated speed: 60 rpm (60 Hz), 50 rpm (50 Hz); Current: 0.21-0.23 A; Frame: 80 mm; Shaft: 10 mm; Overhung load: 200 N at 10 mm, 300 N at 20 mm; Thrust: 50 N; IP67; Insulation class B; Thermal protector |
| Series | FPW |
| Nominal Rated Input Voltage | 200/220/230 VAC three-phase |

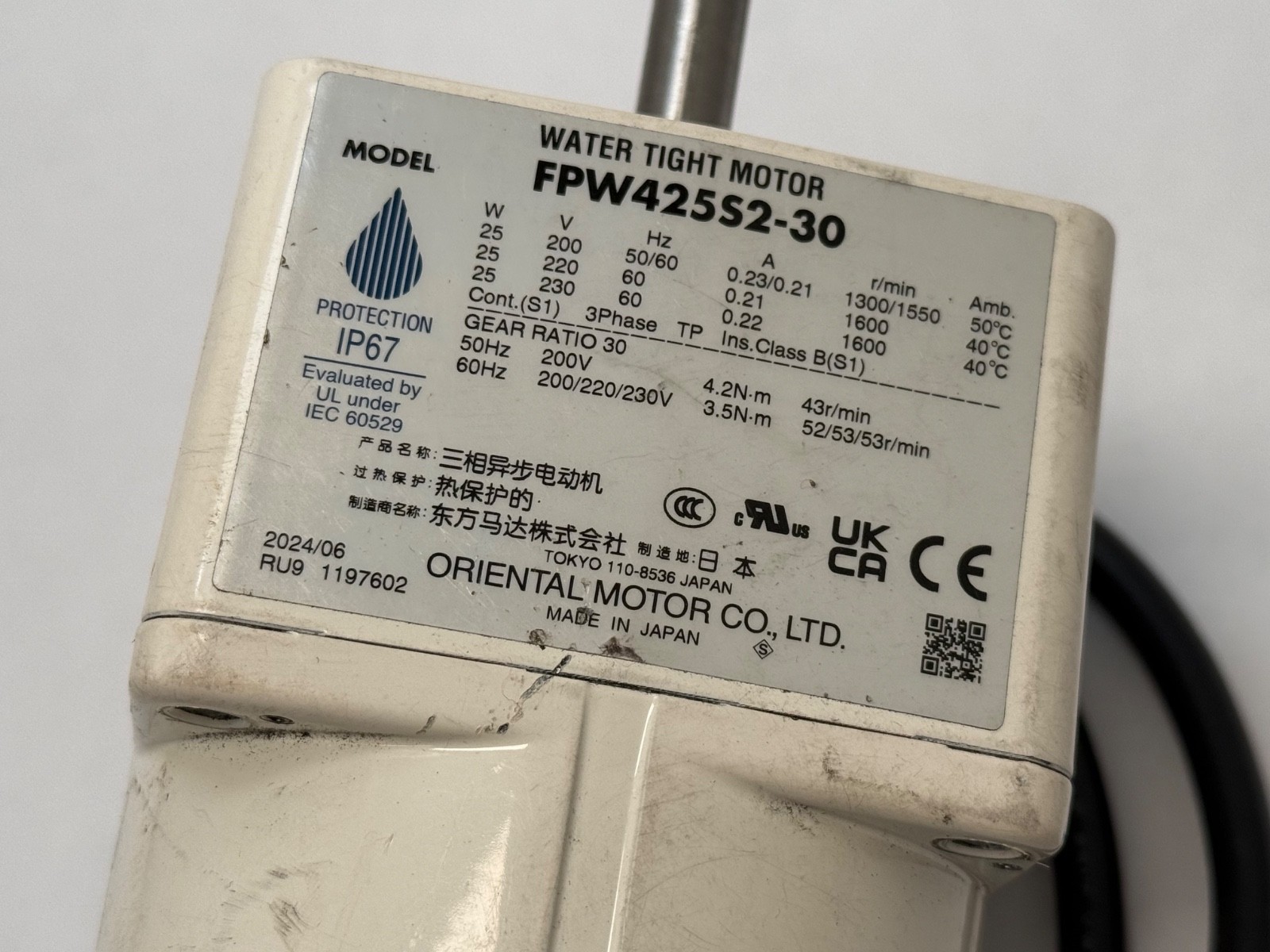

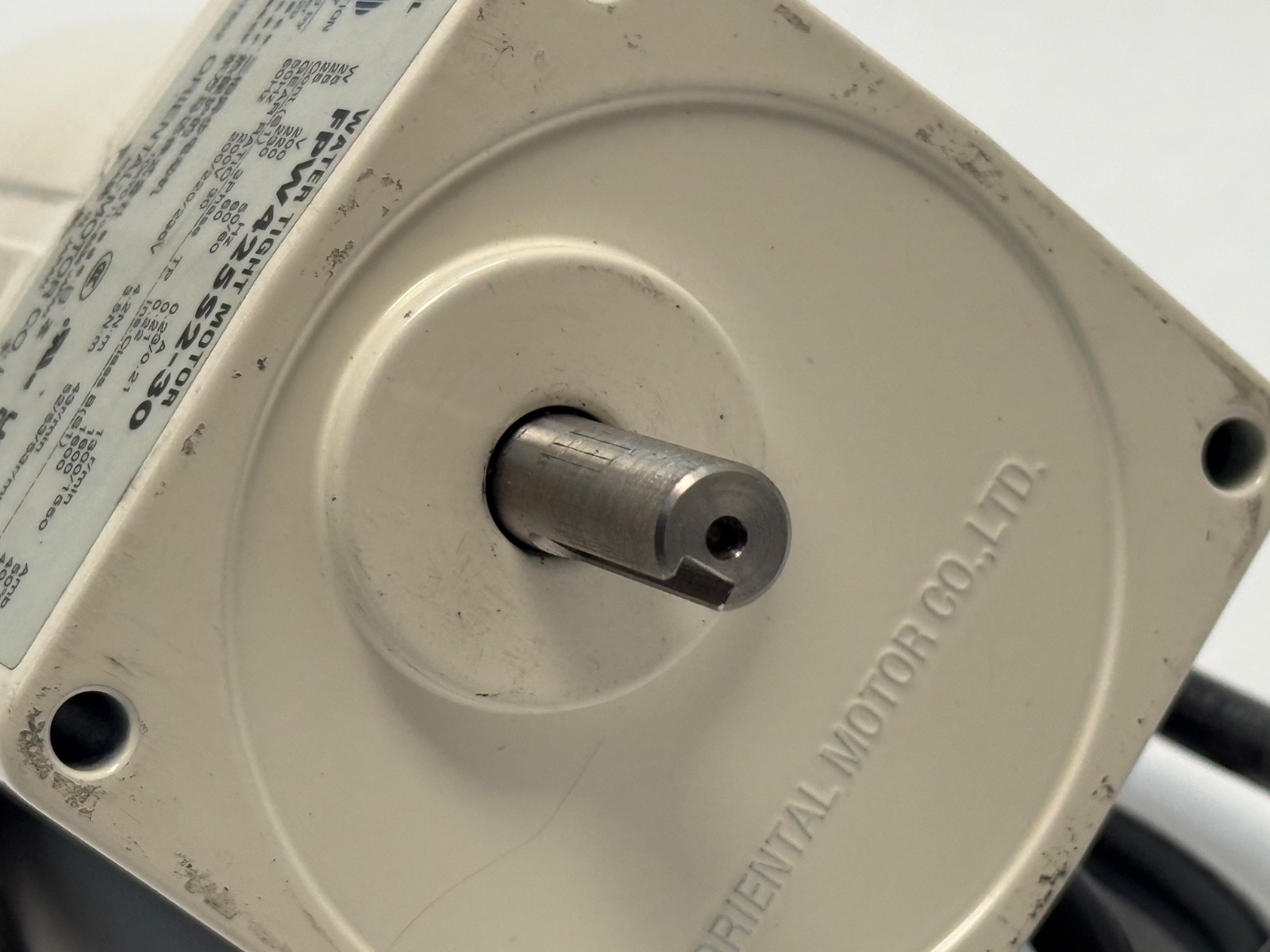

The Oriental Motor FPW425S2-30 is an FPW Series watertight, dust-resistant three-phase induction gear motor rated IP67, 25 W output with a 30:1 gear ratio. Series: FPW. Motor Type: IP67 washdown induction. Output Power: 25 W (1/30 HP). Voltage: Three-phase 200/220/230 VAC. Frequency: 50/60 Hz. Gear Ratio: 30:1. Frame Size: 80 mm (3.15 in). Output Shaft Diameter: 10 mm. Degree of Protection: IP67.
FPW — Oriental Motor FPW Series washdown gear motor.
4 — 80 mm frame size.
25 — 25 W output.
S2 — three-phase 200/220/230 VAC.
30 — 30:1 gear ratio.
Rated Torque: 3.5 N·m (30 lb-in) at 60 Hz; 4.2 N·m (37 lb-in) at 50 Hz. Rated Speed: 60 rpm at 60 Hz; 50 rpm at 50 Hz. Current: 0.21 A at 200/220 VAC 60 Hz; 0.22 A at 230 VAC 60 Hz; 0.23 A at 200 VAC 50 Hz. Permissible Overhung Load: 200 N at 10 mm from shaft end; 300 N at 20 mm. Permissible Thrust Load: 50 N (11.2 lb). Permissible Load Inertia: 279 x 10⁻⁴ kg·m².

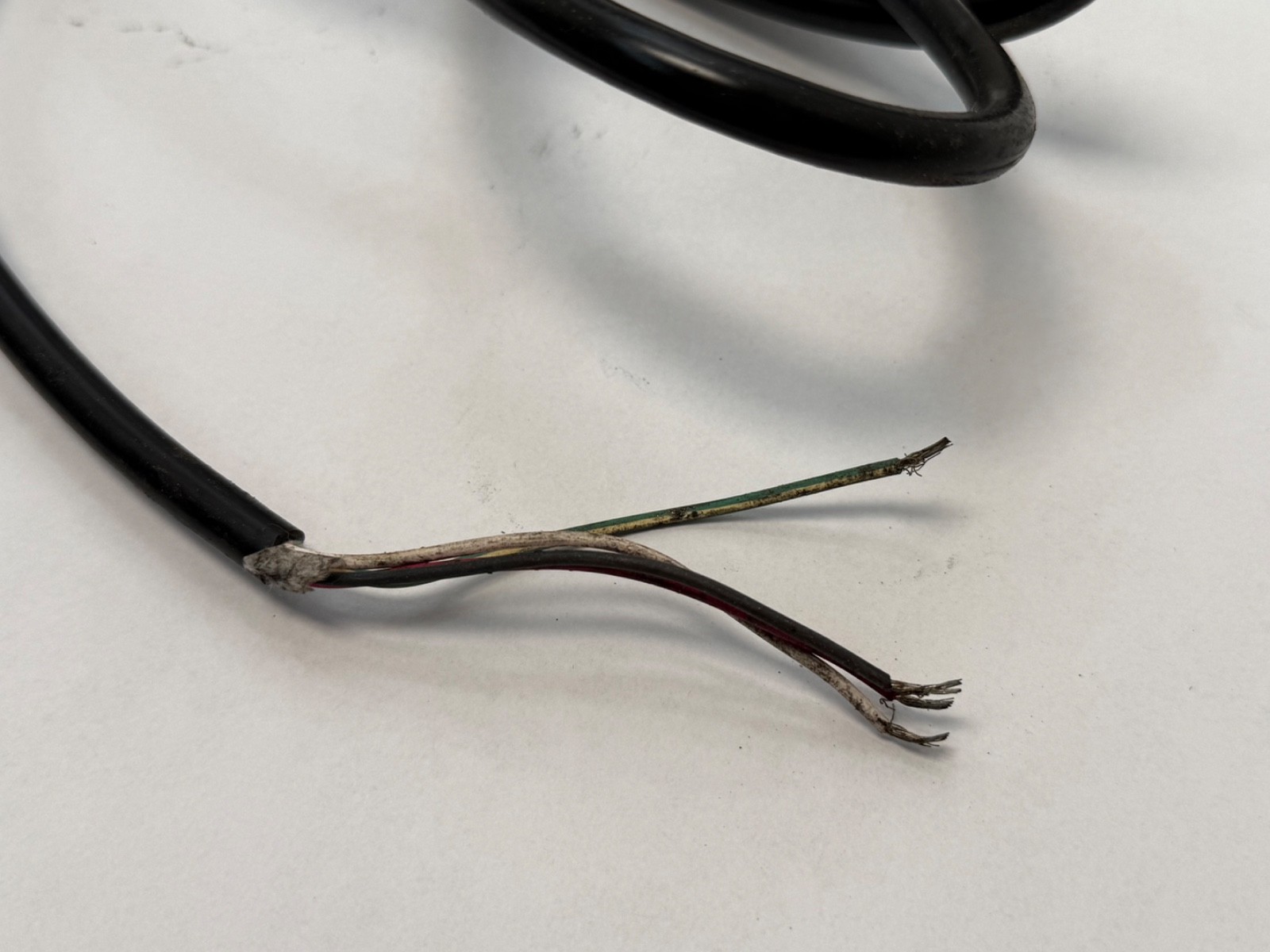

Insulation Class: B (130 °C). Overheat Protection: built-in thermal protector, automatic return. Ambient Temperature: -10 to +40 °C, nonfreezing (-10 to +50 °C at three-phase 200 V). Connection: Cable. Safety Standards: UL, CSA, CCC, EN, CE.
Unit Quantity: 1 Pc.
Sister FPW425S2 gear ratios share the frame and motor: 3.6, 5, 6, 7.5, 9, 12.5, 15 and 100:1. Watertight extension cables: CC05AC43P (5 m), CC10AC43P (10 m).
