Two-bolt flange block bearing unit, 1 in (25.4 mm) bore, 3-57/64 in bolt spacing, eccentric collar locking, wide inner race, cast iron housing. 1 Pc.
List Price
$32.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| MPN | FX3Y216N |
| GTIN | 662327035068 |
| Model | FX3 Y216N |
| ID | 1.0000 in |
| Series | 200 Series |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Lithium complex NLGI 2 grease |
| Material | Cast Iron Housing |
| Base Number | FX3Y216 |
| Industry Terms | Two-bolt flange bearing, flange block, eccentric collar flange bearing, wide inner race flange unit, self-aligning flange bearing, 2-bolt flange bearing unit |
| Common Misspellings | FX3Y216 N, FXY216N, FX3Y2I6N, FX-3Y216N, F3XY216N, Linkbelt FX3Y216N, Link Belt FX3Y216N |
| Application Types | Conveyors, fans and blowers, agricultural machinery, material handling, packaging equipment |
| Overall Width | 2.6875 in / 68.3 mm |
| Bolt Center To Center | 3-57/64 in / 98.8 mm |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3-57/64 in / 98.8 mm |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1 in / 25.4 mm |
| Housing Style | Two-bolt flange block, cast iron, 1-piece, powder coated black |
| Locking Method | Eccentric cam locking collar |
| Replacement Insert | YG216NL |
| Mpn Variants | FX3Y216N, FX3-Y216N, FX3 Y216N, FX3Y216, FX3Y-216N, YG216NL, Y2166N, W2165S |
| Manufacturer Status | Active on distributor catalogues |
| Dynamic Load Rating C1 | 3150 lb |
| Cage Type | Ball-riding retainer |
| Dynamic Load Rating | 3150 lb |
| Static Load Rating | 1760 lb |
| Rolling Elements | Ball |
| Max Temp | 225 °F / 107 °C |
| Bearing Type | Mounted ball bearing unit, wide inner race insert |
| Cage Material | Glass-filled nylon |
| Limiting Speed | 9600 |
| Number Of Rows | 1 |
| Bore Type | straight |
| Snap Ring Included | No |
| Internal Clearance | C3 (mounted) |
| Duty Type | Standard |
| Locking Device | Eccentric Collar |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion, axially fixed |
| Design Units | Imperial (inch) |
| Part Number | FX3Y216N |
| Maximum Permissible Misalignment | ±2.0° |
| Cross Reference 1 | Dodge F2B-SXR-100 |
|---|---|
| Cross Reference 3 | Browning VF2E-216 |

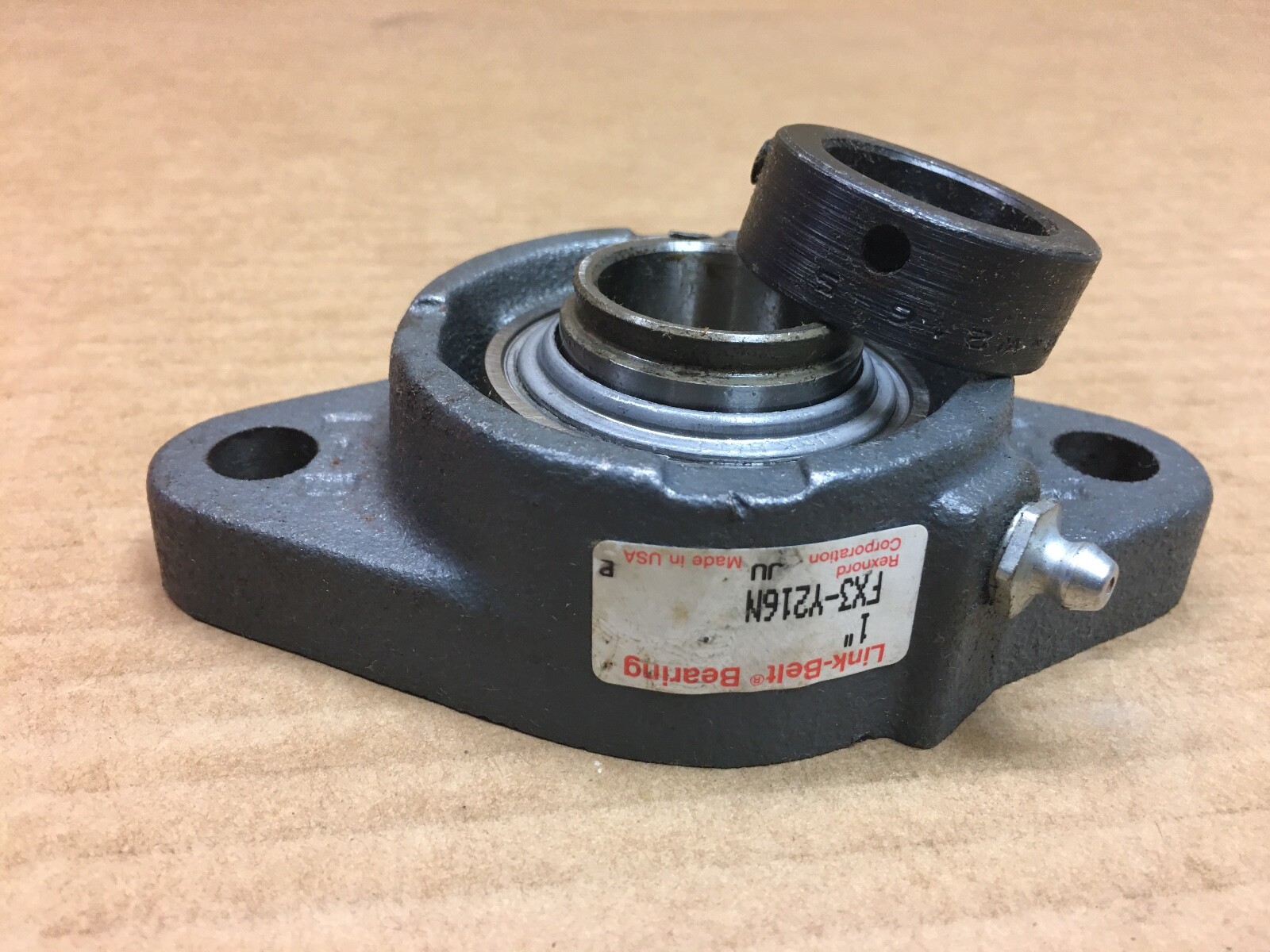

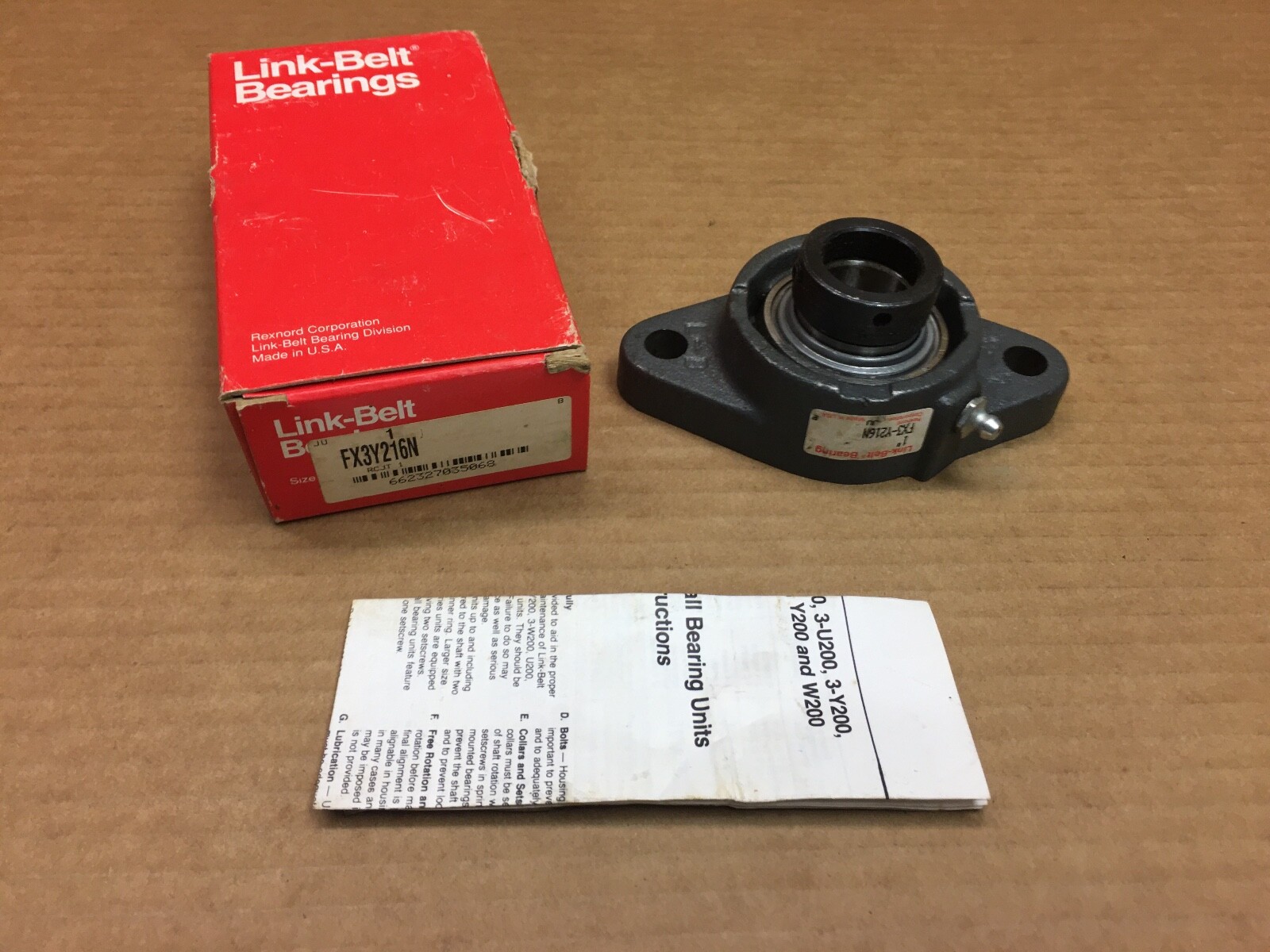

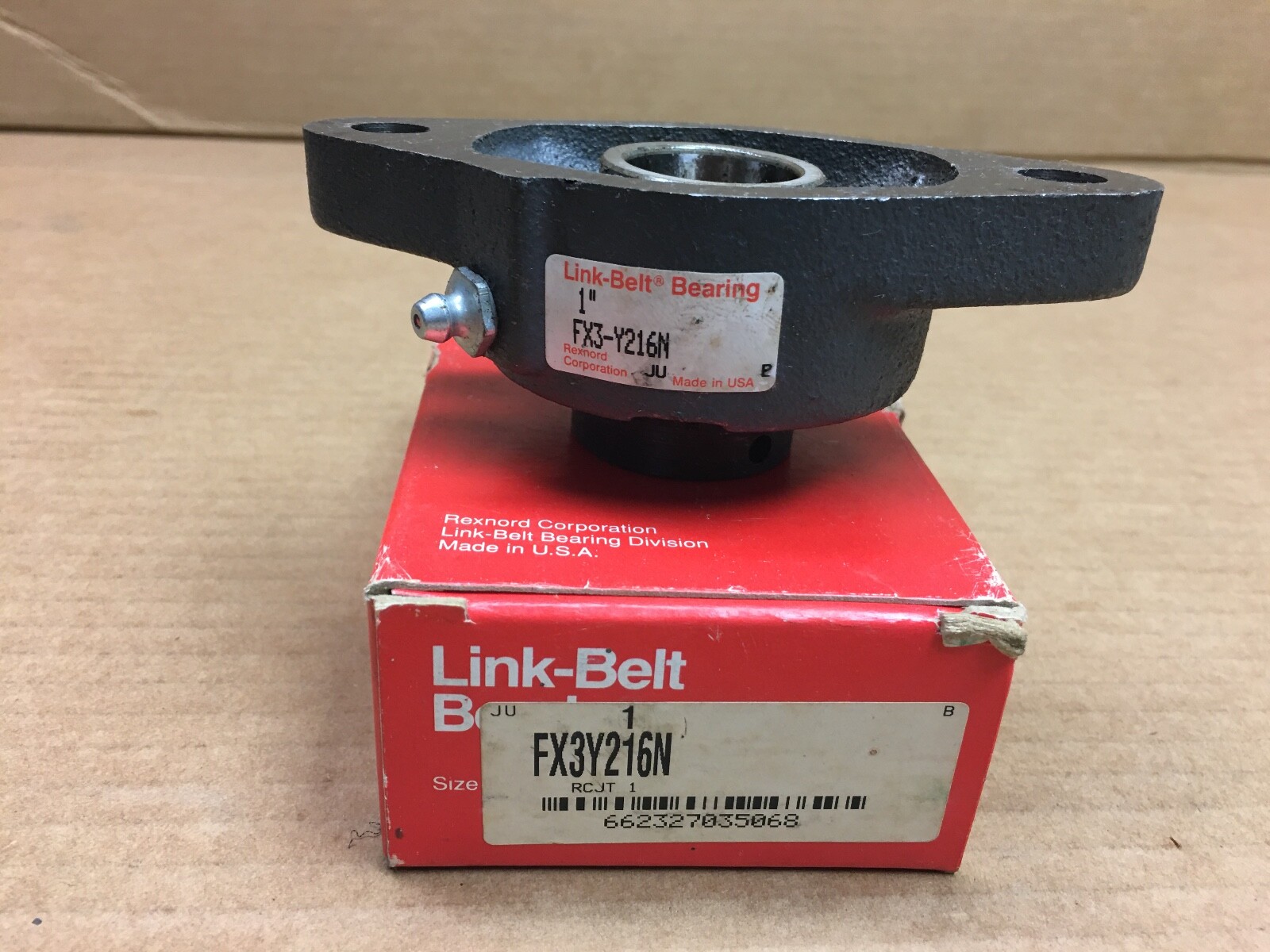

Link-Belt FX3Y216N complete housed ball bearing unit in the two-bolt flange block style. One-piece cast iron housing, powder coated black, two mounting bolts. Bore Diameter: 1 in (25.4 mm), size code 205. The insert is a wide inner race bearing locked by an eccentric cam collar. Quantity: 1 Pc.
FX3 — two-bolt flange block housing, cast iron, one piece. The F3 housing in the same size range is the four-bolt square flange.
Y — wide inner race insert with eccentric cam locking collar.
216 — sixteen sixteenths of an inch, a 1 in bore, in the 205 size code.
N — single-lip BUNA contact seal.
YG216NL — insert bearing number. Y2166N — end cap. W2165S — locking device kit.
Bore Diameter: 1 in (25.4 mm). Dynamic Load Rating: 3150 lb. Static Load Rating: 1760 lb. Limiting Speed: 9600 rpm. Internal Clearance: C3 (mounted). Maximum Static Misalignment: ±2°. Maximum Operating Temperature: 225 °F (107 °C). Lubricant: Lithium complex NLGI 2 grease. Locking Method: Eccentric cam locking collar. Seal: Single-lip BUNA contact seal. Cage Material: Glass-filled nylon. Cage Type: Ball-riding retainer. Expansion Type: Non-expansion, axially fixed. Housing Material: Cast iron. Unit Quantity: 1 Pc.
Mounting Bolts: two, 7/16 in. Bolt Centre-to-Centre: 3-57/64 in (98.8 mm). Housing Length: 4-29/32 in. Overall Width: 2.6875 in (68.3 mm). Housing Mounting Width: 19/32 in. Foot Height: 0.59 in. Mounting Surface to Cap Face: 2 in. Mounting Surface to Outermost Bearing Face: 1-13/16 in. Locking Collar Outside Diameter: 1-1/2 in. Length Through Bore: 1.75 in.
Cross-references: Dodge F2B-SXR-100 and Browning VF2E-216. The Link-Belt F3Y216N is the same insert and bore in the four-bolt square flange casting. The FX3S216E uses setscrew locking in the same housing. NTN UELFL205-100, Rexnord KFC2451 and Asahi UELFL205-100 match the two-bolt, 3-57/64 in mounting geometry in 1 in bore; their insert locking construction differs.
Two, 7/16 in, at 3-57/64 in (98.8 mm) centre-to-centre.
An eccentric cam locking collar on a wide inner race insert, bore 1 in (25.4 mm).
Dynamic Load Rating 3150 lb and Static Load Rating 1760 lb, with a maximum speed of 9600 rpm.
