MitsubishiQ02CPUPLC CPU Module — MELSEC-Q, 28K steps, 4096 I/O points, RS-232

Product Description

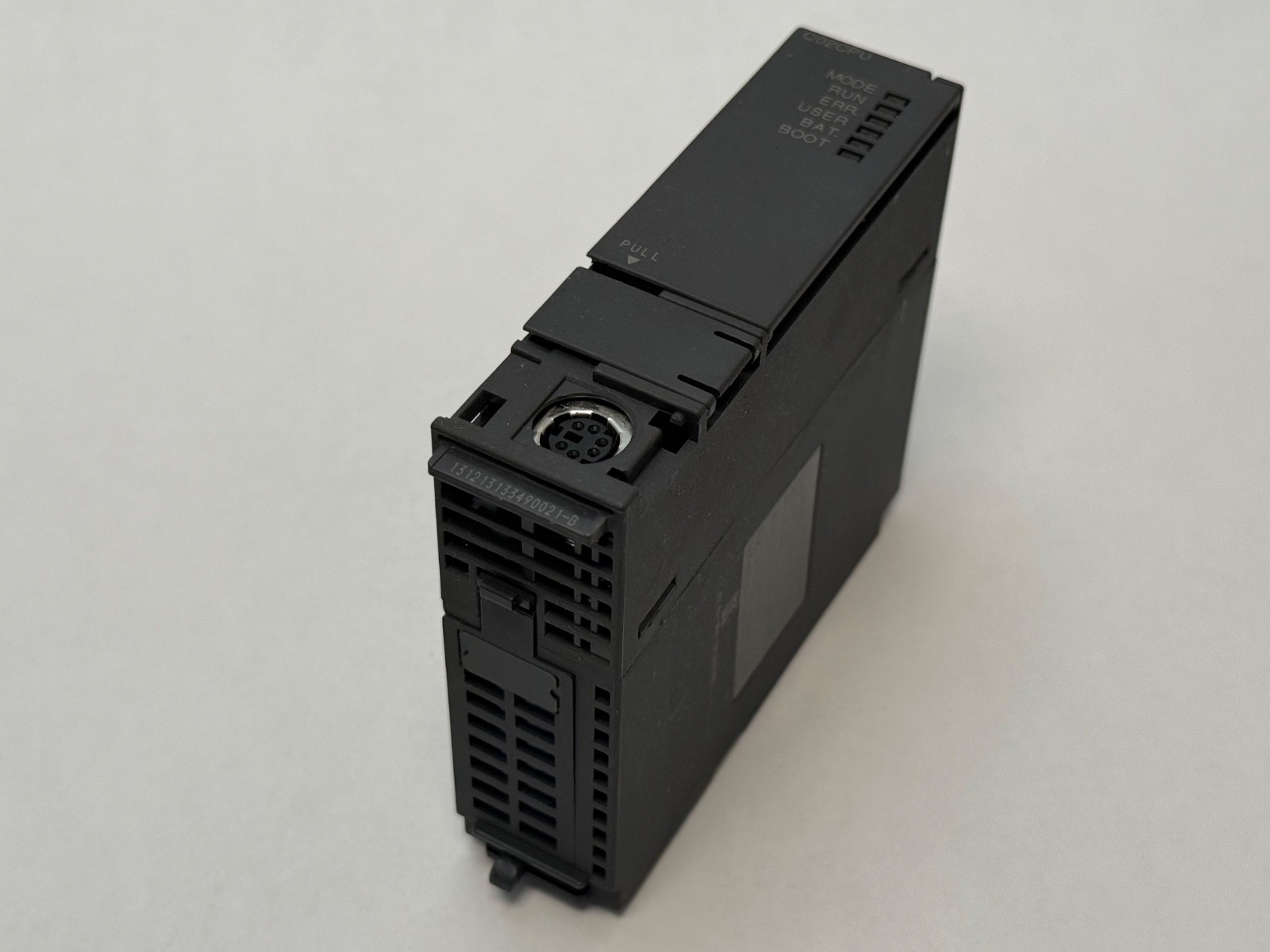

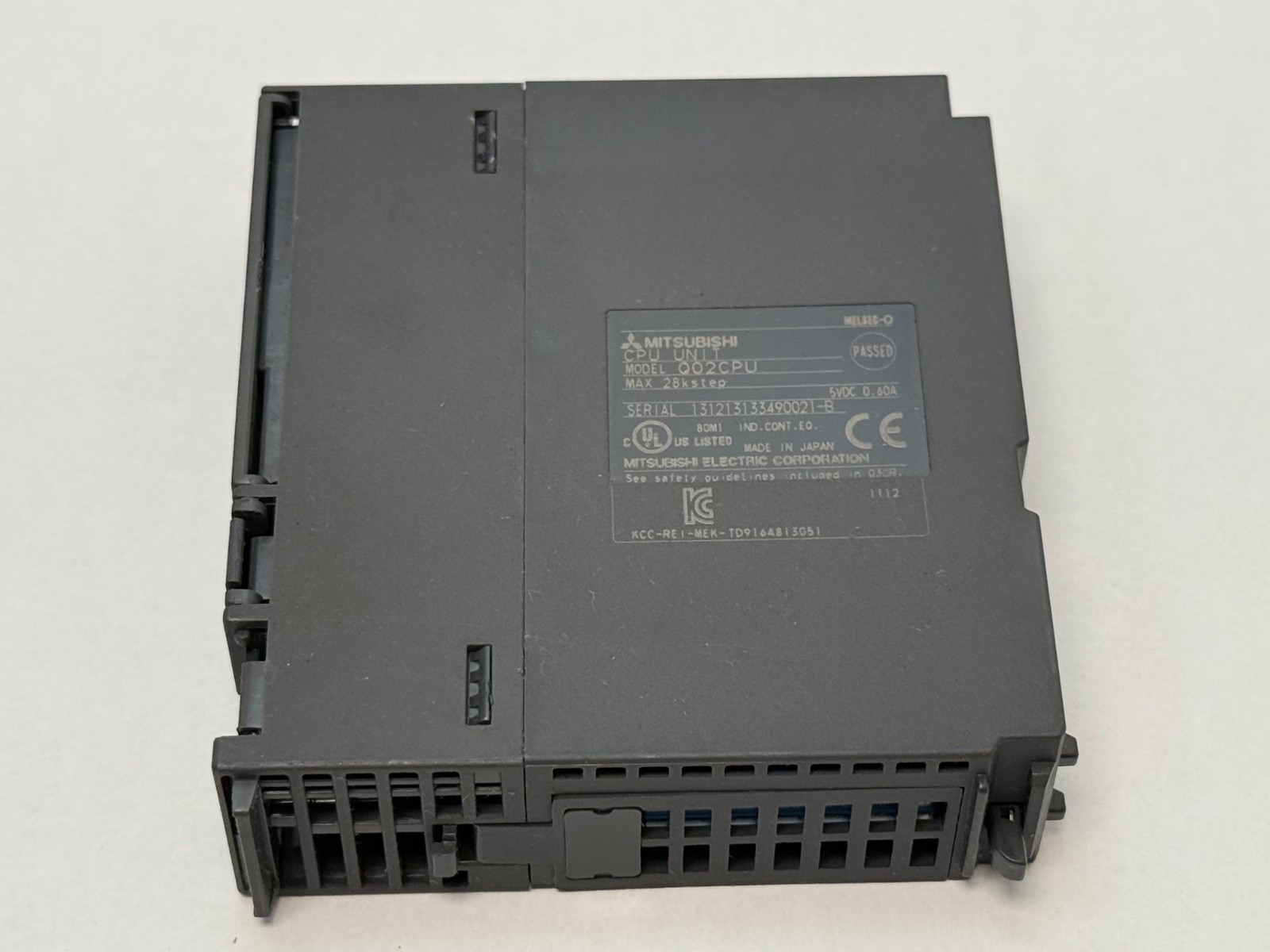

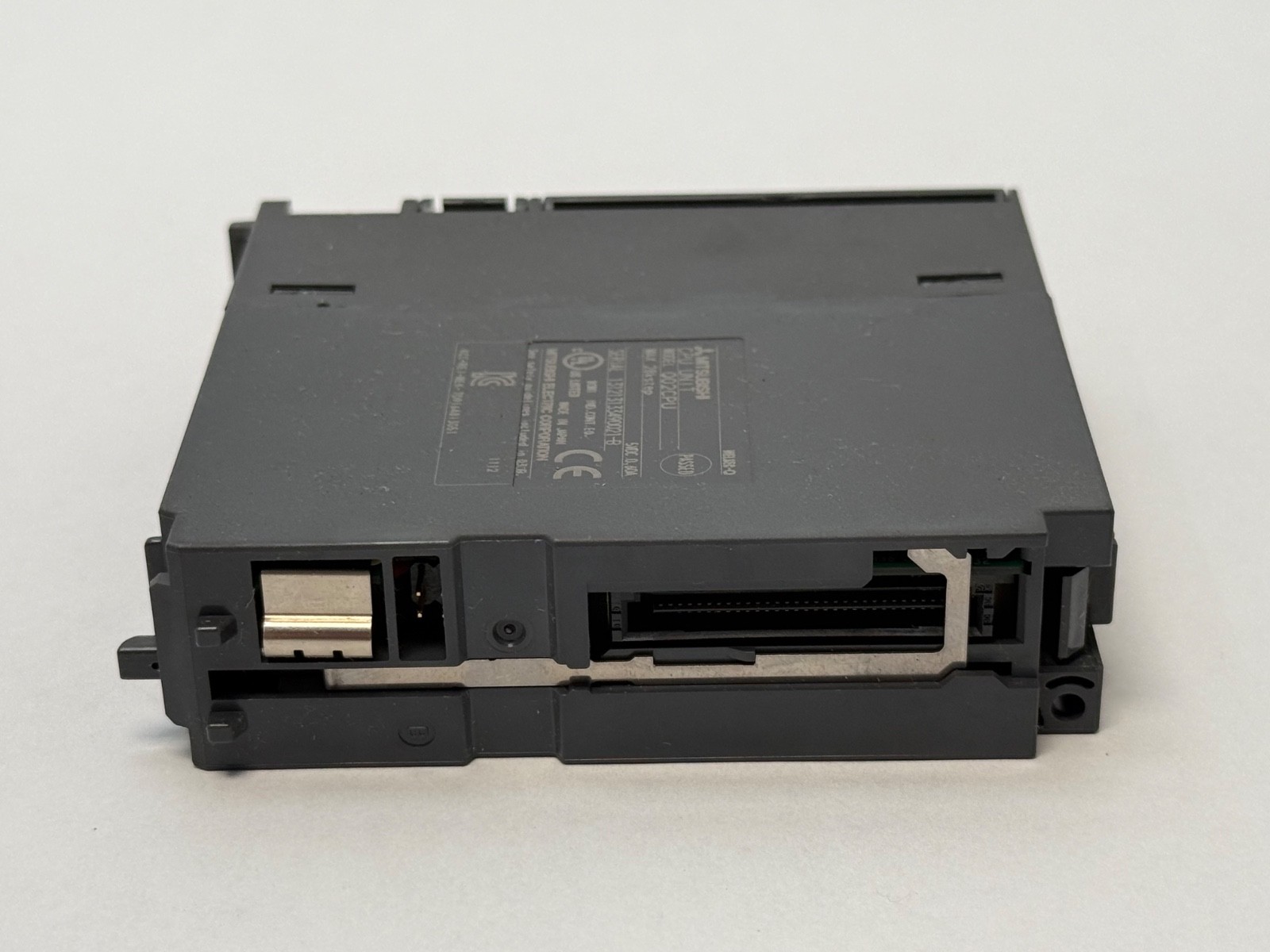

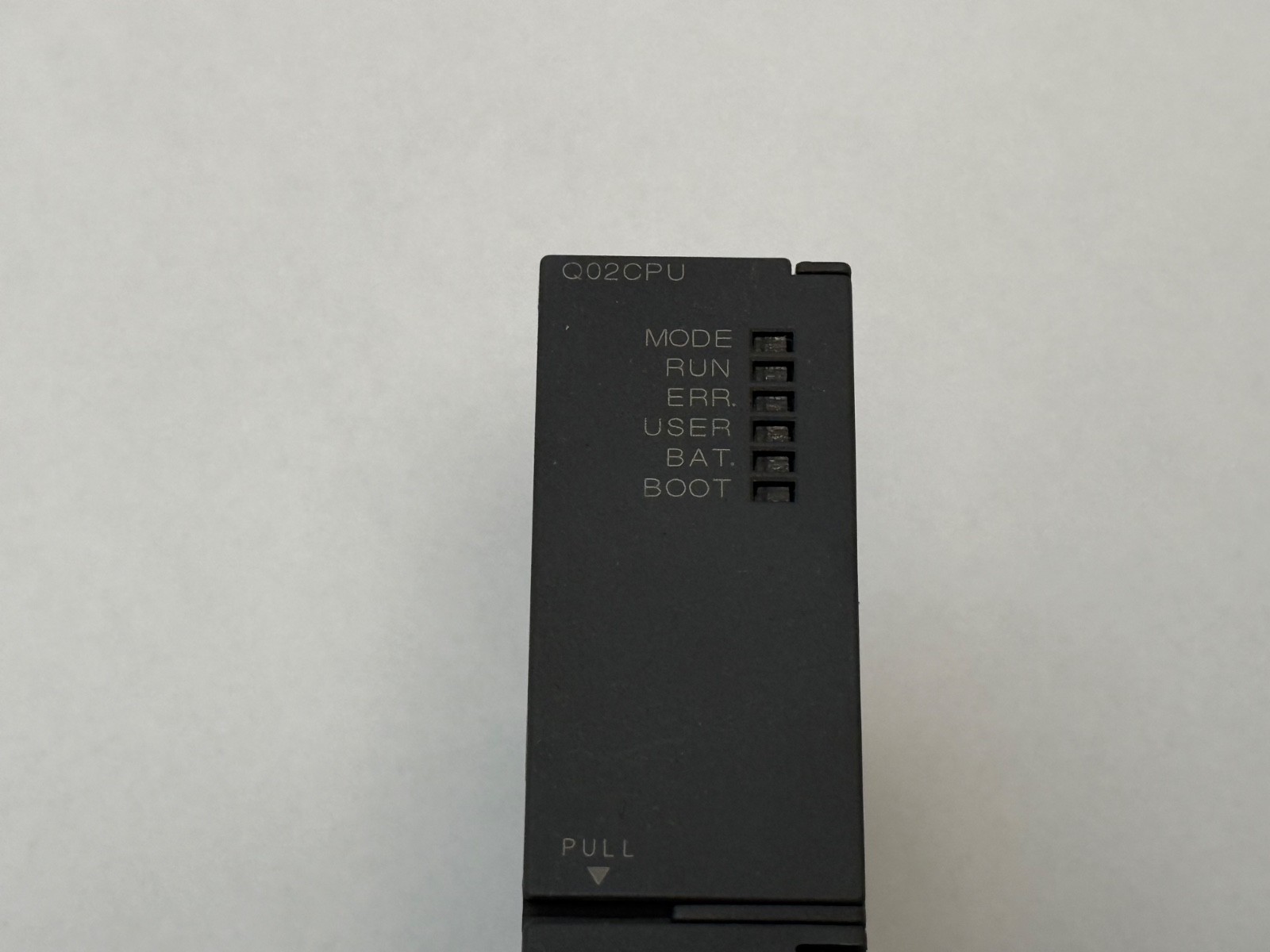

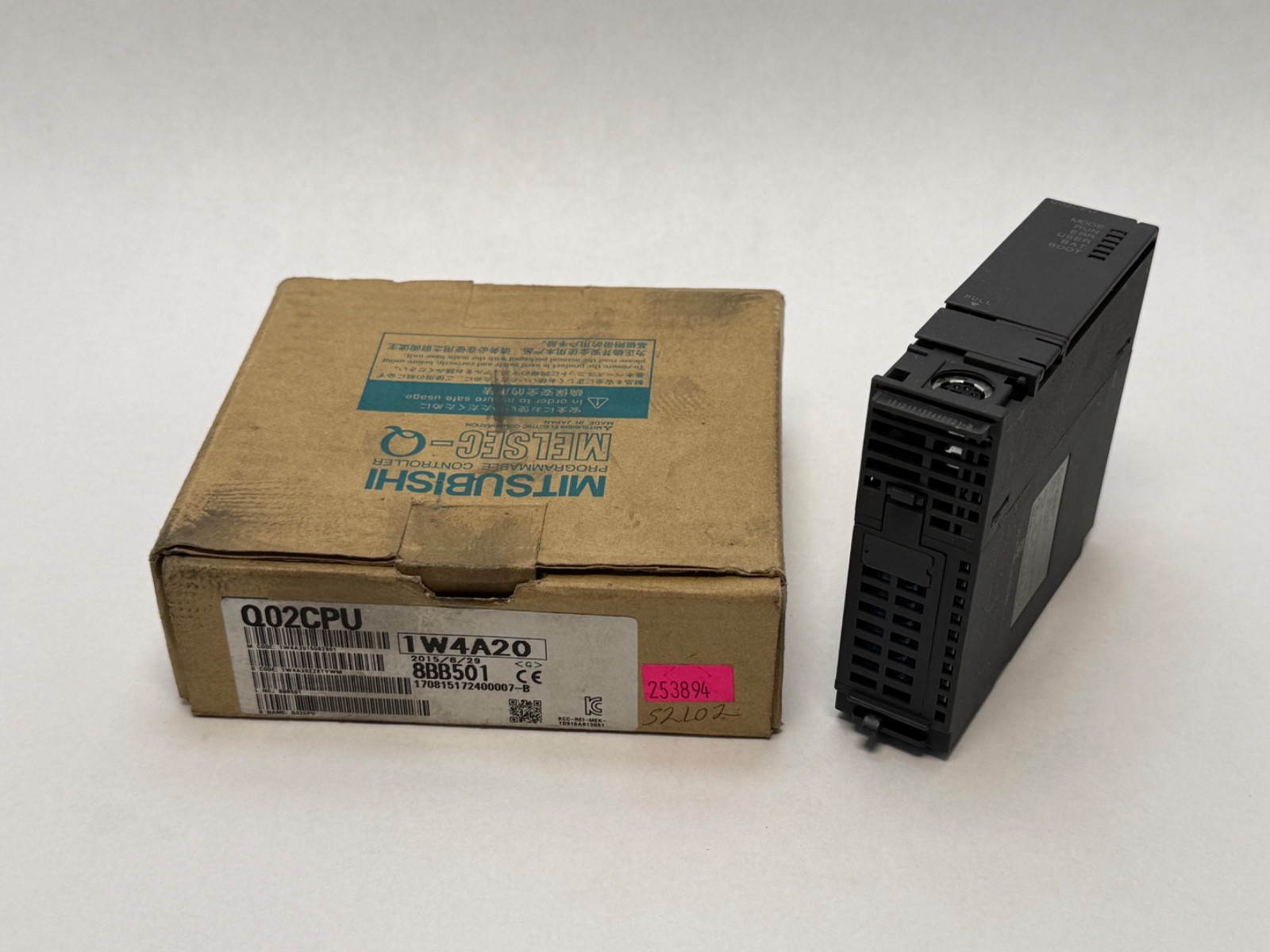

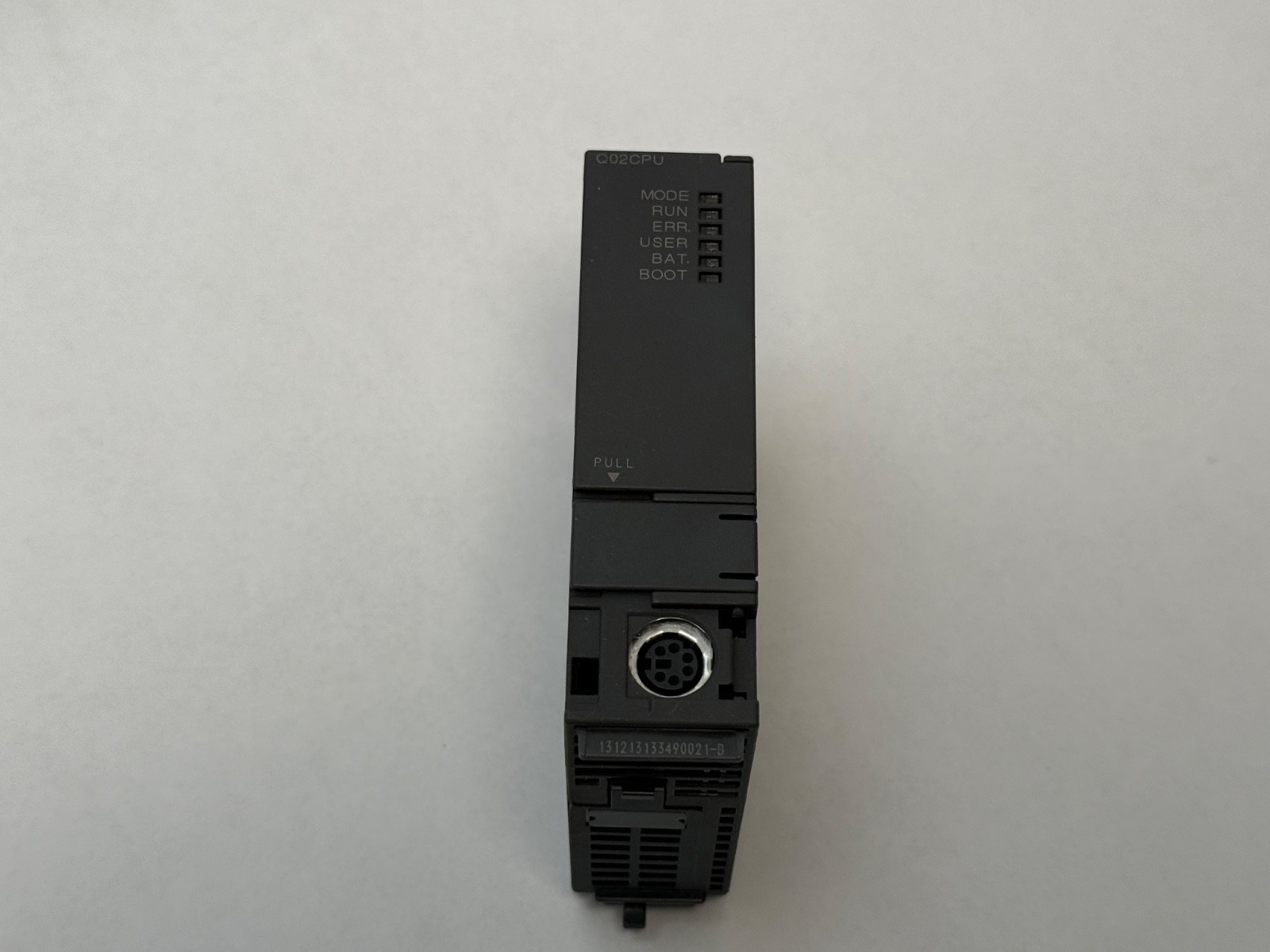

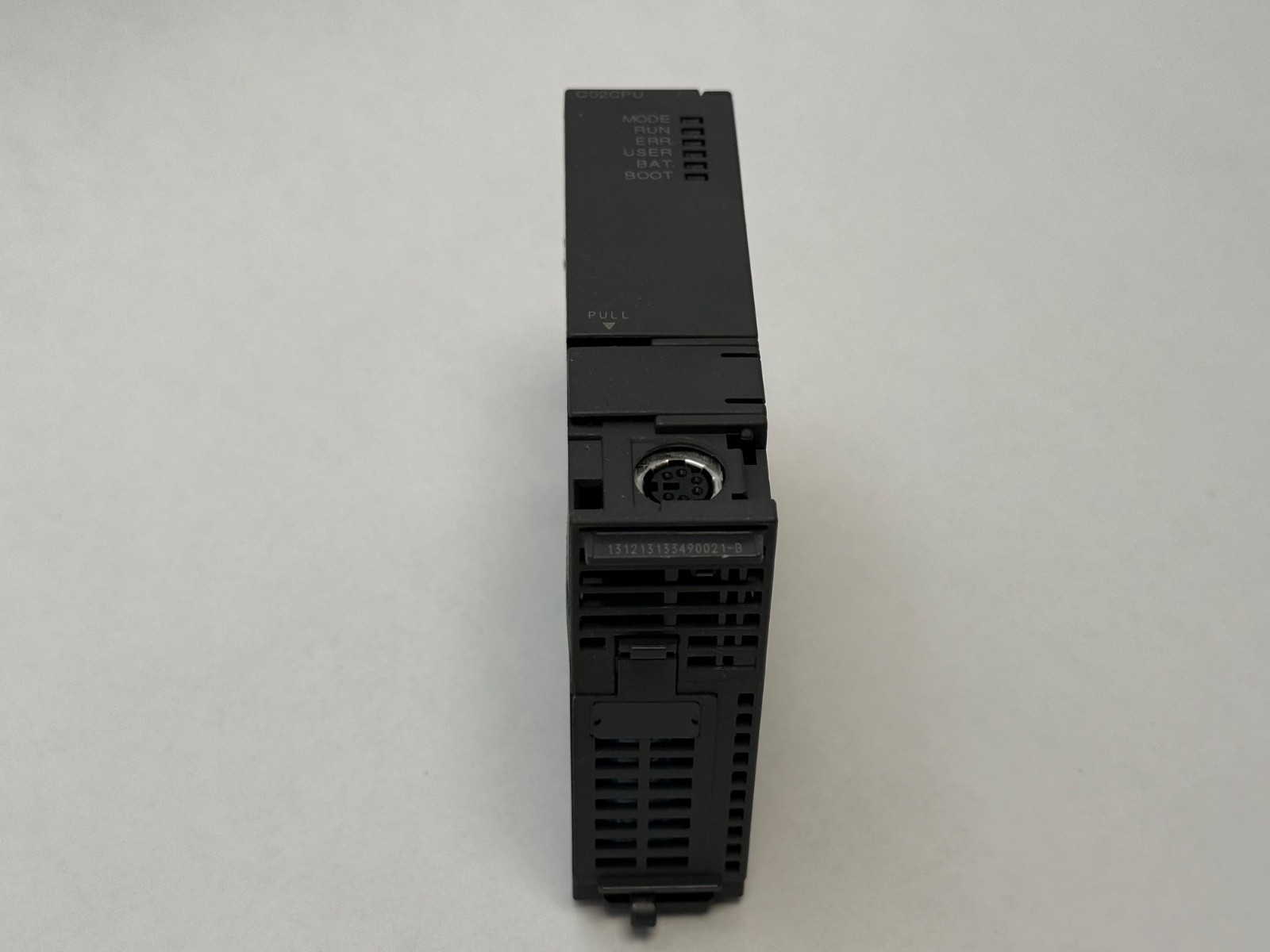

What this part isThe Mitsubishi Electric Q02CPU is a CPU module for the MELSEC-Q Series programmable controller. It controls 4096 I/O points (8192 I/O device points), holds 28K steps of program, executes an LD instruction in 79 ns and has an RS-232 port and a memory card interface. It mounts on a MELSEC-Q base unit and draws 5 V DC from the Q-series power supply module.

SpecificationsControl method: Stored program cyclic operation

I/O control mode: Refresh mode (direct access input/output available by specifying DX, DY)

Programming languages: Relay symbol language, logic symbolic language, MELSAP3 (SFC), MELSAP-L, function block, structured text (ST)

Processing speed (LD X0): 79 ns

Processing speed (MOV D0 D1): 237 ns

Constant scan: 0.5 to 2000 ms (0.5 ms increments)

Program capacity: 28K steps (112K bytes)

Program memory (drive 0): 112K bytes

Memory card (RAM): installed card size, 2M bytes max.

Memory card (ROM): installed card size, Flash card 4M bytes max., ATA card 32M bytes max.

Standard RAM: 64K bytes

Standard ROM: 112K bytes

CPU shared memory: 8K bytes

Number of I/O device points: 8192 points (X/Y0 to 1FFF)

Number of I/O points: 4096 points (X/Y0 to FFF)

Internal relay (M): 8192 points by default

Latch relay (L): 8192 points by default

Link relay (B): 8192 points by default

Timer (T): 2048 points by default

Counter (C): 1024 points by default

Data register (D): 12288 points by default

Link register (W): 8192 points by default

Annunciator (F): 2048 points by default

Edge relay (V): 2048 points by default

File register (R): 32768 points

Step relay (S): 8192 points

Index register (Z): 16 points

Pointer (P): 4096 points

Interrupt pointer (I): 256 points

Special relay (SM): 2048 points

Special register (SD): 2048 points

Clock function: Year, month, date, hour, minute, second, day of week (automatic leap year detection)

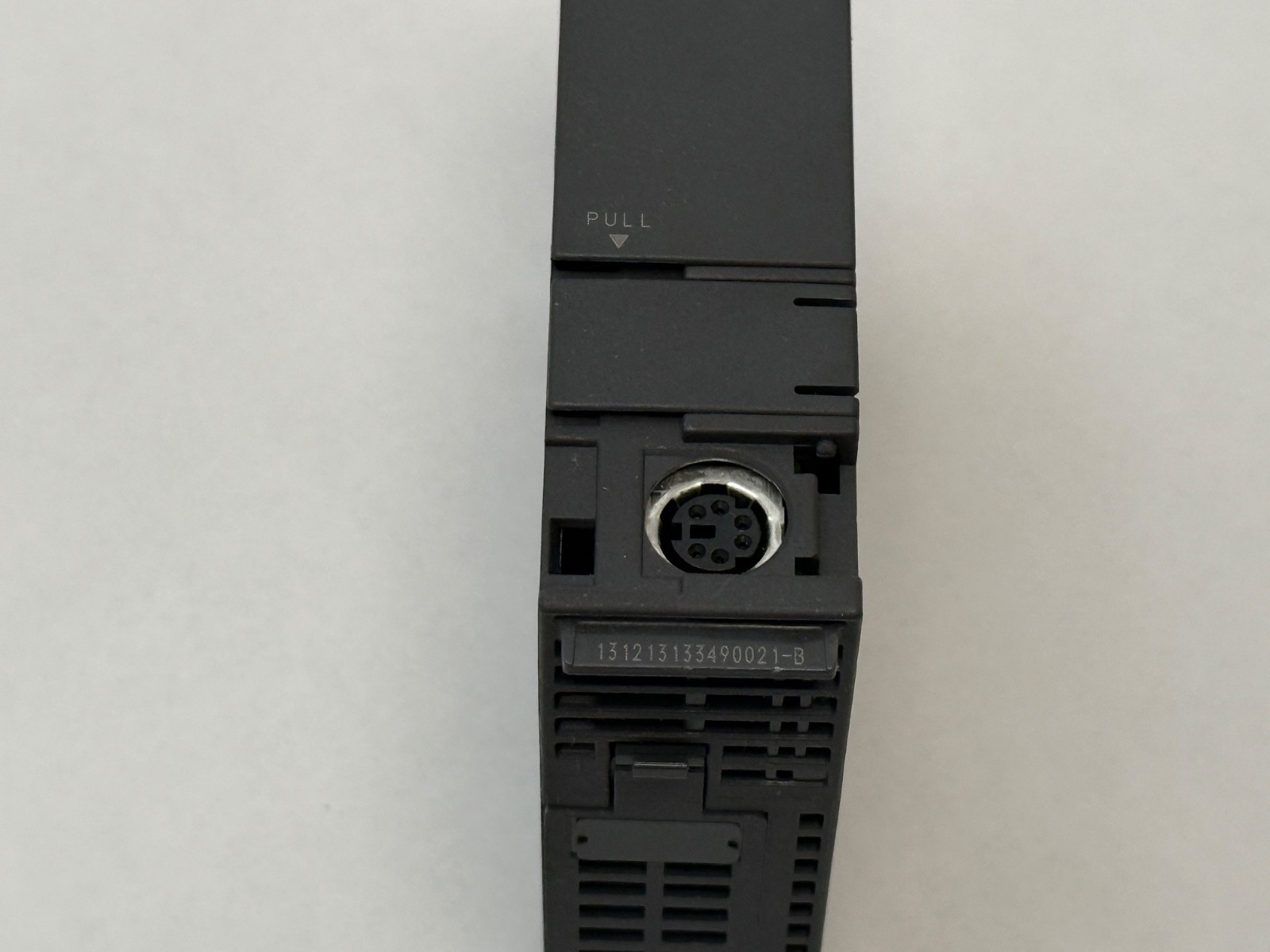

External interface: RS-232 (9-pin D-Sub female connector)

Supply voltage: 5 V DC (from Q-series power supply module)

Internal current consumption (5 V DC): 0.60 A

Operating ambient temperature: 0 to 55 °C

Storage ambient temperature: -25 to 75 °C

Operating and storage ambient humidity: 5 to 95 %RH, non-condensing

Operating altitude: 0 to 2000 m

Installation location: Inside a control panel

Overvoltage category: II or less

Pollution degree: 2 or less

Equipment class: Class I

Series: MELSEC-Q Series

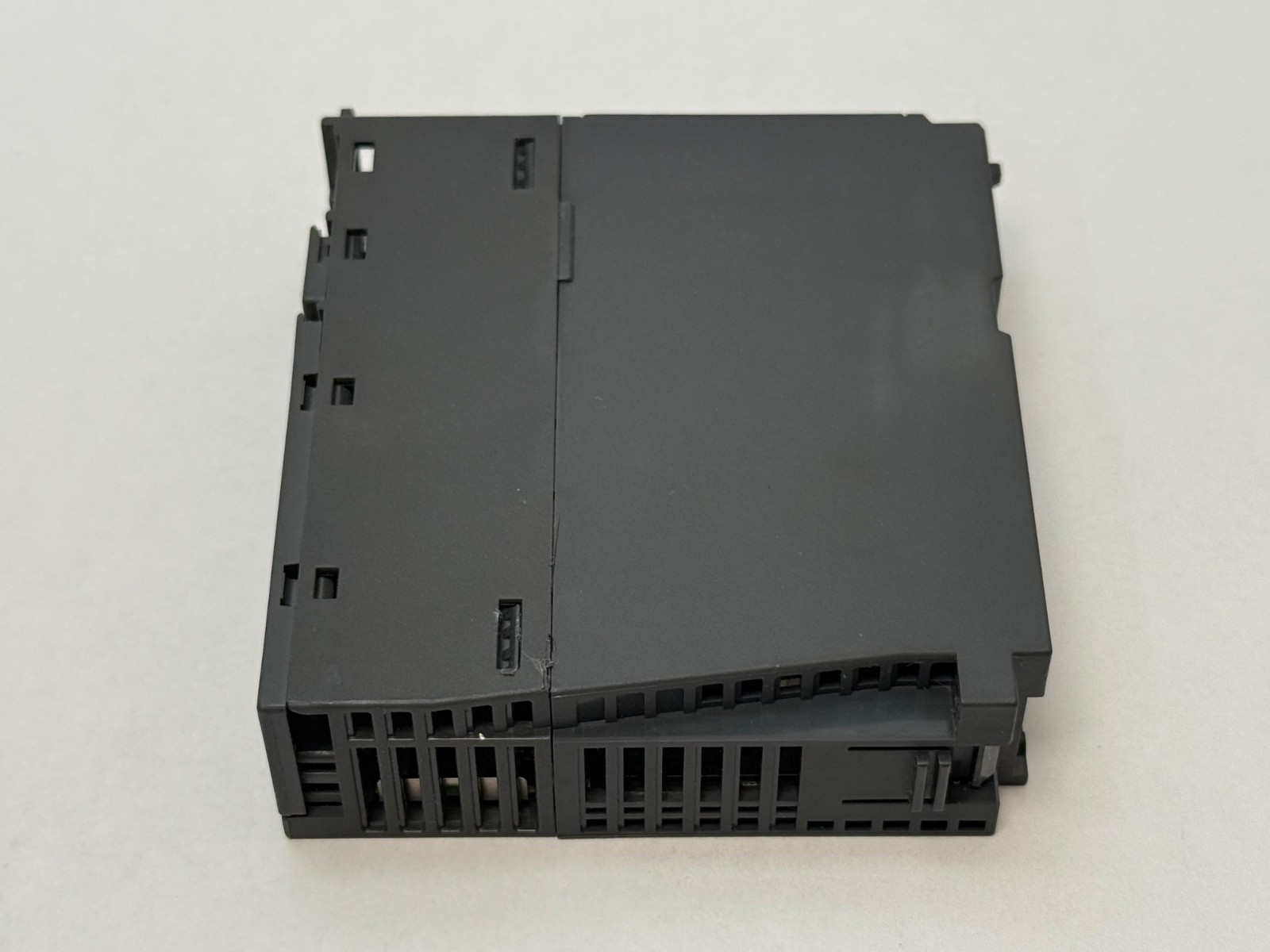

Dimensions and weightHeight: 98 mm

Width: 27.4 mm

Depth: 89.3 mm

Weight: 0.20 kg (0.44 lb)

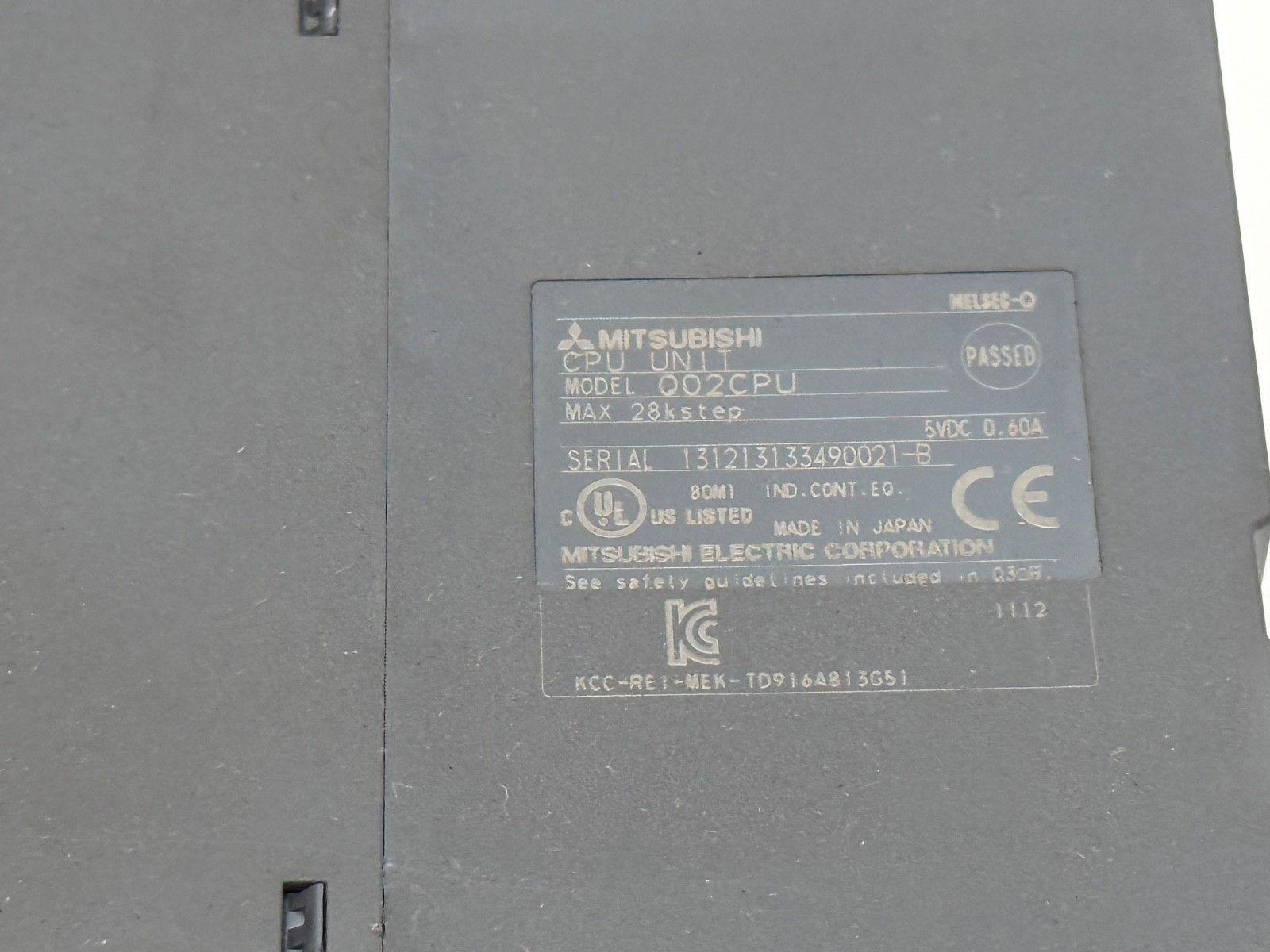

ApprovalsConformance standards: UL, cUL, CE (EMC), CE (RoHS), KC (EMC)

Shipping approvals: LR, NK, DNV, ABS, RINA, BV

Compatibility and replacementManufacturer status: Discontinued (2018/09)

Replacement models listed by Mitsubishi Electric: R02CPU, R04CPU, Q03UDVCPU

Storage media: SRAM card, Flash card, ATA card
