Pepperl+FuchsGLV18-6-S/25/102/115Retroreflective Photoelectric Sensor, 6.5 m Range, M18 Plastic Barrel, Red Light, DC NPN Light-On, Fixed Cable

Product Description

What this part is:

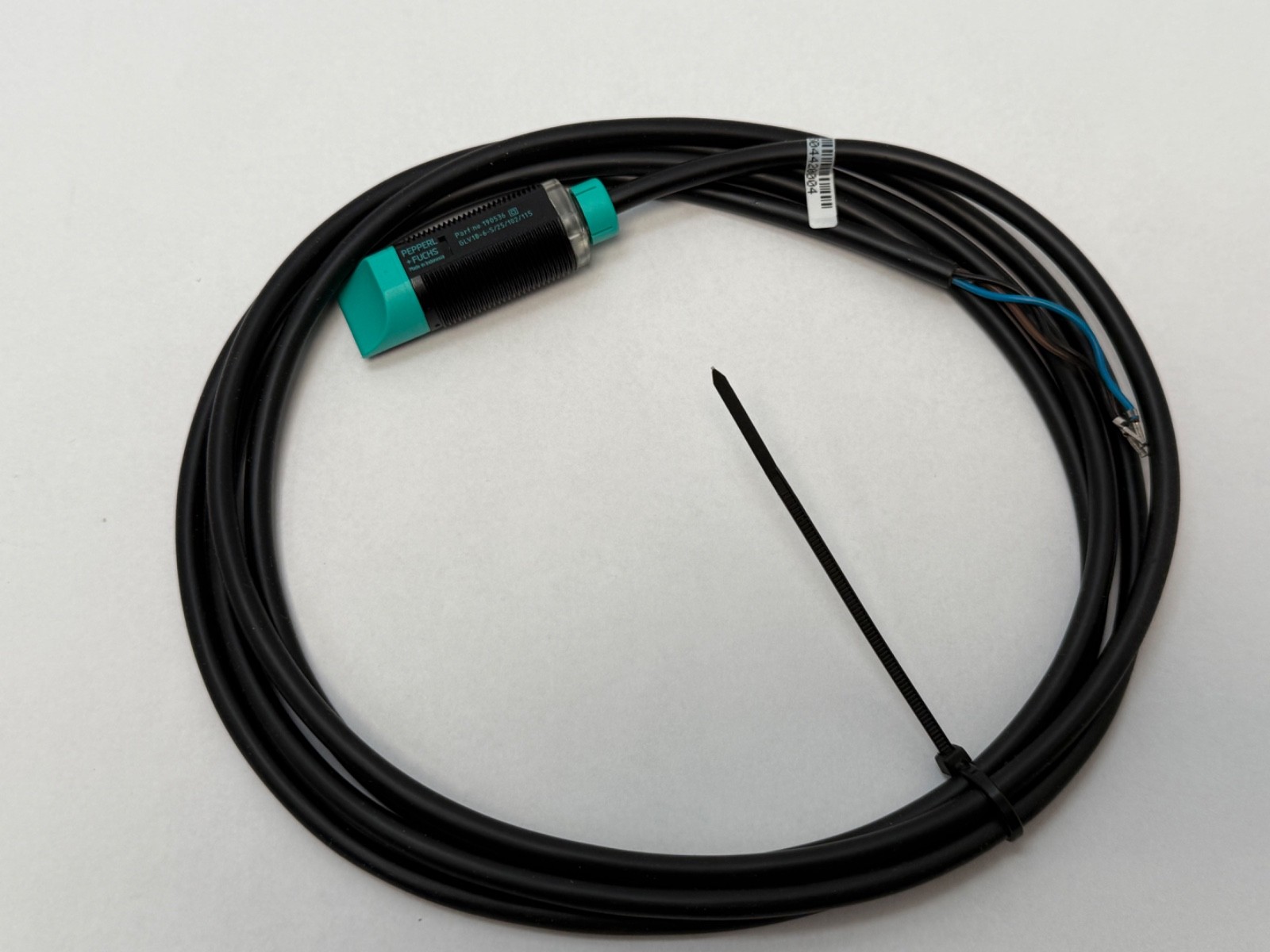

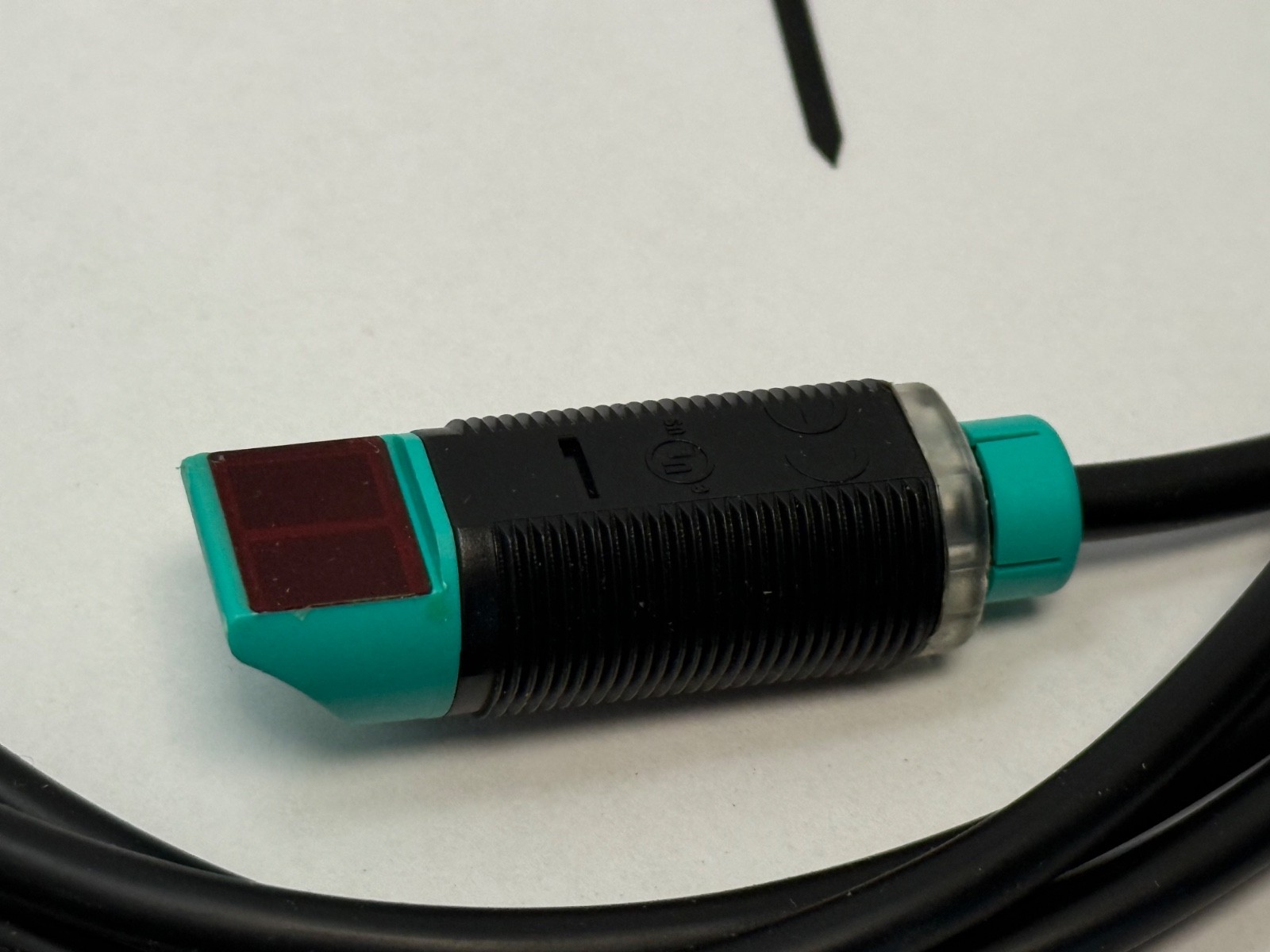

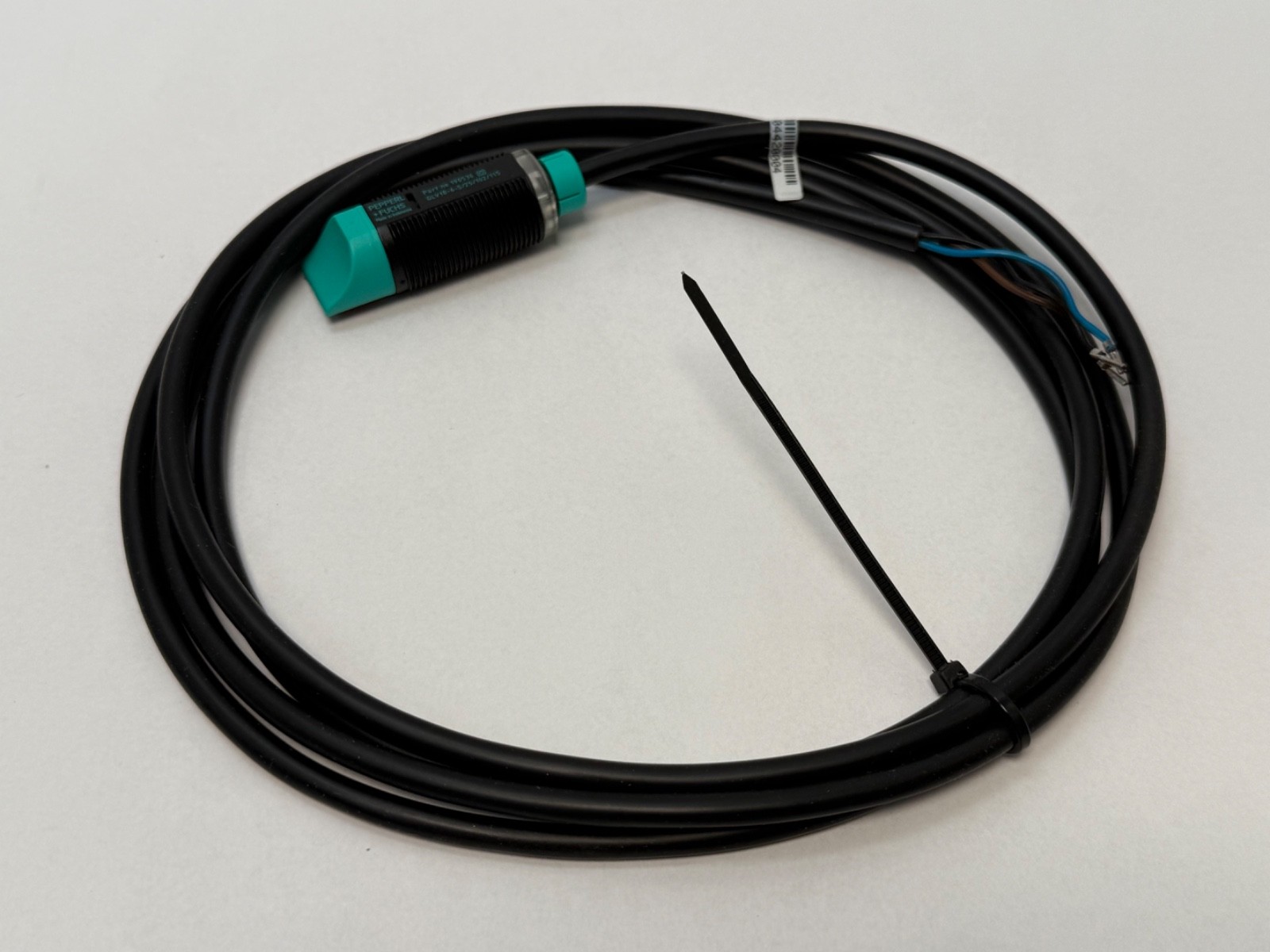

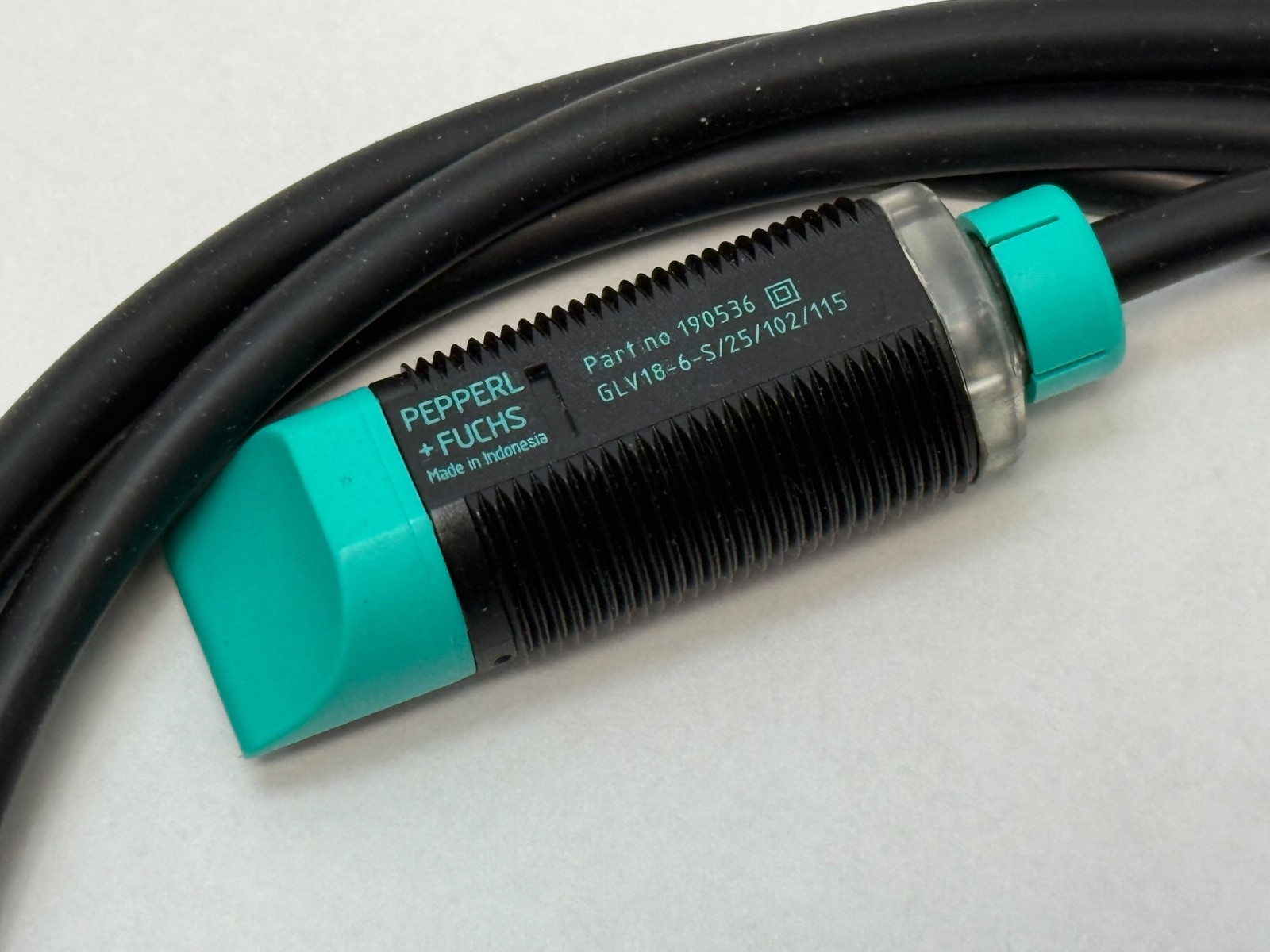

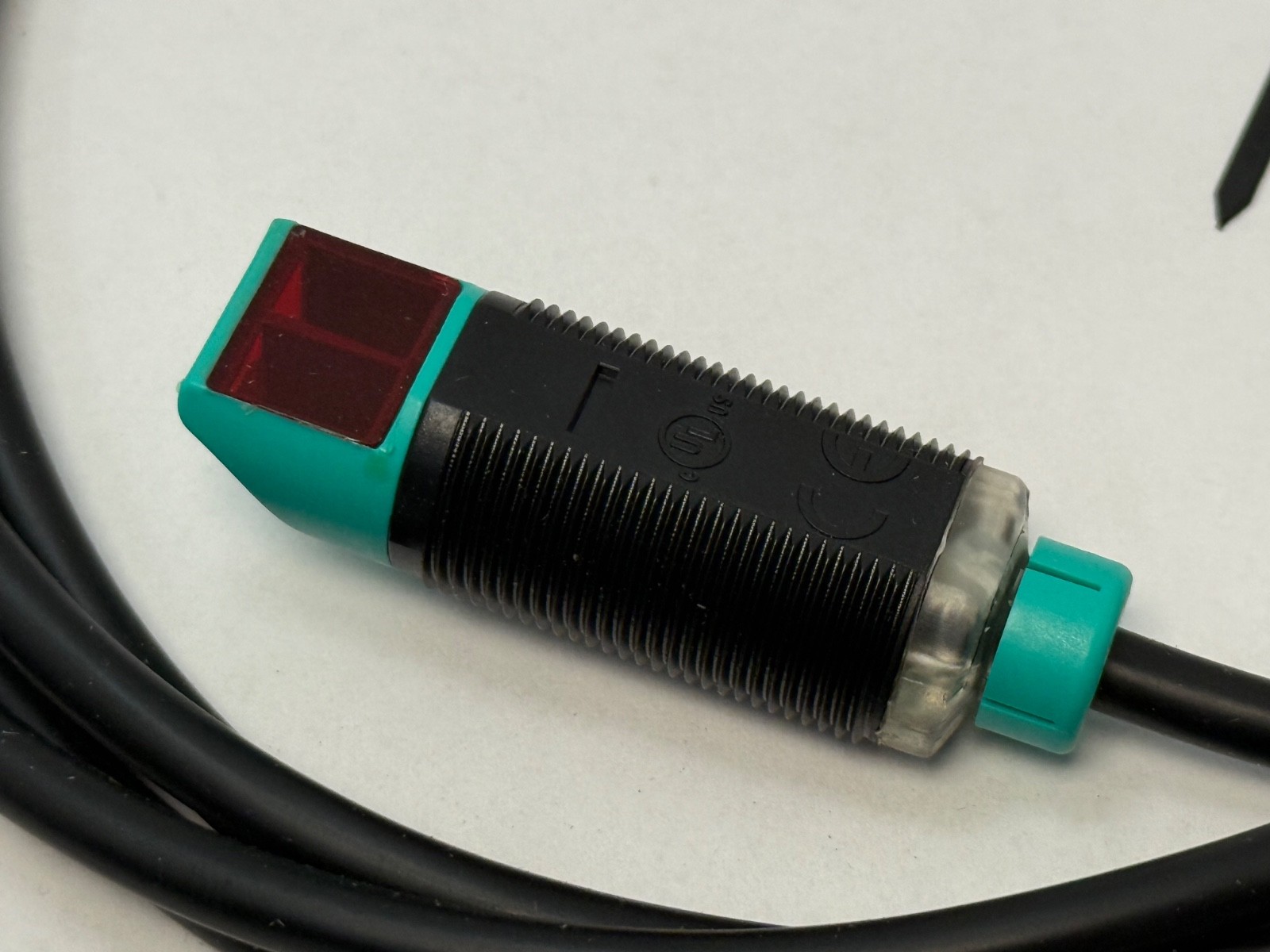

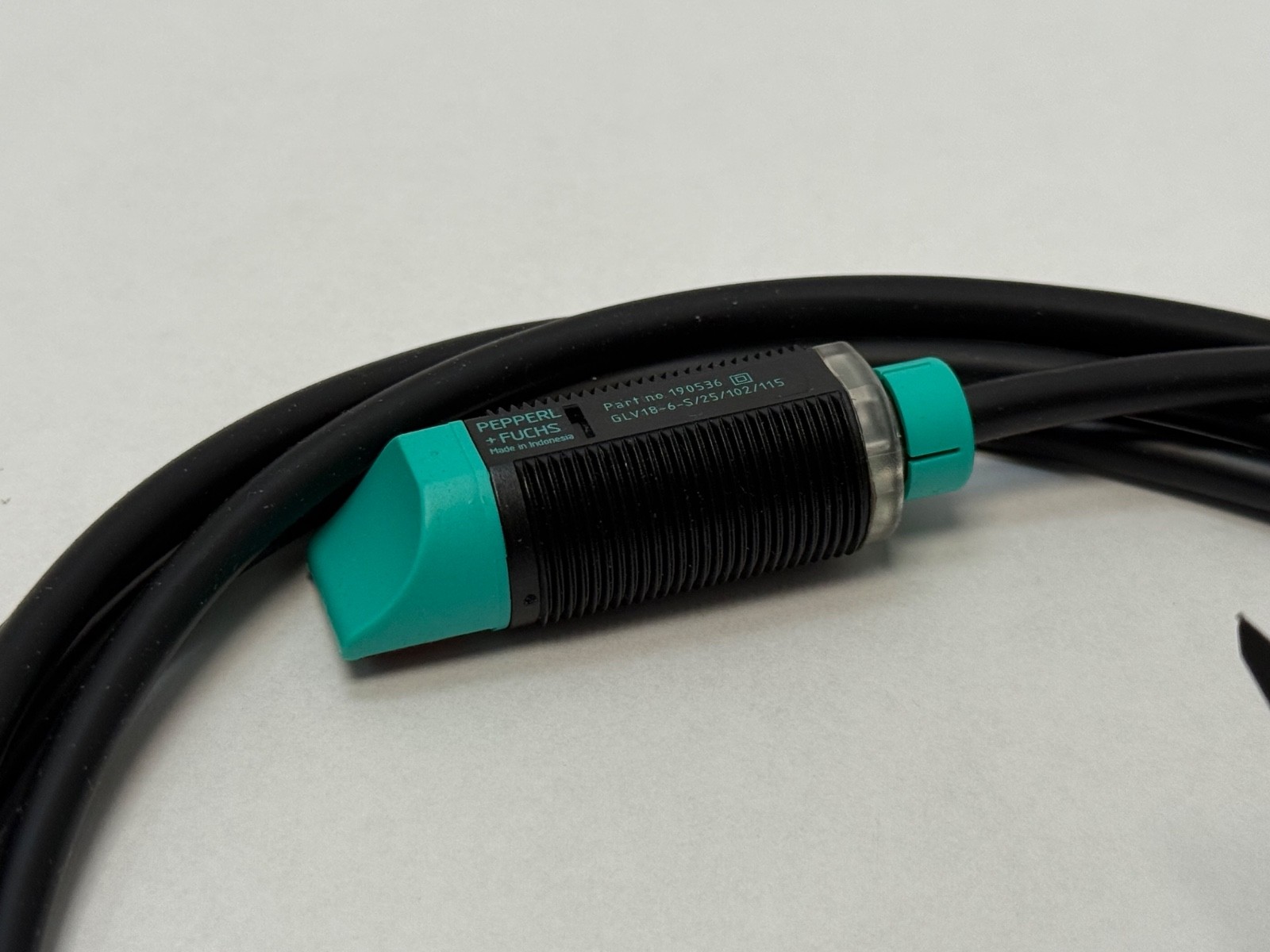

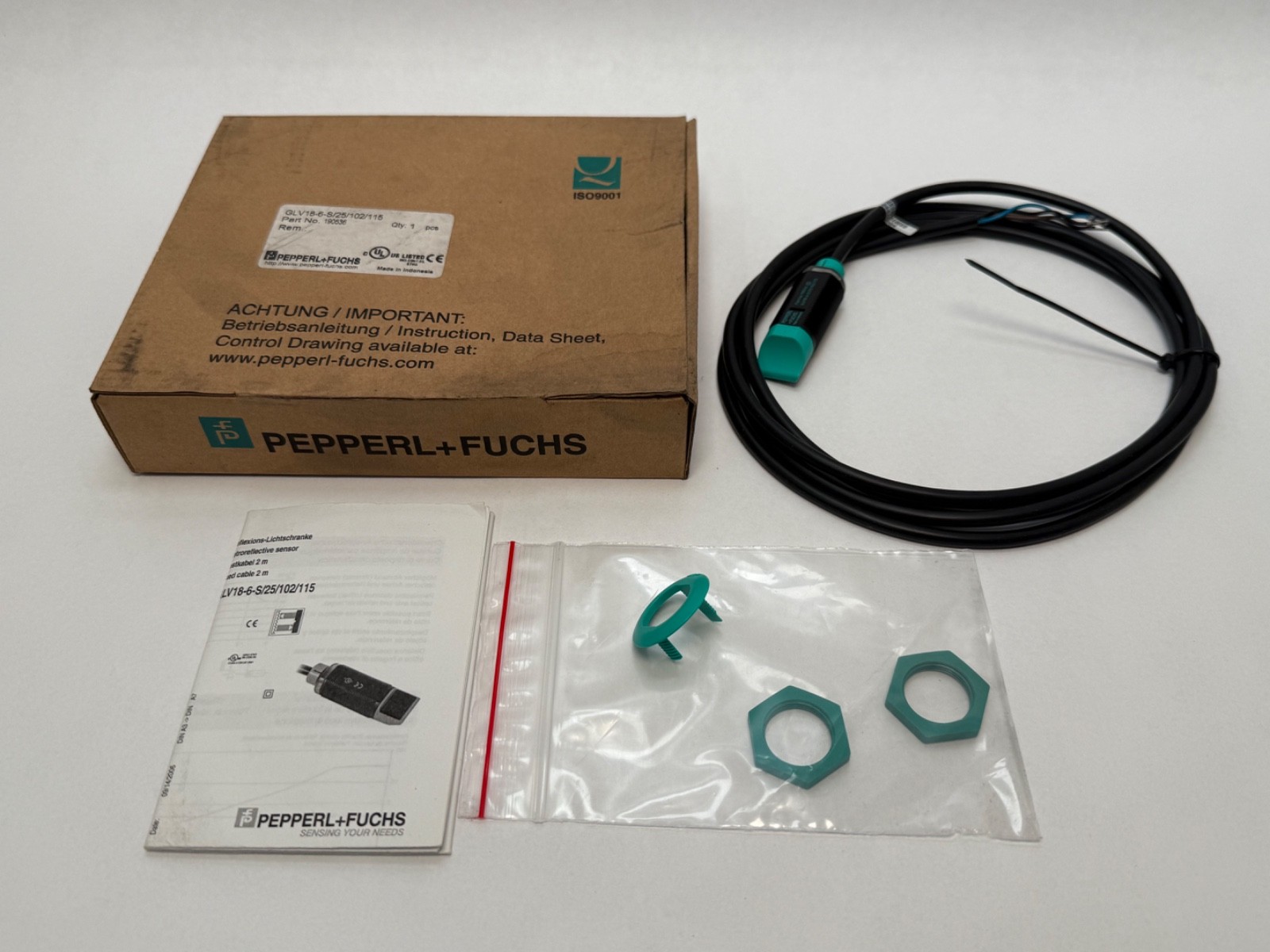

Pepperl+Fuchs GLV18-6-S/25/102/115, part number 190536, a retroreflective photoelectric sensor from the Efficient-Line GLV18 series in a short M18 plastic threaded barrel with lateral (side) light exit. Emitter and receiver share one housing and the beam is returned by a reflector (reference reflector C110-2). Unit Quantity: 1 Pc.

Decoding the designation:

GLV18-6 — Pepperl+Fuchs GLV18 retroreflective sensor series in an M18 plastic housing.

S — version with lateral light exit.

25 — output option: 1 NPN open-collector output.

102 — light-on switching option.

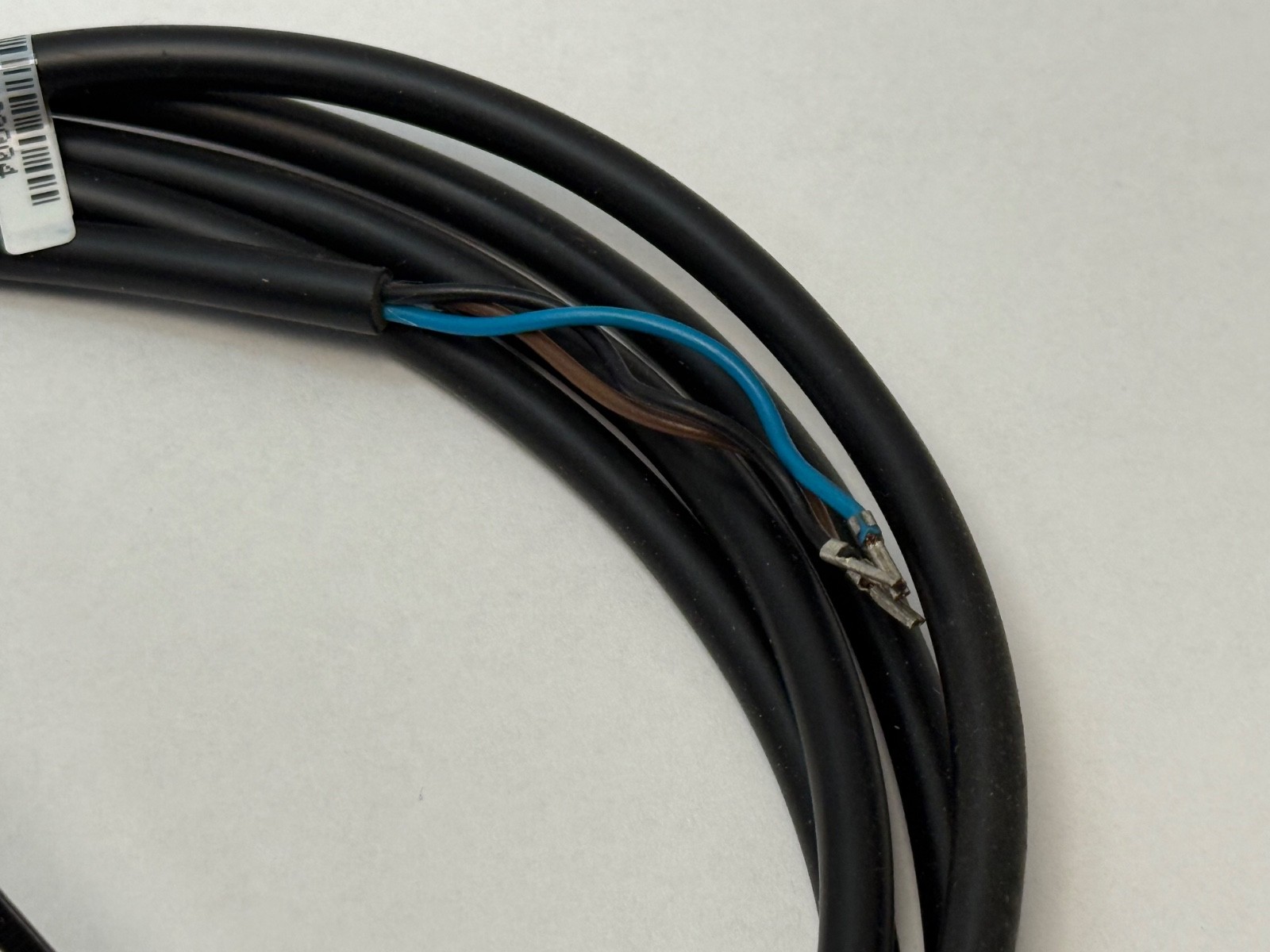

115 — fixed cable connection, 2 m.

Specifications:

Sensing Mode: Retroreflective. Operating Range: 0 to 5.5 m. Reflector Distance: 0.05 to 5.5 m. Threshold Range: 6.5 m. Reference Reflector: C110-2. Light Source: LED, red, 640 nm, modulated. Polarization Filter: None. Light Spot Diameter: approx. 250 mm at 6.5 m. Beam Angle: approx. 2°. Ambient Light Limit: 30,000 lux. Operating Voltage: 10 to 30 V DC. No-Load Current: under 20 mA. Output: 1 NPN, open collector, short-circuit protected. Switching Function: Light-on. Switching Voltage: max. 30 V DC. Switching Current: max. 100 mA. Voltage Drop: up to 1.5 V DC. Switching Frequency: 500 Hz. Response Time: up to 1 ms. Ambient Temperature: -25 to 60 °C. Storage Temperature: -40 to 70 °C. Protection Degree: IP67. Protection Class: II. Connection: Fixed cable, 2 m, PVC. Housing: PC, M18 x 1 thread. Lens: PMMA. Indication: green power LED and yellow function LED, four LEDs for 360° visibility. Adjustment: Potentiometer. Weight: approx. 75 g. Approvals: cULus Listed, Class 2 Power Source. Standard: EN 60947-5-2. Part Number: 190536.

Dimensions and mounting:

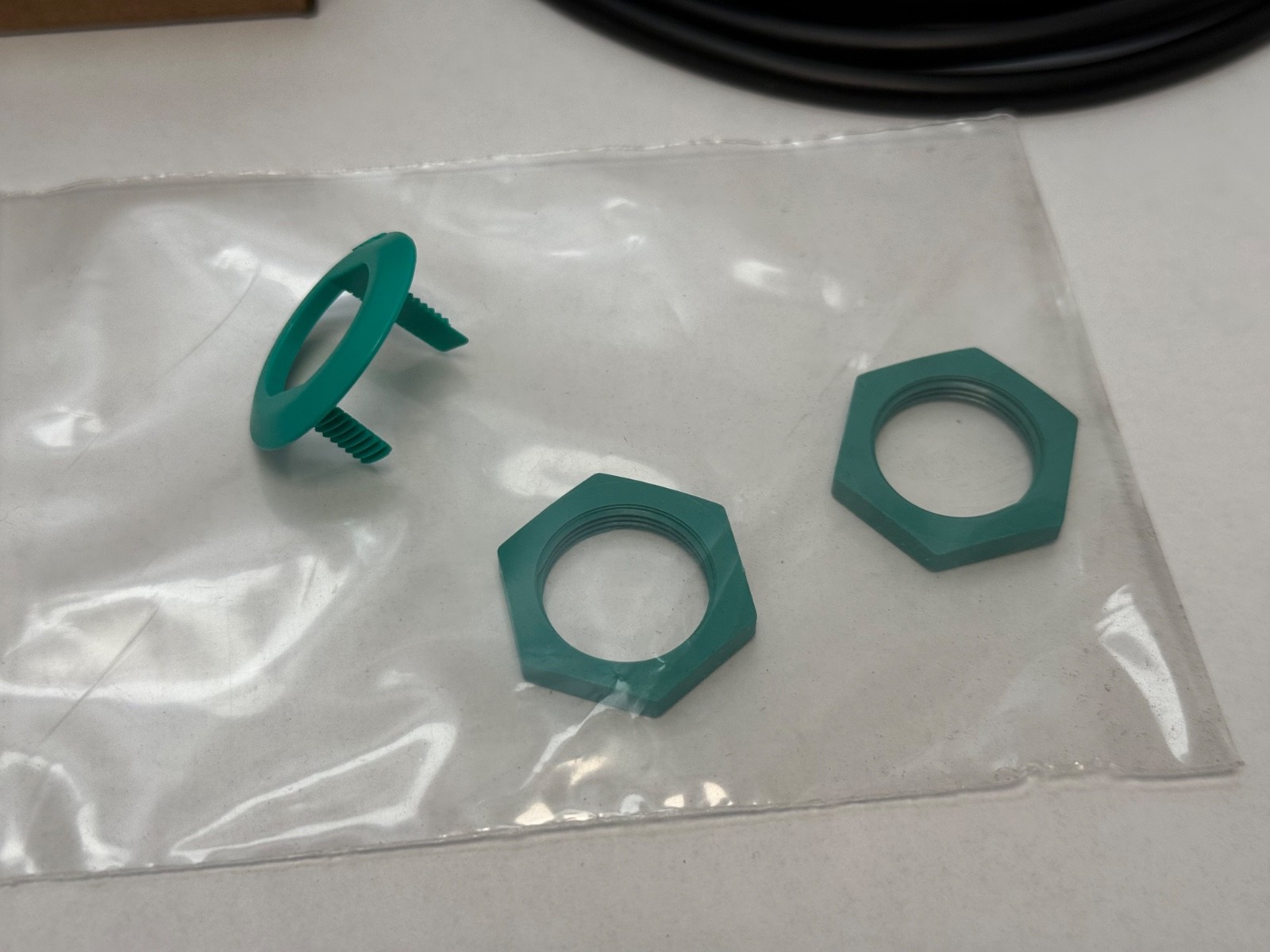

M18 x 1 threaded barrel with lateral light exit. Pepperl+Fuchs accessories for this sensor: CPZ18B03 mounting aid with tilting device, BF 18 mounting flange, BF 18-F plastic mounting flange and BF 5-30 universal bracket for cylindrical sensors of 5 to 30 mm diameter.

Compatibility and replacement:

Reference reflector: C110-2. GLV18-6-S/25/102/115 and 190536 are the same sensor. Alternate written forms: GLV18-6-S/25/102/115, GLV18-6-S-25-102-115, GLV1865102115, 190536.

Frequently asked questions:

What is the Pepperl+Fuchs 190536?

A GLV18-6-S/25/102/115 retroreflective photoelectric sensor with 5.5 m operating range, 6.5 m threshold range, red light and a 2 m fixed cable.

What output does it have?

One NPN open-collector output with light-on switching, 10 to 30 V DC supply and up to 100 mA switching current.

What housing does it use?

An M18 x 1 plastic (PC) barrel with lateral light exit and IP67 protection.
