Leuze PRK 96K/R-1420-25 polarized retro-reflective sensor, 0.3 to 8 m range, red LED, 20-230 V AC/DC, relay output, terminal, IP67. Leuze part 50025167.
List Price
$228.53
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Leuze |
|---|---|
| MPN | PRK 96K/R-1420-25 |
| Model | PRK96KR142025 |
| Type | Polarized Retro-Reflective Photoelectric Sensor |
|---|---|
| Body Style | Rectangular |
| Current Type | AC/DC |
| Base Number | PRK 96K |
| Industry Terms | retro-reflective sensor, polarized reflex sensor, photo eye, photoelectric switch, reflector sensor, retroreflective light barrier, relay output photo eye |
| Common Misspellings | Leuze Electronic PRK96, Leuse PRK 96K, Luze PRK96K, PRK-96-K/R |
| Mpn Variants | PRK 96K/R-1420-25, PRK-96K/R-1420-25, PRK96K/R-1420-25, PRK 96K R 1420 25, 96KR142025, PRK96KR142025, 50025167 |
| Compatible With Replaces | Leuze successors: PRK 96M/R-3420-25 (50082066), PRK49C.UC/TS-TB (50127422) |
| Additional Attributes | Operating Range: 0.3-8 m; Operating Range Limit: 0.1-10 m; Light Source: Red LED; Supply Voltage: 20-230 V AC/DC; Output: Relay, NC/NO contact, light switching; Switching Frequency: 20 Hz; Connection: Terminal, 5-pin; Dimensions: 30 x 90 x 70 mm; Housing: PC plastic; Protection: IP67; Protection Class: II; Leuze Part No.: 50025167 |
| Min Temp | -30 °C |
| Series | 96 |
| Max Temp | 55 °C |
| Item Weight | 150 g (0.33 lb) |
| Cross Reference 1 | Leuze PRK 96M/R-3420-25 - successor, 0.3 to 15 m |
|---|---|
| Cross Reference 2 | Leuze PRK49C.UC/TS-TB - successor, 0.1 to 24 m |

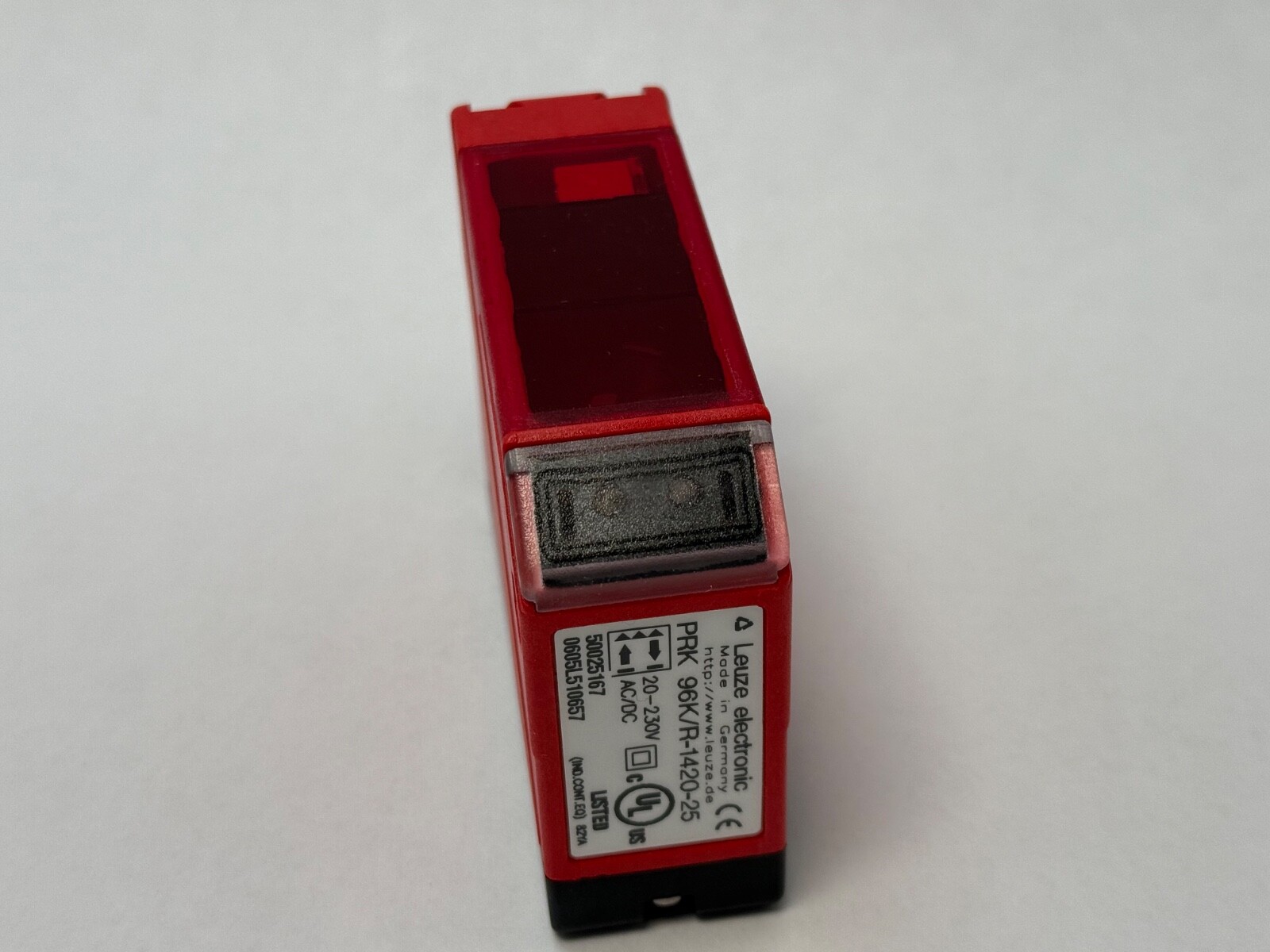

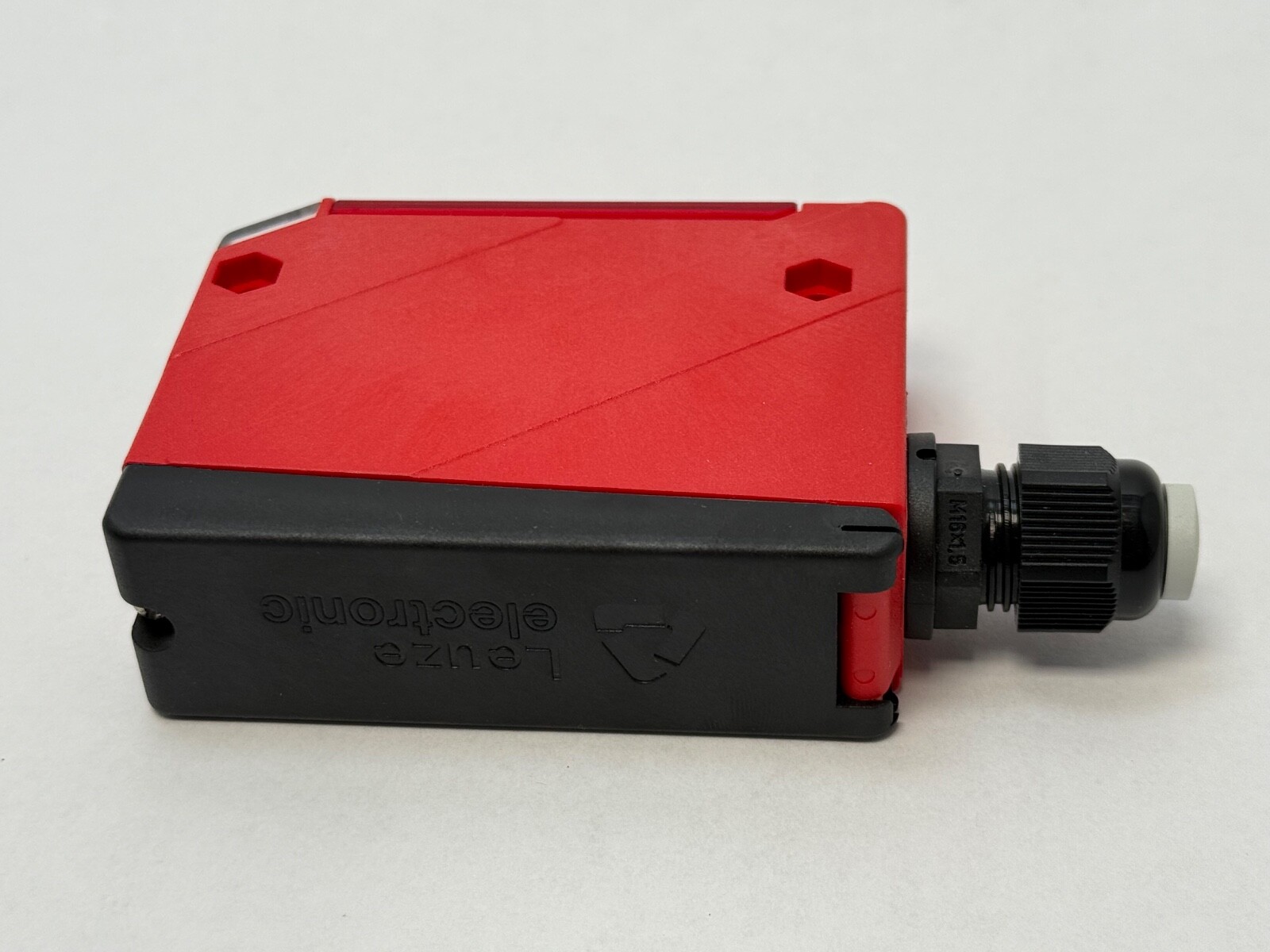

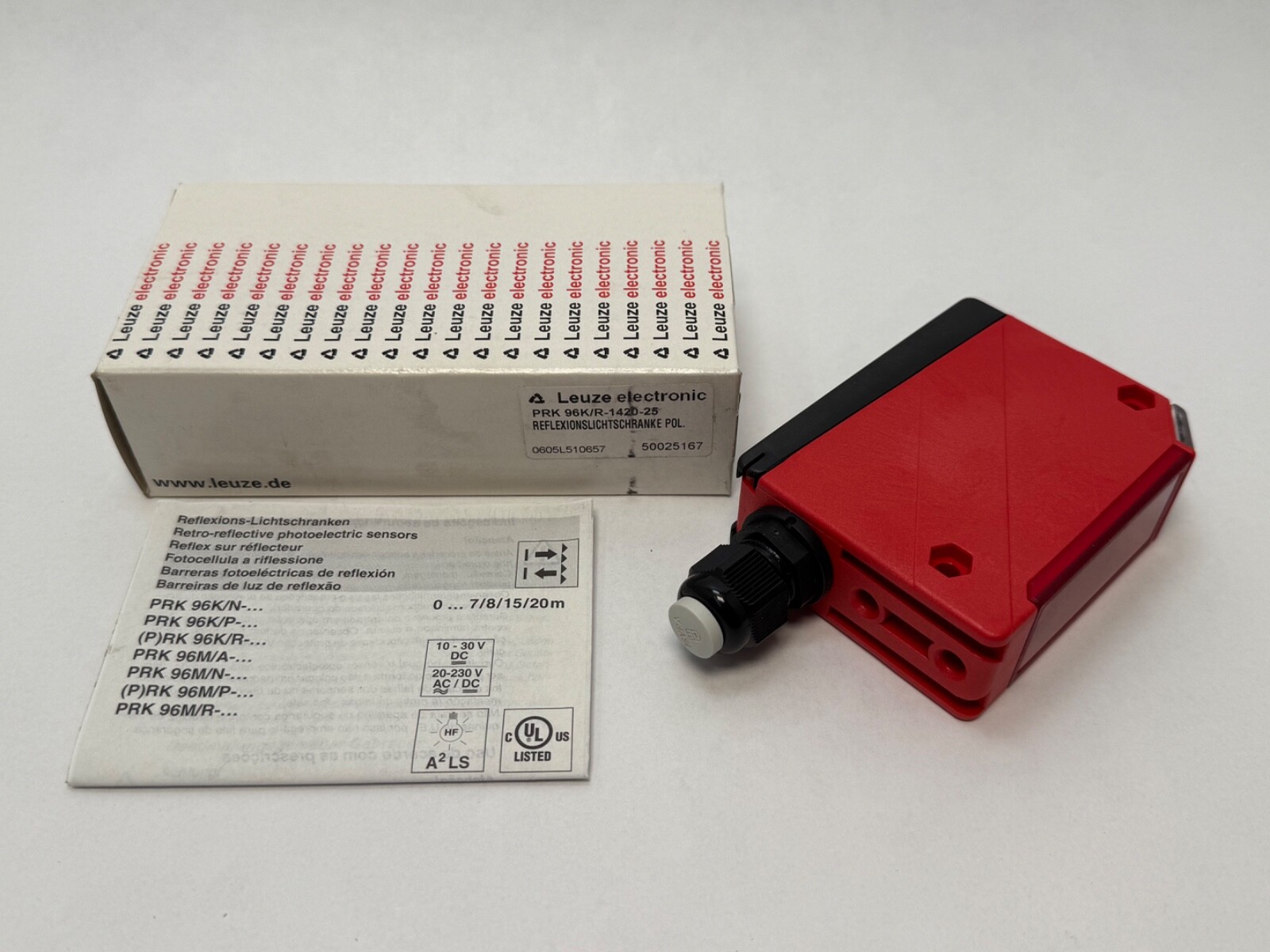

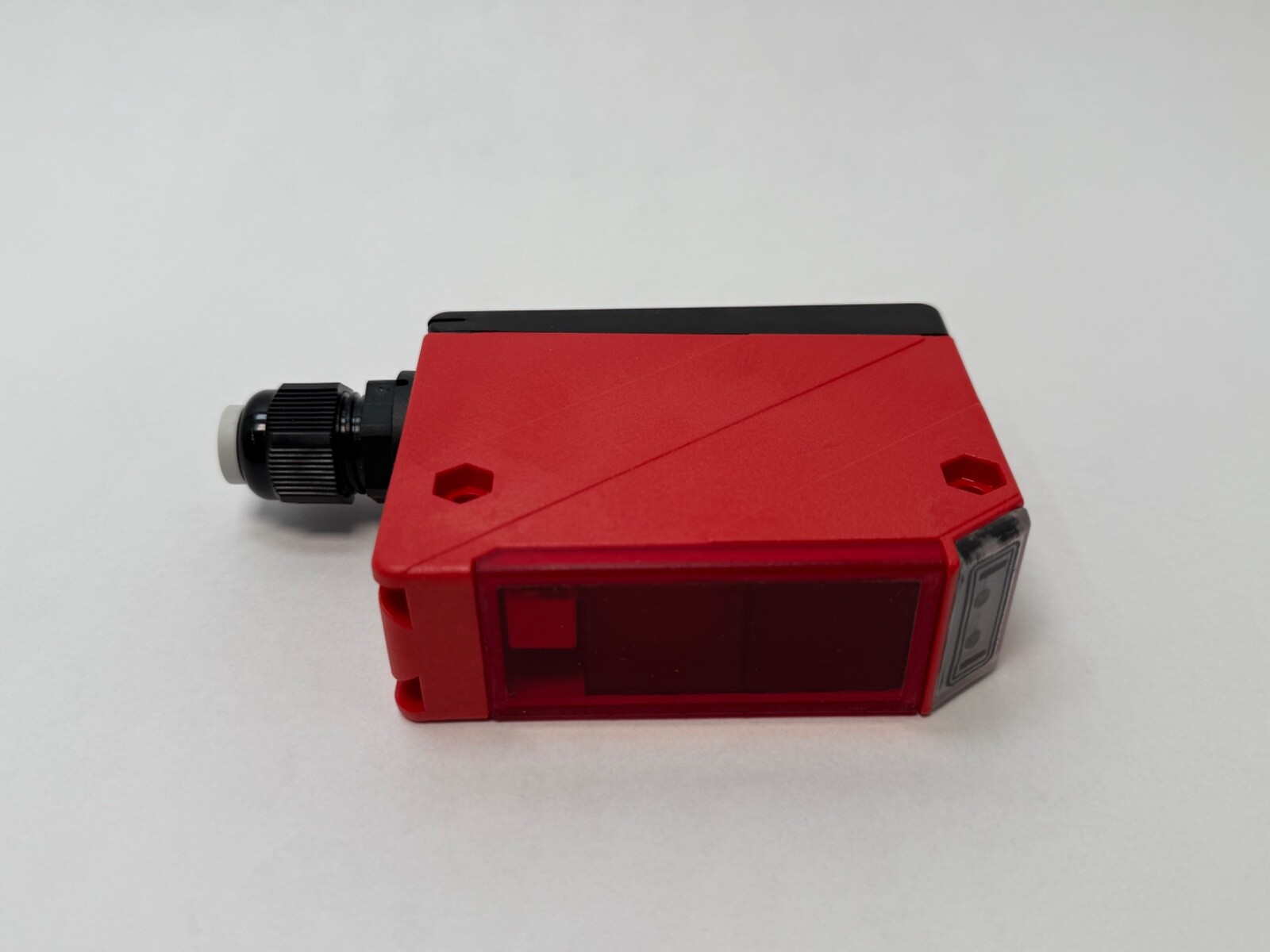

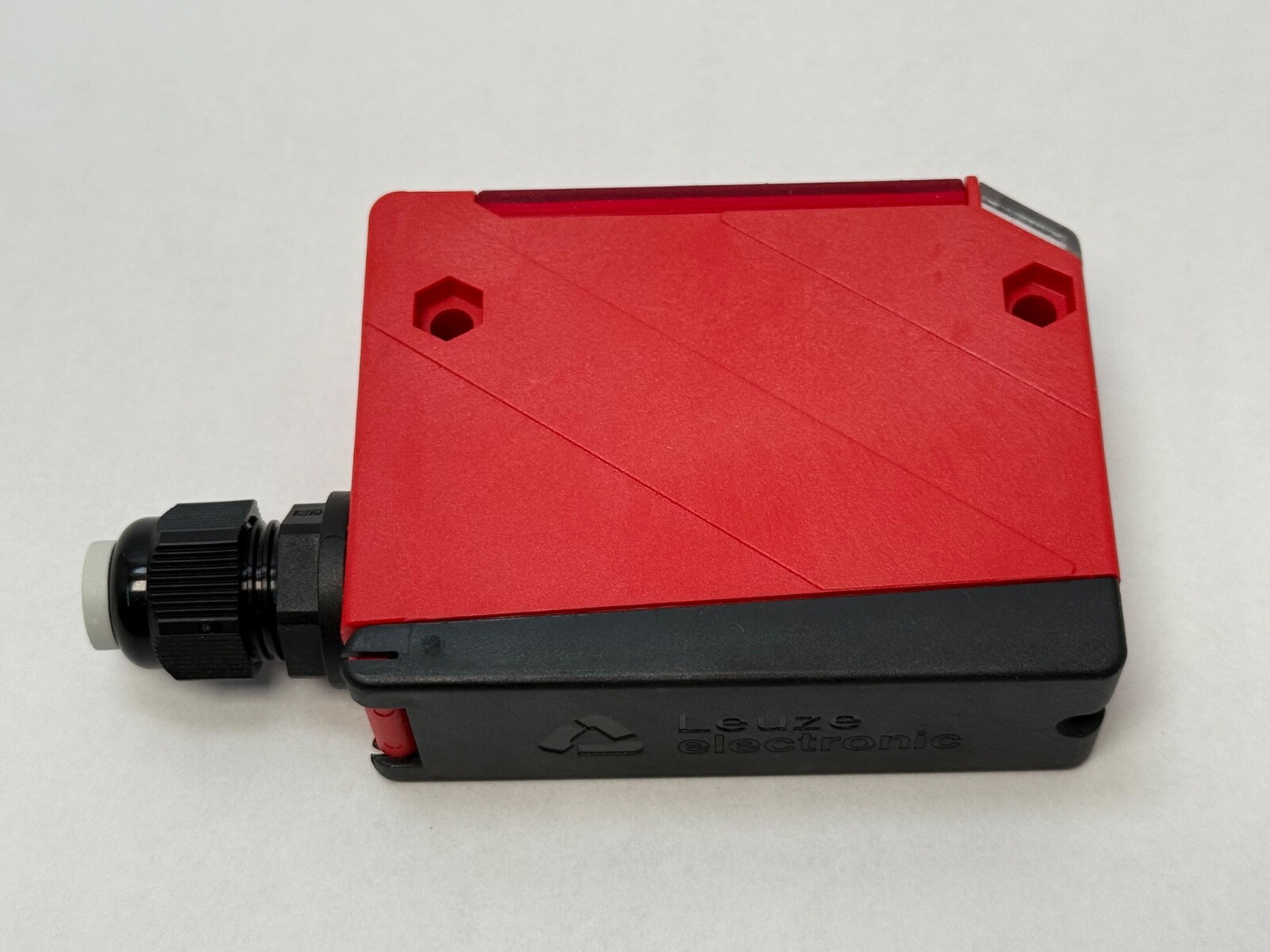

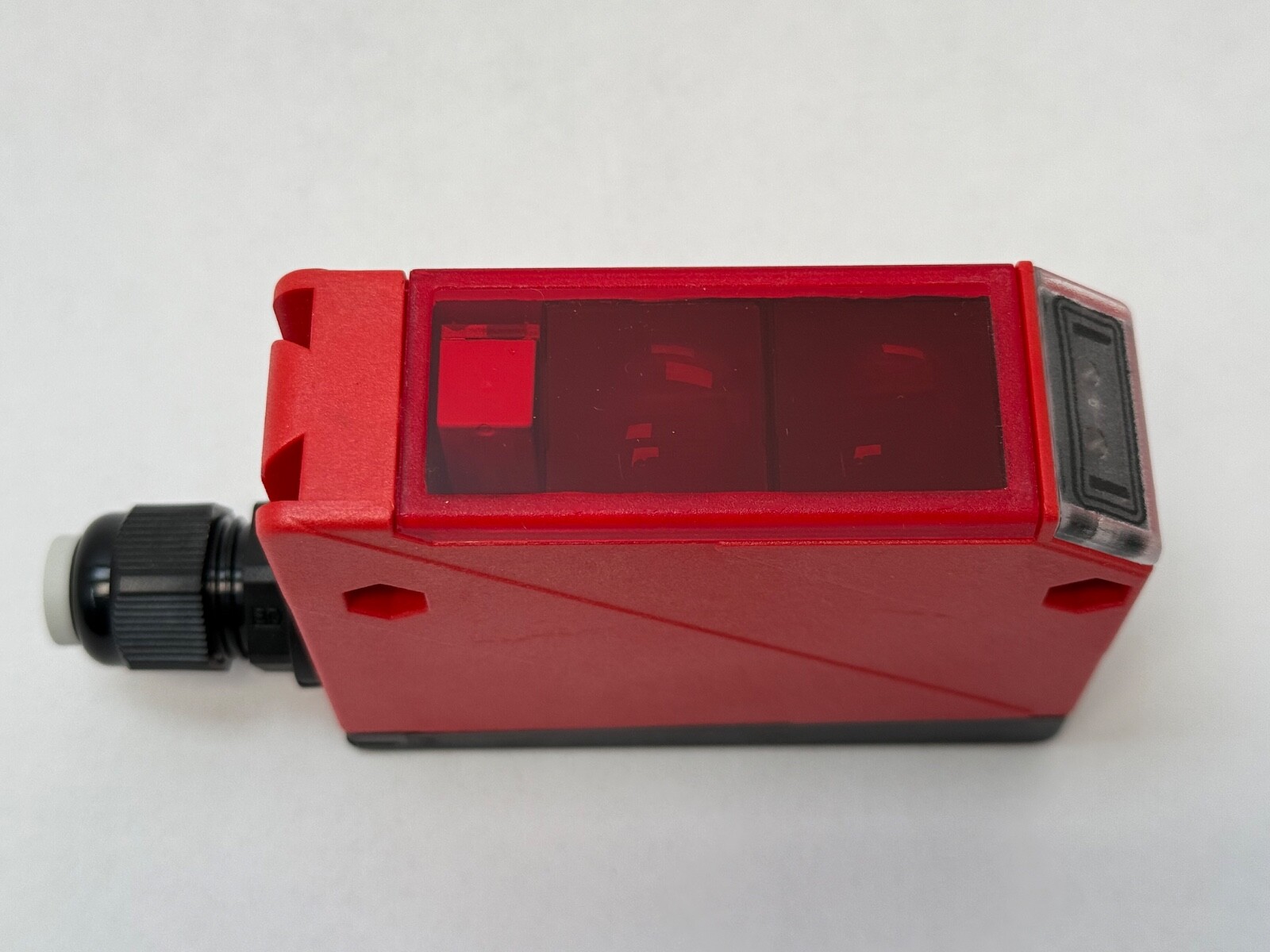

Leuze PRK 96K/R-1420-25 polarized retro-reflective photoelectric sensor, Leuze part number 50025167. A cubic Series 96 sensor with a red LED light source, a universal 20–230 V AC/DC supply and a relay output.
PRK — Leuze polarized retro-reflective photoelectric sensor.
96K — Series 96 cubic housing, 30 x 90 x 70 mm.
R — relay switching output, NC/NO contact.

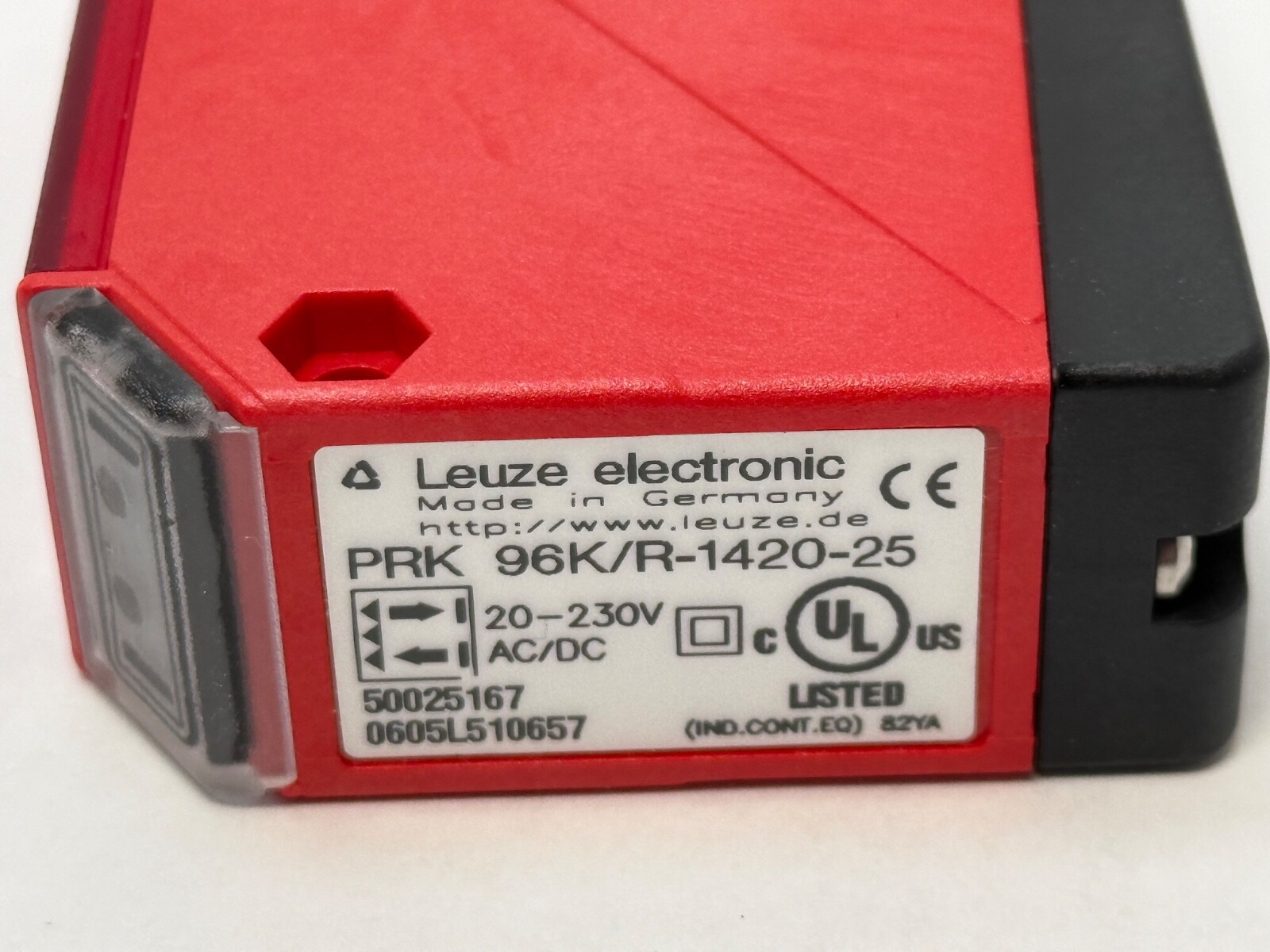

50025167 — Leuze part number for this exact version.
Operating Range: 0.3 to 8 m (guaranteed). Operating Range Limit: 0.1 to 10 m (typical). Light Source: LED, red. Supply Voltage: 20 to 230 V AC/DC. Residual Ripple: 0 to 15 % of UB. Switching Outputs: 1, relay, NC contact/NO contact. Switching Principle: Light switching. Switching Frequency: 20 Hz. Connection: Terminal, 5-pin. Operational Controls: 270° potentiometer. Display: LED.
Housing Material: Plastic, PC. Lens Cover: Plastic. Net Weight: 150 g (0.33 lb). Ambient Temperature, Operation: -30 to 55 °C. Degree of Protection: IP67. Protection Class: II. Standard: IEC 60947-5-2. Customs Tariff Number: 85365080. Unit Quantity: 1 Pc. Condition: New.

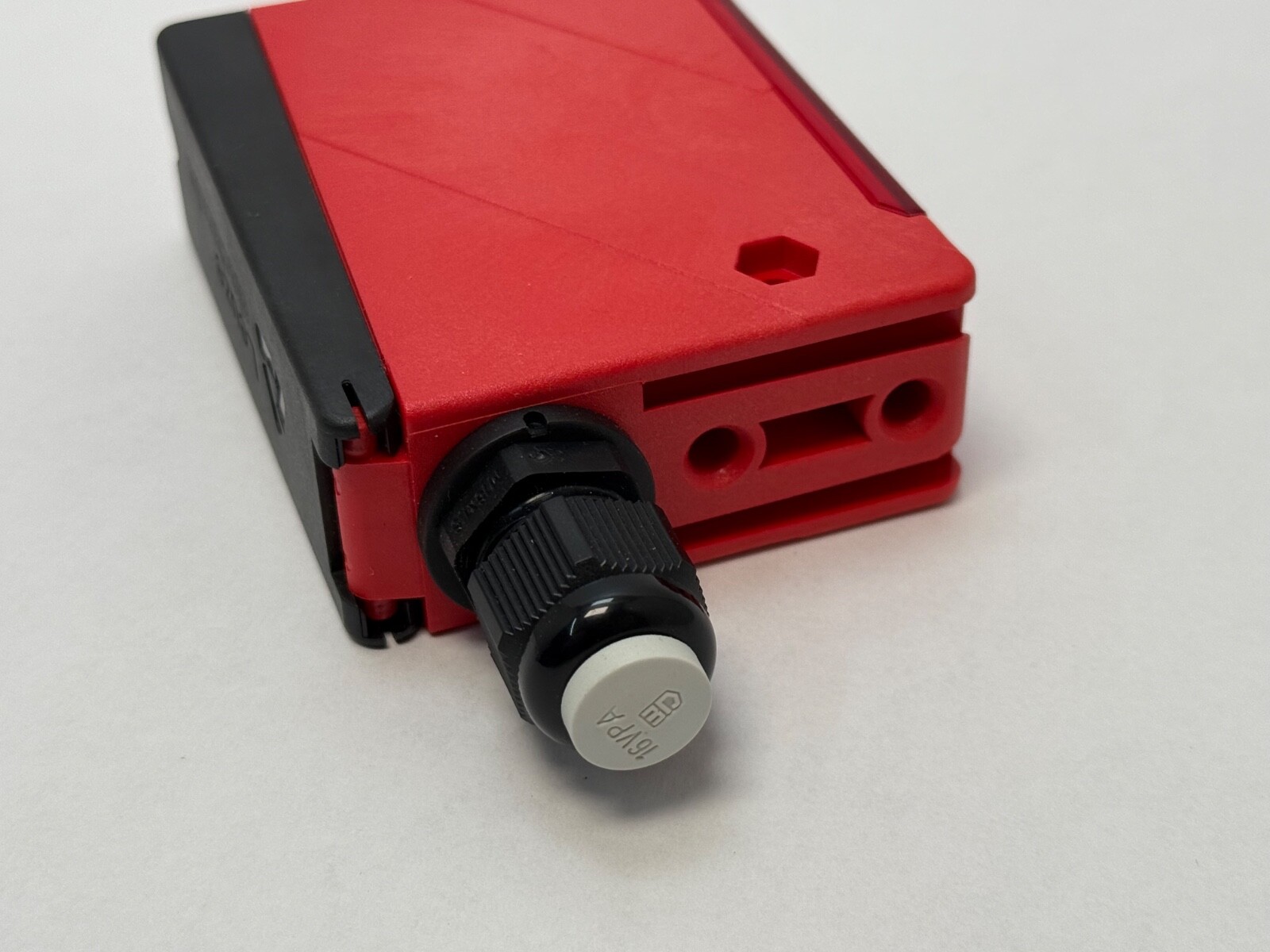

Dimensions (W x H x L): 30 mm x 90 mm x 70 mm. Cubic Series 96 housing with terminal connection, 5-pin.
Leuze lists the PRK 96K/R-1420-25 as a spare-part article. Leuze successor devices: PRK 96M/R-3420-25 (part number 50082066, 0.3 to 15 m) and PRK49C.UC/TS-TB (part number 50127422, 0.1 to 24 m). The PRK 96K/R-1420.1-25 (50105587) and PRK 96K/R-1430-25 (50025168) are separate versions of the same series. Other written forms: PRK-96K/R-1420-25, PRK96K/R-1420-25, 96KR142025.
0.3 to 8 m guaranteed, with a typical operating range limit of 0.1 to 10 m, using a red LED and a polarized reflector principle.
20 to 230 V AC/DC supply and one relay output with NC and NO contacts, light switching, 20 Hz switching frequency.
IP67 degree of protection, protection class II, with a plastic PC housing.
