BALLUFFM18 x 1 Inductive Proximity Sensor, Flush Mount, 7 mm Range, PNP NO, 10-36 V DC, IP67, 5 m PUR Cable

Product Description

What this part is

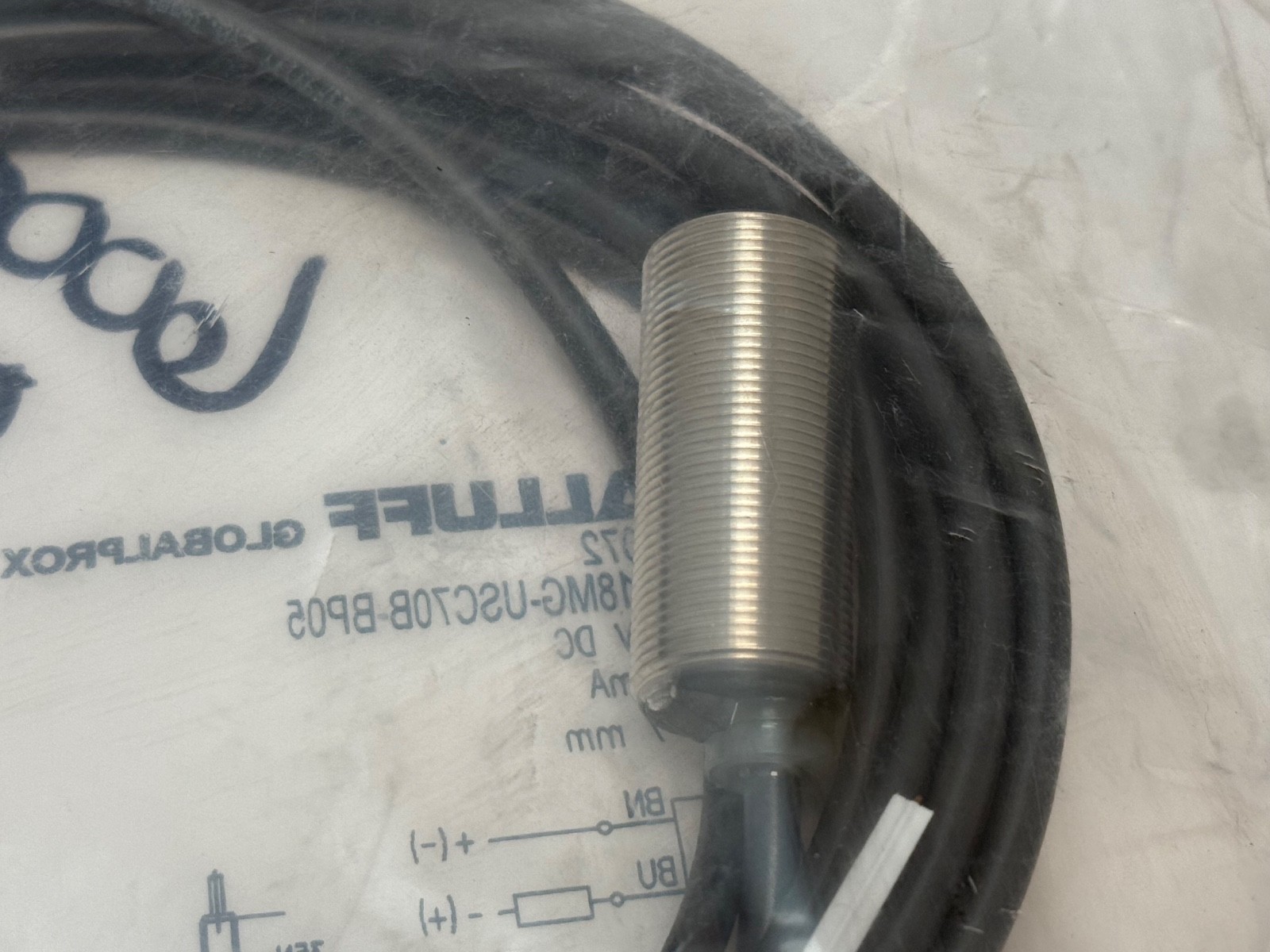

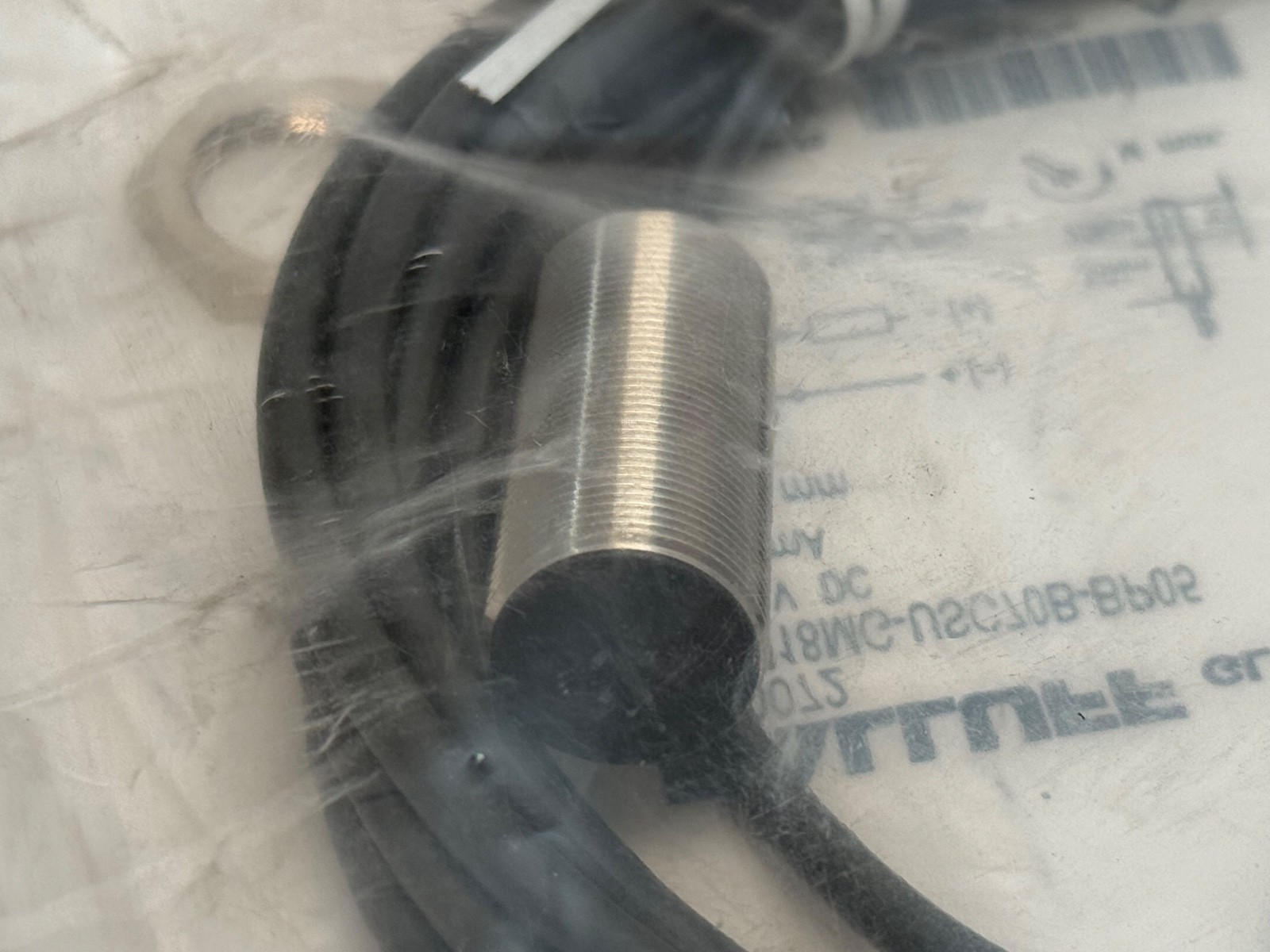

A Balluff M18 inductive proximity sensor, Balluff order number BES0072, full designation BES M18MG-USC70B-BP05. It detects ferrous and other metal targets without contact and switches a DC output when a target enters range. The barrel is M18 x 1 threaded brass with a PA 12 sensing face, flush (embeddable) mountable, and it ships with 5 metres of PUR-jacketed cable moulded on — no plug, no separate cordset needed.

Decoding the order code

BES — Balluff inductive proximity sensor.

M18 — M18 x 1 threaded cylindrical barrel.

MG — metal housing, flush-mountable (embeddable) sensing face.

USC — sensor electronics series.

70 — 7.0 mm rated sensing range.

BP — PNP, normally open switching output.

05 — 5 metre attached cable.

BES0072 — Balluff’s short order number for the same sensor.

Published specifications

Principle of operation: inductive.

Dimensions: Ø 18 x 46 mm.

Housing style: M18 x 1 thread.

Installation: flush (embeddable) mounting.

Rated sensing range: 7 mm.

Switching output: normally open (NO), non-polarized.

Switching frequency: 600 Hz.

Operating voltage Ub: 10–36 V DC.

Housing material: brass, nickel-free coated.

Sensing face material: PA 12.

Connection: 5.00 m PUR cable.

Ambient temperature: −25 to 70 °C.

Protection rating: IP67.

Approvals: CE, cULus, EAC.

ETIM: EC002714 · ECLASS 14.0: 27-27-40-01 · UNSPSC: 41111926.

What these specs mean in practice

7 mm is an extended range for a flush M18 — a standard embeddable M18 is typically 5 mm, so this sensor buys about 40 percent more standoff without giving up the ability to bed the barrel flush into a steel fixture. That extra clearance is what keeps a sensor alive on a machine where chips, slides or a crash could otherwise reach it. Flush mounting also means the surrounding metal does not detune it, which non-embeddable sensors will not tolerate.

The rated range assumes a standard mild-steel target. Non-ferrous metals derate it: aluminium, brass and copper reduce the effective range substantially, and stainless steel somewhat. 600 Hz is comfortable for cylinder position, index and part-present duty, not for high-speed tooth counting. PNP normally open means the sensor sources current to the load and the output goes high when a target is present, suiting a sinking PLC input.

Quantity and configuration

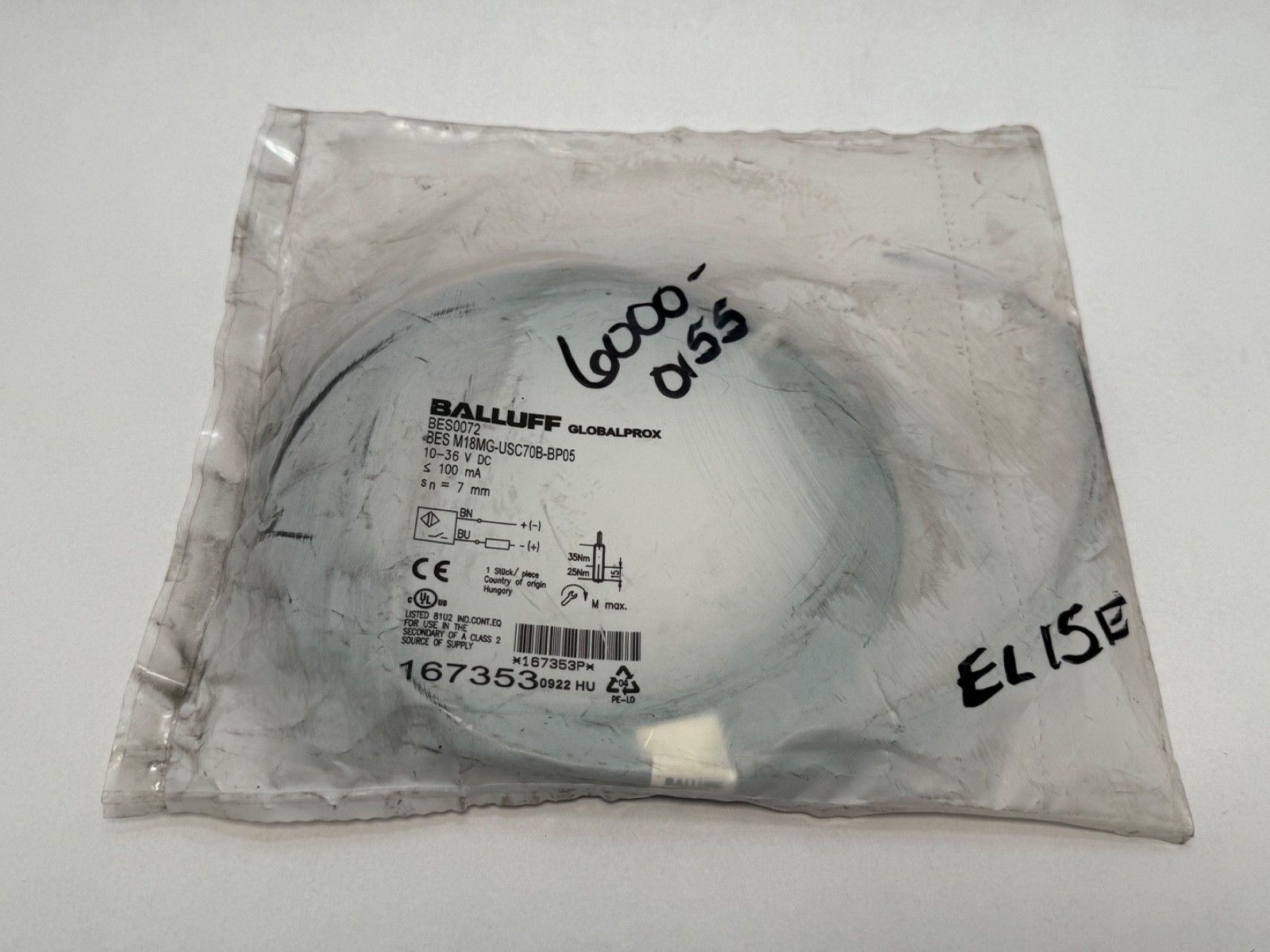

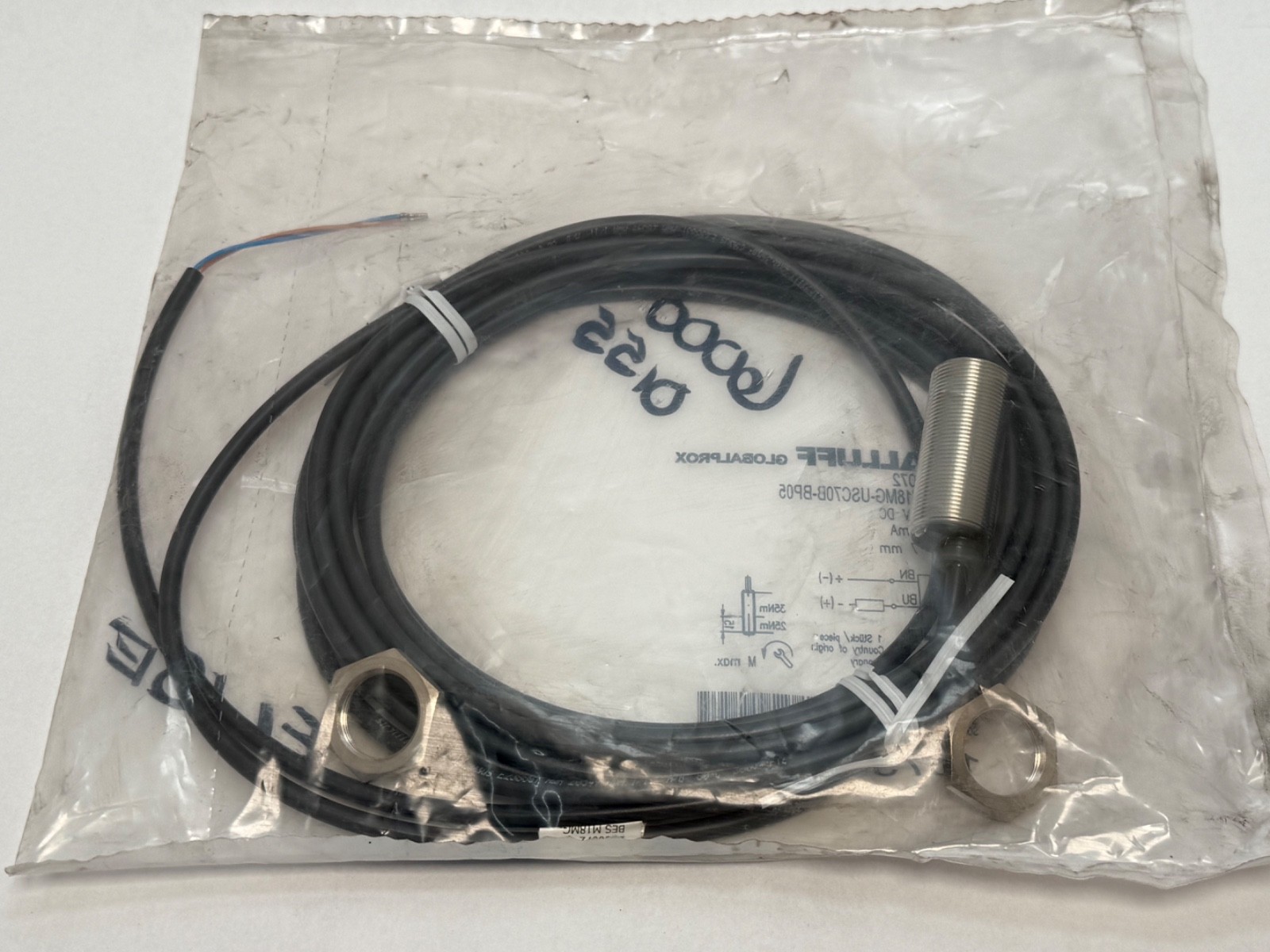

Sold as one sensor, with its 5 m cable attached.

What is not included

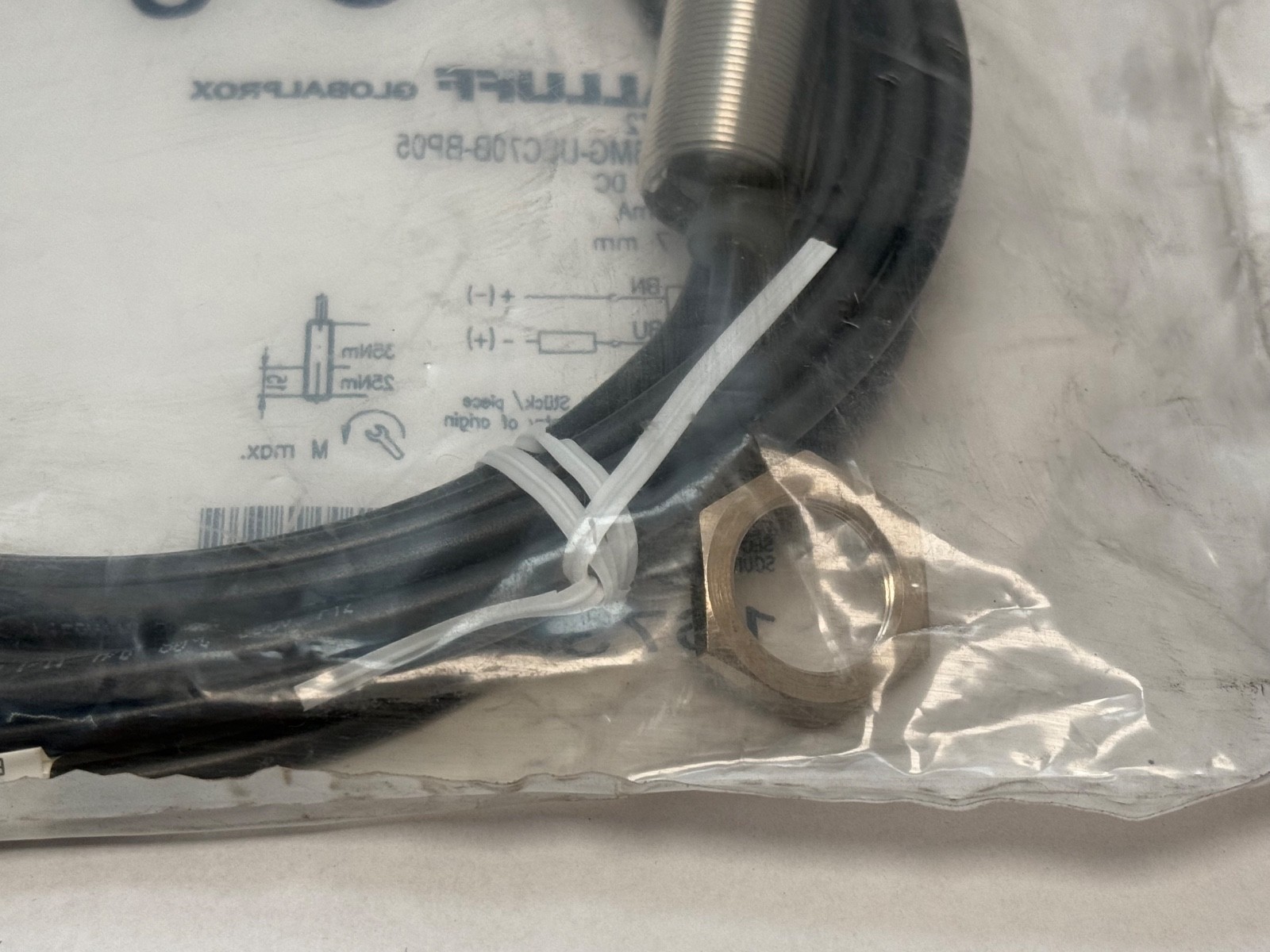

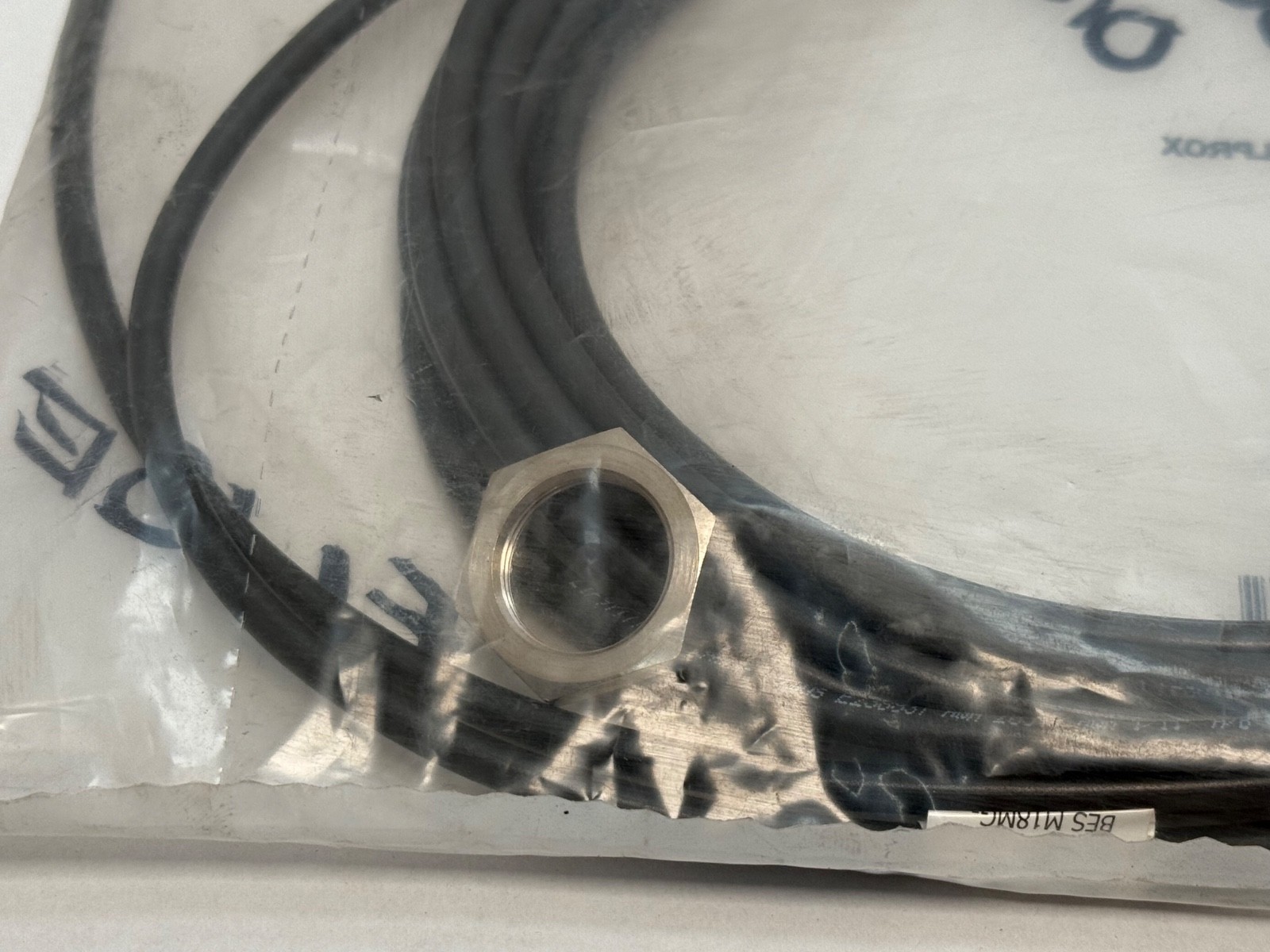

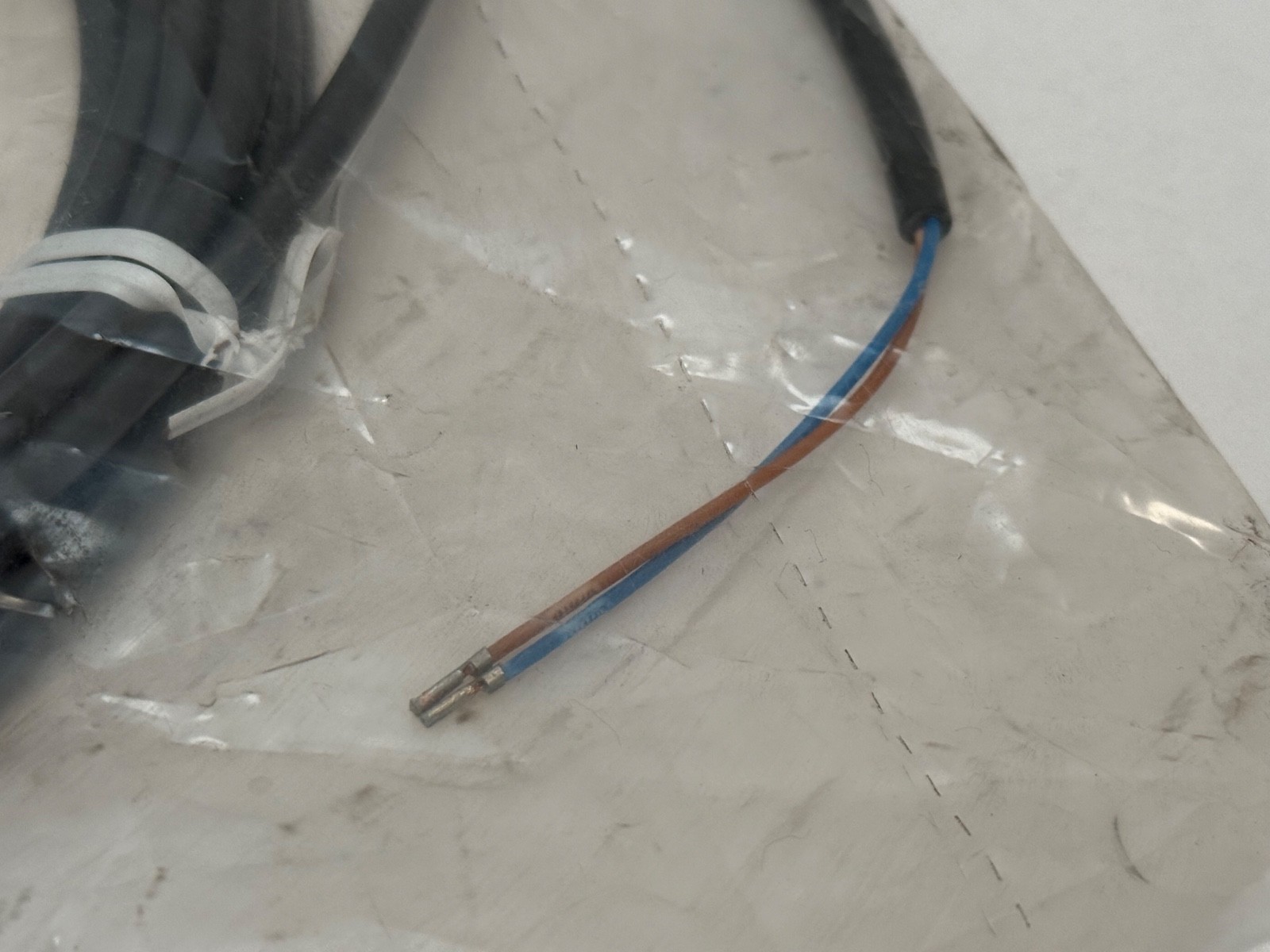

No mounting brackets or clamps. No jam nuts unless visible in the photographs. No connector, cordset or junction box — the cable is flying-lead and needs terminating at your end. No amplifier or interface module; this sensor switches a DC load directly. No documentation.

Interchange guidance

BES-M18MG-USC70B-BP05, BES M18MG-USC70B-BP05 and BES0072 are the same sensor. Balluff has since cancelled this order number and lists BES0071 (BES M18MG-USC70B-BP03) as the direct alternative — electrically and mechanically identical with a 3 m cable instead of 5 m. BES0074 (BES M18MG-USC70B-BV03) is the same body and range but a different output configuration with a 3 m PVC cable, so it is a related option rather than a drop-in. Competing M18 flush 7 mm PNP NO sensors from other brands will fit the same M18 hole, but rated range, switching frequency and cable length must all be checked before treating one as equivalent.
