AEG1S-400-30-HRL1Thyristor Power Controller — Single Phase, 400 V, 30 A, Integrated Semiconductor Fuse, Fault Relay

Product Description

What this part is:

The AEG 1S-400-30-HRL1 is a Thyro-S single-phase thyristor power controller (thyristor switch) for switching resistive and heating loads. Type Voltage: 400 V. Type Current: 30 A. Phases: 1. The Thyro-S line was built by AEG SVS Power Supply Systems and is now carried by Advanced Energy. Unit Quantity: 1 Pc. New takeout, never energized.

Decoding the designation:

1S — single-phase power section for single-phase loads.

400 — type voltage, 400 V.

30 — type current, 30 A.

H — integrated semiconductor fuse.

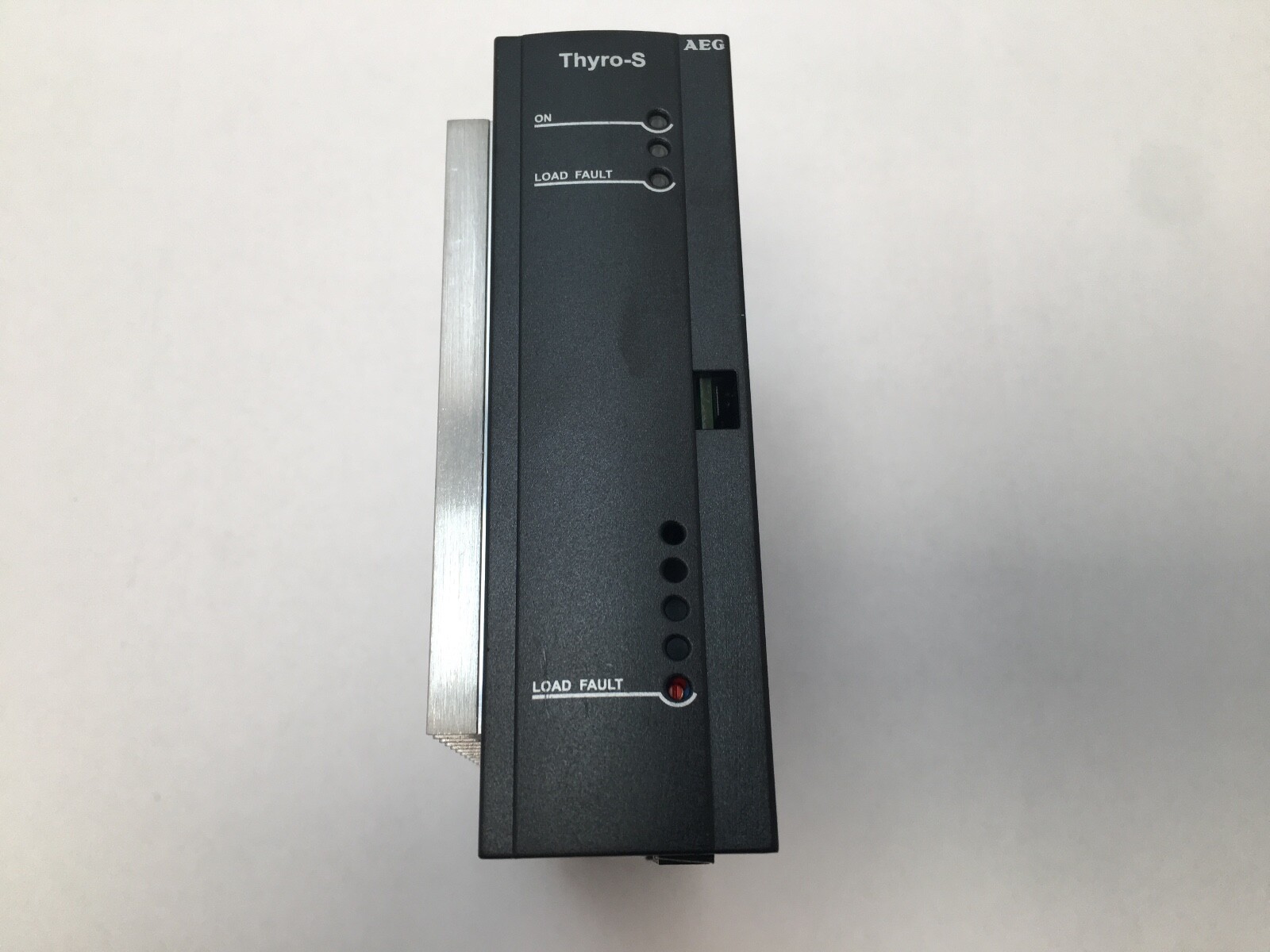

RL1 — fault signalling relay K1 with LOAD FAULT LED indication for controller and load-circuit faults.

Specifications:

Input Voltage: 400 V. Current Rating: 30 A. Phases: 1. Fault Signalling: relay K1 plus LED. Load Monitoring: undercurrent. Temperature Monitoring: equipment temperature. Set Point Inputs: digital.

Dimensions and mounting:

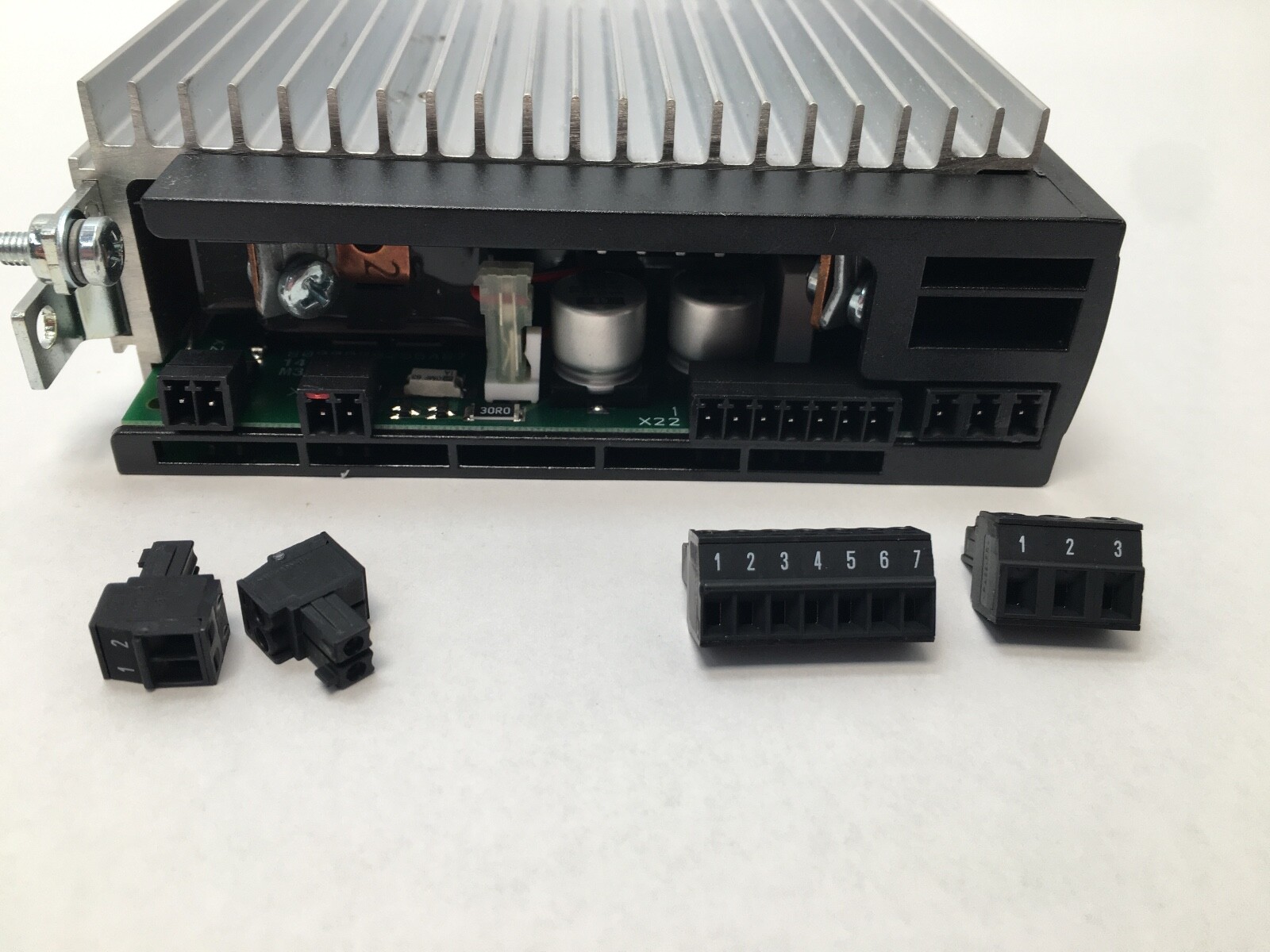

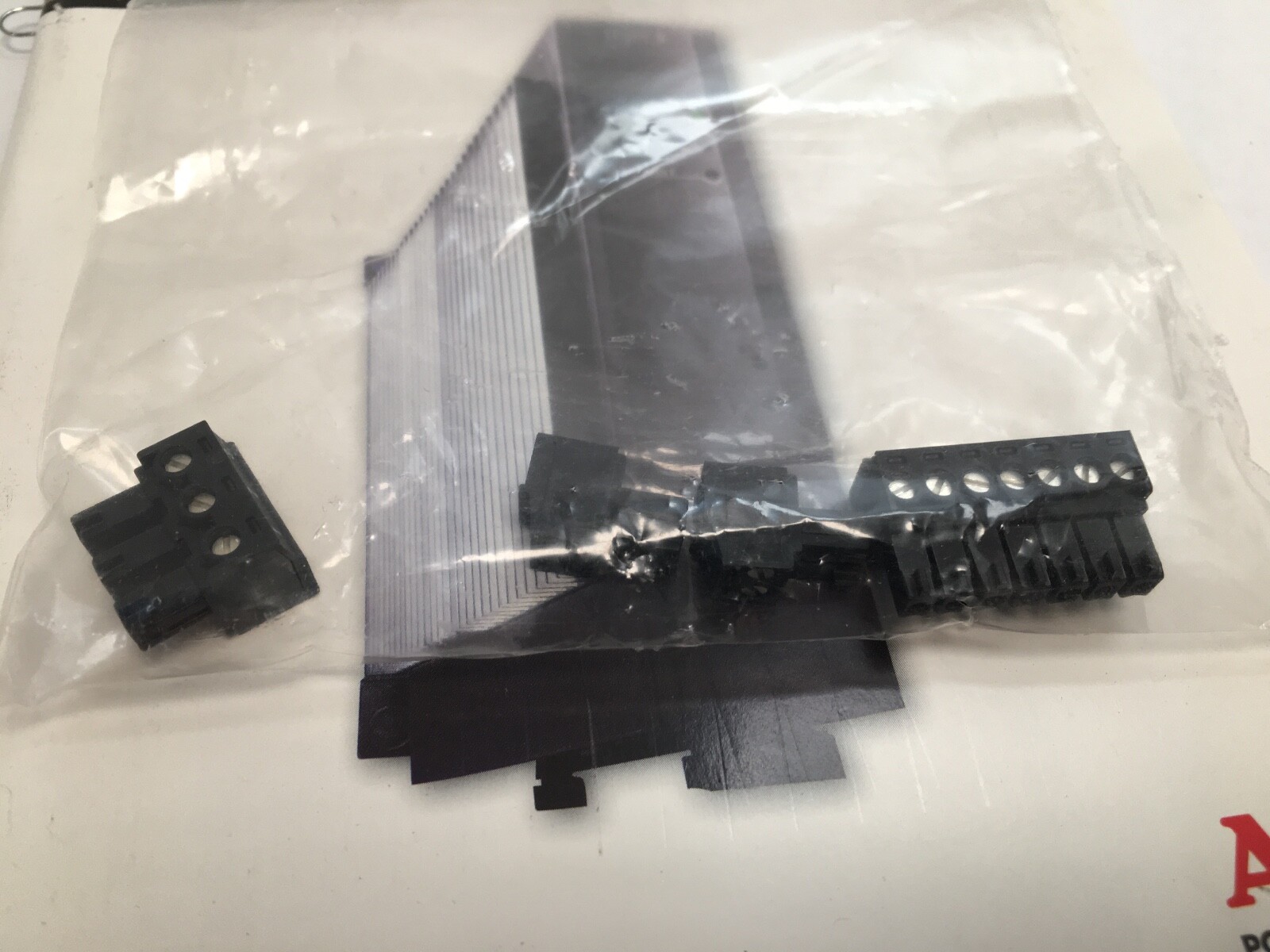

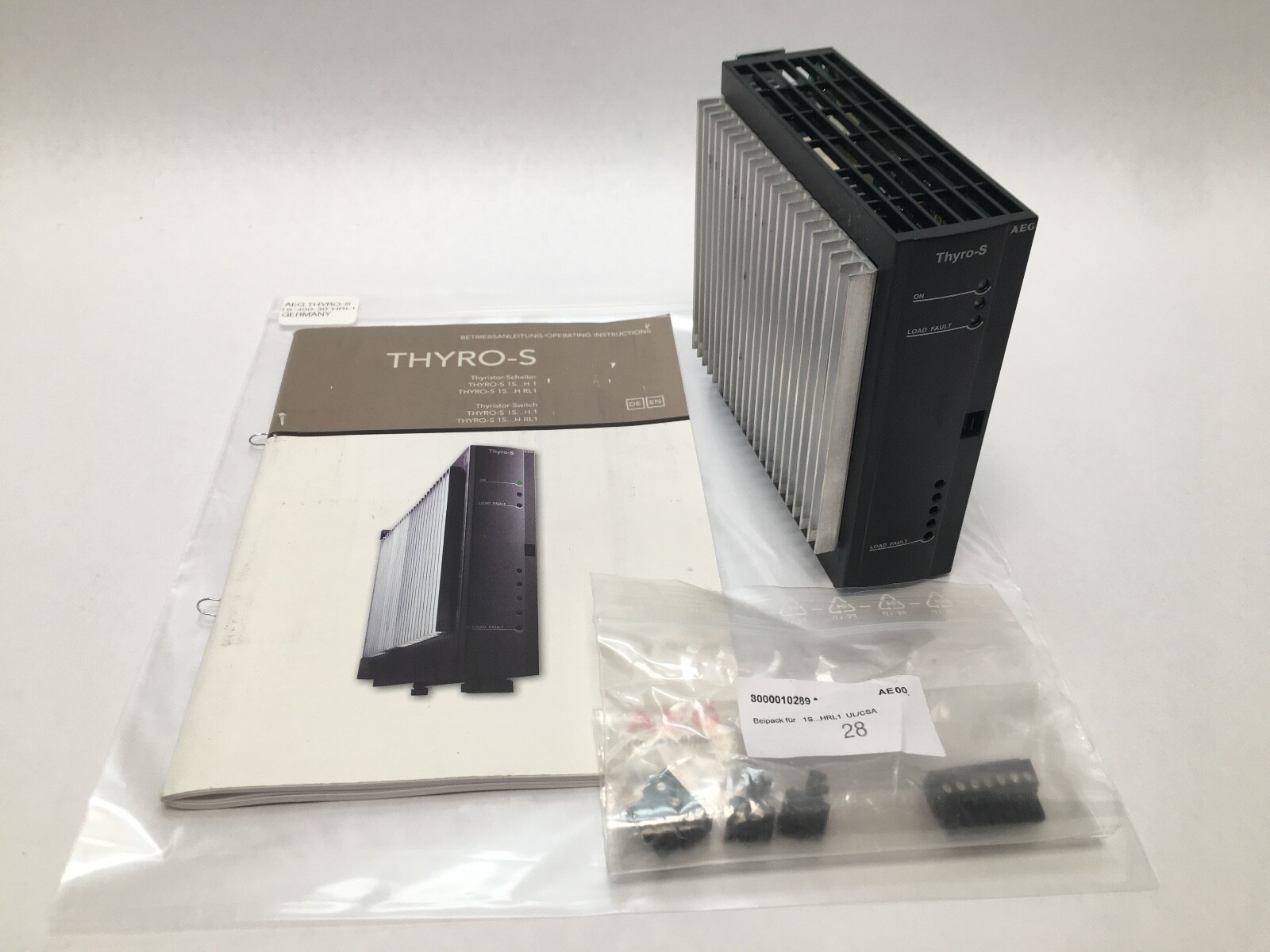

Supplied with pin connectors (30000102089 1S HRL1 UL/CSA) and manual.

Compatibility and replacement:

Also written 1S40030HRL1, 1S 400-30 H RL1 and Thyro-S 1S 400-30 HRL1. Same Thyro-S designation as the AEG SVS 1S 400-30 H RL1 controller.

Frequently asked questions:

What voltage and current is the AEG 1S-400-30-HRL1 rated for?

Type voltage 400 V and type current 30 A, single phase.

What does the H in the designation mean?

H denotes an integrated semiconductor fuse.

What does RL1 mean?

RL1 is fault signalling relay K1 with a LOAD FAULT LED for controller and load-circuit faults.
