Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
Three-bolt cast iron flange bracket bearing unit, 3/4 in bore, self-aligning ball insert, contact seals, Skwezloc collar, regreasable, approx. ±2° misalignment.
List Price
$33.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SealMaster |
|---|---|
| MPN | FB-12TC |
| GTIN | 662461034545 |
| Model | FB 12 TC |
| ID | 0.75 in |
| Material | Cast Iron |
|---|---|
| Series | FB |
| Type | Flanged Mount Bearing |
| Relubrication | Regreasable, grease fitting provided |
| Base Number | FB-12 |
| Industry Terms | flange bracket bearing; 3-bolt flange bearing; flange block; mounted self-aligning ball bearing; FB unit; regreasable flange bearing |
| Application Types | Fans and ventilation; conveyors; agricultural and grain equipment; packaging machinery; light process machinery; fabricated frames |
| Number Of Bolt Holes | 3 |
| Number Of Bolt Holes For Fasteners | 3 |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 3/4 in (0.750 in) |
| Housing Style | Three-bolt flange bracket, one-piece solid |
| Locking Method | Skwezloc collar |
| Replacement Insert | ER-12TC |
| Mpn Variants | FB-12TC; FB12TC; FB-12-TC; FB 12 TC; FB-12; FB12 |
| Rolling Elements | Ball |
| Bearing Type | Mounted self-aligning ball bearing unit, three-bolt flange |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard |
| Locking Device | Skwezloc |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |
| Part Number | FB-12TC |
| Common Misspellings | Sealmaster FB12TC; Seal Master FB-12TC; Sealmaster FB 12 TC; Sealmastr FB-12TC; Sealmaster FB-12-T-C |

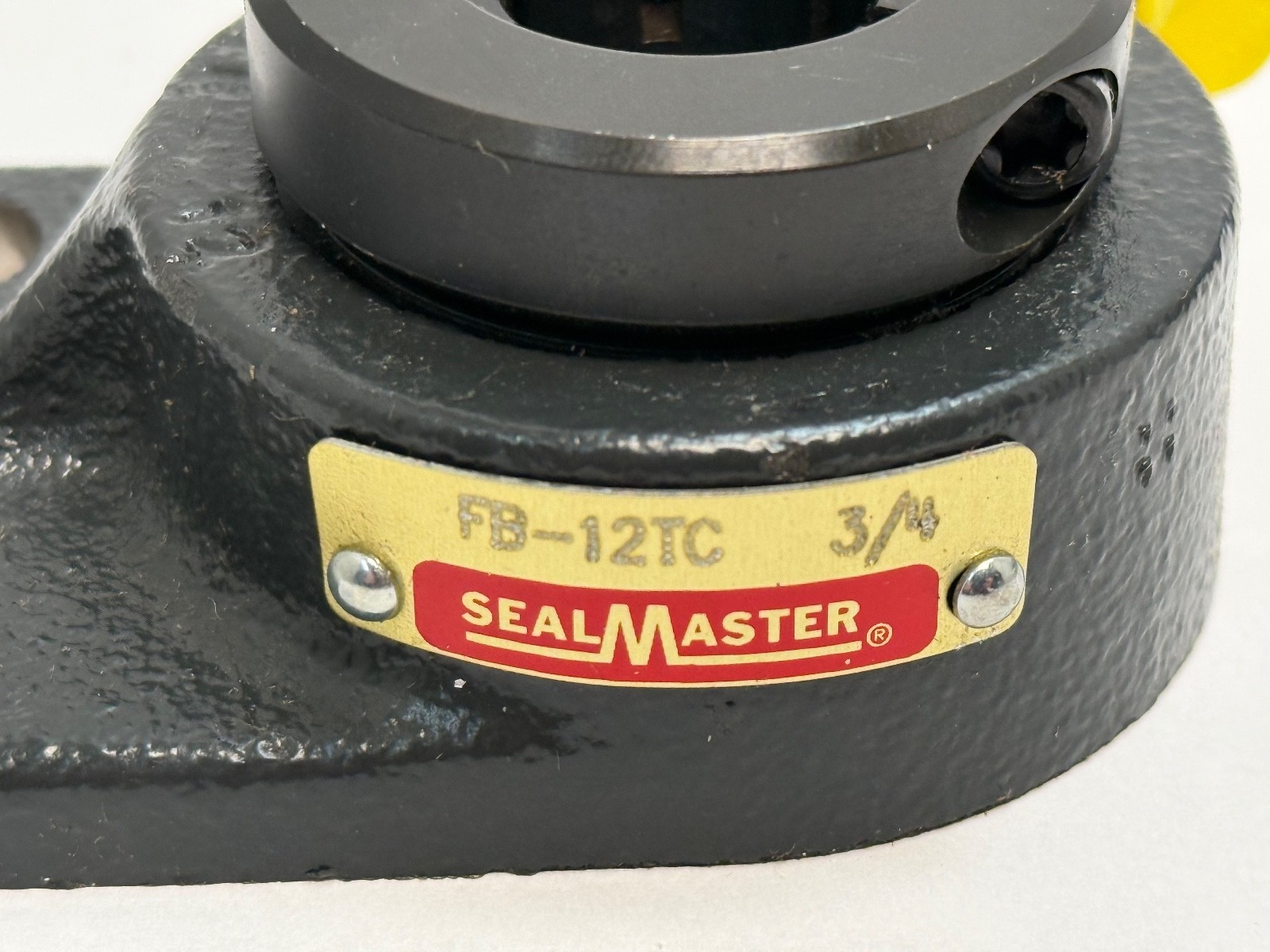

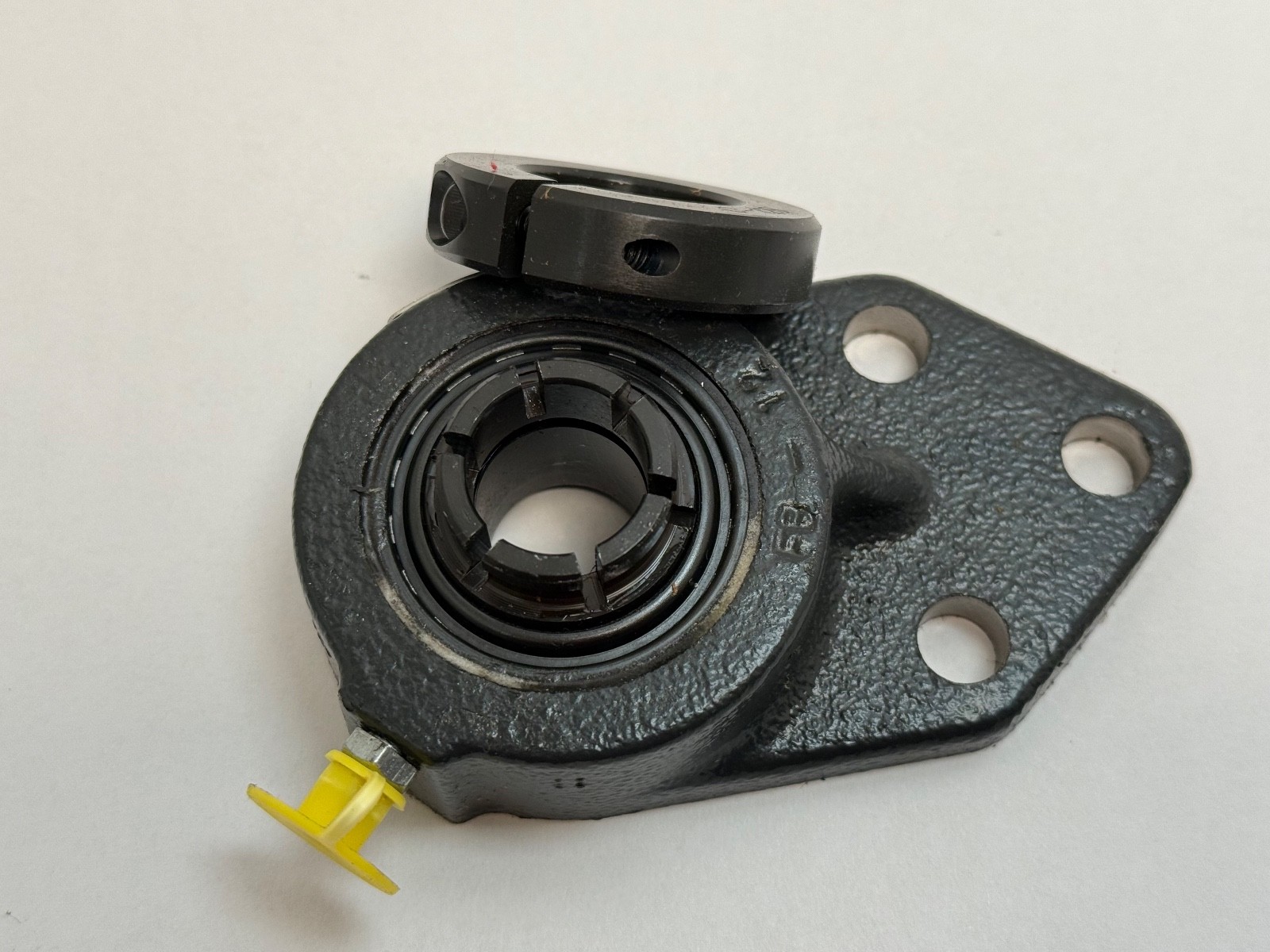

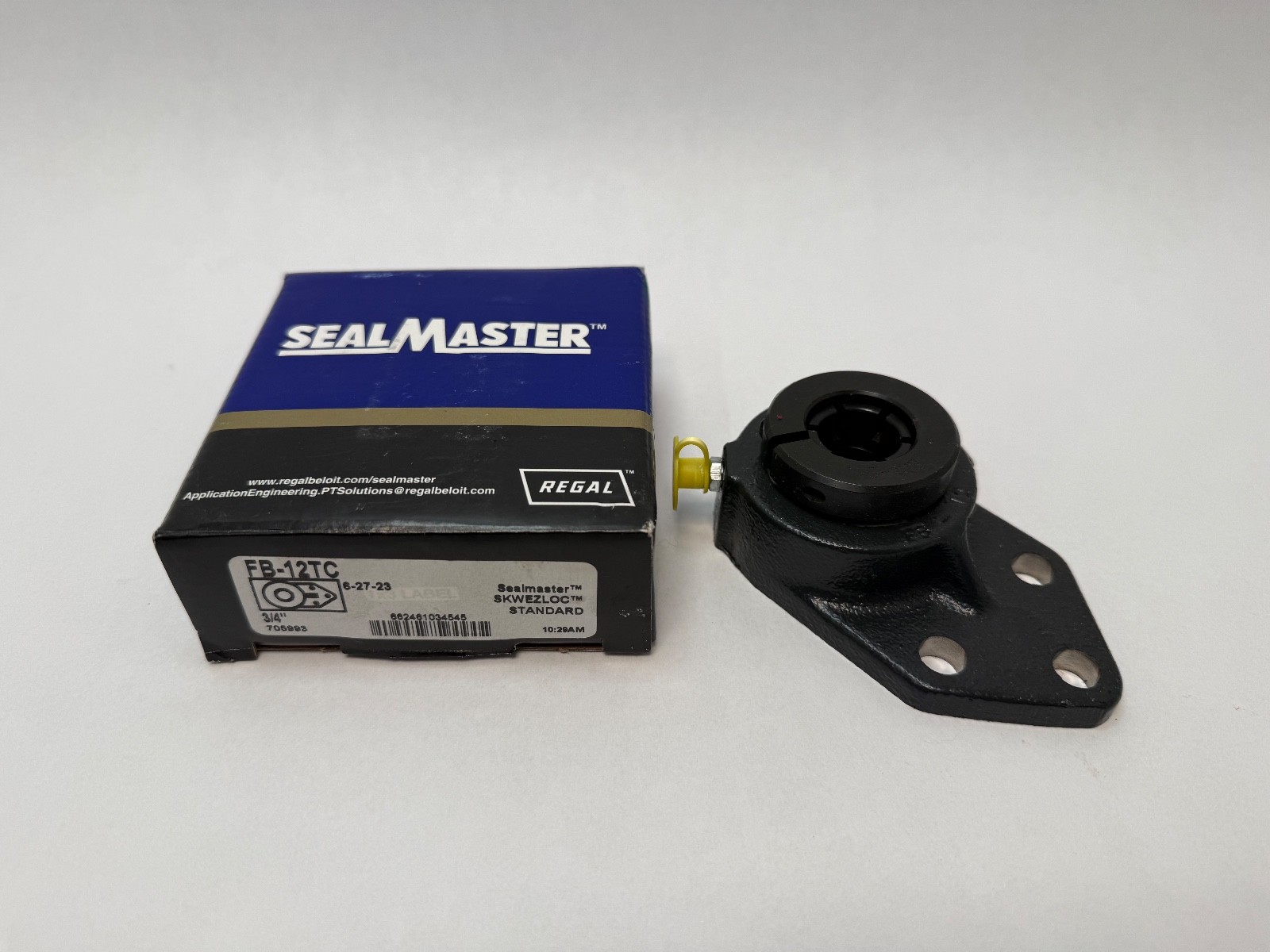

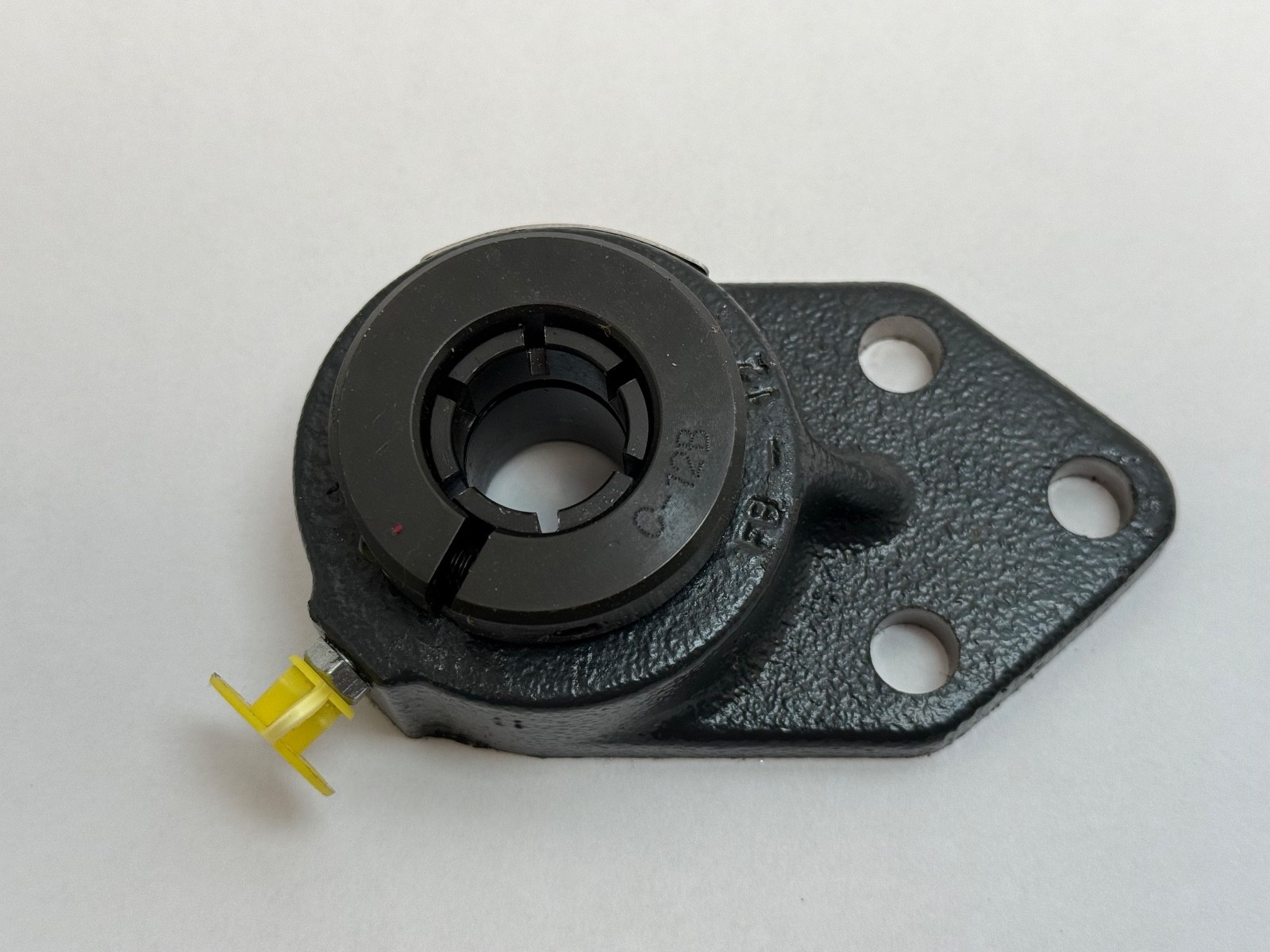

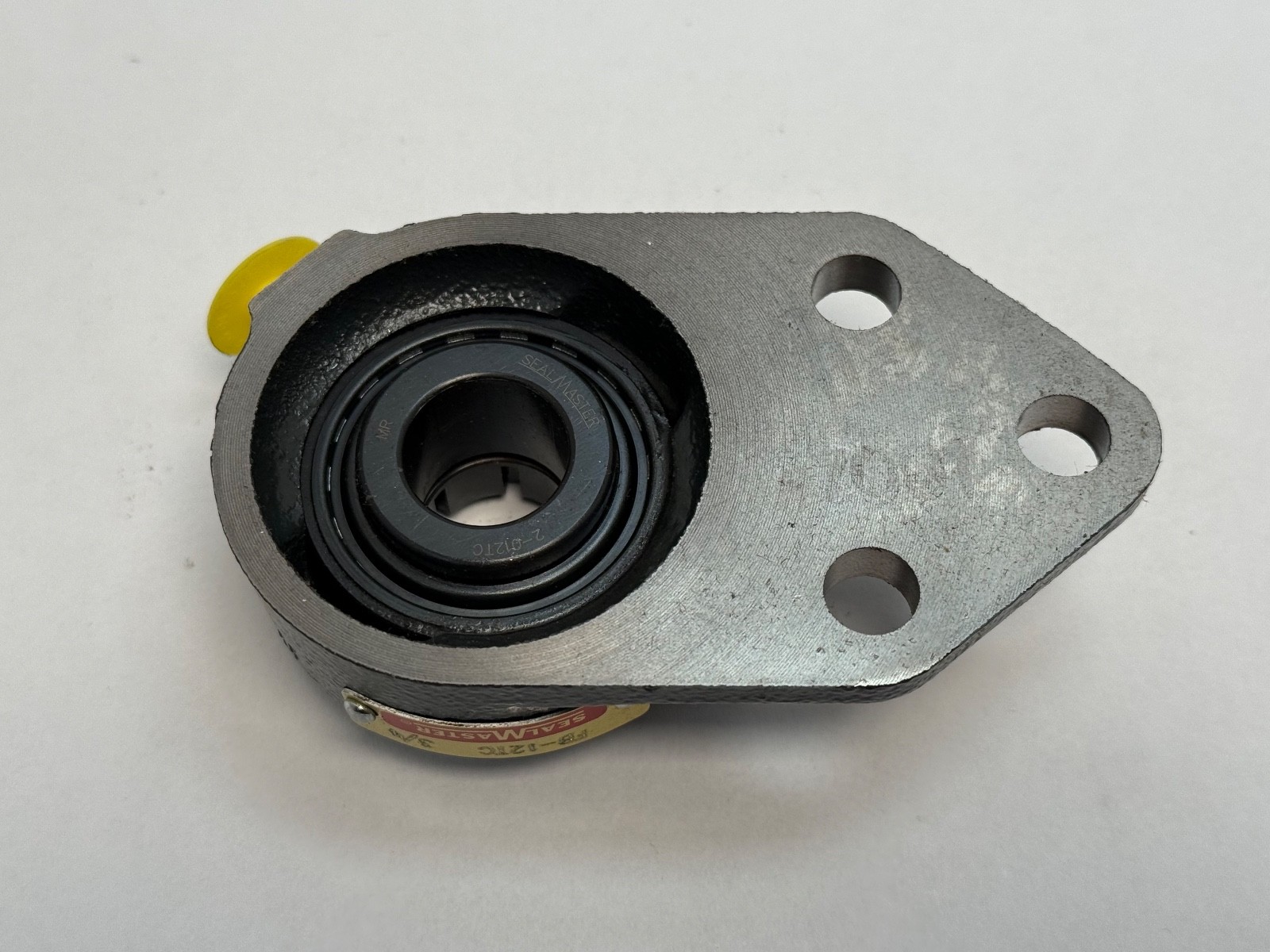

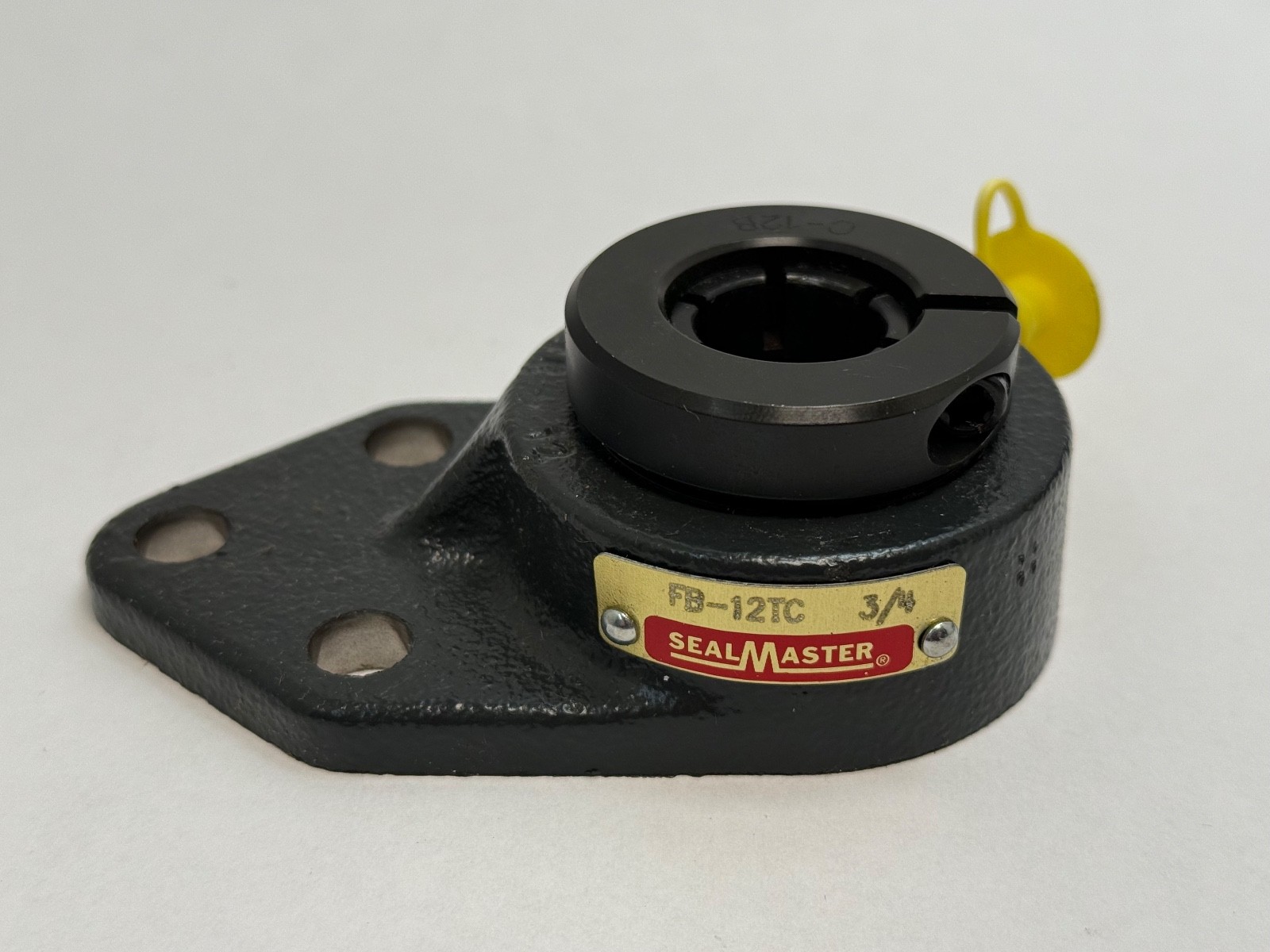

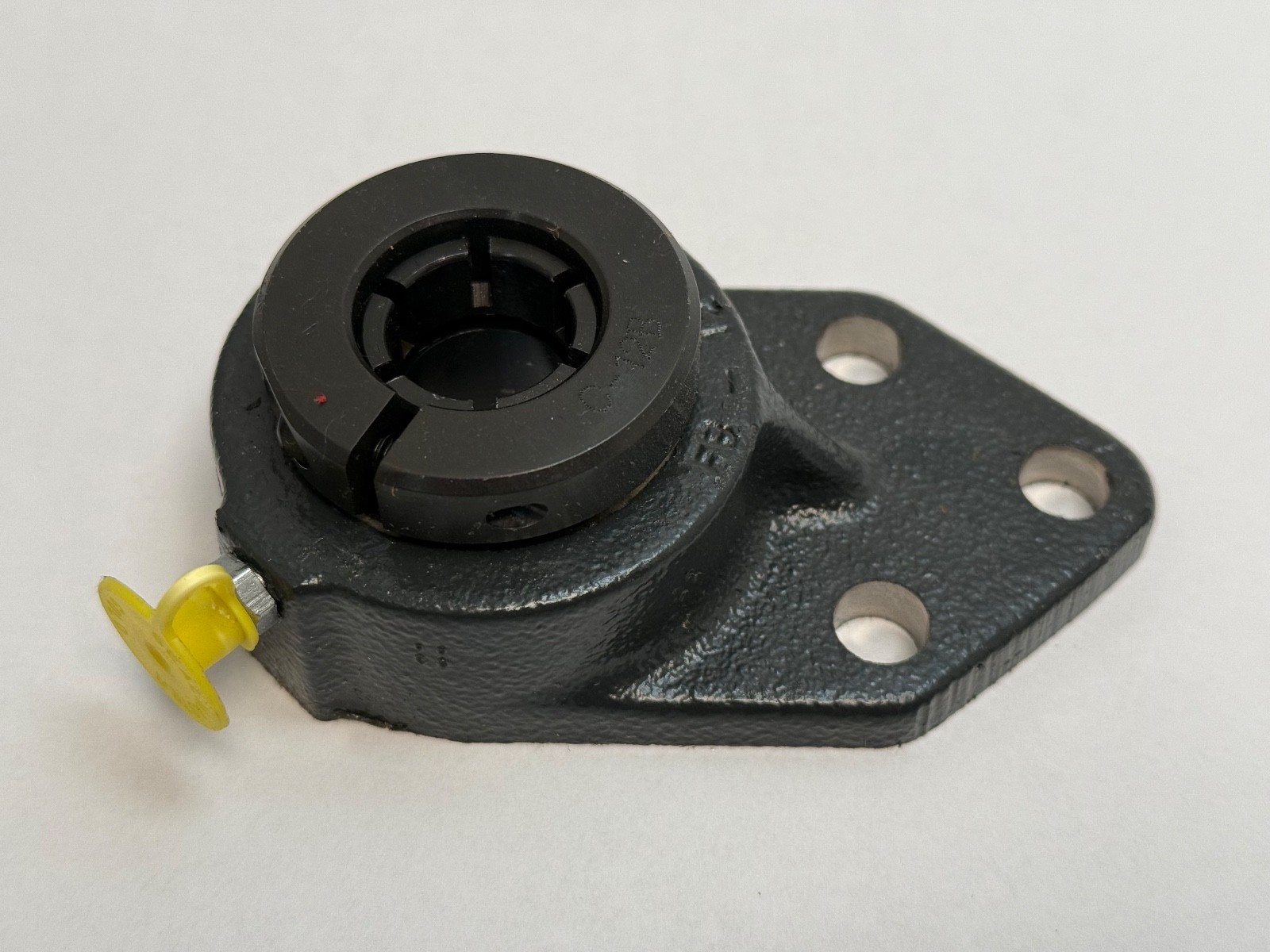

Sealmaster FB-12TC mounted bearing unit: three-bolt flange bracket in cast iron, 3/4 in bore, self-aligning ball bearing insert fitted, contact seals, Skwezloc concentric locking collar and a grease fitting. Unit Quantity: 1 Pc.
FB — Sealmaster three-bolt flange bracket housing, standard duty, one-piece solid cast iron. Distinct from the SFT two-bolt flange and the SF four-bolt square flange.
12 — bore in sixteenths of an inch. 12/16 in = 3/4 in.
TC — contact-seal, Skwezloc-collar build.
Bore Diameter: 3/4 in (0.750 in). Housing Style: Three-bolt flange bracket, one-piece solid. Housing Material: Cast iron. Duty Type: Standard. Insert Type: Self-aligning ball bearing. Rolling Elements: Ball. Locking Device: Skwezloc collar. Closure Type: Contact seals. Expansion Type: Non-expanding. Number Of Bolt Holes: 3. Misalignment Capability: approximately ±2°. Relubrication: Regreasable, grease fitting provided. Series: FB. Unit Quantity: 1 Pc.
Three-bolt flange bracket for mounting to a flat surface that the shaft passes through. Bolt holes: 3. Bore: 3/4 in (0.750 in).

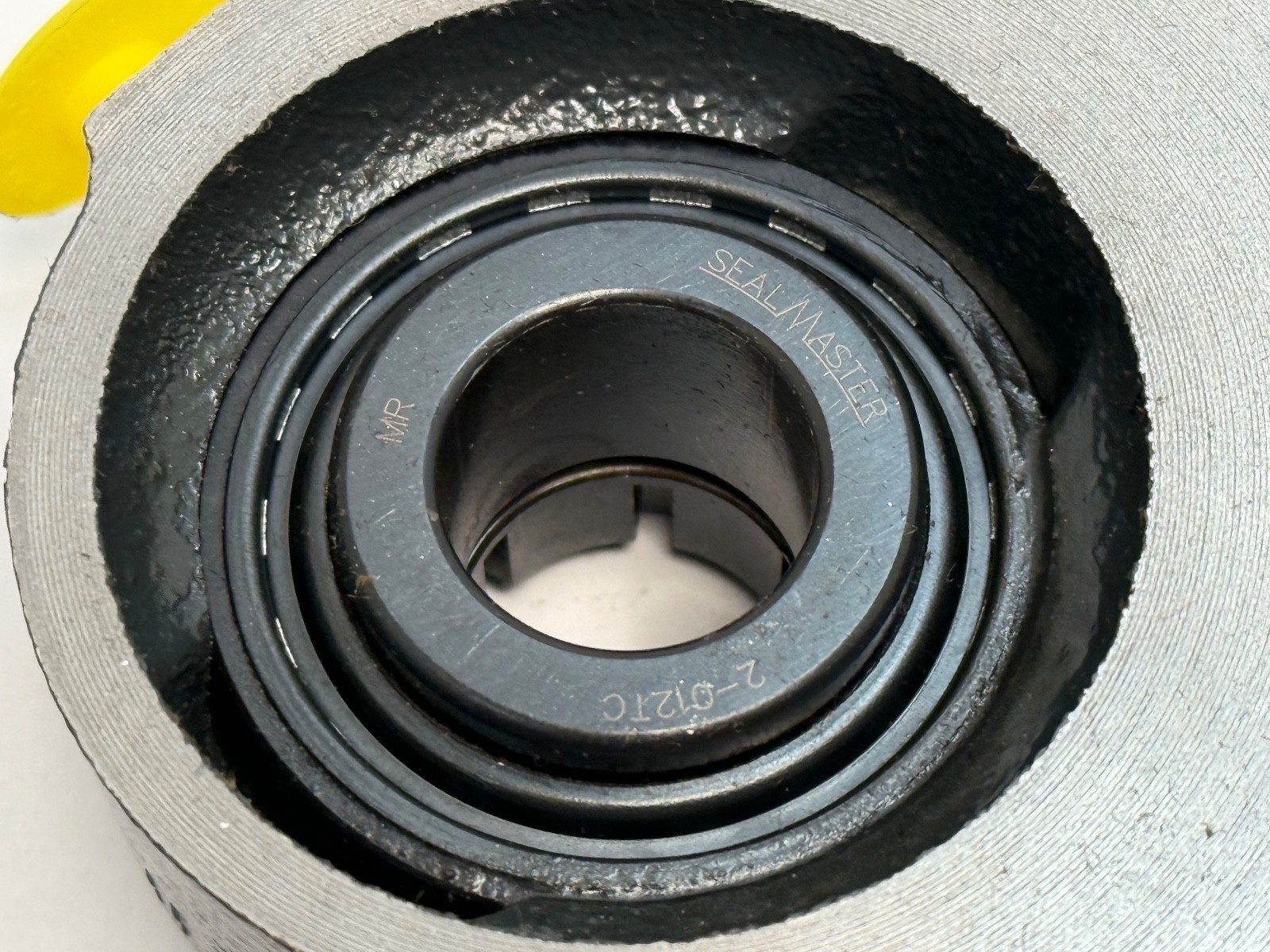

The insert in an FB-12TC is the Sealmaster ER-12TC, a separately catalogued replacement insert. Related Sealmaster units at 3/4 in bore: FB-12 (felt seals, setscrew collar), SFT-12TC (two-bolt flange), SF-12TC (four-bolt square flange), NP-12TC and SP-12TC (pillow blocks). Search forms: FB-12TC, FB12TC, FB-12-TC, FB 12 TC. Sealmaster and Link-Belt are both Regal Rexnord brands.
Three. FB is Sealmaster’s three-bolt flange bracket.
3/4 in bore with a Skwezloc concentric locking collar.
The ER-12TC self-aligning ball bearing insert.
