GE-FanucIC600BF841KSeries Six Analog Input Module, 8 Channel, 0-10 V DC, 12-Bit

Product Description

What this part is:

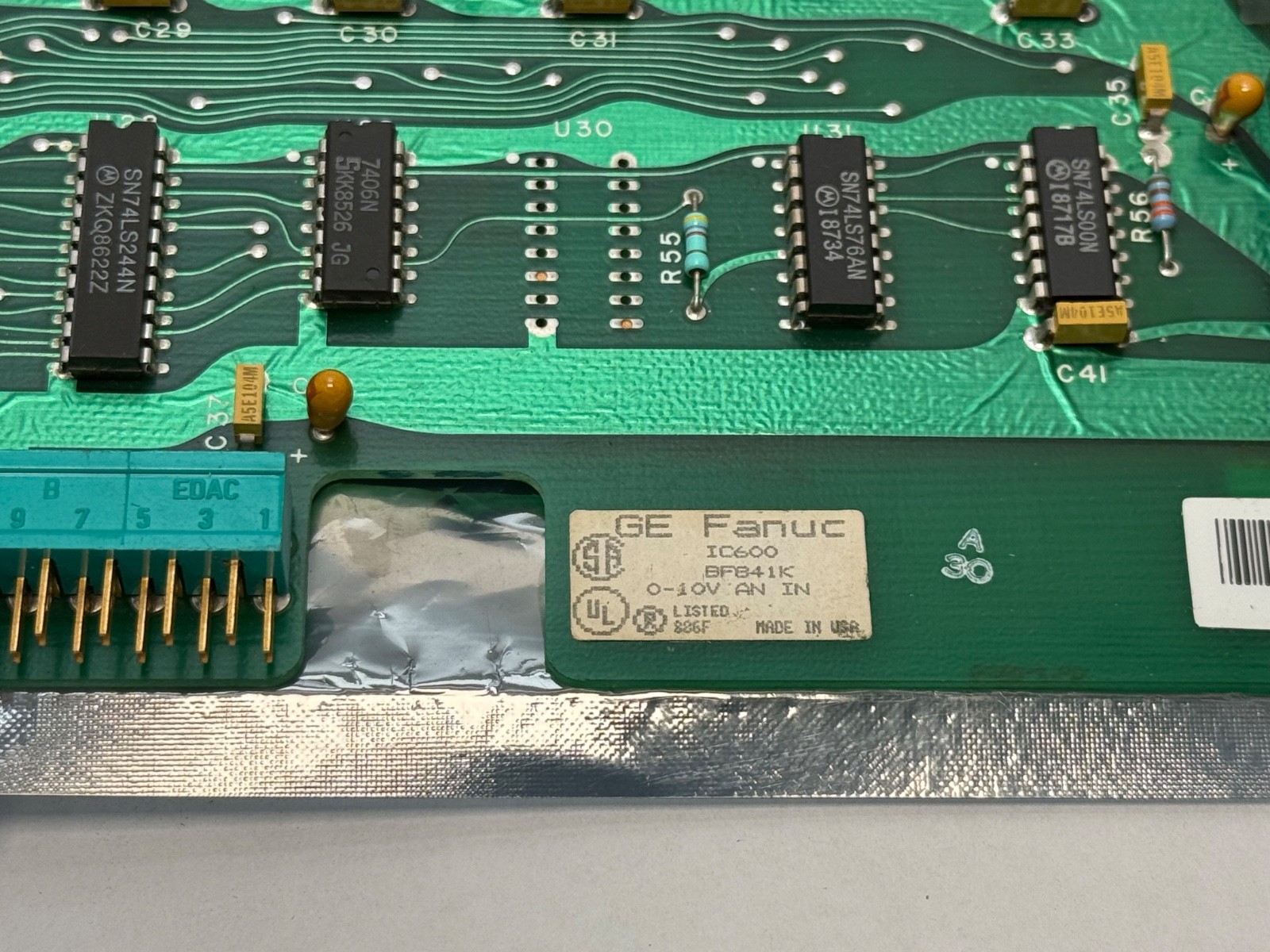

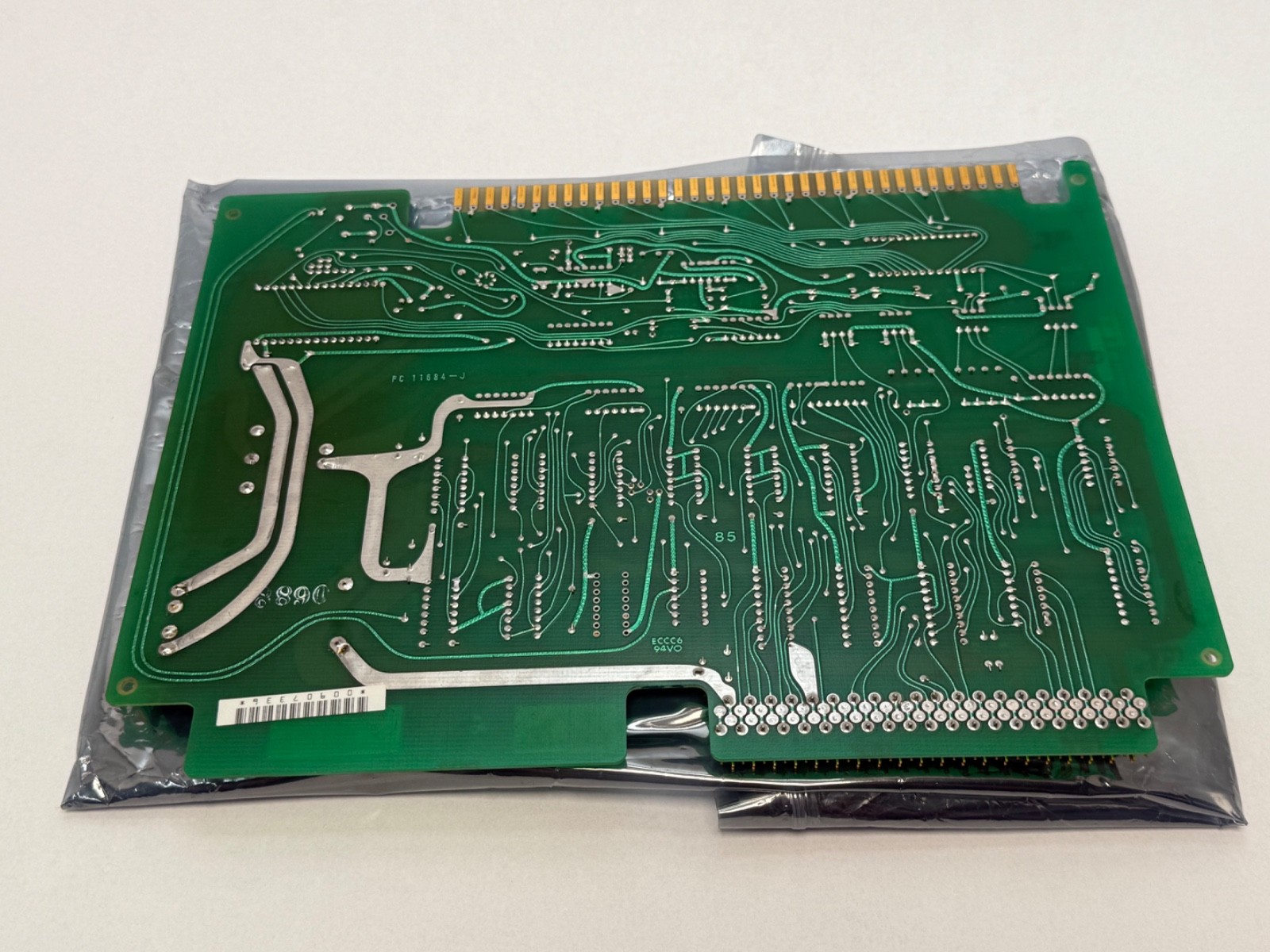

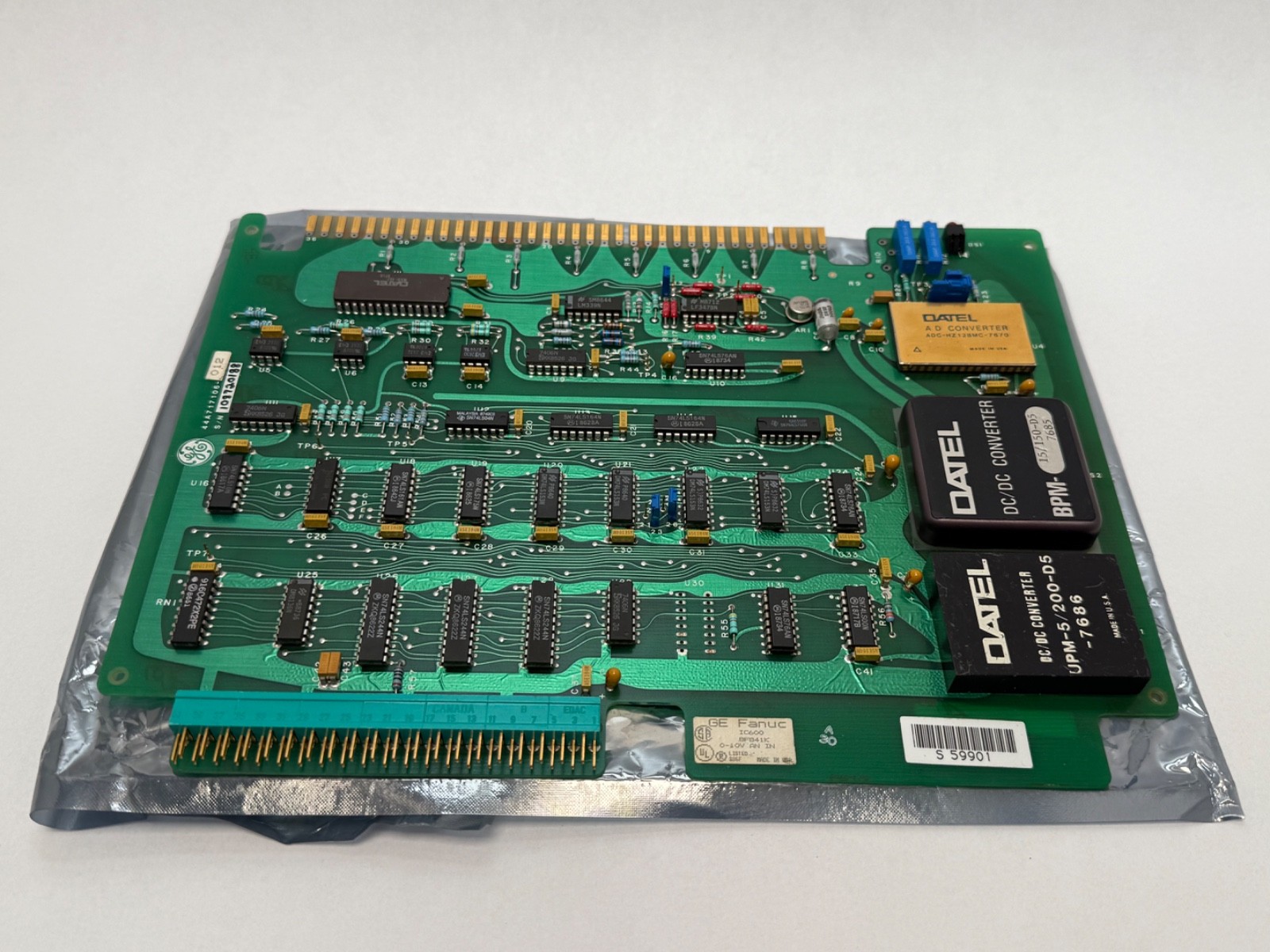

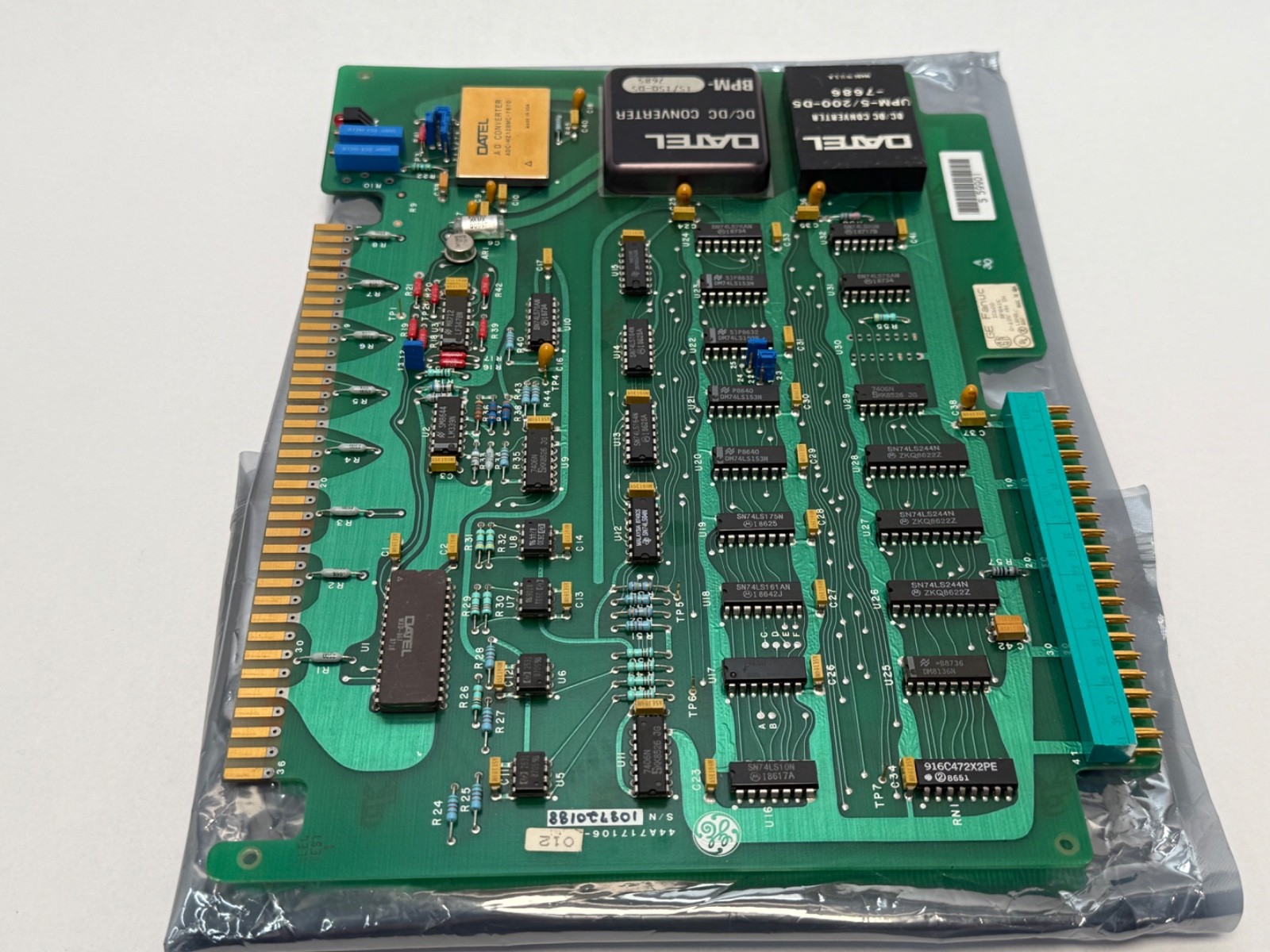

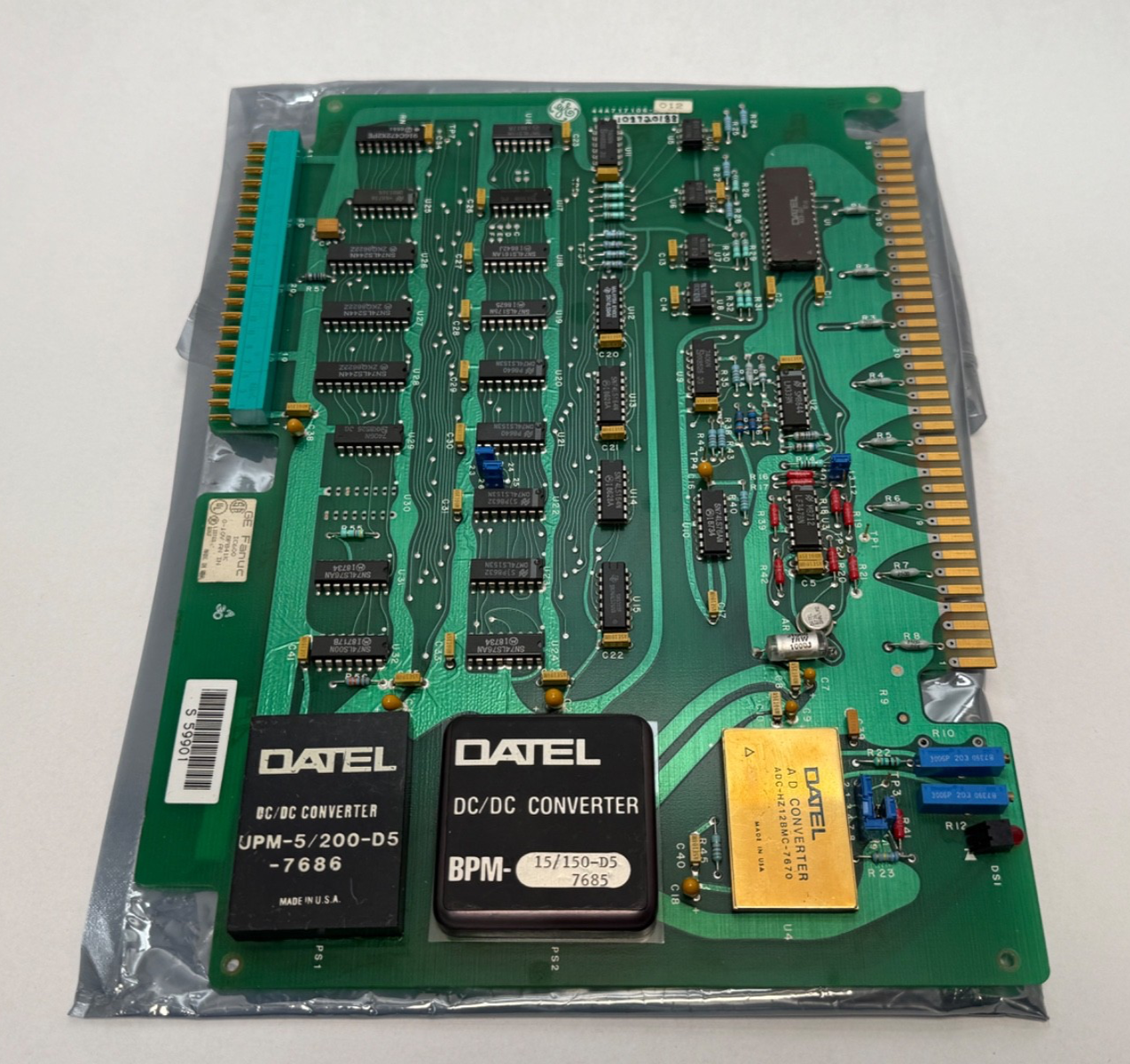

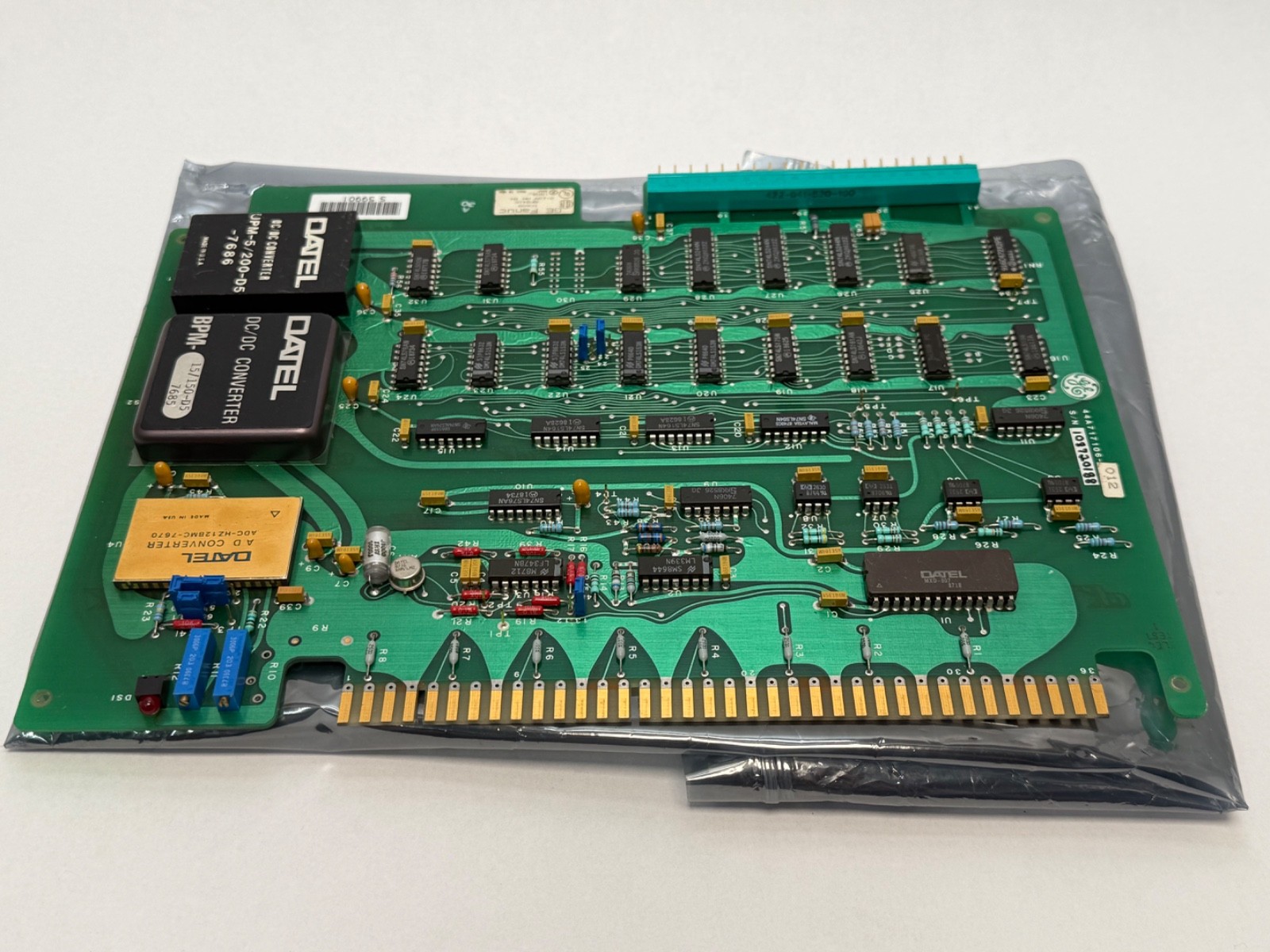

GE Fanuc IC600BF841K 0 to 10 V DC Analog Input Module for the Series Six programmable controller. Input-only board: it takes eight analog voltage signals from field devices such as transducers, transmitters, potentiometers and tachometer conditioners, converts each to a 12-bit digital value, and presents them to the PLC’s Input Status Table. Unit Quantity: 1 Pc, circuit board with faceplate.

Decoding the designation:

IC600 — GE Fanuc Series Six / Series Six Plus family.

BF — supplied as circuit board and faceplate together; a YB prefix on this platform is the bare board without faceplate.

841 — 8-channel analog input, 0 to 10 V DC unipolar range.

K — hardware revision level.

Specifications:

Function: analog input, input only. Channels: 8. Input range: 0 to 10 V DC, unipolar. Resolution: 12 bit. Signal type: analog voltage. Channel access: sequential and repetitive. Protection: over-range and under-range detection. On-board circuitry: address decoder, data bus driver, optical isolator, analog multiplexer, A/D converter. Addressing: reserves a group of 32 consecutive bits in the CPU Input Status Table. Series: Series Six / Series Six Plus. Base Number: IC600BF841. Country of Origin: United States.

Dimensions and mounting:

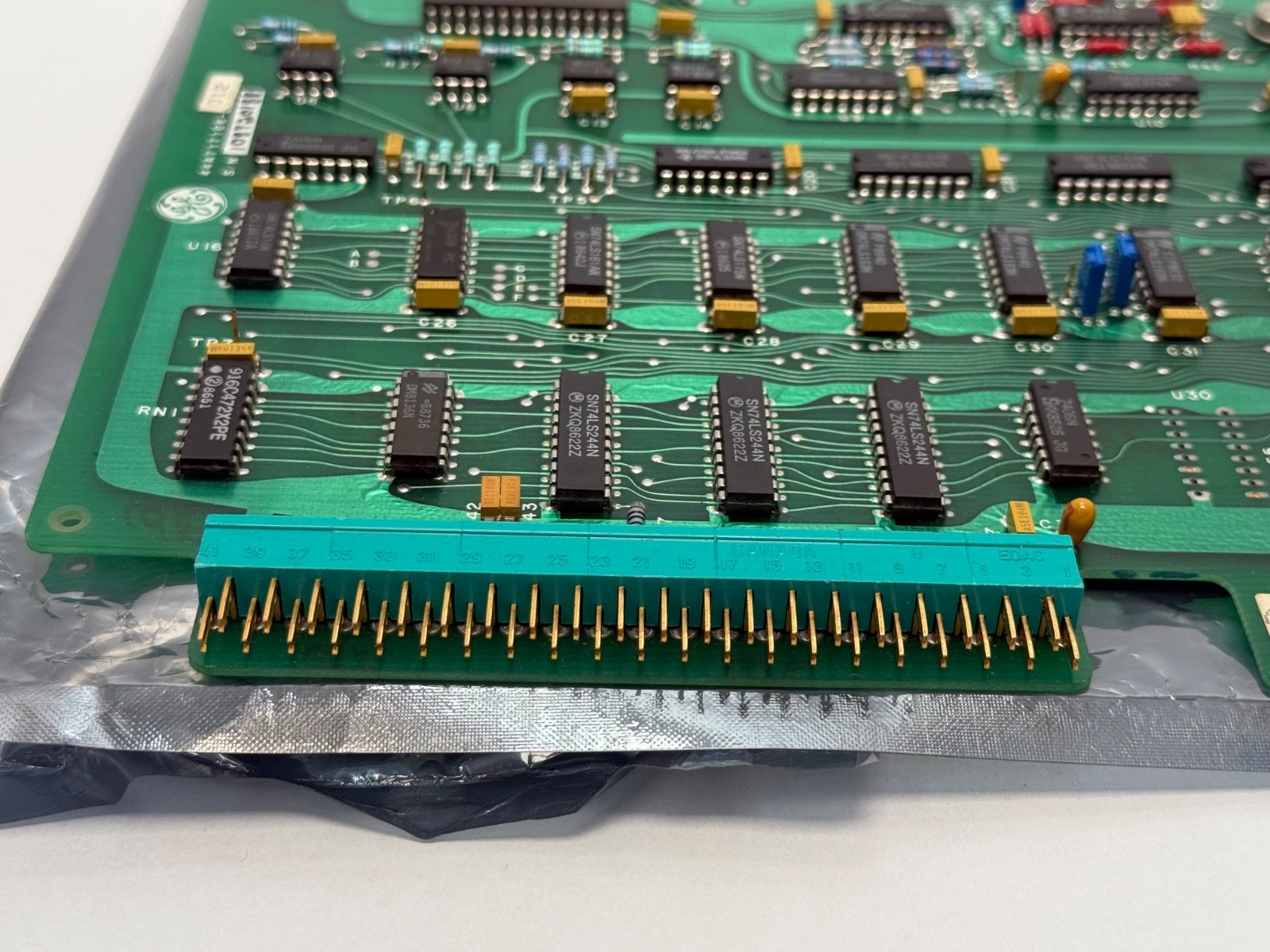

Rack space: one I/O slot in a Series Six I/O rack, Model 60 CPU rack or Series Six Plus CPU rack. The faceplate carries the field terminals (IN and Return per channel, plus shield) and is secured to the rack by thumbscrews top and bottom. DIP switches on the rack backplane immediately behind the card slot reserve the 32-bit group in the Input Status Table that this module occupies.

Compatibility and replacement:

IC600BF841 covers its own revision letters, IC600BF841A through IC600BF841Z, including this K. Related parts with different input ranges, all 8-channel: IC600BF842 (bipolar −10 to +10 V DC) and IC600BF843 (4–20 mA current input). Related Series Six items: IC600LX624 combined memory module, IC600BF942 and IC600BF943 analog output modules, IC600YB discrete I/O boards. Searchable forms: IC600BF841K, IC600-BF841K, IC600 BF 841, IC600BF841, BF841, GE Series 6 analog input card.

Frequently asked questions:

What is the input range of the IC600BF841K?

0 to 10 V DC unipolar, 8 channels, 12-bit resolution.

Which racks does it fit?

Series Six I/O rack, Model 60 CPU rack or Series Six Plus CPU rack, one I/O slot.

What do the BF842 and BF843 versions provide?

IC600BF842 is bipolar −10 to +10 V DC; IC600BF843 is 4–20 mA current input.
