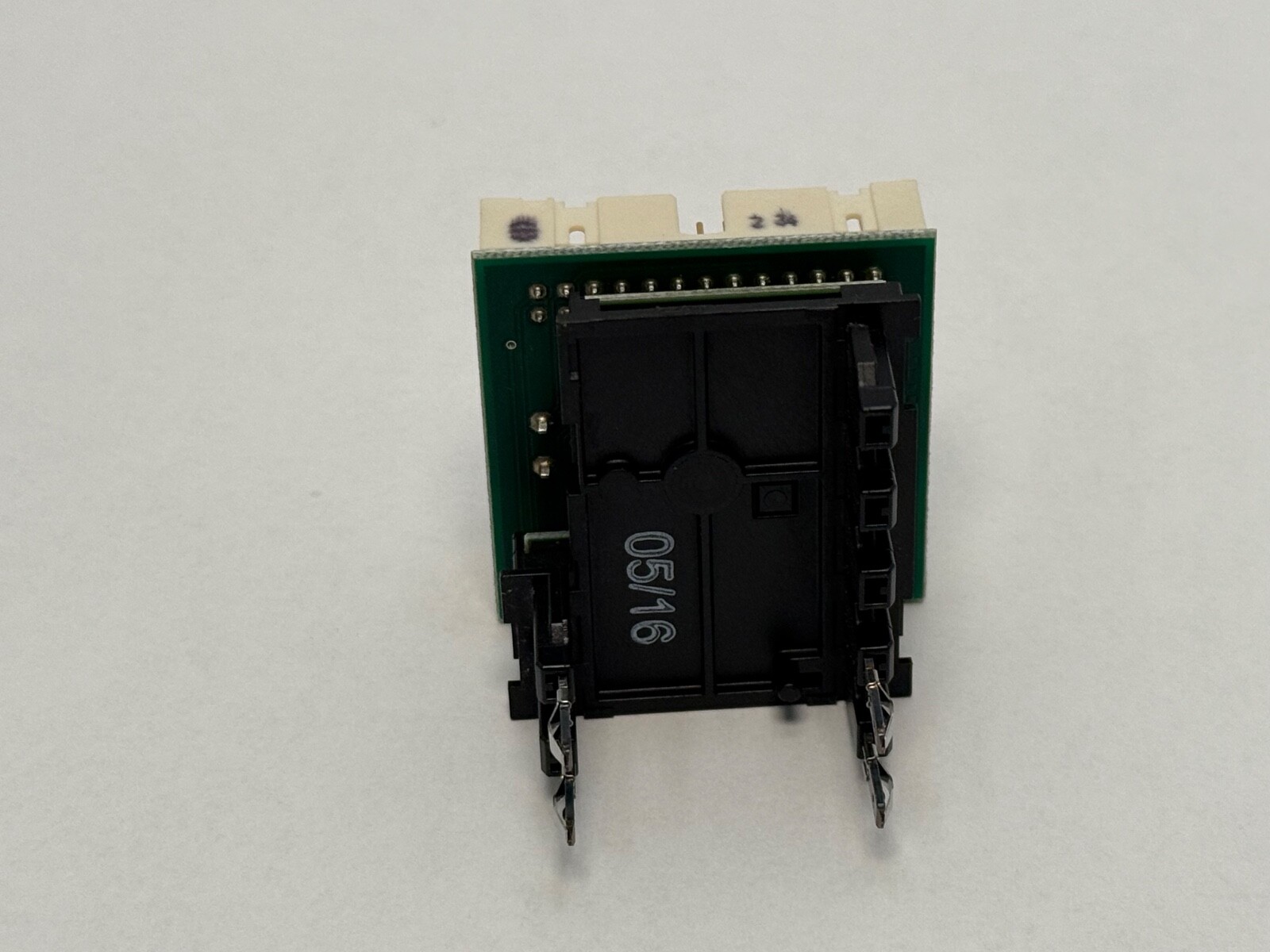

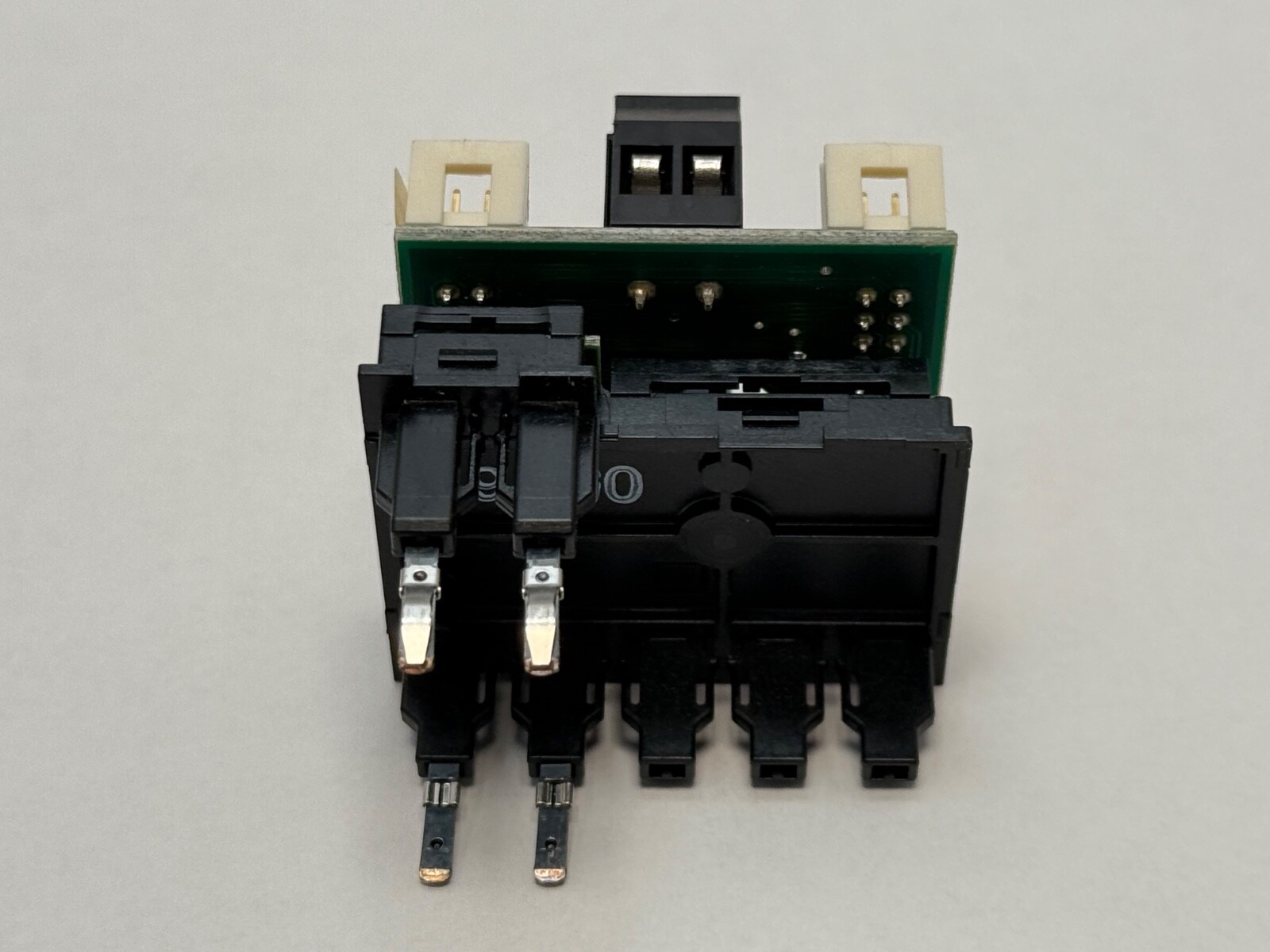

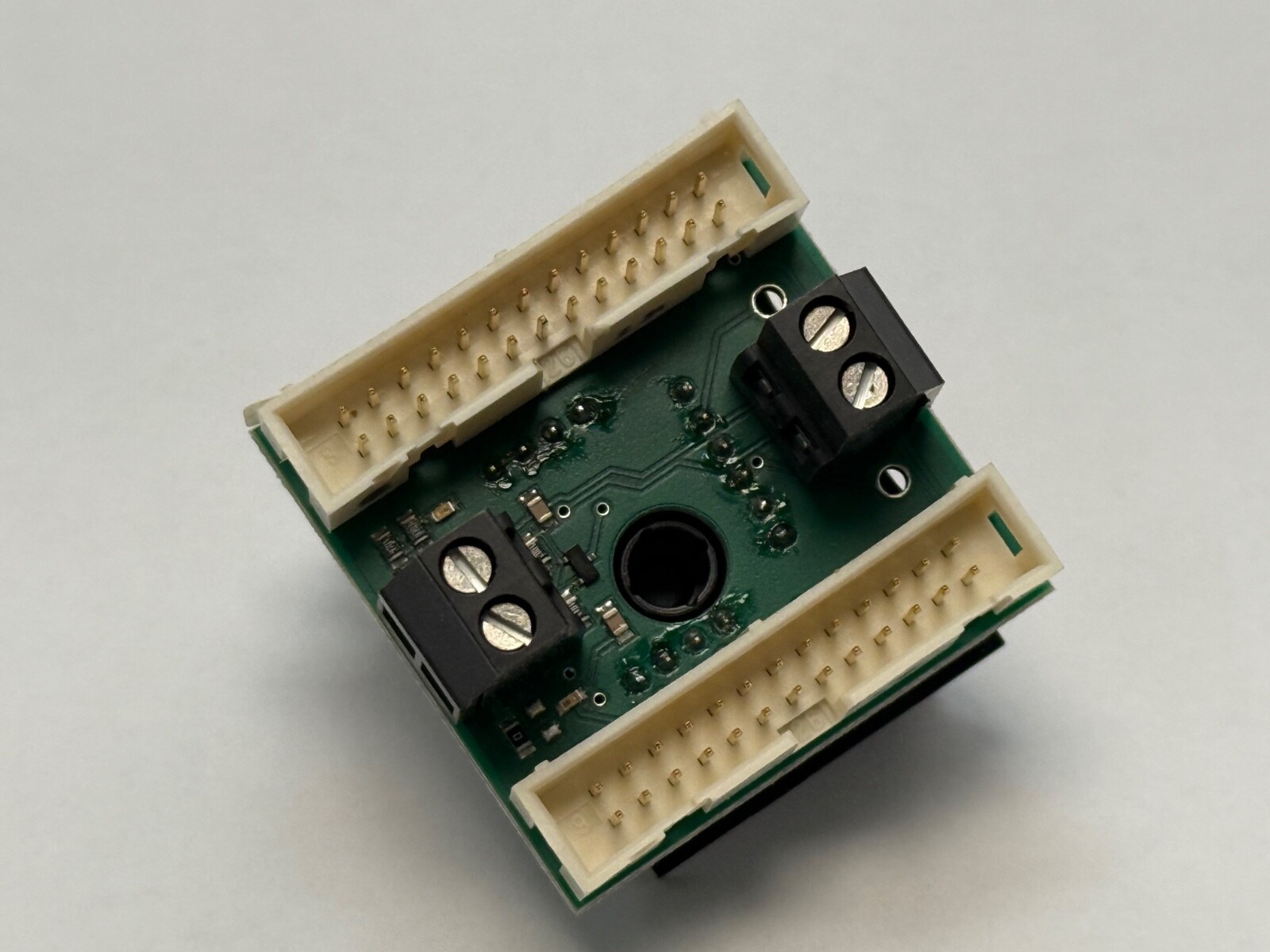

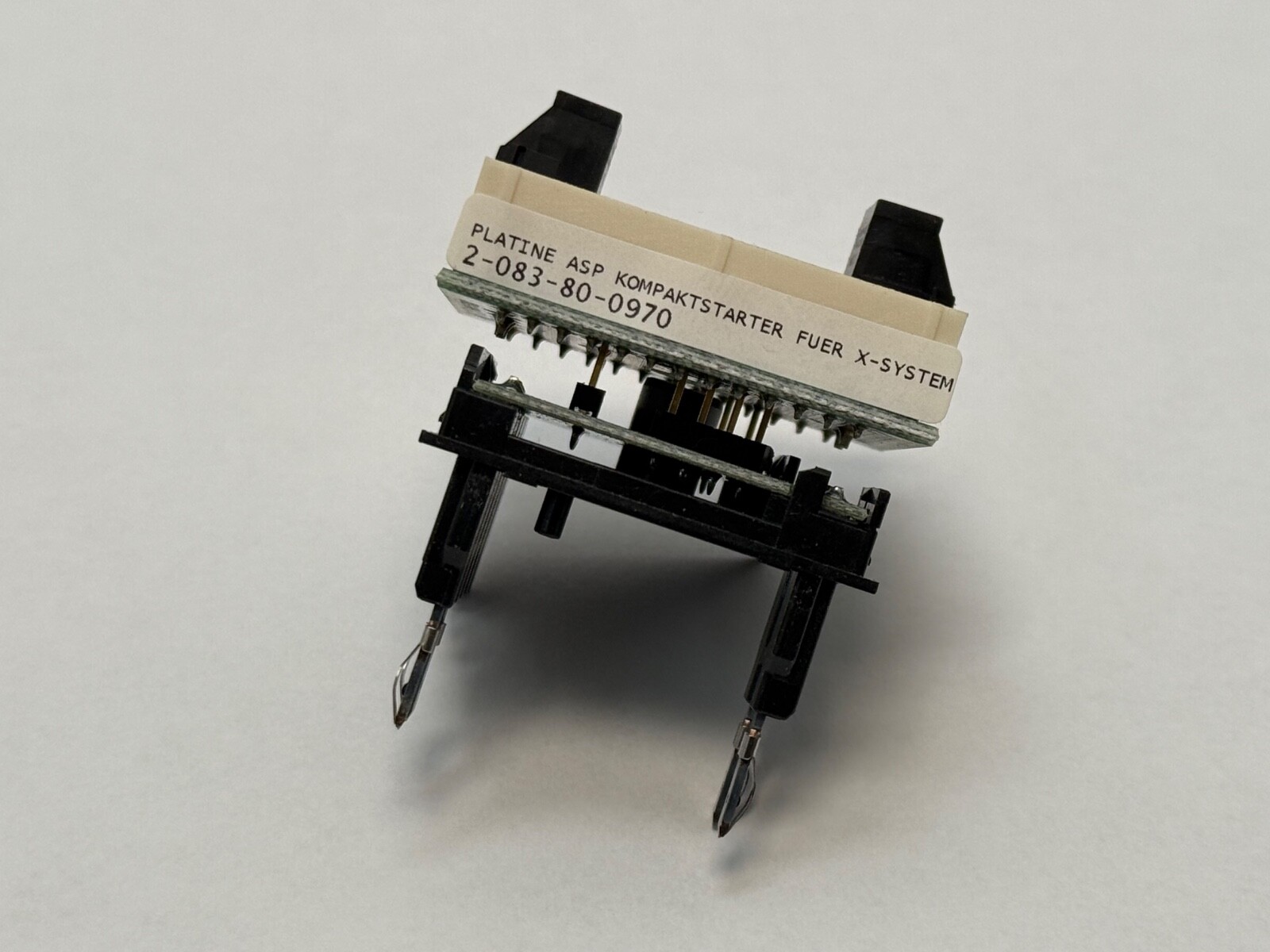

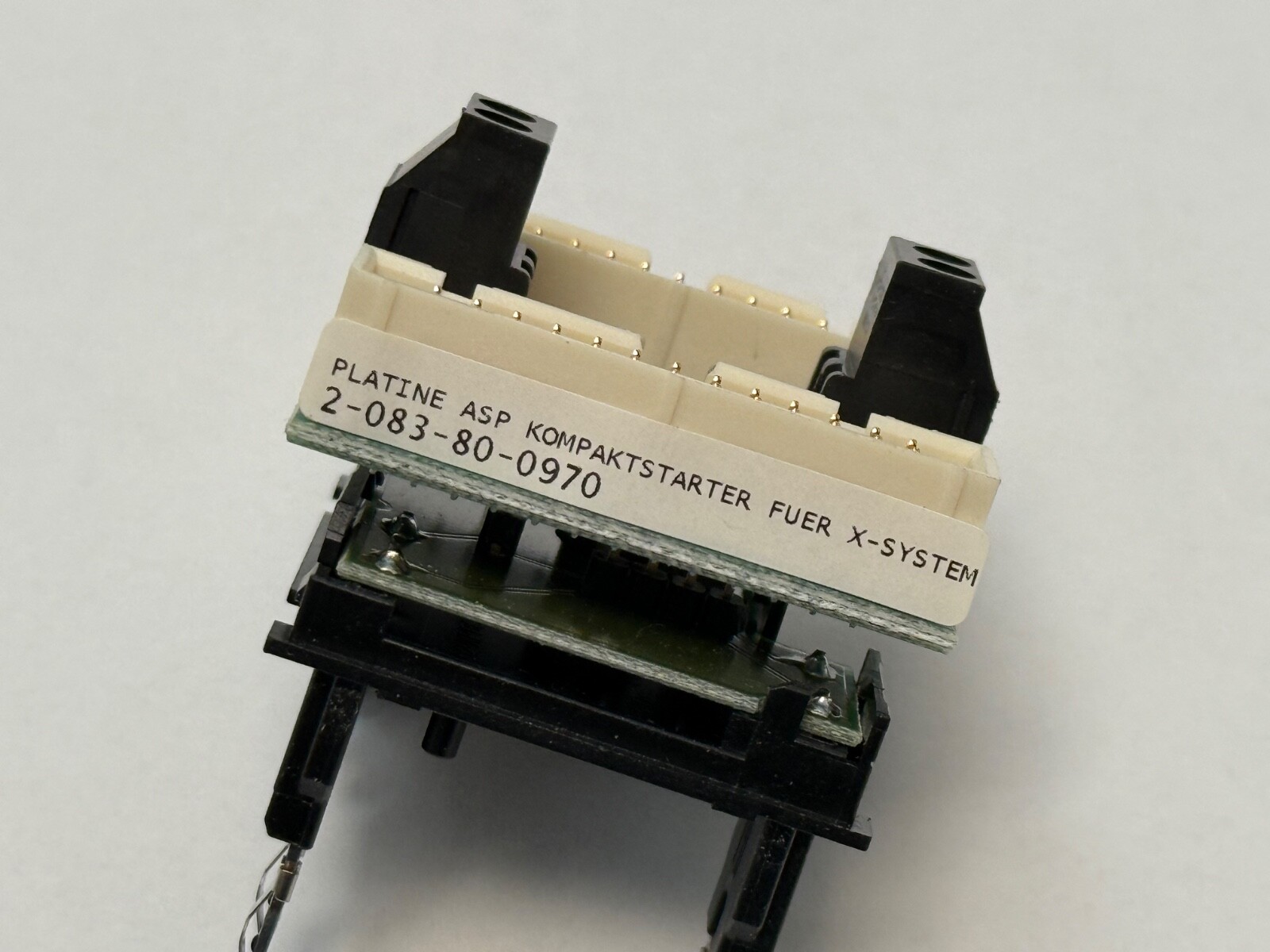

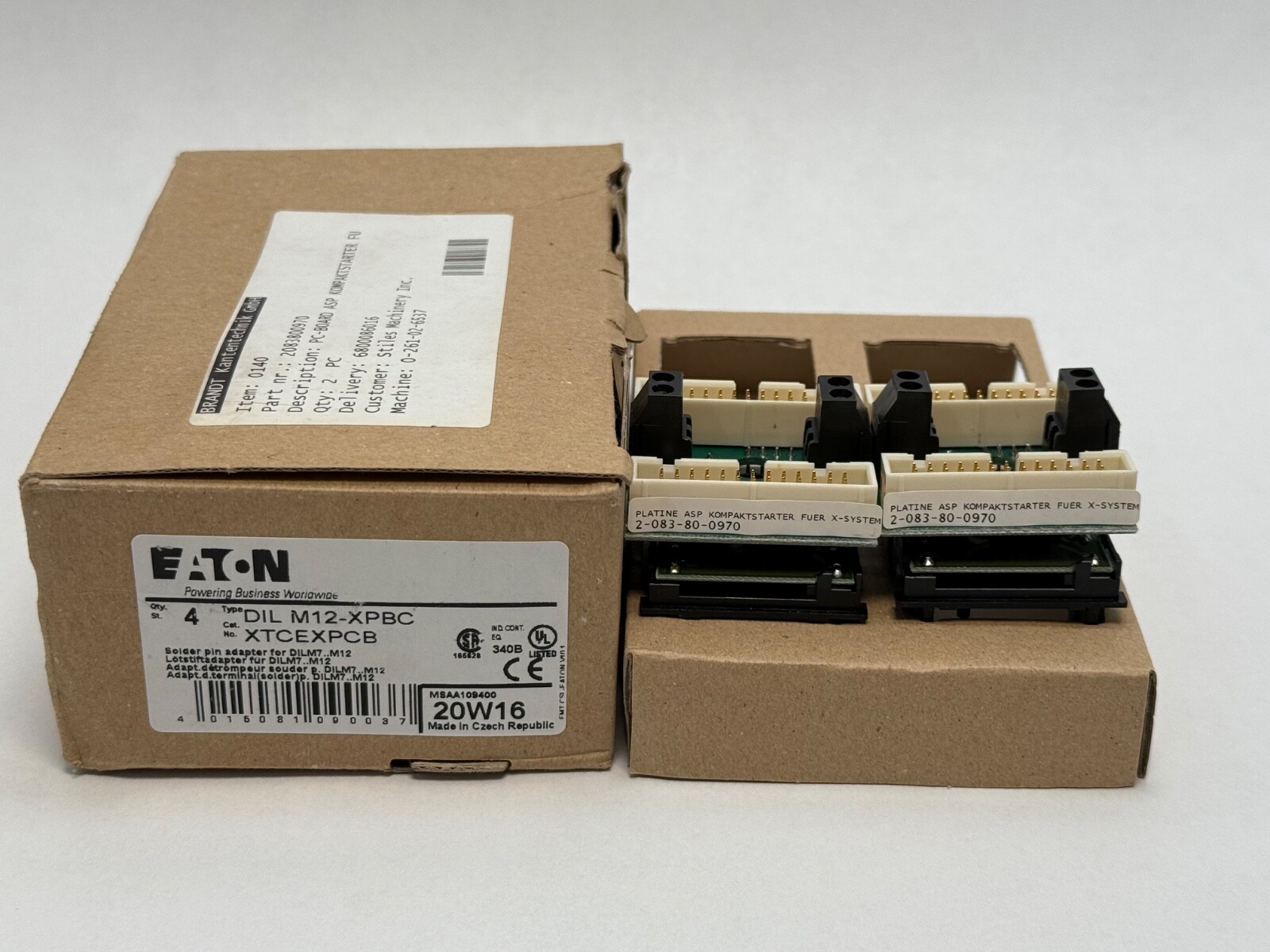

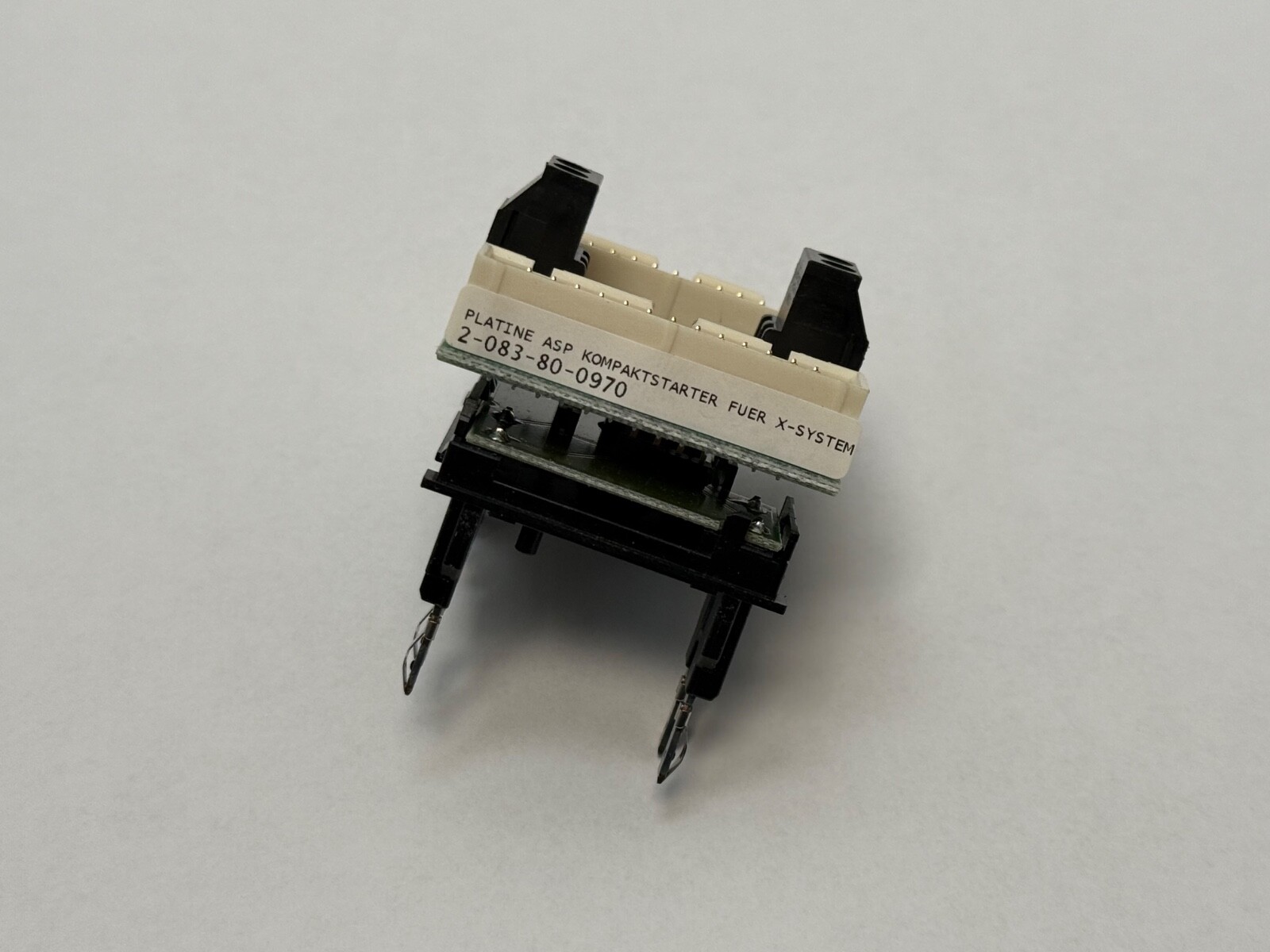

Eaton DILM12-XPBC printed board contact, catalog 109400, adapts the control circuits of DILM7 to DILM12 contactors to a PCB. Unit Quantity: 2 Pcs.
List Price
$25.27
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Eaton |
|---|---|
| MPN | DILM12-XPBC |
| GTIN | 4015081090037 |
| Model | DIL-M12-XPBC |
| Series | Moeller DILM |
|---|---|
| Item Width | 6 |
| Item Height | 4 |
| Item Length | 6 |
| Mpn Variants | DILM12-XPBC, DIL-M12-XPBC, DILM12XPBC, 109400, XTCEXPCB |
| Compatible With Replaces | Eaton Moeller DILM7, DILM9, DILM12 contactors |
| Min Temp | -25°C |
| Max Temp | 60°C |
| Type | Printed Board Contact |
| Item Weight | 0.007 kg (0.015 lb) |
| Industry Terms | printed board contact; PCB contactor adapter; contactor PCB contact set; DILM PCB terminal; Moeller DIL PCB contact |
| Common Misspellings | Eaton DILM12 XPBC; DILM-12-XPBC; Eton DILM12-XPBC; Moeller DILM12XPBC; DILM12-XBPC |
| Application Types | Contactor control circuit adaption to printed circuit boards; PCB-mounted motor control; machine control panels |
Eaton DILM12-XPBC, catalog number 109400, is an Eaton Moeller series DILM printed board contact. It adapts the control circuit of a DILM7 to DILM12 contactor to a printed-circuit board. Accessory Type: Contact set. Unit Quantity: 2 Pcs.
DILM12 — fits Eaton Moeller DILM contactors up to frame DILM12, from DILM7.
XPBC — printed board contact accessory.
Catalog Number: 109400. Model Code: DILM12-XPBC. Product Category: Accessories. Accessory Type: Contact set. Function: adaption of a control circuit on a printed-circuit board. Ambient Operating Temperature: -25°C to 60°C. Compliance: CE. GTIN: 4015081090037.
Length/Depth: 45 mm. Height: 33.9 mm. Width: 38.3 mm. Item Weight: 0.007 kg.
Compatible with Eaton Moeller DILM7, DILM9 and DILM12 contactors. Also written DIL-M12-XPBC and DILM12XPBC.
CAD model and data sheet: available from Eaton (eaton.com).
It is a printed board contact accessory for DILM7 to DILM12 contactors.
109400.
Unit Quantity: 2 Pcs.
