Double row angular contact ball bearing, 60 x 110 x 36.5 mm, 30° contact angle, open. Dynamic load 75,000 N, pressed steel cage, CN clearance, P6.
List Price
$52.72
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3212-BD-XL |
| Model | 3212BD |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 36.5 mm |
| Series | 3200 |
|---|---|
| Min Temp | -30 °C |
| Cage Type | Pressed steel sheet cage (JH) |
| Dynamic Load Rating | 75,000 N |
| Static Load Rating | 64,000 N |
| Rolling Elements | Ball |
| Max Temp | 150 °C |
| Item Weight | 1.26 kg |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 6,300 rpm |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Internal Clearance | CN |
| Overall Width | 36.5 mm |
| Mpn Variants | 3212-BD-XL, 3212BD-XL, 3212BD, 3212 BD, 3212-B-D, 3212BDXL |
| Compatible With Replaces | 3212 BD, 3212-B, 5212 |
| Precision Class | ABEC 3 / P6 |
| Cross Reference 1 | SKF 3212 A (A design) |
|---|---|
| Cross Reference 2 | NSK 5212 (5200 series number) |
| Cross Reference 3 | MRC 5212 (5200 series number) |
| Cross Reference 4 | NTN 5212 (5200 series number) |

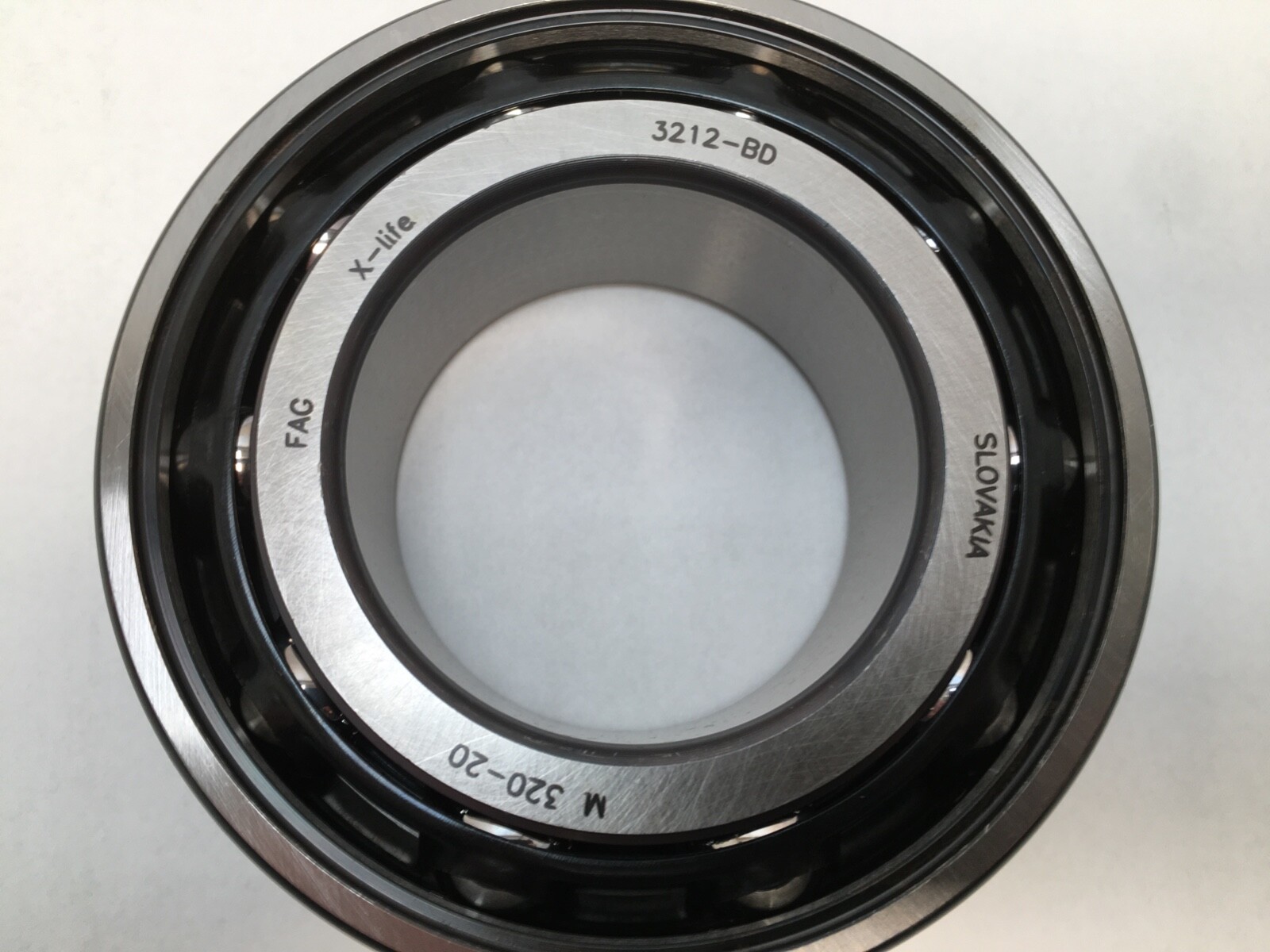

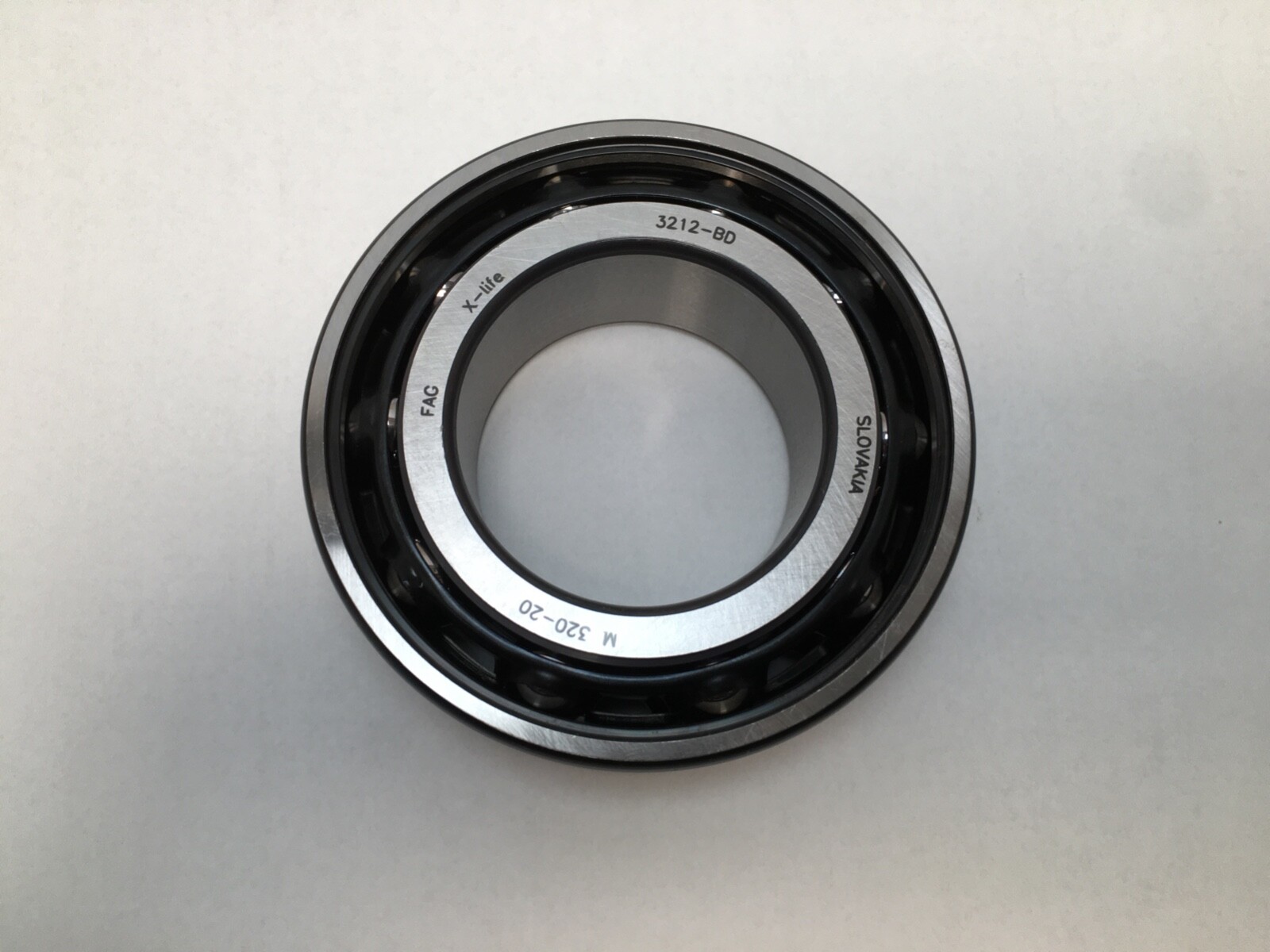

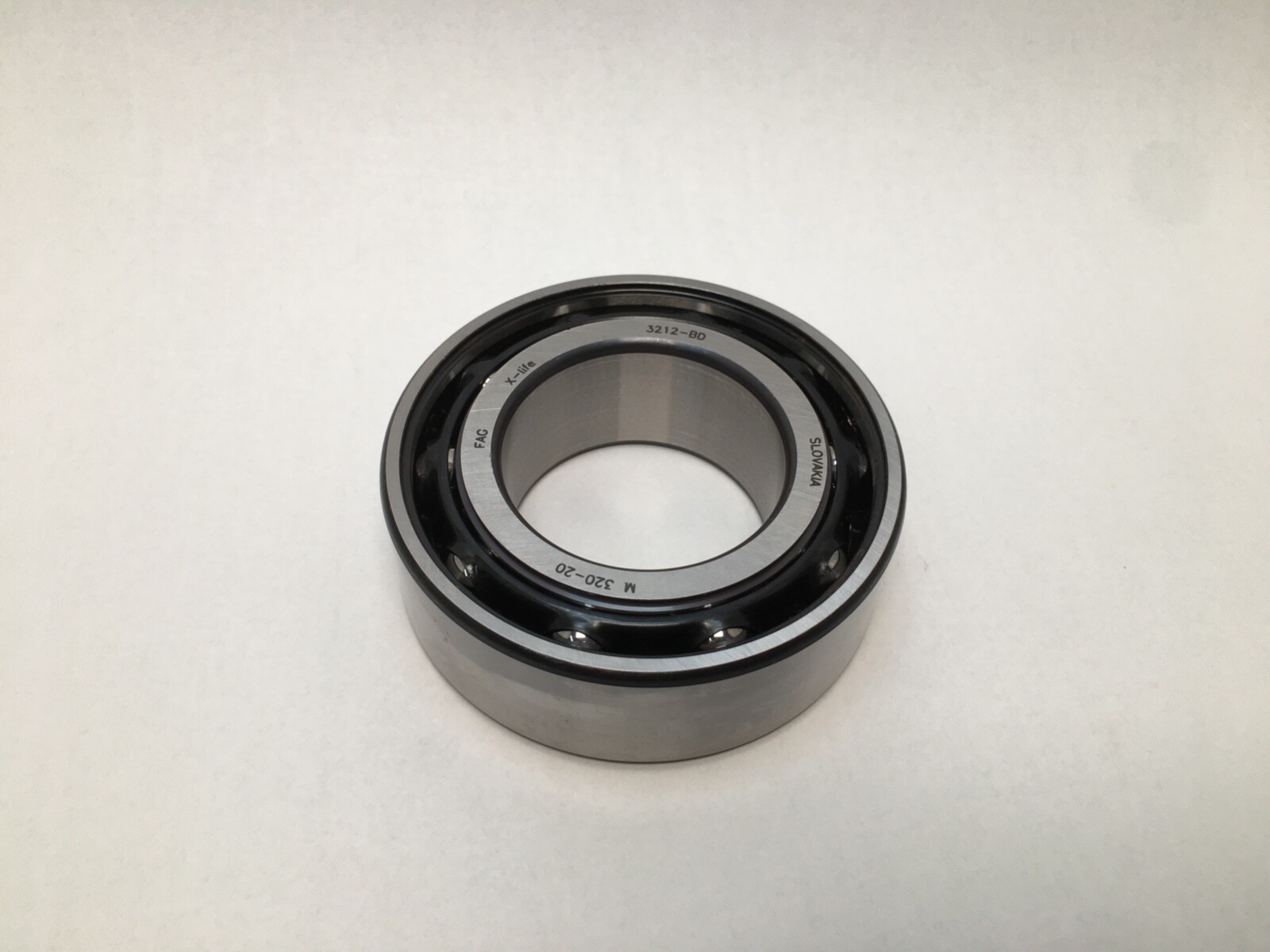

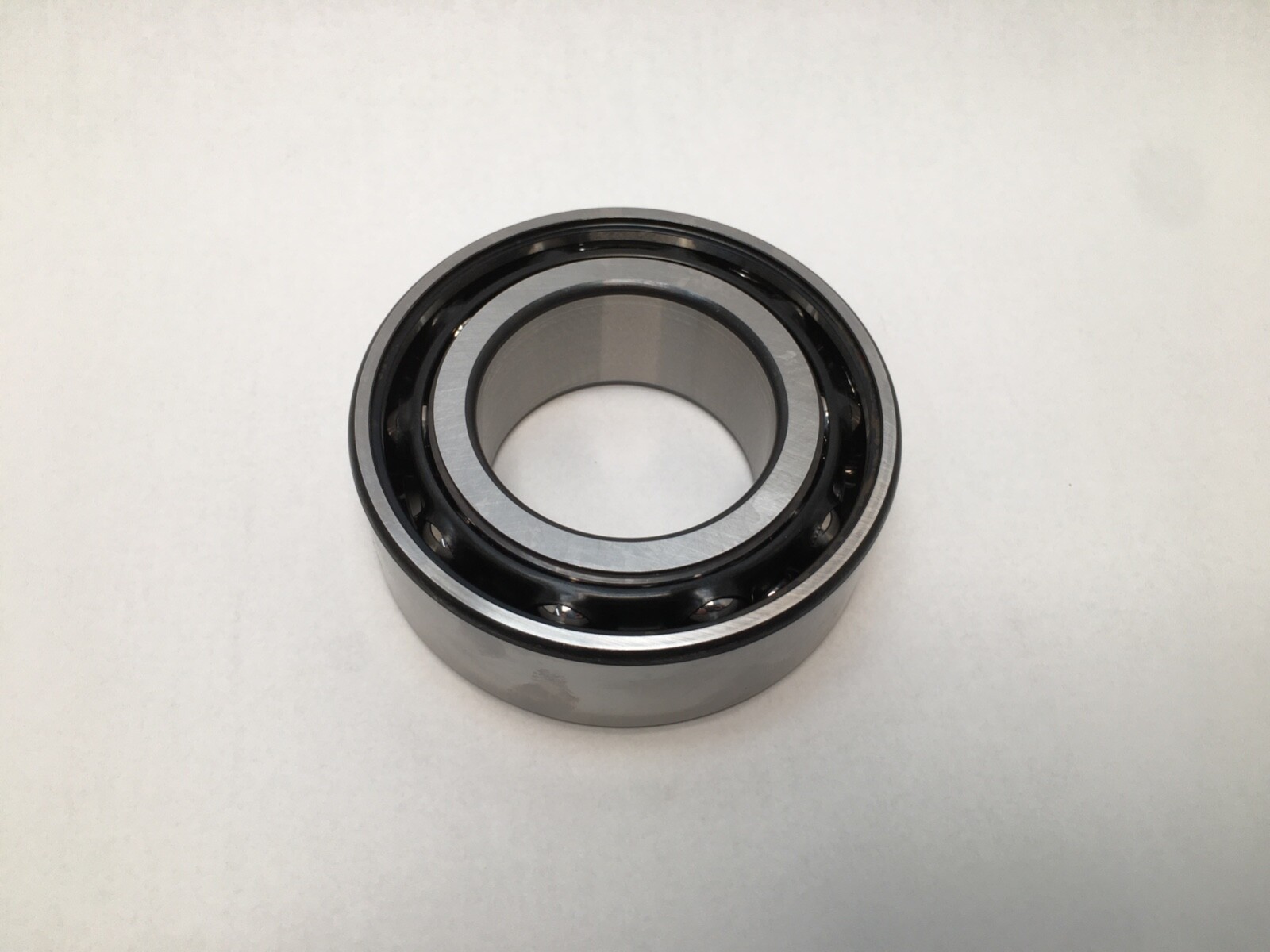

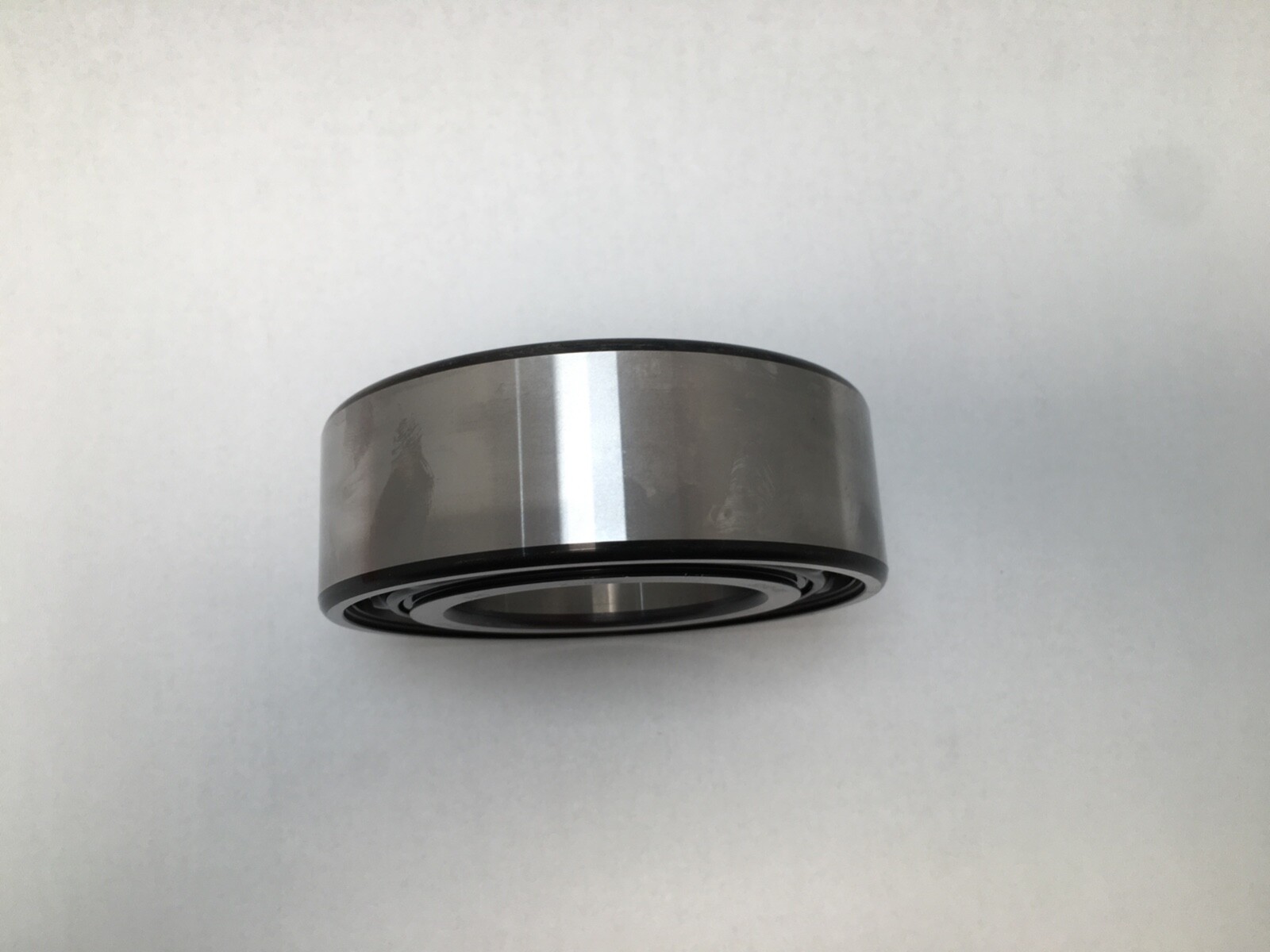

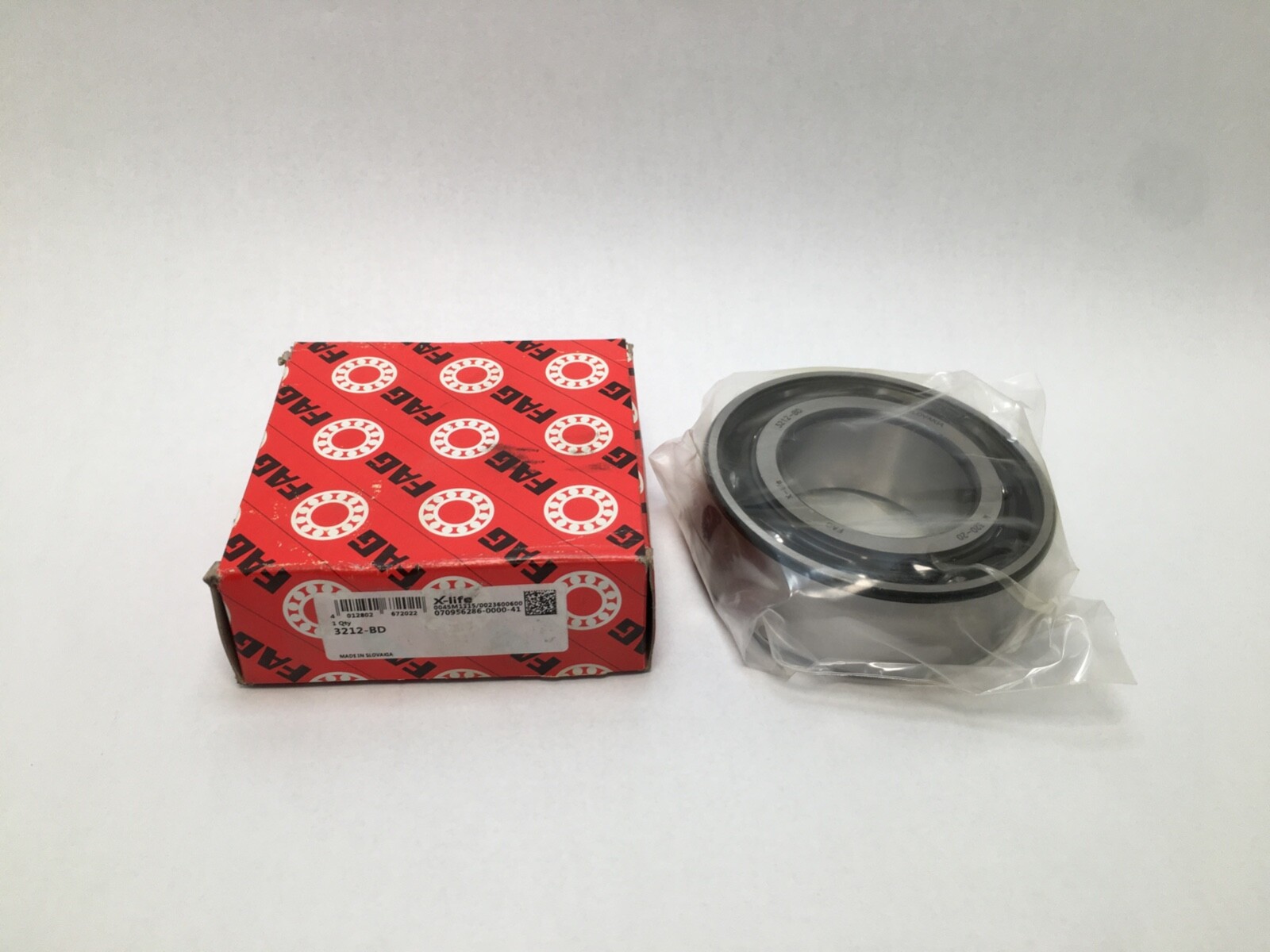

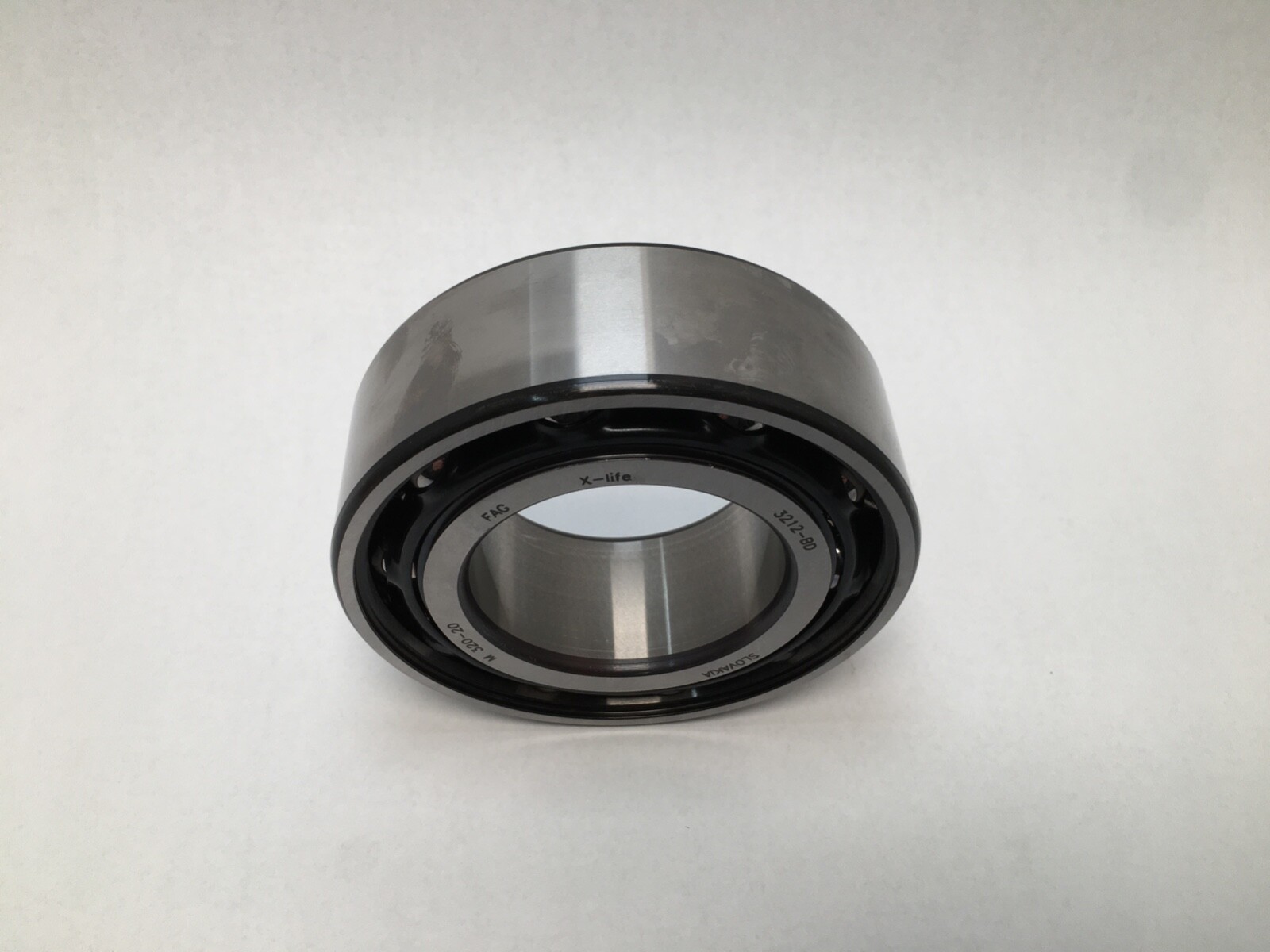

FAG 3212-BD-XL double row angular contact ball bearing, X-life execution. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 36.5 mm. Contact Angle: 30°. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 2.
3212 — double row angular contact ball bearing, 32 series, bore code 12 = 60 mm.
B — design without filling slot.
XL — Schaeffler X-life, the higher-performance execution.
Dynamic Load Rating: 75,000 N. Static Load Rating: 64,000 N. Limiting Speed: 6,300 rpm. Reference Speed: 6,700 rpm. Cage Material: Pressed steel. Cage Type: Pressed steel sheet cage (JH). Internal Clearance: CN (axial). Precision Class: ABEC 3 / P6. Operating Temperature: −30 °C to +150 °C. Rings dimensionally stabilised to 150 °C (S0). Supplied not greased. Item Weight: 1.26 kg.
Abutment Diameter da min: 69 mm. Abutment Diameter Da max: 101 mm. Chamfer r min: 1.5 mm.
Other makers’ 60 x 110 x 36.5 mm double row angular contact bearings: SKF 3212 A, NSK 5212, MRC 5212 and NTN 5212. Also written 3212-BD-XL, 3212BD, 3212 BD, 3212-B-D and 3212BDXL.
60 mm bore, 110 mm outside diameter, 36.5 mm width.
30°, two rows.
Schaeffler X-life, the higher-performance execution.
