NTNDeep Groove Ball Bearing – Straight Bore, 100 mm ID, 215 mm OD, 47 mm Width, Single Shield One Face Open, Normal Clearance

Product Description

What this part is

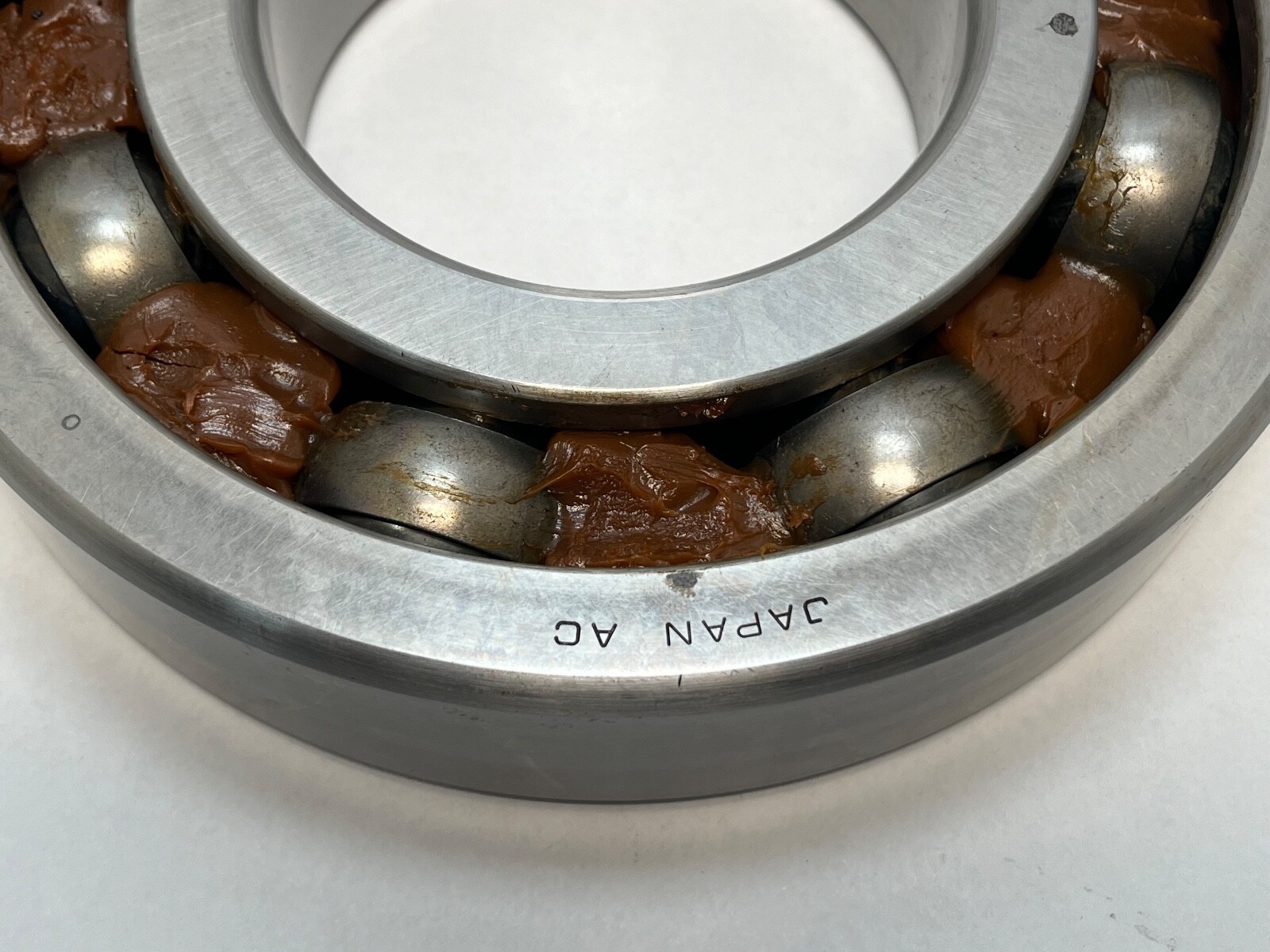

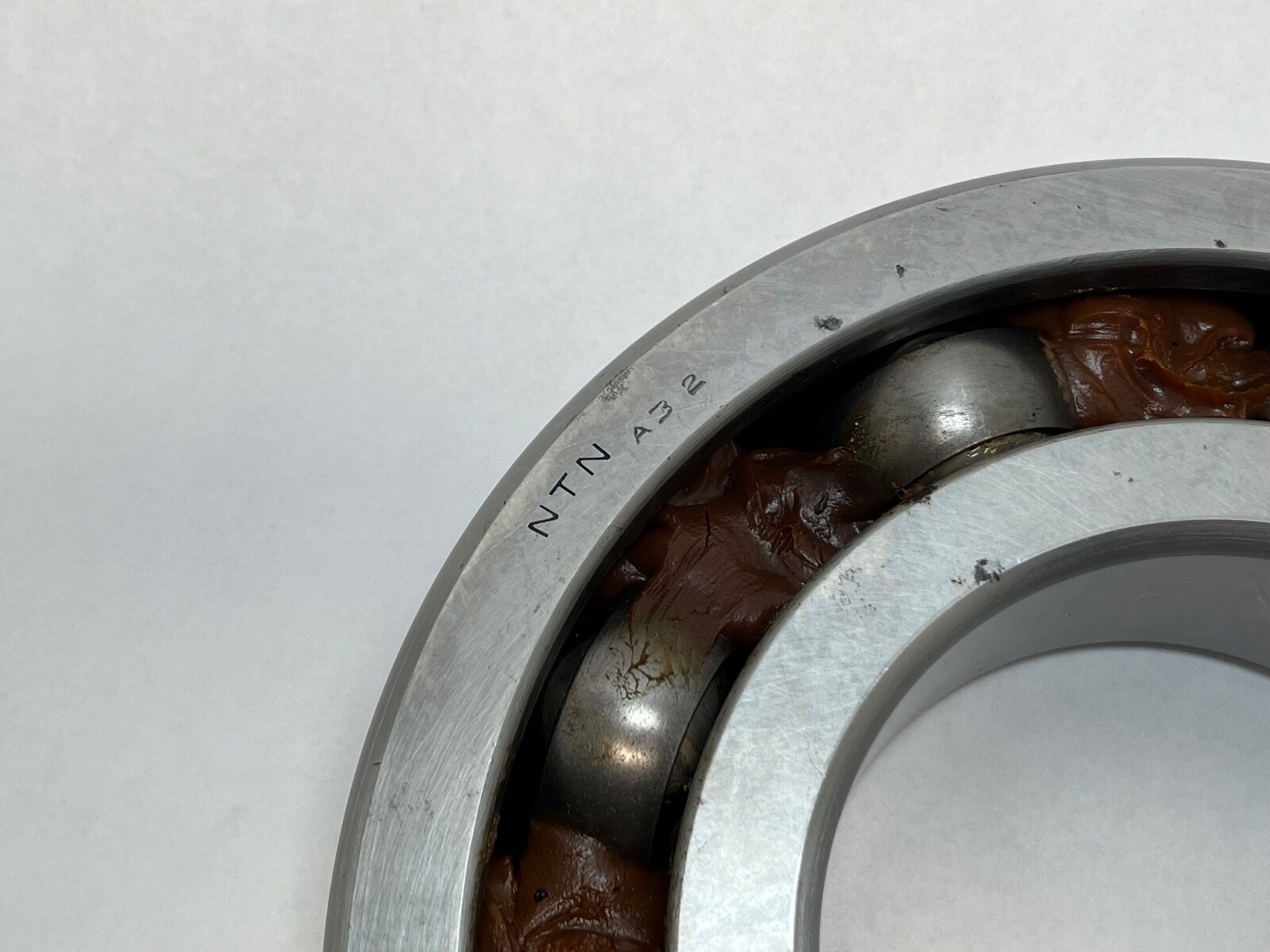

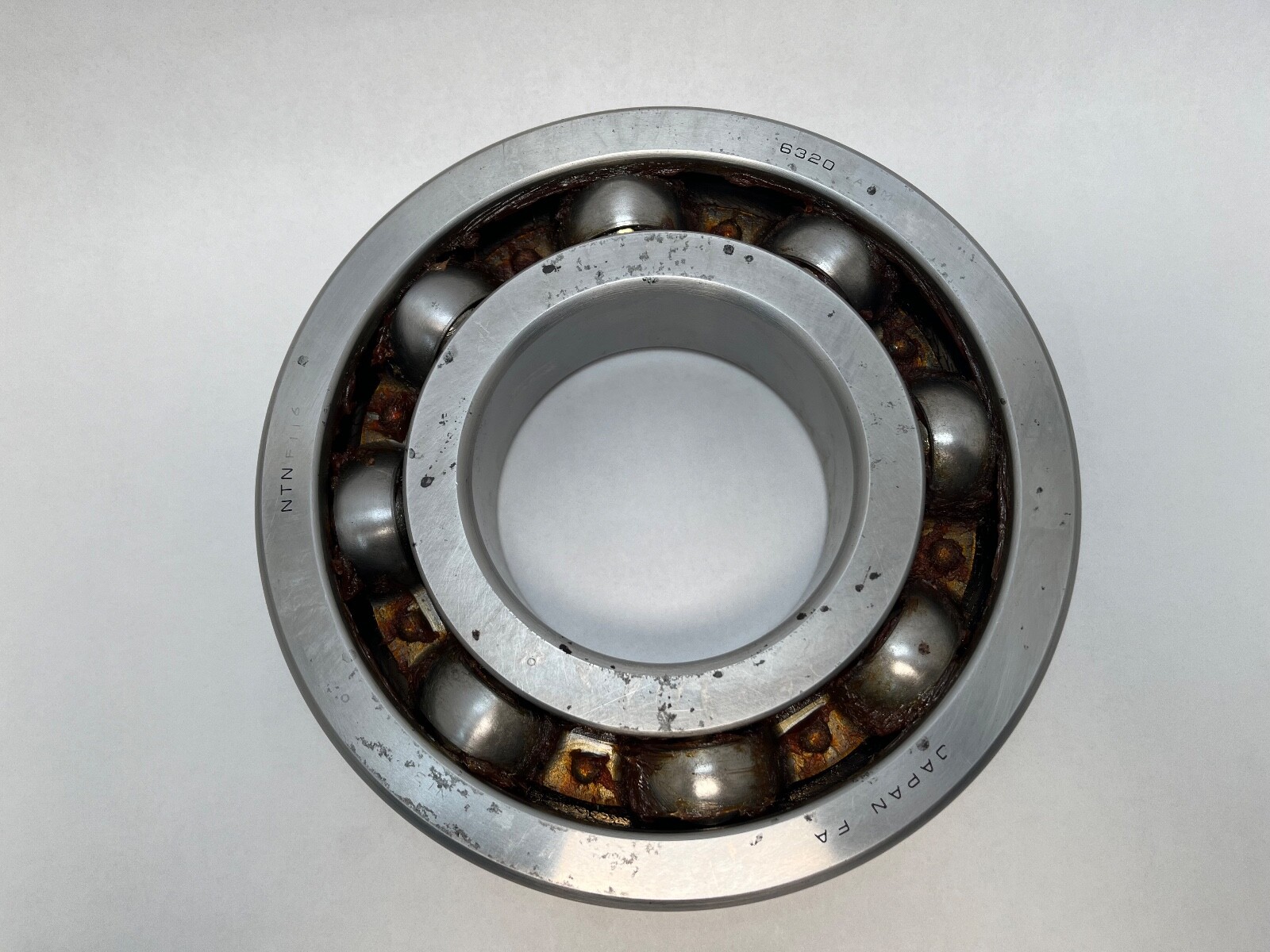

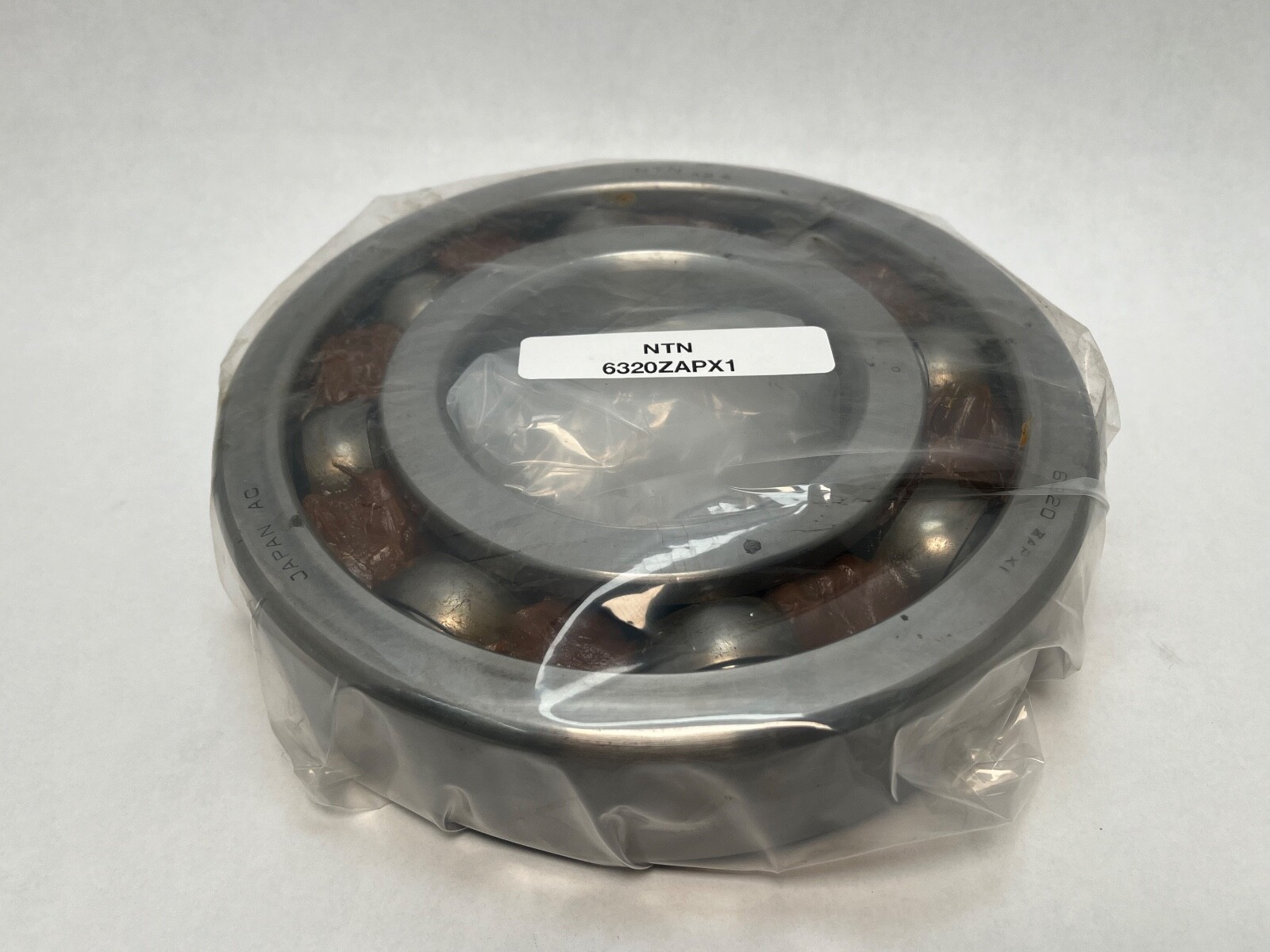

An NTN single-row deep groove ball bearing, 100 mm bore by 215 mm outside diameter by 47 mm wide, with one pressed steel shield fitted and the opposite face open. Deep groove ball bearings carry radial load with useful thrust capacity in both directions and are the general-purpose bearing of the 63 heavy series, where the larger section around a given bore buys capacity over the 62 and 60 series.

Decoding the designation

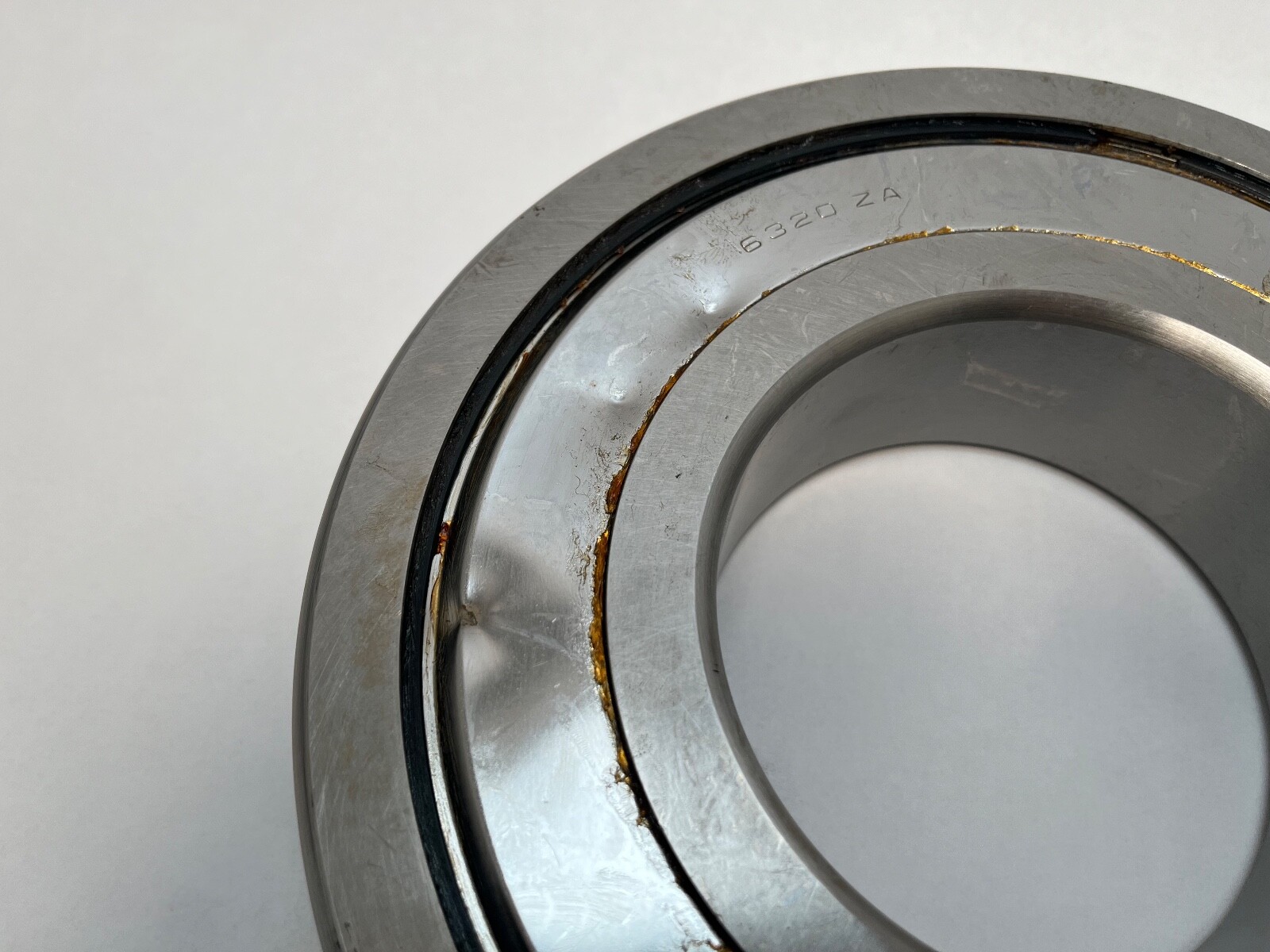

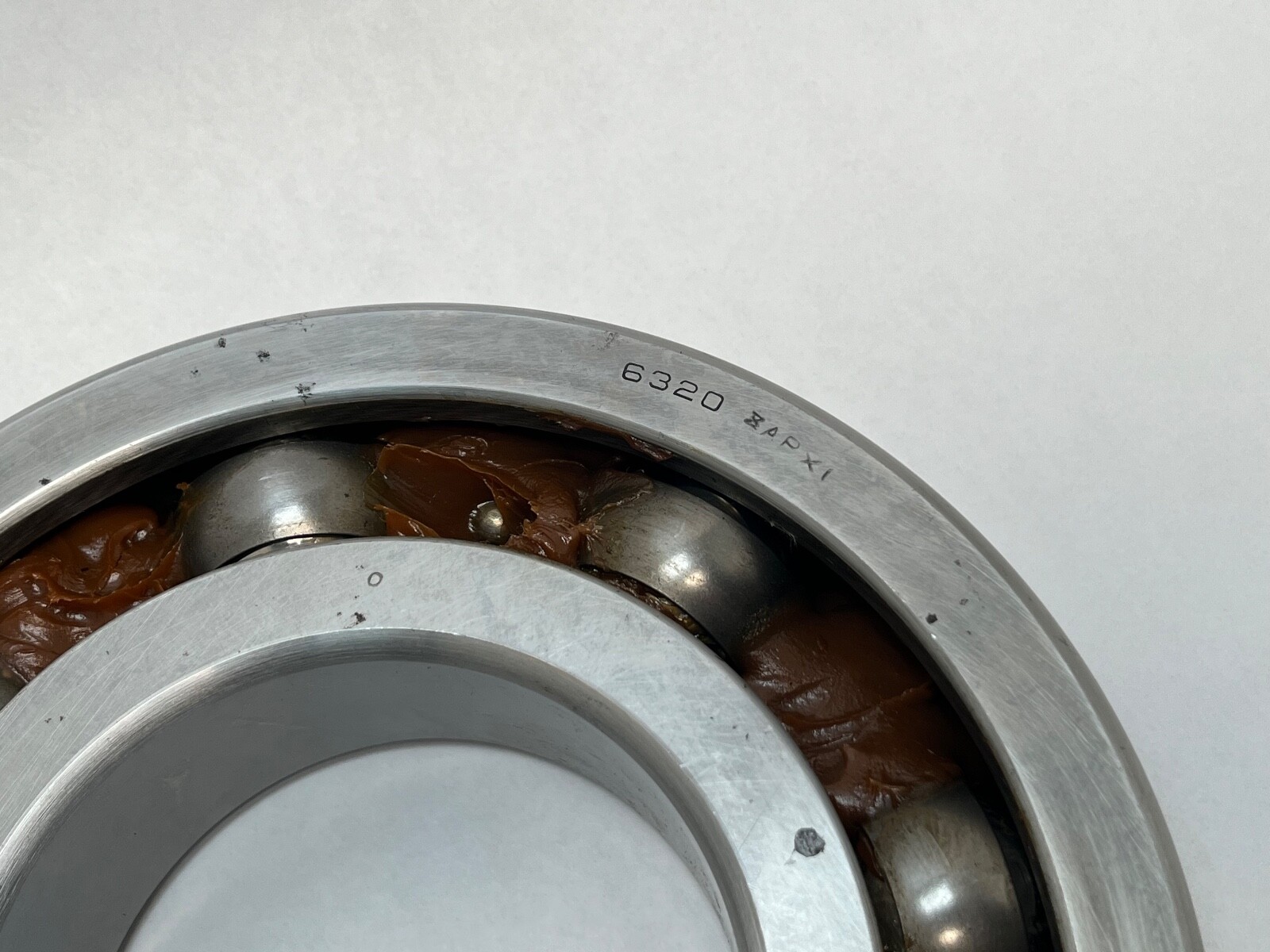

6320ZAPX1 reads as follows. 6 is the single-row deep groove ball bearing type, 3 the heavy dimension series and 20 the ISO bore code, which is the bore in millimetres divided by five, giving 100 mm. ZA is a pressed steel shield, and a single Z code means one shield with the opposite face open.

What these specs mean in practice

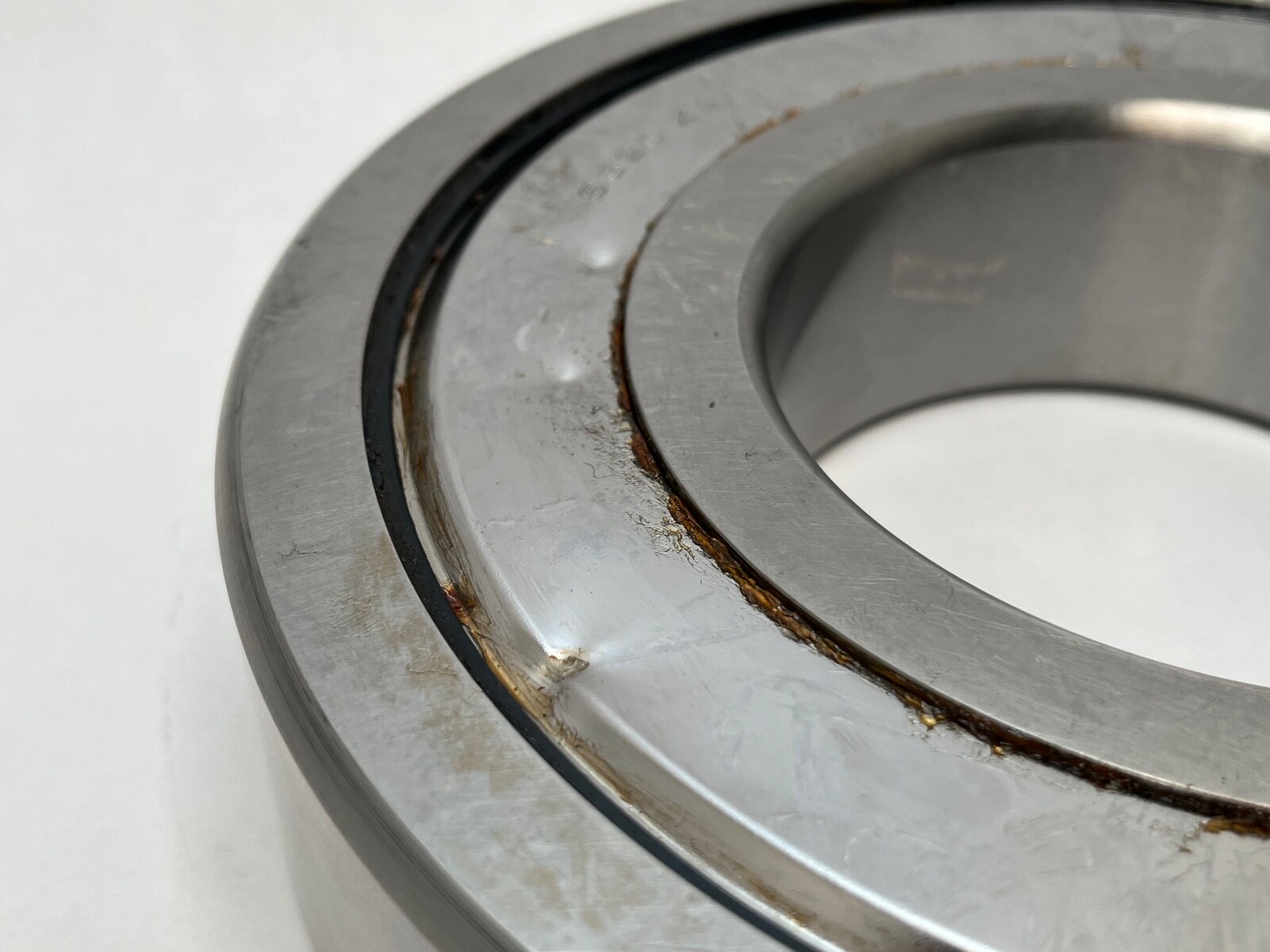

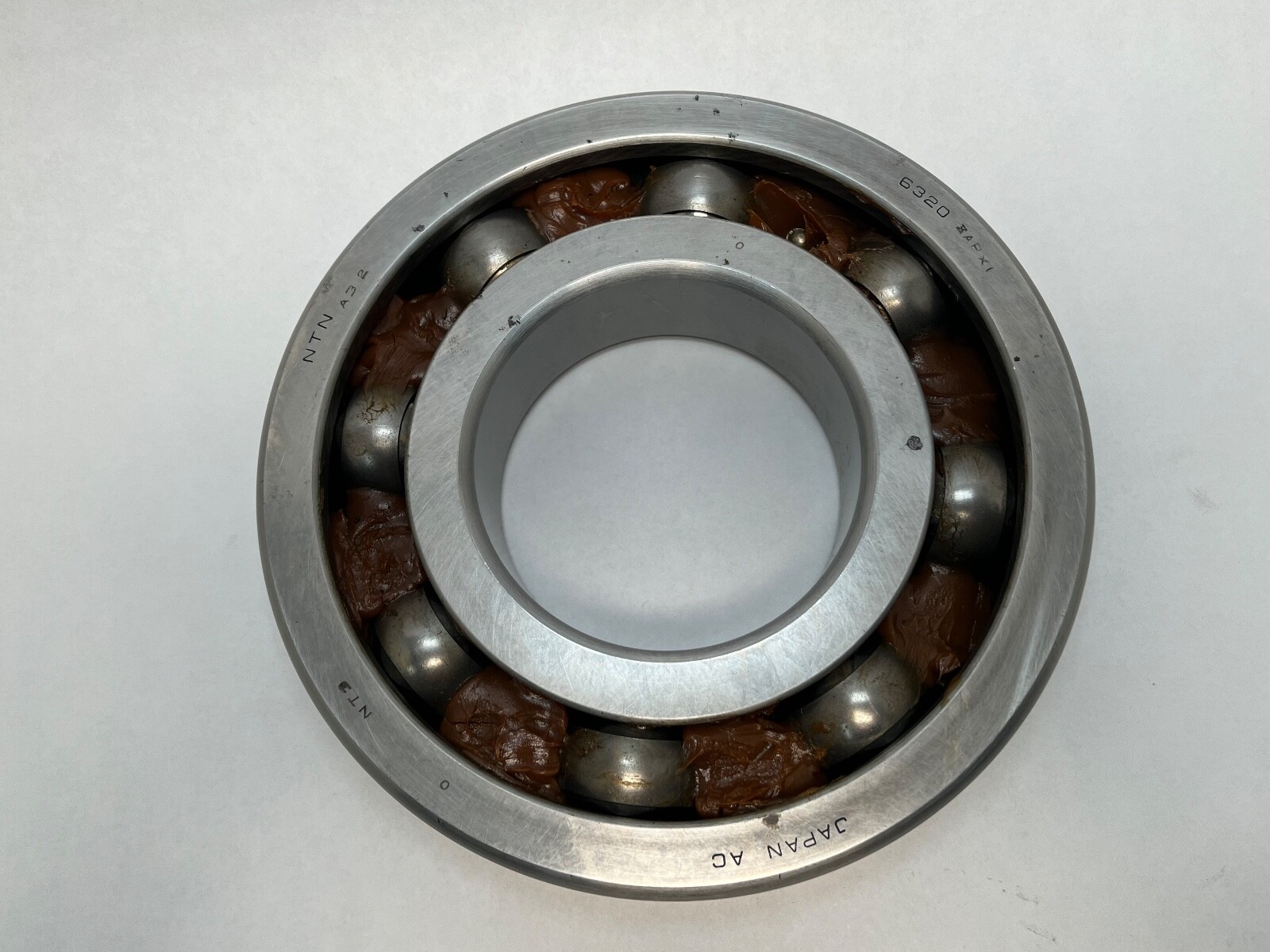

A shield is a non-contact closure. It runs with a small clearance over the inner ring shoulder, so it keeps coarse debris out and grease in without adding drag or a rubbing temperature limit, which is why a shielded bearing keeps a higher speed rating than a contact-sealed one. With one face open the bearing can be flushed and relubricated from the open side and mounted with the shield facing the contamination. Internal clearance is normal, giving the standard fit-and-load behaviour with no allowance for a heavy interference fit or a large temperature gradient across the rings.

Quantity and configuration

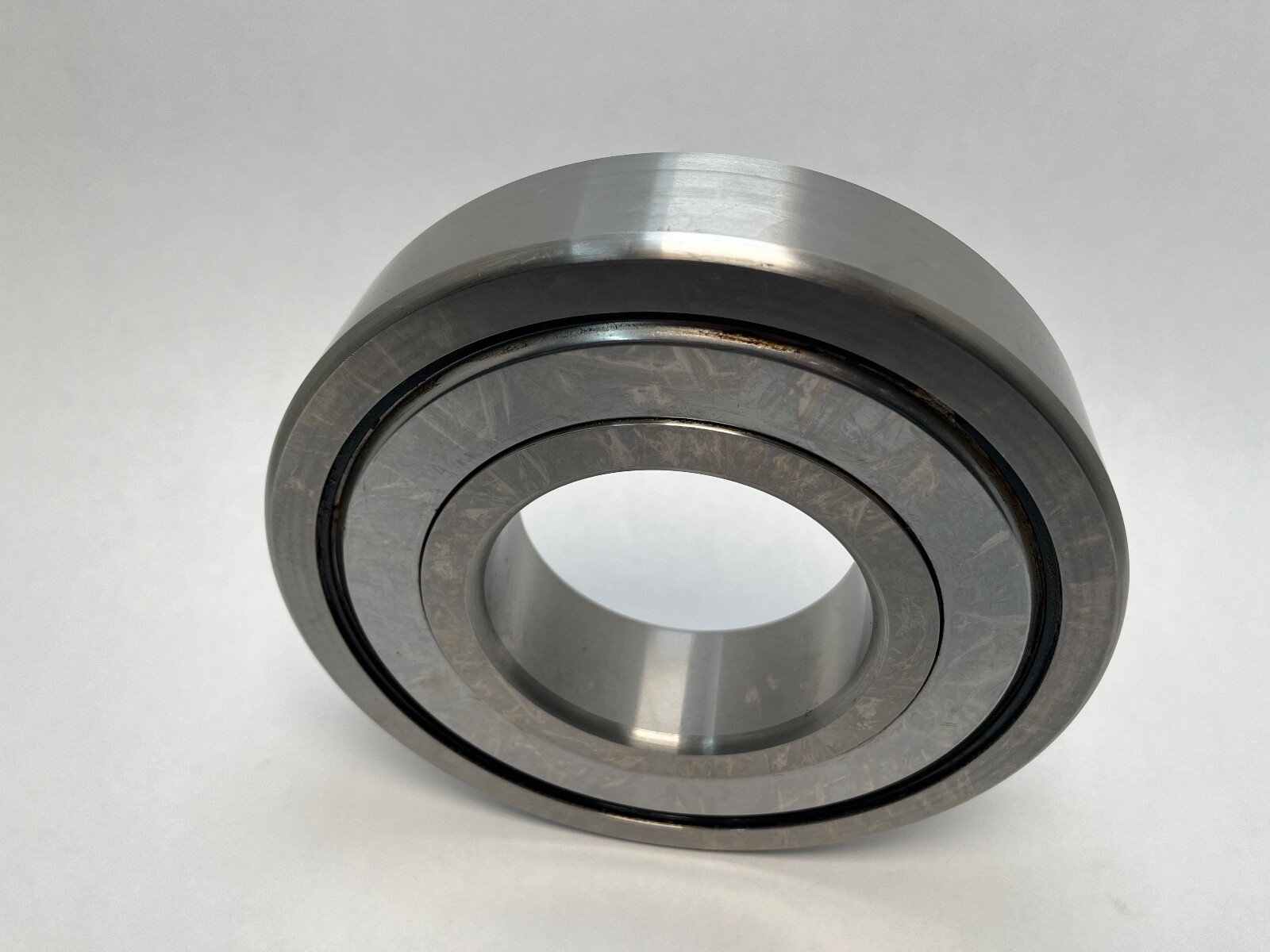

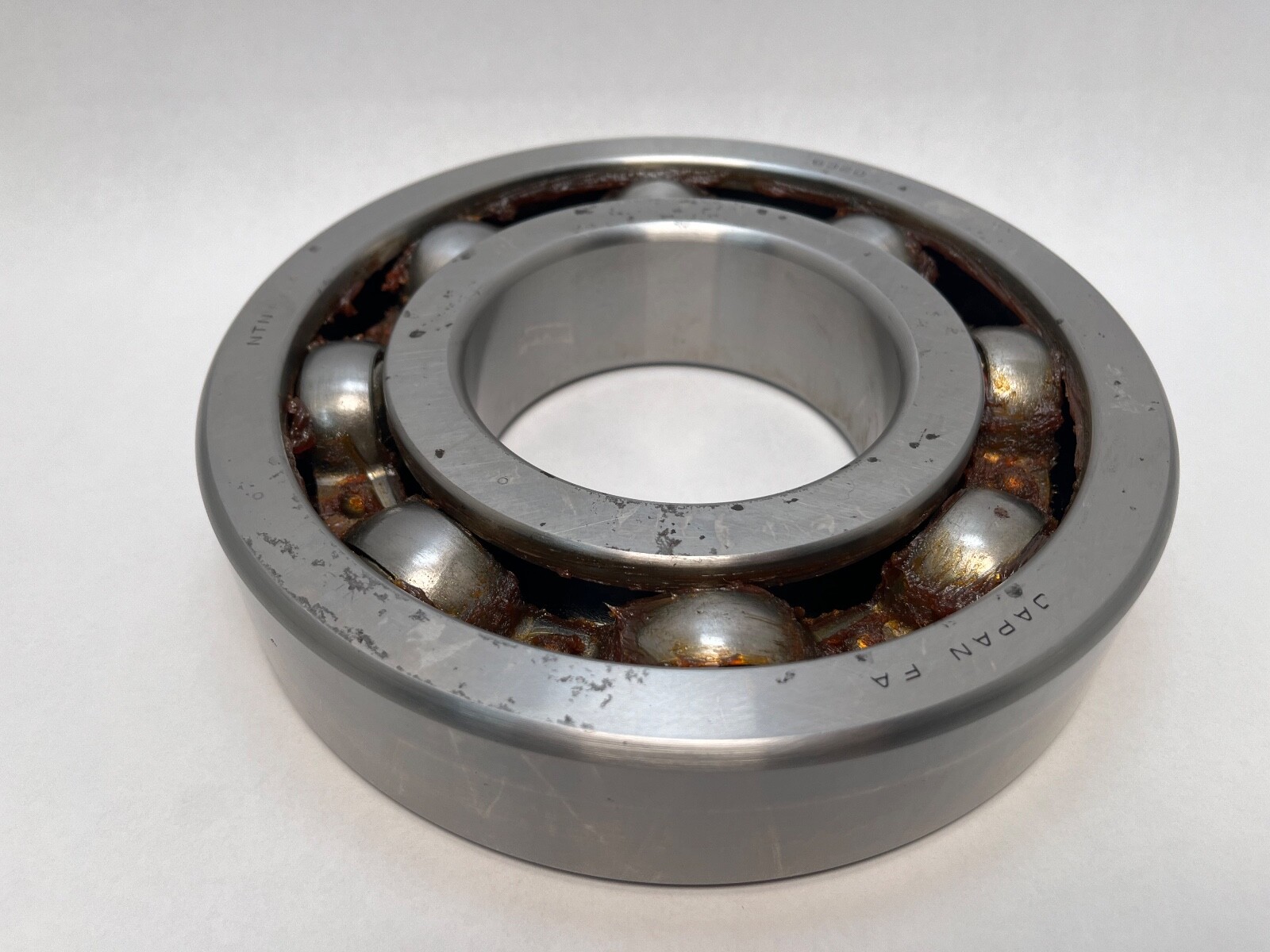

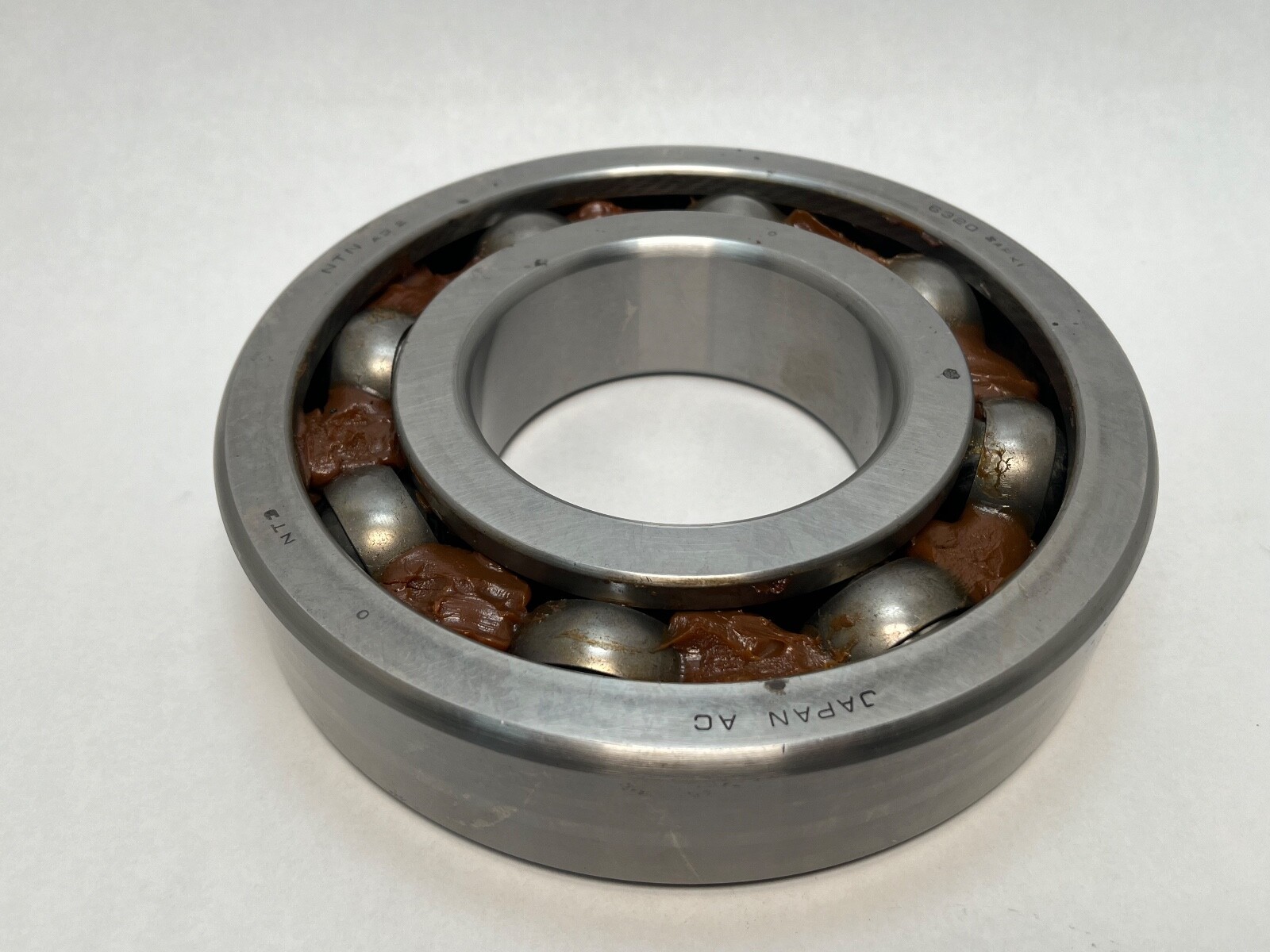

1 Pc. One shield fitted, opposite face open, factory grease, no snap ring.

Interchange guidance

The same-spec equivalents are SKF 6320-Z, NSK 6320Z, FAG 6320.Z and Koyo 6320Z, all single-shielded at the same envelope. A 6320ZZ or 6320-2Z has shields on both faces and a 6320-2RS contact seals on both, so those are related sizes rather than substitutions: closure changes the speed rating and the relubrication route. A 6220 or 6420 at the same bore is a different dimension series and a different envelope.
