Deep groove ball bearing, 100 x 180 x 34 mm, open both faces. ABEC 5 / P5 precision, CN clearance, pressed steel cage, 122 kN dynamic rating.
List Price
$76.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Nachi |
|---|---|
| MPN | 6220P5 |
| Model | 6220 P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 100 mm |
| OD | 180 mm (7.0866 in) |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | 62 (6220) |
| Base Number | 6220 |
| Industry Terms | Deep groove ball bearing, precision ball bearing, ABEC 5 ball bearing, 6220 bearing, 100 mm bore ball bearing |
| Common Misspellings | 6220 P5, 6220-P-5, Nachi 6220 P5, 6220P-5 |
| Application Types | Electric motor rotors, precision spindles, pump and blower shafts, gearbox support positions |
| Overall Width | 34 mm (1.3386 in) |
| Bore Shaft Size | 100 mm (3.9370 in) |
| Mpn Variants | 6220P5, 6220-P5, 6220 P5, 6220/P5, 6220 P5 CN |
| Precision Class | ABEC 5 / P5 |
| Cage Type | Pressed |
| Rolling Elements | Balls |
| Cage Material | Pressed Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Part Number | 6220P5 |
| Cross Reference 1 | SKF 6220/P5 |
|---|---|
| Cross Reference 2 | FAG 6220-P5 |
| Cross Reference 3 | 6220 - standard tolerance, not P5 |

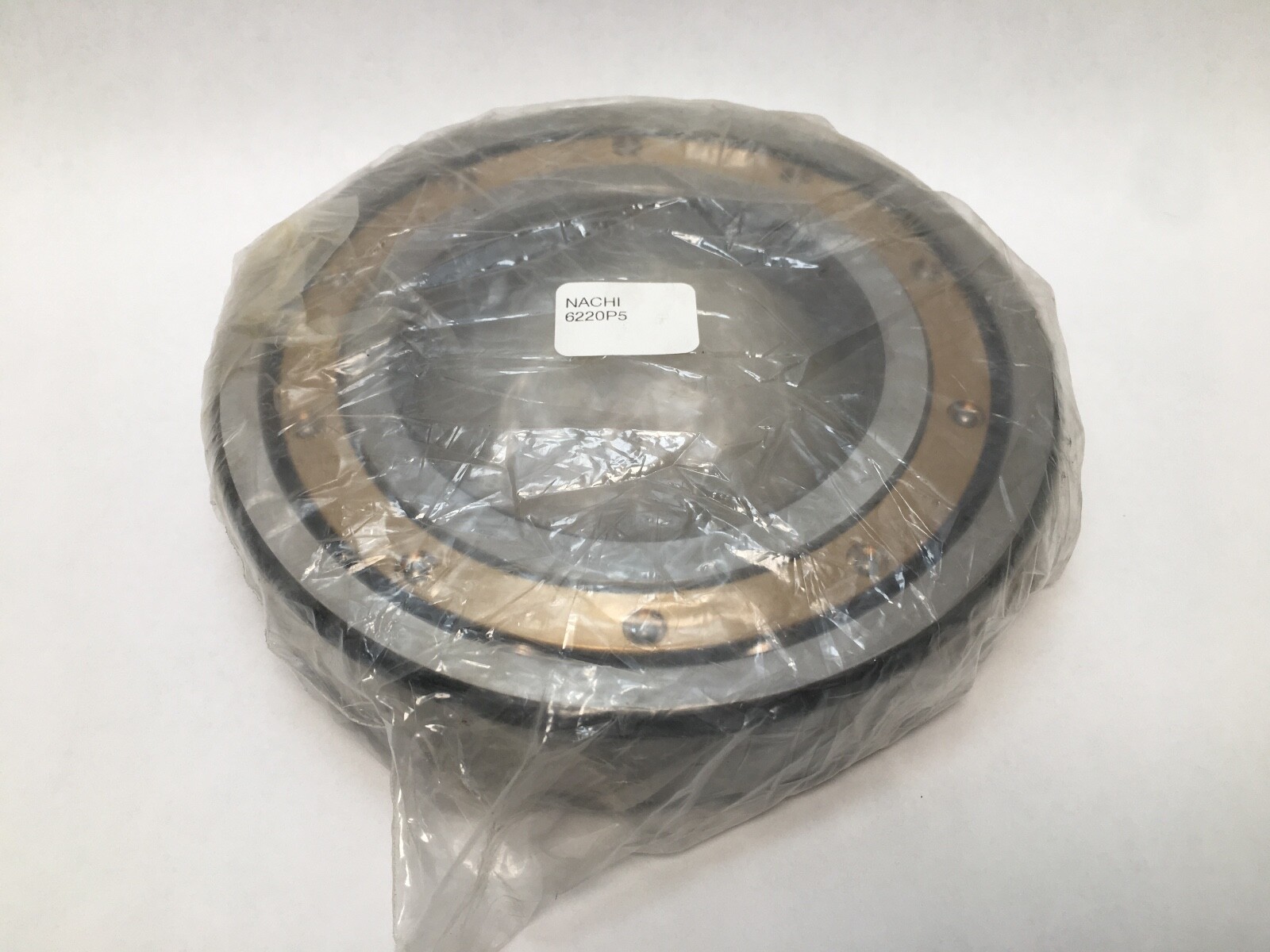

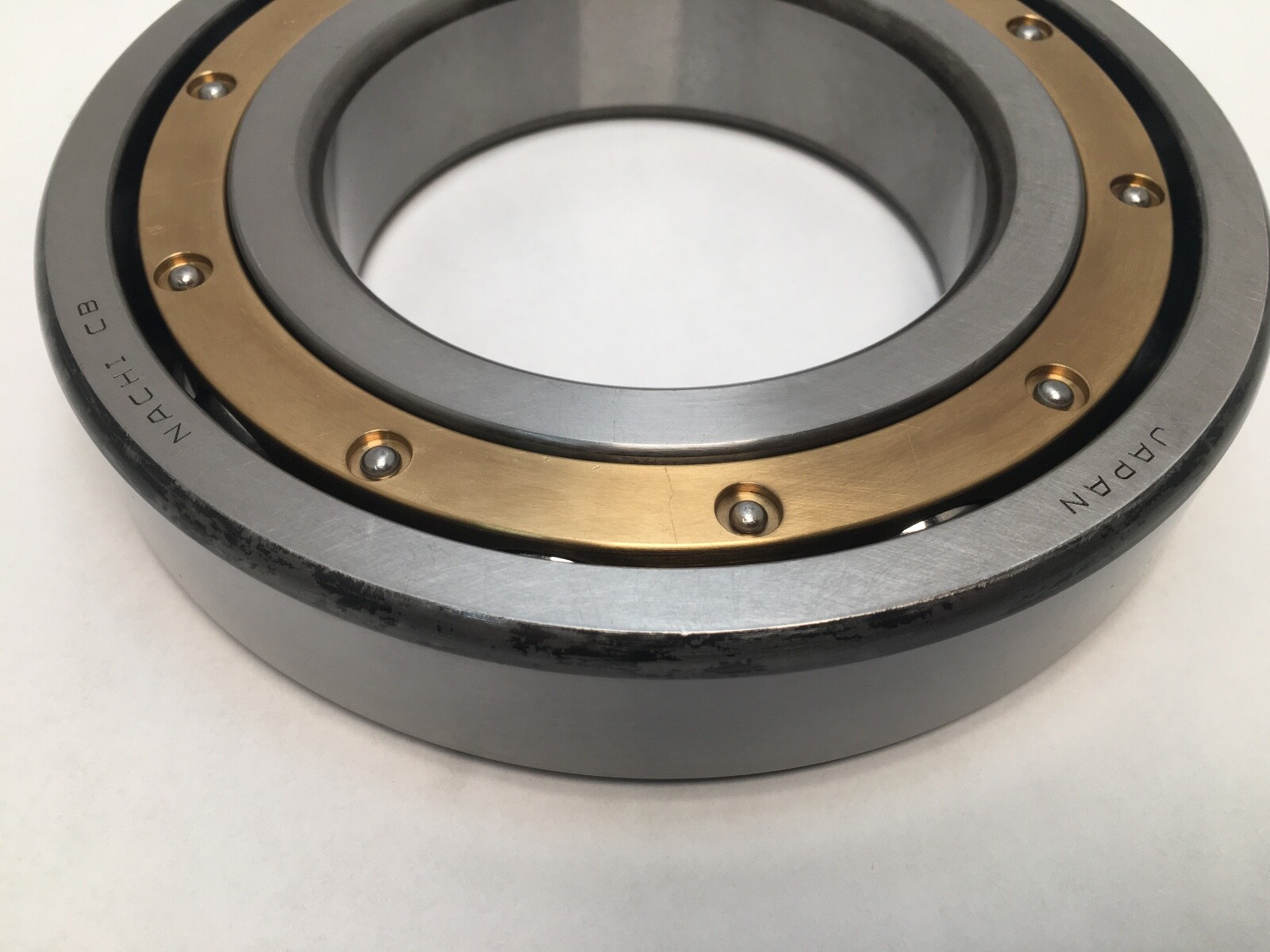

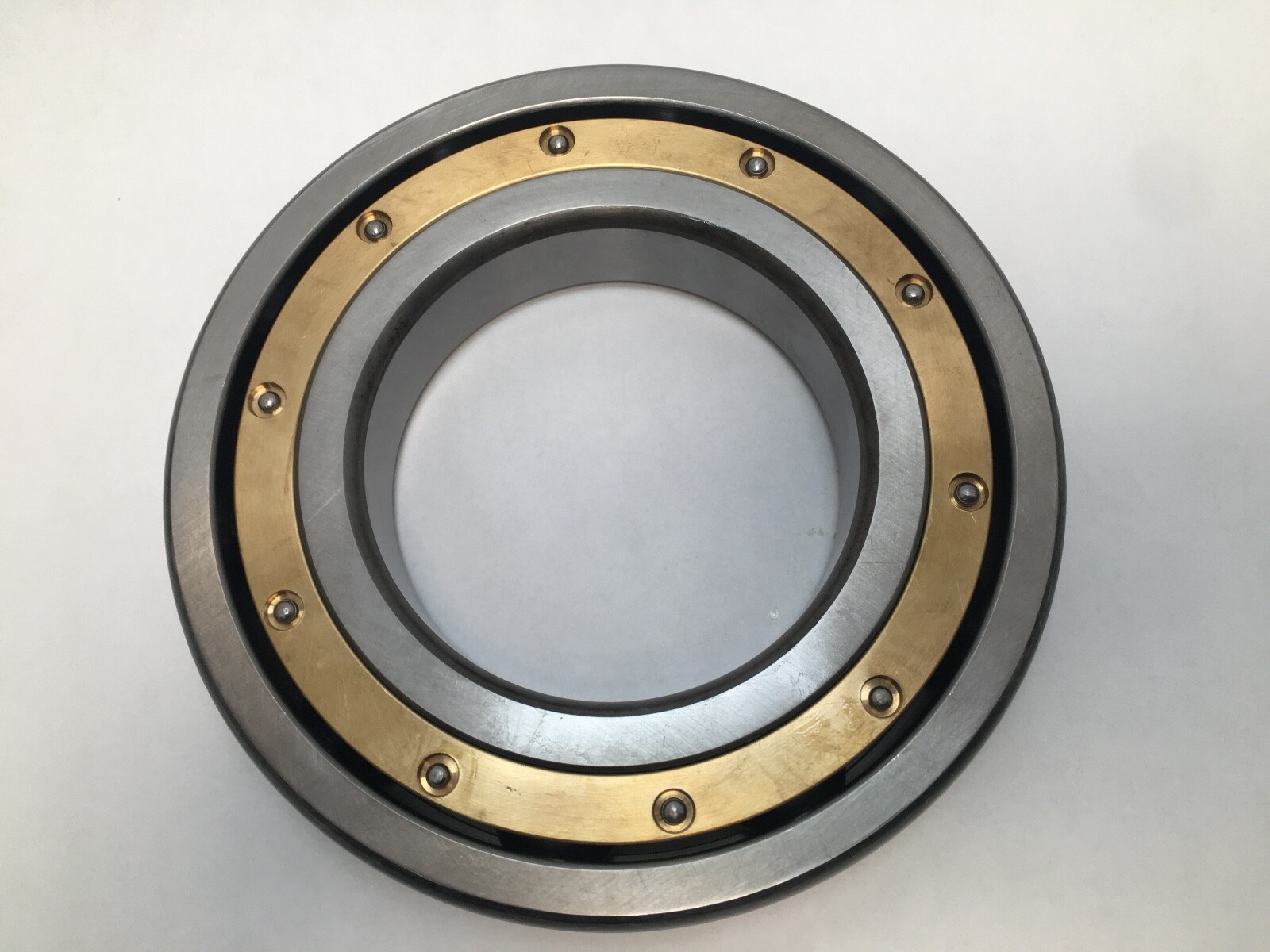

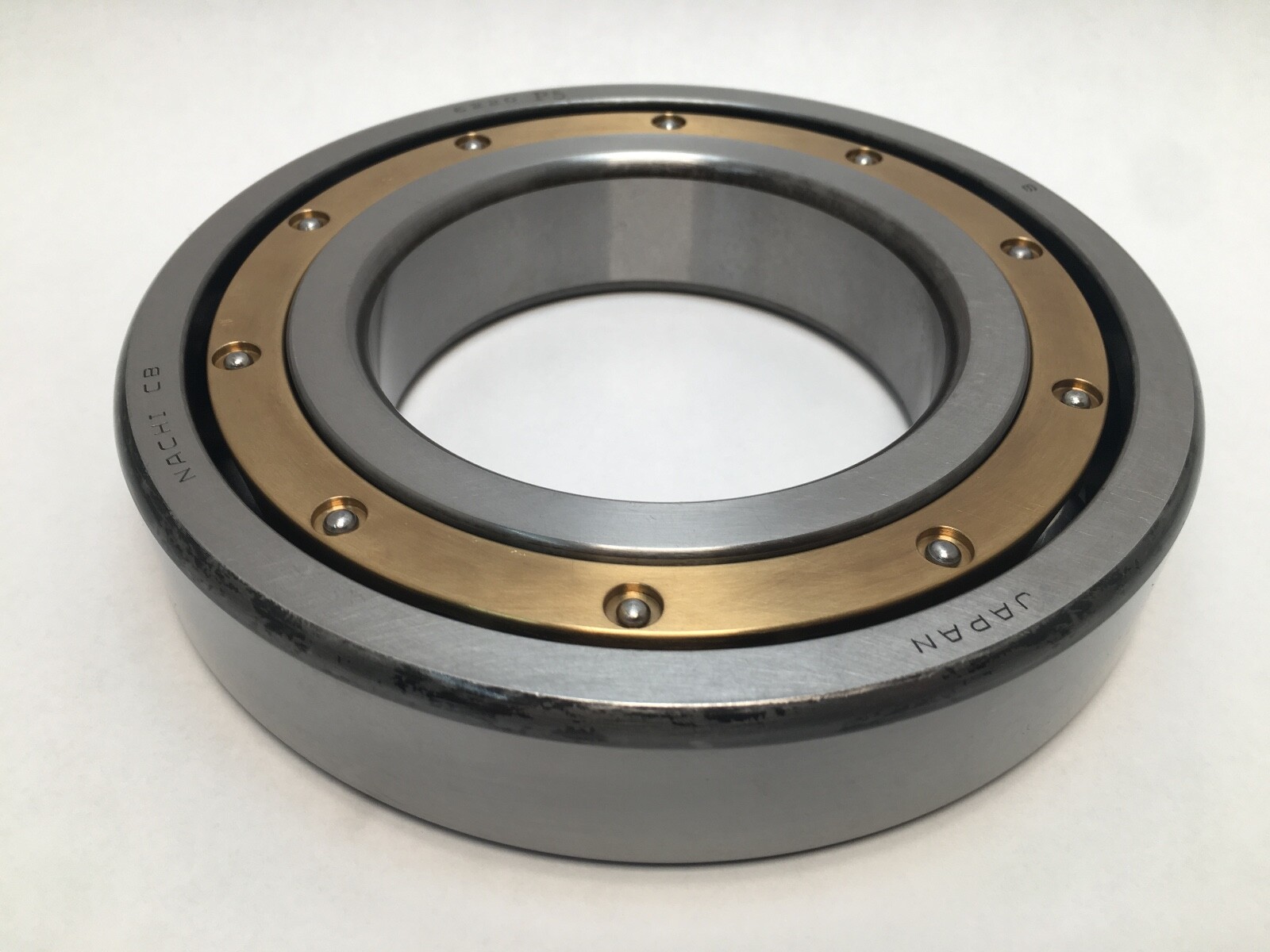

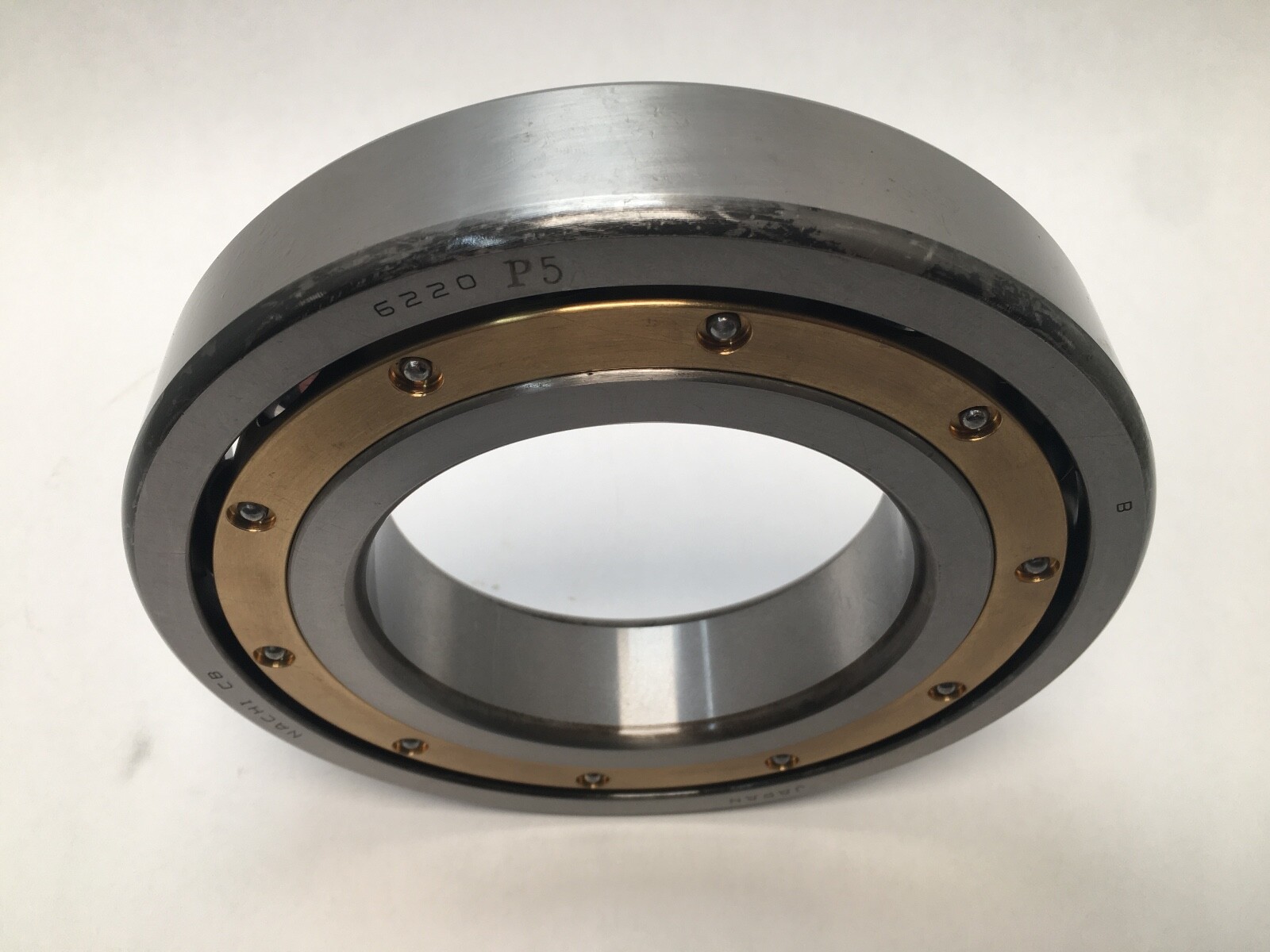

Nachi 6220P5 single-row deep groove ball bearing, open on both faces. Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 34 mm. Series: 62 (6220), light section. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Cage Type: Pressed. Cage Material: Pressed Steel. Precision Class: P5, equivalent to ABEC 5. Internal Clearance: CN. Unit Quantity: 1 Pc.

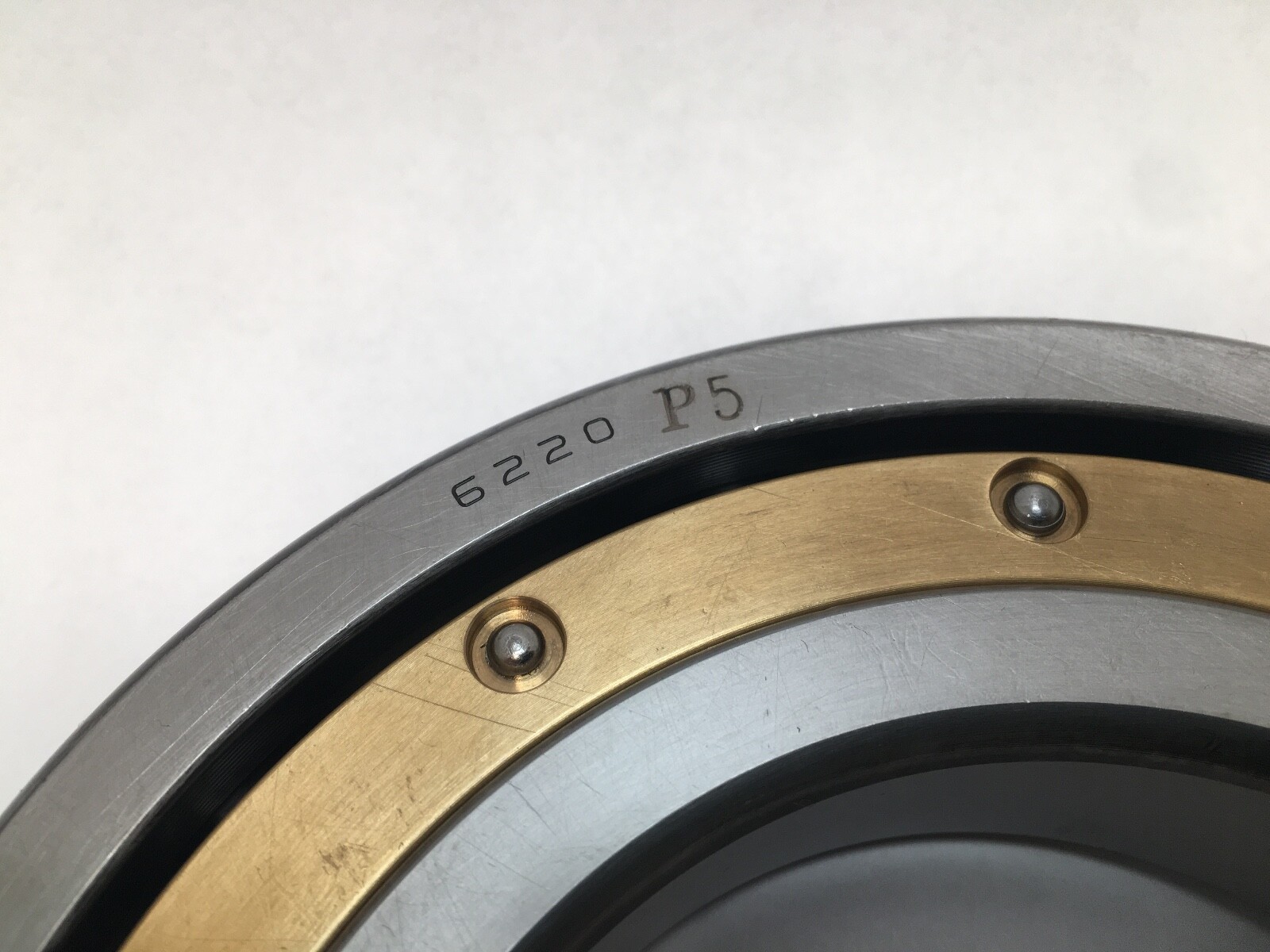

6 — deep groove ball bearing.
2 — the 62 dimension series.
20 — bore code: 100 mm.
P5 — ISO class 5 precision, equivalent to ABEC 5, two grades above standard.
Dynamic Load Rating: 122 kN (27,400 lbf). Static Load Rating: 93 kN (20,900 lbf). Limiting Speed: 3,800 rpm. Operating Temperature: -30 °C to 120 °C. Item Weight: 6.94 lb. Material: Bearing Steel. Manufacturer: Nachi-Fujikoshi.
A deep groove ball bearing takes radial load with moderate thrust in either direction. P5 tolerance tightens bore, outside diameter and raceway runout. Straight bore for a direct shaft seat. Open faces take grease or oil from the surrounding housing.
Cross-references: SKF 6220/P5 and FAG 6220-P5, both on the same 100 x 180 x 34 mm envelope at the same precision class. The standard-tolerance 6220 shares the envelope and is a related size at a looser running accuracy.
100 mm bore, 180 mm outside diameter, 34 mm width.
ISO class 5 precision, equivalent to ABEC 5.
No. It is open on both faces.
