A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
6 in stock
Two-bolt cast iron pillow block, 1-1/2 in bore, Type E tapered roller bearing, single rubber seal, 7.38 to 8.13 in adjustable bolt centres.
List Price
$684.00
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2BC108E/087264 |
| GTIN | 782475041053 |
| Model | P2BC108E |
| ID | 1-1/2 in |
| Series | Dodge Type E, P2B two-bolt pillow block |
|---|---|
| Base Number | P2B-C-108-E |
| Industry Terms | Pillow block; Type E bearing; tapered roller pillow block; mounted bearing unit; conveyor pillow block |
| Application Types | Belt conveyor head and tail shafts; screw conveyors; bucket elevators; aggregate and bulk handling |
| Bolt Center To Center | 7.38 to 8.13 in (slotted base) |
| Number Of Bolt Holes | 2 |
| Centre Height Base To Bore Centerlinepillow Block | 3.1 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1-1/2 in (1.500 in, 38.10 mm) |
| Housing Style | Two-bolt pillow block, one-piece |
| Mpn Variants | P2BC108E; P2B-C-108E; P2B-C-108-E; P2B C 108 E; P2BC108E/087264; 087264 |
| Rolling Elements | Tapered rollers, single row |
| Bearing Type | Two-Bolt Pillow Block Unit, Tapered Roller, Single Rubber Seal |
| Number Of Rows | 1 |
| Bore Type | Straight, cylindrical |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast iron |
| Part Number | P2BC108E / Dodge 087264 |

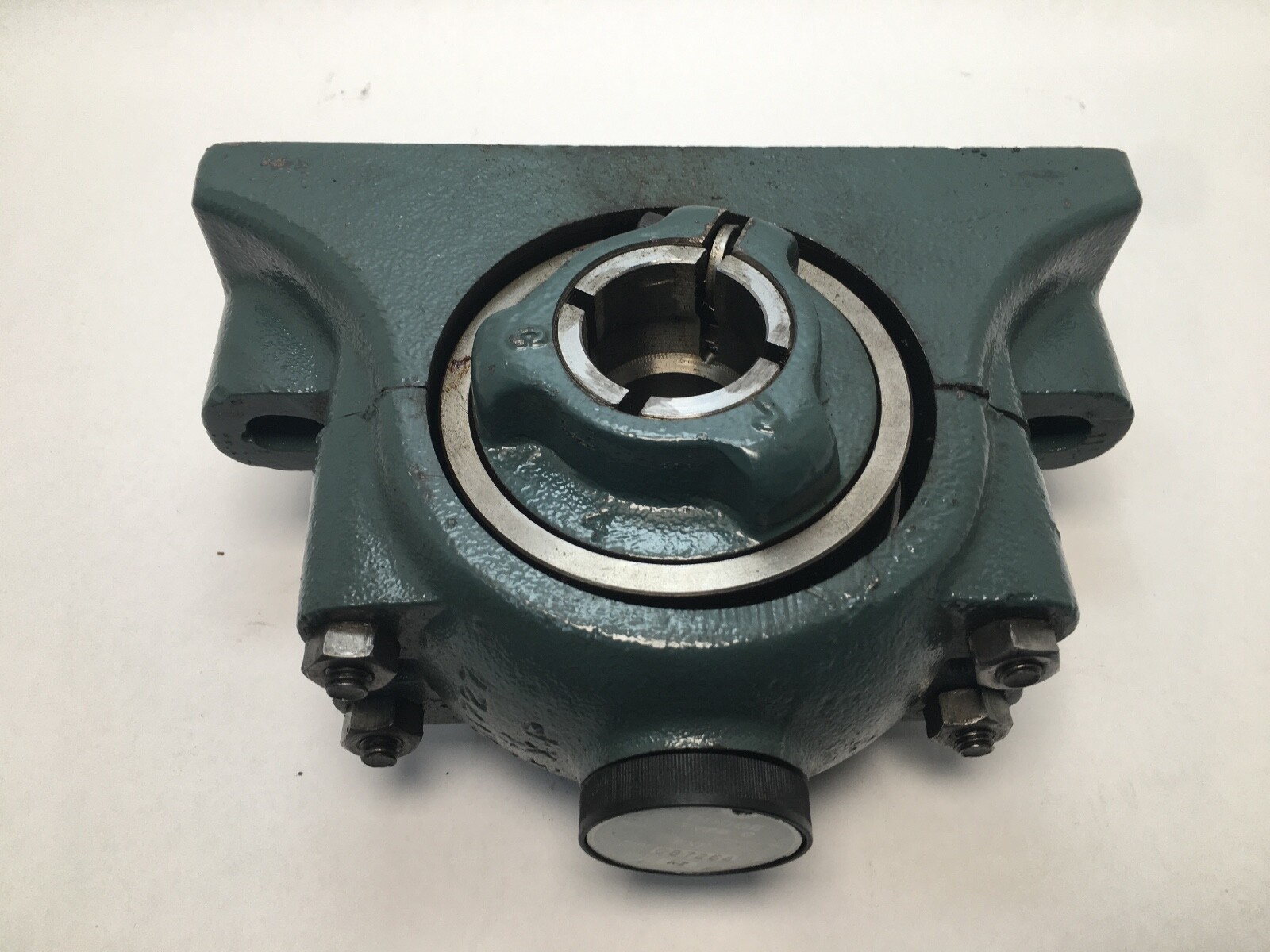

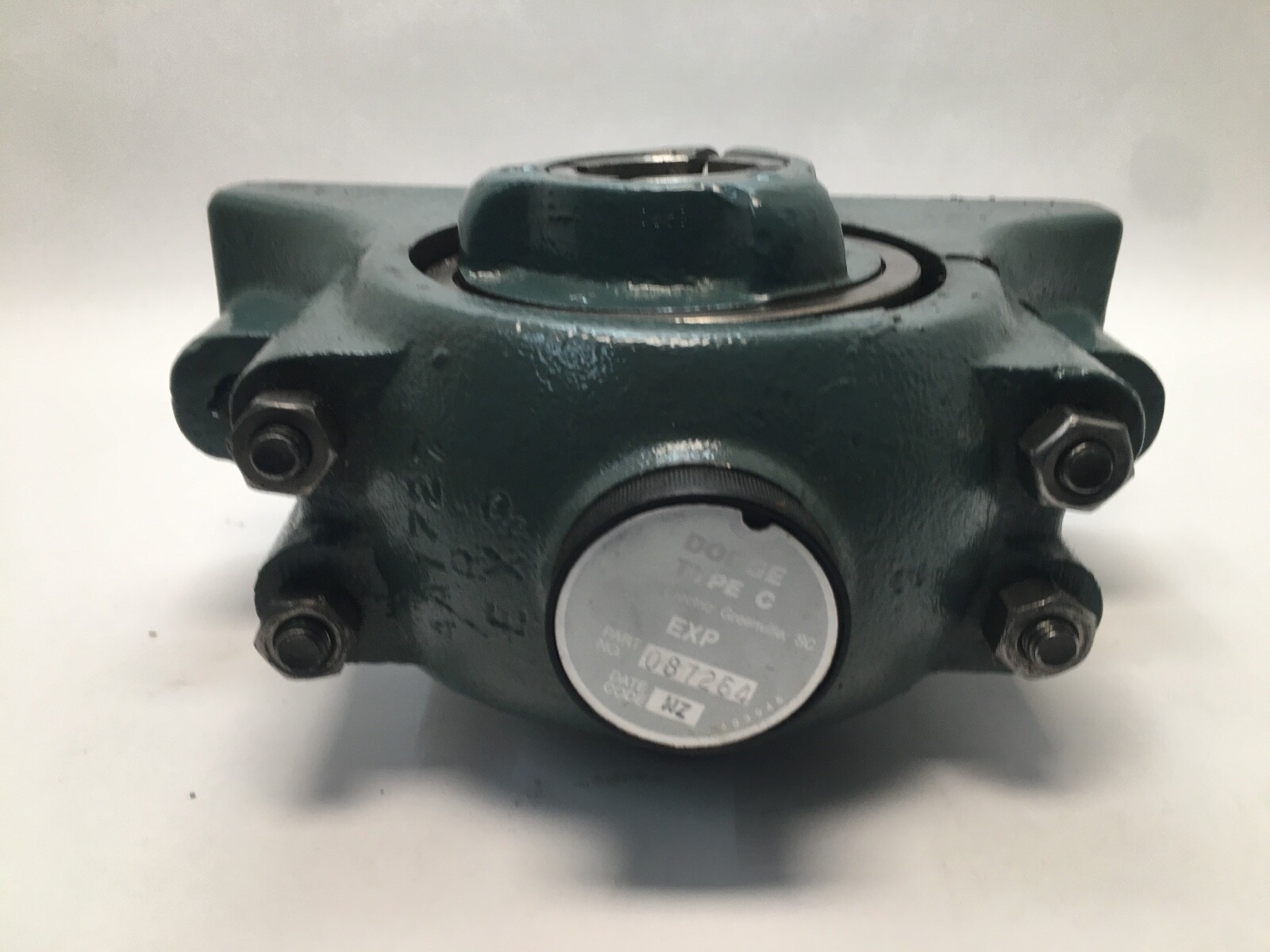

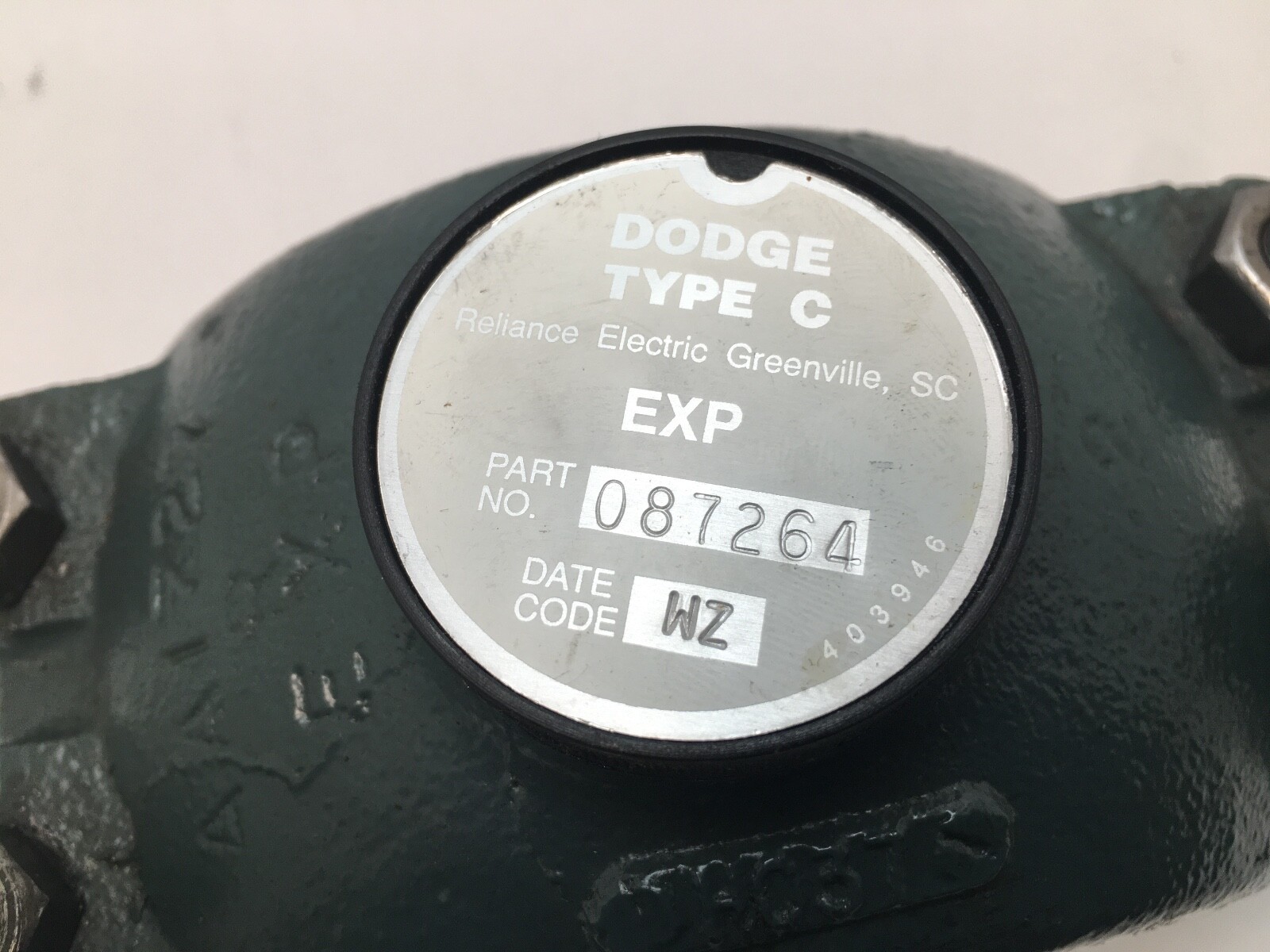

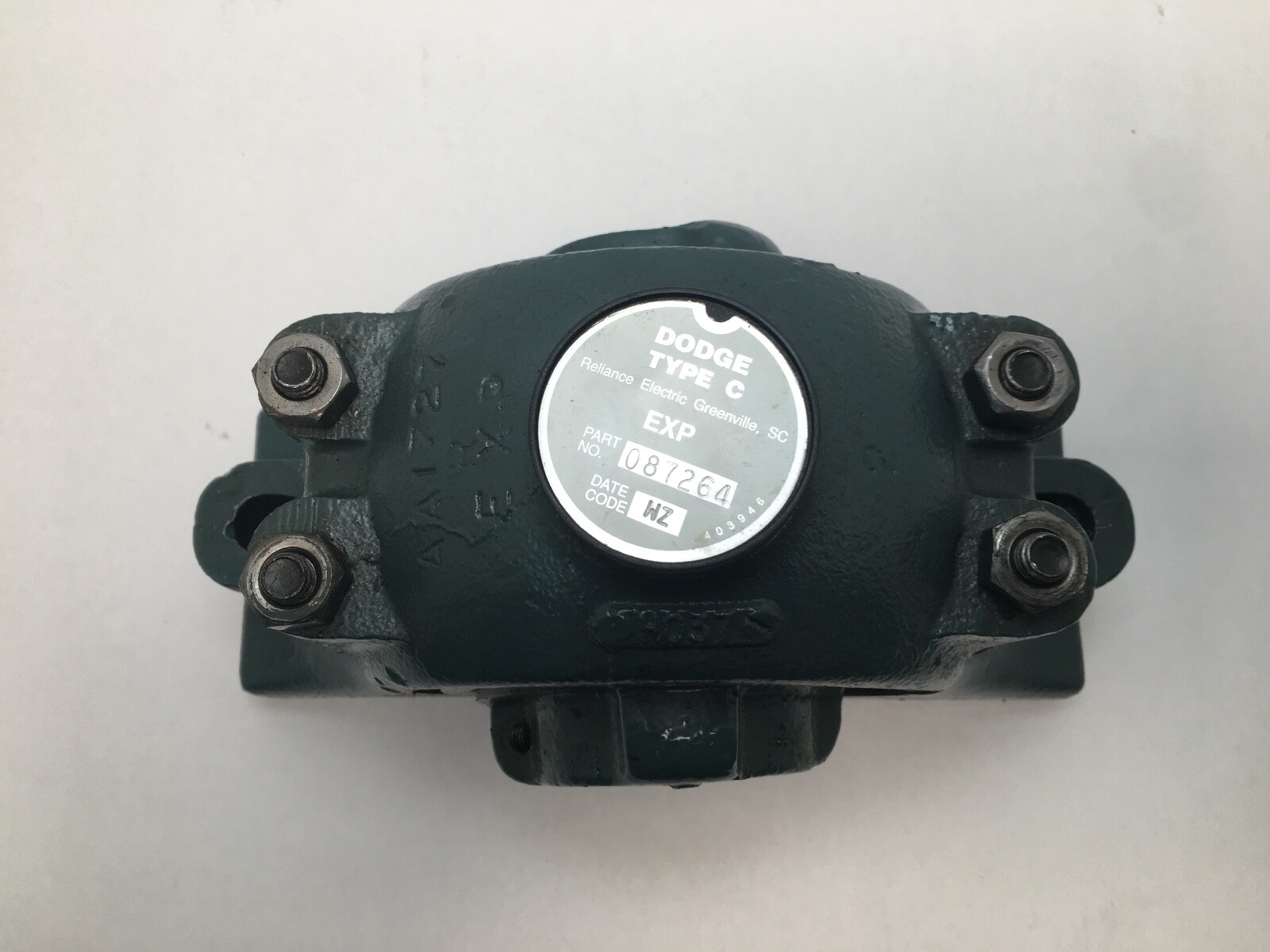

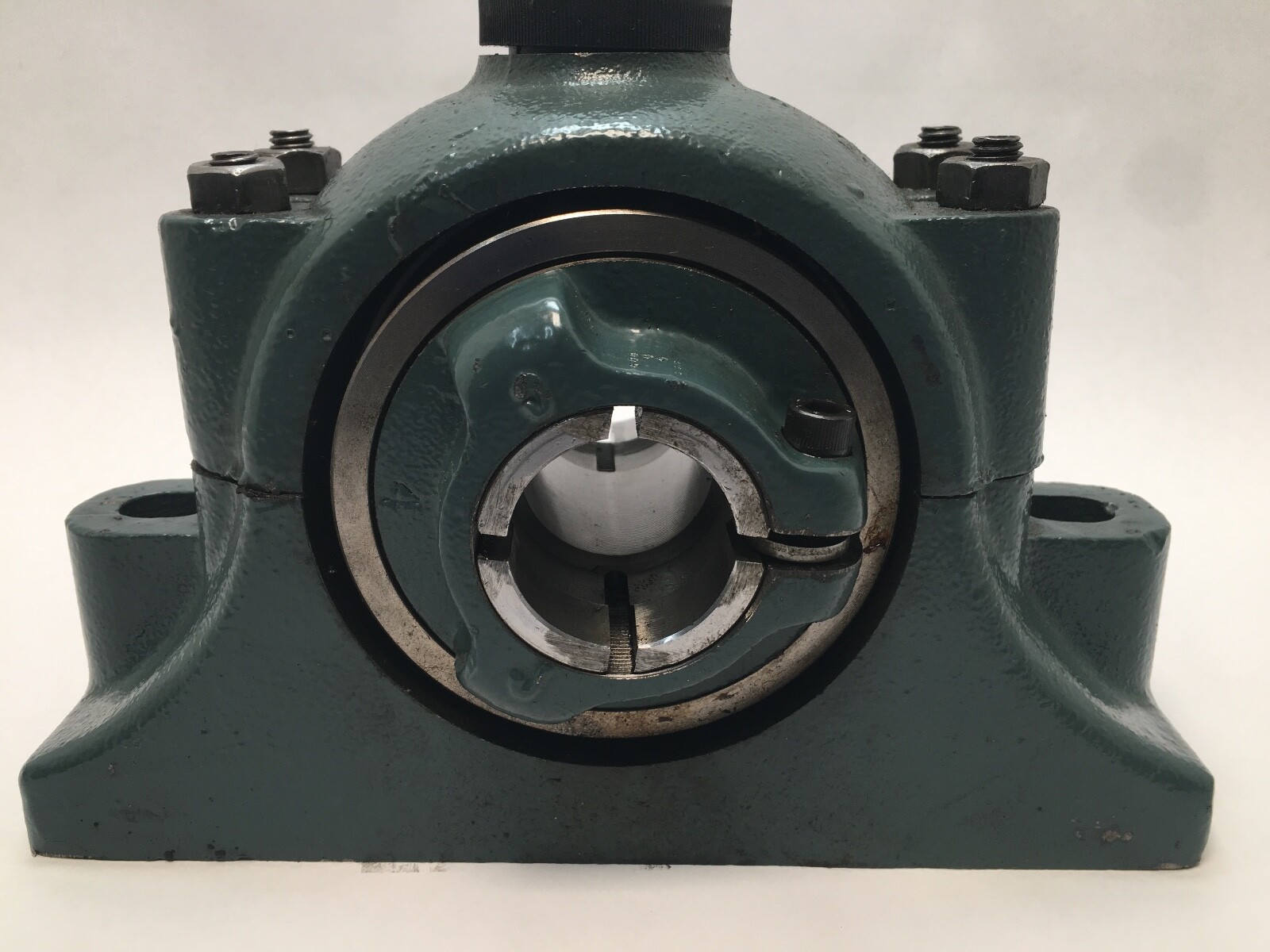

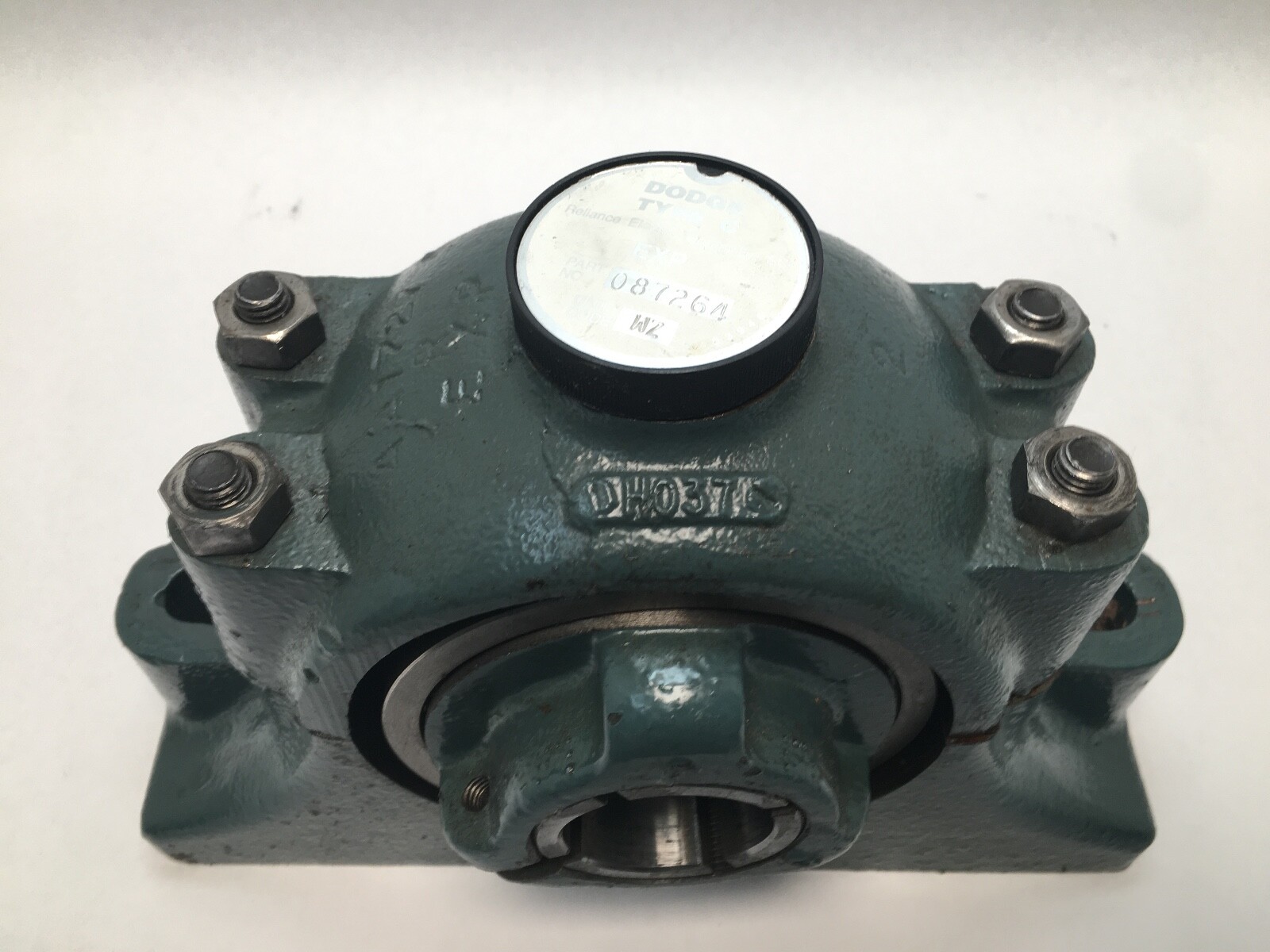

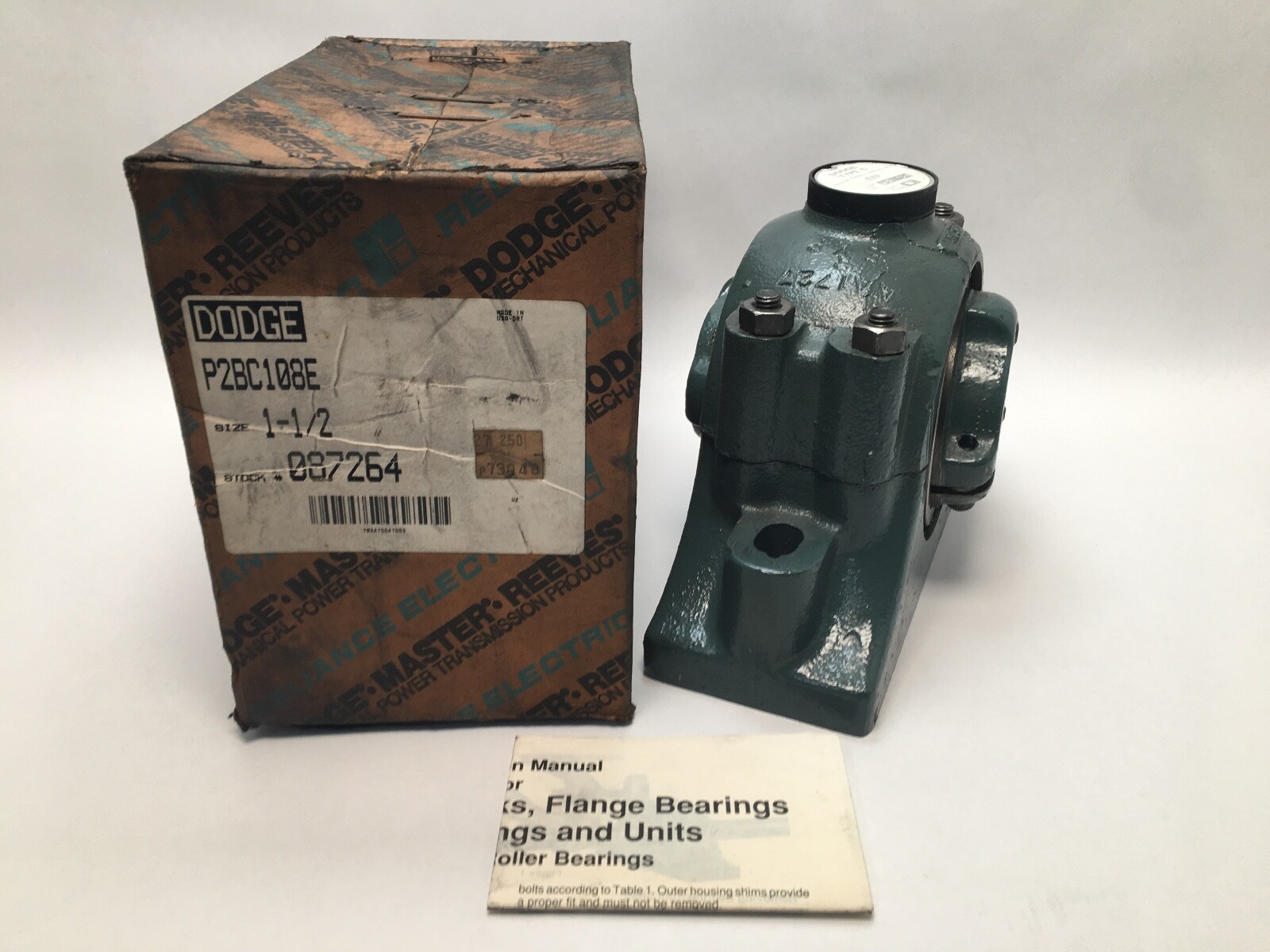

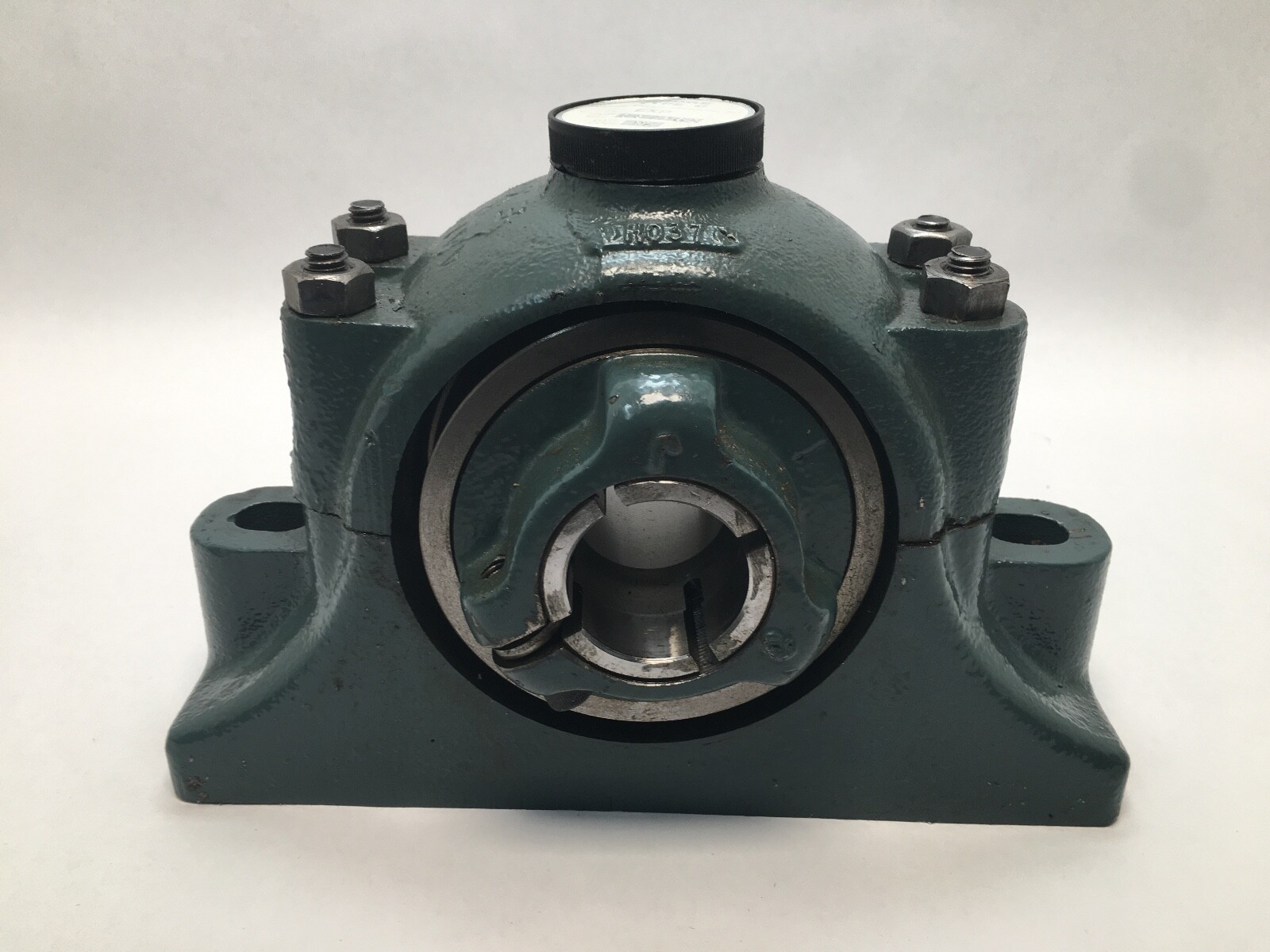

Dodge P2B-C-108-E two-bolt pillow block, Dodge part number 087264. A complete mounted unit: a single-row tapered roller bearing in a one-piece cast iron pillow block housing. Bore: 1-1/2 in, straight. Base to bore centreline: 3.1 in. Country of origin: United States.
P2B — two-bolt pillow block housing. 108 — bore code: 1-1/2 in. E — Dodge Type E, the tapered roller mounted bearing line. Searchable forms: P2BC108E, P2B-C-108E, P2B-C-108-E, P2B C 108 E, 087264.

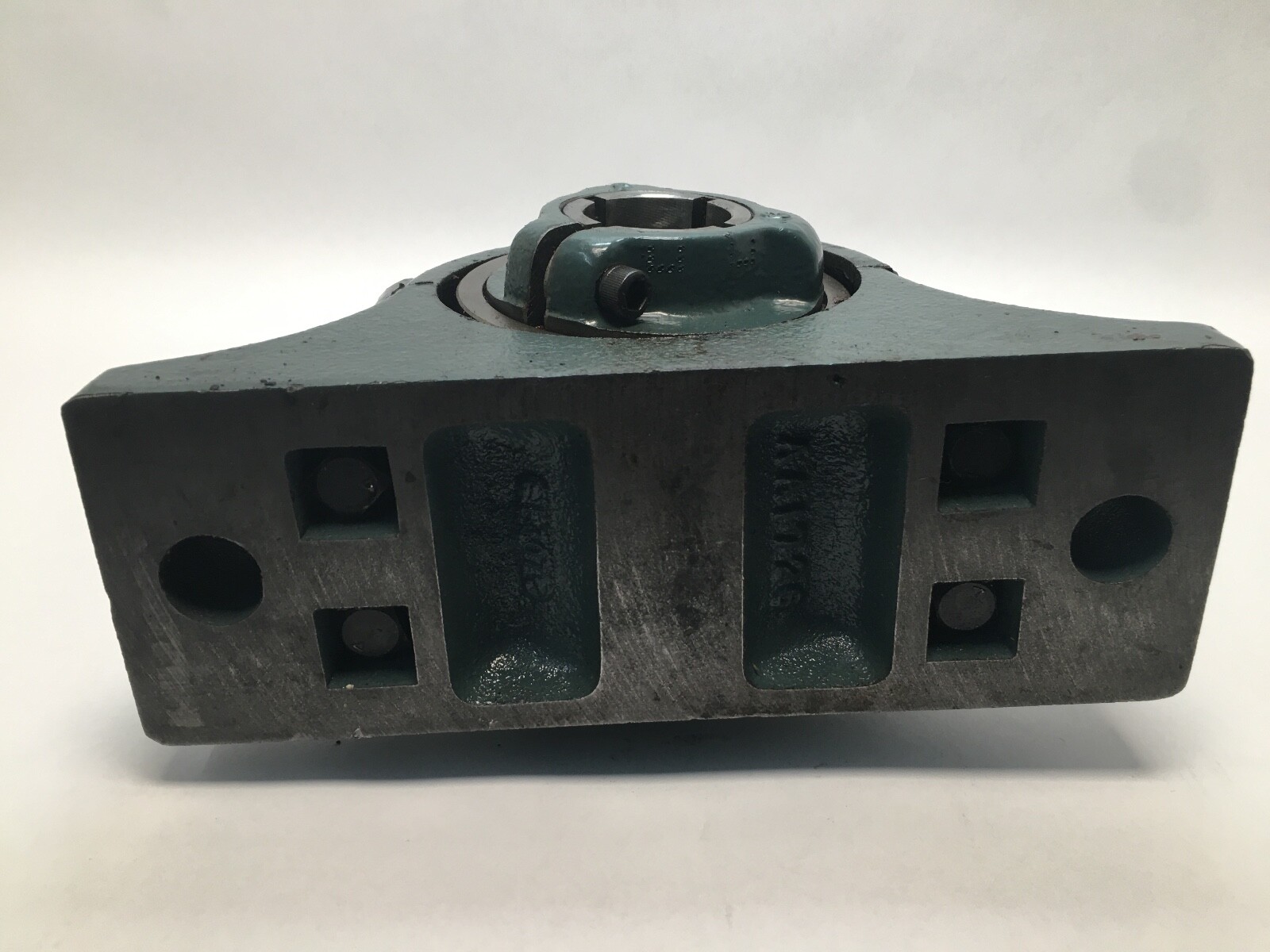

Two bolt holes in the base, slotted for adjustment. Bolt Centre To Centre: 7.38 to 8.13 in. Base to bore centreline: 3.1 in. Cast iron housing, one piece. Unit weight 6.50 lb.
A tapered roller mounted bearing takes heavy radial load together with substantial thrust in one direction, which is why the Dodge Type E line is specified on conveyor head and tail shafts, screw conveyors and bucket elevators where a ball insert would be marginal. Dynamic Load Rating: 22.1 kN (4,968 lbf). Static Load Rating: 32.4 kN (7,284 lbf). Limiting Speed: 4,000 rpm. Closure: single rubber lip seal.
One complete pillow block per unit: housing, bearing and seal assembled together.
Shaft: 1-1/2 in, plain and straight. The slotted base gives 0.75 in of bolt-centre adjustment for shaft alignment across a pair of blocks.
Dodge P2B-E-108R is the same Type E tapered roller pillow block at the same 1-1/2 in bore in the E-Xtra execution, so it is a related size. Dodge P2B-SC-108 is a ball-insert two-bolt pillow block at the same bore with set-screw locking and different load ratings, and a different bolt-centre range of 5.18 to 5.88 in.
