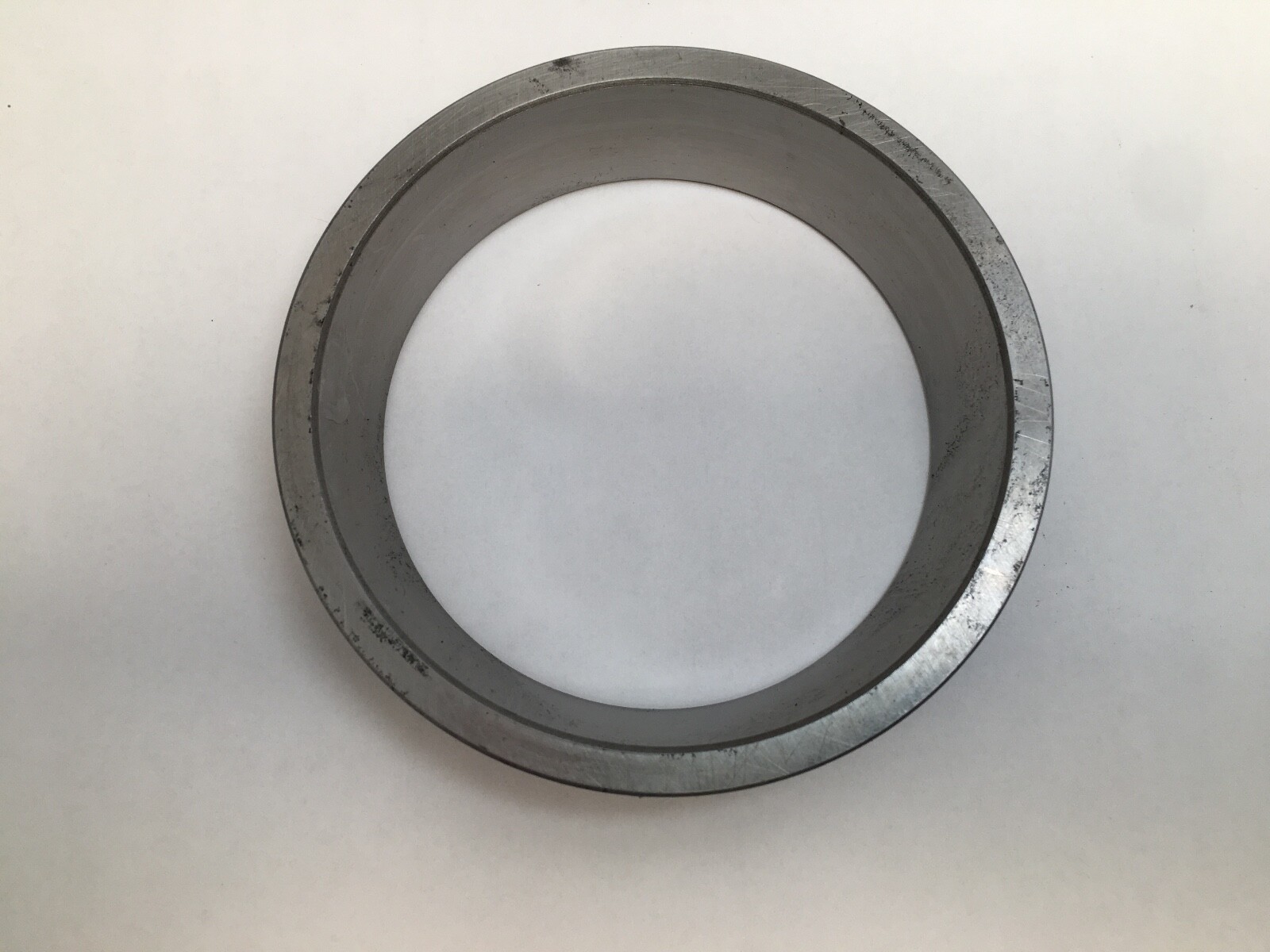

Timken472BFlanged Tapered Roller Bearing Cup – 4.7244 in Outside Diameter, 0.9542 in Width, 4.9384 in Flange Outer Diameter, Case Carburized Steel

Product Description

What this part is

Timken 472-B, an inch-series single flanged tapered roller bearing cup. Outside Diameter: 4.7244 in (120 mm). Overall Width: 0.9542 in (24.237 mm). Flange Outer Diameter: 4.9384 in (125.435 mm). Flange Width: 0.2180 in (5.537 mm). Item Weight: 1.40 kg (3.00 lb). Material: Case Carburized Steel. Rolling Elements: Tapered Roller. Number Of Rows: 1. Precision Class: Not specified. Unit Quantity: 1 Pc. GTIN: 053893038322.

Decoding the designation

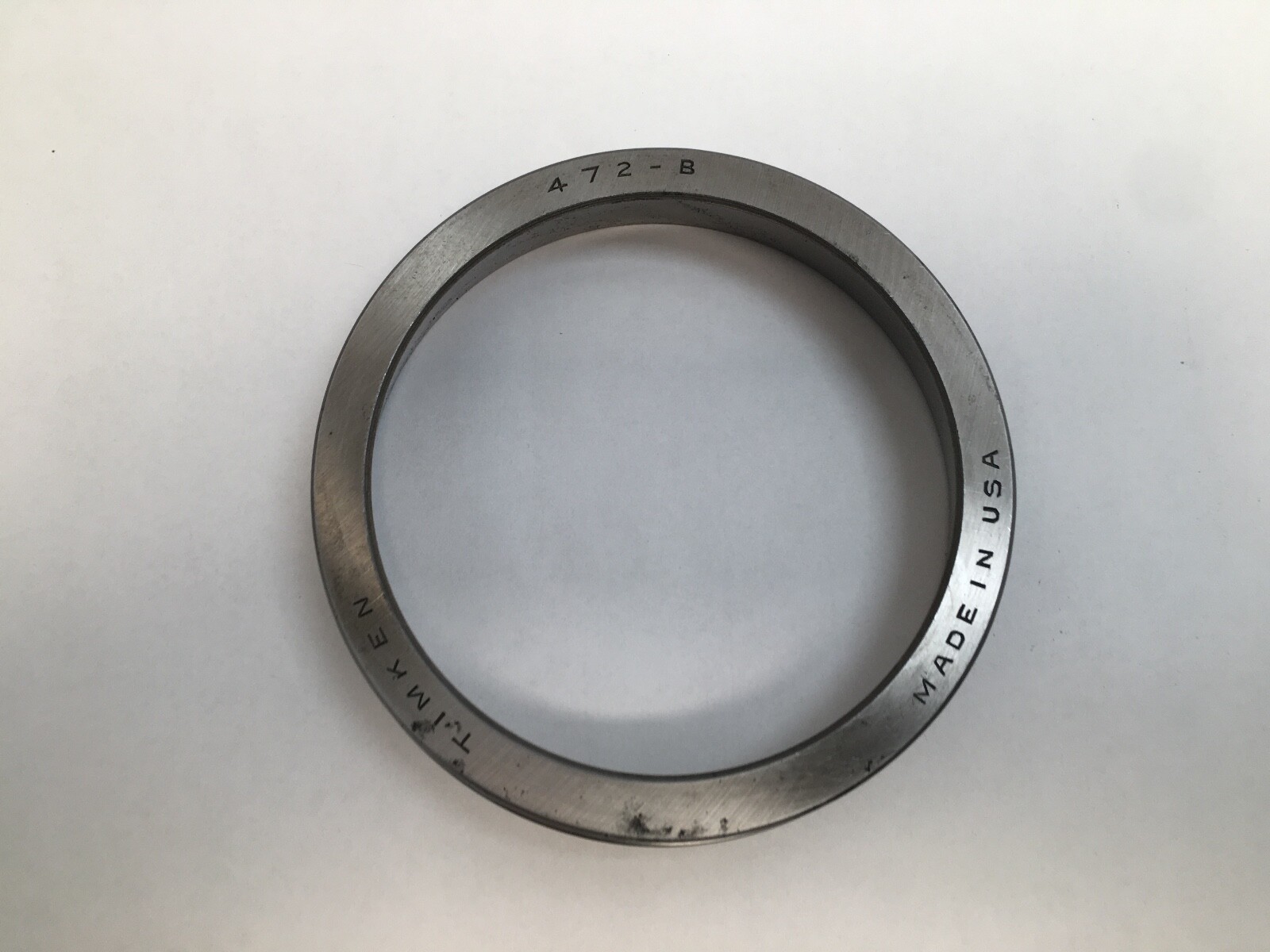

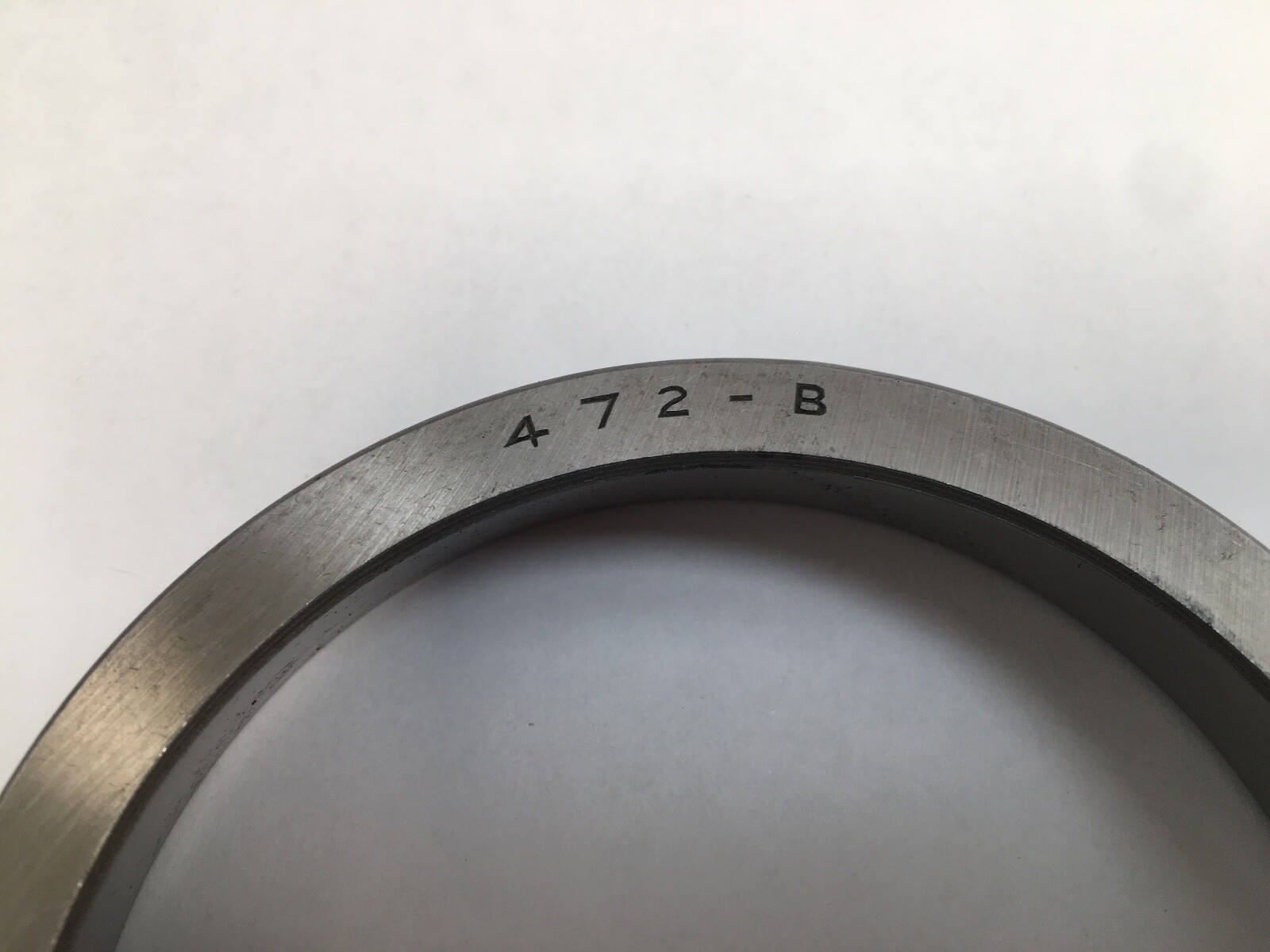

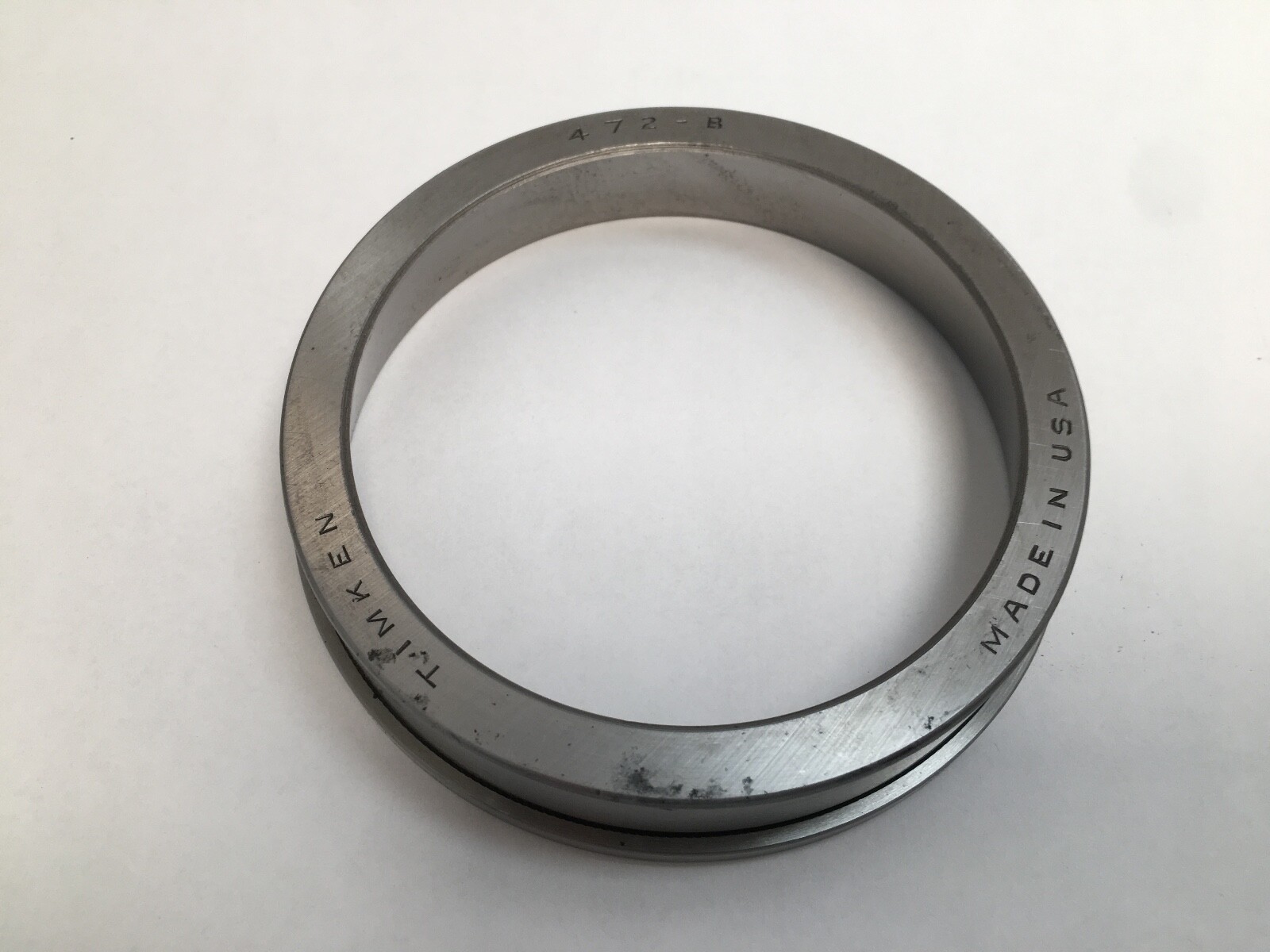

472 — the cup number in Timken’s inch tapered roller range. Base Number: 472.

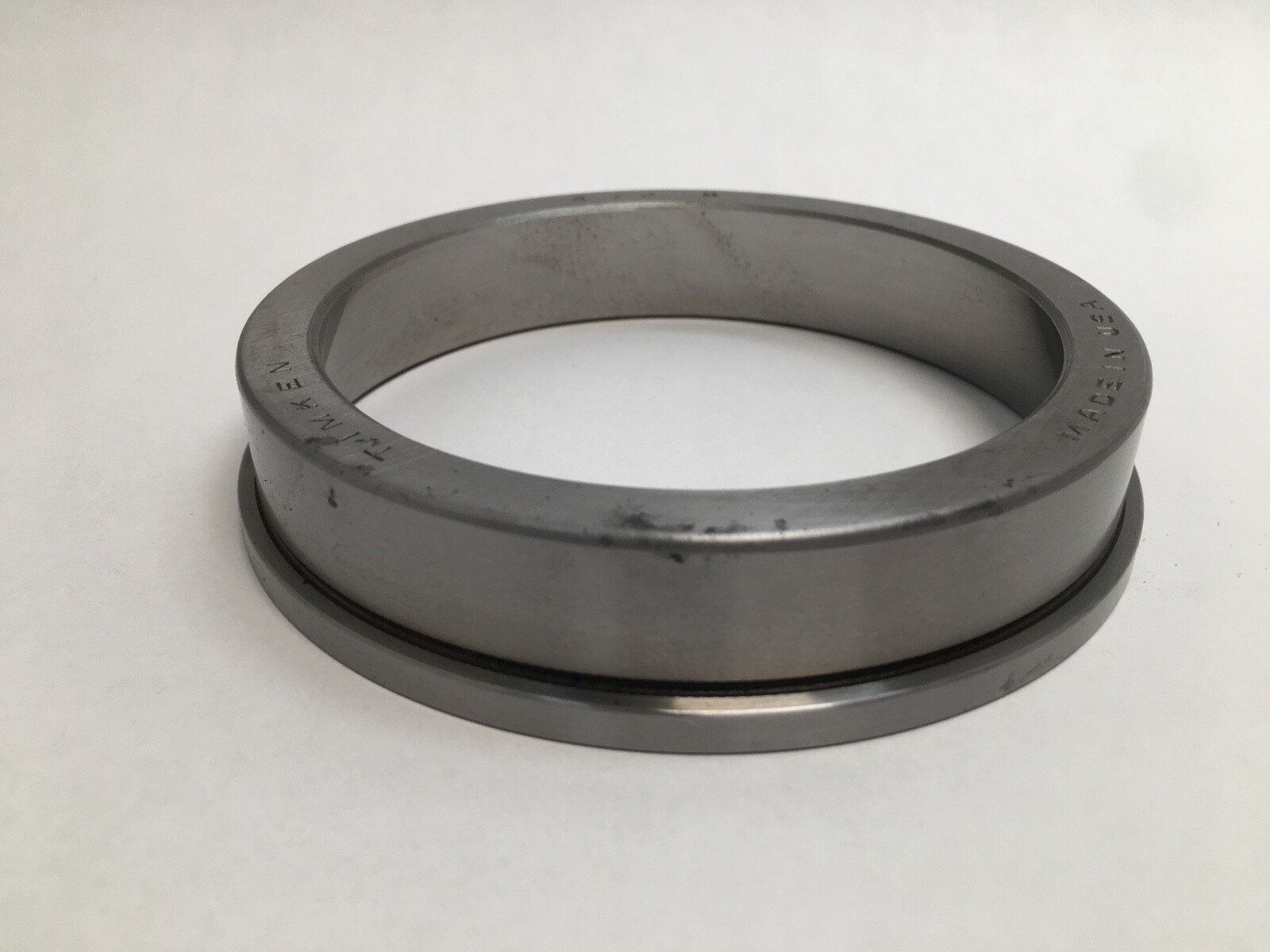

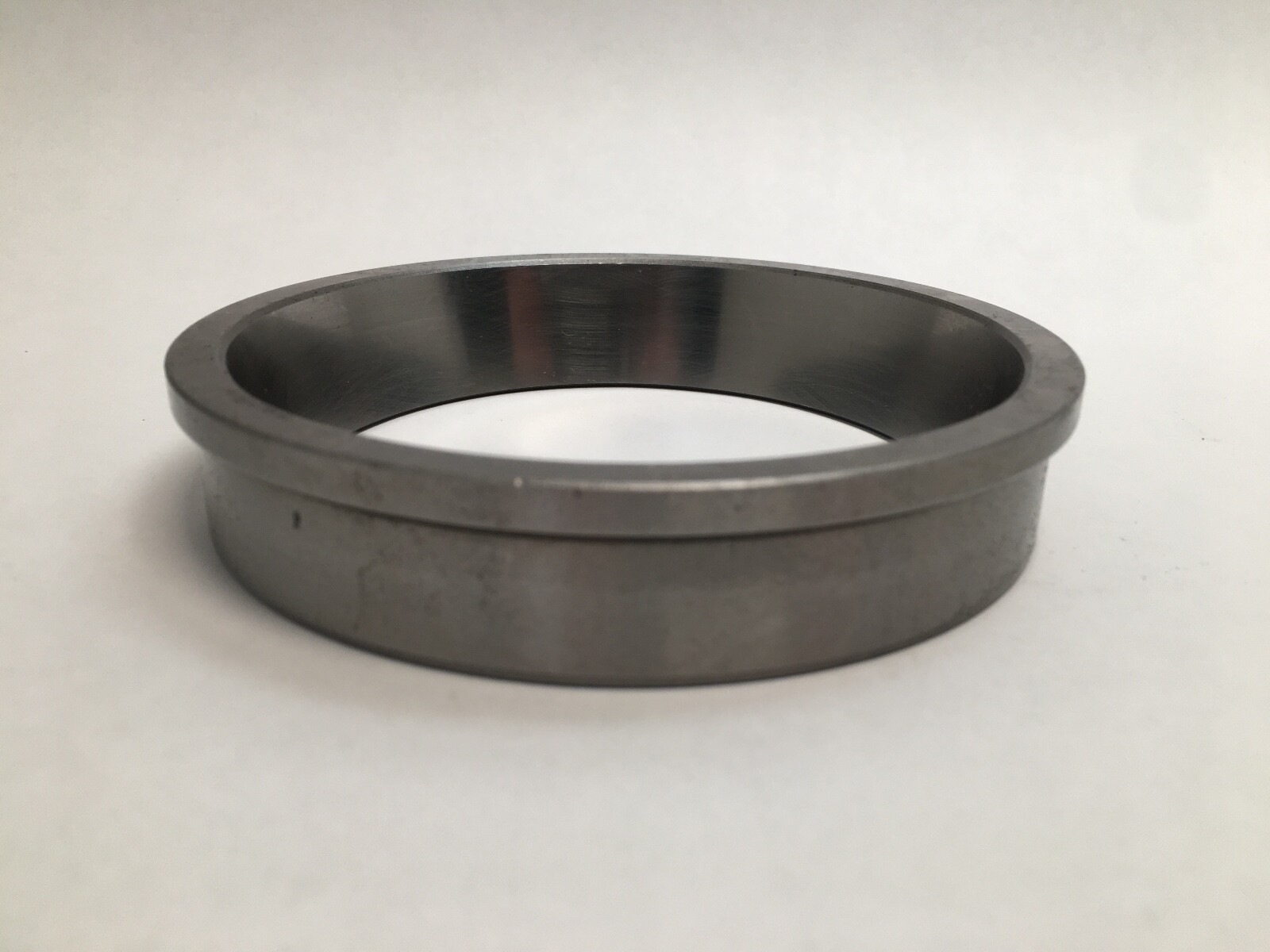

B — flanged outer ring. The integral flange locates the cup axially against the housing face and squares the seal register in a through-bored housing. The plain 472 is the unflanged cup of the same raceway and a separate designation.

What these specs mean in practice

e Factor: 0.38. K Factor: 1.52. Y Factor: 1.56. The K factor fixes the ratio of radial to thrust capacity for the mounted pair, and at 1.52 this raceway angle carries substantial thrust alongside its radial load. G1 Factor: 38.8. G2 Factor: 27.8. Geometry Factor (Cg): 0.108, the constant Timken uses in its lubrication life adjustment factor. Case carburizing leaves a hard raceway over a tough core, which suits shock and misalignment loading.

Mounting data

Maximum Housing Fillet Radius: 0.03 in (0.8 mm) — the largest housing corner radius the cup back face clears. Housing Backing Shoulder Diameter, Frontface (Da): 4.56 in (115.82 mm). The flange seats on the housing face, so the flange sets the axial position of the cup.

Quantity and configuration

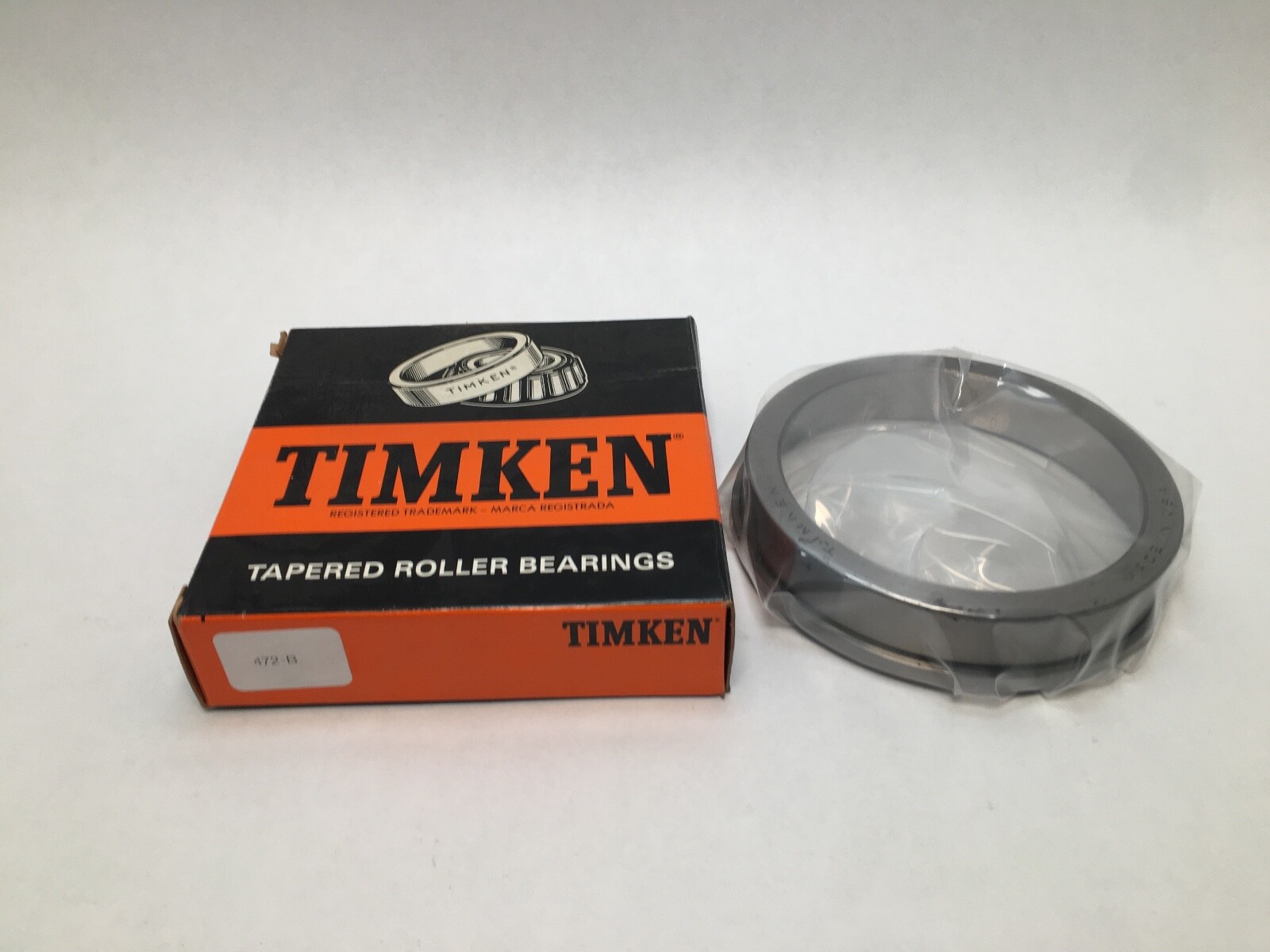

Unit Quantity: 1 Pc. Cup only — one flanged outer ring, single row.

Interchange guidance

472-B is the industry designation for this flanged cup and is carried by SKF, Koyo, NTN as 4T-472B, Fersa, BCA/Bower and PEER. Harmonization Code: 8482.20.00.
