Single-row TS tapered roller bearing cup, 3.6875 in OD, 1.0313 in width. Case-carburized steel outer race, e factor 0.4, Y factor 1.49, Timken 46000 series.
List Price
$51.99
40 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 46369 |
| Model | 46-369 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.6875 in (93.663 mm) |
| Series | 46000 |
|---|---|
| Harmonization Code | 8482.99.00 |
| Cup Part Number | 46369 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 1.0313 in (26.195 mm) |
| Cup Backface To Clear Radius | 0.05 in |
| Base Number | 46369 |
| Industry Terms | Taper bearing cup; tapered roller bearing race; outer race; TS cup |
| Common Misspellings | Timkin 46369; 4639; tappered roller bearing cup; taper roler race |
| Total Width | 1.0313 in (26.195 mm) |
| Overall Width | 1.0313 in (26.195 mm) |
| Mpn Variants | 46369; 46-369; 46 369 |
| Compatible With Replaces | Timken 46143 cone; Timken 46150 cone |
| Precision Class | Not specified |
| E Factor | 0.4 |
| Item Weight | 2.3 lb (1 kg) |
| Part Number | 46369 |
| Application Types | Tapered roller bearing housings; wheel hubs; gearboxes; industrial machinery |

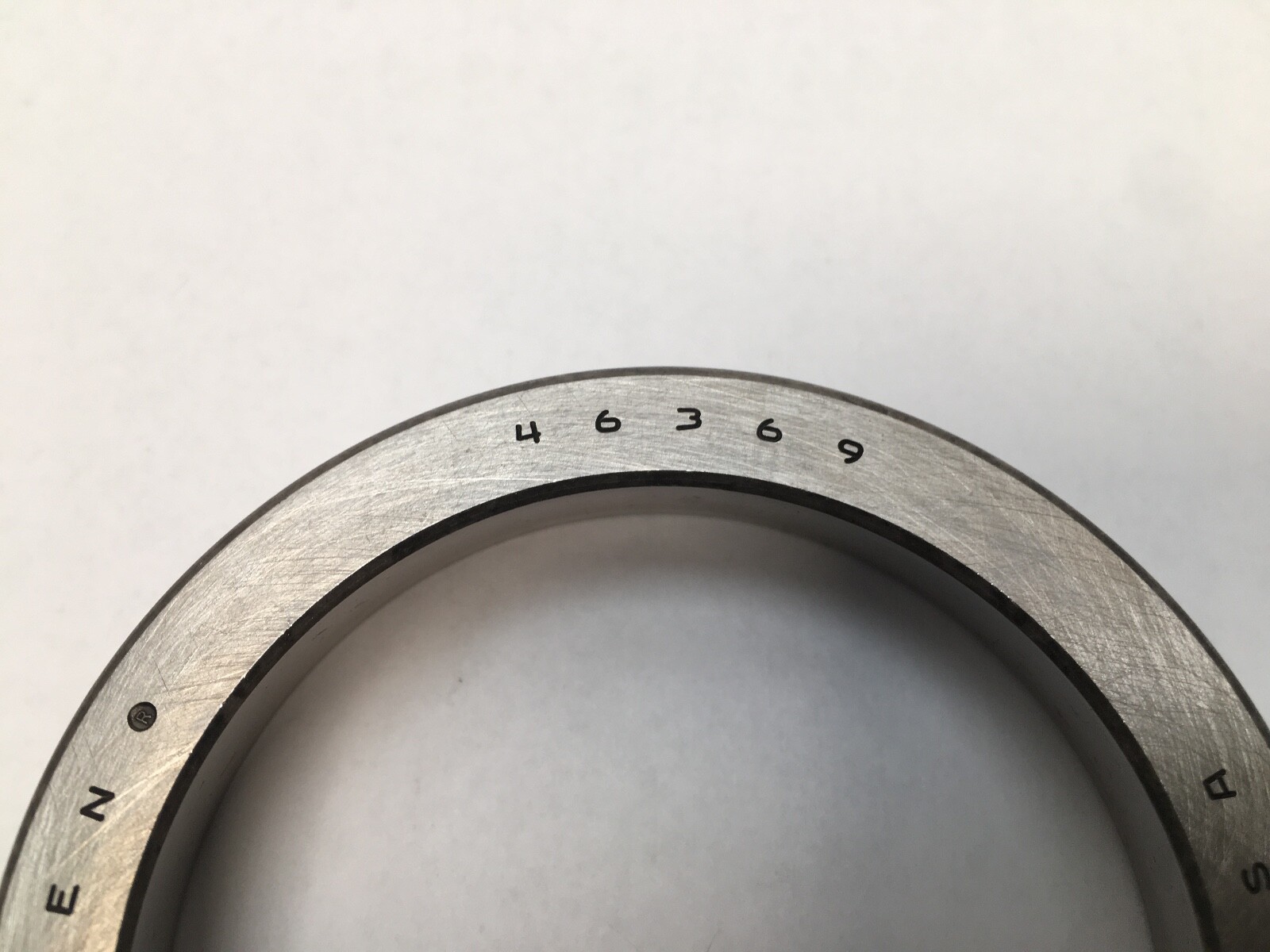

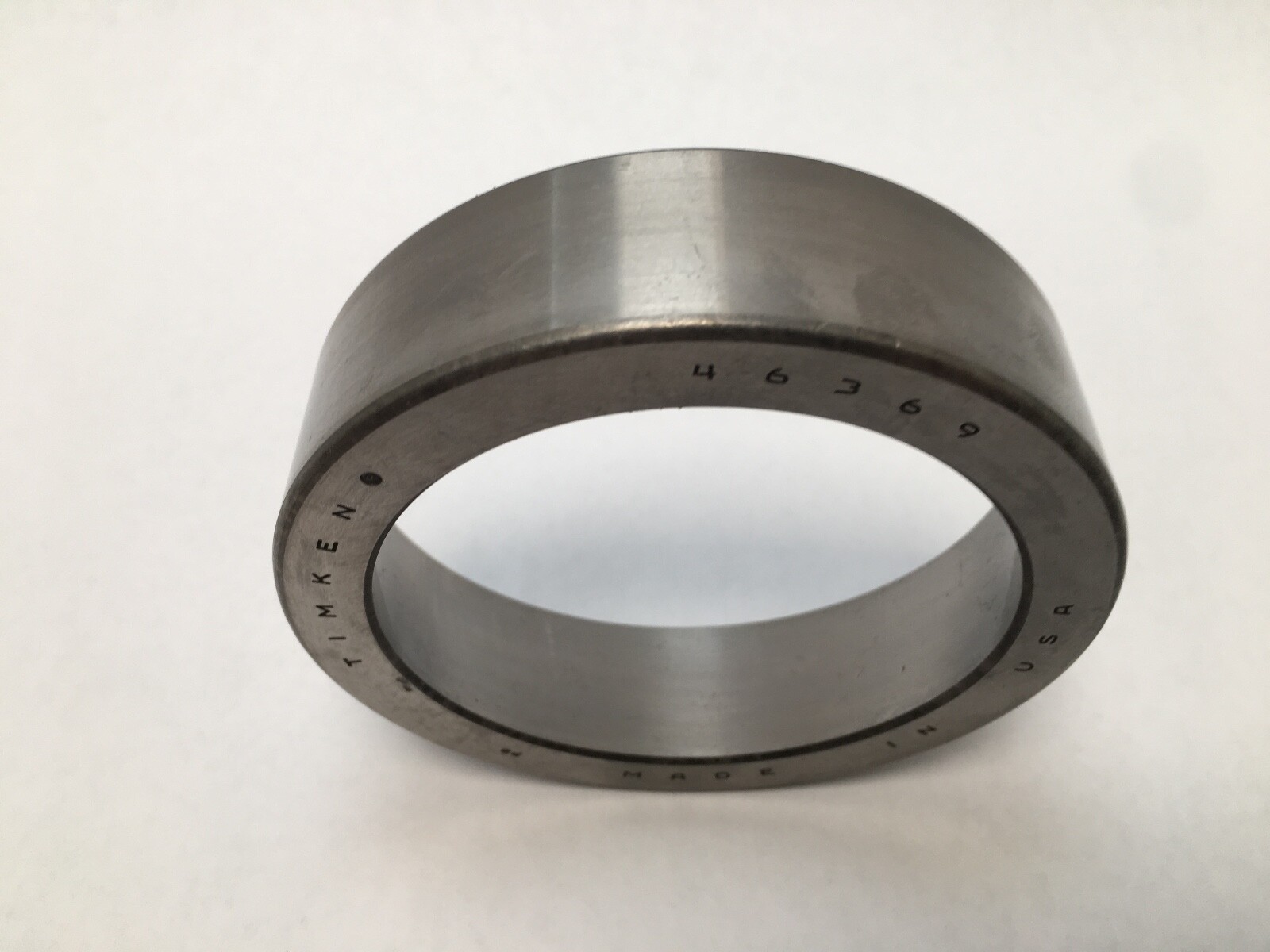

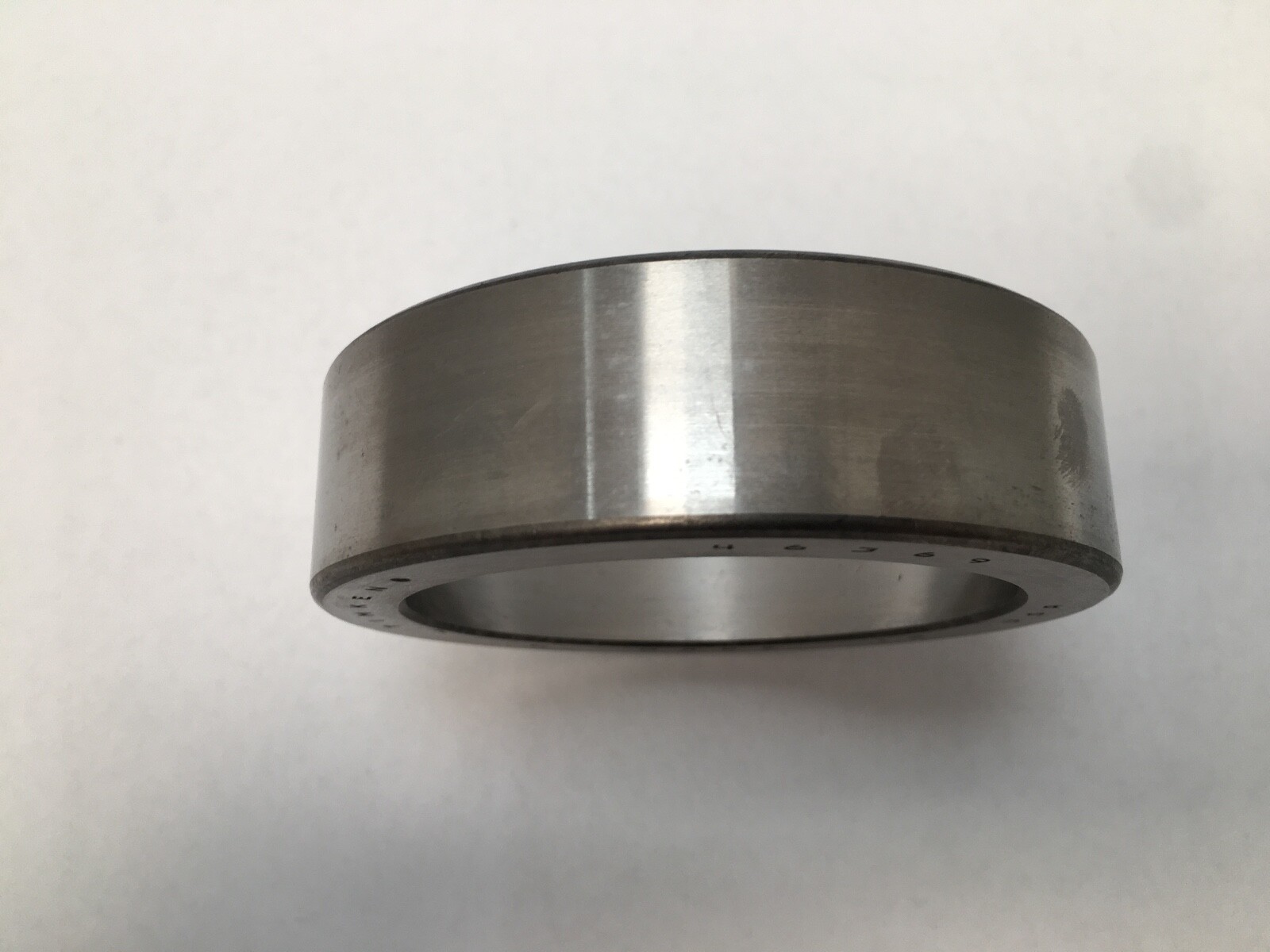

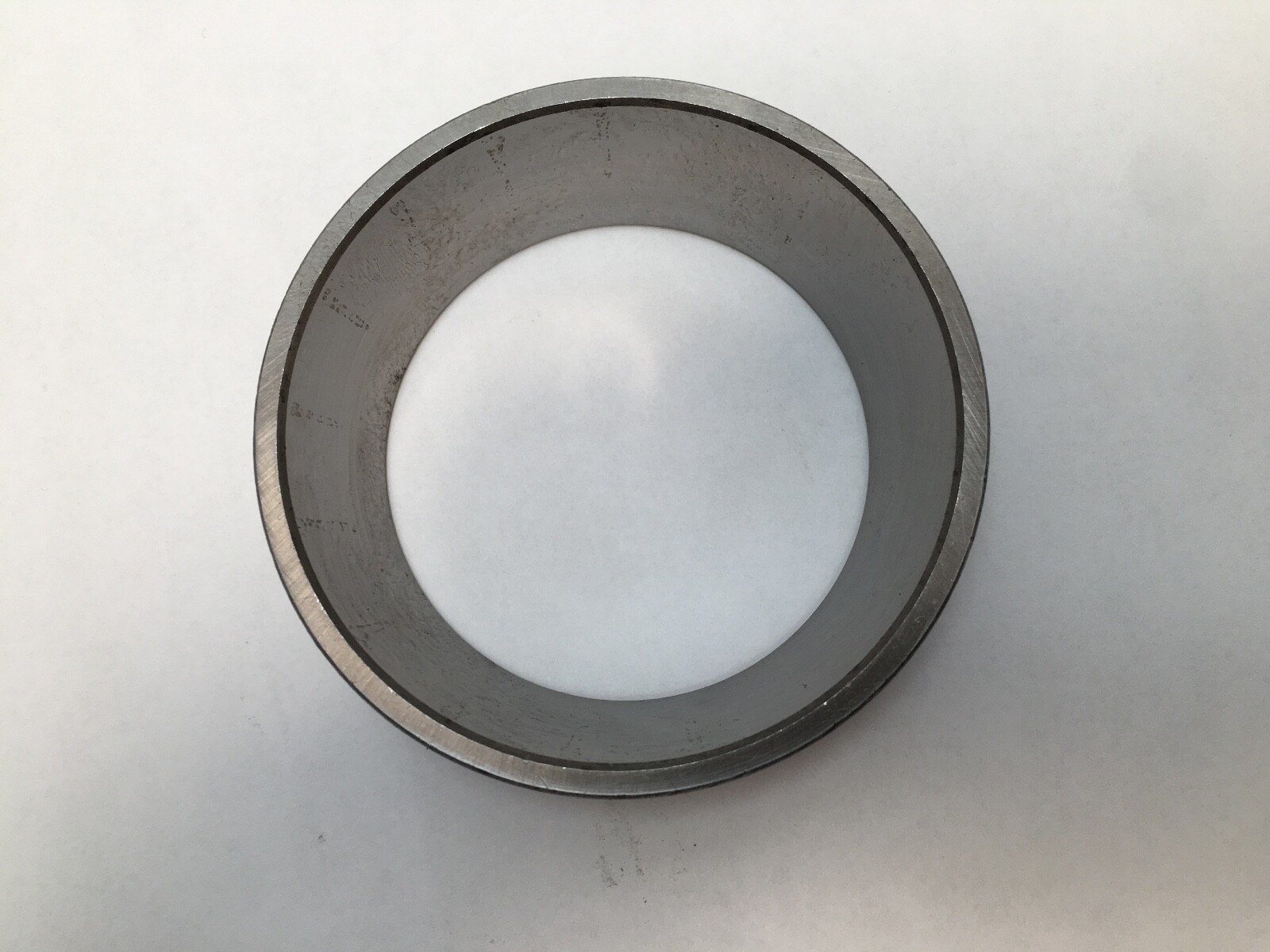

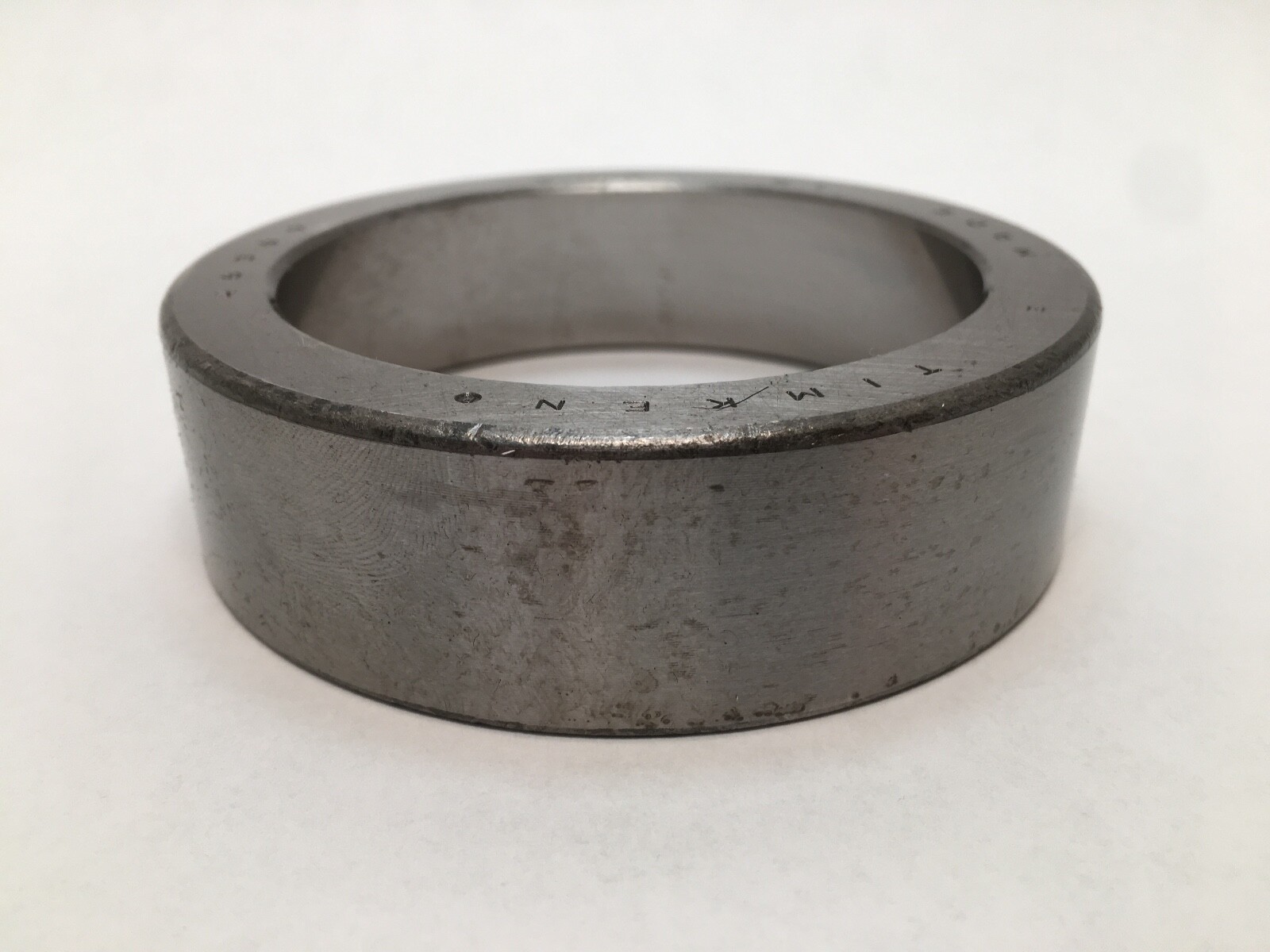

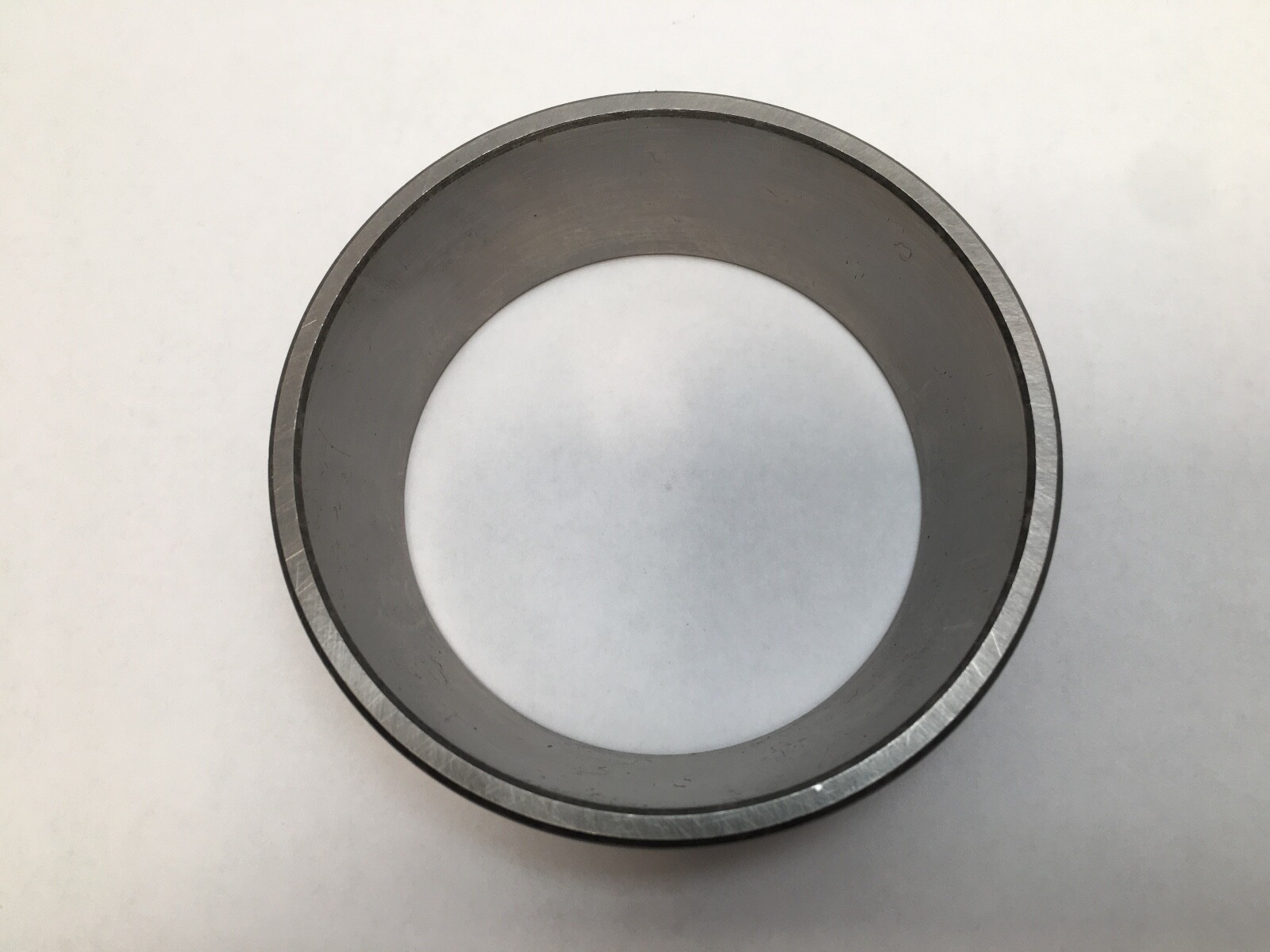

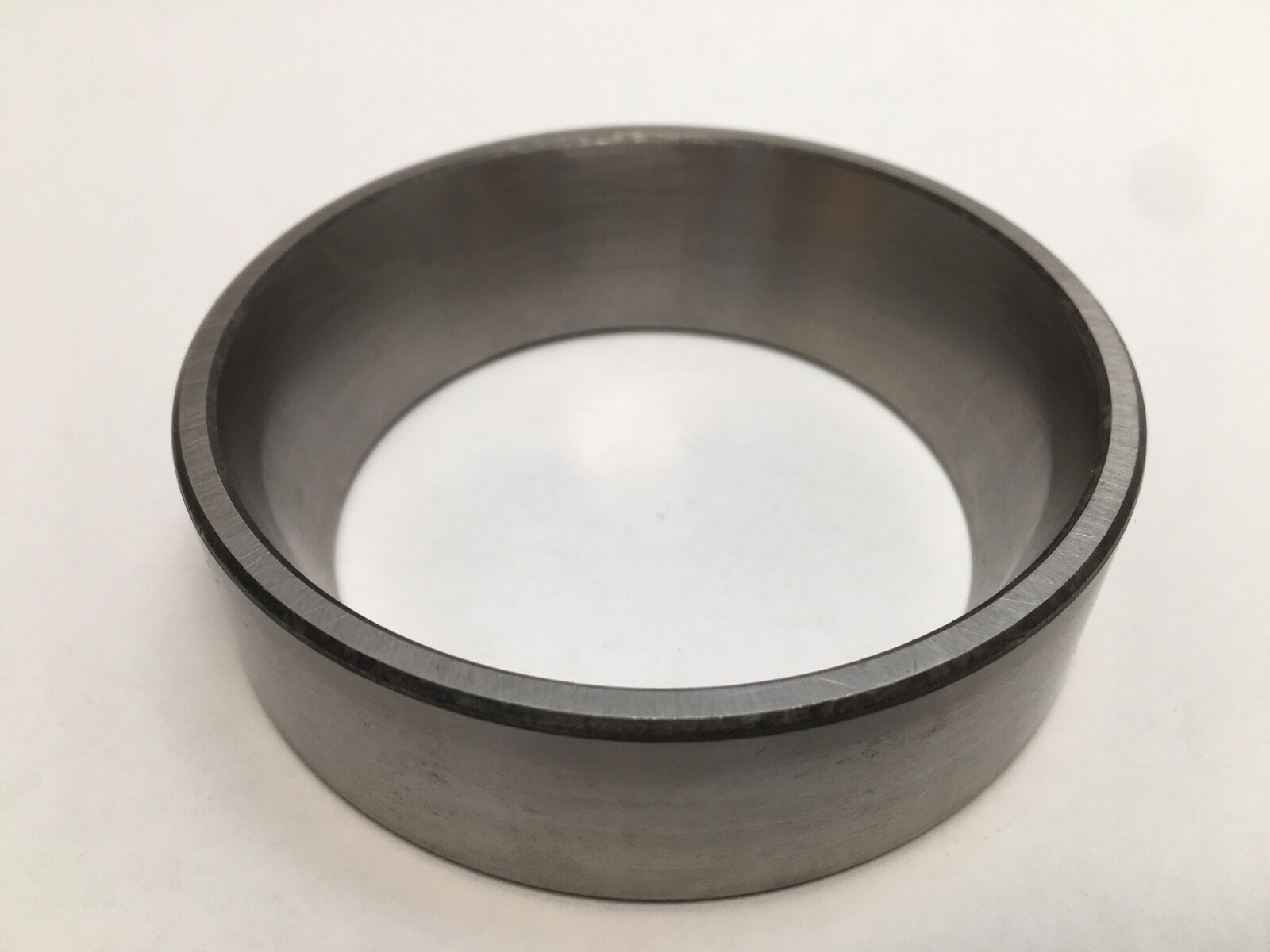

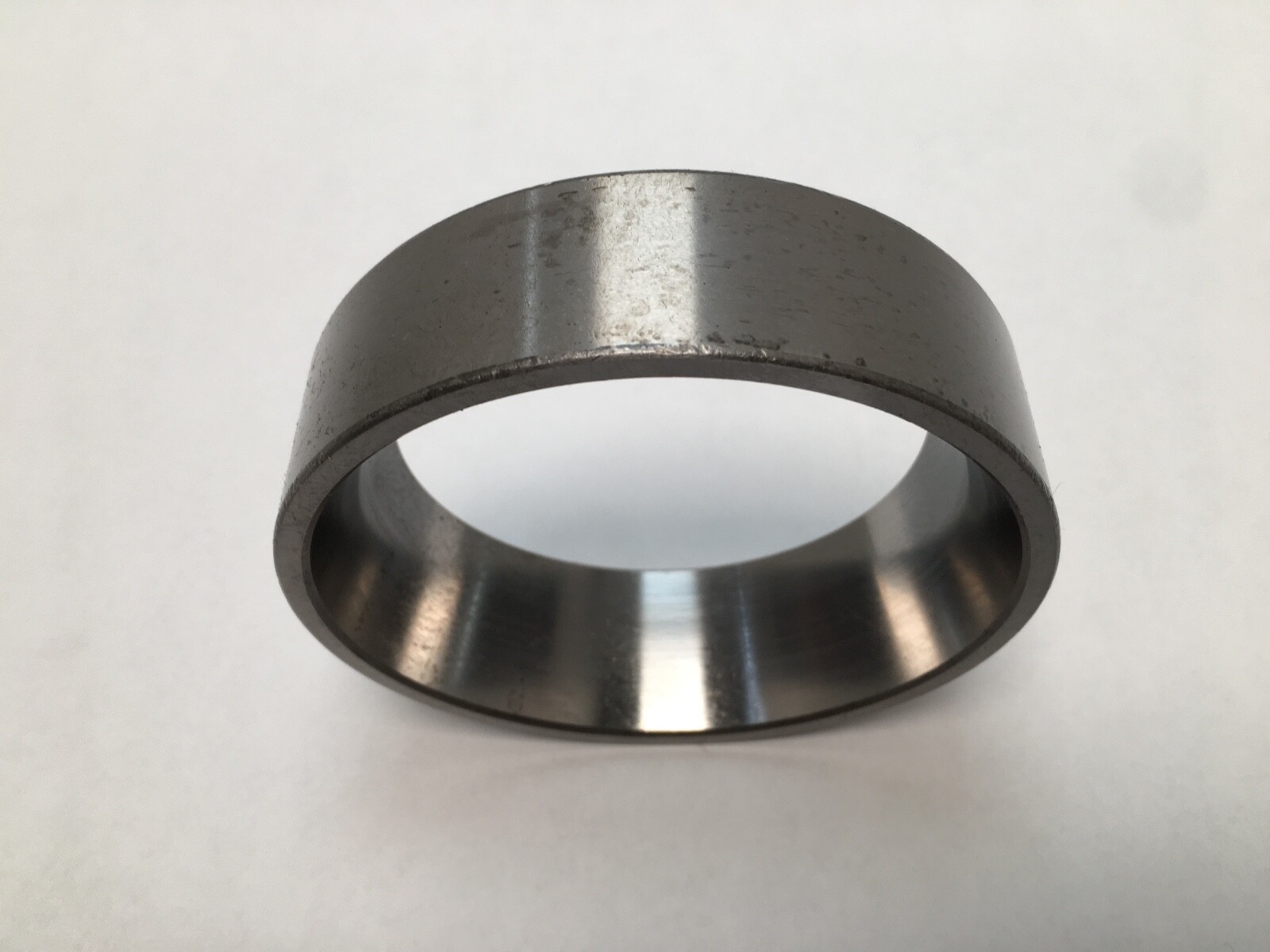

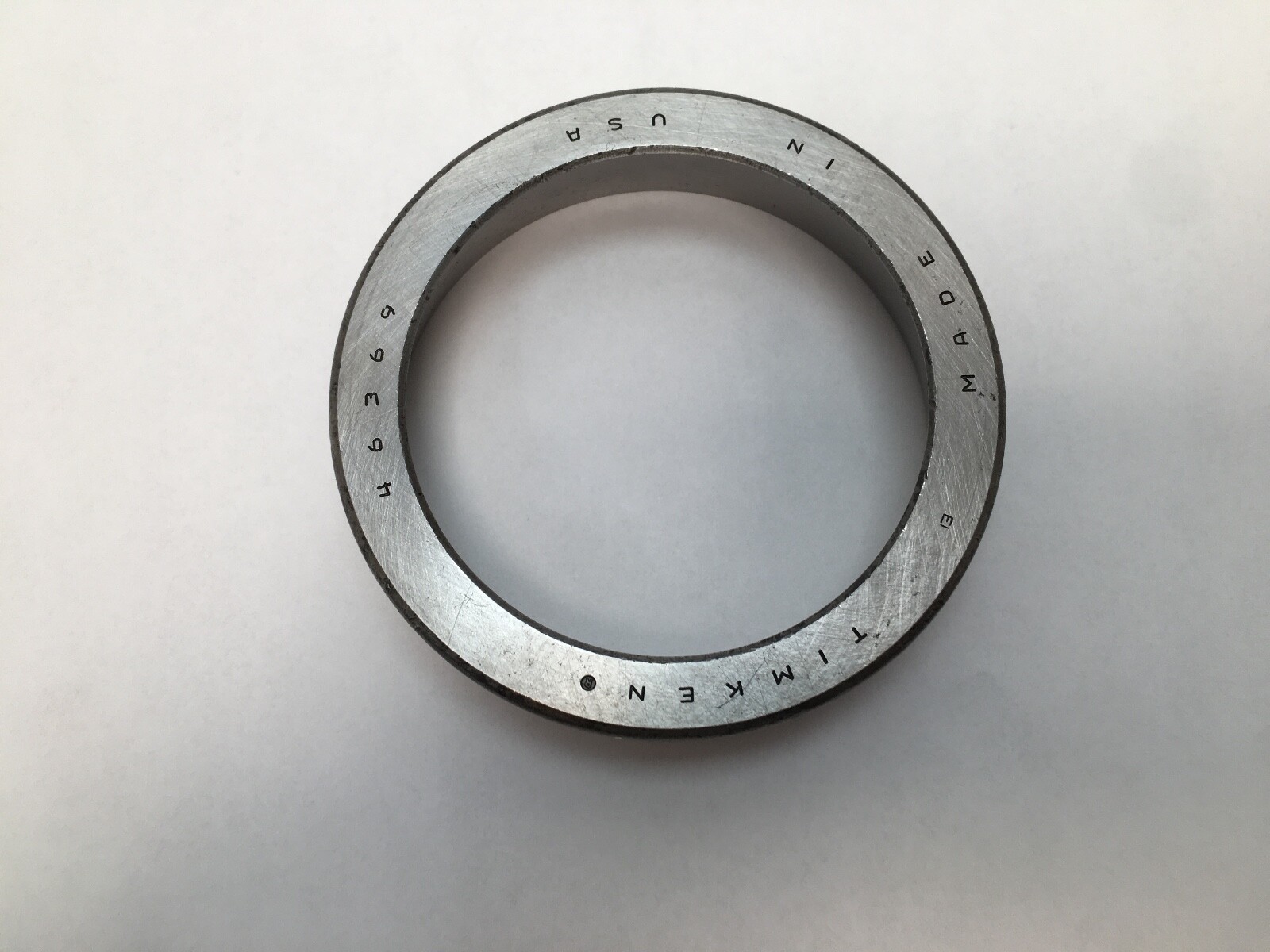

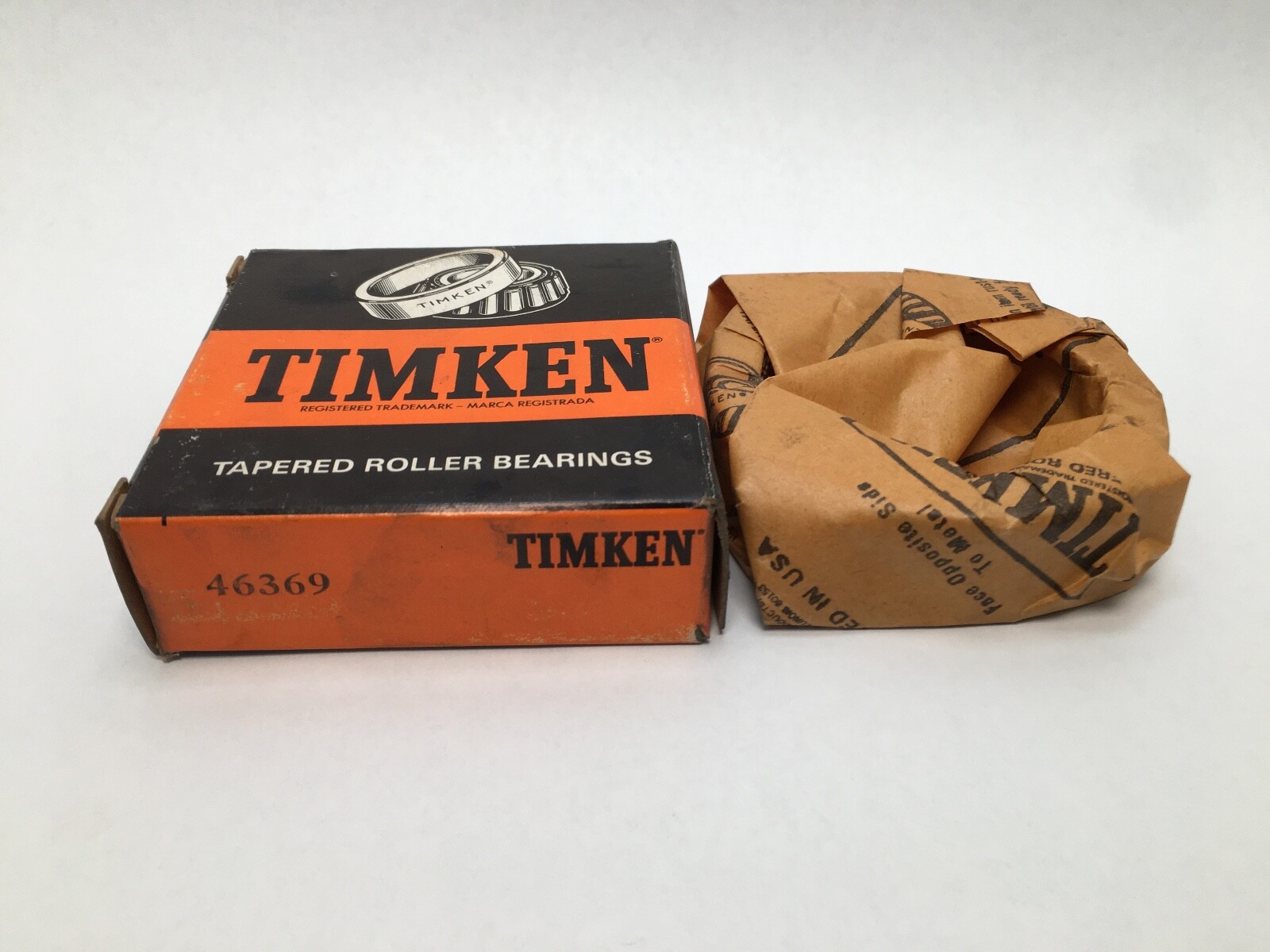

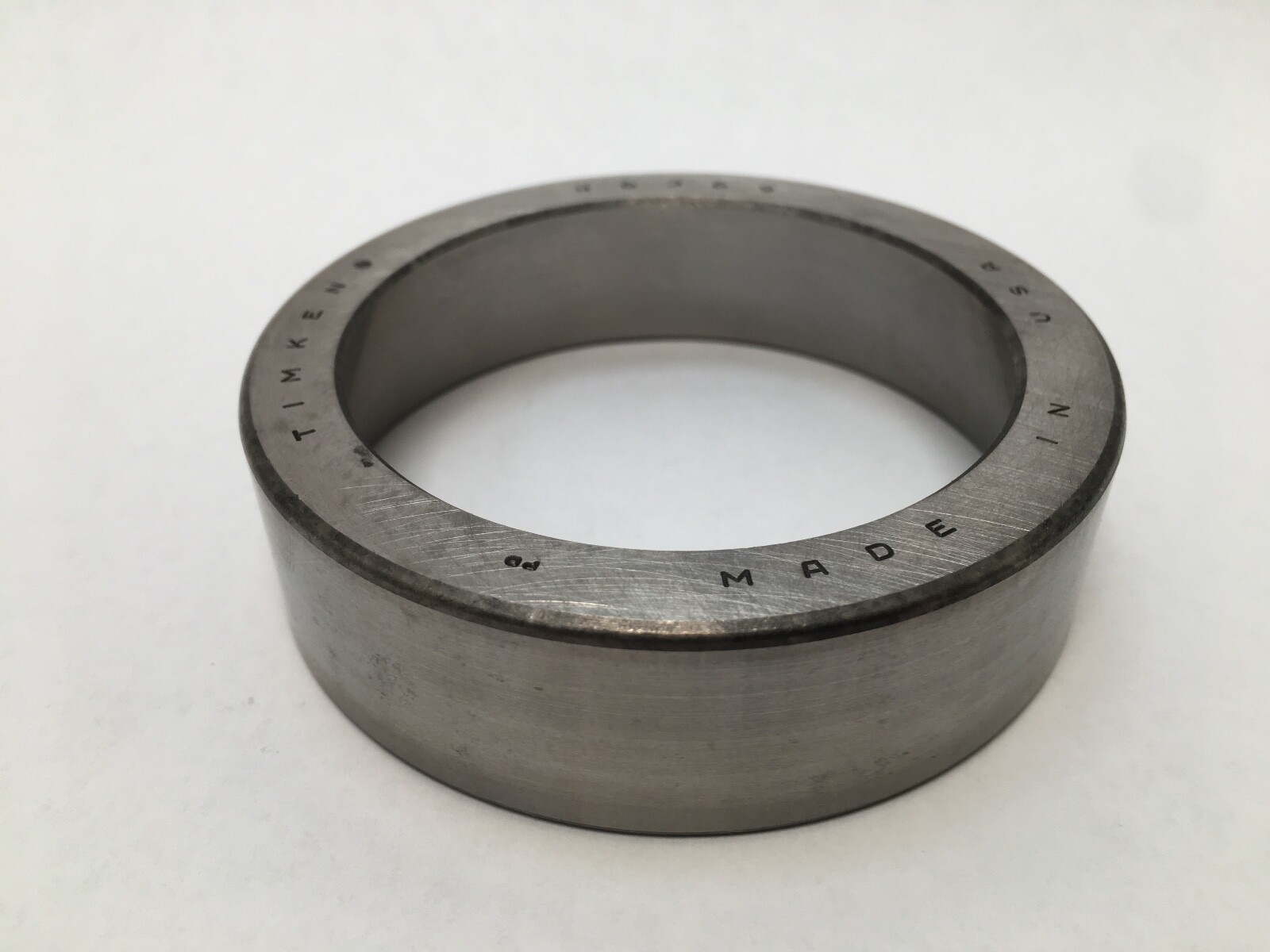

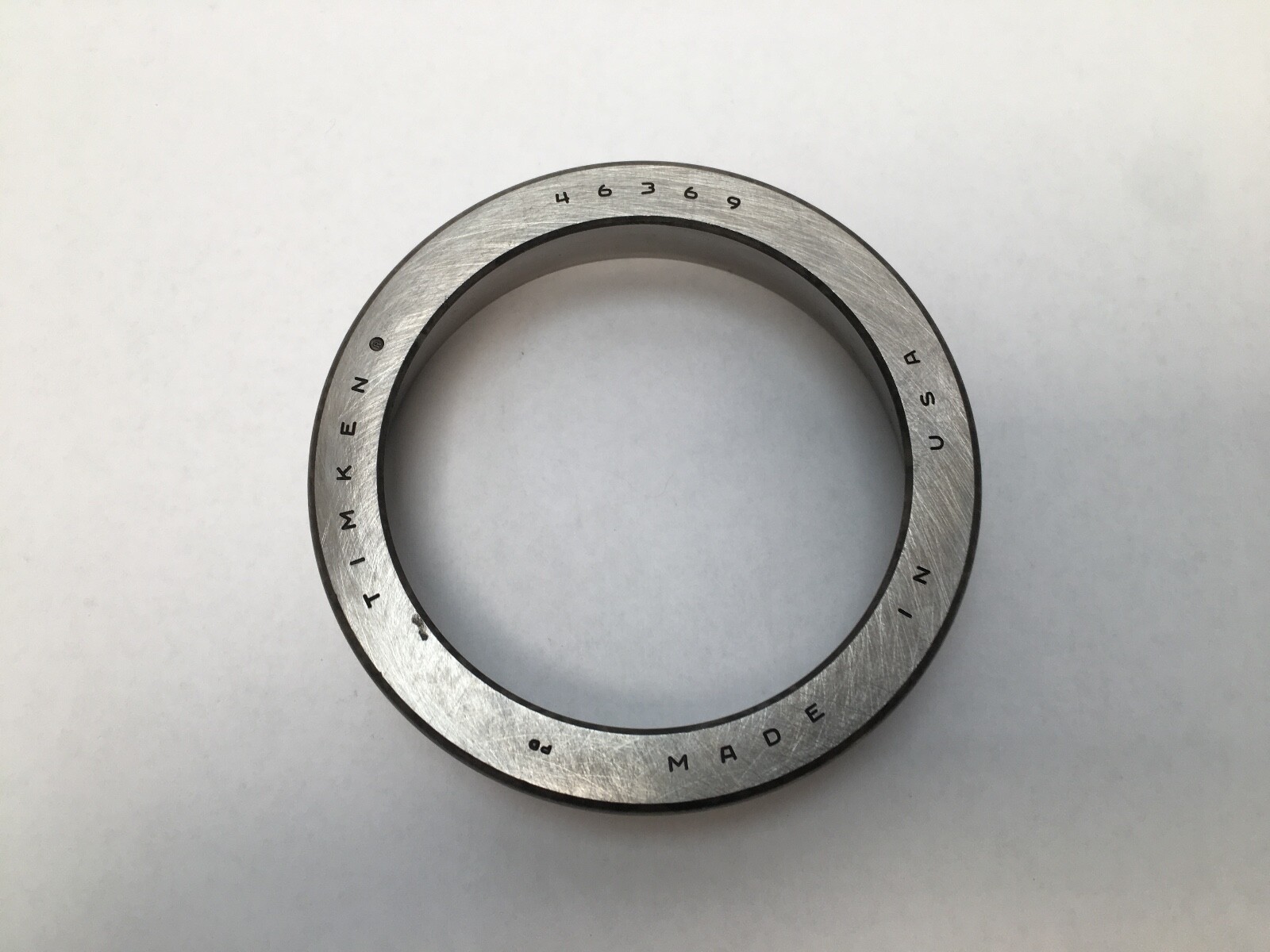

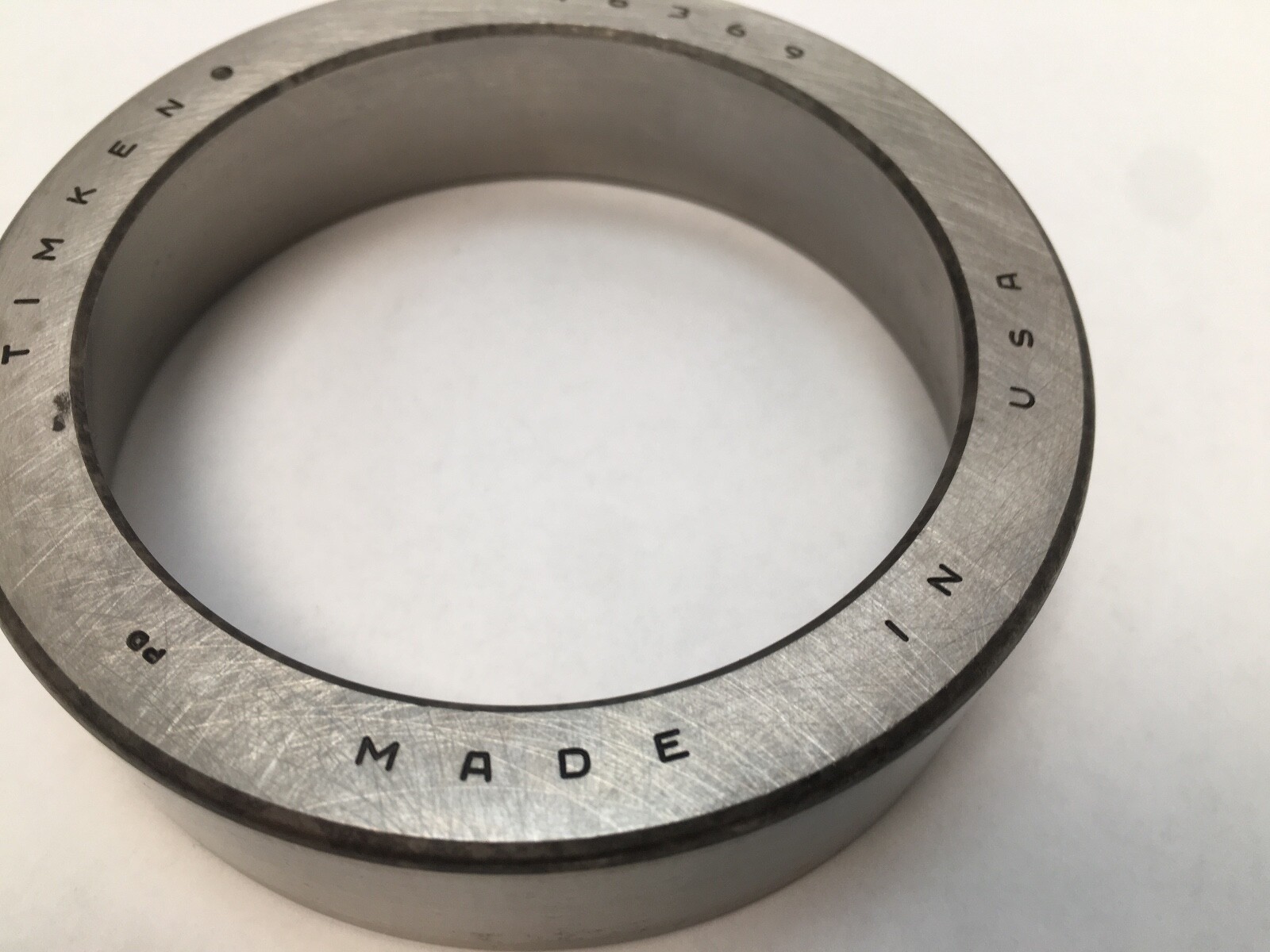

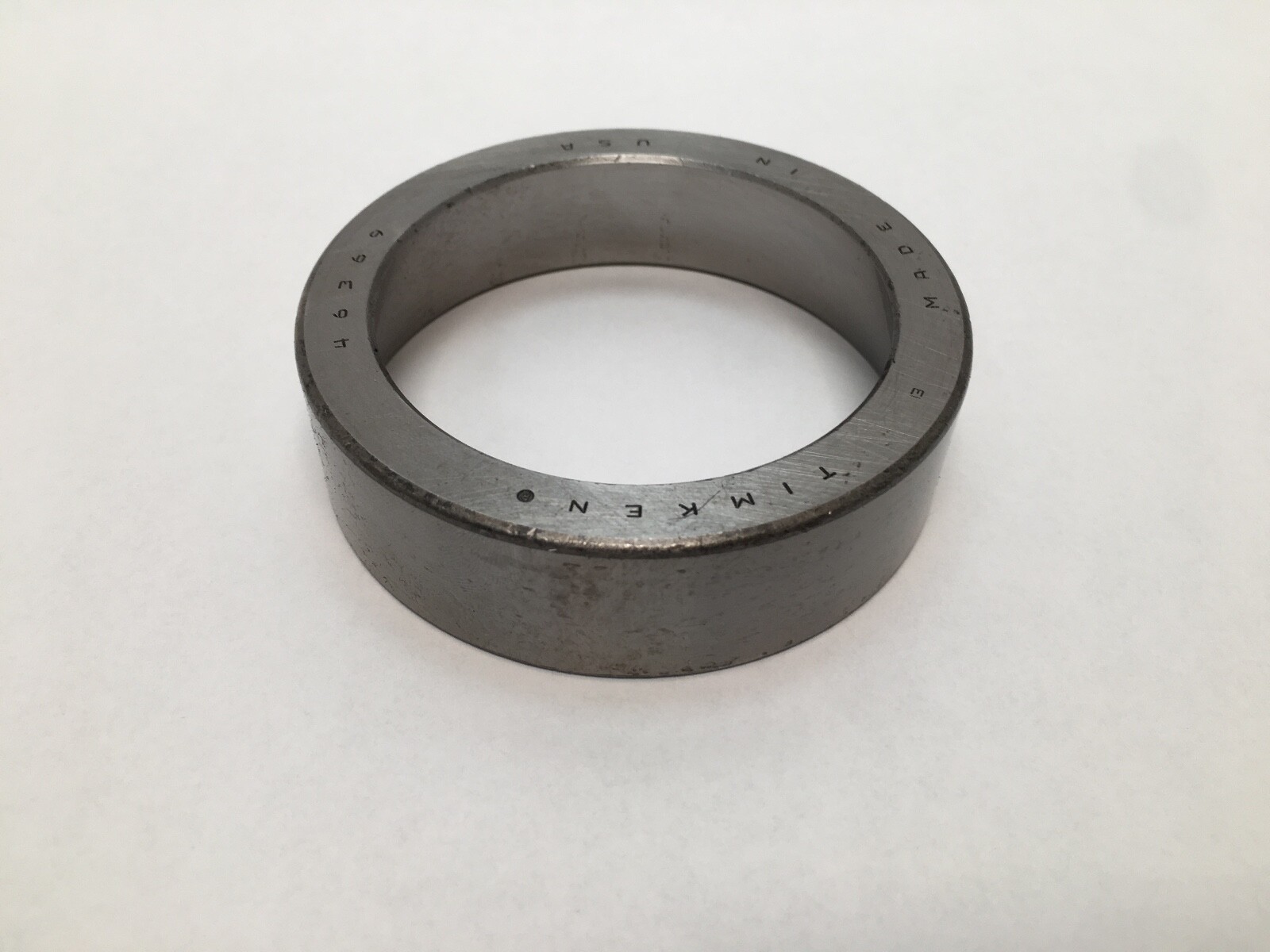

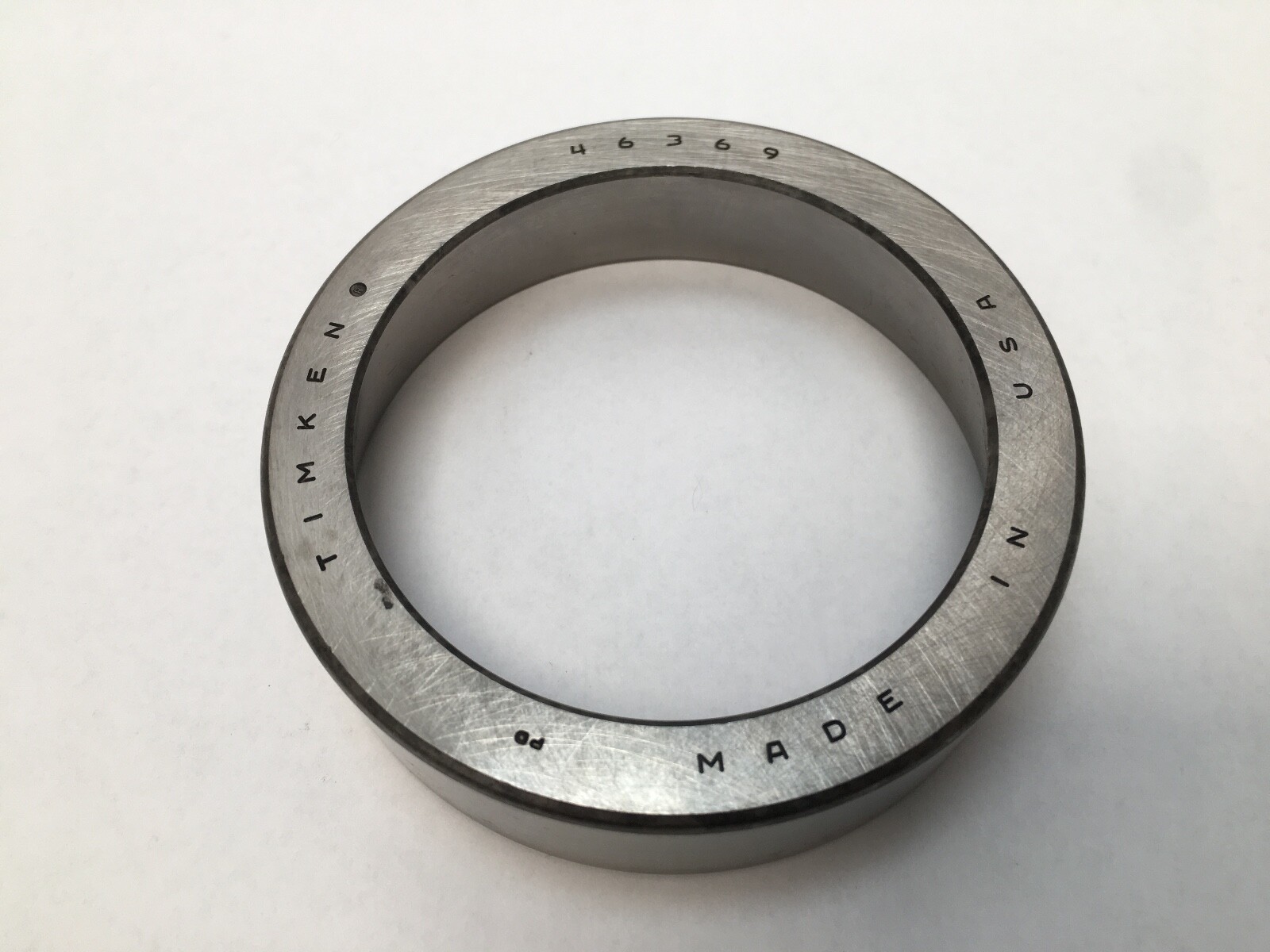

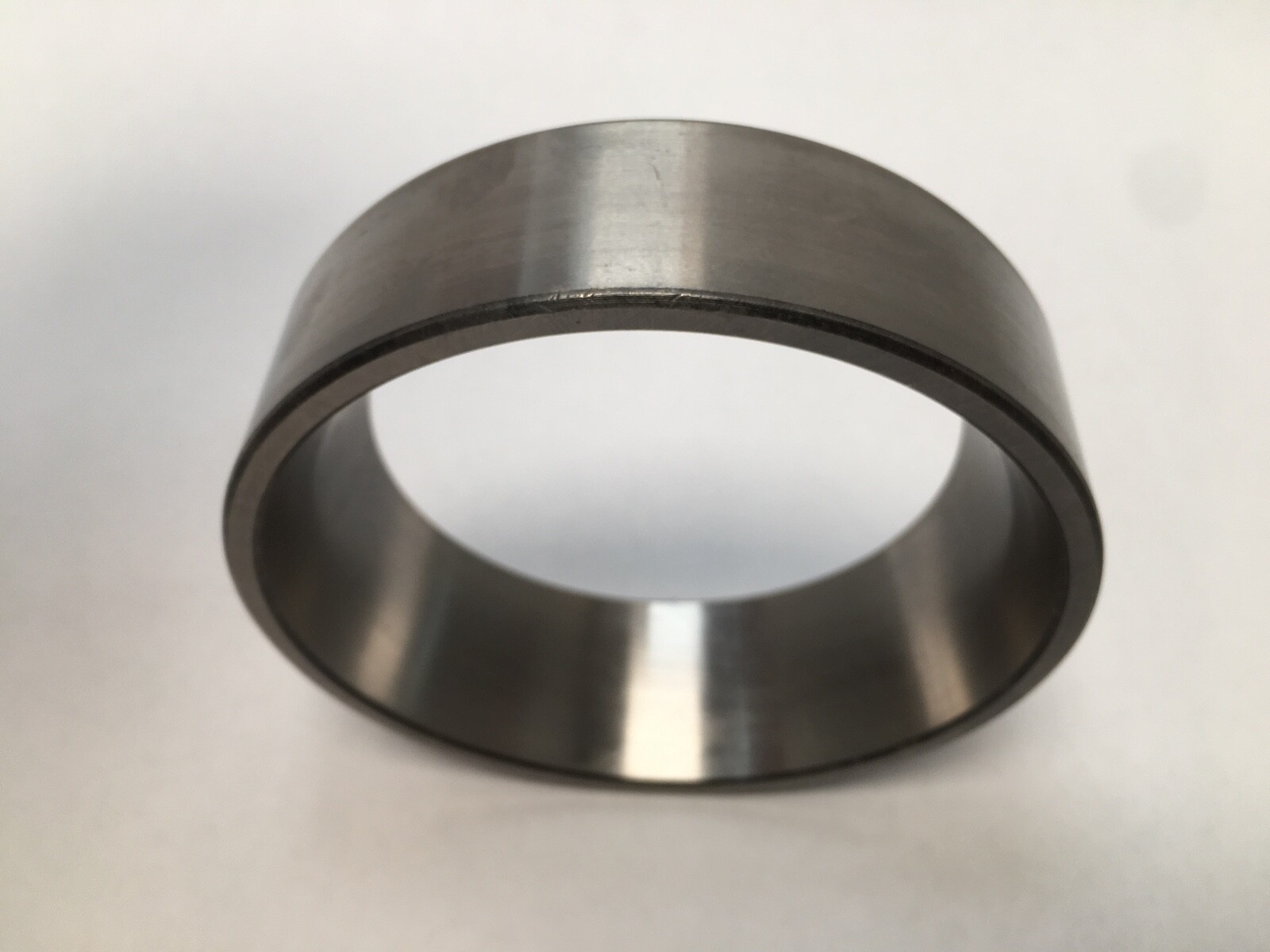

Timken 46369 tapered roller bearing cup, the outer race of a single-row TS tapered roller bearing. Cup only. Outside Diameter: 3.6875 in (93.663 mm). Overall Width: 1.0313 in (26.195 mm). Series: 46000. Unit Quantity: 1 Pc.
46369 — cup number in the Timken 46000 inch tapered roller bearing series, matched to the 461xx cone range.
Outside Diameter: 3.6875 in (93.663 mm). Overall Width: 1.0313 in (26.195 mm). e Factor: 0.4. Y Factor: 1.49. Geometry Factor (Cg): 0.092. Maximum Housing Fillet Radius: 0.050 in (1.27 mm). Bearing Material: Case-carburized steel. Item Weight: 2.3 lb (1 kg). Country of Origin: United States. Harmonization Code: 8482.99.00.
Housing Backing Shoulder Diameter, Frontface (Da): 3.46 in (87.88 mm). Housing Backing Shoulder Diameter, Backface (Db): 3.19 in (81.03 mm). Cup Backface To-Clear Radius: 0.05 in. The cup carries the tapered outer raceway and seats in the housing bore.
Matching cones: Timken 46143 and Timken 46150. Compatible With / Replaces: Timken 46143 cone, Timken 46150 cone. MPN Variants: 46369, 46-369, 46 369.
Outside diameter 3.6875 in (93.663 mm), width 1.0313 in (26.195 mm).
The Timken 46143 and Timken 46150 cones.
It is a cup only: the outer race of a single-row TS tapered roller bearing, with no cone or rollers.
