TimkenH432649/H432610Tapered Roller Bearing Cone and Cup Set – 5.9995 in Bore, 10.6250 in Outside Diameter, 775,000 N Dynamic Load Rating

Product Description

What this part is

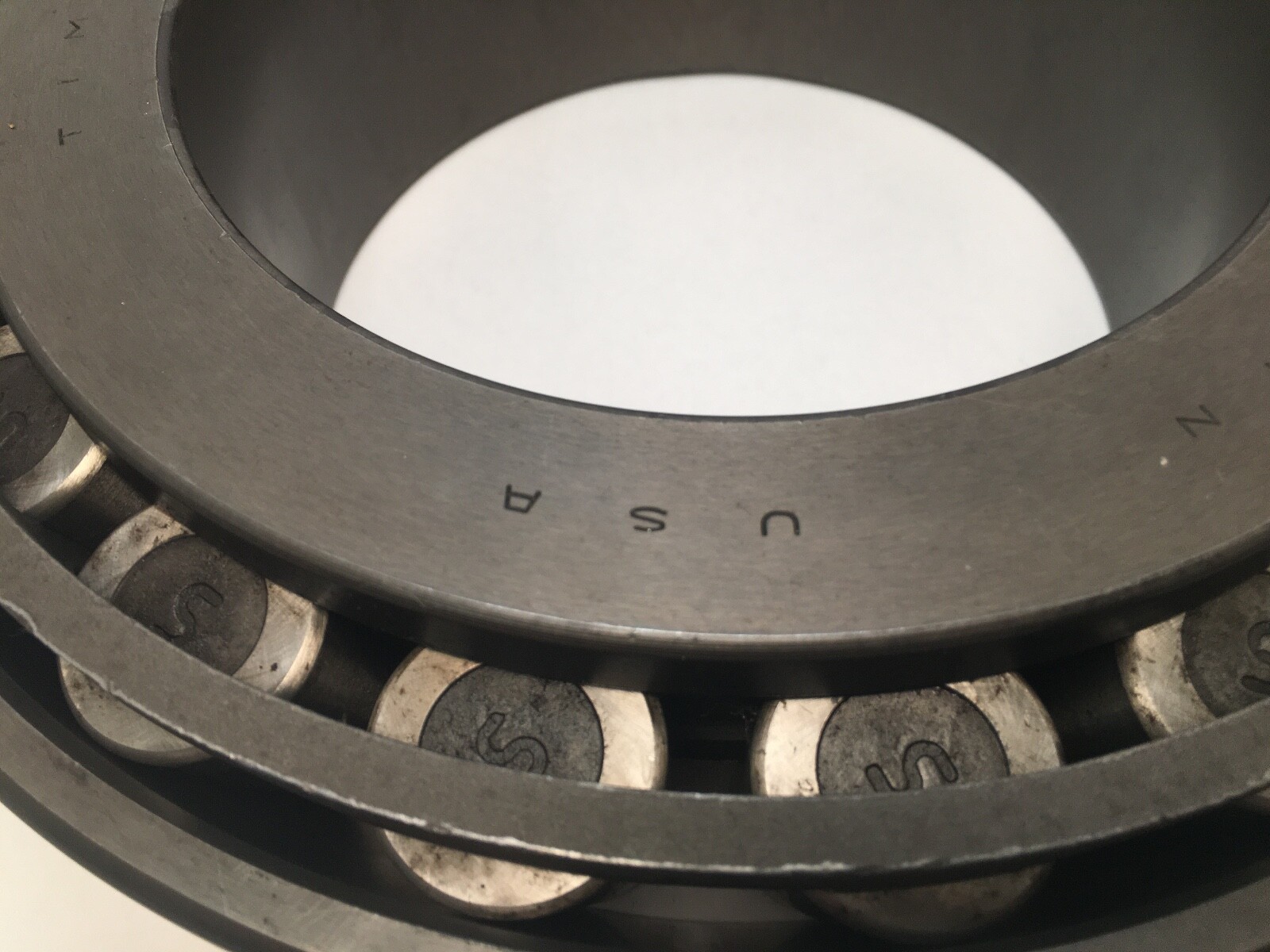

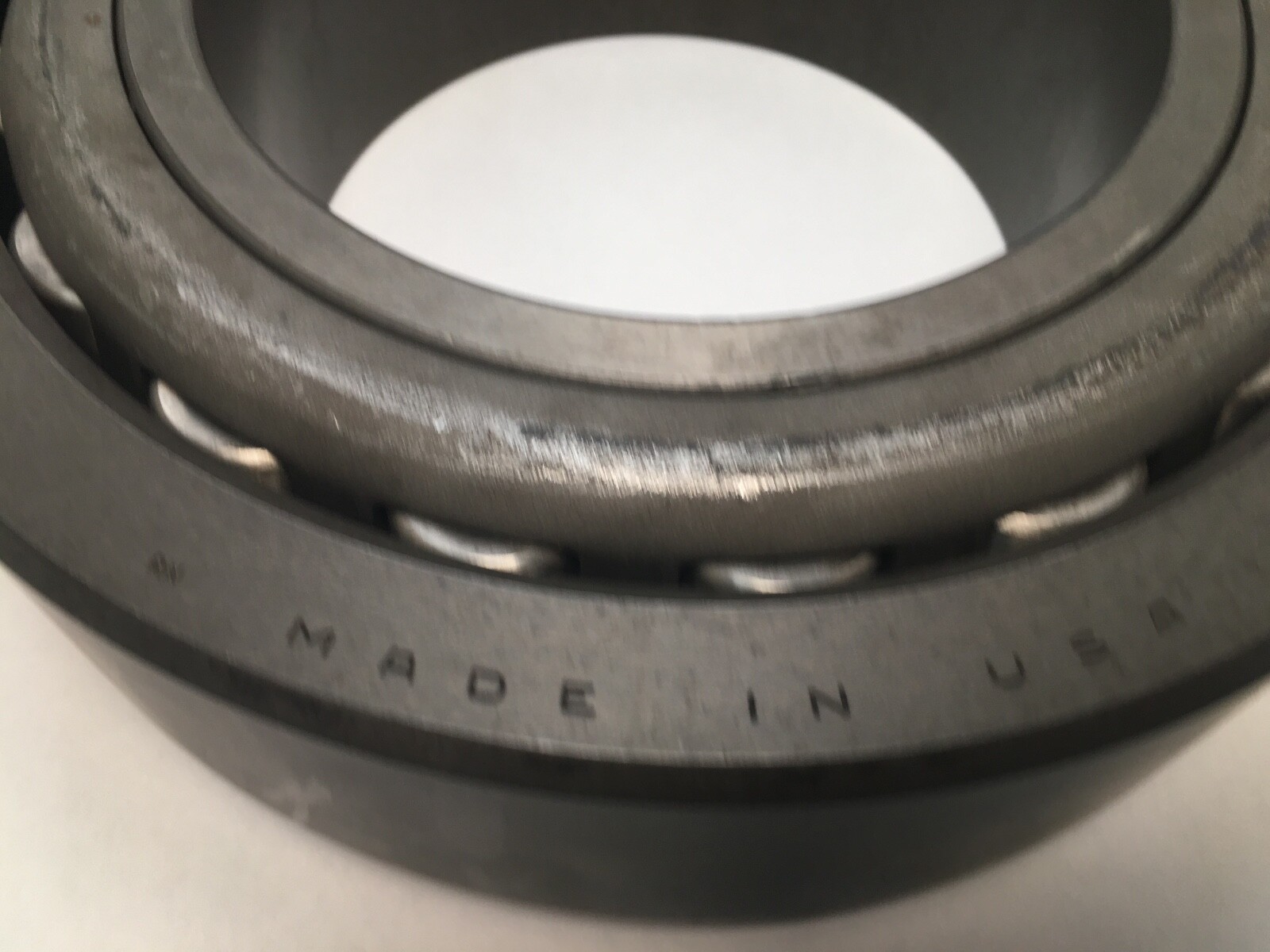

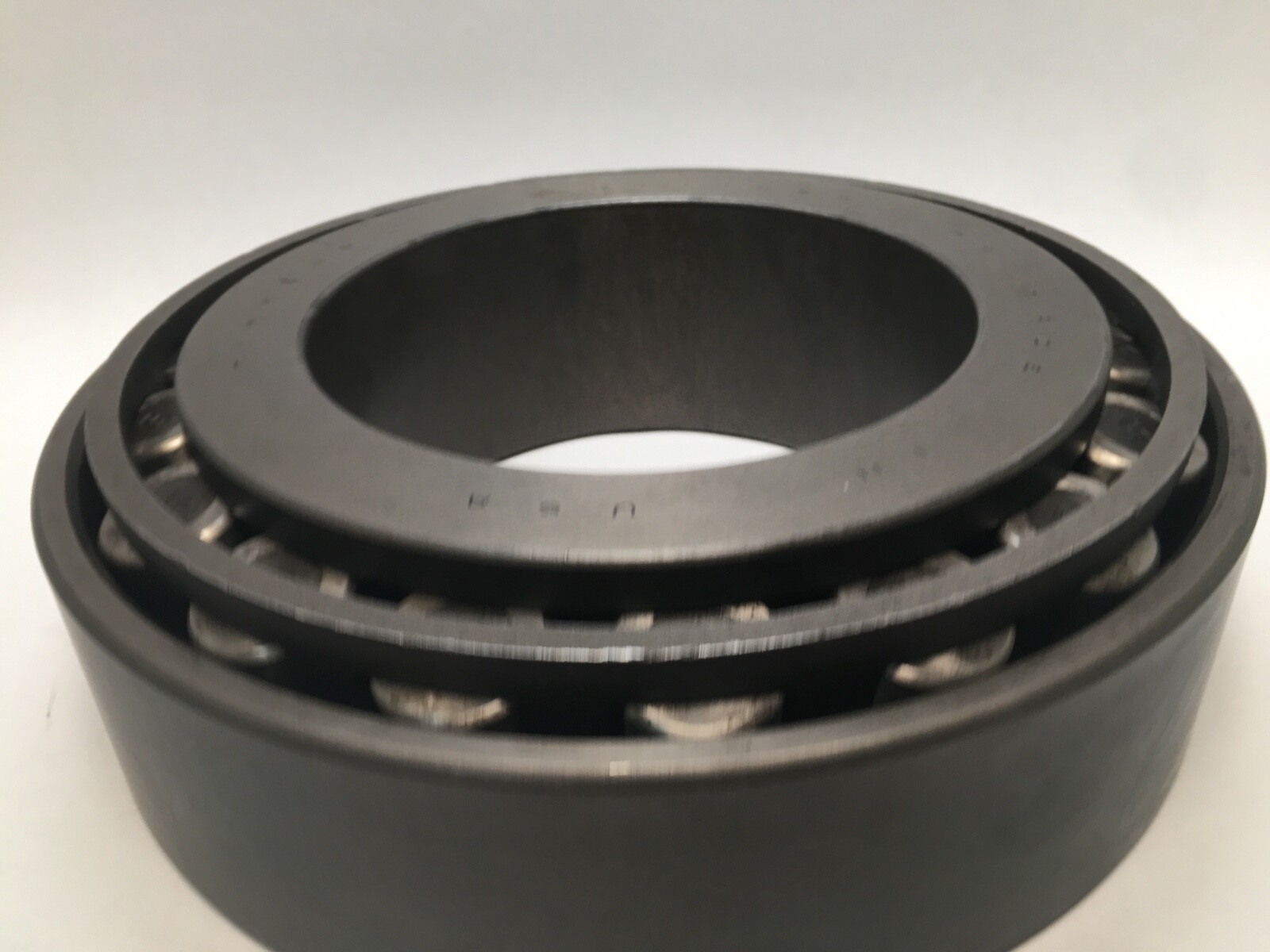

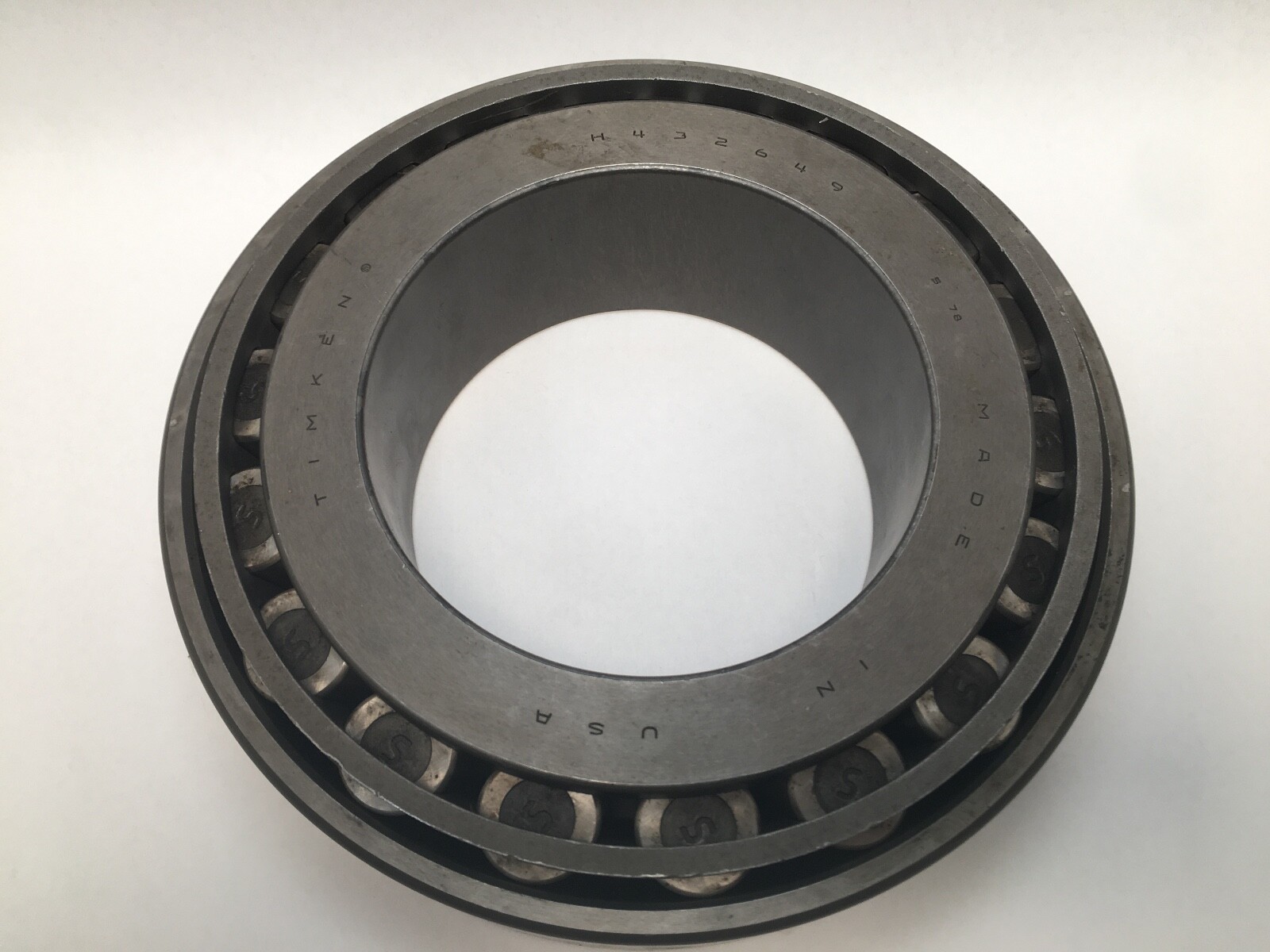

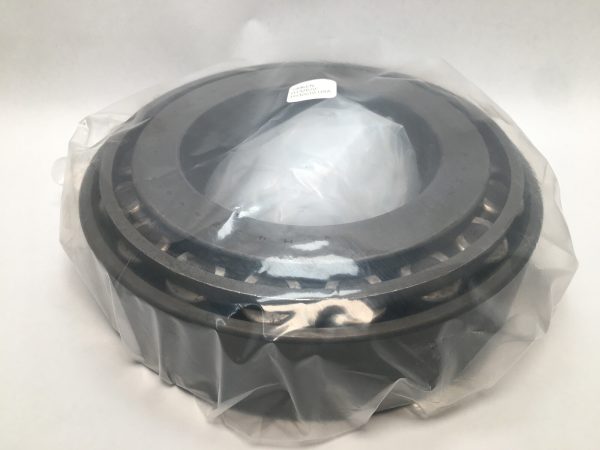

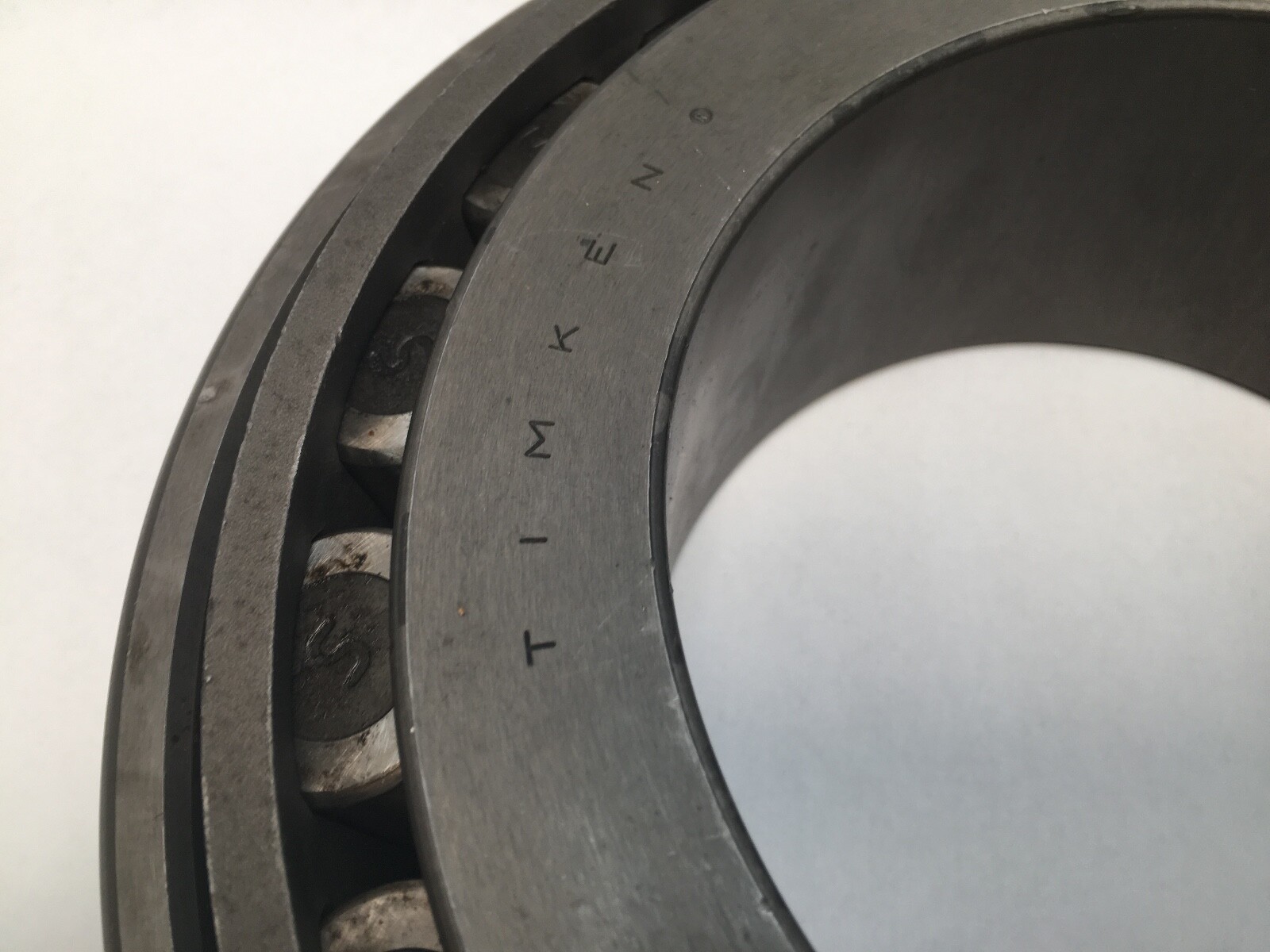

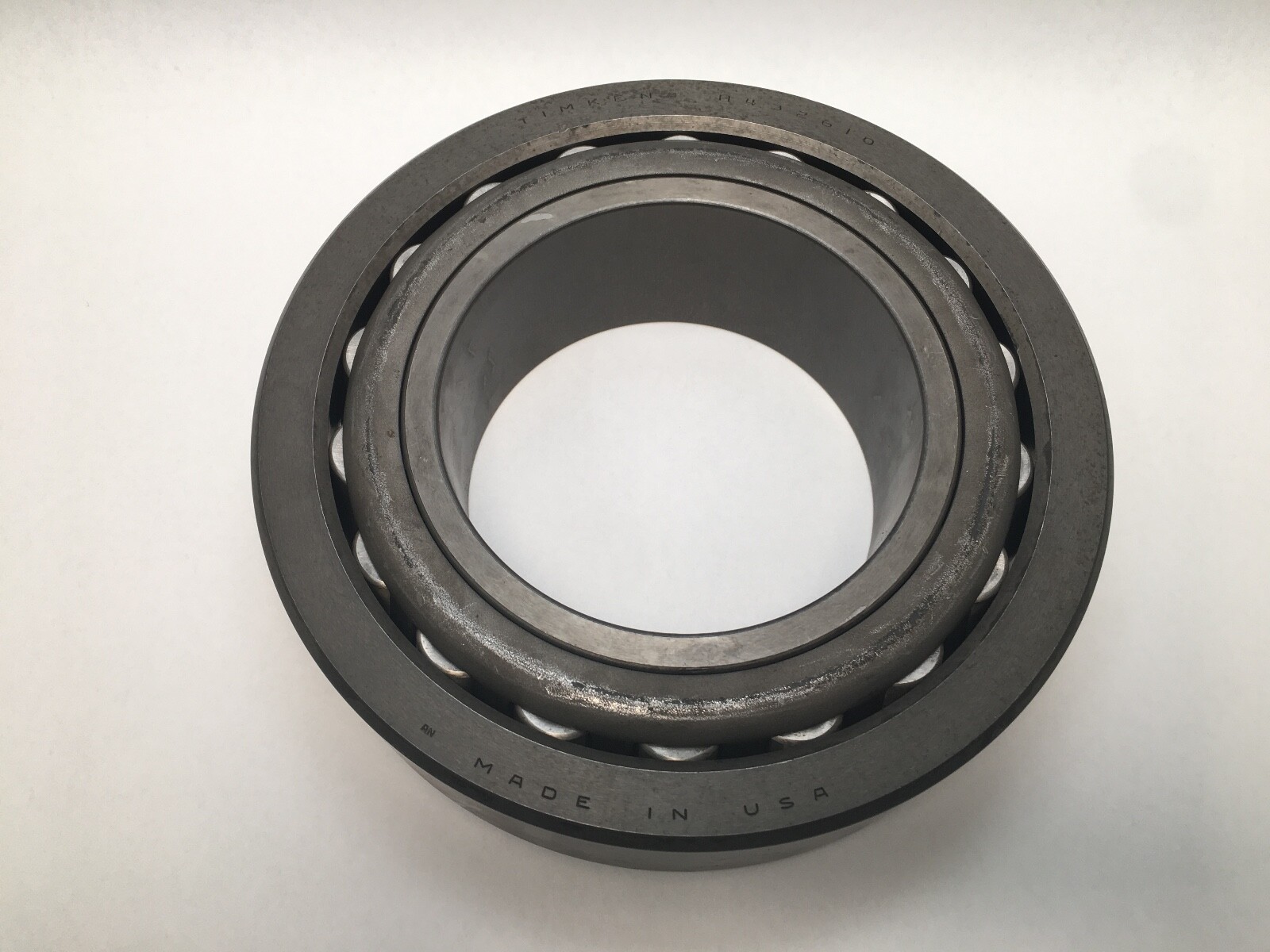

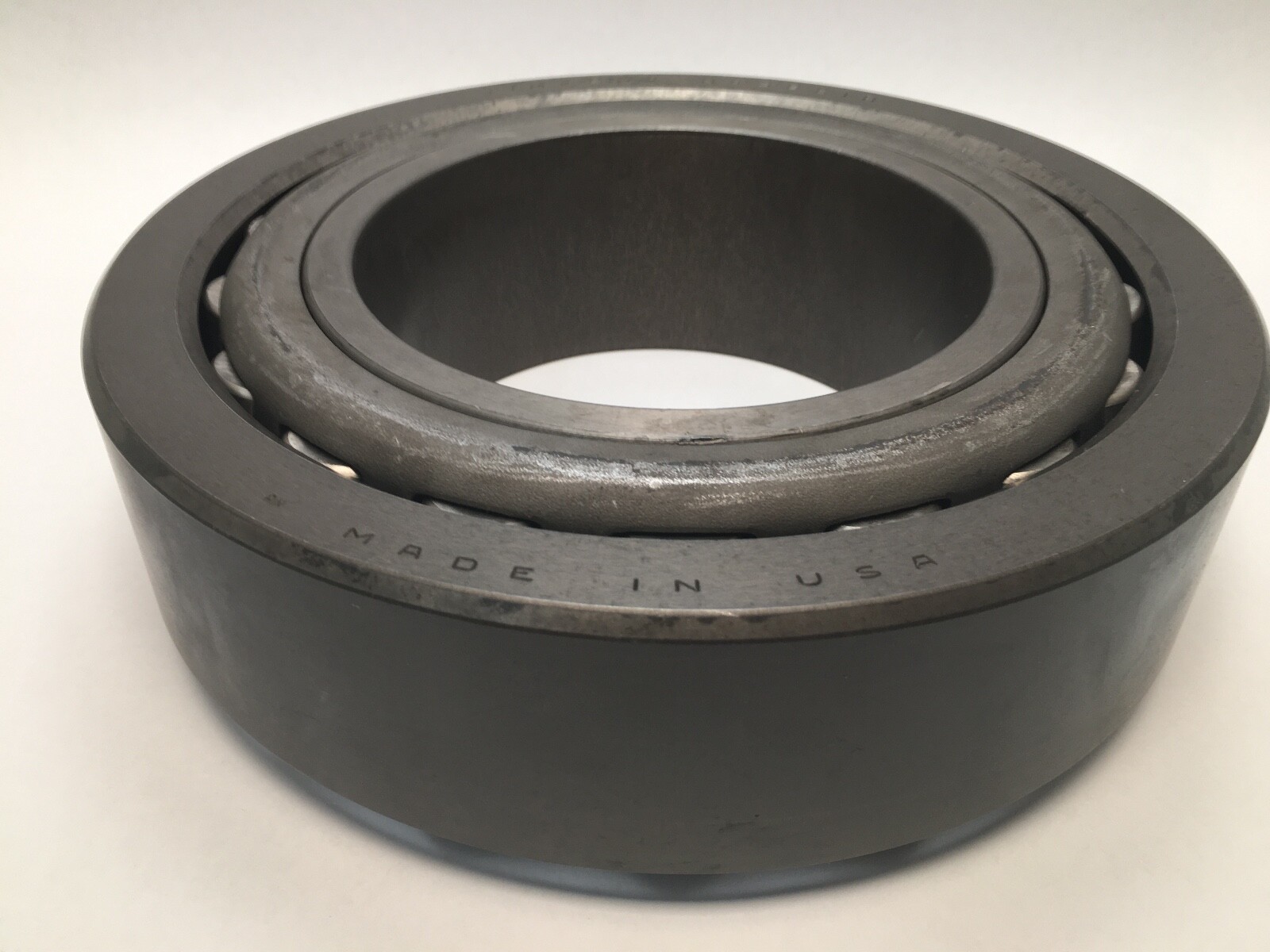

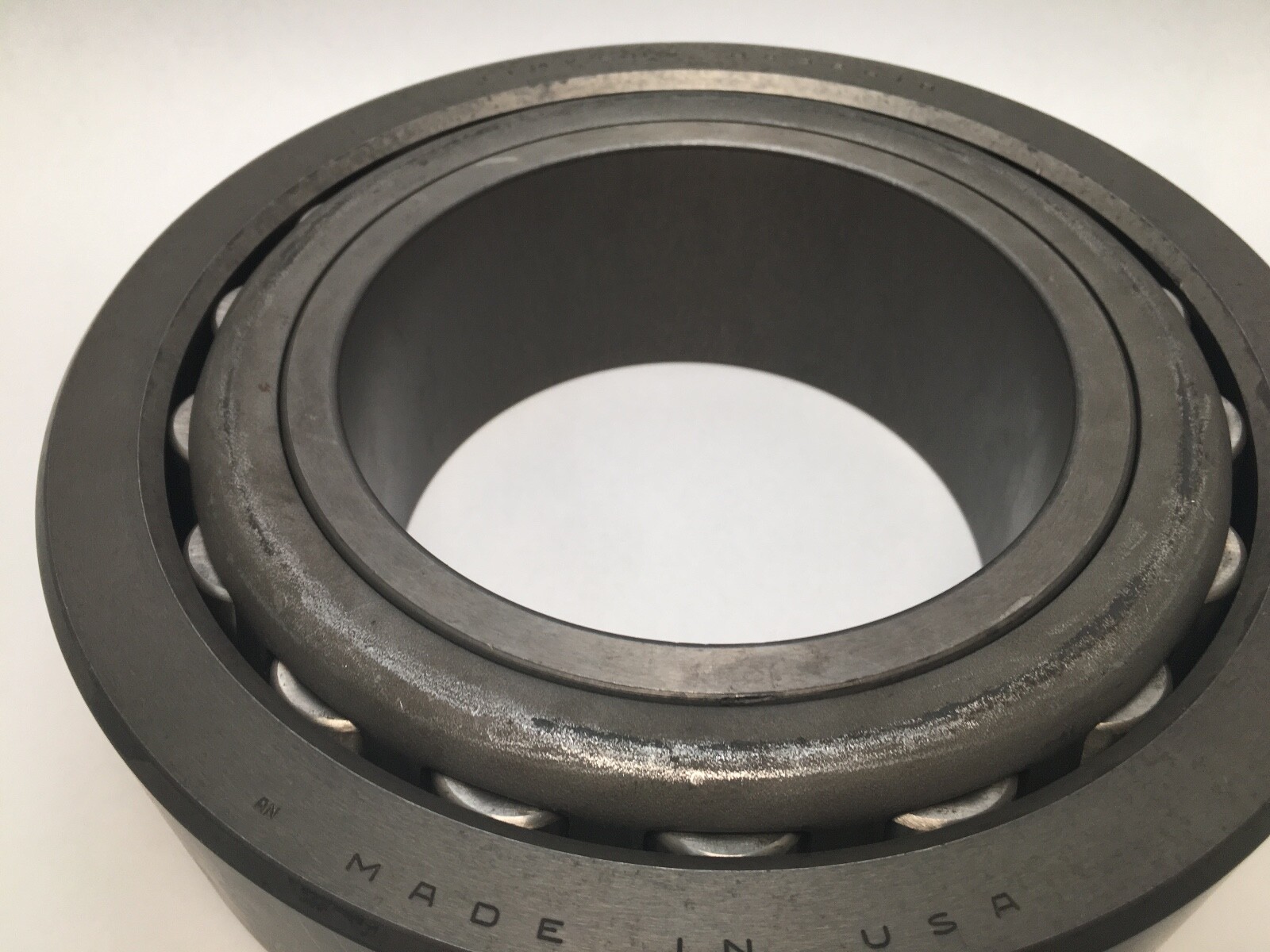

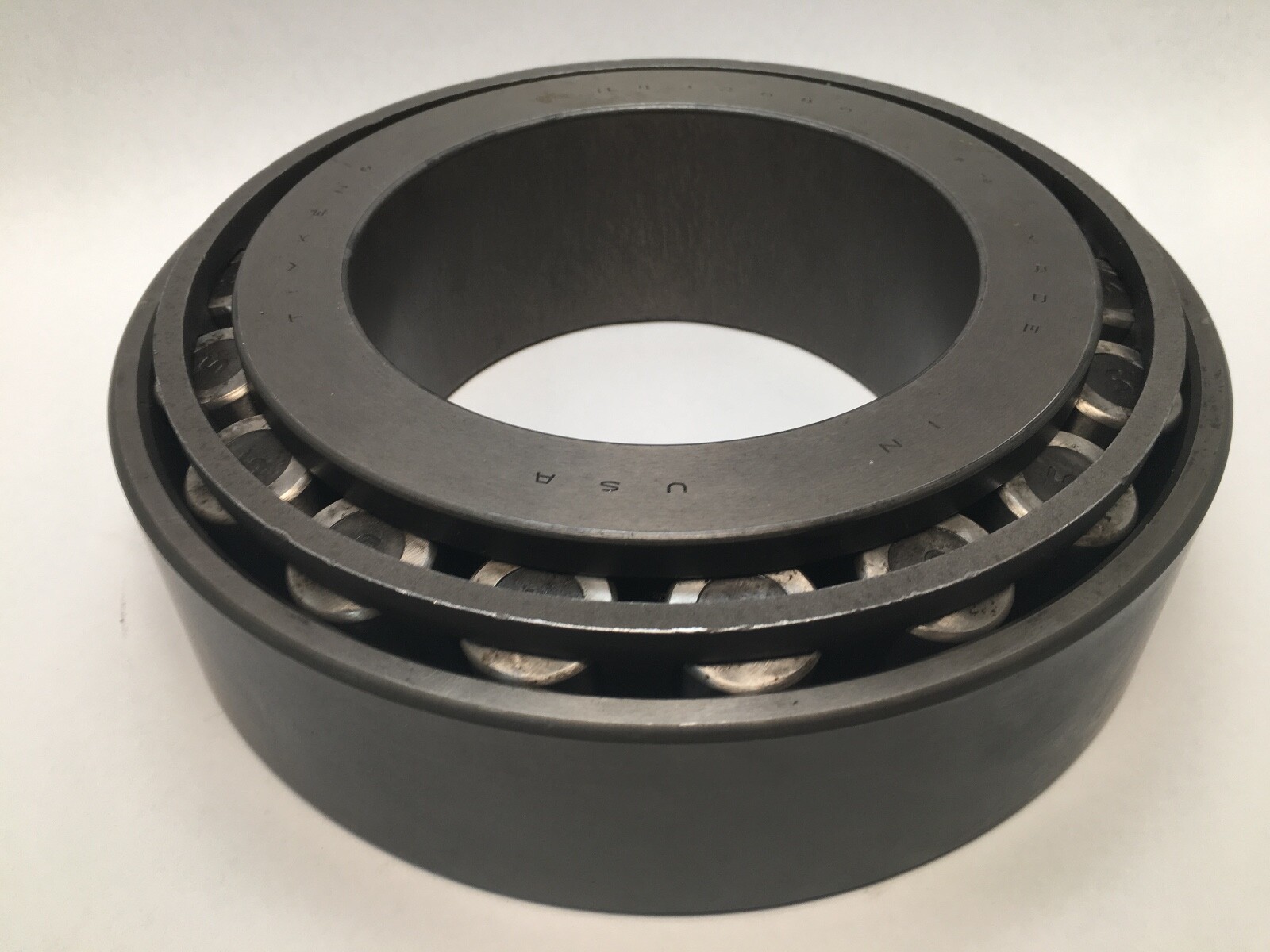

Timken H432649/H432610 inch tapered roller bearing set, a TS assembly pairing the H432649 single cone with the H432610 single cup. Bore Diameter: 5.9995 in (152.387 mm). Outside Diameter: 10.6250 in (269.875 mm). Cone Width: 3.0625 in (77.788 mm). Cup Width: 2.5197 in (64 mm). Series: H432600. Base Number: H432649. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel. Item Weight: 42.808 kg (94.38 lb) cone and 18.1 kg (39.90 lb) cup. Design Units: Imperial.

Decoding the designation

H — Timken heavy-section inch series prefix, carried by both halves of the pairing.

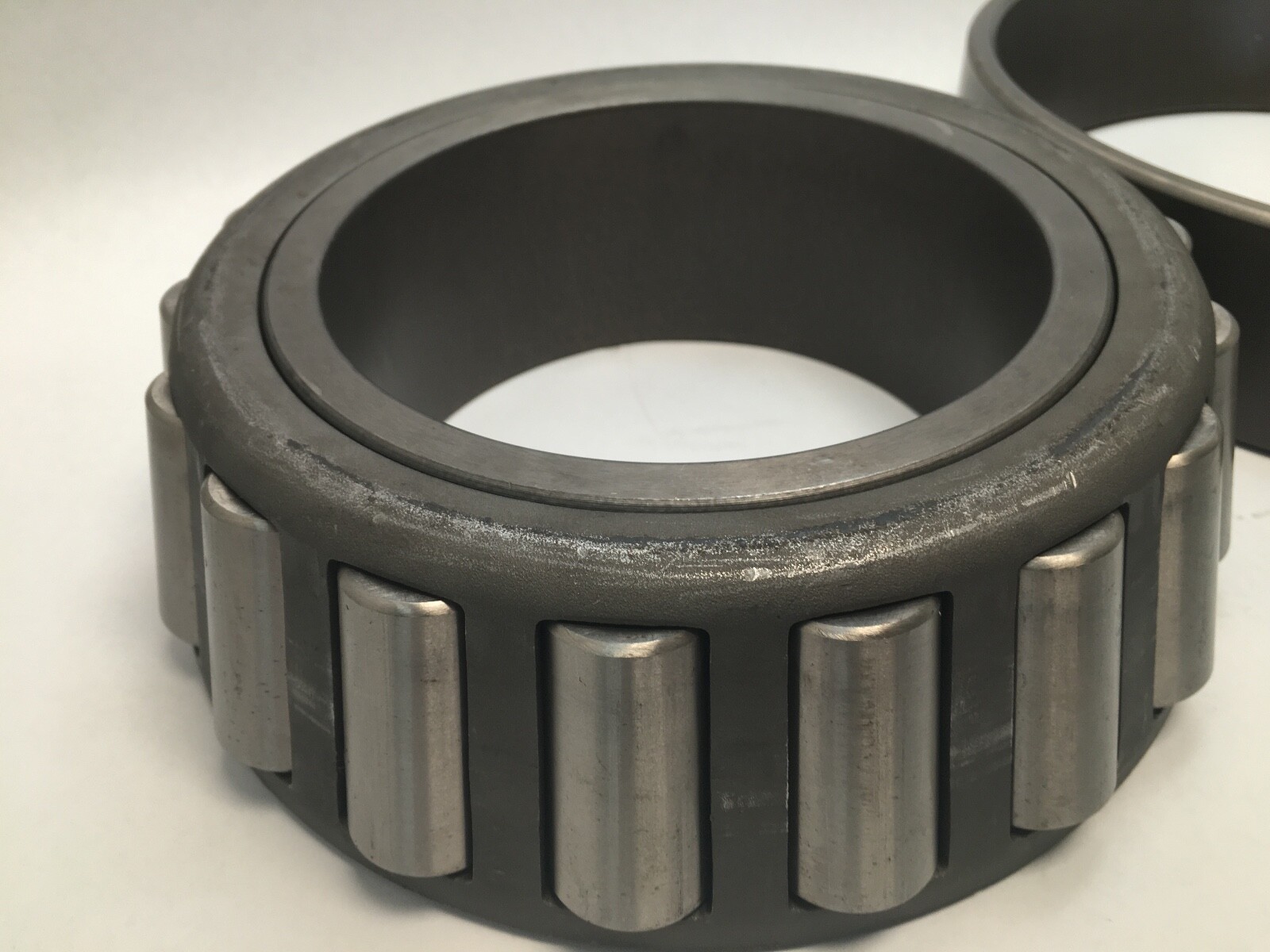

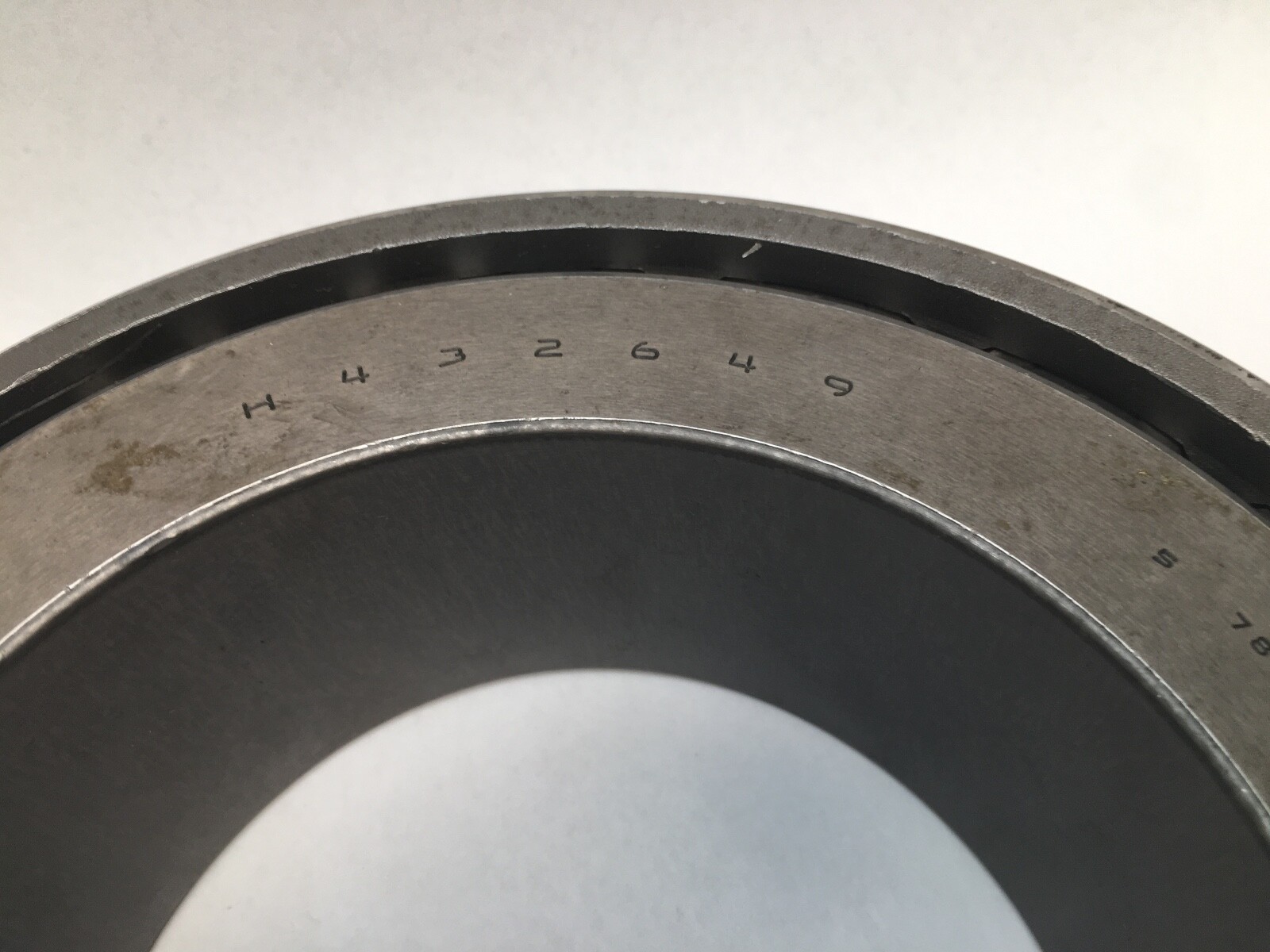

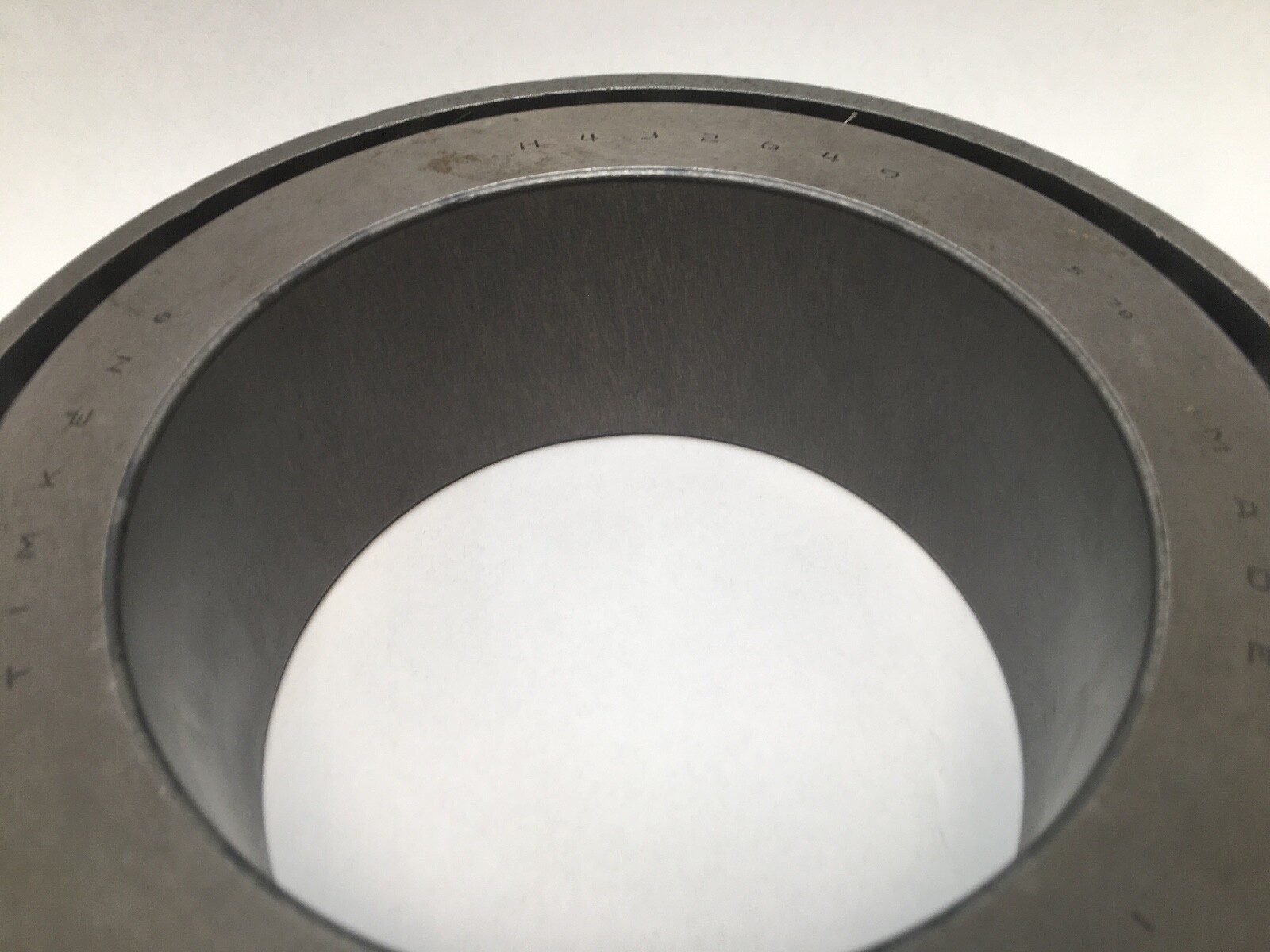

432649 — the cone number, fixing the 5.9995 in bore and the raceway angle.

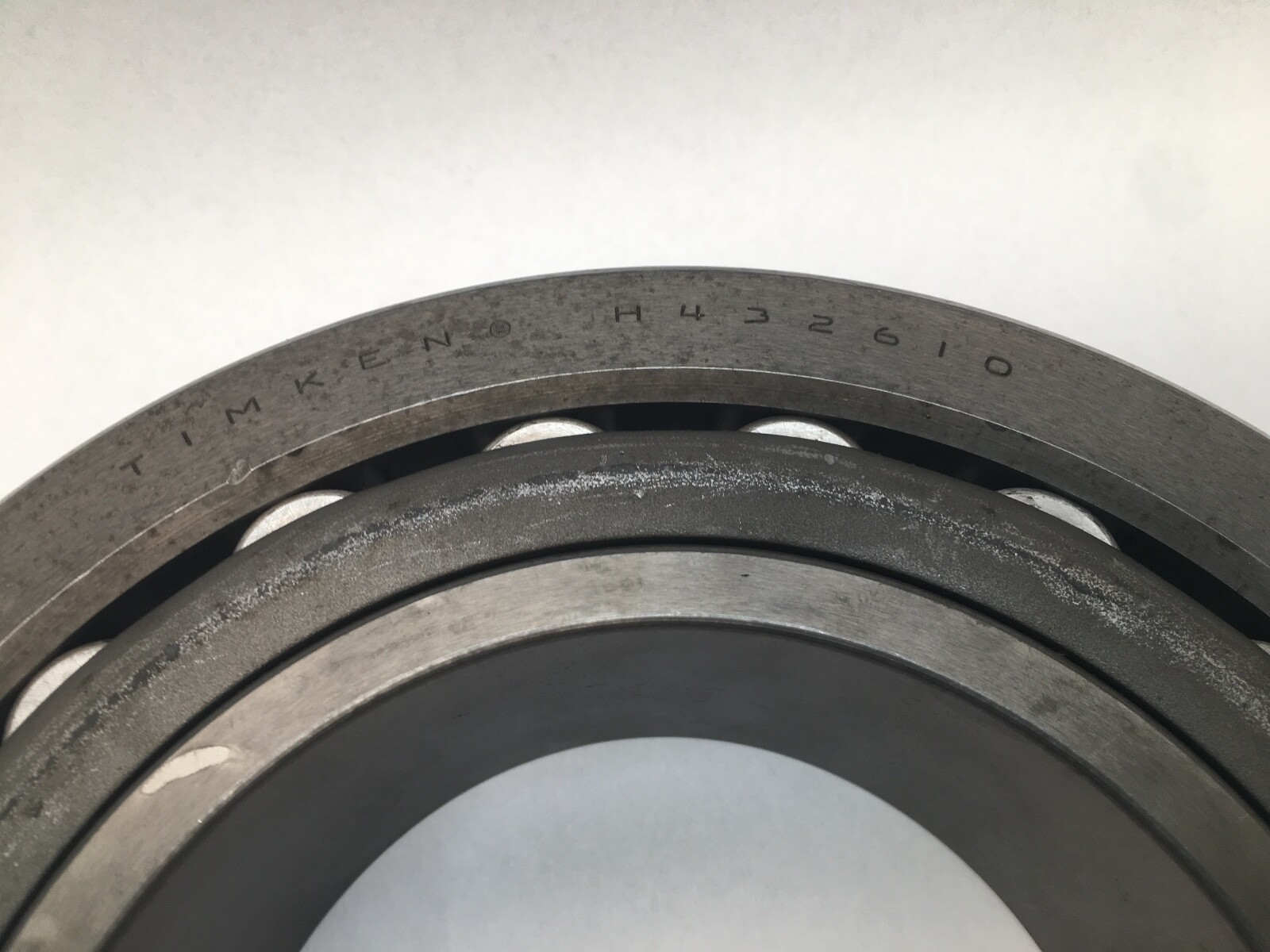

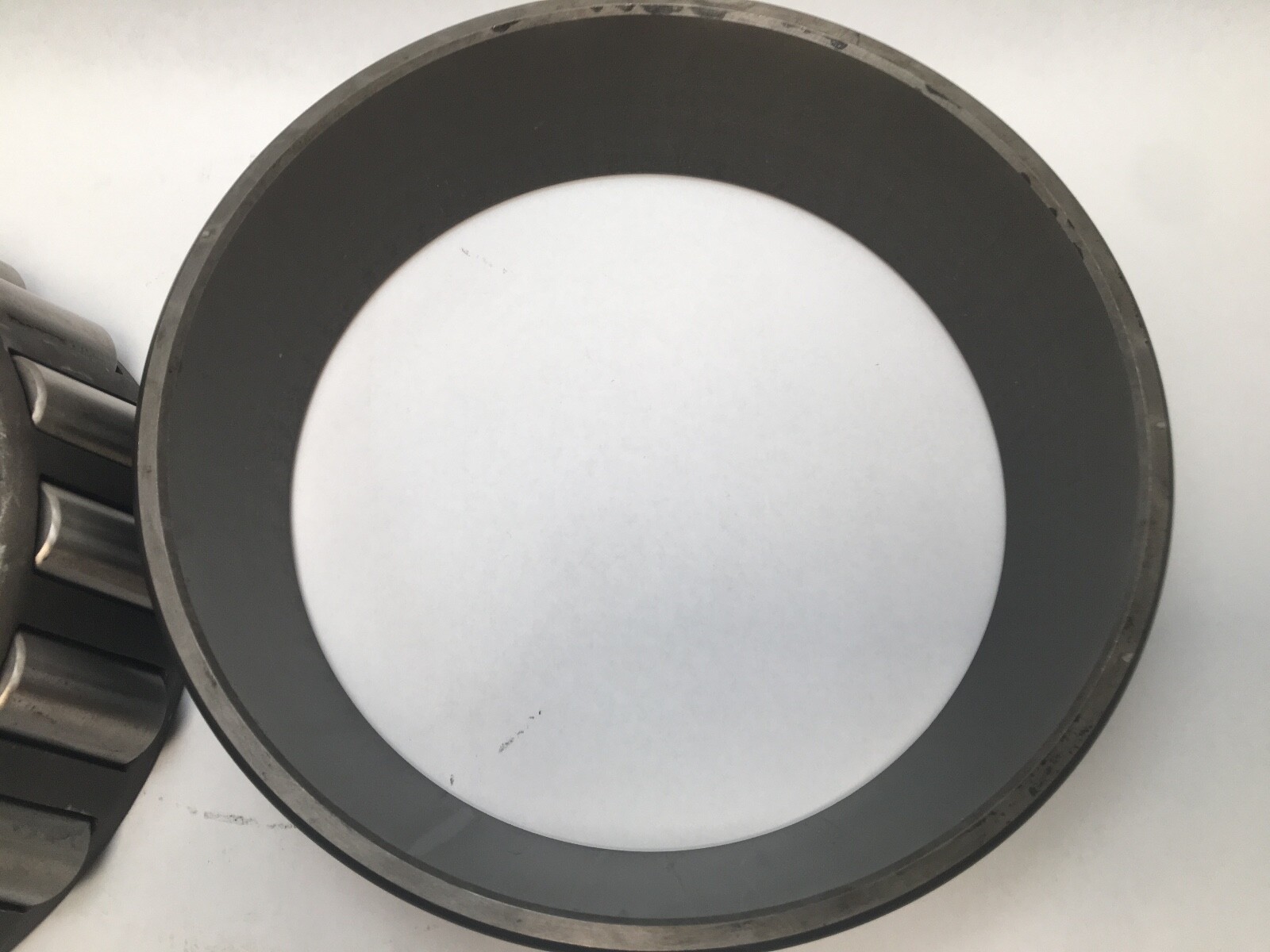

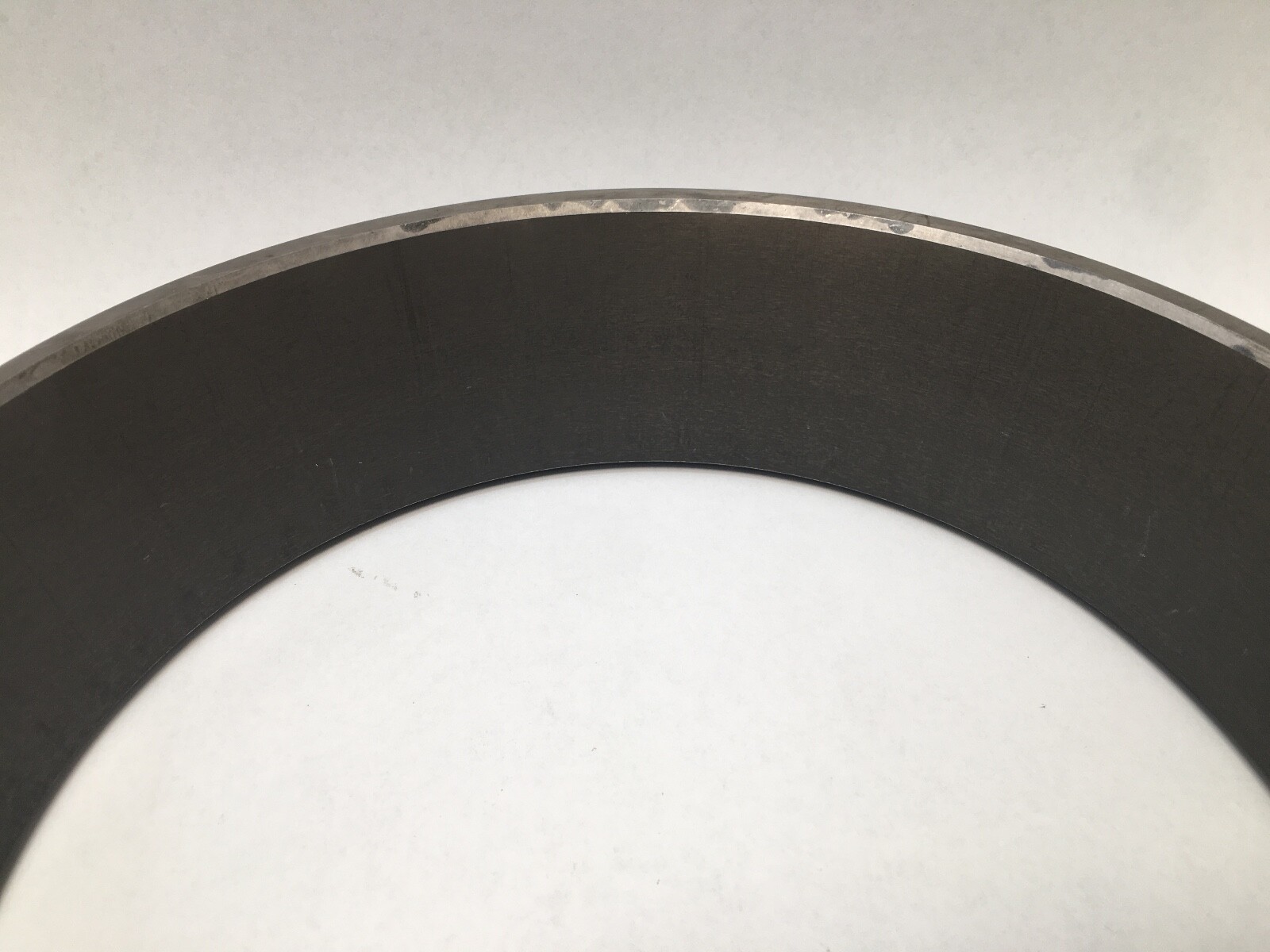

432610 — the cup number, fixing the 10.6250 in outside diameter and the matching raceway.

What these specs mean in practice

Dynamic Load Rating: 775,000 N (174,000 lbf) at 1 million revolutions. Static Load Rating: 1,180,000 N (265,000 lbf). Dynamic Radial Rating C90: 201,000 N (45,200 lbf). Dynamic Axial Rating Ca90: 129,000 N (28,900 lbf). K Factor: 1.56. e Factor: 0.37. Y Factor: 1.6. G1 Factor: 598. G2 Factor: 74.8. Geometry Factor (Cg): 0.114.

A K factor of 1.56 puts this pairing at a steeper raceway angle than a general-purpose inch taper, so it takes a larger share of its capacity as thrust. Mounting a second bearing facing the other way locates the shaft in both directions and lets the pair be set to a chosen end play or preload.

Mounting data

Effective Center Location: -0.56 in (-14.2 mm), the load centre lying inside the cone backface. Max Shaft Fillet Radius: 0.060 in (1.5 mm). Max Housing Fillet Radius: 0.130 in (3.30 mm). Shaft Backing Shoulder Diameter, frontface (da): 6.73 in (171 mm). Shaft Backing Shoulder Diameter, backface (db): 6.73 in (171 mm). Housing Backing Shoulder Diameter, frontface (Da): 9.97 in (253.24 mm). Housing Backing Shoulder Diameter, backface (Db): 9.57 in (243.08 mm). Cage Location relative to backface (Aa): 0.14 in (3.6 mm). Cage Location relative to frontface (Ab): 0.1 in (2.5 mm).

Quantity and configuration

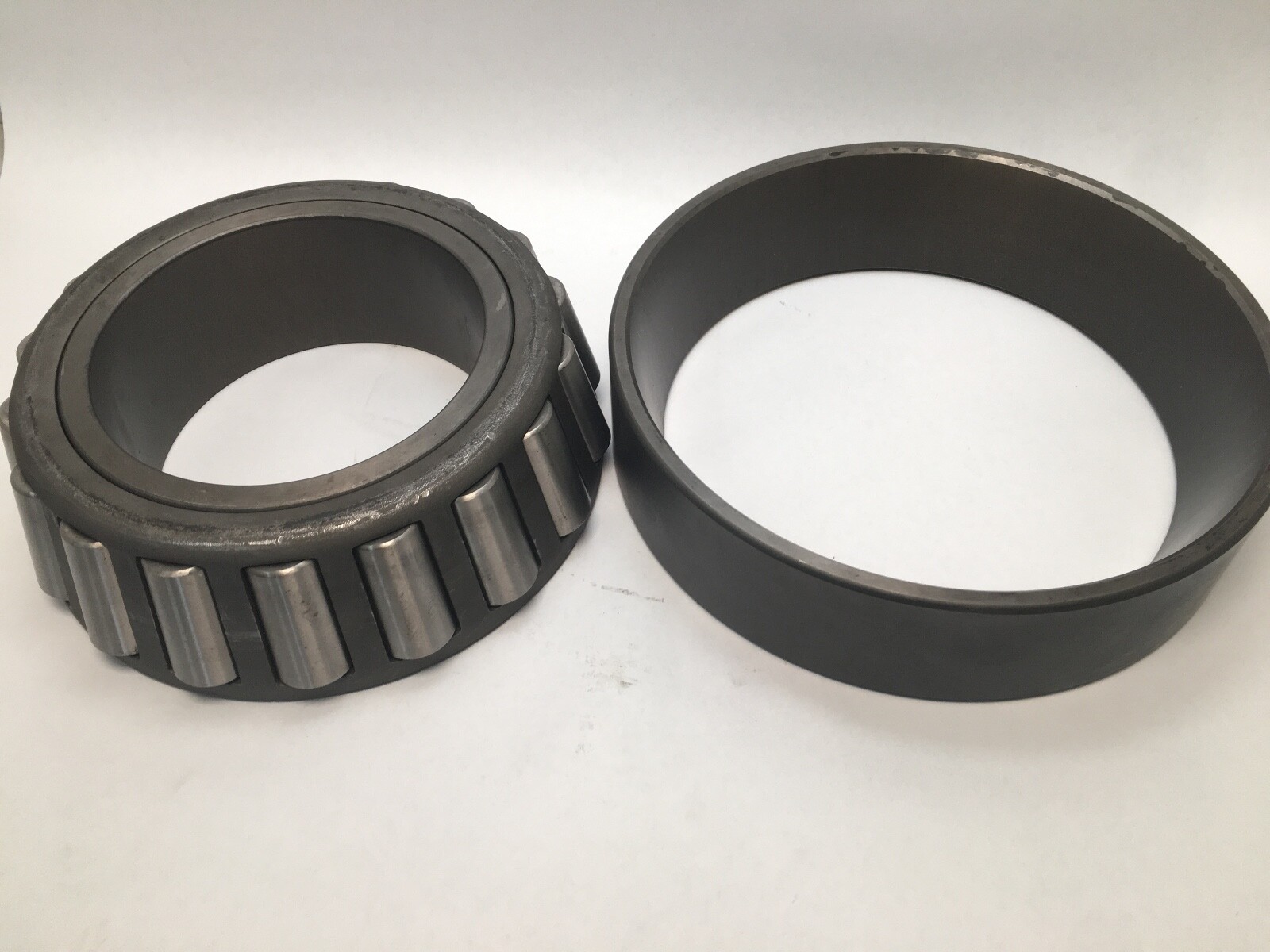

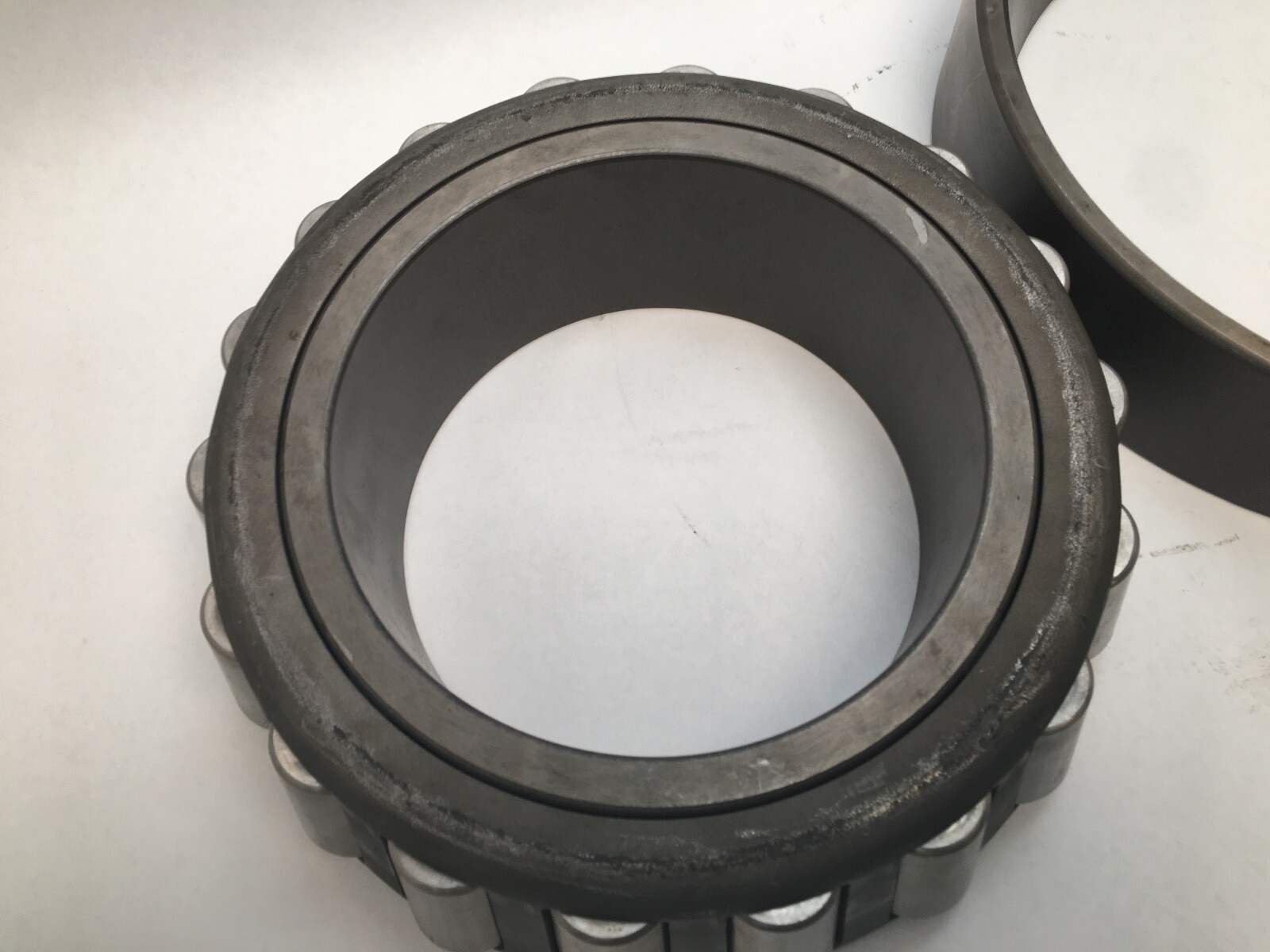

Unit Quantity: 2 Pcs. One H432649 cone and one H432610 cup, supplied together as the set.

Interchange guidance

Searchable variants of this designation: H432649/H432610, H-432649/H-432610, H 432649 / H 432610, H432649 H432610.
