Availability:
1 in stock

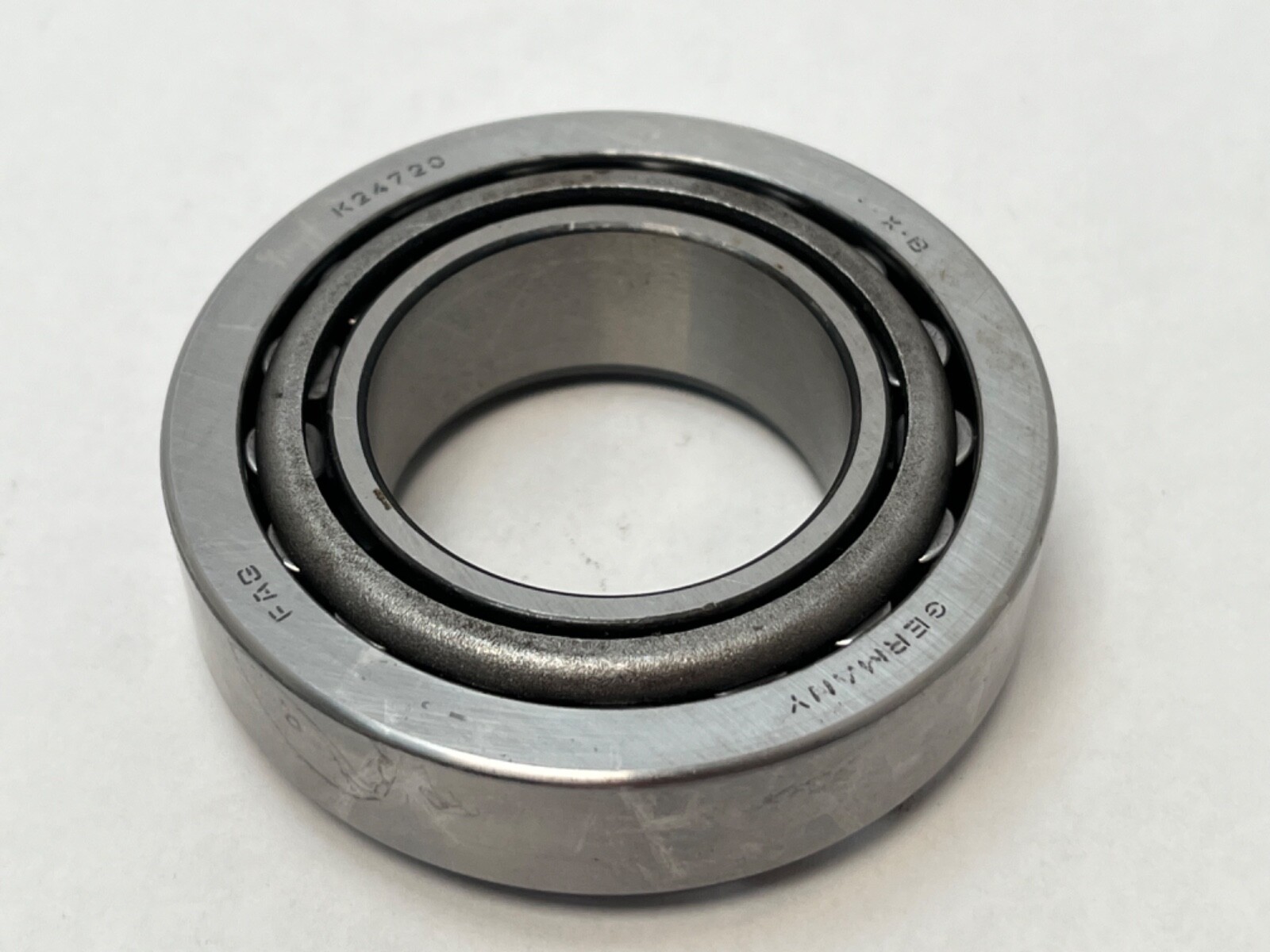

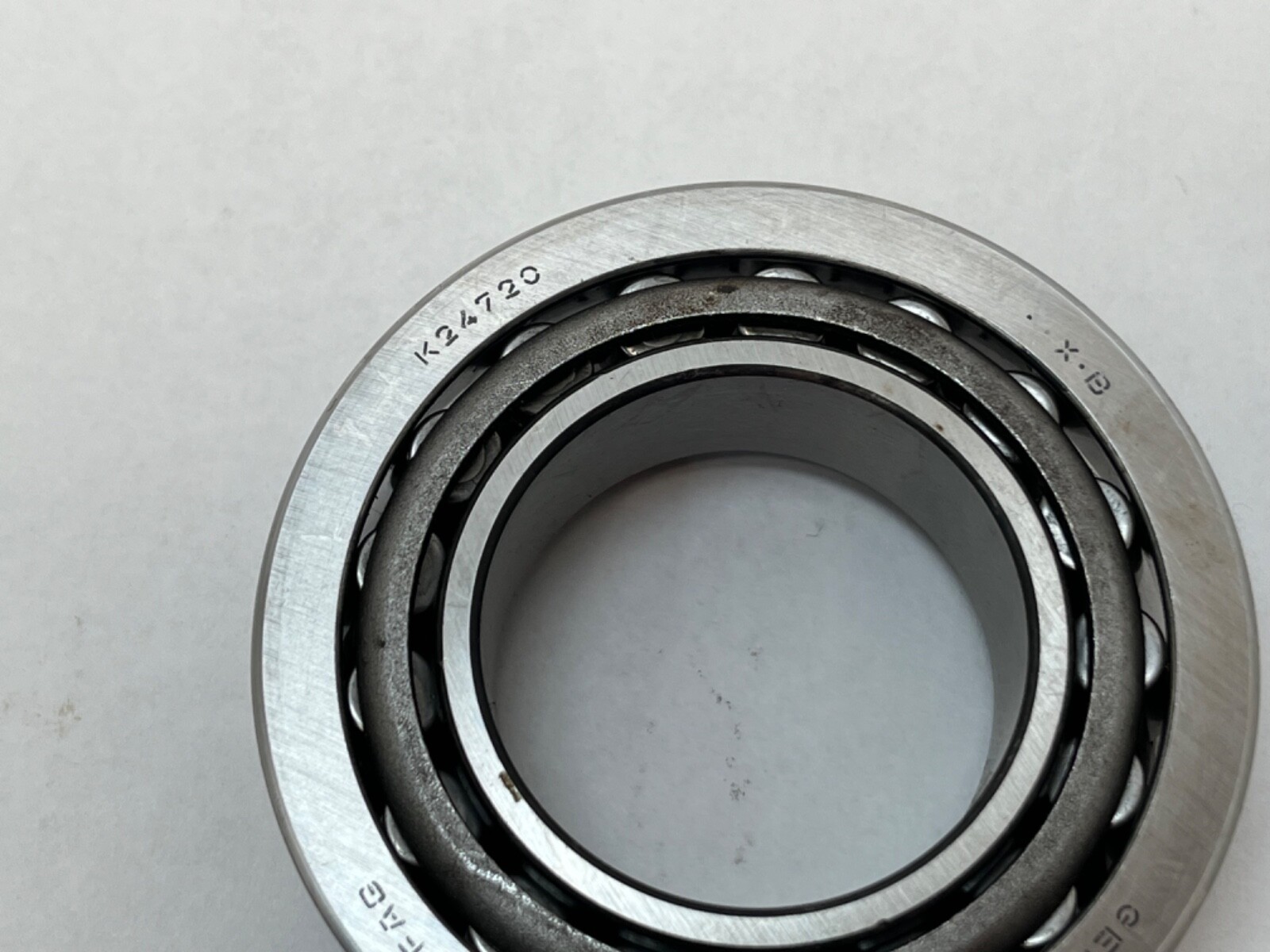

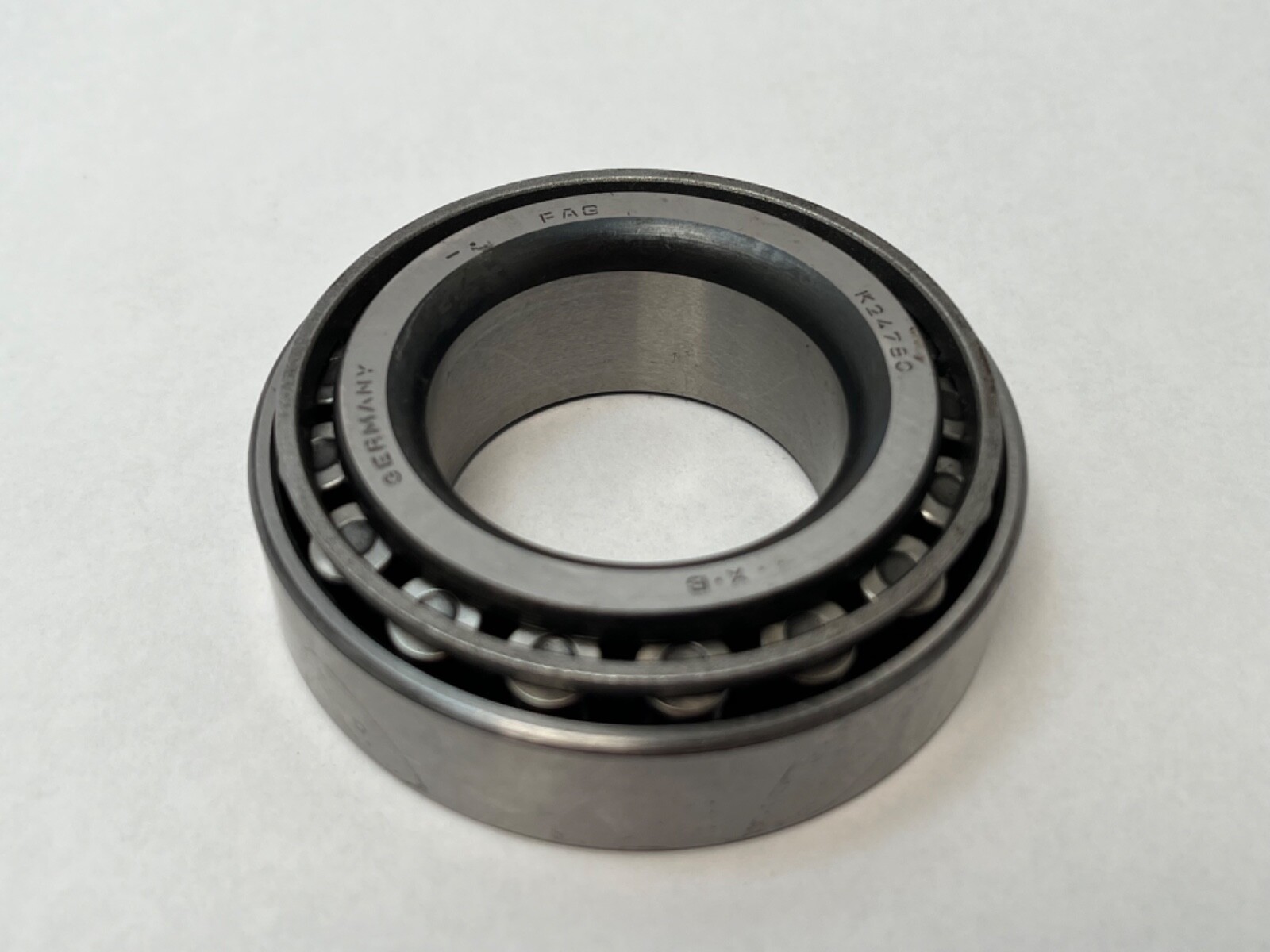

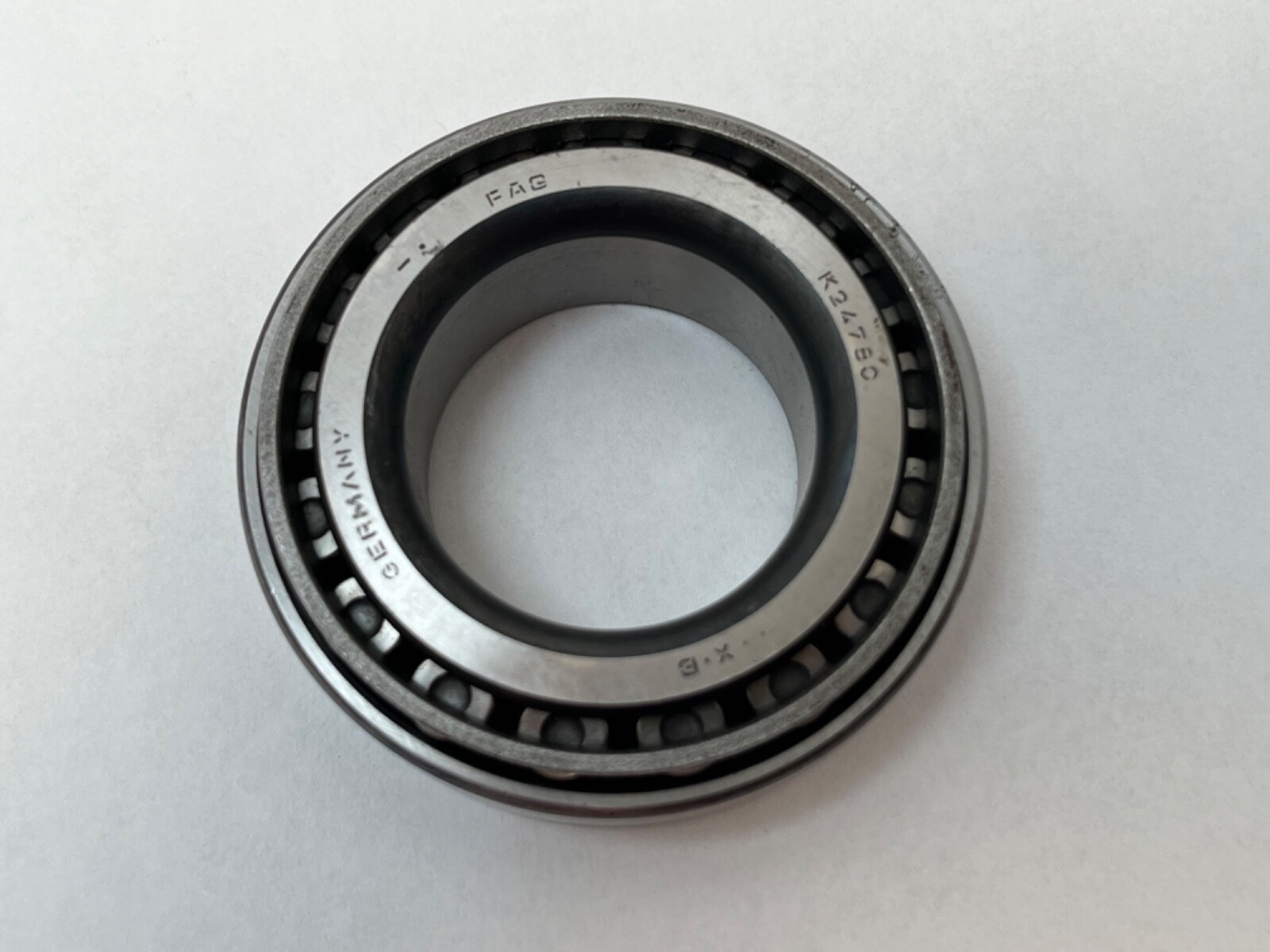

Inch tapered roller bearing cone and cup set, 1.625 in bore, 3.000 in OD, 0.875 in wide, ABMA Class 4. FAG K24780-24720, cone 24780, cup 24720.
List Price
$62.97
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 24780/24720 |
| Model | K24780-24720 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 1.6250 in (41.275 mm) |
| OD | 3.0000 in (76.200 mm) |
| Width | 0.8750 in |
| Series | 24700 |
|---|---|
| Min Temp | -30 °C |
| Cage Type | Window cage, roller-guided |
| Dynamic Load Rating | 64,000 N |
| Static Load Rating | 80,000 N |
| Precision Rating | ABMA Class 4 |
| Rolling Elements | Tapered Roller |
| Max Temp | 120 °C |
| Item Weight | 0.432 kg (0.952 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Limiting Speed | 9,600 rpm |
| Total Width | 0.8750 in (22.225 mm) |
| Mpn Variants | K24780-24720, K24780.24720, 24780/24720, 24780-24720, 24780 24720, K24780, K24720, 24780, 24720 |
| Compatible With Replaces | Replaces FAG K24780.24720; Timken 24780/24720; Bower 24780/24720 |
| Precision Class | ABMA Class 4 |
| Additional Attributes | Cone: 24780; Cup: 24720; Cone Width: 23.02 mm; Cup Width: 17.462 mm; Reference Speed: 6,300 rpm; e: 0.39; Y: 1.53 |
| Cross Reference 1 | Timken 24780/24720 |
|---|---|
| Cross Reference 2 | Bower 24780/24720 |
FAG K24780-24720 inch-series single-row tapered roller bearing, supplied as a matched cone and cup. Bore Diameter: 1.625 in (41.275 mm). Outside Diameter: 3.000 in (76.2 mm). Total Width: 0.875 in (22.225 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Closure Type: Open. Condition as listed: Made In USA, New Old Stock, Stained.
K — FAG prefix for an inch-dimension tapered roller bearing in ABMA numbering.

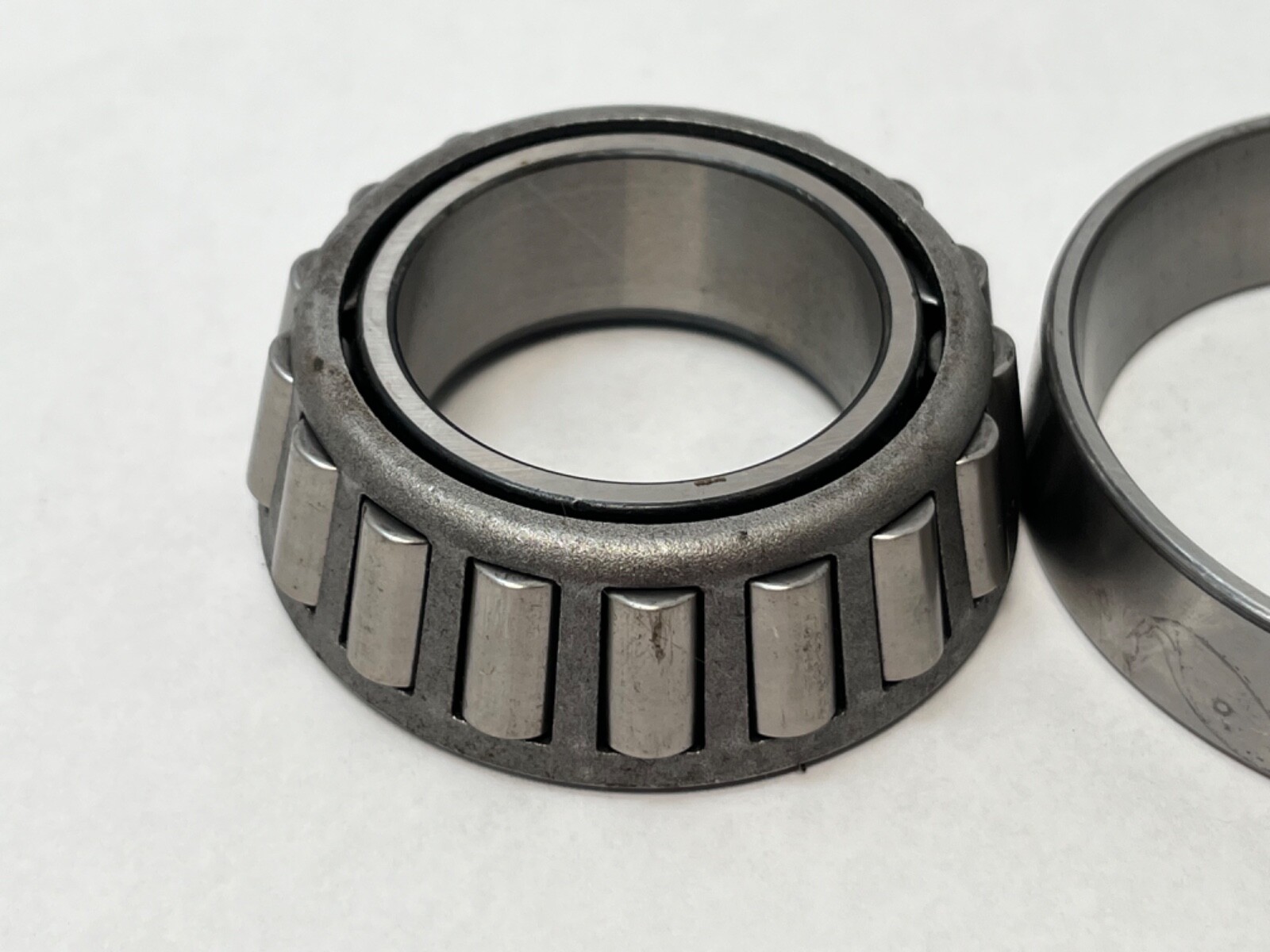

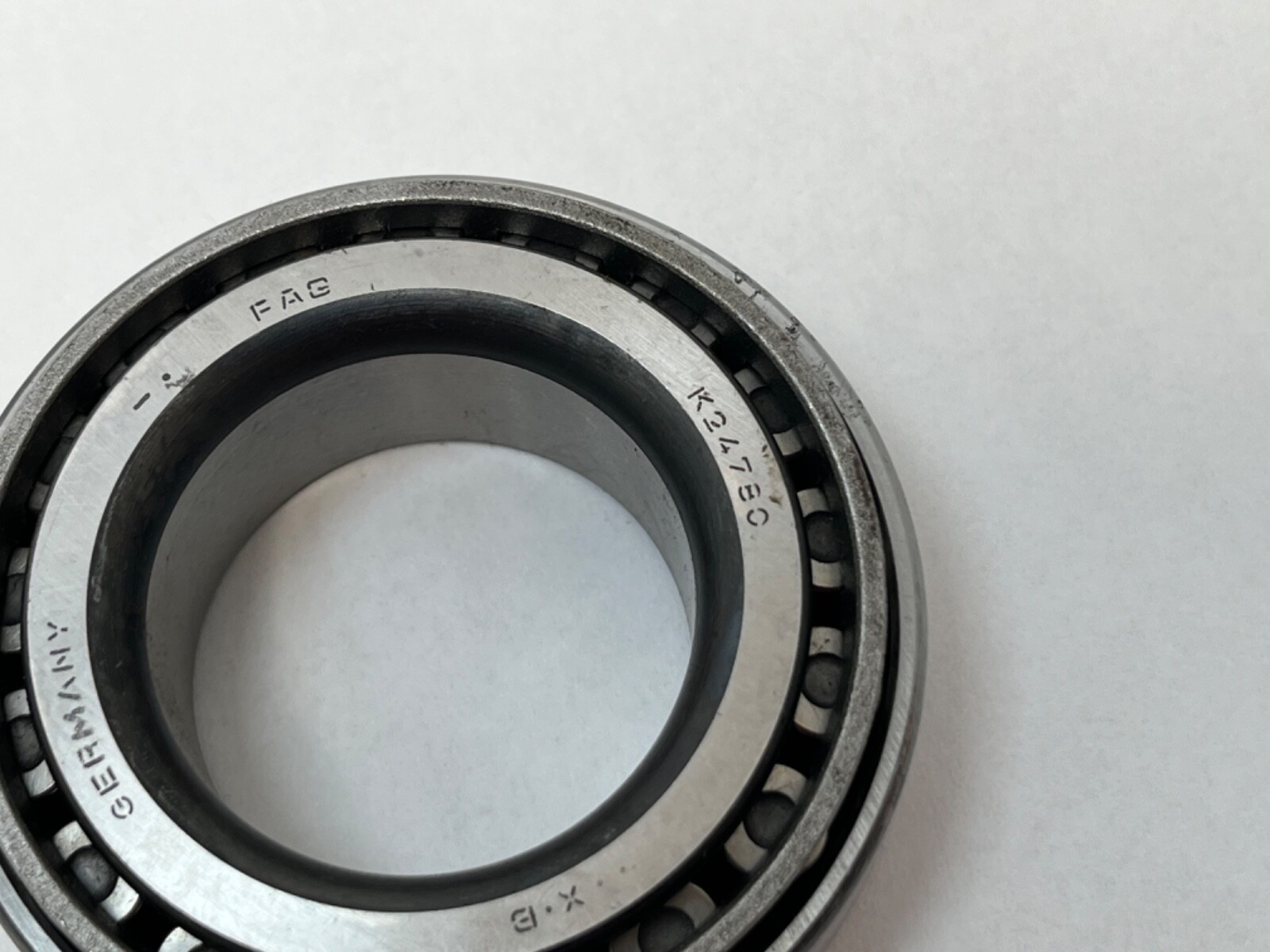

24780 — cone: inner ring with tapered rollers and cage, 1.625 in bore.

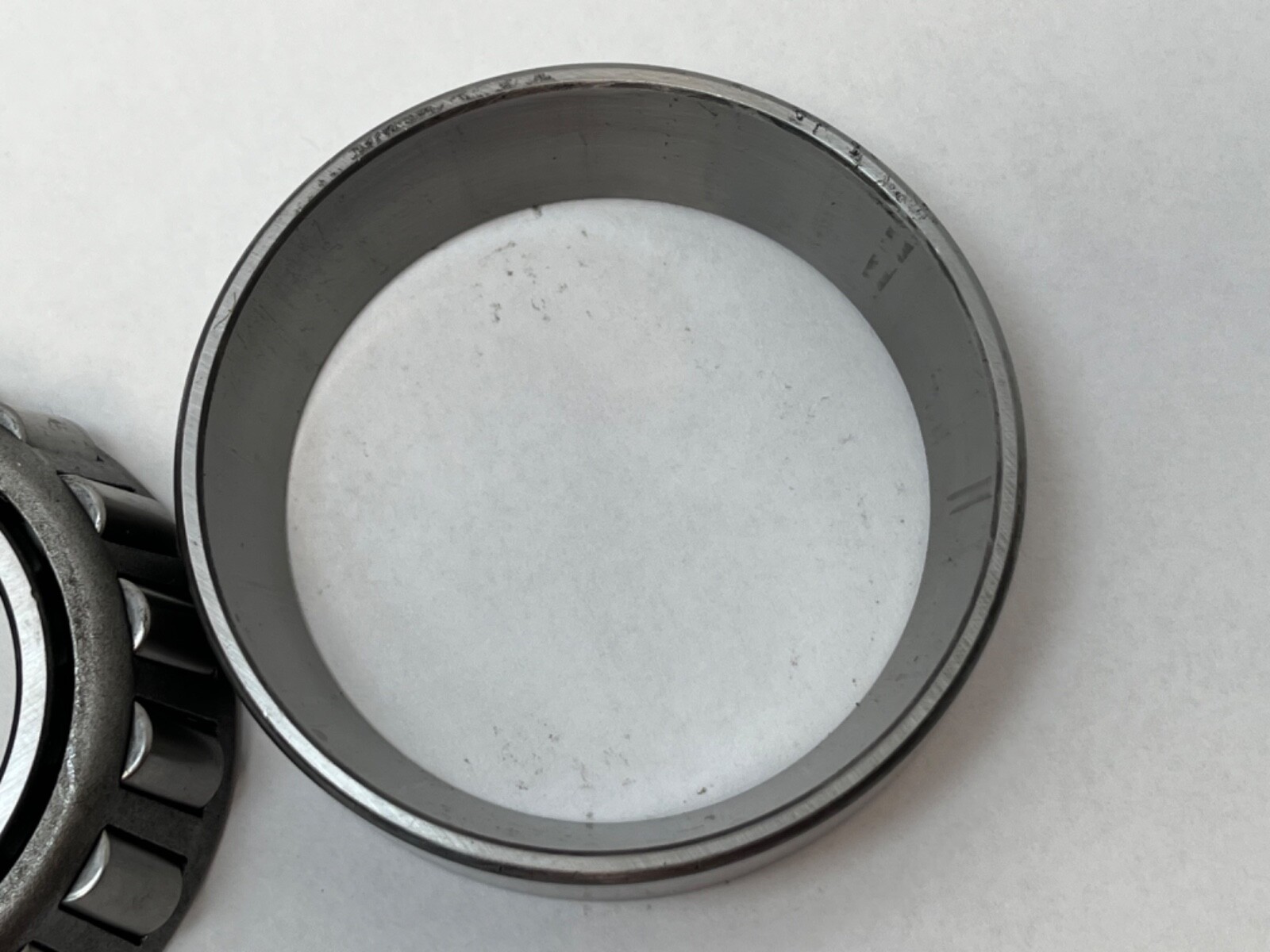

24720 — cup: outer ring, 3.000 in OD.
Dynamic Load Rating: 64,000 N. Static Load Rating: 80,000 N. Limiting Speed: 9,600 rpm. Reference Speed: 6,300 rpm. Cage Material: Pressed steel. Cage Type: Window cage, roller-guided. Precision Class: ABMA Class 4. Operating Temperature: -30 to +120 °C. Calculation factor e: 0.39. Axial load factor Y: 1.53. Item Weight: 0.432 kg (0.952 lb) for the set. Snap Ring: No.
Cone Width: 23.02 mm. Cup Width: 17.462 mm. Total Width: 22.225 mm (0.875 in).

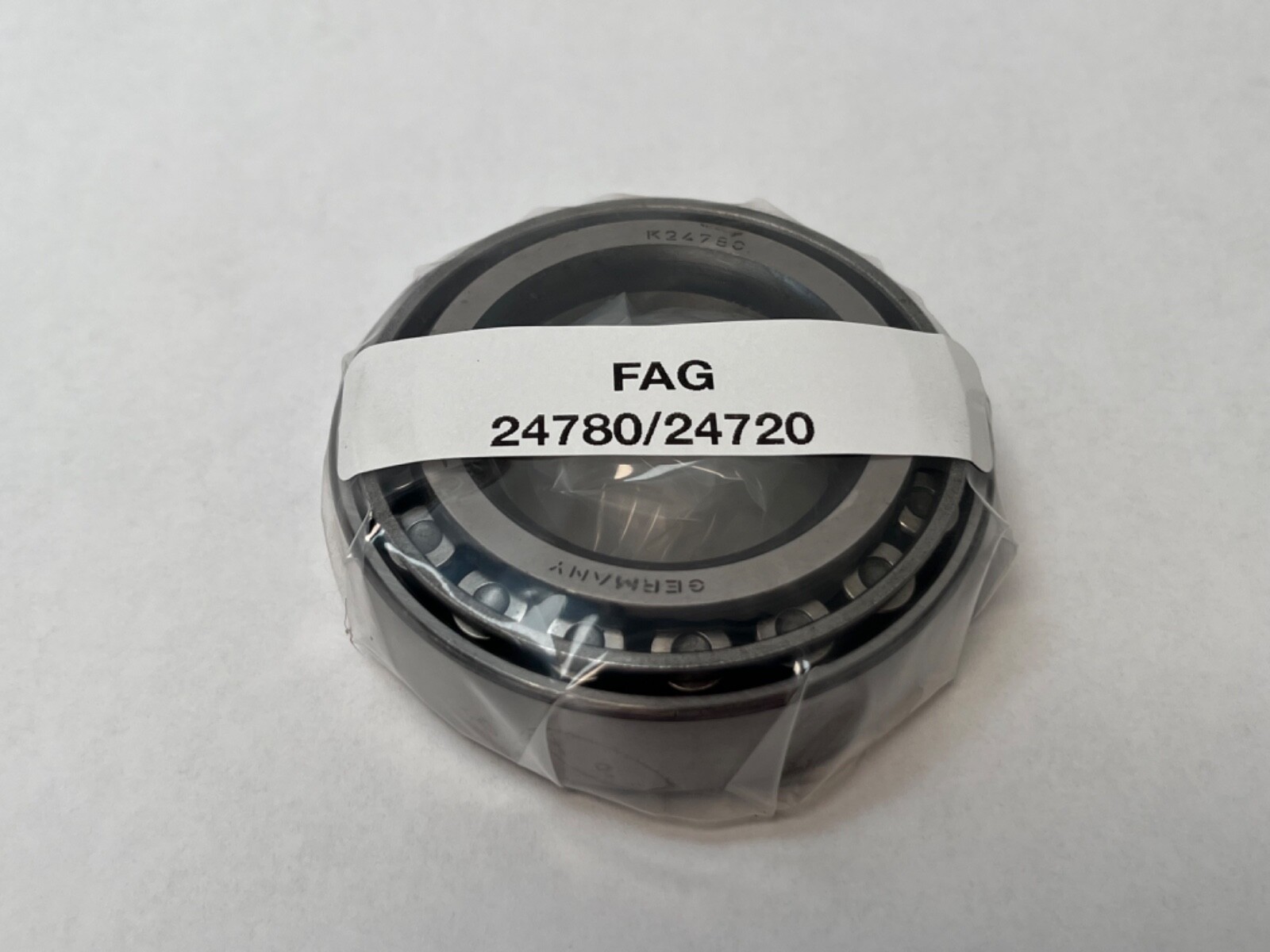

Unit Quantity: 2 Pcs. One cone 24780 and one cup 24720, together forming one complete single-row tapered roller bearing.
Equivalent cone and cup sets in the same ABMA numbering: Timken 24780/24720, Bower 24780/24720. Same 1.625 x 3.000 x 0.875 in envelope.
