Availability:
2 in stock

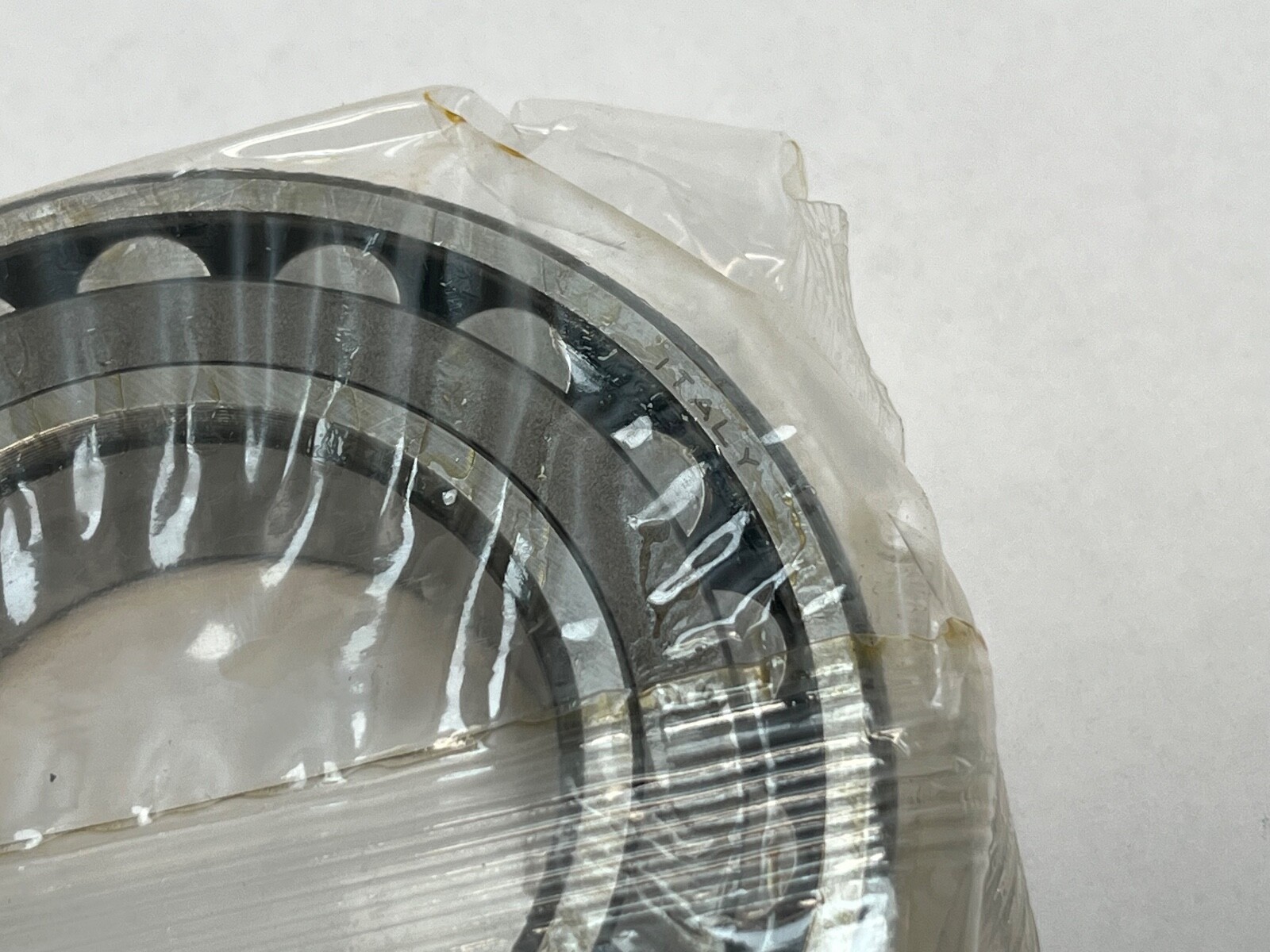

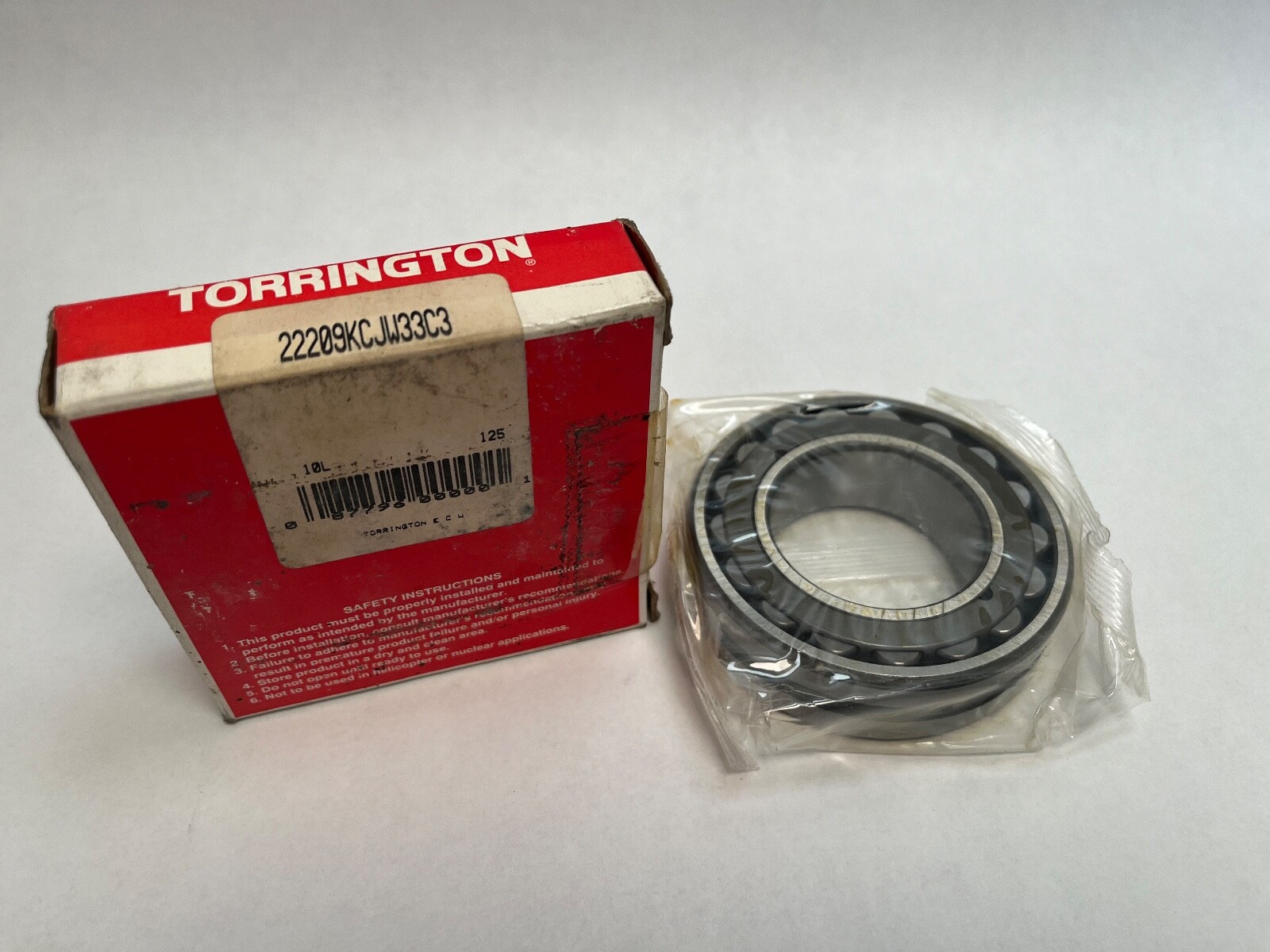

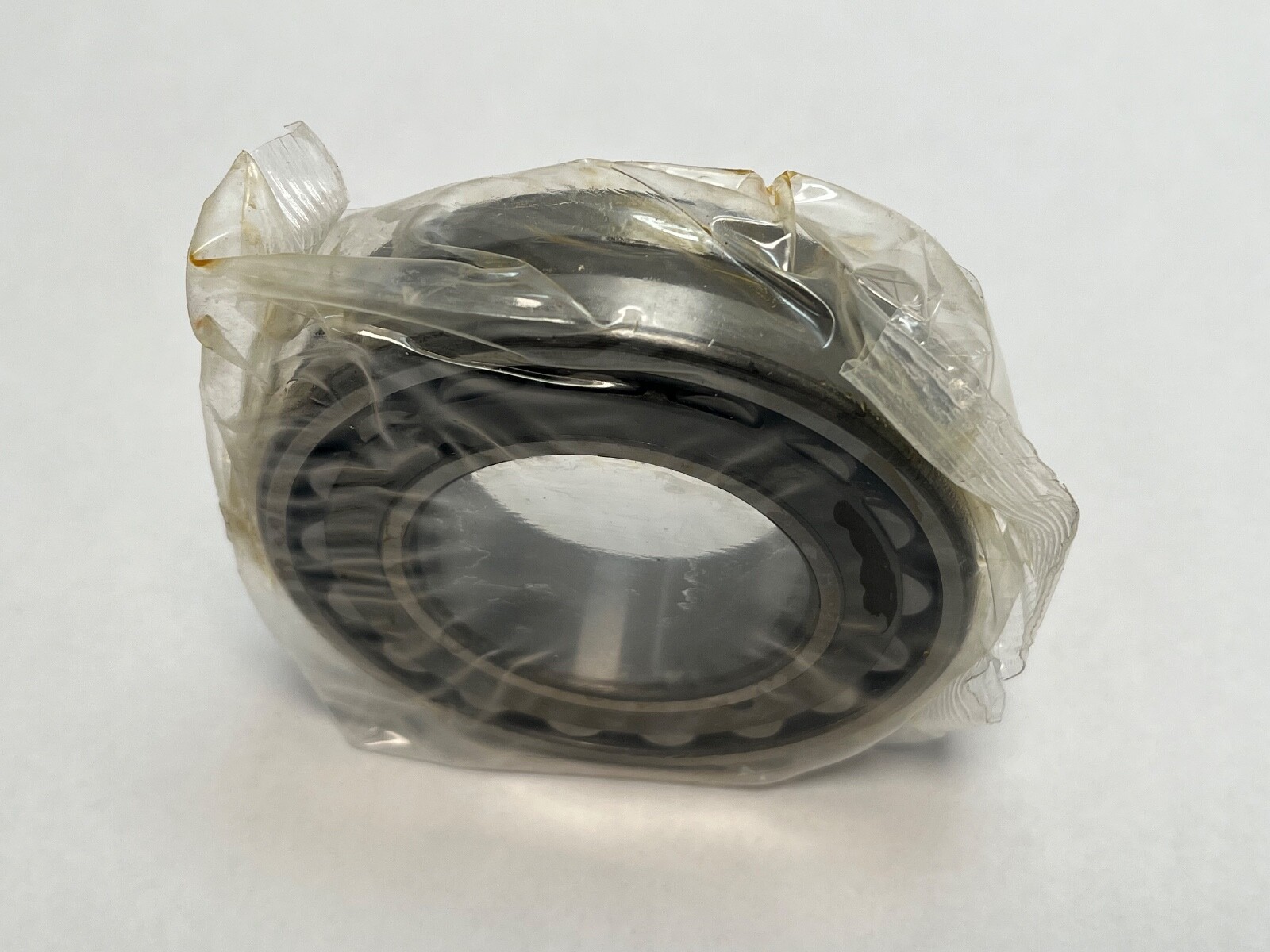

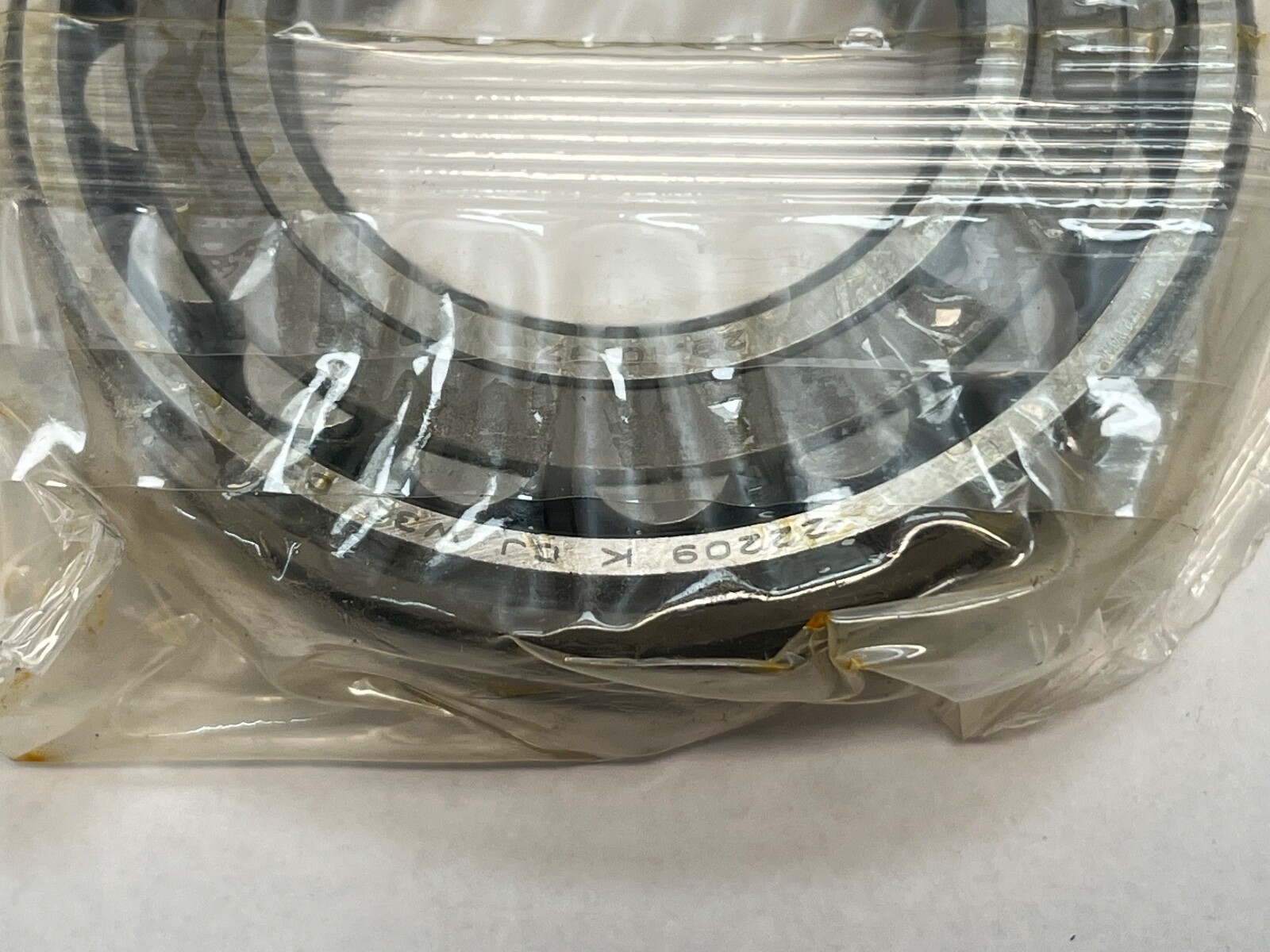

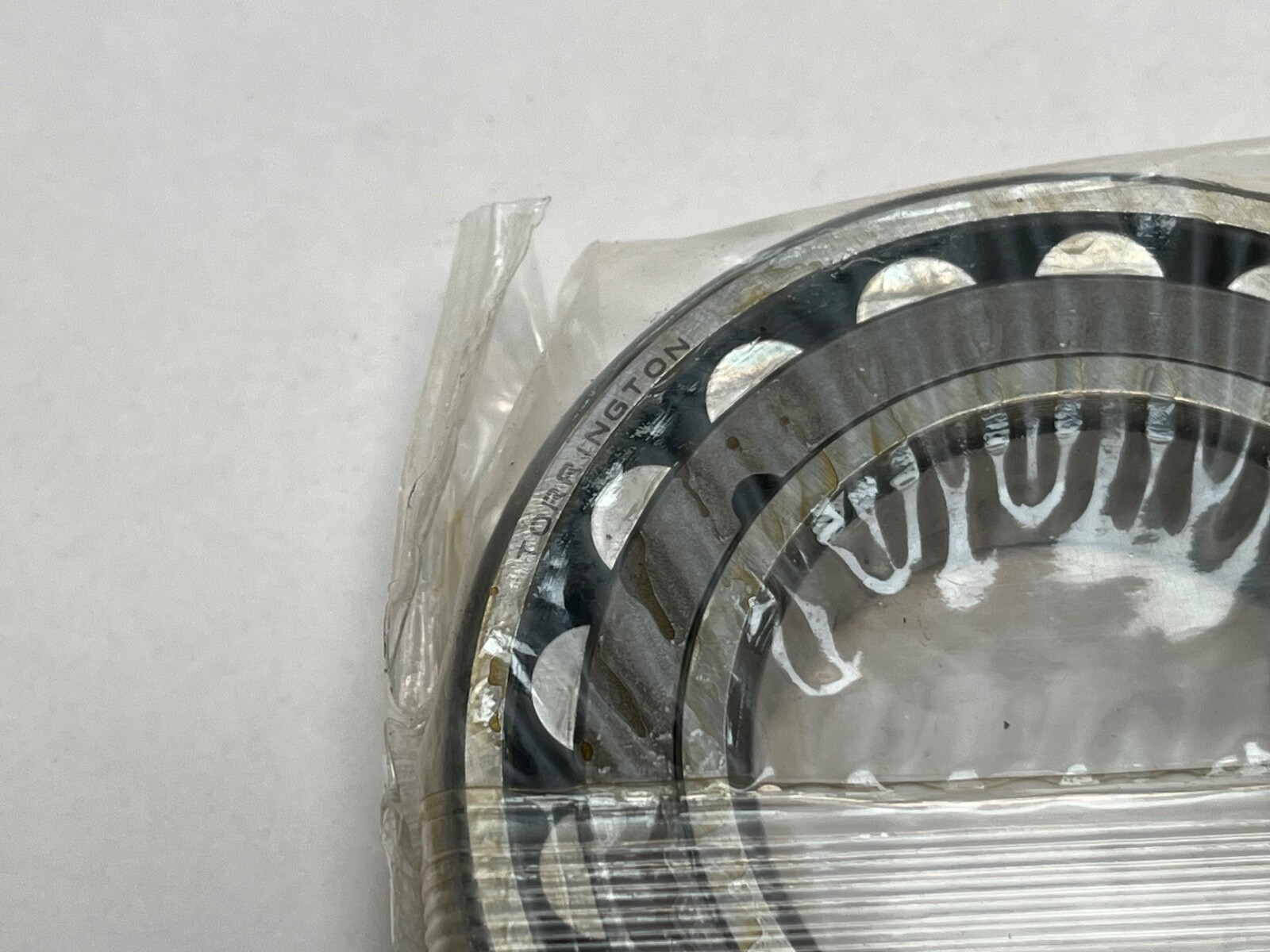

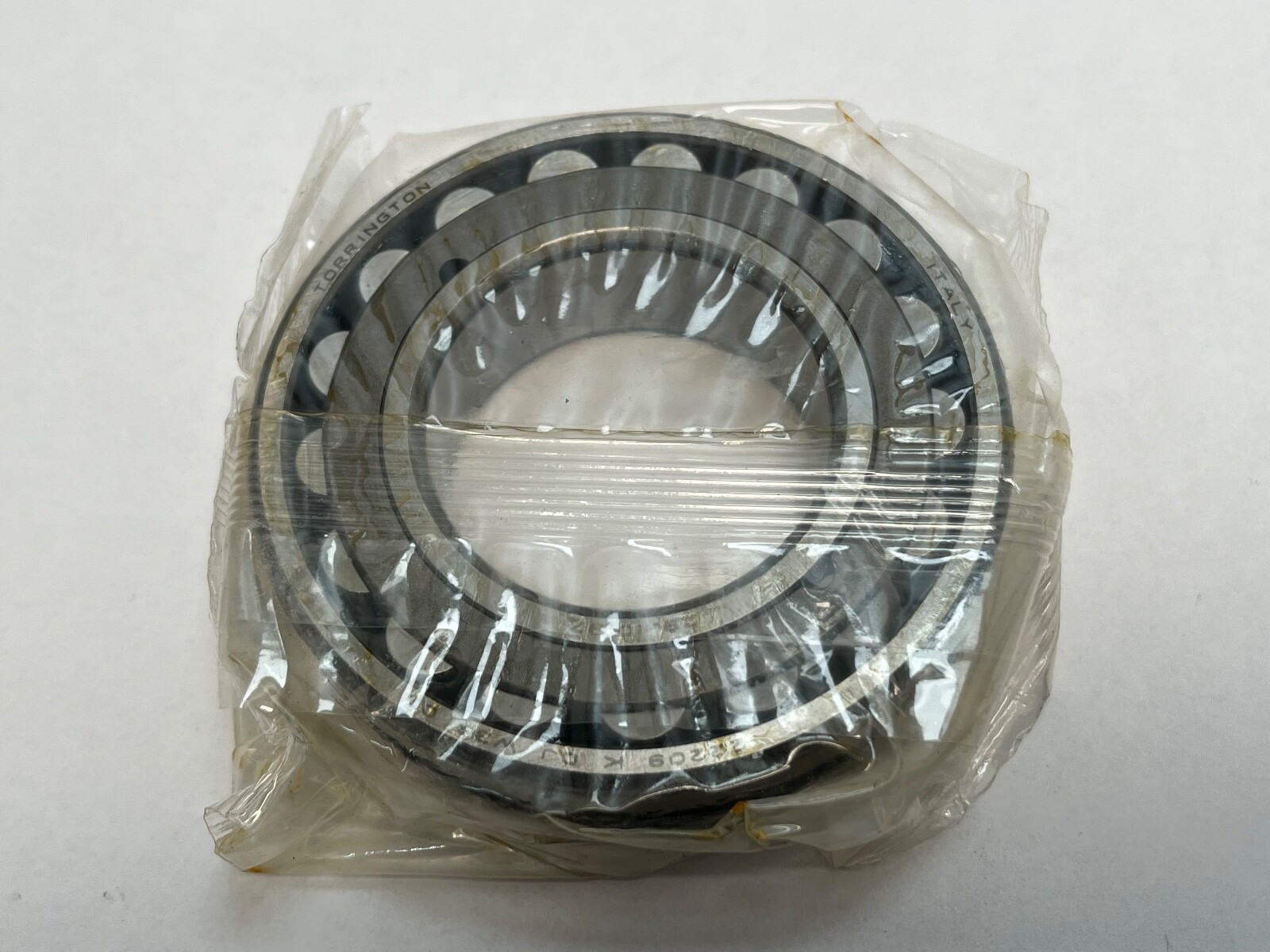

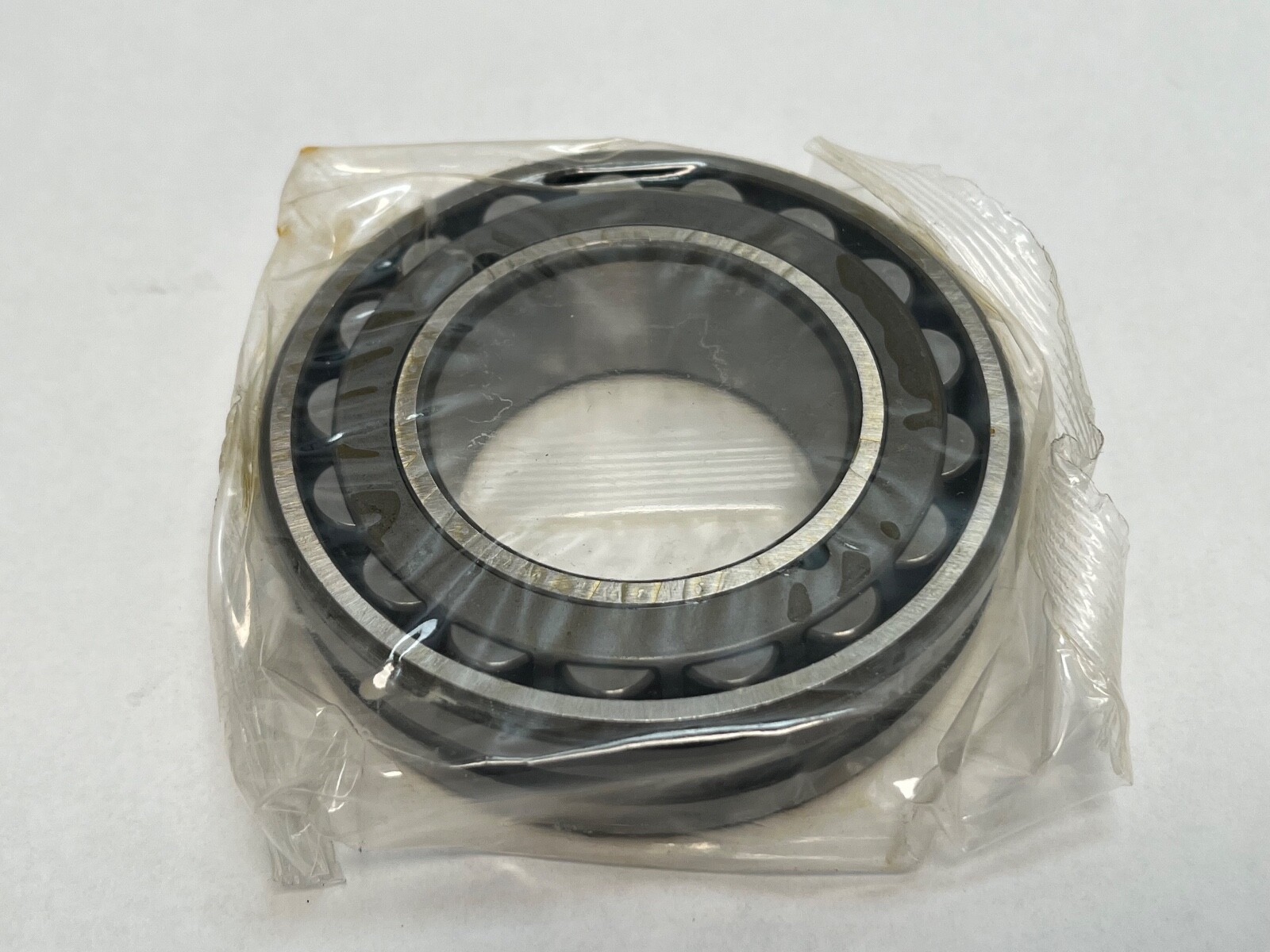

Torrington 22209KCJW33C3 spherical roller bearing, 45 mm tapered bore x 85 mm OD x 23 mm wide, W33 lube groove, C3 clearance. Successor: Timken 22209KEJW33C3.
List Price
$35.80
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22209KCJW33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Cage Type | Two-piece, window type |
| Dynamic Load Rating | 109,000 N (Successor 22209KEJW33C3 data) |
| Static Load Rating | 108,000 N (Successor 22209KEJW33C3 data) |
| Rolling Elements | Spherical Roller |
| Cage Material | Stamped steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22209KCJW33C3, 22209-K-CJ-W33-C3, 22209 K CJ W33 C3, 22209 K CC/CJ W33 C3 |
| Compatible With Replaces | Timken 22209KEJW33C3 (current successor design); adapter sleeve H309 |
| Additional Attributes | Successor 22209KEJW33C3 data: e factor 0.26; Y0 2.58; Y1 2.64; Y2 3.93; shaft backing shoulder 55 mm; housing backing shoulder 77 mm; max fillet radius 1 mm. Adapter sleeve H309 |
| Lubricant | grease or oil |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Design Units | Metric |
| Cross Reference 1 | Timken 22209KEJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22209 EK/C3 |
| Cross Reference 3 | FAG 22209-E1-XL-K-C3 |
| Cross Reference 4 | NSK 22209EAKE4C3 |
Torrington 22209KCJW33C3 double-row spherical roller bearing: 45 mm tapered bore, 85 mm outside diameter, 23 mm width, W33 lubrication groove, C3 internal clearance. Torrington is a Timken brand; the current Timken design is 22209KEJW33C3.
222 — spherical roller bearing, ISO dimension series 22.
09 — bore code. 09 × 5 = 45 mm bore.
K — 1:12 tapered bore, for mounting on an adapter sleeve or a tapered shaft seat.
CJ — two-piece stamped steel cage, window type, one cage per roller row.
W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal, taking up the clearance reduction from drive-up on the taper.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Cage Type: Two-piece, window type. Cage Material: Stamped steel.
Successor 22209KEJW33C3 data: Dynamic Load Rating: 109,000 N. Static Load Rating: 108,000 N. Reference Speed: 5,600 rpm grease; 6,900 rpm oil. e factor: 0.26. Y1: 2.64. Y2: 3.93. Y0: 2.58.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Successor 22209KEJW33C3 data: Shaft Backing Shoulder Diameter: 55 mm. Housing Backing Shoulder Diameter: 77 mm. Maximum Fillet Radius: 1 mm.
Mounts on an H309 adapter sleeve (40 mm shaft) with KM9 locknut and MB9 lockwasher.
Unit Quantity: 1 Pc. One complete bearing.
Same 45 × 85 × 23 mm tapered-bore, C3-clearance envelope: Timken 22209KEJW33C3, SKF 22209 EK/C3, FAG 22209-E1-XL-K-C3, NSK 22209EAKE4C3, NTN 22209EAKW33C3.
