SNR22215J30B33Double-Row Spherical Roller Bearing – 75 mm Straight Bore, 130 mm OD, 31 mm Width, W33 Lubrication Groove, C3 Clearance

Product Description

What this part is

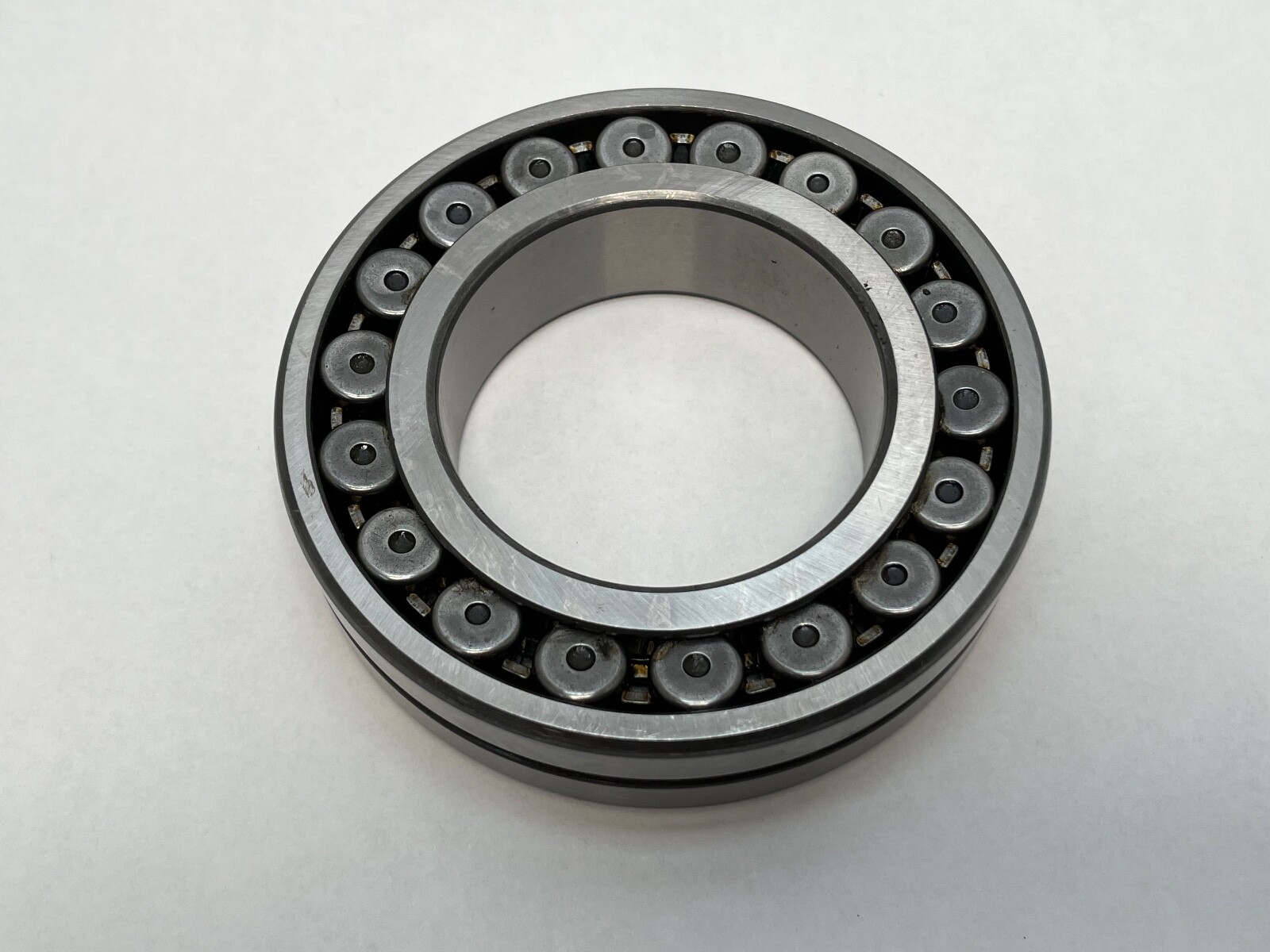

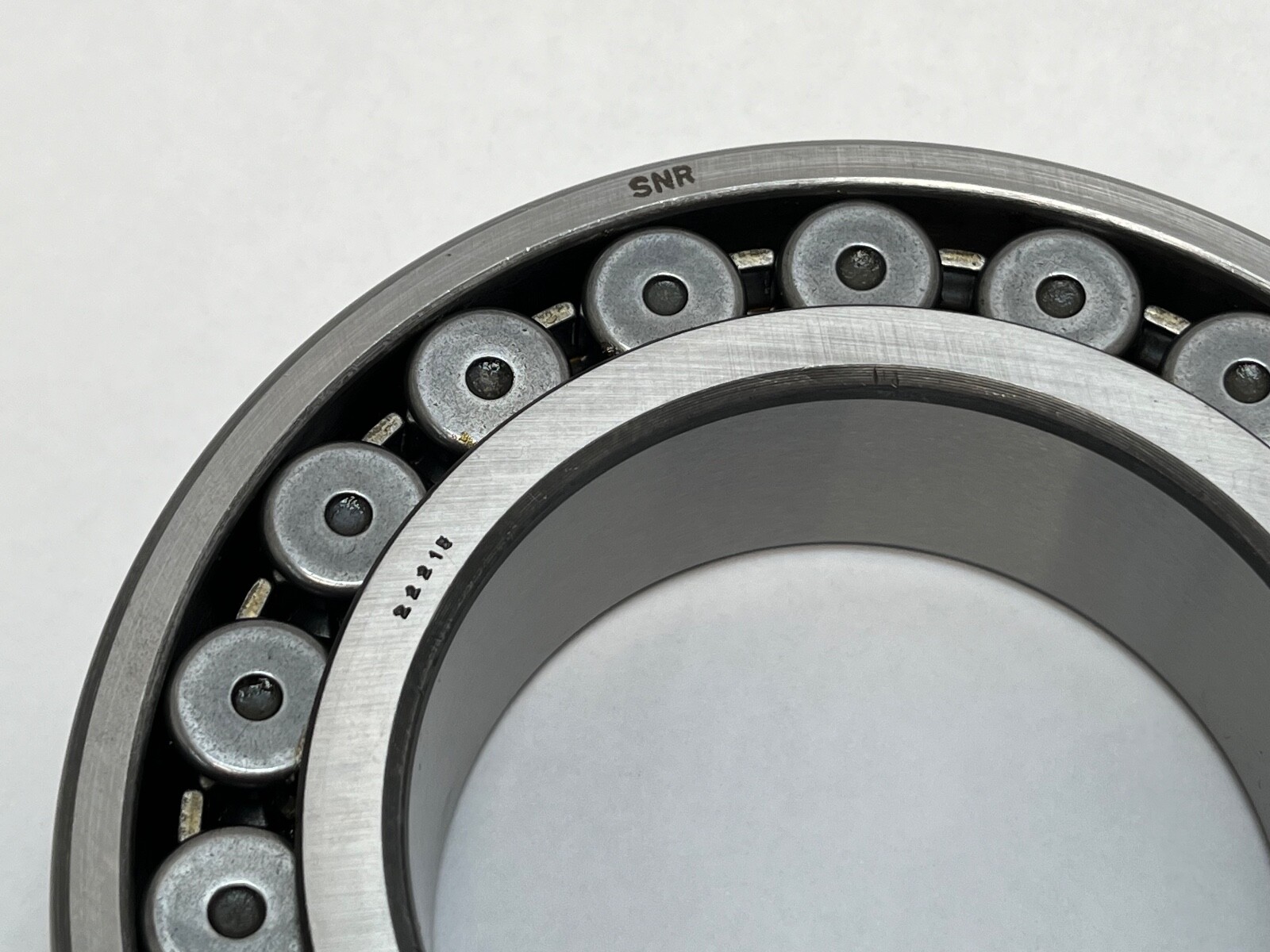

SNR 22215J30B33 double-row spherical roller bearing. Series: 22200. Base Number: 22215. Bore: 75 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Bore Type: Straight. Closure Type: Open. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Type: Pressed. Cage Material: Steel. Internal Clearance: C3. Precision Rating: ABEC 1 / P0. Bearing Material: Chrome steel. Operating Temperature Range: −40 °C to 200 °C. Harmonization Code: 8482.30.00.80. Searchable variants of the number: 22215J30B33, 22215.J30.B33, 22215-J30-B33, 22215 J30 B33, 22215C3W33, 22215 C3 W33.

Decoding the designation

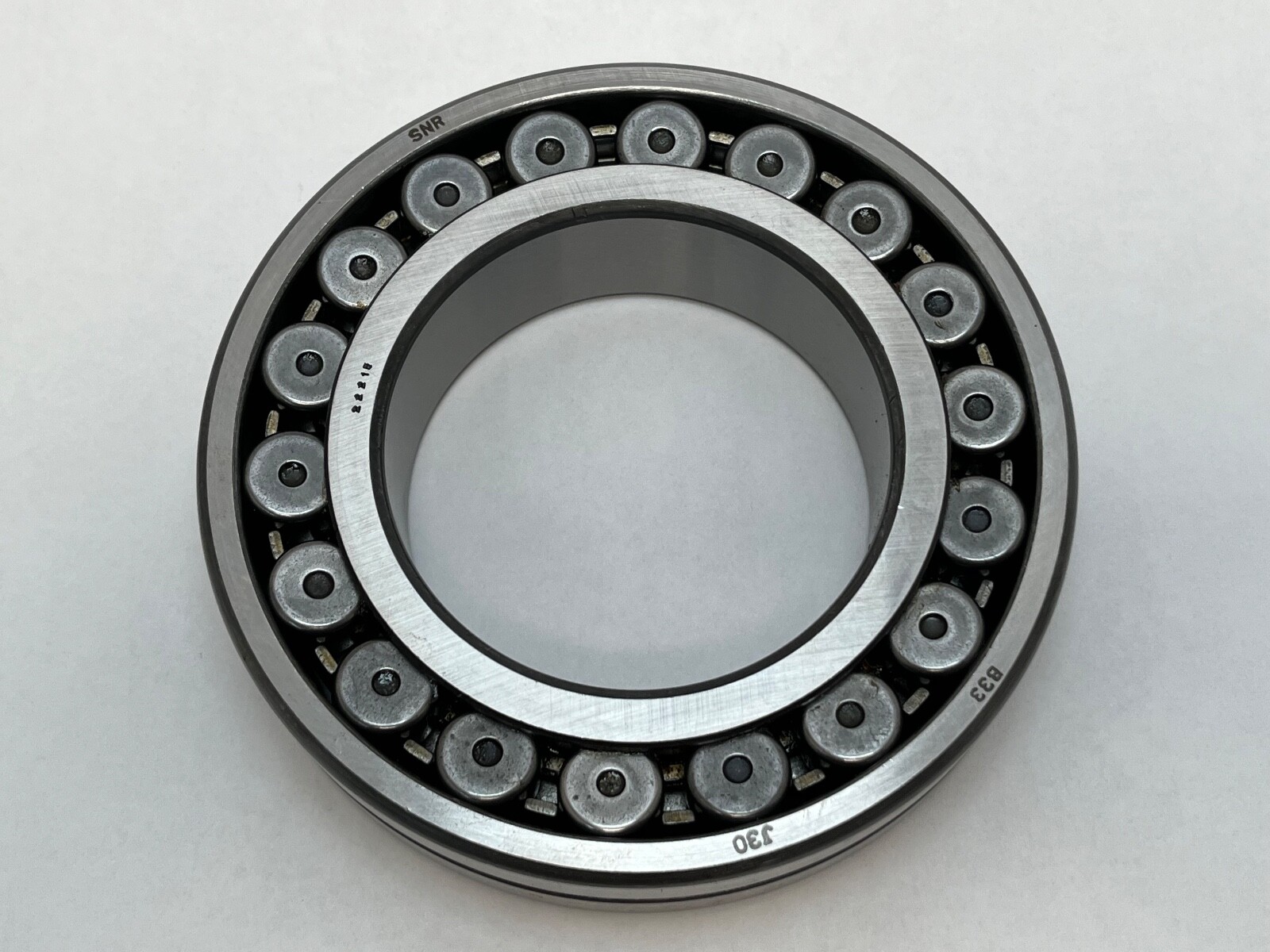

Series: 22200 — the wide double-row spherical roller series. J30: Internal Clearance C3, one step wider than normal. B33: SNR’s code for the W33 lubrication feature. The bore is straight and cylindrical, so the inner ring seats directly on the shaft.

The W33 lubrication feature

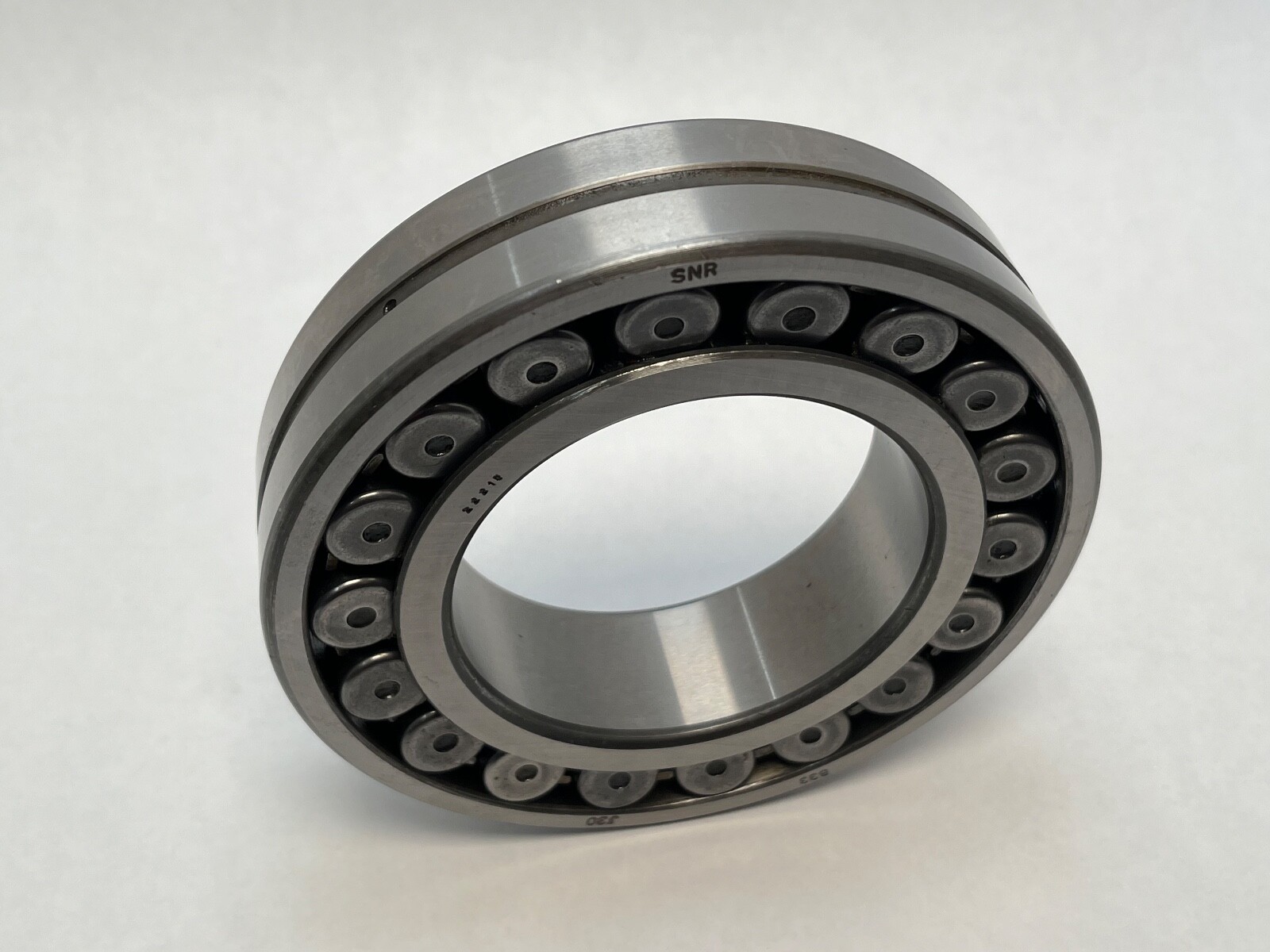

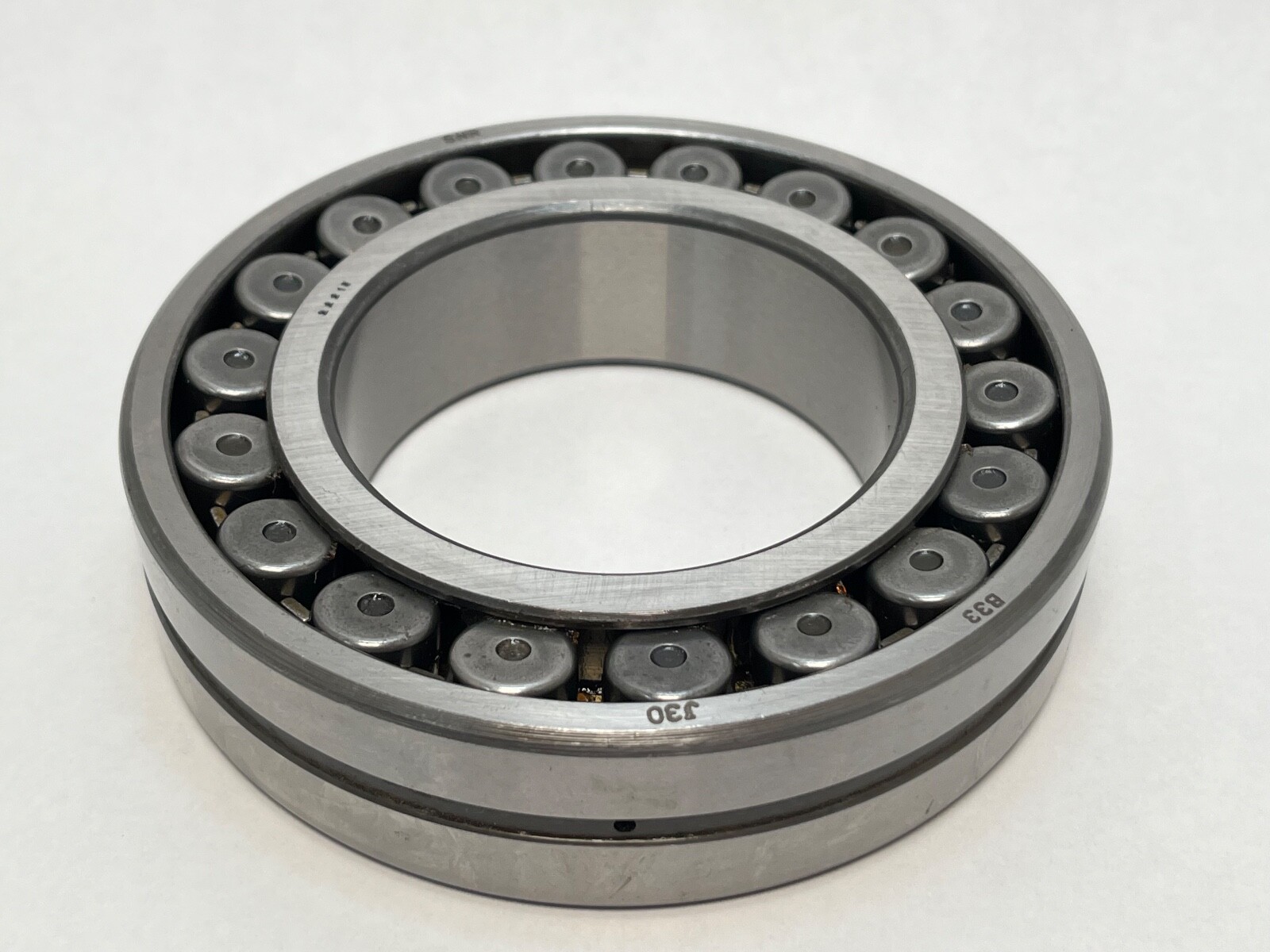

B33 is an annular groove machined around the outside diameter of the outer ring, with three radial holes drilled through to the roller path. The groove distributes lubricant circumferentially around the outer ring and the three holes carry it inward to the rolling elements. Lubricant: grease or oil — the same passages serve a grease gun, a single-point lubricator, a centralised grease system, an oil-mist feed or a circulating-oil system.

What these specs mean in practice

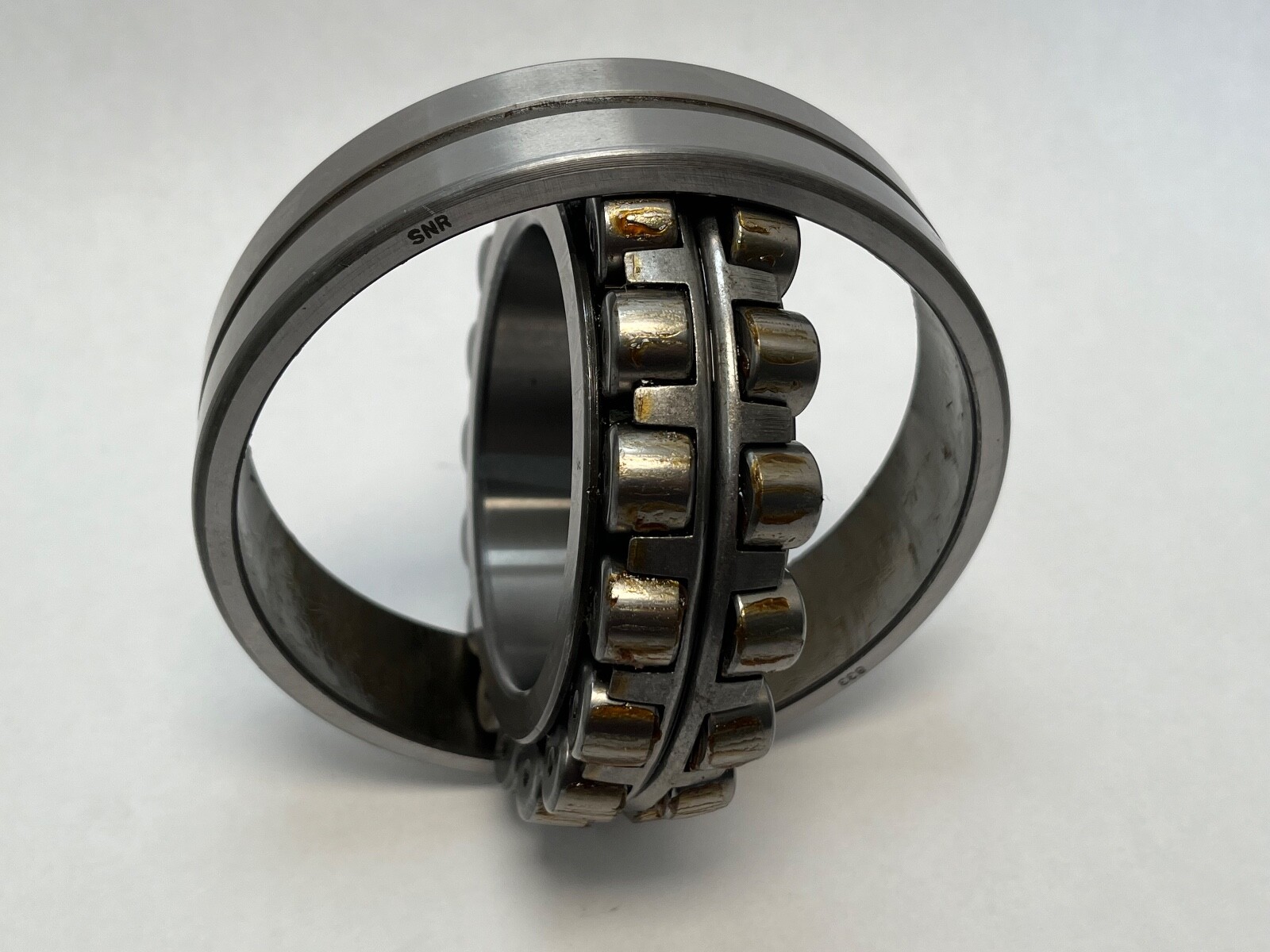

Two rows of barrel rollers run on a common spherical raceway in the outer ring, so the inner ring and roller set swivel inside the outer ring. Permissible Misalignment: 0.5° at normal load, which absorbs shaft deflection and housing bore misalignment. The double-row arrangement takes axial load in both directions alongside the radial load. The C3 class opens the radial internal clearance beyond CN, which suits a tight interference fit on the shaft and a working temperature difference between inner and outer ring.

Quantity and configuration

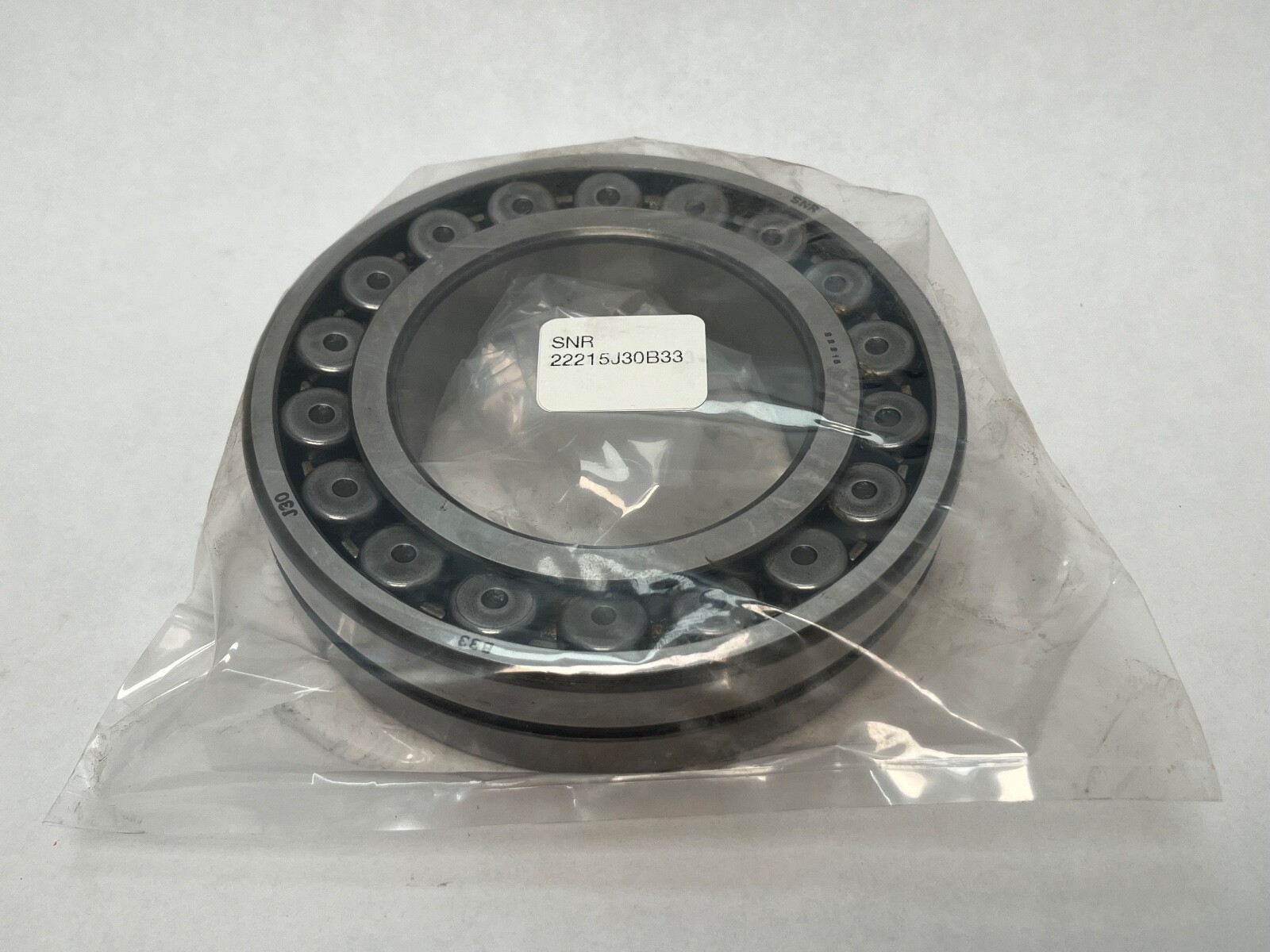

Unit Quantity: 1 Pc. Single bearing, open on both faces, straight bore, W33 groove in the outer ring. New old stock.

Interchange guidance

Same 75 x 130 x 31 mm envelope, straight bore, C3 clearance, with the outer-ring lubrication groove: SKF 22215 E/C3 W33, FAG 22215-E1-XL-C3, NTN 22215EAW33C3, NSK 22215EAE4C3, Koyo 22215RHRW33C3, Timken 22215EJW33C3. Load ratings and cage execution differ between makers.
