SNR22209EAB33J30Spherical Roller Bearing – Straight Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, W33 Lubrication Groove, C3 Internal Clearance

Product Description

What this part is

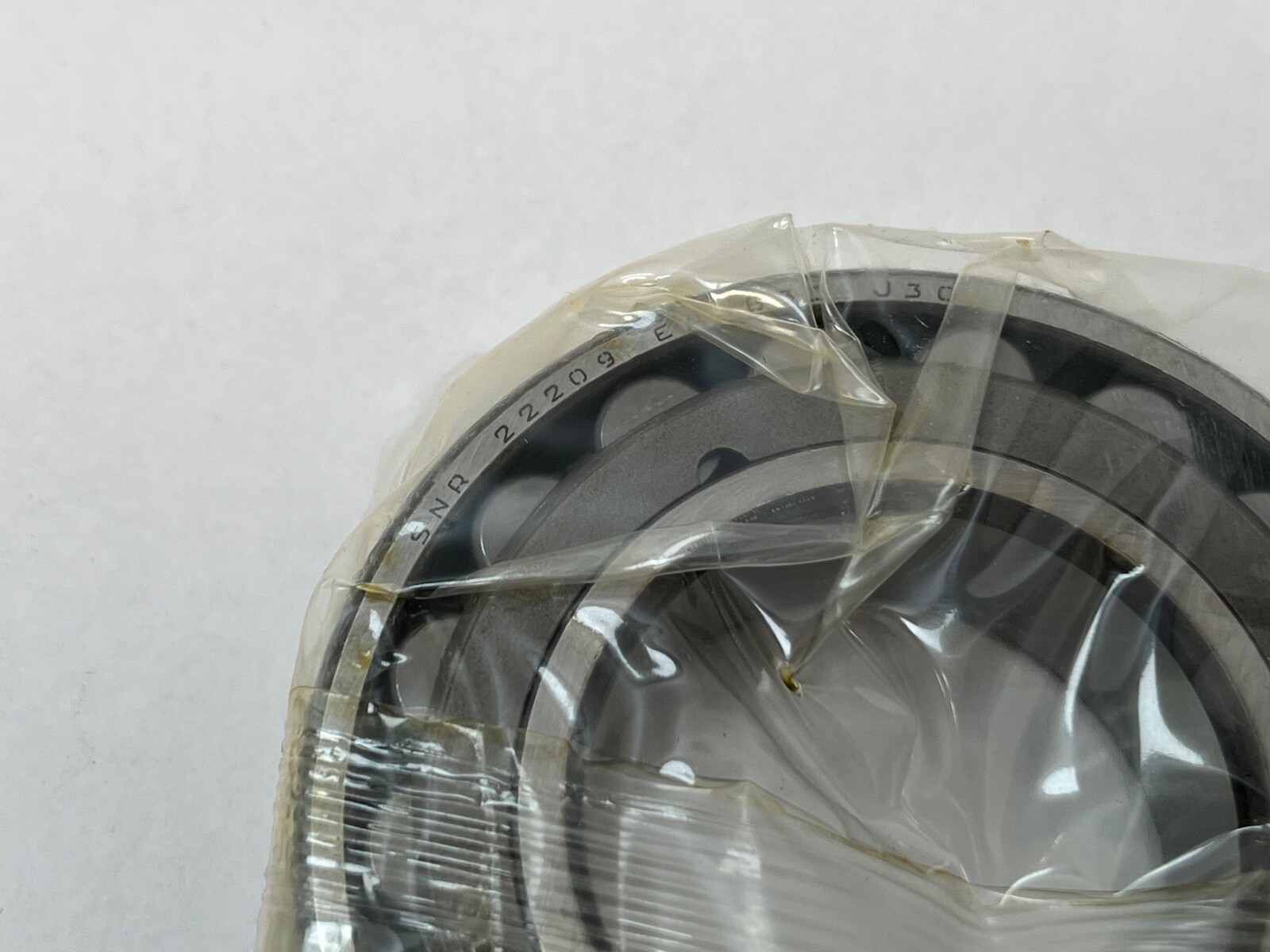

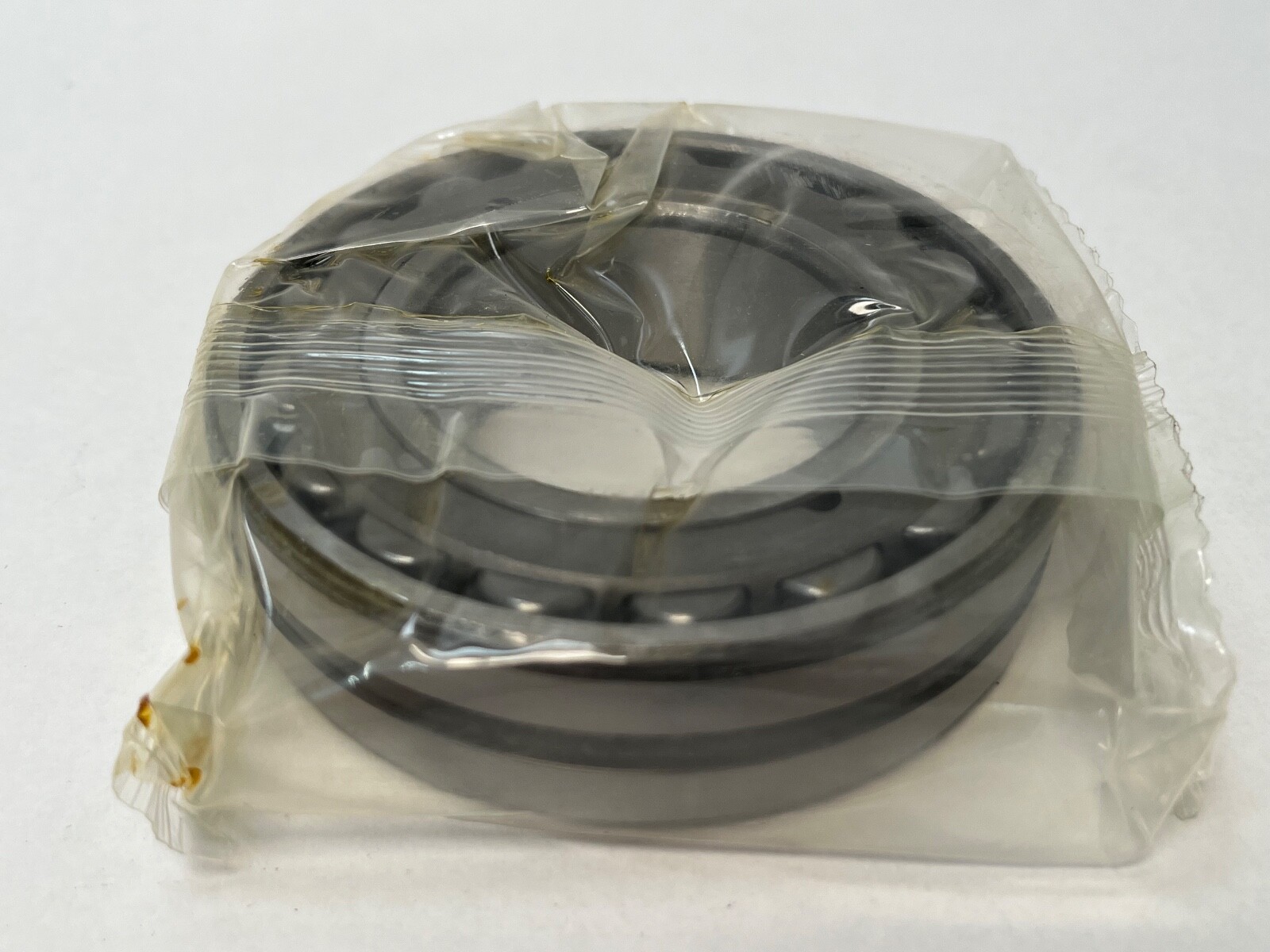

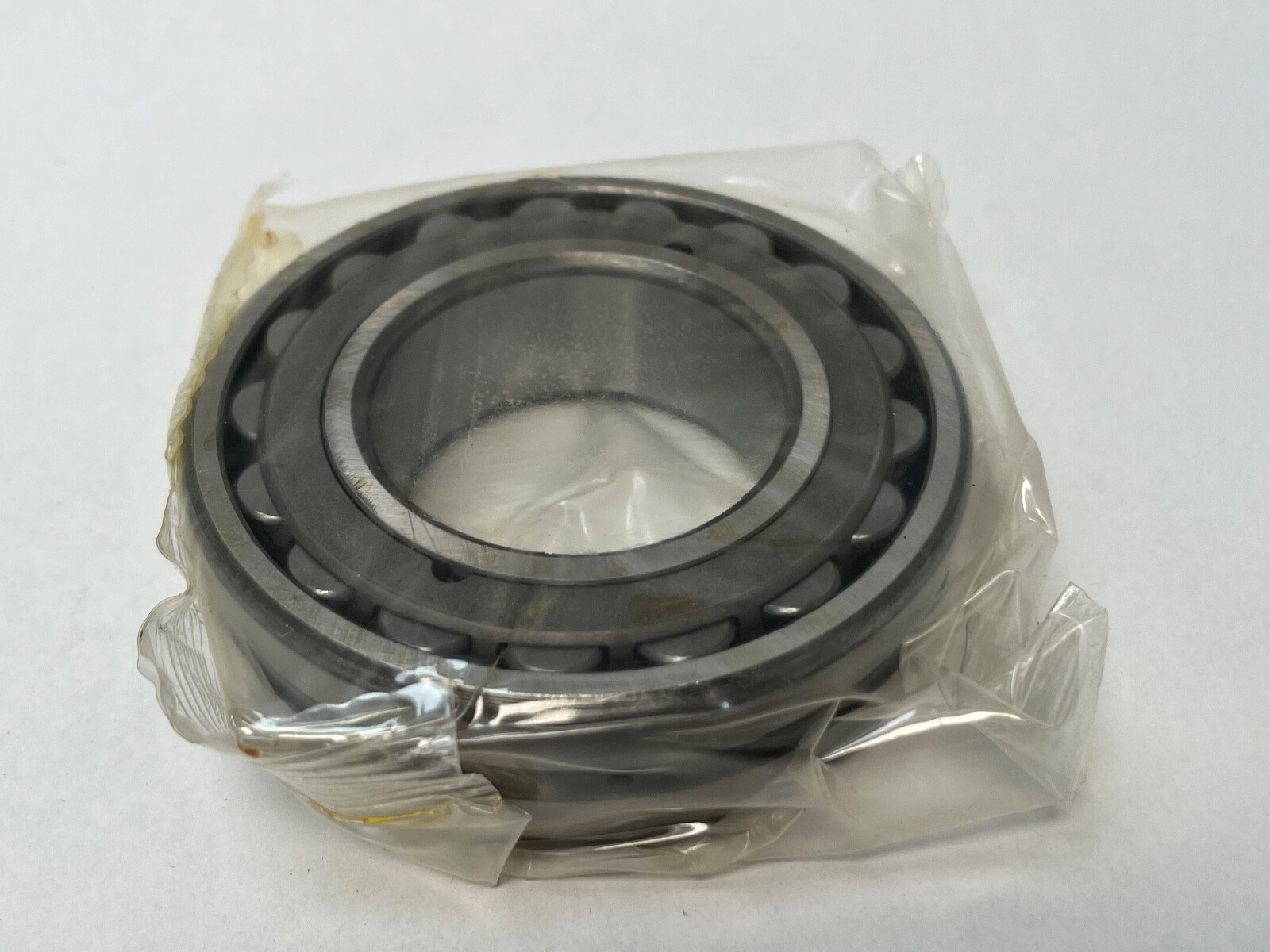

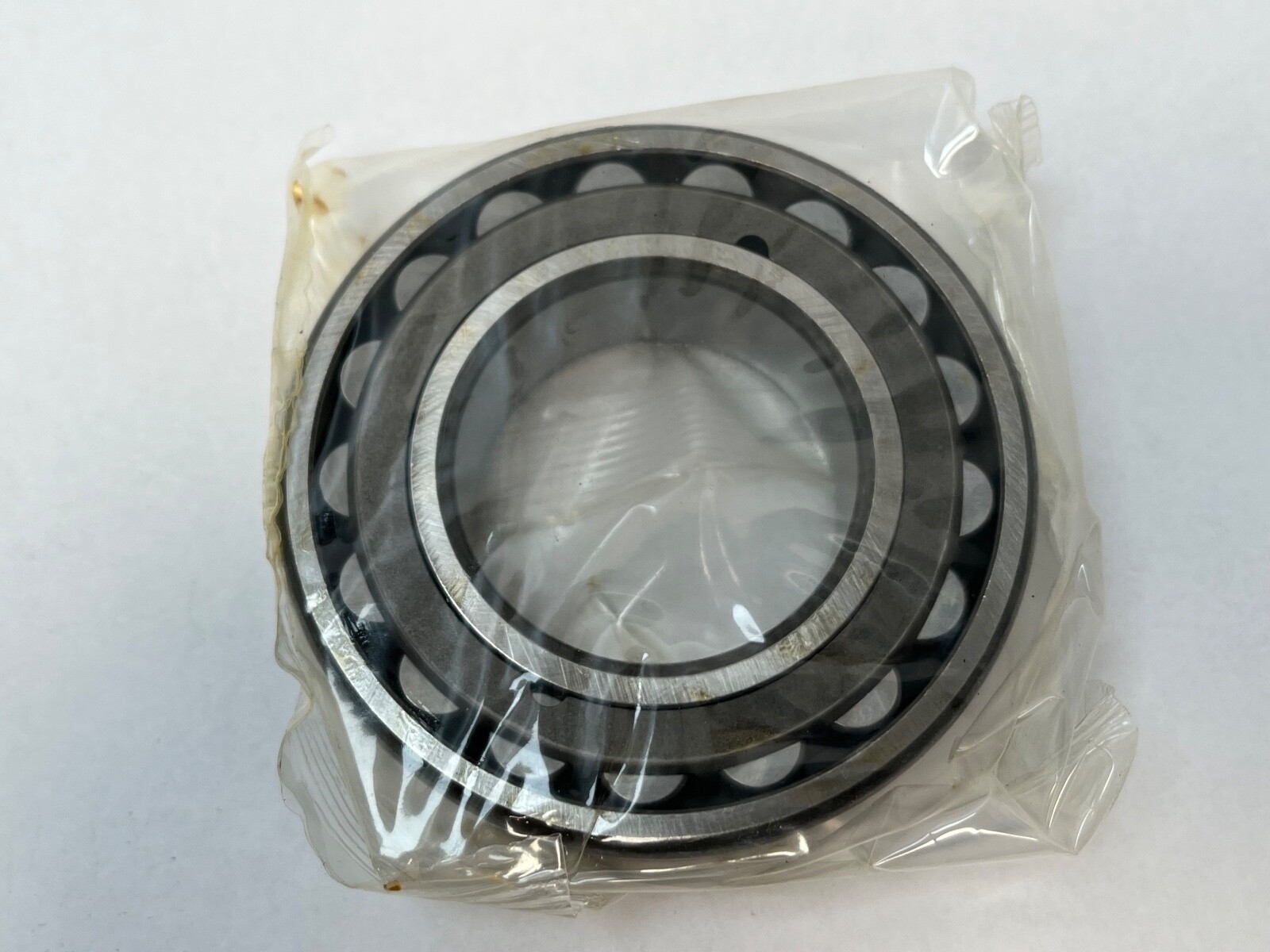

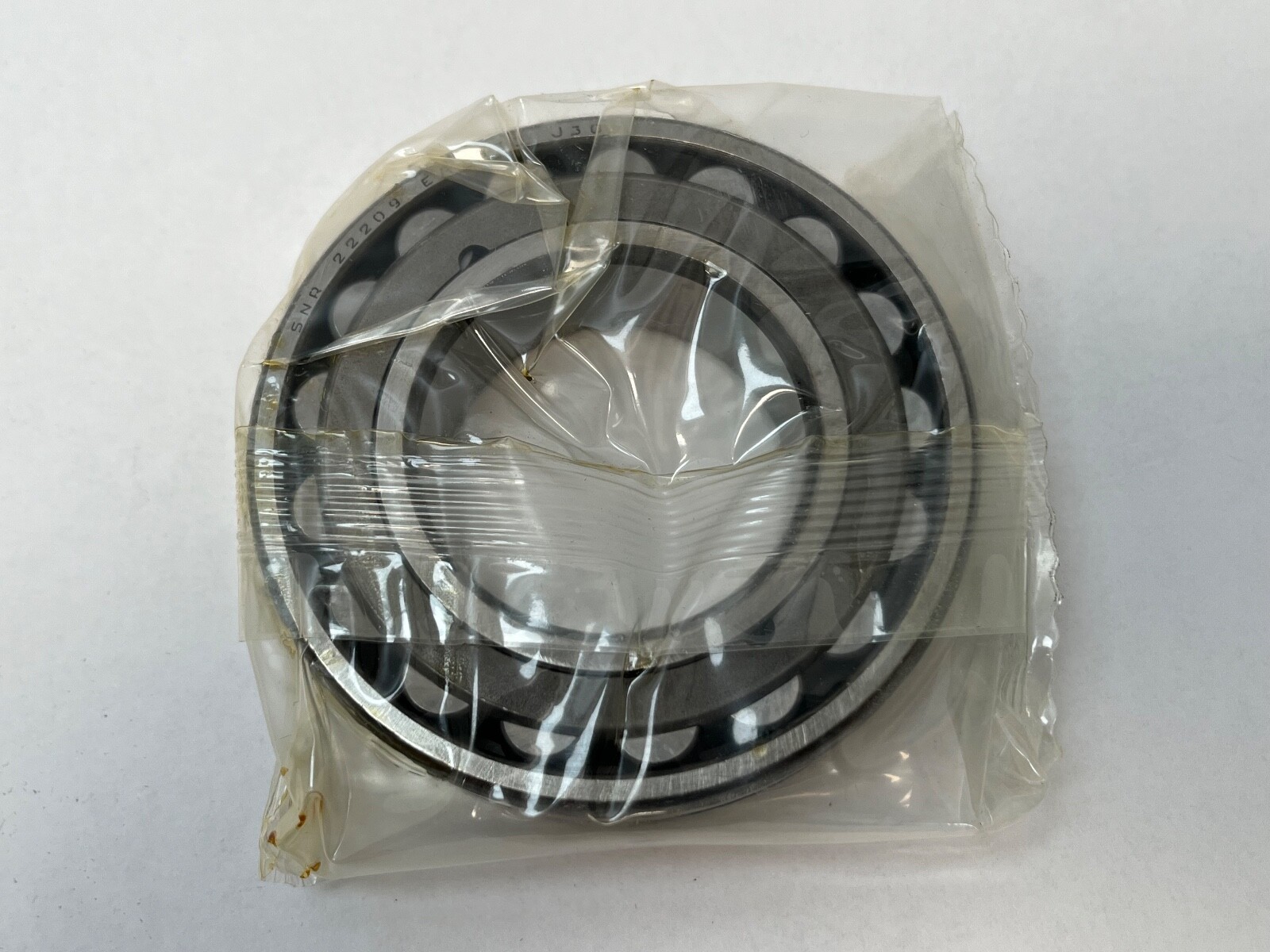

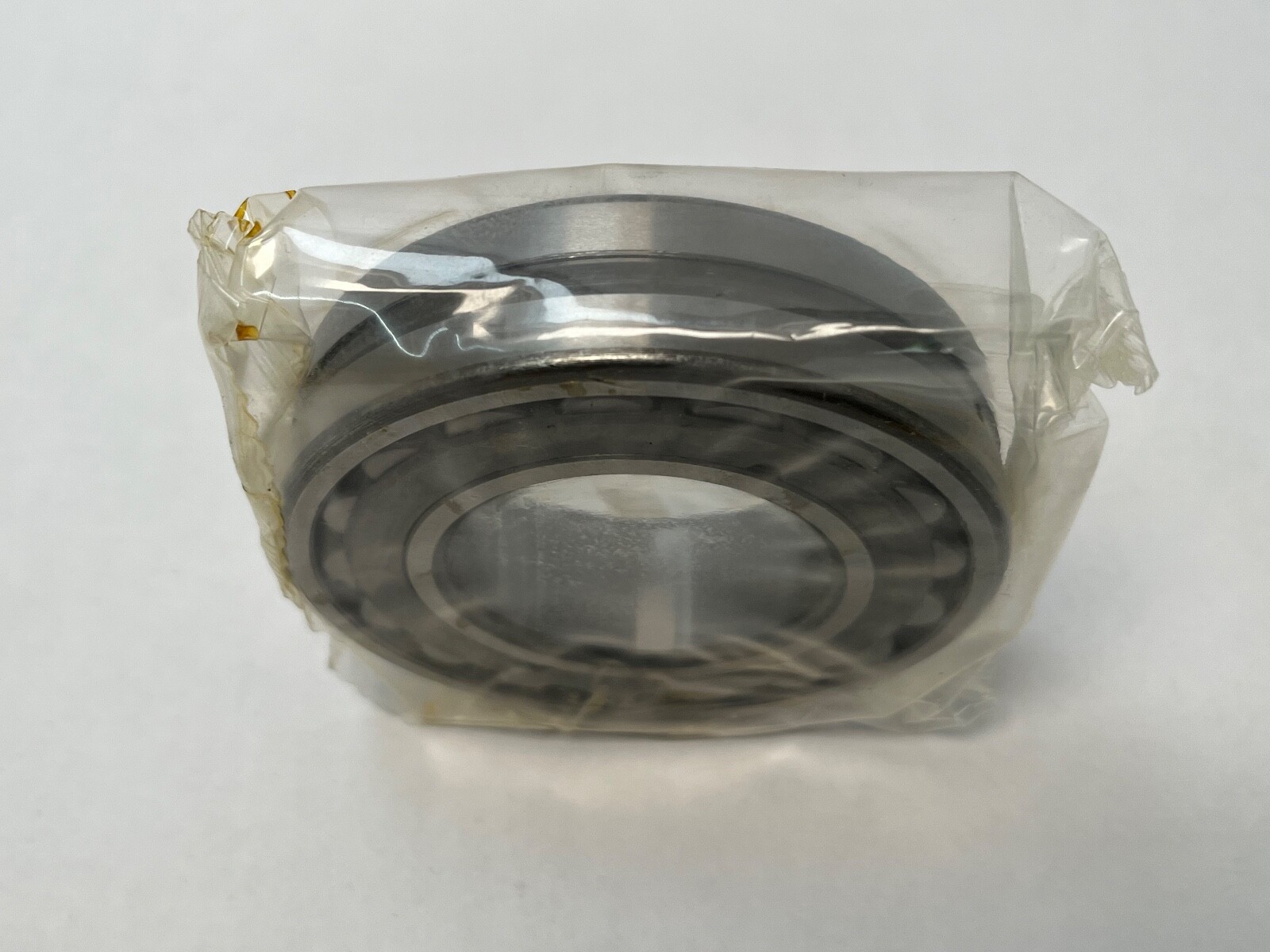

SNR 22209EAB33J30 double-row spherical roller bearing, ISO 222 series, 45 x 85 x 23 mm. Bore: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Series: 222. Part Number: 22209EAB33J30. Base Number: 22209. Design Units: Metric. Bearing Material: Bearing steel.

Decoding the designation

Base Number: 22209, setting the 45 x 85 x 23 mm envelope. EA is the high-capacity execution with a pressed steel cage. B33 is the lubrication feature, written W33 in the ISO suffix form. J30 is the C3 radial internal clearance group. Bore Type: Straight. Searchable variants of the number: 22209EAB33J30, 22209EAW33C3, 22209.EAW33C3, 22209-EA-B33-J30, 22209 EA W33 C3, 22209EJ W33 C3.

Ratings and running limits

Dynamic Load Rating: 121 kN. Static Load Rating: 113 kN. Fatigue Load Limit: 13.8 kN. Reference Speed: 7400 rpm. Limiting Speed: 9800 rpm. Precision Class: P0, ABEC 1. Internal Clearance: C3. Operating Temperature Range: –40 °C to +200 °C. Item Weight: 0.565 kg (1.25 lb). Harmonization Code: 84823000. Country of Origin: Italy.

Lubrication feature

Relubrication Feature: annular groove in the outer ring outside diameter with three radial holes through to the rolling elements. Lubricant: grease or oil. The groove distributes lubricant circumferentially around the outer ring and the three radial holes carry it inward to both roller rows, which suits a grease gun, a single-point lubricator, a centralised grease system, or circulating-oil and oil-mist feed through the same passages.

Cage and internal design

Cage Type: Pressed. Cage Material: Steel. Permissible Misalignment: 0.5° at normal load. The two roller rows share one concave outer-ring raceway, so the inner ring and roller set swivel within the outer ring and absorb shaft deflection and housing misalignment.

What these specs mean in practice

Two rows of spherical rollers carry high radial load and take thrust in both directions. C3 clearance is one step greater than normal and absorbs the running clearance lost to an interference fit on the shaft and to a temperature gradient across the bearing, so it suits a heavier press fit and a hotter inner ring. Maximum Operating Temperature: 200 °C. The straight bore mounts directly on the shaft seat.

Mounting dimensions

Minimum Bearing Fillet Radius (rs min): 1.1 mm. Maximum Abutment Fillet Radius (ra max): 1 mm. Minimum Shaft Shoulder Diameter (da min): 52 mm. Maximum Housing Shoulder Diameter (Da max): 78 mm. Calculation Factors: e 0.26, Y0 2.58, Y1 2.64, Y2 3.94. Lubrication Holes: 3.

Quantity and configuration

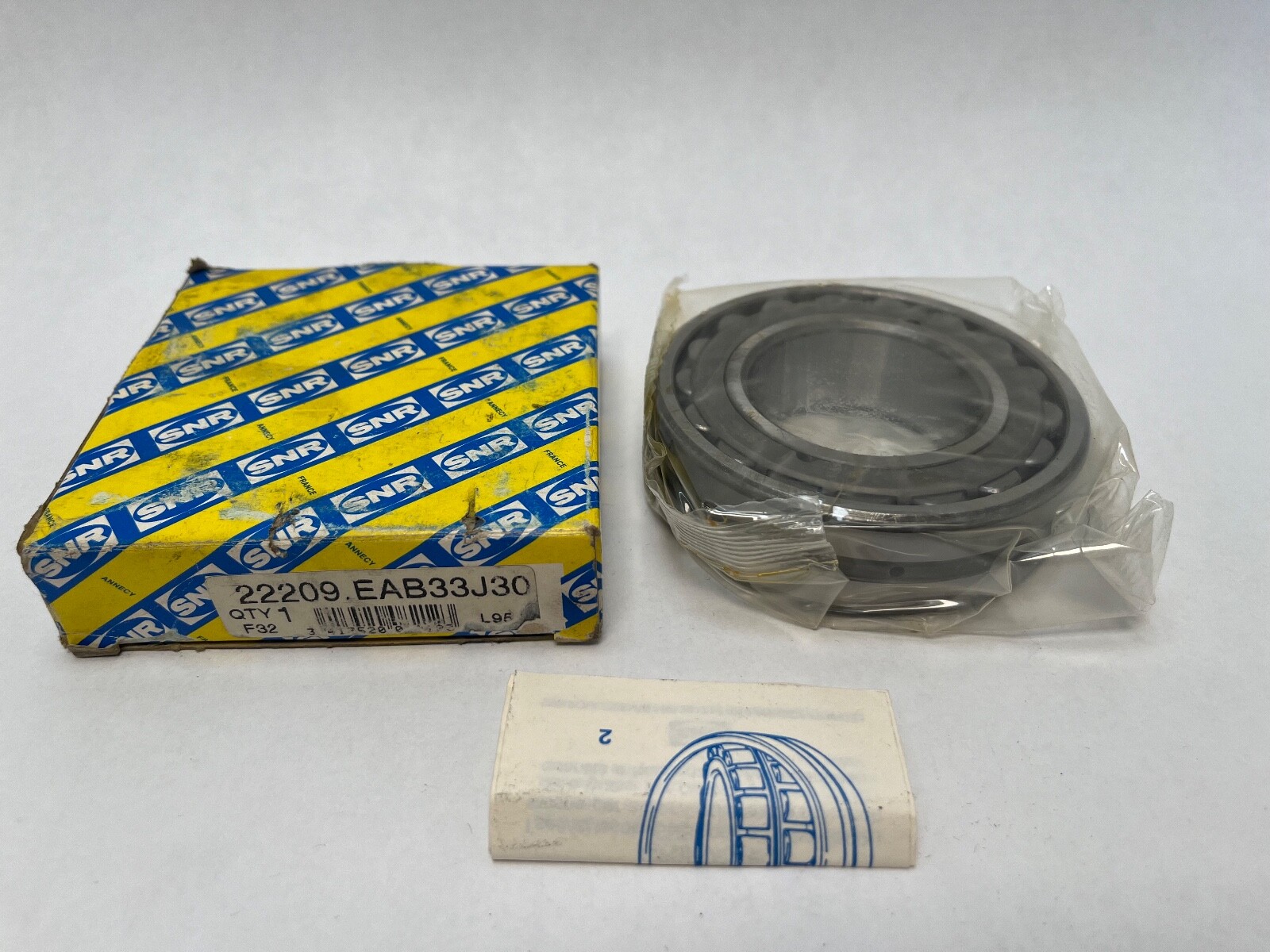

Unit Quantity: 1 Pc. One complete bearing ships as a single assembled unit — outer ring, inner ring, two rows of spherical rollers and the pressed steel cages.

Interchange guidance

GTIN: 3413520082123. Manufacturer Part Number: 22209EAB33J30. On the same 45 x 85 x 23 mm envelope, the same straight bore and the same C3 clearance class: SKF 22209 E/C3, FAG 22209-E1-C3, Timken 22209EMBC3, NTN 22209EAW33C3, NSK 22209EAE4C3.
