Availability:
1 in stock

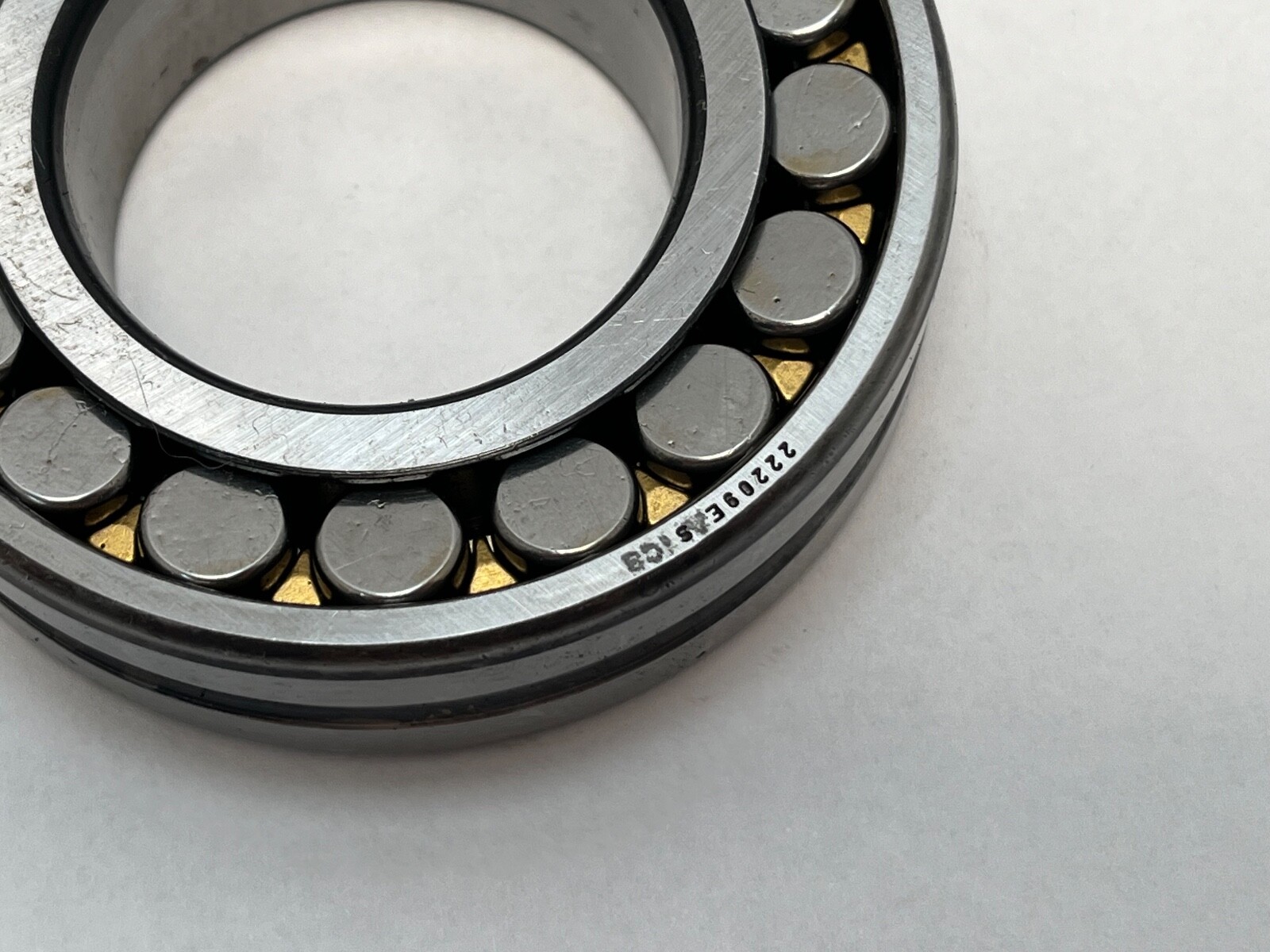

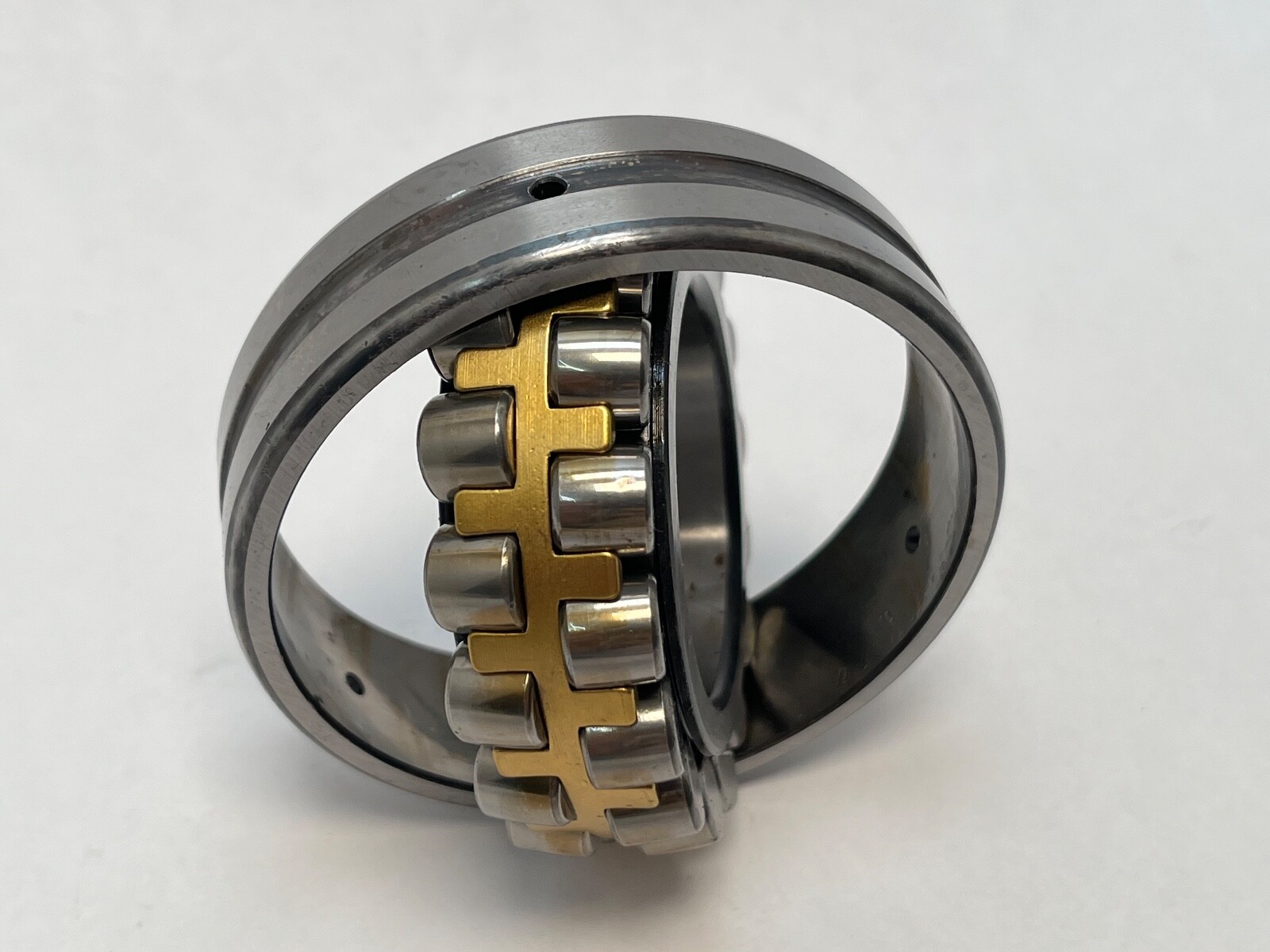

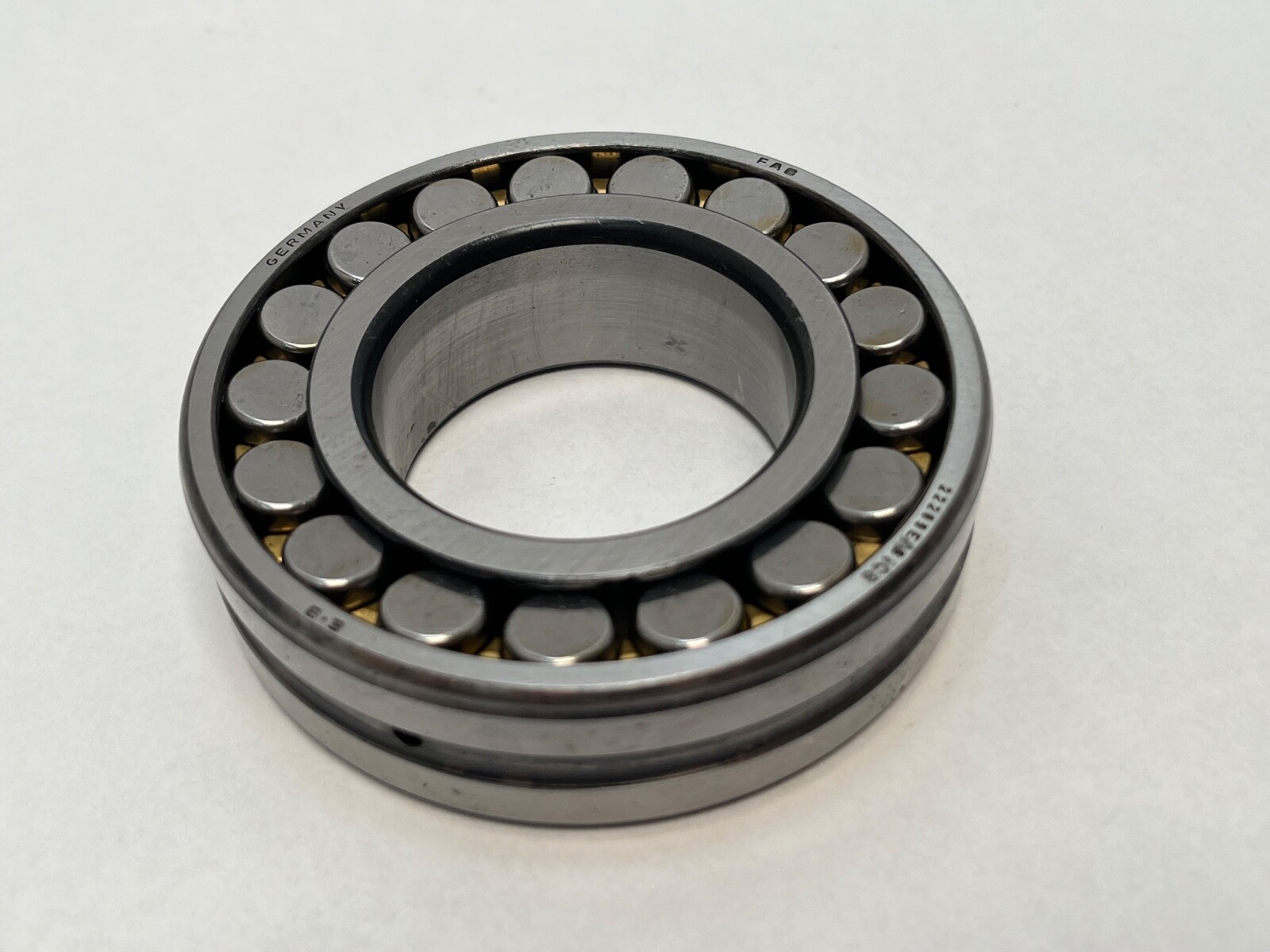

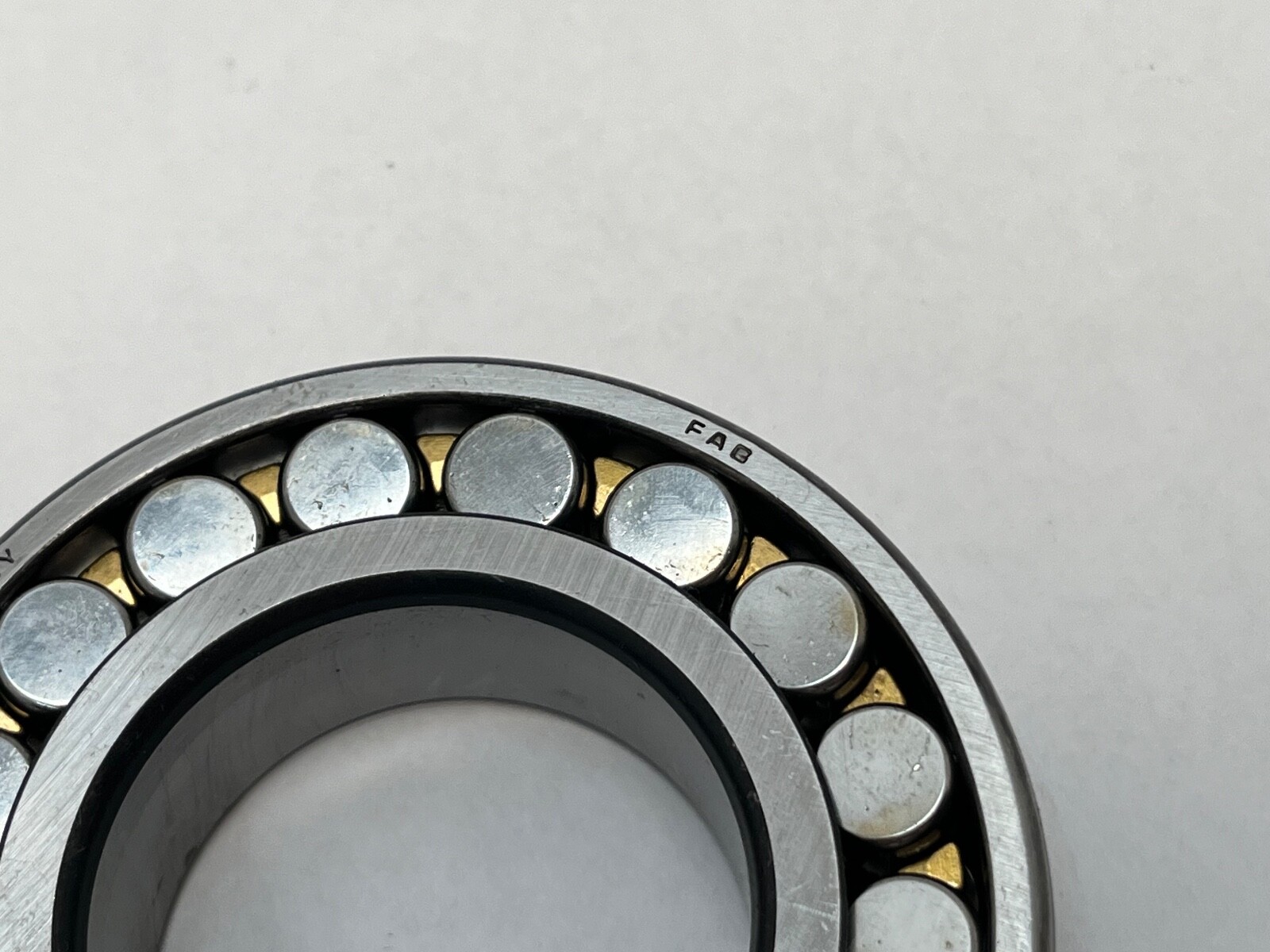

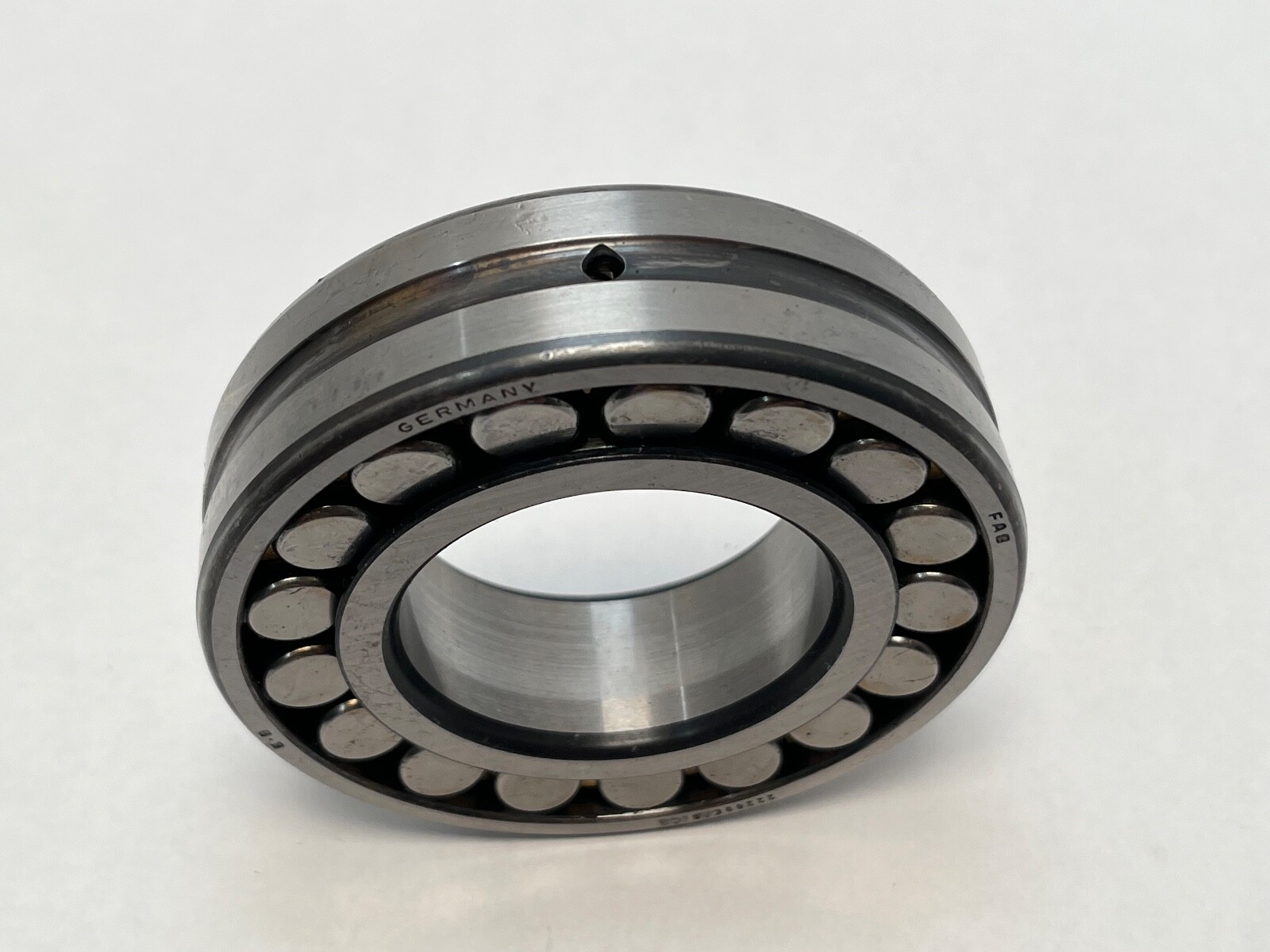

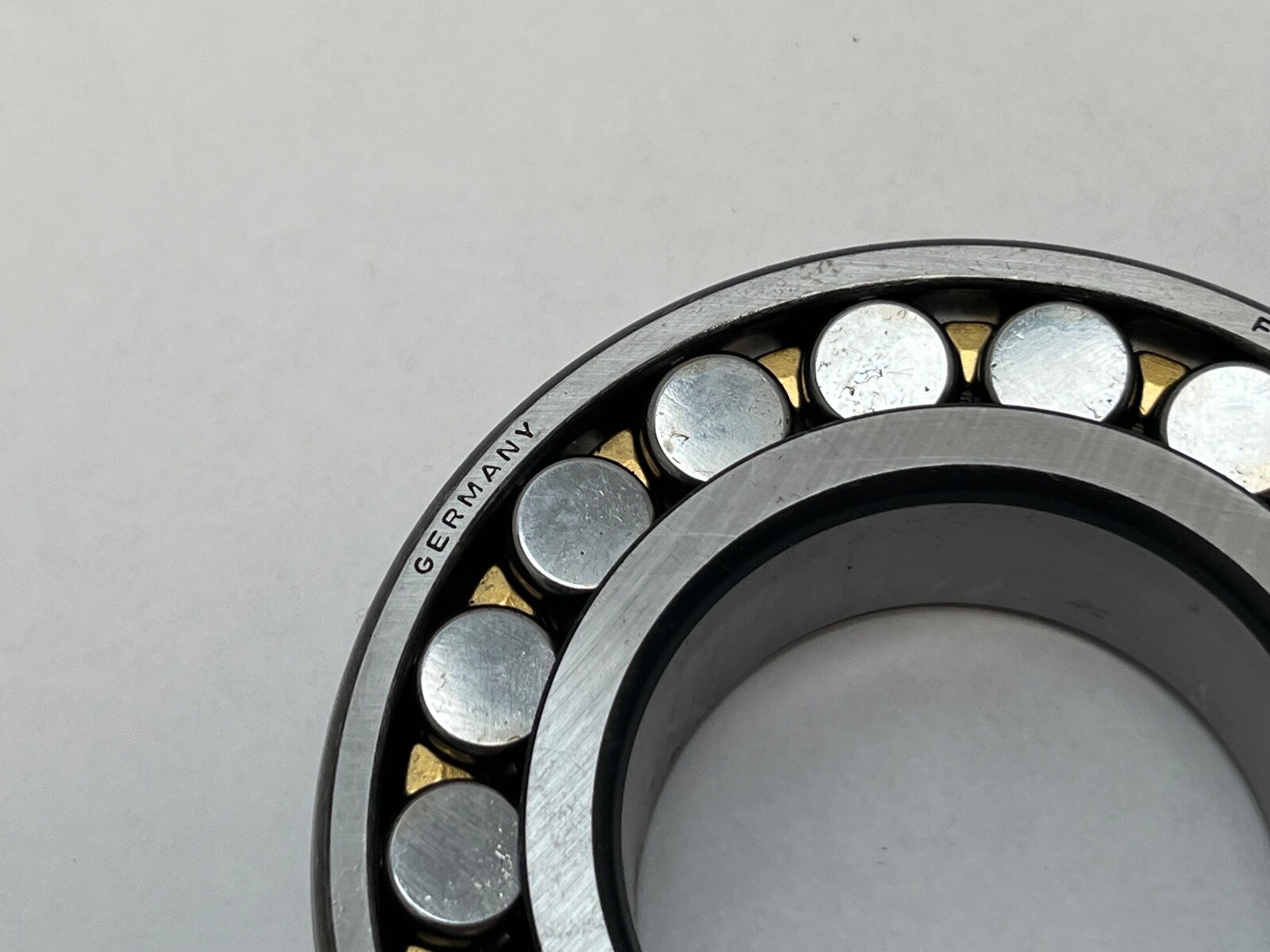

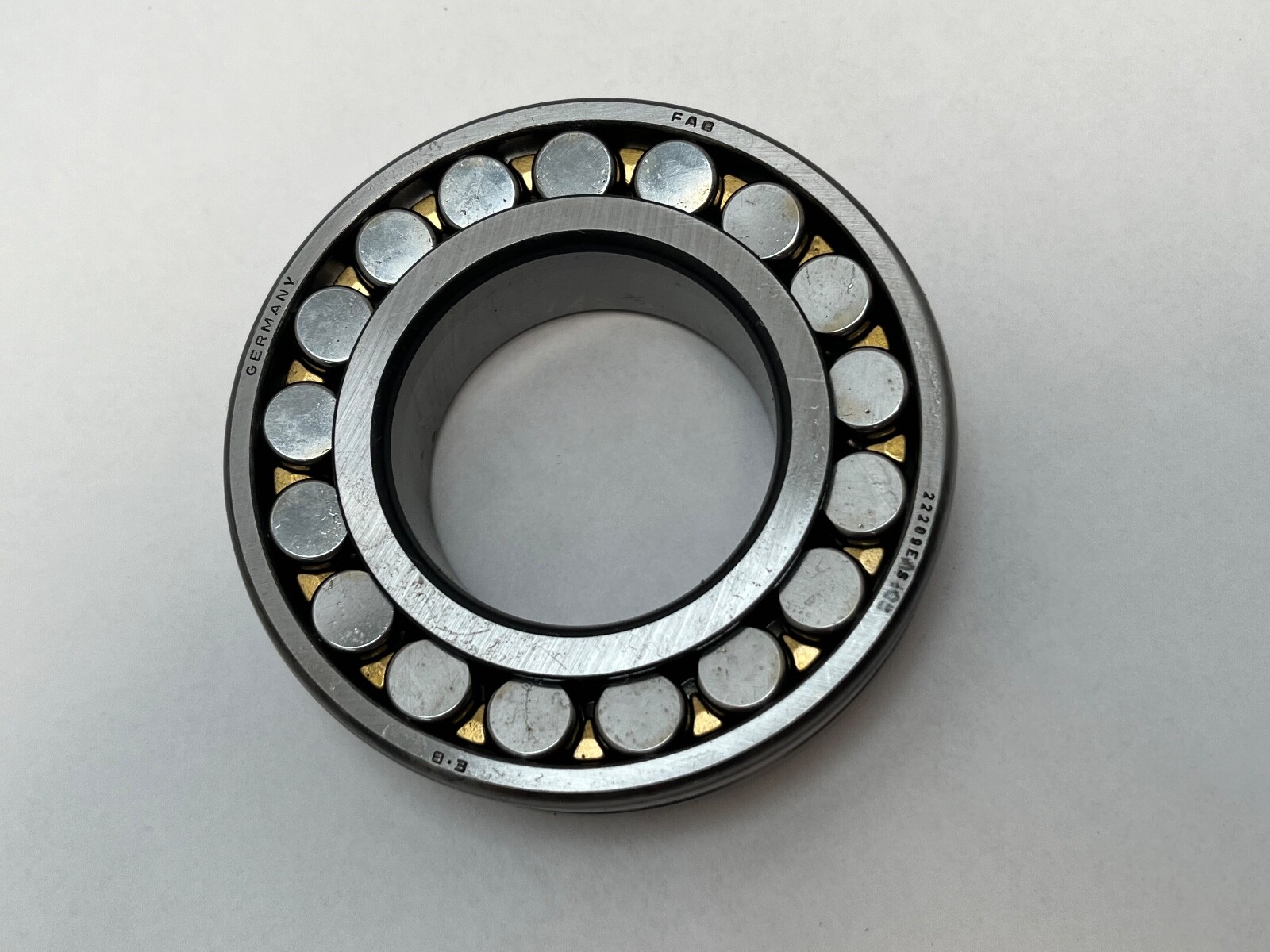

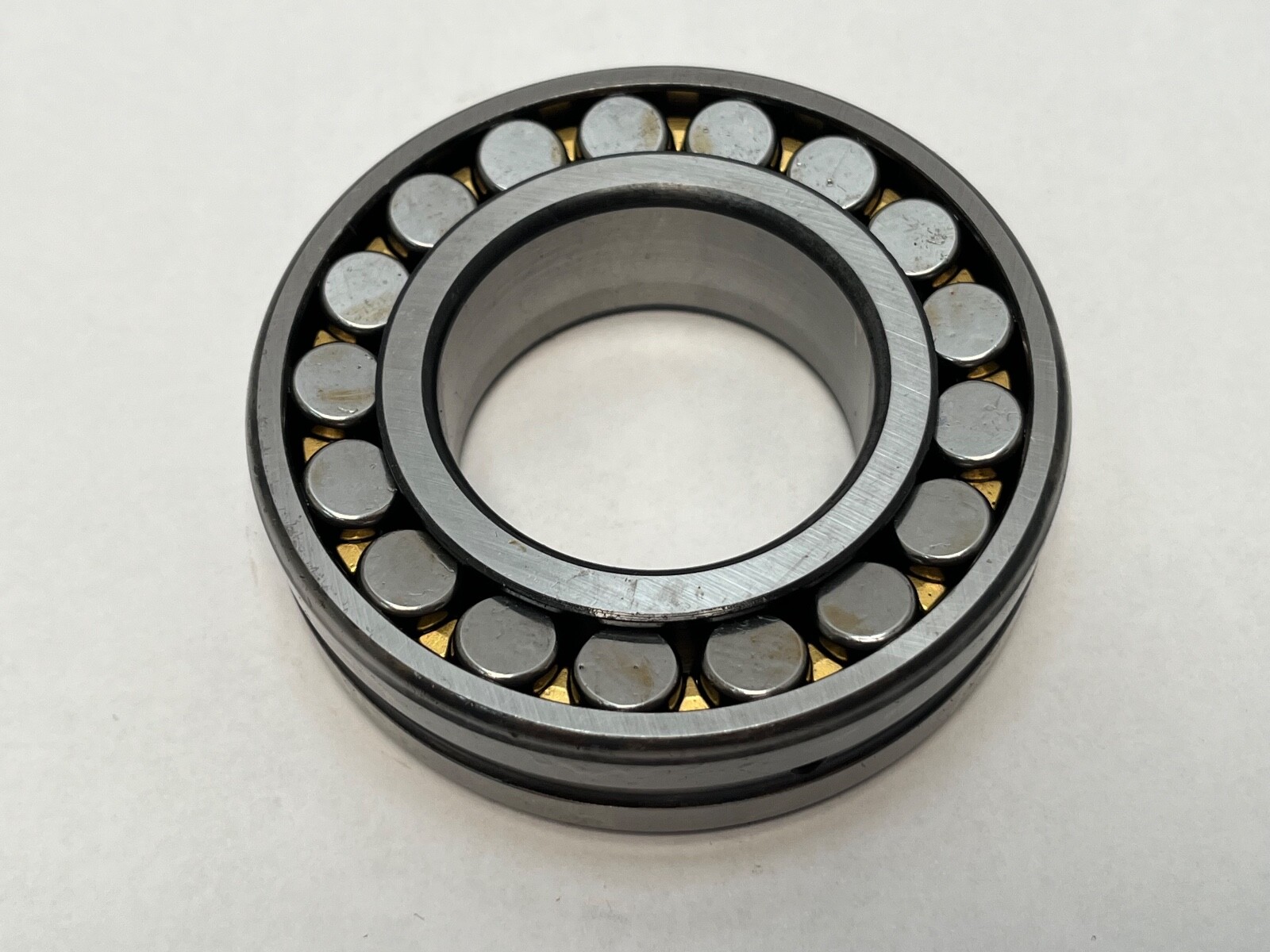

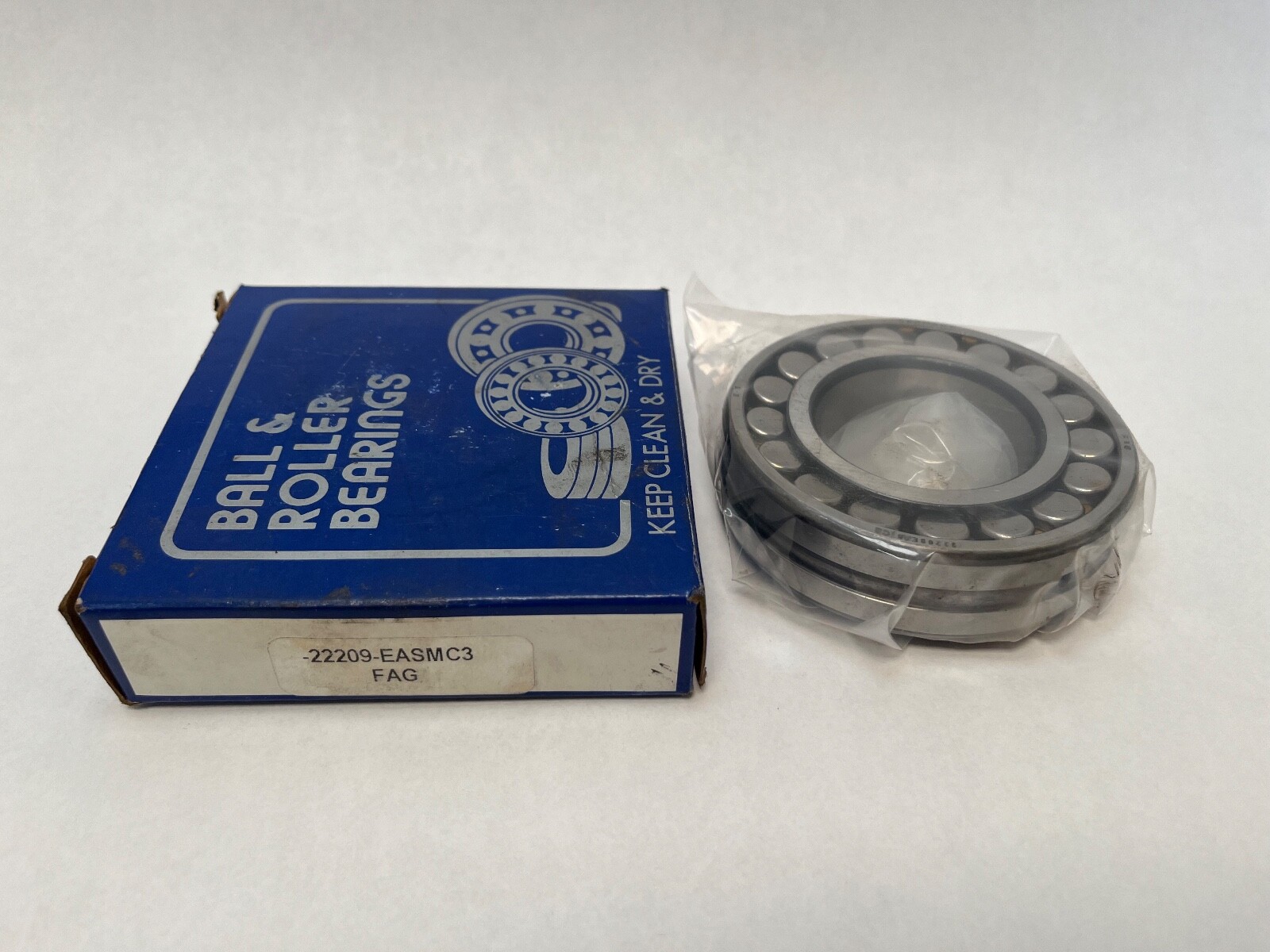

FAG 22209EAS.M.C3 spherical roller bearing, 45 x 85 x 23 mm, machined brass cage, lubrication groove, cylindrical bore, C3 clearance. Successor 22209-E1-XL-C3.
List Price
$51.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209EAS.M.C3 |
| Model | 22209EAS.M.C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Dynamic Load Rating | 104,000 N |
| Static Load Rating | 99,000 N |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 10,100 rpm |
| Relubrication Feature | Lubrication groove and holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing, brass cage spherical, W33 groove |
| Overall Width | 23 mm |
| Mpn Variants | 22209EAS.M.C3, 22209-EAS-M-C3, 22209EASMC3W33, 22209 E A S M C3 W33, 22209E |
| Compatible With Replaces | Successor: FAG 22209-E1-XL-C3 |
| Additional Attributes | Successor 22209-E1-XL-C3 data: Dynamic load rating 104,000 N; Static load rating 99,000 N; Limiting speed 10,100 rpm; Reference speed 5,600 rpm; Weight 0.562 kg |
| Lubricant | Grease or oil |
| Common Misspellings | FAG 22209 EAS MC3; FAG 22209EASM C3; FGA 22209EAS.M.C3; 22209EAS M C3 |
| Application Types | Vibrating screens; gearboxes; pumps and fans; conveyors; industrial machinery with shock loads |
| Cross Reference 1 | SKF 22209 E/C3 (steel cage) |
|---|---|
| Cross Reference 2 | NTN 22209EAW33C3 |
| Cross Reference 3 | NSK 22209EAME4C3 |
| Cross Reference 4 | Timken 22209EMW33C3 |
| Cross Reference 5 | Koyo 22209RHRW33C3 |
FAG 22209EAS.M.C3 is a double-row spherical roller bearing of legacy FAG E design with a machined brass cage, lubrication groove and holes in the outer ring, cylindrical bore and C3 clearance. Size 45 x 85 x 23 mm.
222 — spherical roller bearing, ISO dimension series 22.
09 — bore code, 45 mm.
E — FAG reinforced internal design.
AS — lubrication groove and holes in the outer ring (W33 equivalent).
M — machined brass cage.
C3 — radial internal clearance larger than normal.
Bore Diameter: 45 mm.
Outside Diameter: 85 mm.
Overall Width: 23 mm.
Rolling Elements: Spherical Roller.
Number Of Rows: 2.
Cage Material: Machined brass.
Internal Clearance: C3.
Bore Type: Straight.
Closure Type: Open.
Lubricant: grease or oil, fed through the outer-ring groove and holes.
Unit Quantity: 1 Pc.
Successor 22209-E1-XL-C3 data: Dynamic Load Rating: 104,000 N. Static Load Rating: 99,000 N. Limiting Speed: 10,100 rpm. Reference Speed: 5,600 rpm. Item Weight: 0.562 kg (1.24 lb).
Successor 22209-E1-XL-C3 data: Chamfer r min: 1.1 mm. Fillet ra max: 1 mm. Shaft Abutment da: 52 mm. Housing Abutment Da: 78 mm.
Brass-cage C3 equivalents on the same envelope: NSK 22209EAME4C3, Timken 22209EMW33C3, Koyo 22209RHRW33C3. SKF 22209 E/C3 has a steel cage. Current FAG successor: 22209-E1-XL-C3 (steel cage).
FAG 22209-E1-XL-C3, a steel-cage design.
AS is a lubrication groove with holes in the outer ring; M is a machined brass cage.
45 mm straight bore with C3 radial internal clearance.
