Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
4 in stock
Double-row spherical roller bearing, 45 x 85 x 23 mm, 1:12 tapered bore, open, outer-ring lubrication groove and three holes. 1 Pc.
List Price
$52.97
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 22209 CCK/W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22209 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; W33 grooved roller bearing |
| Common Misspellings | 22209 CKJ W33; 22209CCKJ W33; 22209 spherical bearing |
| Application Types | conveyor pulleys and idlers; fans and blowers; crushers and screens; plummer-block shafting on plain shafts |
| Bore Shaft Size | 45 mm (1.7717 in), 1:12 tapered bore |
| Locking Method | Adapter sleeve on a 1:12 taper, locked by KM nut and MB washer |
| Mpn Variants | 22209 CCK/W33; 22209CCK/W33; 22209-CKJ/W33; 22209CCKJ; 22209-C-K-J-W33; 22209CCKW33; 22209 CJK/W33 |
| Compatible With Replaces | Adapter sleeve H309 (40 mm shaft seat), locknut KM 9, lockwasher MB 9 - all separate parts |
| Rolling Elements | Barrel (spherical) rollers |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Part Number | 22209 CCK/W33 |

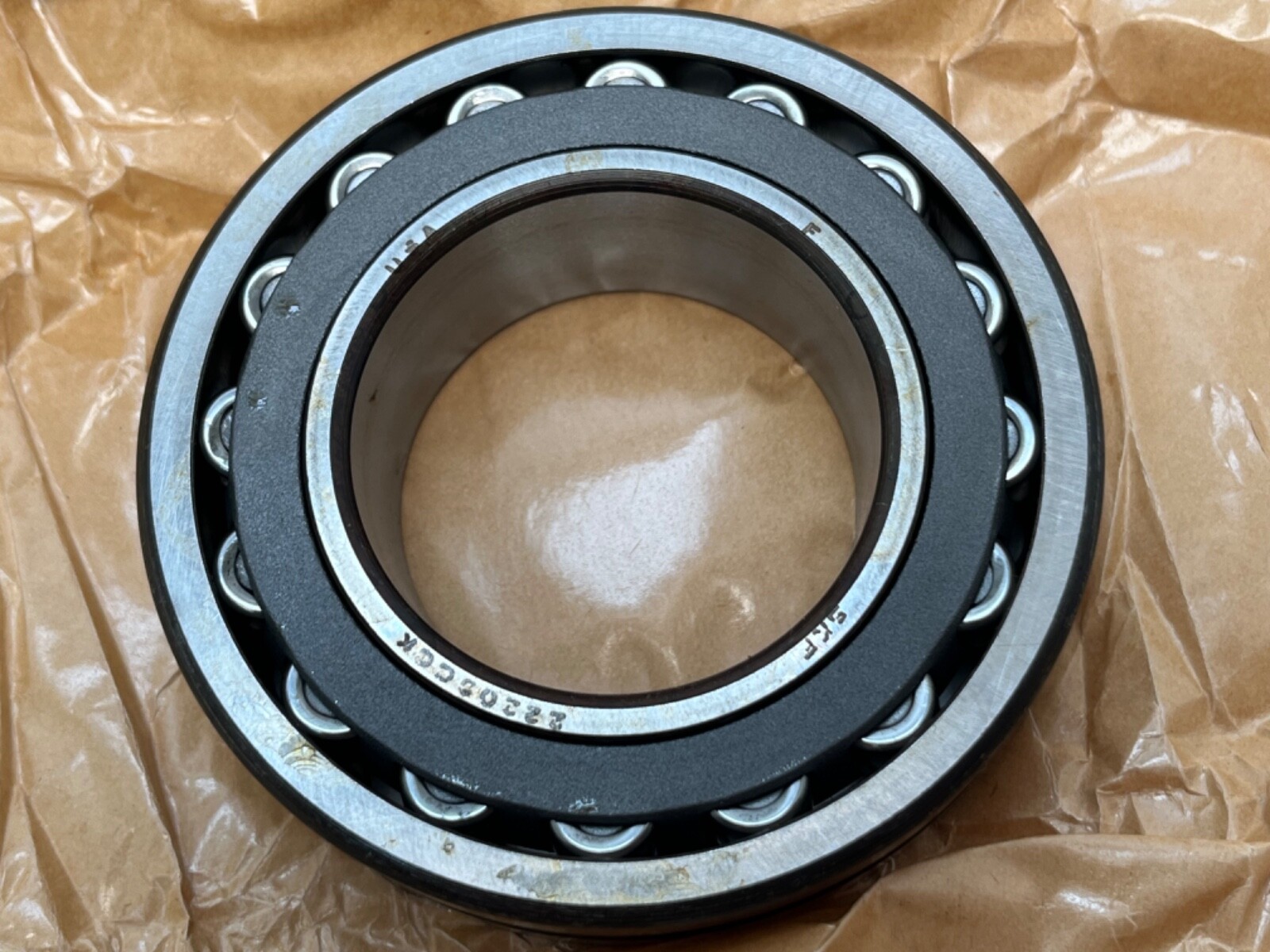

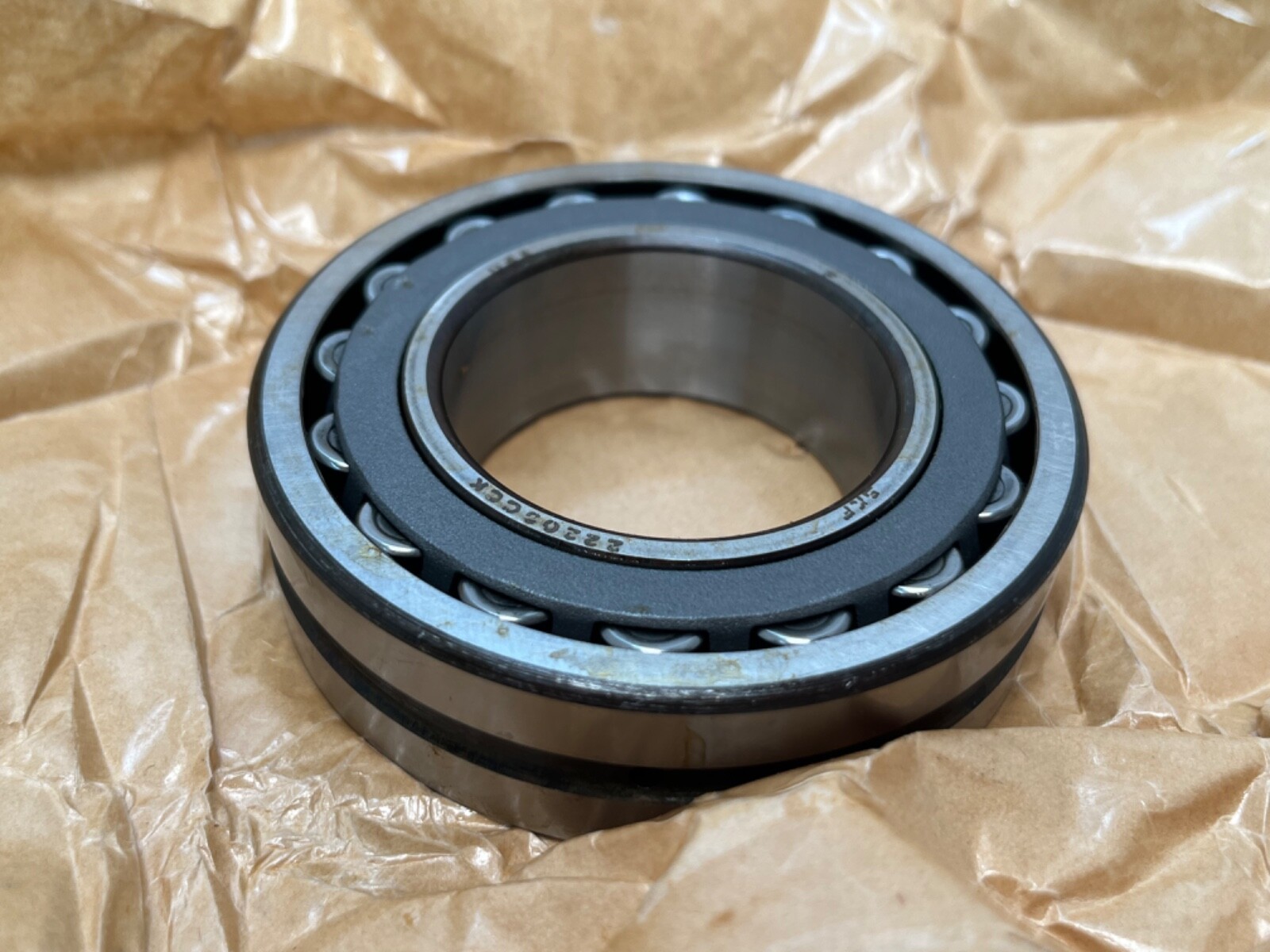

SKF 22209 CCK/W33 double-row spherical roller bearing. Bore: 45 mm, 1:12 tapered. Outside Diameter: 85 mm. Width: 23 mm. Number Of Rows: 2. Rolling Elements: barrel (spherical) rollers. Closure Type: open both faces. Snap Ring Included: No. Two rows of barrel-shaped rollers share one spherical raceway in the outer ring, so the bearing is self-aligning and carries load through shaft deflection and housing misalignment.
222 — wide, higher-capacity spherical roller dimension series. Bore code 09 — 45 mm bore.
CC — pressed steel cage with an inner-ring guide ring.

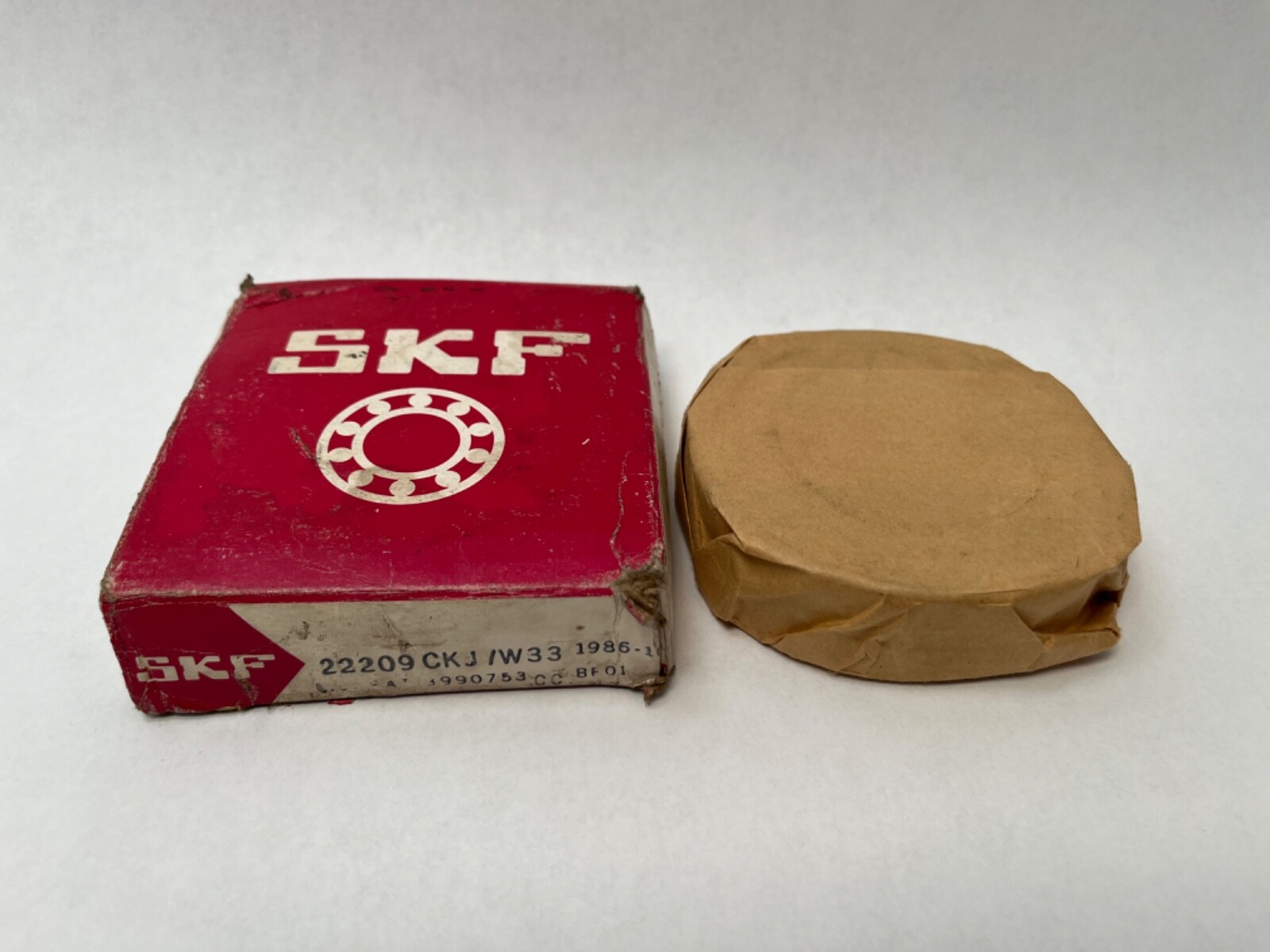

CJ — SKF’s earlier suffix for the same construction, carried on some cartons of this size.
K — 1:12 tapered bore.
W33 — lubrication groove machined around the outer ring with three radial feed holes.
Matching adapter sleeve: H309, shaft seat 40 mm, with KM 9 locknut and MB 9 lockwasher.
A double-row spherical roller bearing carries very heavy radial load and thrust in both directions, and accommodates misalignment. The 1:12 tapered bore seats on an adapter sleeve on a plain shaft. The W33 groove and holes carry lubricant to the rollers through the housing.
Unit Quantity: 1 Pc. Bearing only. Closure Type: open both faces.
MPN Variants: 22209 CCK/W33, 22209CCK/W33, 22209-CKJ/W33, 22209CCKJ, 22209-C-K-J-W33, 22209CCKW33, 22209 CJK/W33.
