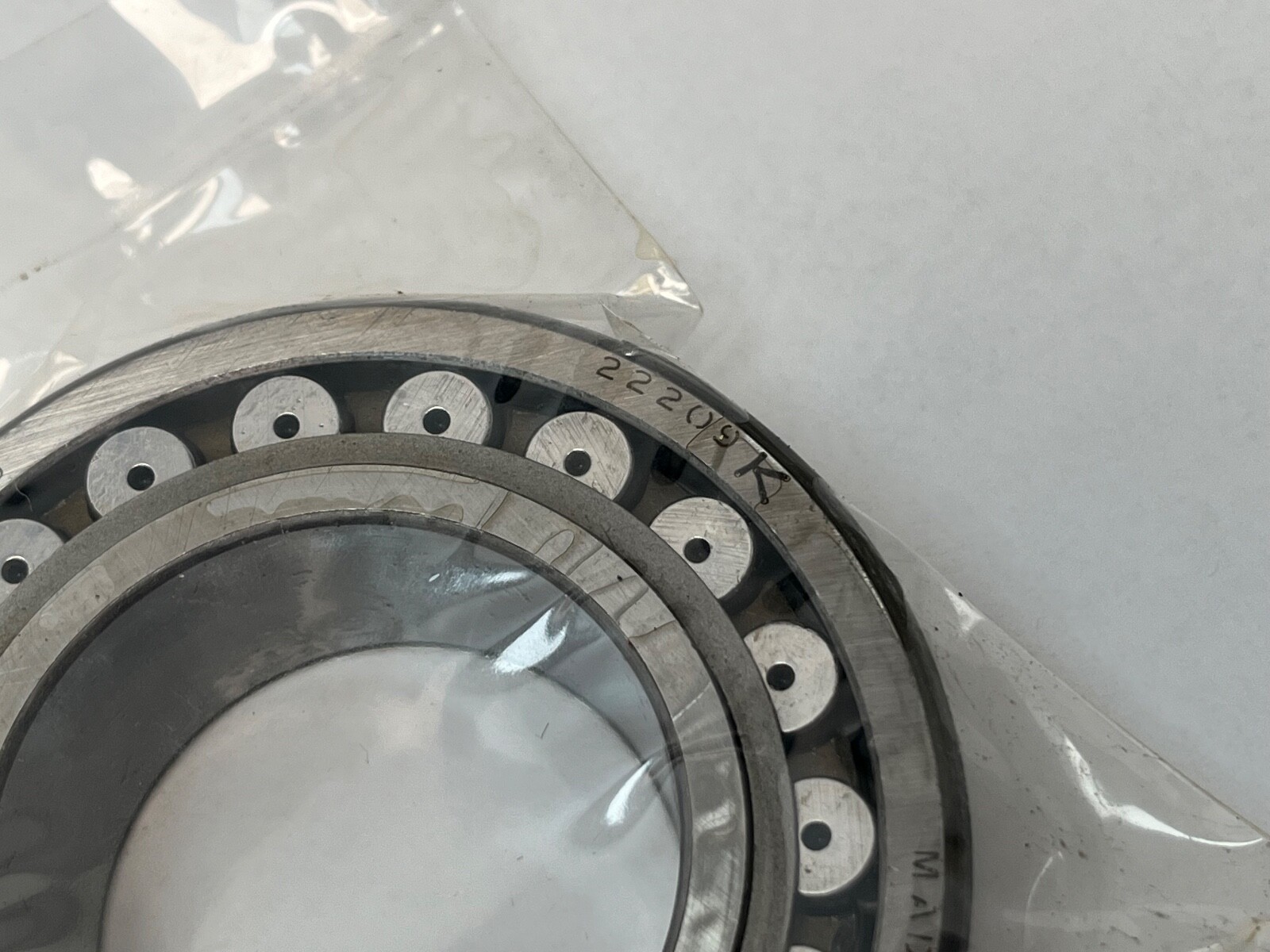

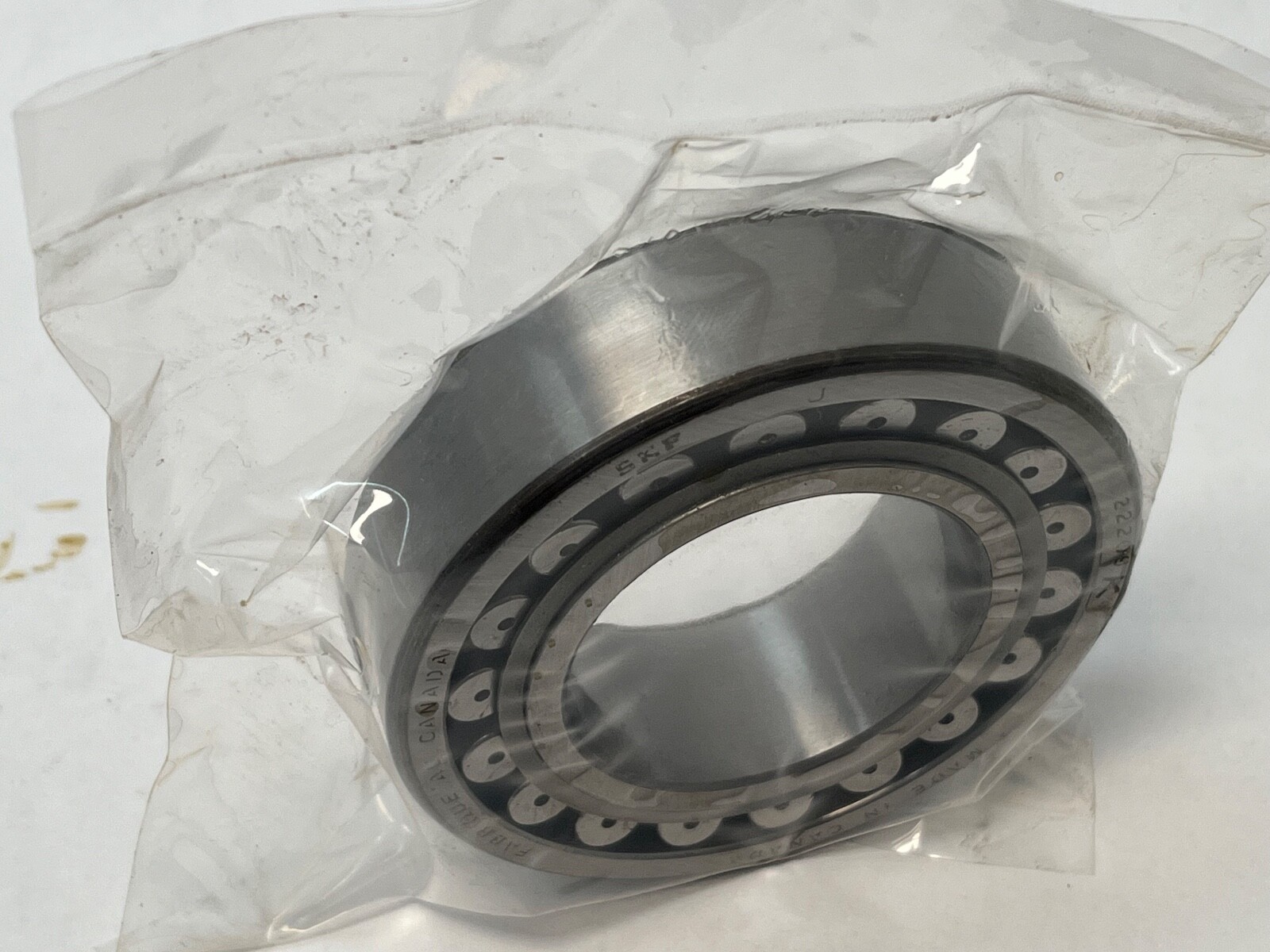

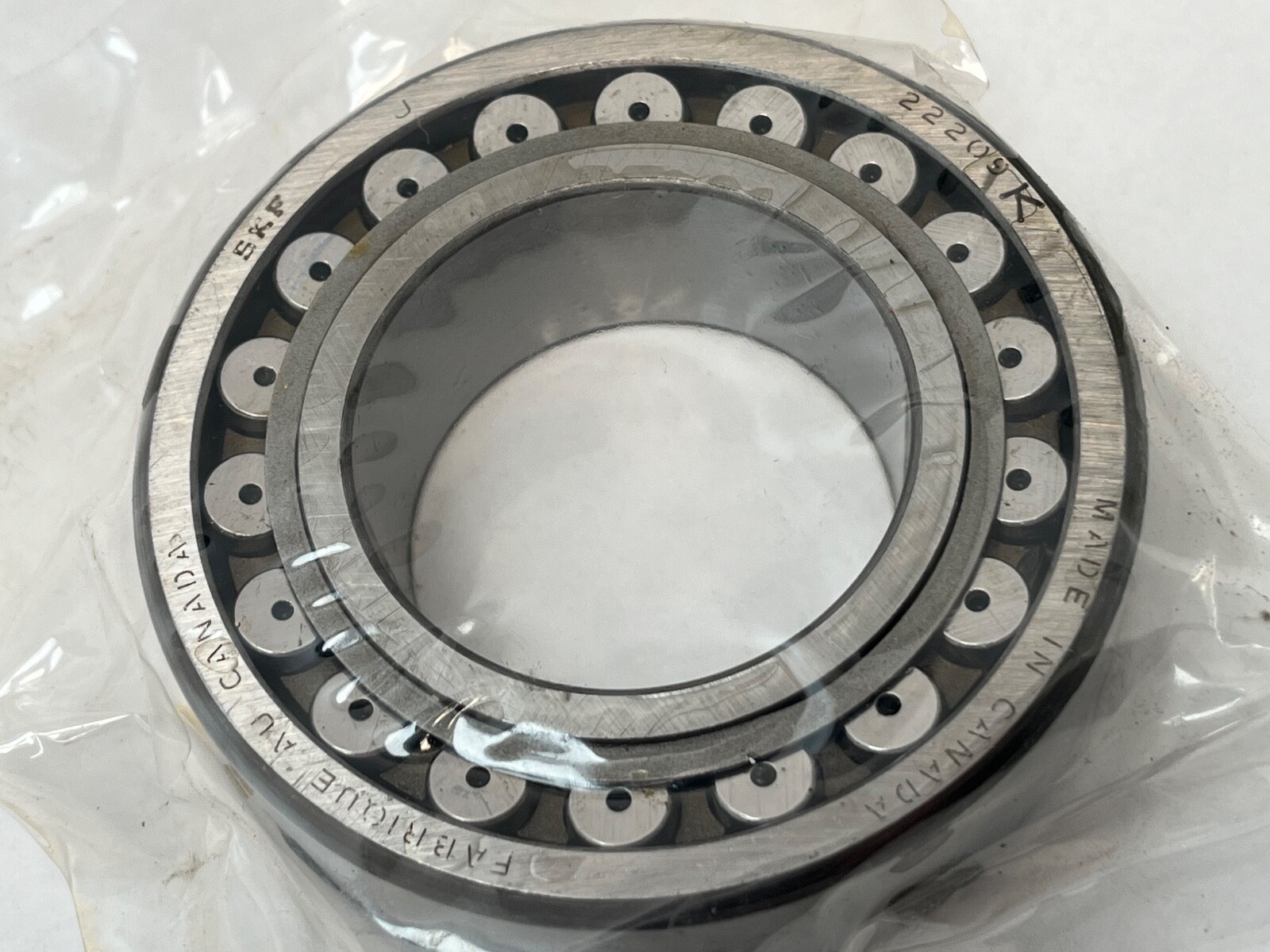

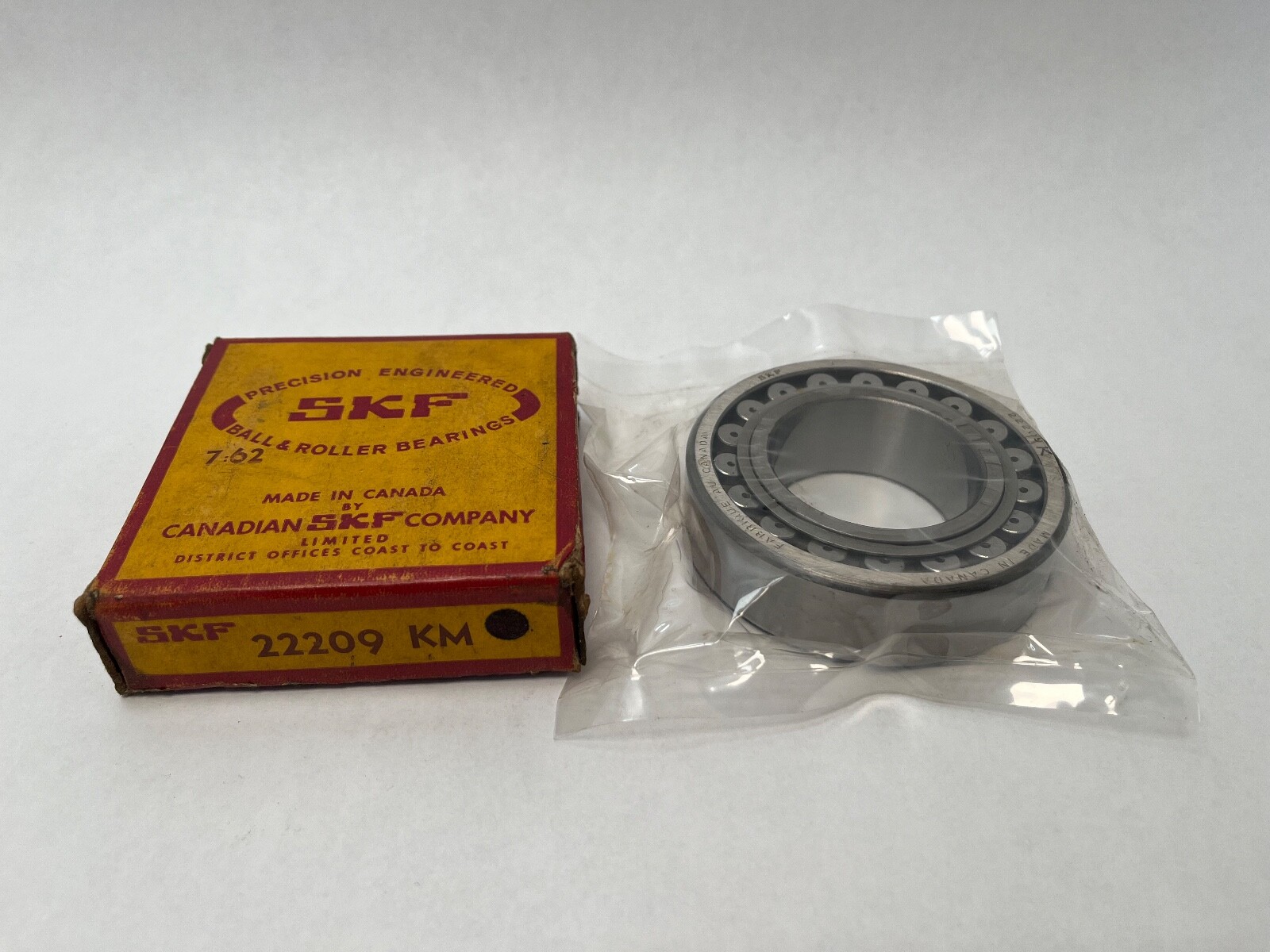

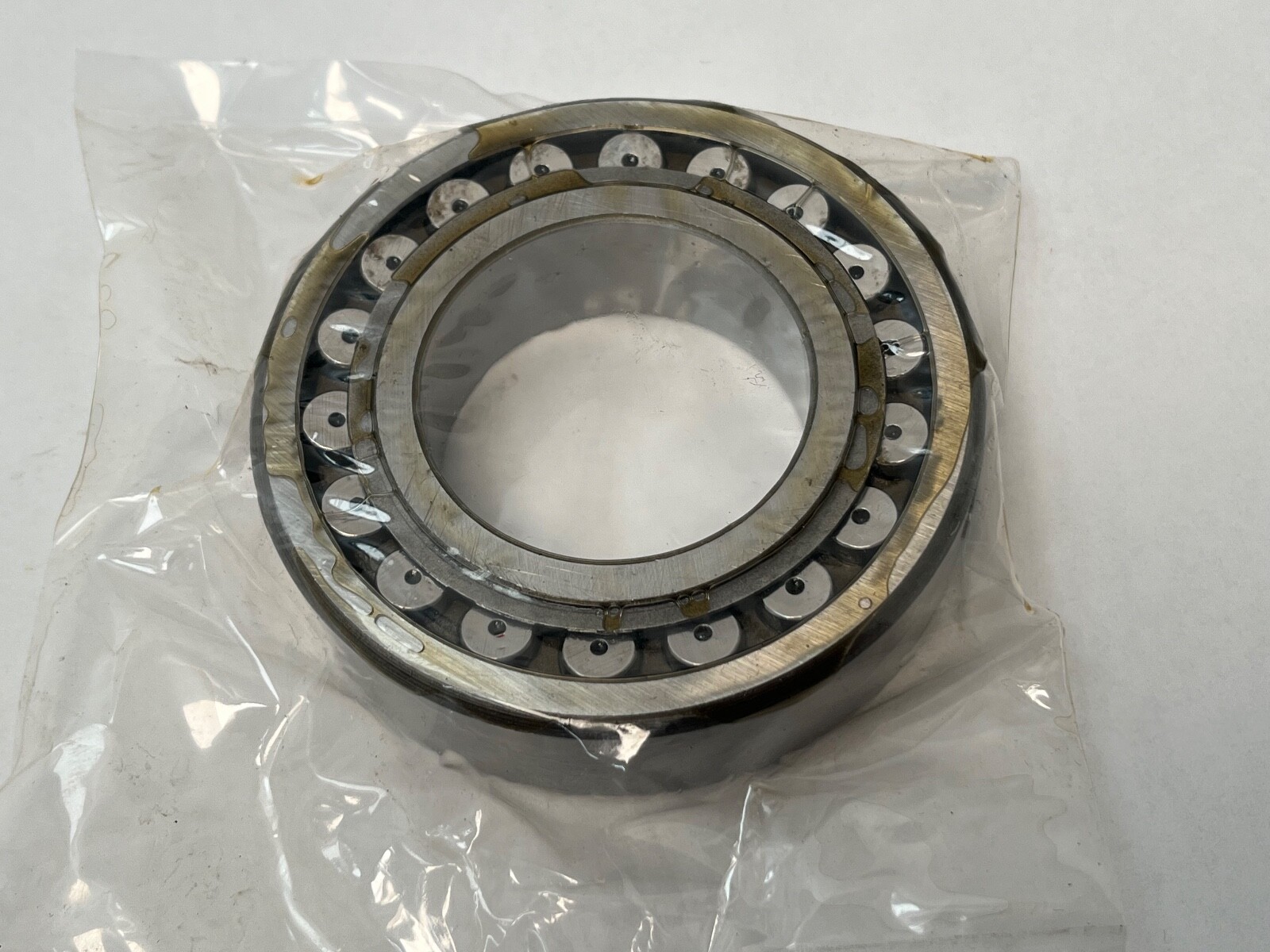

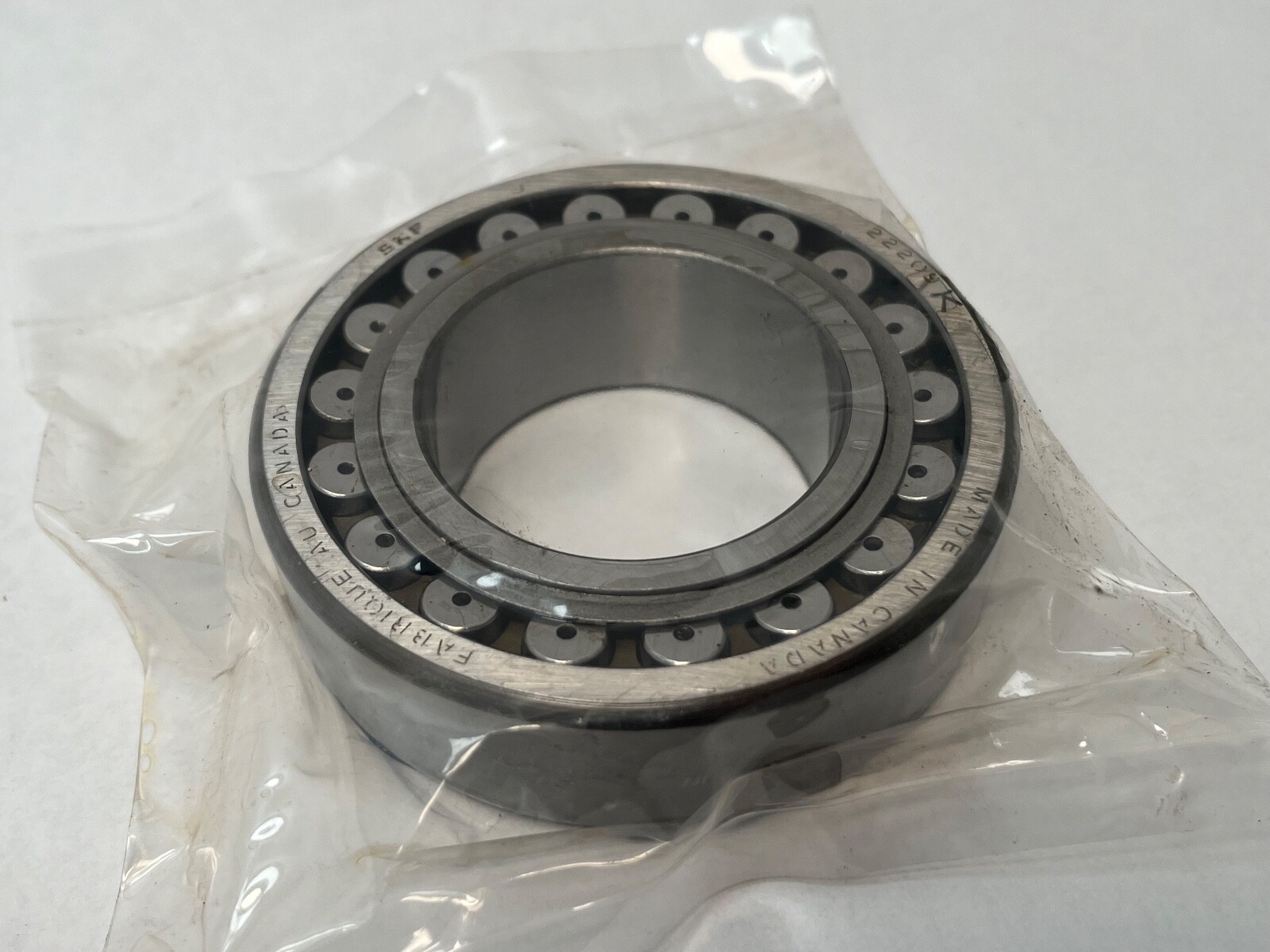

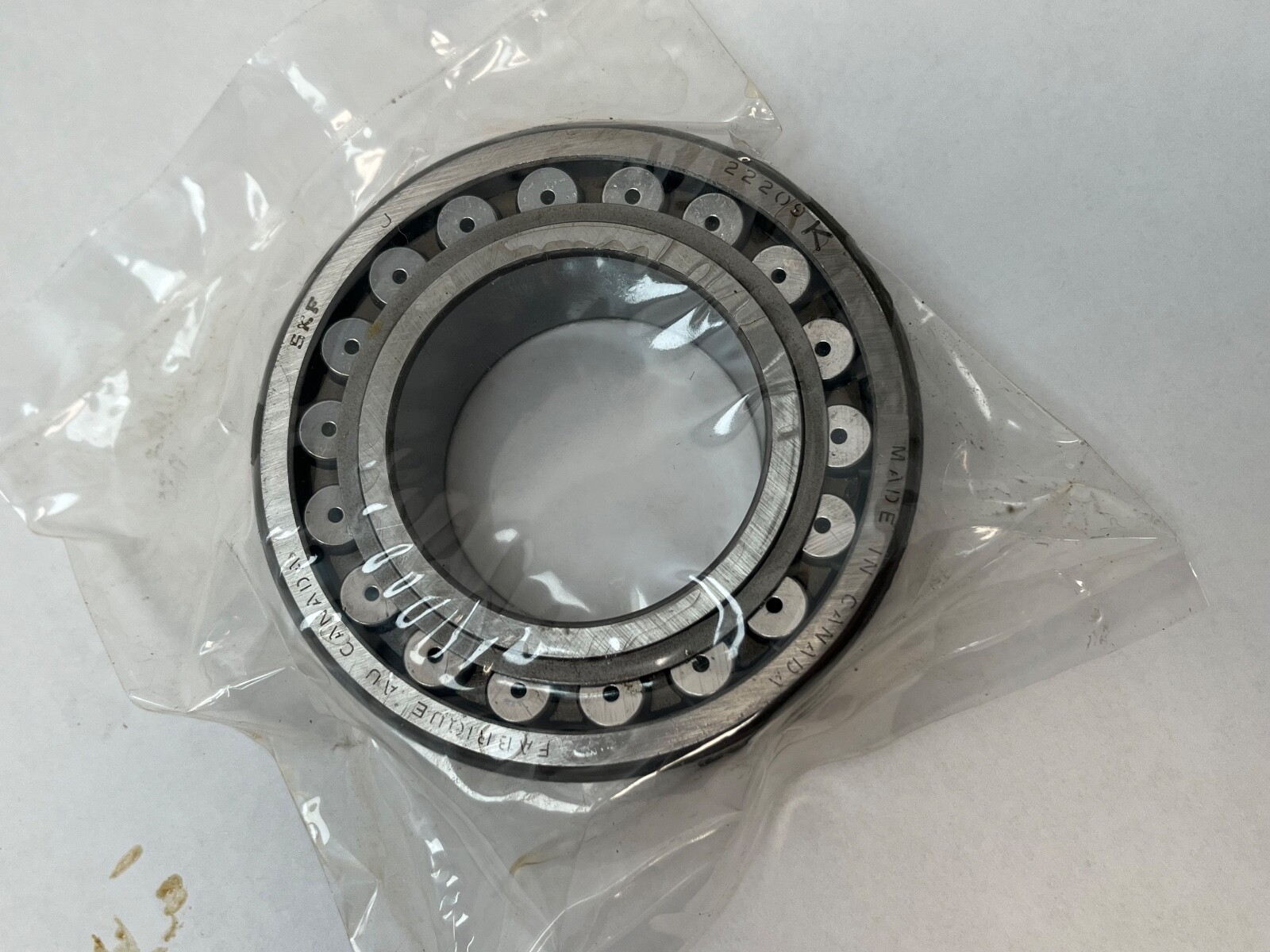

Double-row spherical roller bearing, 45 x 85 x 23 mm, 1:12 tapered bore, machined brass cage, CN clearance, plain outer ring, 1.5° misalignment. 1 Pc.
List Price
$65.92
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 KM |
| Model | 22209 K M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Base Number | 22209 |
| Industry Terms | spherical roller bearing; taper bore spherical roller; brass cage bearing; adapter sleeve bearing; self-aligning roller bearing |
| Common Misspellings | SFK 22209KM; 22209 K-M; 22209KM bearing |
| Application Types | Vibrating screens; crushers; conveyor pulleys; fans and blowers; high-temperature and shock-loaded shaft support |
| Bore Shaft Size | 45 mm (1.7717 in), 1:12 tapered bore |
| Mpn Variants | 22209-KM; 22209KM; 22209 KM; 22209-K-M; 22209 K M |
| Compatible With Replaces | SKF H309 adapter sleeve (40 mm shaft seat), KM9 locknut, MB9 lockwasher |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Part Number | 22209 KM |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | FAG 22209-K-MB |
|---|---|
| Cross Reference 2 | Timken 22209KYM |
| Cross Reference 3 | NSK 22209CAKE4 (related, W33 lubrication groove) |
| Cross Reference 4 | SKF 22209 KM/C3 (related, C3 clearance) |
| Cross Reference 5 | SKF 22209 CCK/W33 (related, pressed steel cage, W33 groove) |
SKF 22209 KM double-row spherical roller bearing. Bore Diameter: 45 mm, 1:12 tapered bore (1.7717 in). Outside Diameter: 85 mm. Width: 23 mm. Series: 222. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Brass. Internal Clearance: CN. Seal Type: Open. Maximum Permissible Misalignment: 1.5°. Unit Quantity: 1 Pc.
222 — double-row spherical roller bearing family.
09 — bore code for a 45 mm bore.
K — 1:12 tapered bore.
M — machined brass cage.
No clearance suffix — normal radial internal clearance, CN.
Bore Type: Tapered Bore. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm. Cage Material: Brass. Internal Clearance: CN. Maximum Permissible Misalignment: 1.5°. Harmonization Code: 8482.30.00.80.
Compatible Adapter Sleeve: SKF H309, 40 mm shaft seat, with KM9 locknut and MB9 lockwasher. The outer ring is plain, with no lubrication groove or holes.
Cross-references: FAG 22209-K-MB; Timken 22209KYM; both 45 mm tapered bore, 85 x 23 mm, machined brass cage, CN. NSK 22209CAKE4 carries a W33 lubrication groove. SKF 22209 KM/C3 has C3 clearance and SKF 22209 CCK/W33 has a pressed steel cage and a W33 groove; both are related sizes.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm.
K — 1:12 tapered bore. M — machined brass cage.
SKF H309 adapter sleeve, 40 mm shaft seat, with KM9 locknut and MB9 lockwasher.
