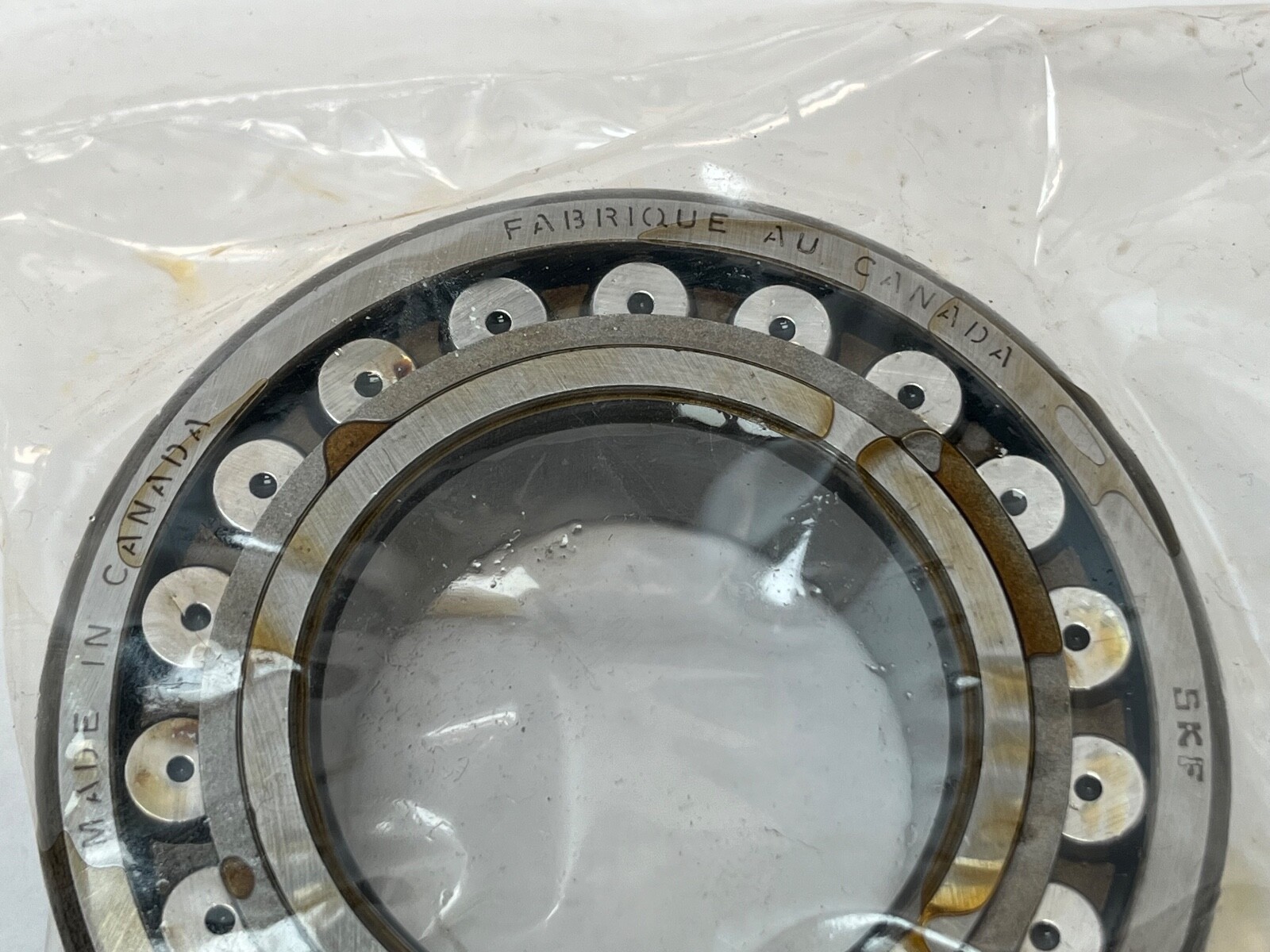

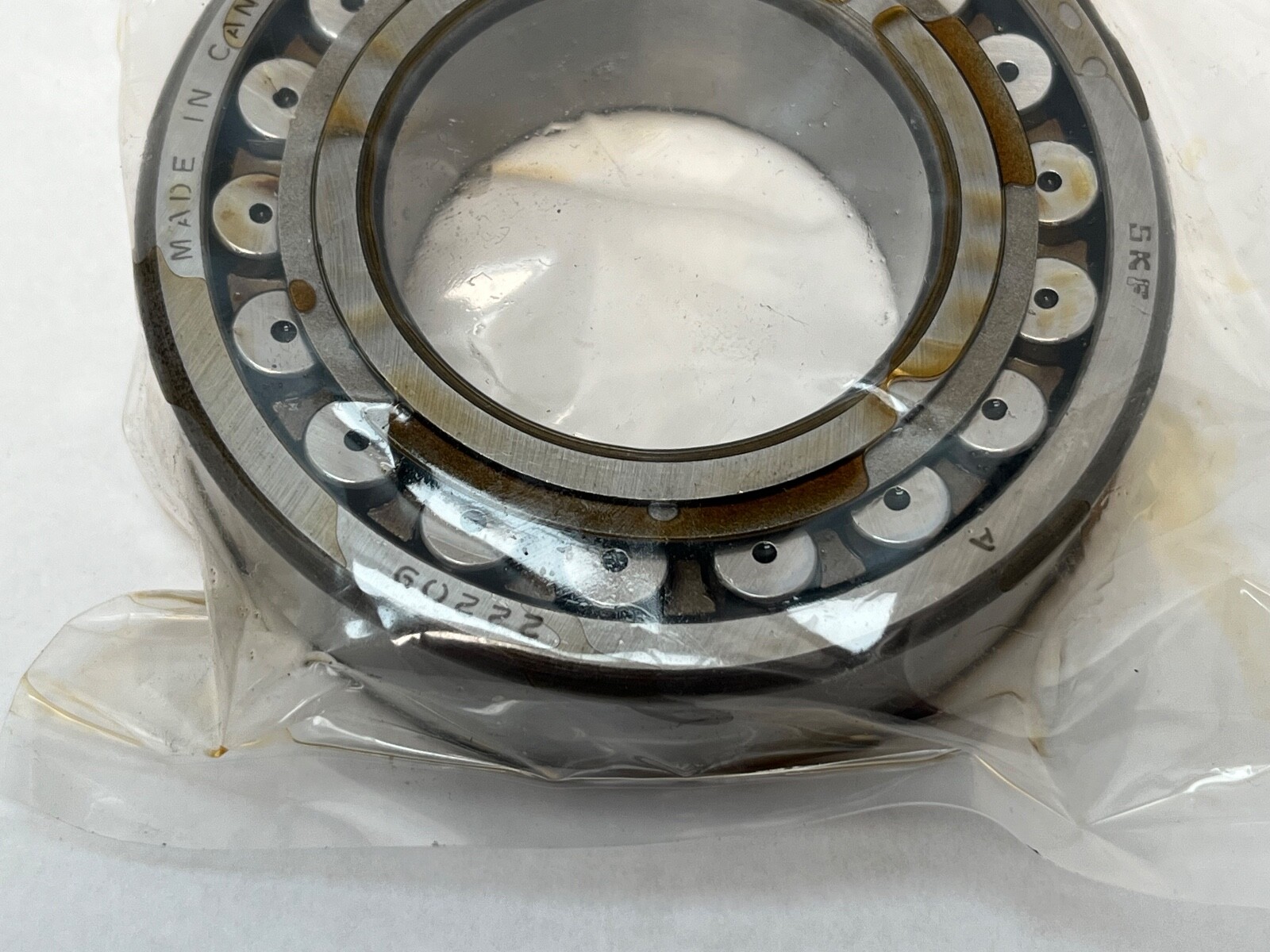

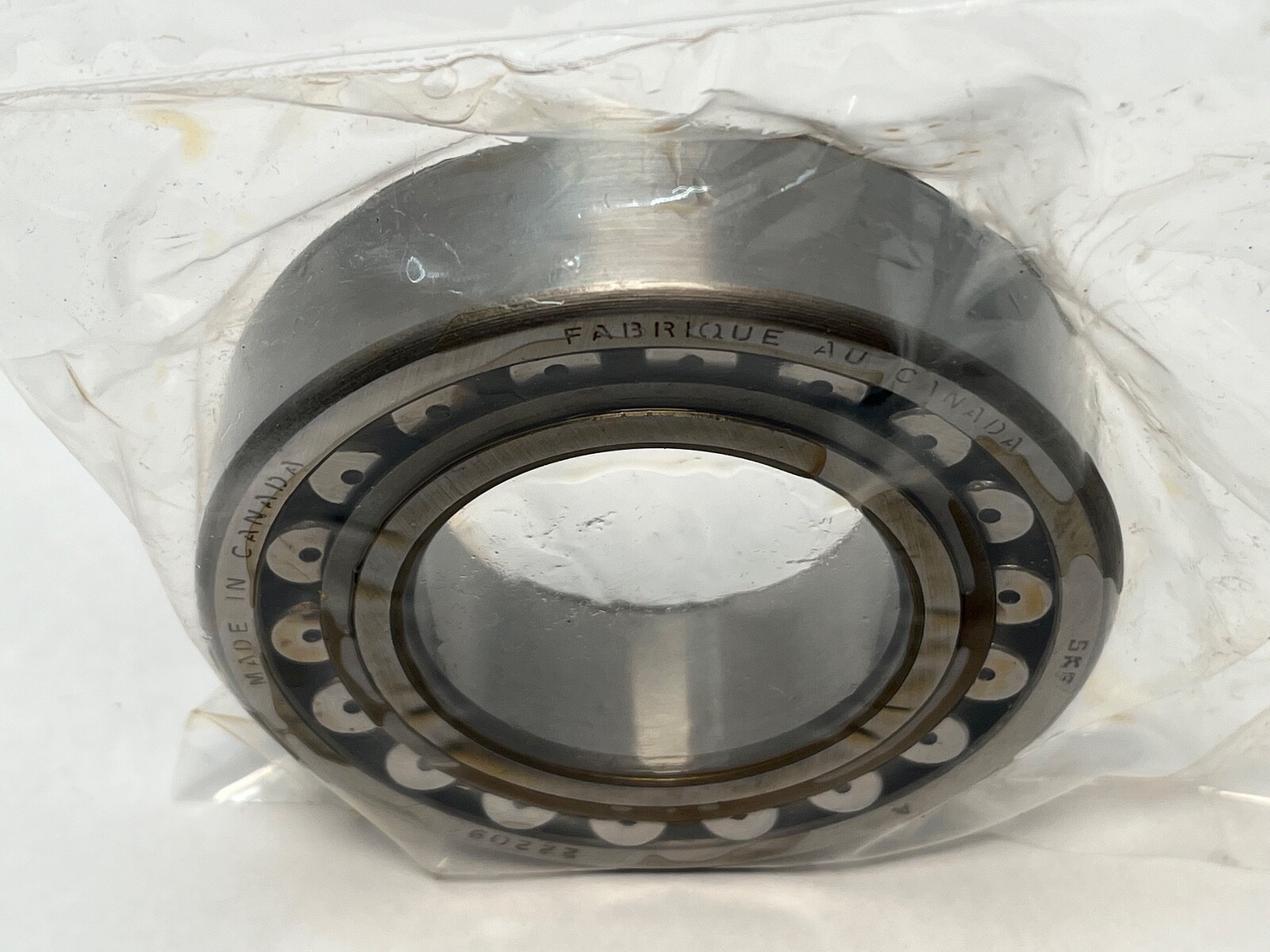

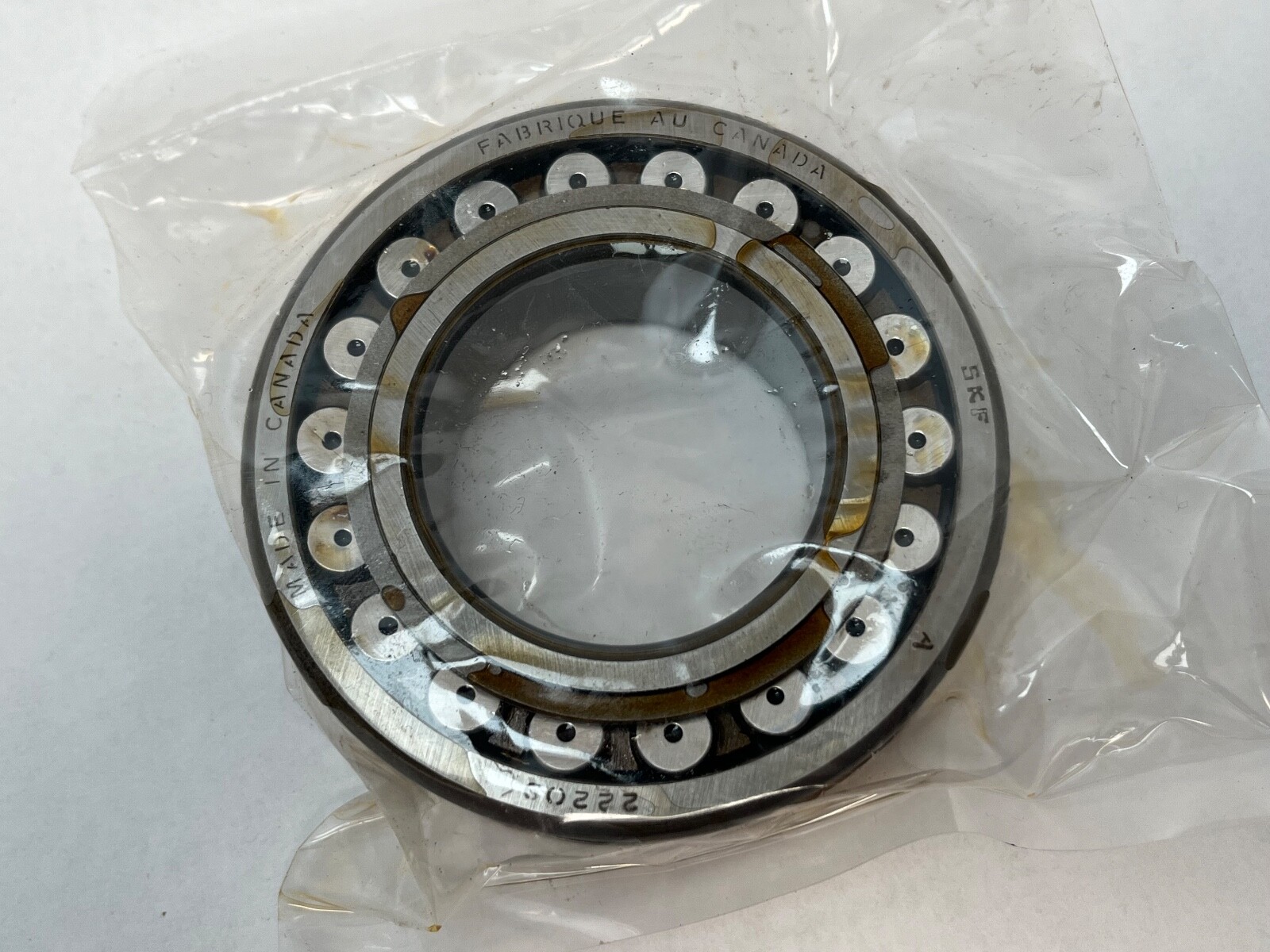

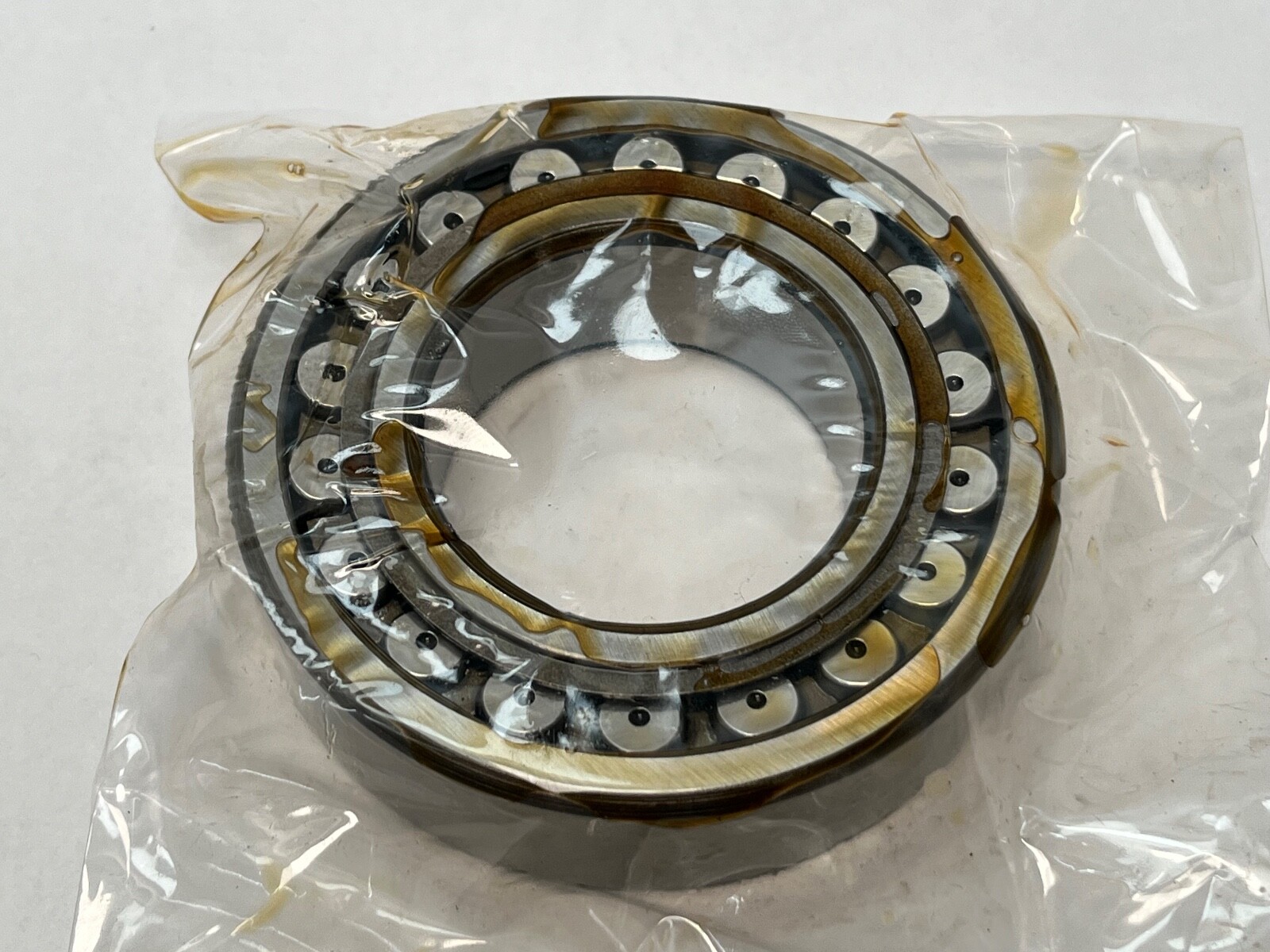

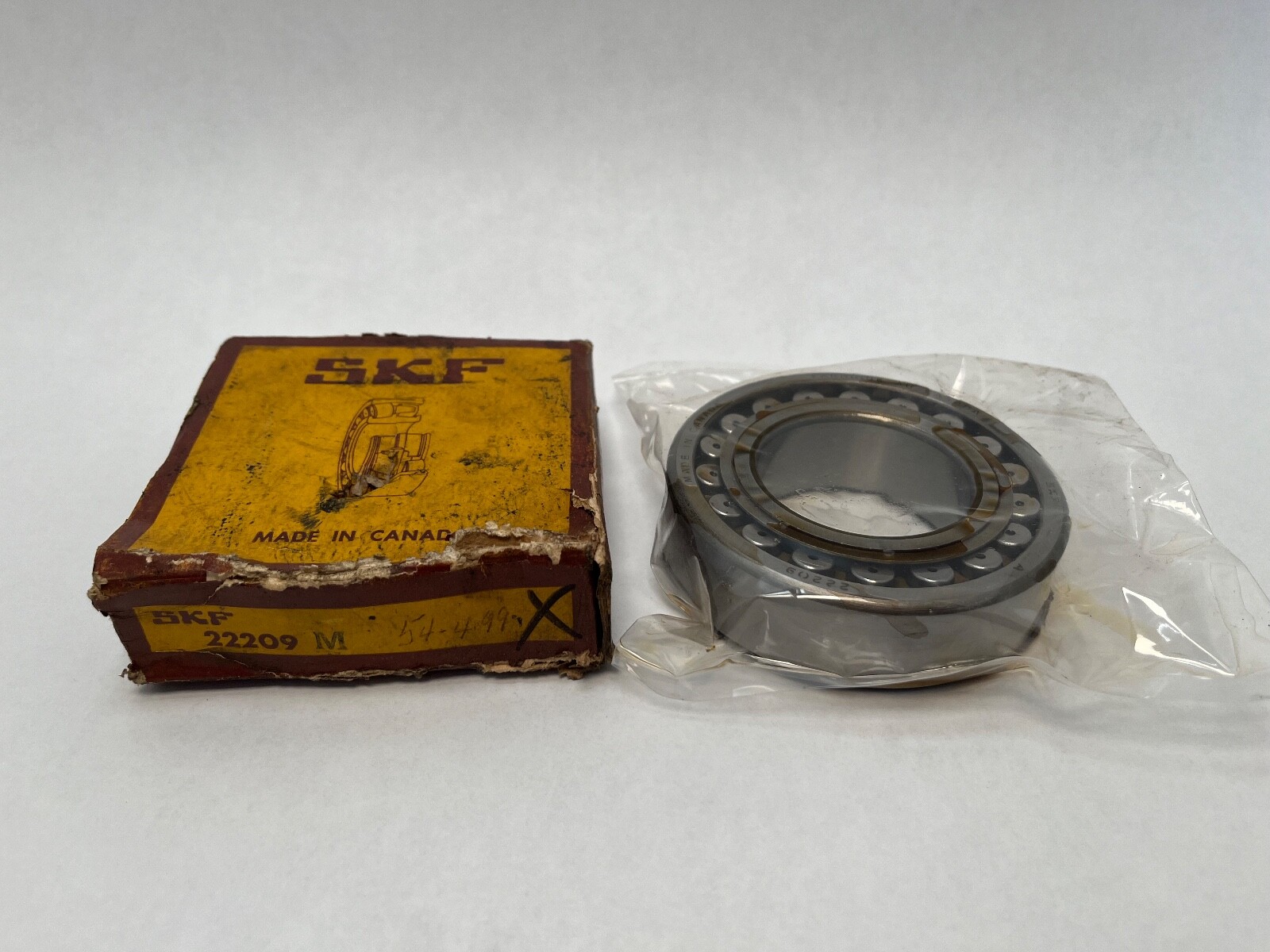

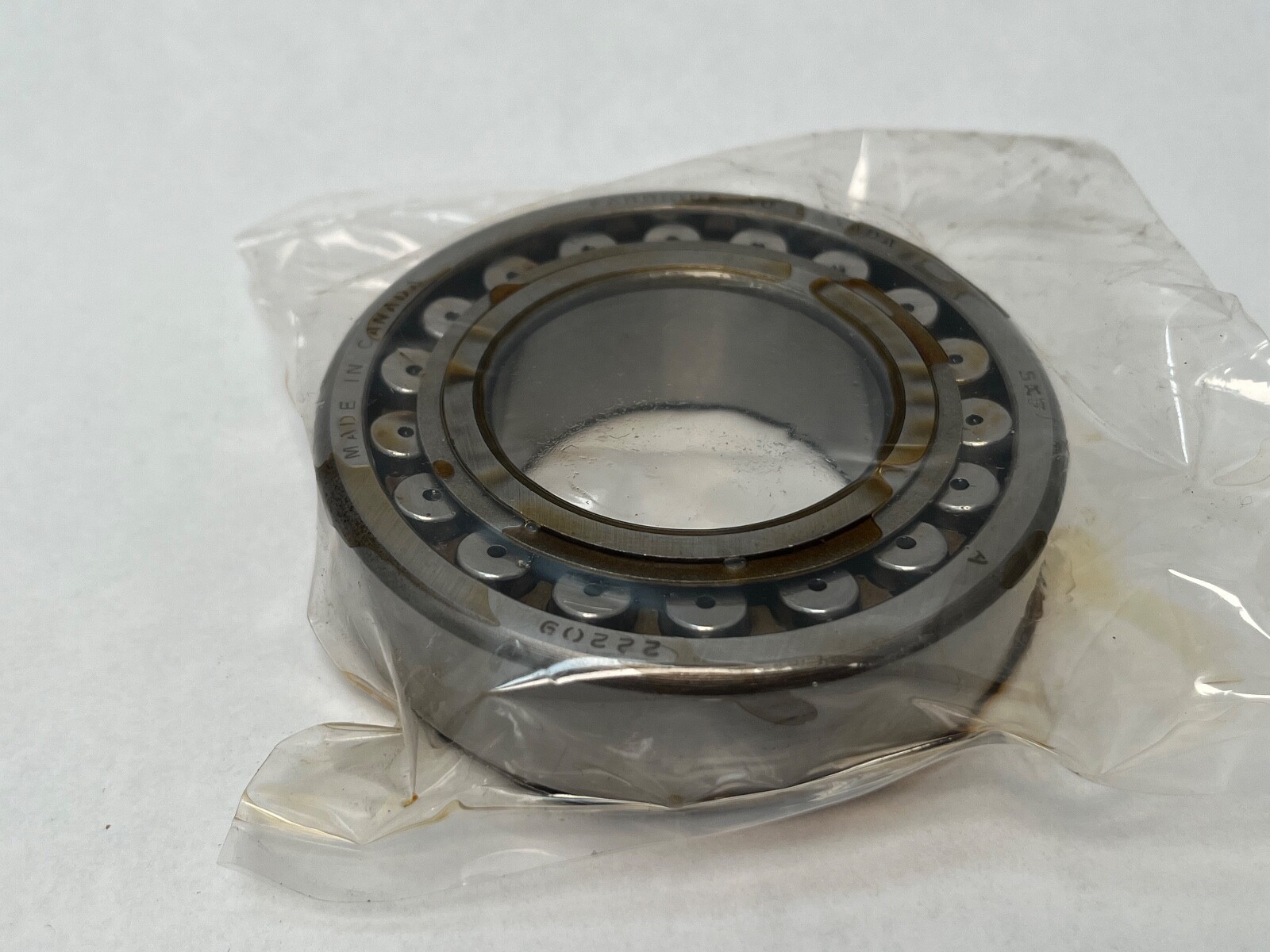

Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, machined brass cage, open, plain outer ring, 1.5° misalignment. SKF 222 series, 1 Pc.
List Price
$65.92
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 M |
| Model | 22209 M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Unspsc | 31171504 |
| Base Number | 22209 |
| Industry Terms | Spherical roller bearing, SRB, brass cage spherical roller, self-aligning roller bearing, double row barrel roller bearing |
| Common Misspellings | 22209 m, 22209-M, 2220 9M, 22209MM, 22209 brass |
| Application Types | Crushers, vibrating screens, mill and quarry drives, hot fans and blowers, conveyors, gearboxes, paper machinery |
| Bore Shaft Size | 45 mm, cylindrical (straight) bore |
| Mpn Variants | 22209M, 22209 M, 22209-M, 22209MB, 22209 MB, 22209MA |
| Manufacturer Status | Envelope current; M machined-cage designation is legacy SKF nomenclature, now catalogued as MB |
| Cage Type | Machined |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Harmonization Code | 8482.30.00.80 |
| Part Number | 22209 M |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22209 E (related, pressed steel cage) |
|---|---|
| Cross Reference 2 | SKF 22209 CC/W33 (related, pressed steel cage, W33 groove) |
| Cross Reference 3 | FAG 22209-E1-XL (related, steel cage) |
| Cross Reference 4 | NSK 22209EAE4 (related, steel cage) |
| Cross Reference 5 | NTN 22209BD1 (related, steel cage) |
| Cross Reference 6 | SKF 22209 K (related, 1:12 tapered bore) |
| Cross Reference 7 | SKF 22209 CCK (related, tapered bore, pressed steel cage) |
SKF 22209 M double-row spherical roller bearing with a machined brass cage. Bore Diameter: 45 mm, cylindrical (straight) bore. Outside Diameter: 85 mm. Width: 23 mm. Series: 222 (ISO dimension series 3). Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Brass. Cage Type: Machined. Seal Type: Open. Maximum Permissible Misalignment: 1.5°. Unit Quantity: 1 Pc.
222 — ISO dimension series for spherical roller bearings.
09 — bore reference number; 9 x 5 = 45 mm bore.
M — machined brass cage.
No K — cylindrical bore.
No W33 — plain outer ring without a lubrication groove.
Bore Type: Straight. Cage Material: Brass. Cage Type: Machined. Seal Type: Open. Maximum Permissible Misalignment: 1.5°. Harmonization Code: 8482.30.00.80.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm. Bore Type: Straight, cylindrical, 45 mm shaft seat.
Related 22209 variants on the same 45 x 85 x 23 mm envelope: SKF 22209 E and SKF 22209 CC/W33 (pressed steel cage); FAG 22209-E1-XL, NSK 22209EAE4 and NTN 22209BD1 (steel cage); SKF 22209 K and 22209 CCK (1:12 tapered bore).
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm.
Cage Material: Brass. M — machined brass cage.
Bore Type: Straight. There is no K in the designation, so the 45 mm bore is cylindrical.
