Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

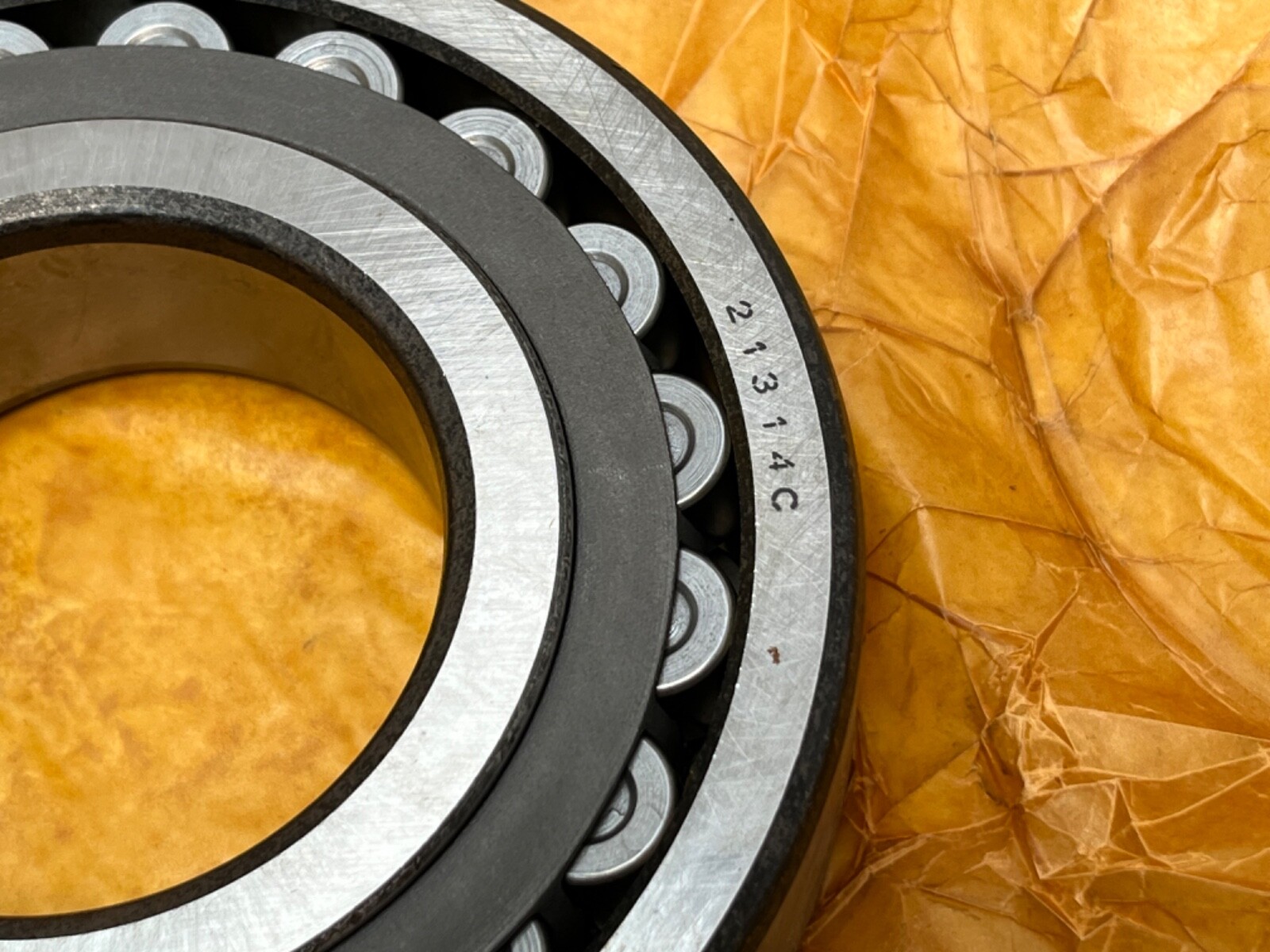

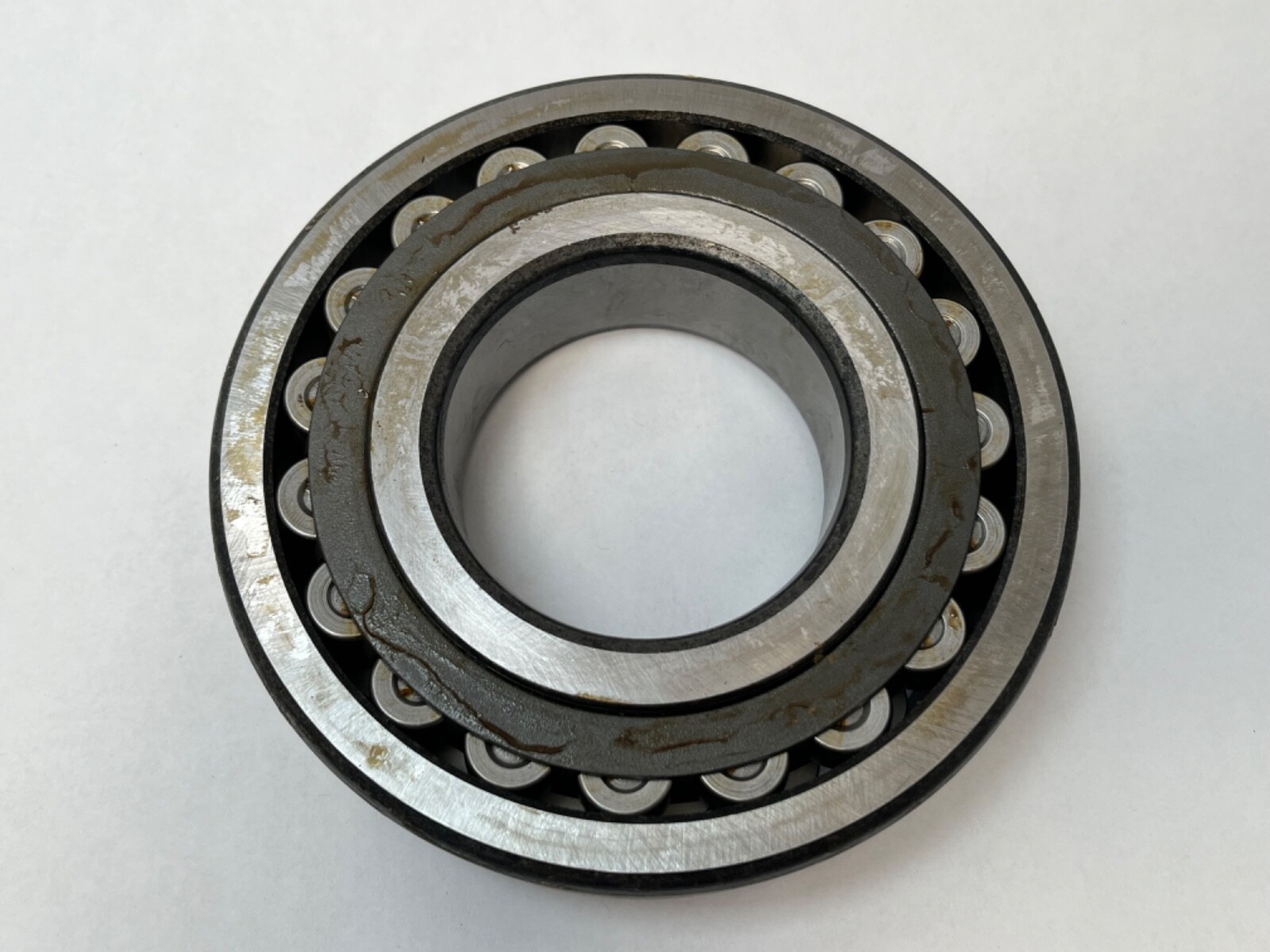

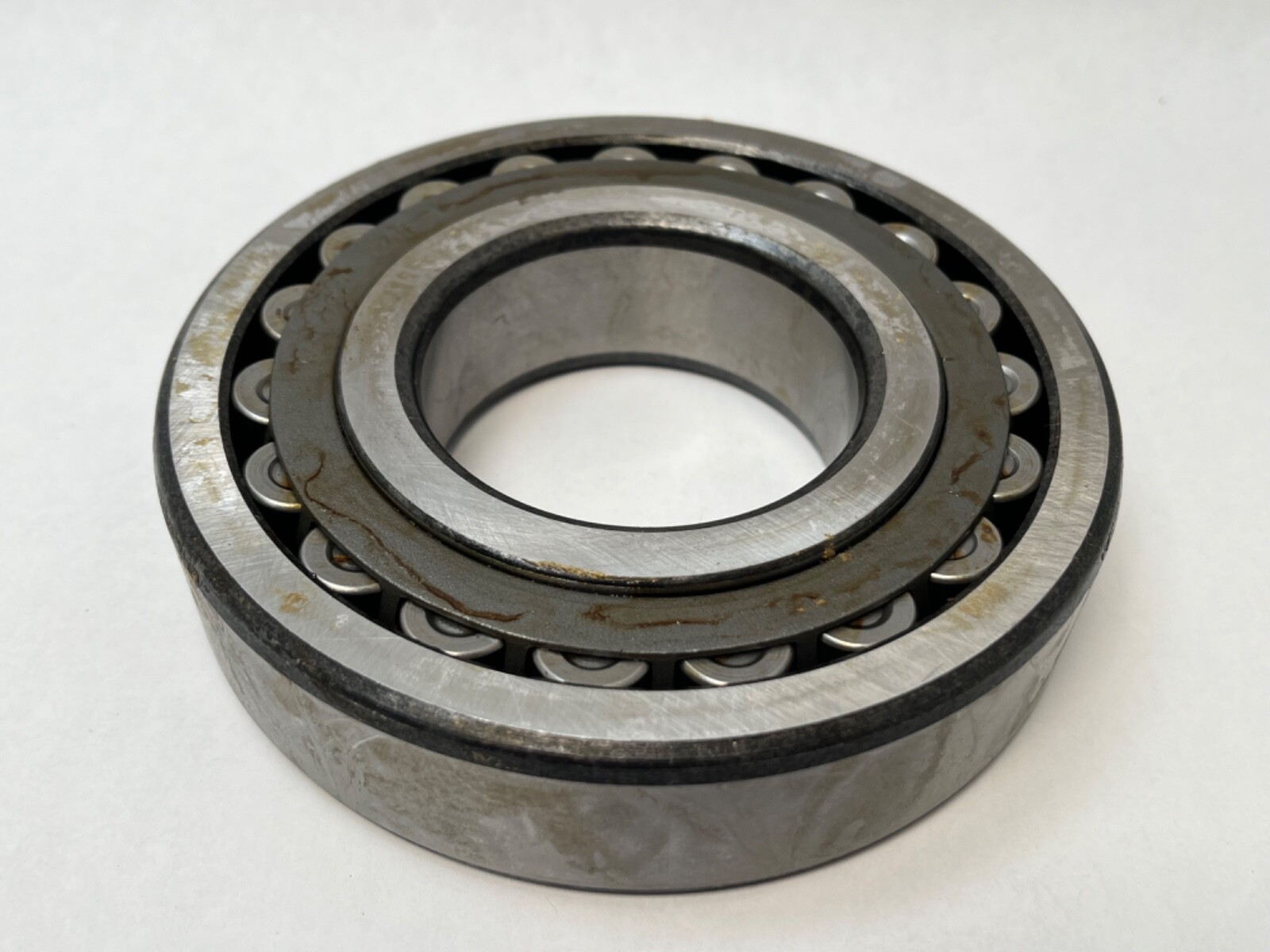

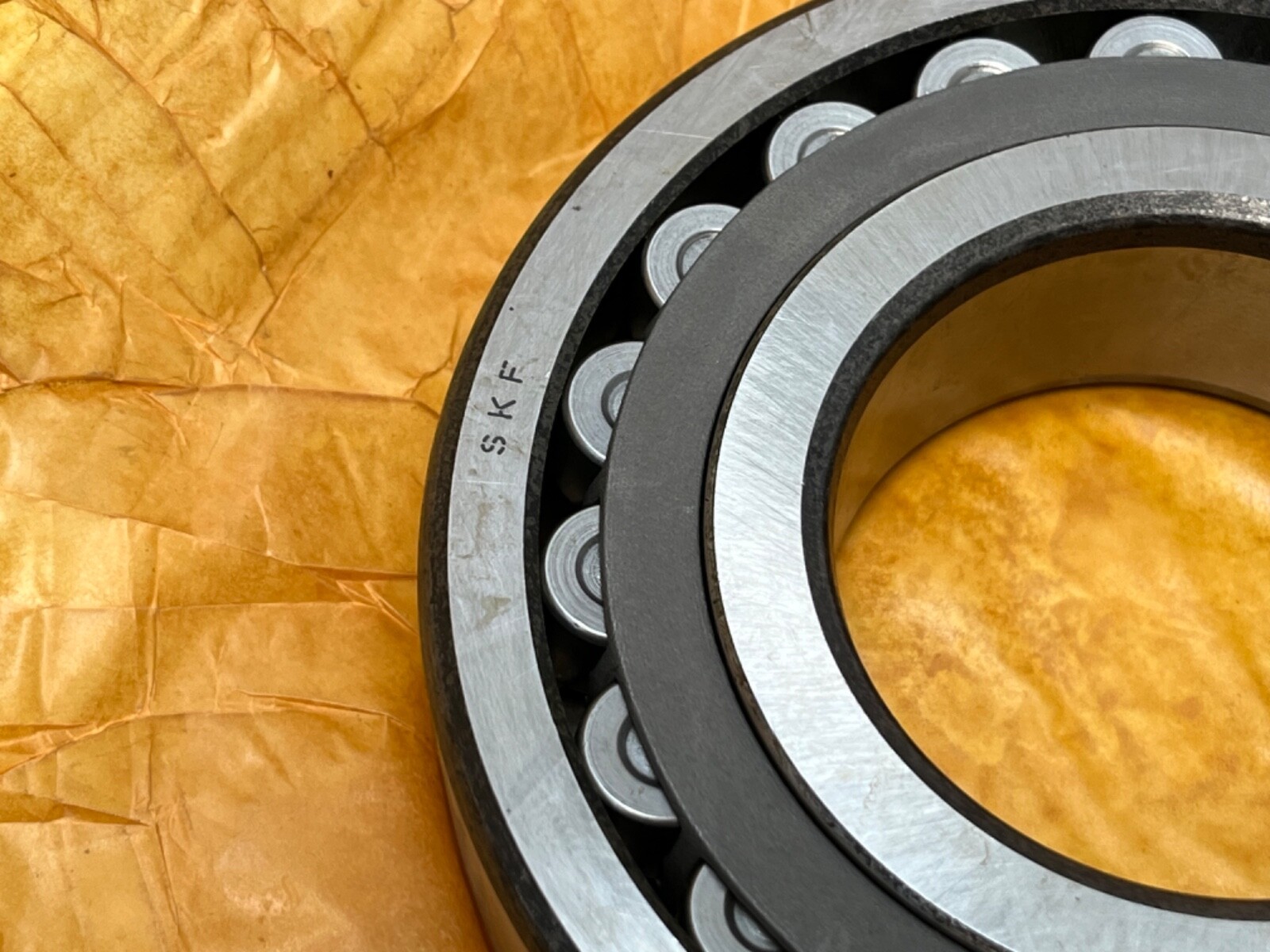

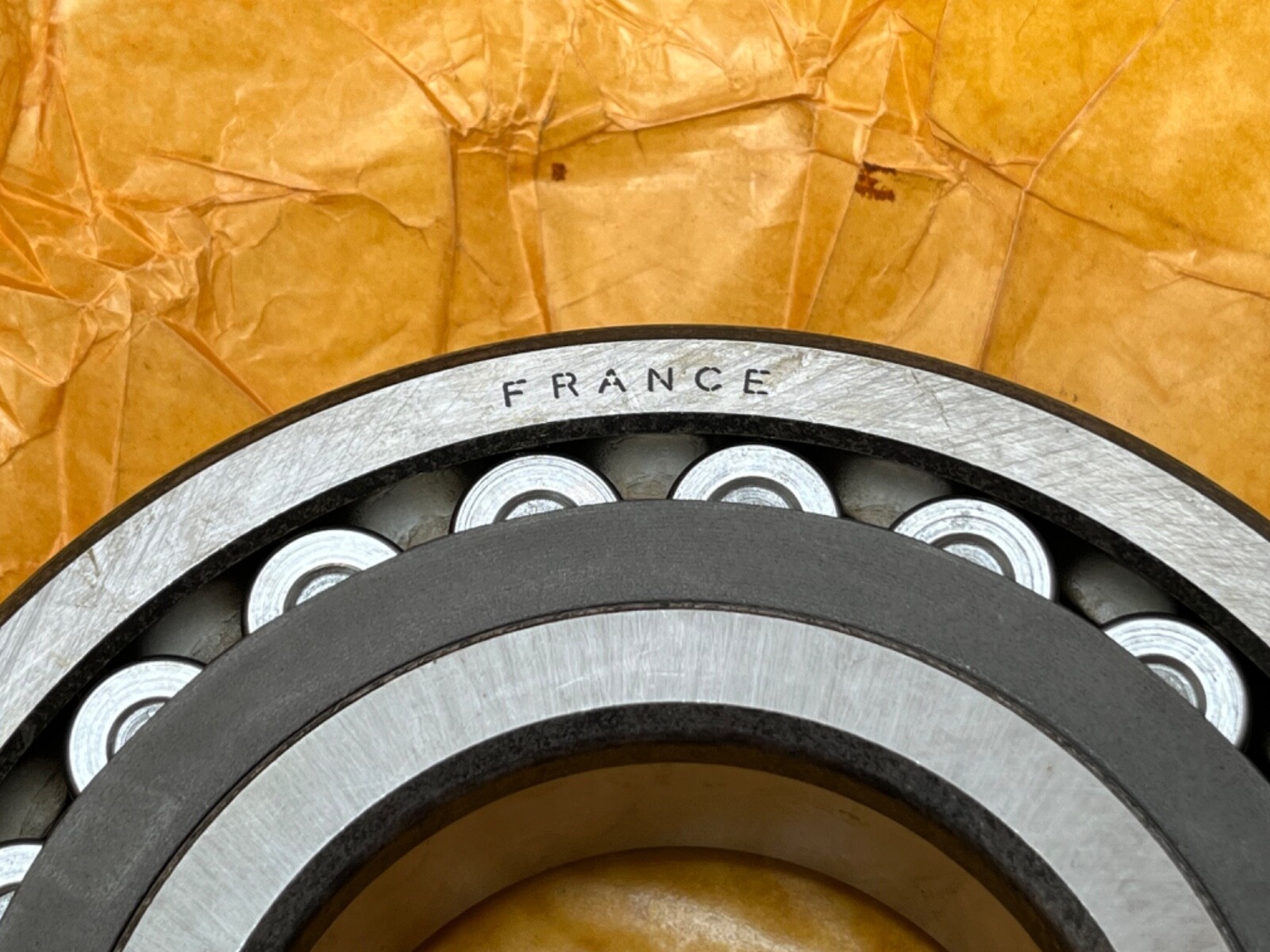

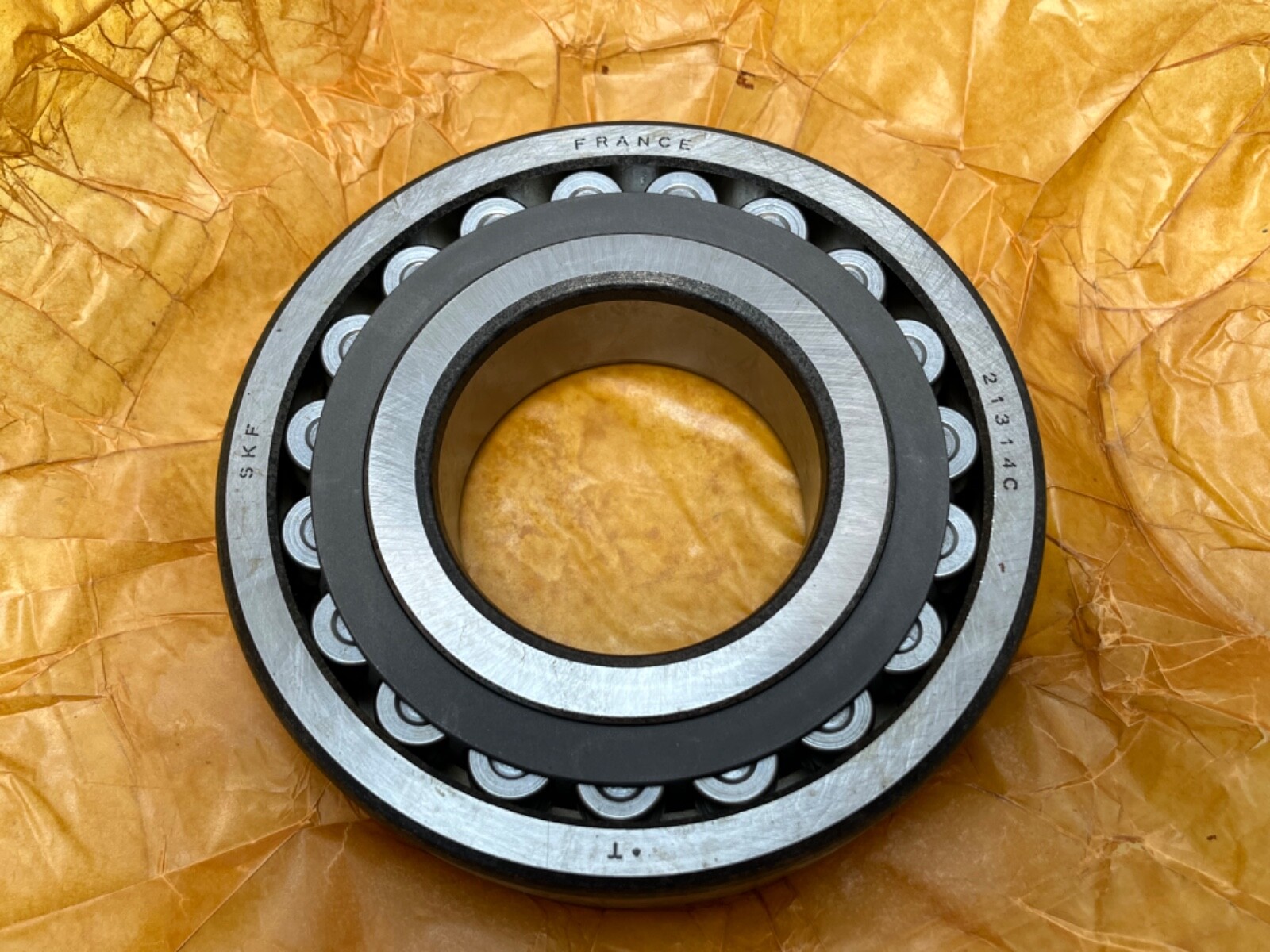

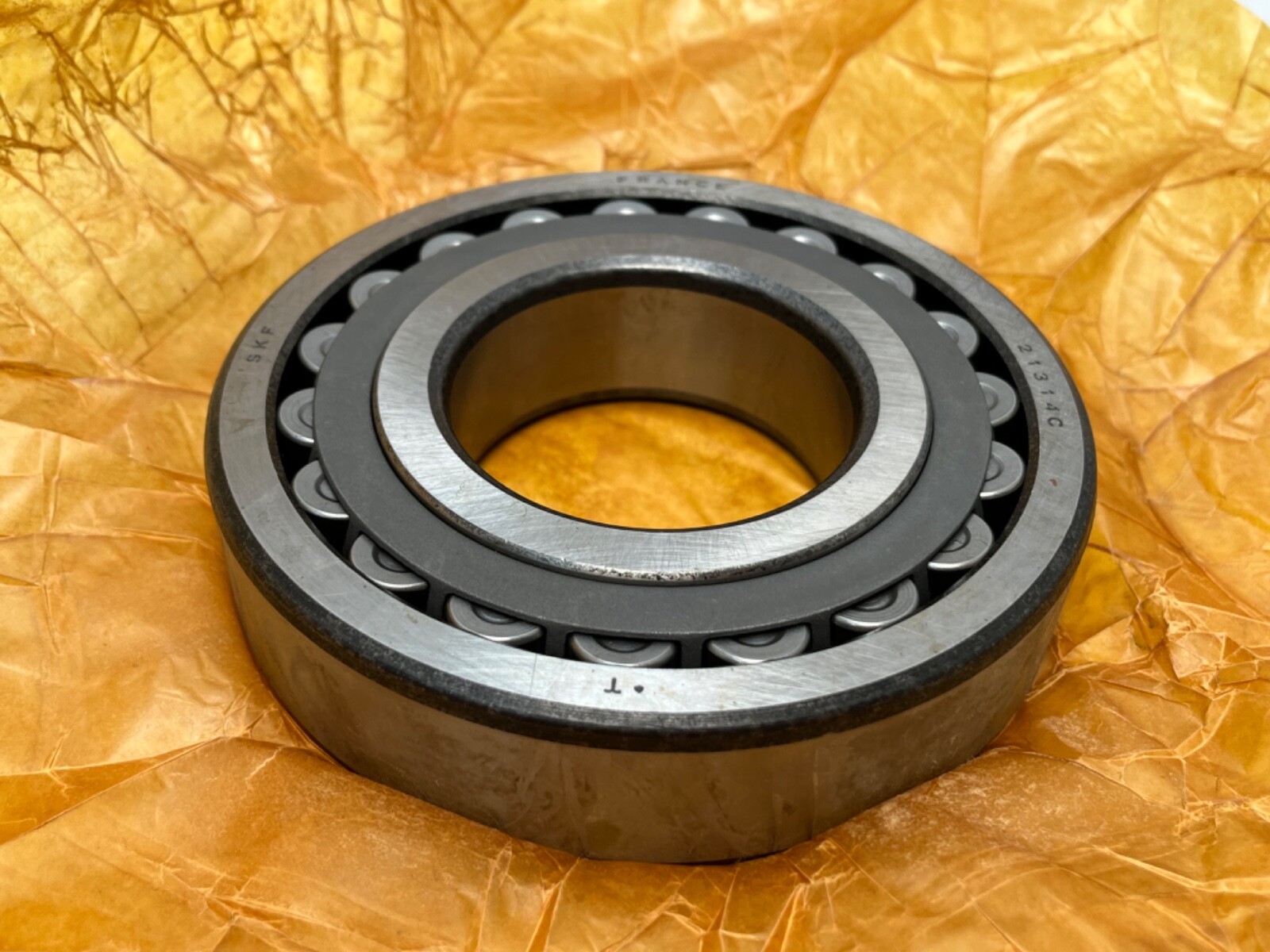

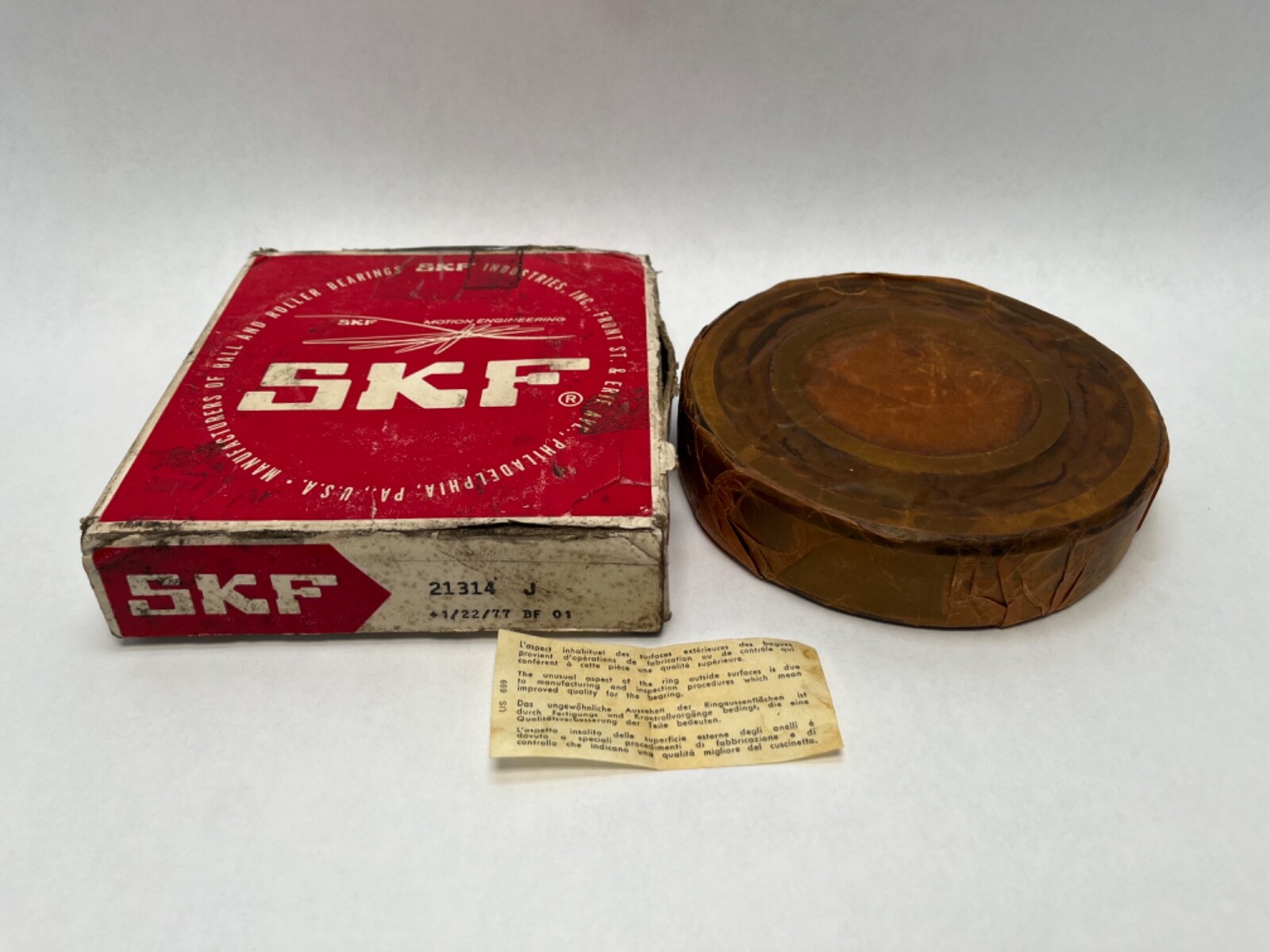

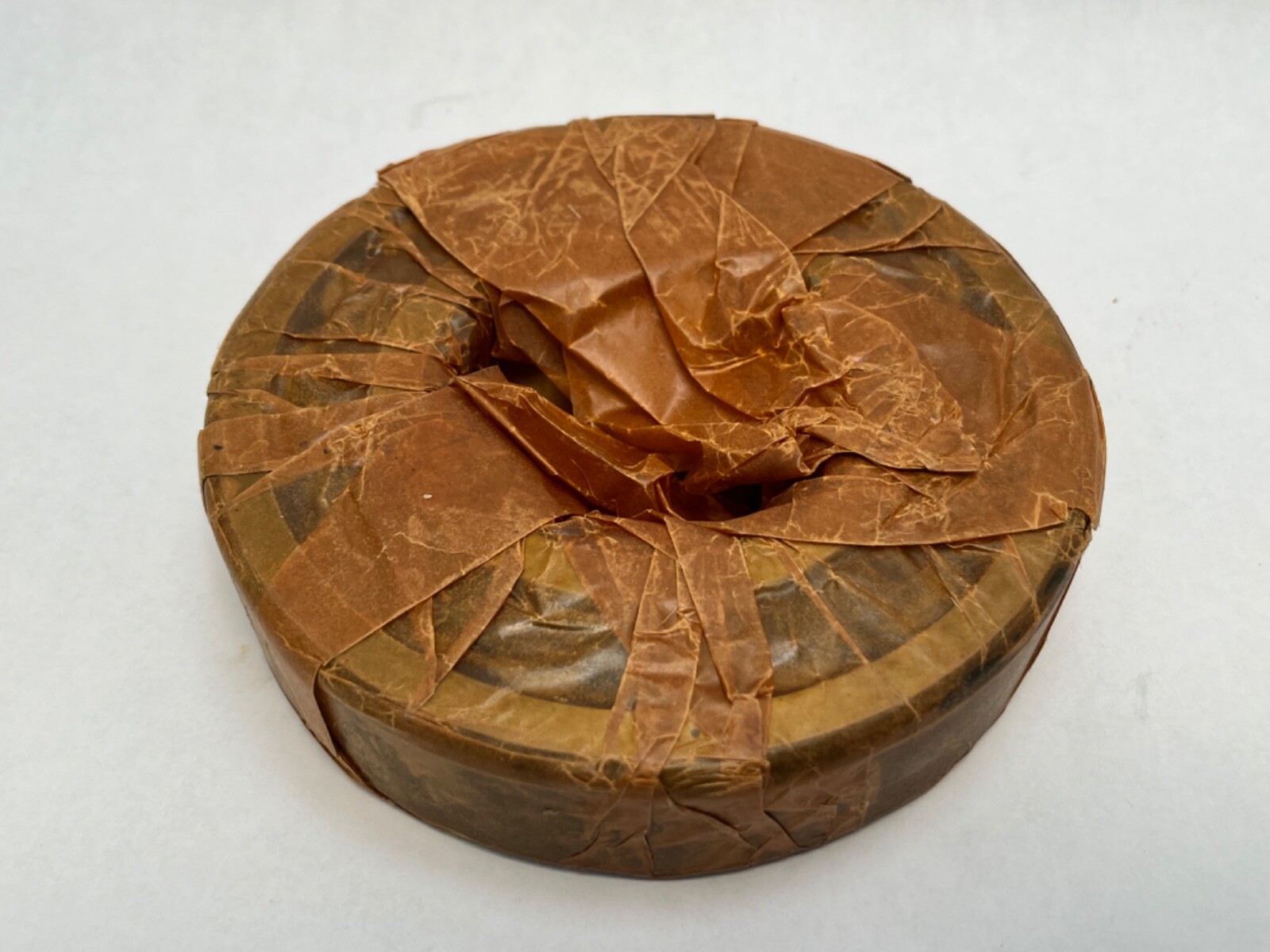

SKF 21314 J double-row spherical roller bearing, 70 mm straight bore, 150 mm OD, 35 mm wide, pressed-steel cage, open on both faces. New old stock, one bearing.
List Price
$60.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 21314 J |
| Model | 21314 J / 21314C 21314CC 21314CJ 21314CCJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Series | 21300 |
|---|---|
| Material | Bearing Steel |
| Unspsc | 31171504 |
| Base Number | 21314 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; double row barrel bearing; misalignment bearing; low section spherical roller |
| Common Misspellings | 21314-J SKF; 2134J; 21314 JJ; SFK 21314J; 21341J |
| Application Types | Fans and blowers; conveyor pulleys and idlers; gearbox and reducer shafts; pumps; agitators; vibrating shafts |
| Bore Shaft Size | 70 mm (2.7559 in), straight cylindrical bore |
| Mpn Variants | 21314-J; 21314J; 21314 J; 21314CJ; 21314CCJ; 21314 |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.0000 |
| Internal Clearance | CN |
| Part Number | 21314 J |
| Overall Width | 35 mm |
| Cross Reference 1 | FAG 21314-E1 |
|---|---|
| Cross Reference 2 | NSK 21314EAE4 |
| Cross Reference 3 | Torrington 21314 |
| Cross Reference 4 | 21314 J/C3 (related, C3 clearance) |
| Cross Reference 5 | 21314 CKJ (related, 1:12 tapered bore) |
An SKF 21314 J double-row spherical roller bearing, 70 mm straight bore, 150 mm outside diameter, 35 mm width, open on both faces. Two rows of asymmetric barrel rollers run on a common spherical outer raceway, so the bearing takes up shaft and housing misalignment and carries radial load together with axial load in both directions.
213 — ISO dimension series 213, the low-section spherical roller family.
14 — bore code; 14 x 5 = 70 mm bore.
J — pressed-steel cage execution.
Bore Diameter: 70 mm (2.7559 in). Outside Diameter: 150 mm. Overall Width: 35 mm. Bearing Type: Spherical roller bearing, double row. Rolling Elements: Asymmetric barrel rollers. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN. Series: 21300. Material: Bearing Steel. Unit Quantity: 1 Pc.
Straight cylindrical bore, seated directly on the shaft journal. Plain outer ring with no lubrication groove or radial holes. Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm.
Straight-bore crosses, all 70 x 150 x 35 mm: FAG 21314-E1, NSK 21314EAE4 and Torrington 21314. Related sizes: 21314 CKJ has a 1:12 tapered bore and uses an H314 adapter sleeve; 21314 J/C3 differs in clearance class.
70 mm bore, 150 mm outside diameter, 35 mm width.
Straight cylindrical. The tapered-bore version is 21314 CKJ.
A pressed-steel cage execution.
