Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Double-row spherical roller bearing, 55 x 100 x 25 mm, 1:12 tapered bore for an H311 adapter sleeve, open, pressed steel cage, CN clearance.
List Price
$67.26
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22211 CCK |
| GTIN | 7316576652189 |
| Model | 22211 CC K / 22211 C K J / 22211 C K |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 22211 |
| Industry Terms | double row spherical roller bearing, self-aligning bearing |
| Bore Shaft Size | 55 mm |
| Locking Method | H311 adapter sleeve with KM11 locknut and MB11 lockwasher |
| Mpn Variants | 22211CCK, 22211 CC K, 22211-CC-K, 22211CKJ, 22211CK |
| Compatible With Replaces | SKF H311 adapter sleeve, KM11 locknut, MB11 lockwasher |
| Precision Class | P0 (ABEC 1) |
| Cage Type | Pressed |
| Dynamic Load Rating | 129 kN / 29,000 lbf |
| Static Load Rating | 127 kN / 28,551 lbf |
| Rolling Elements | Spherical Rollers |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Limiting Speed | 6,300 rpm |
| Harmonization Code | 8482.30.00 |
| Part Number | 22211CCK |
| Maximum Permissible Misalignment | 2° |
| Common Misspellings | SFK 22211 CCK; 22211CCK bearing; 22211 C K; 22211-C-K |
| Application Types | Conveyor pulleys; fans and blowers; gearboxes; adapter-sleeve mounted shafts |
| Cross Reference 1 | FAG 22211-E1-K - E design, higher rating |
|---|---|
| Cross Reference 2 | NTN 22211EAKD1 - EA design, higher rating |
| Cross Reference 3 | Timken 22211K |
| Cross Reference 4 | NSK 22211EAKE4 - EA design, higher rating |
| Cross Reference 6 | 22211 CCK/W33 (related size, outer-ring lubrication groove) |

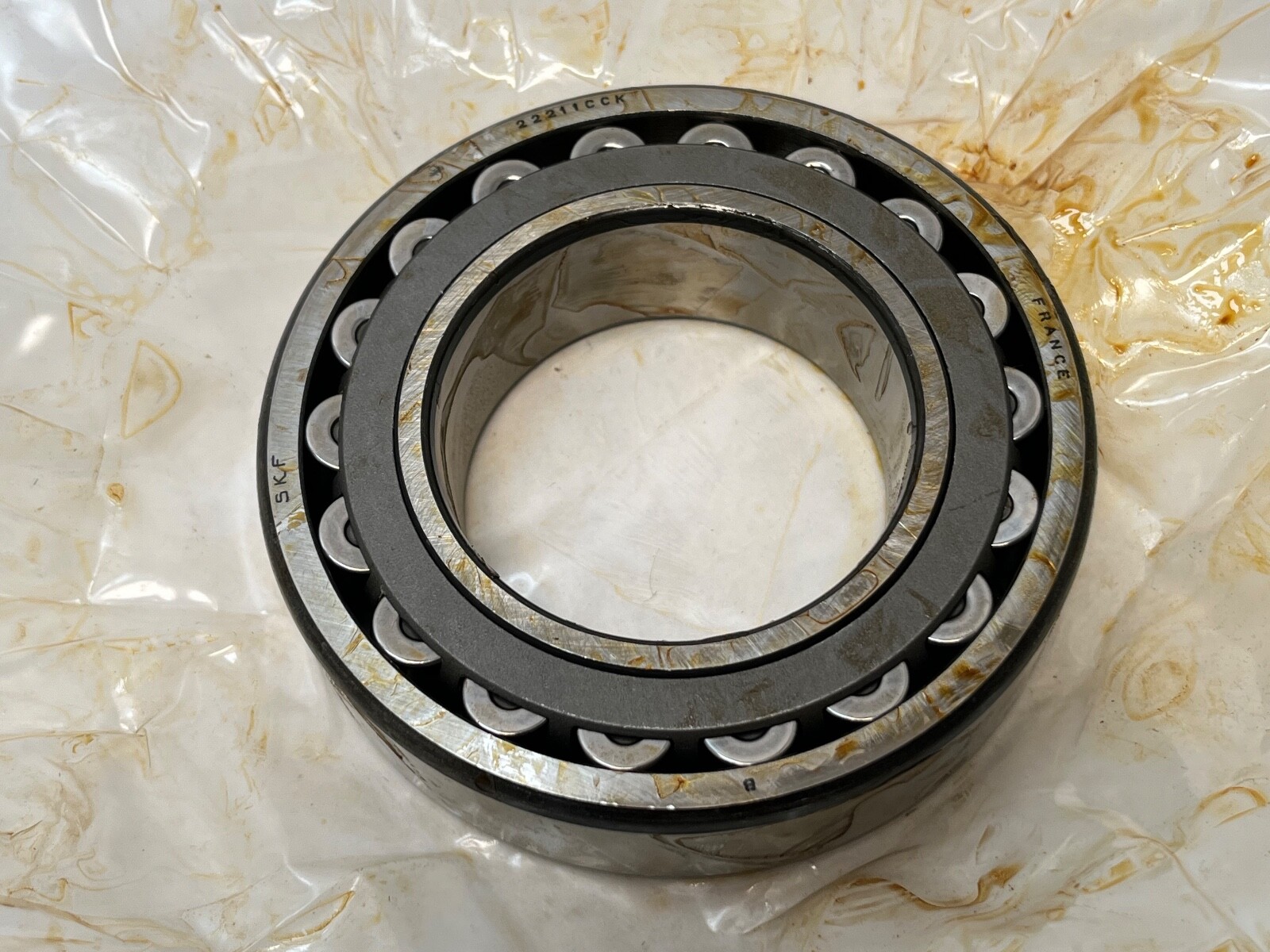

SKF 22211 CCK is a double-row spherical roller bearing with a 1:12 tapered bore, a pressed steel cage with guide ring and open faces. Unit Quantity: 1 Pc. Country of Origin: France.
22211 — the ISO 222 dimension series at a 55 mm bore.
CC — pressed steel cage with an inner-ring guide ring.
K — Bore Type: Tapered 1:12, mounted on an adapter sleeve.
No clearance suffix — Internal Clearance: CN, the normal group.

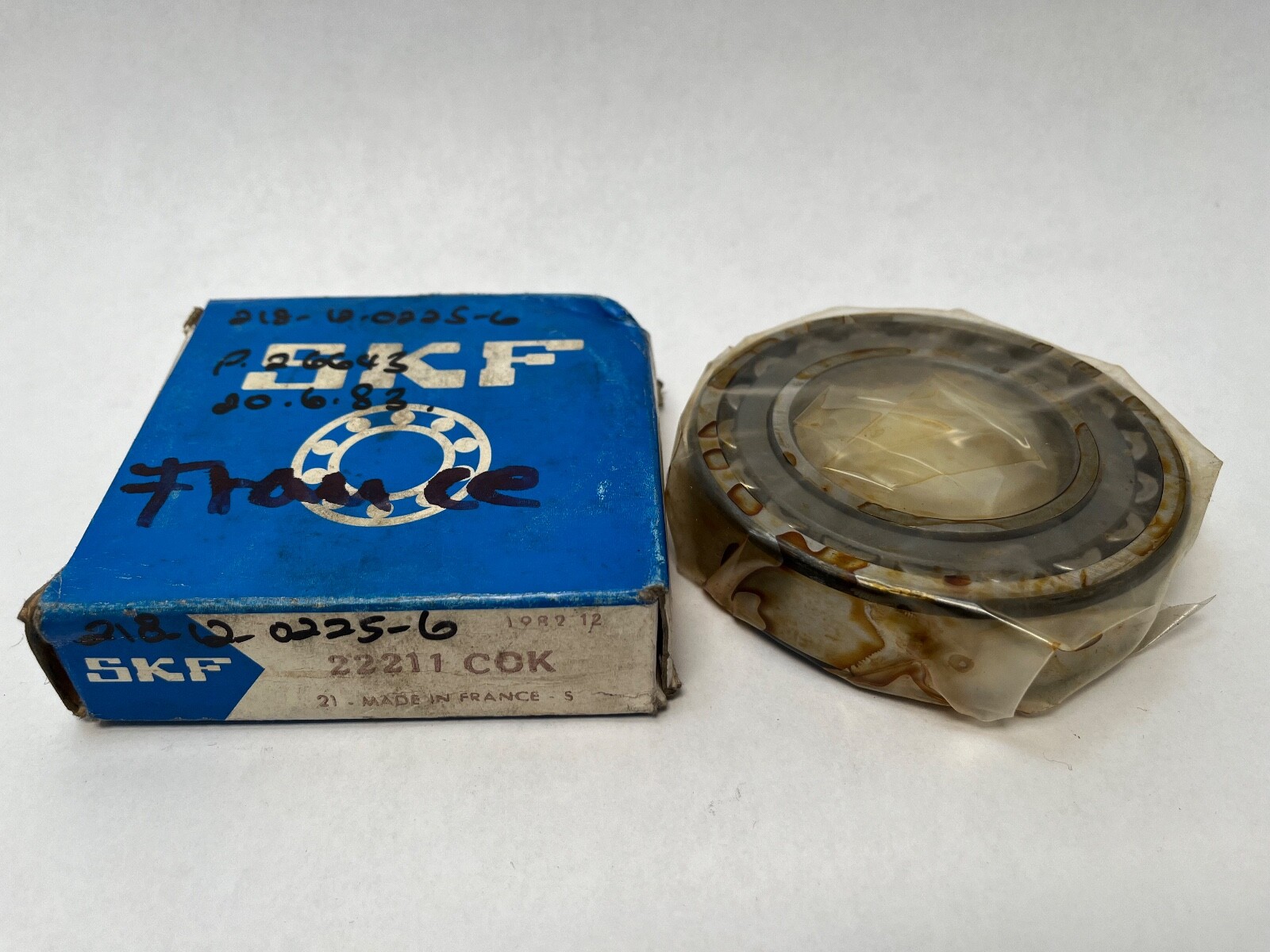

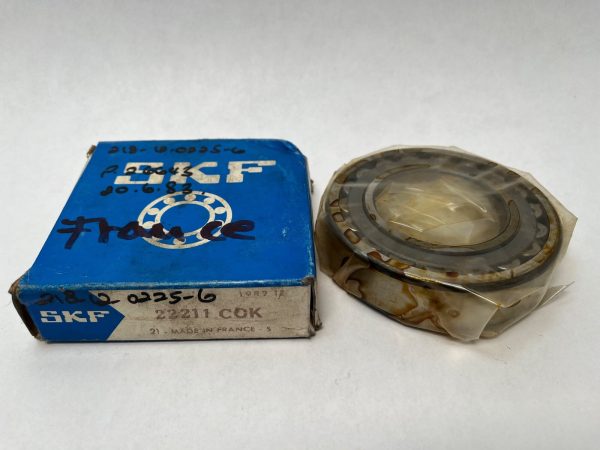

The carton also reads 22211 C K J and 22211 C K, both the same bearing.
Bearing Type: Spherical Roller Bearing. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical rollers. Bore Type: Tapered 1:12. Cage Type: Pressed. Cage Material: Steel. Closure Type: Open. Internal Clearance: CN. Precision Class: P0 (ABEC 1). Bearing Material: Bearing steel. Dynamic Load Rating: 129 kN (29,000 lbf). Static Load Rating: 127 kN (28,551 lbf). Limiting Speed: 6,300 rpm. Maximum Permissible Misalignment: 2°. Item Weight: 1.84 lb. Harmonization Code: 8482.30.00.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Adapter Sleeve: SKF H311, with a tapered outside diameter of 55 mm and a 50 mm shaft seat. An H311 takes a KM11 locknut and an MB11 lockwasher.
Related parts on the 55 x 100 x 25 mm tapered-bore envelope: FAG 22211-E1-K, NTN 22211EAKD1 and NSK 22211EAKE4 are higher-rating E-design parts; Timken 22211K. The SKF 22211 CC has a straight bore with no adapter sleeve. The SKF 22211 CCK/W33 has an outer-ring lubrication groove and three radial feed holes. MPN Variants: 22211CCK, 22211 CC K, 22211-CC-K, 22211CKJ, 22211CK.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm.
Adapter Sleeve: SKF H311, with a KM11 locknut and an MB11 lockwasher.
Dynamic Load Rating: 129 kN. Static Load Rating: 127 kN. Limiting Speed: 6,300 rpm.
