Availability:
3 in stock

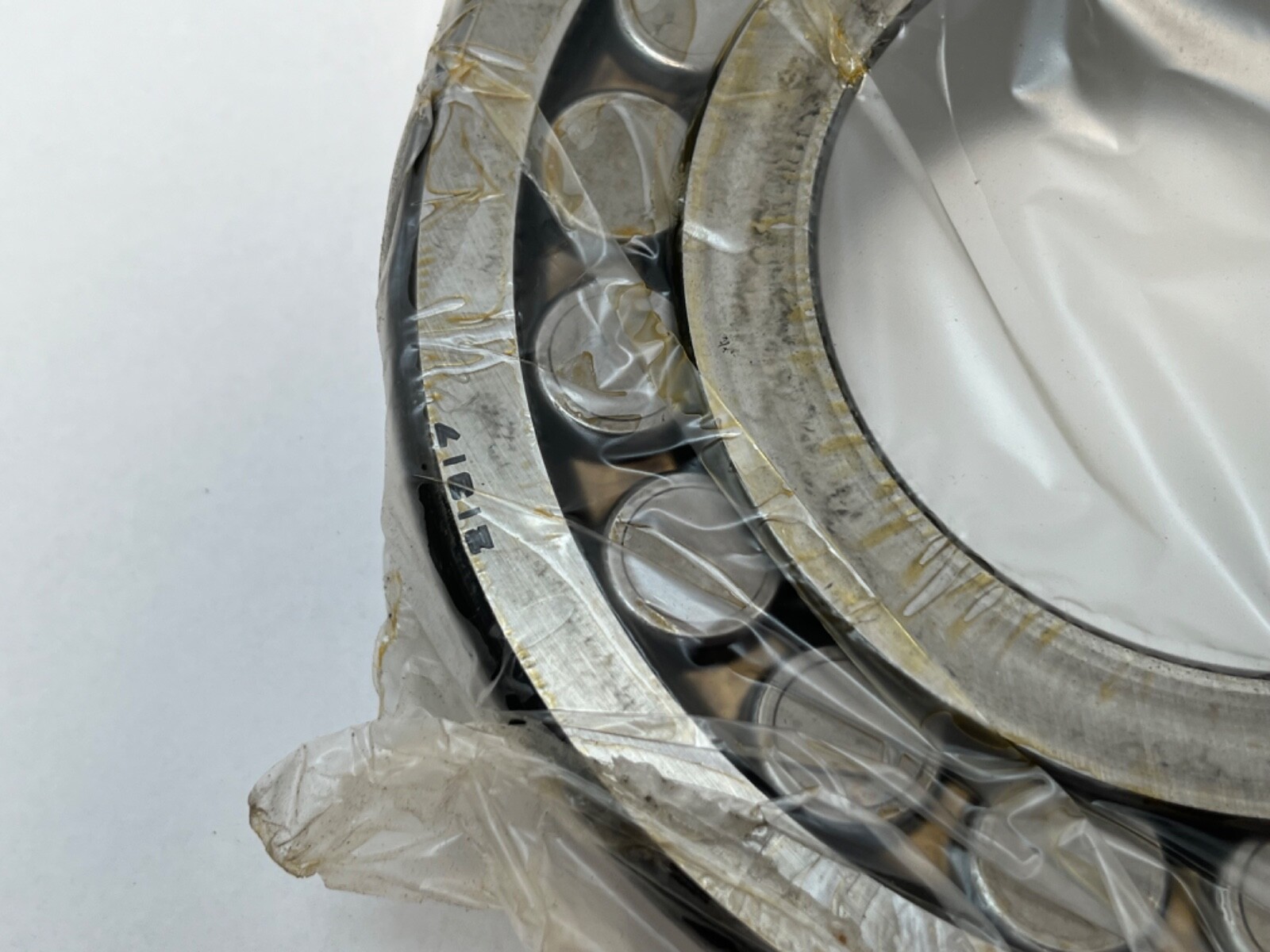

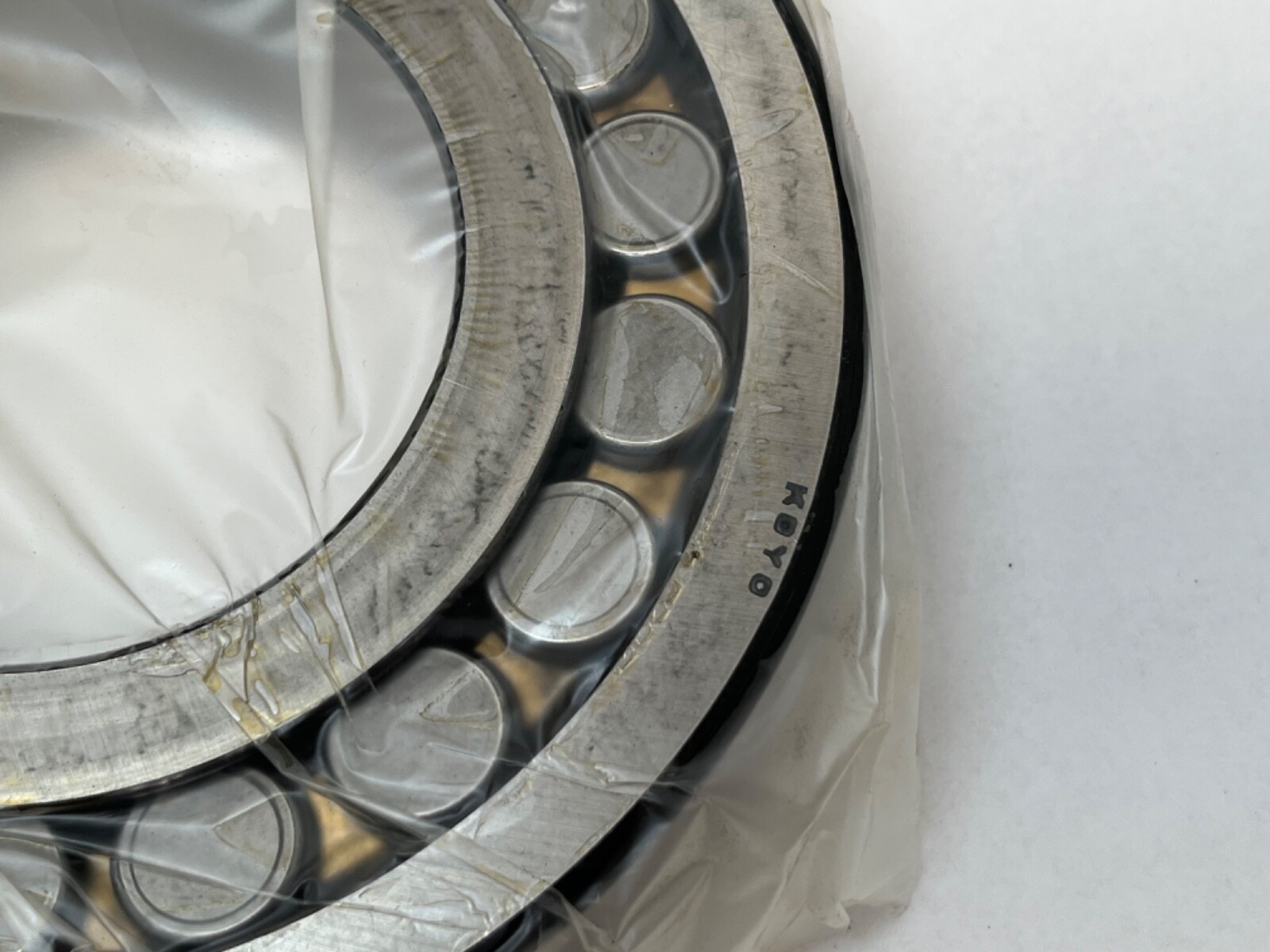

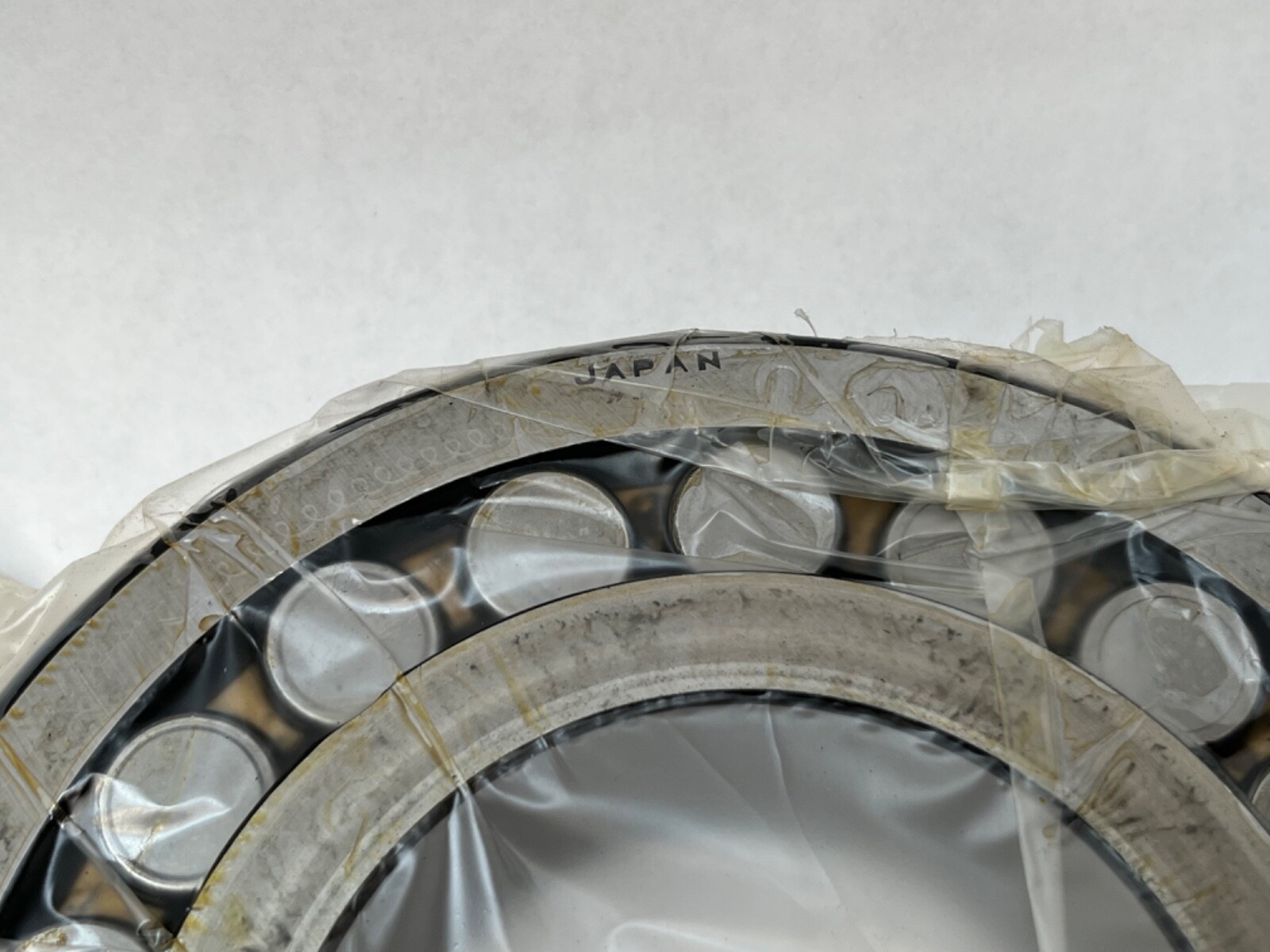

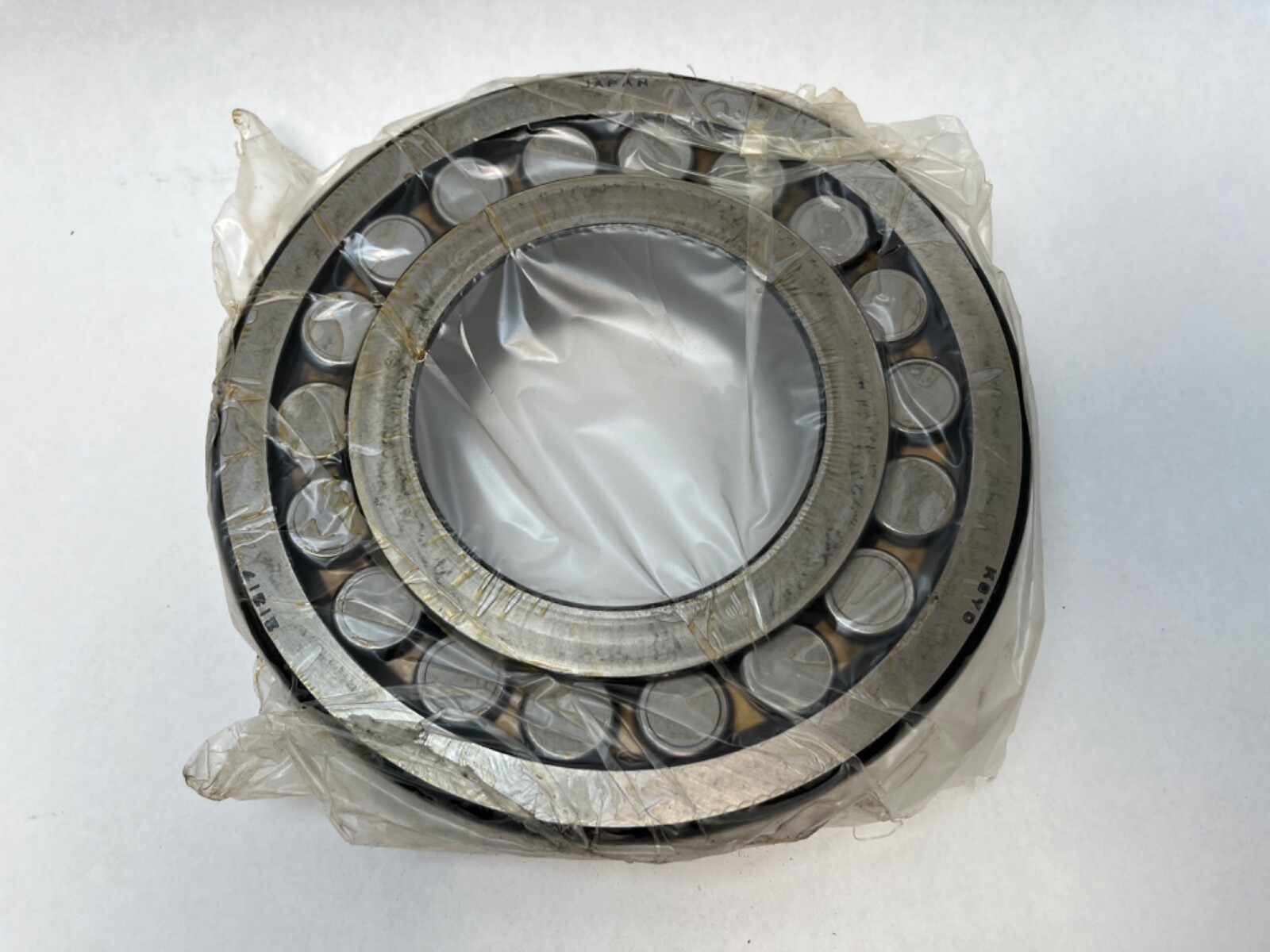

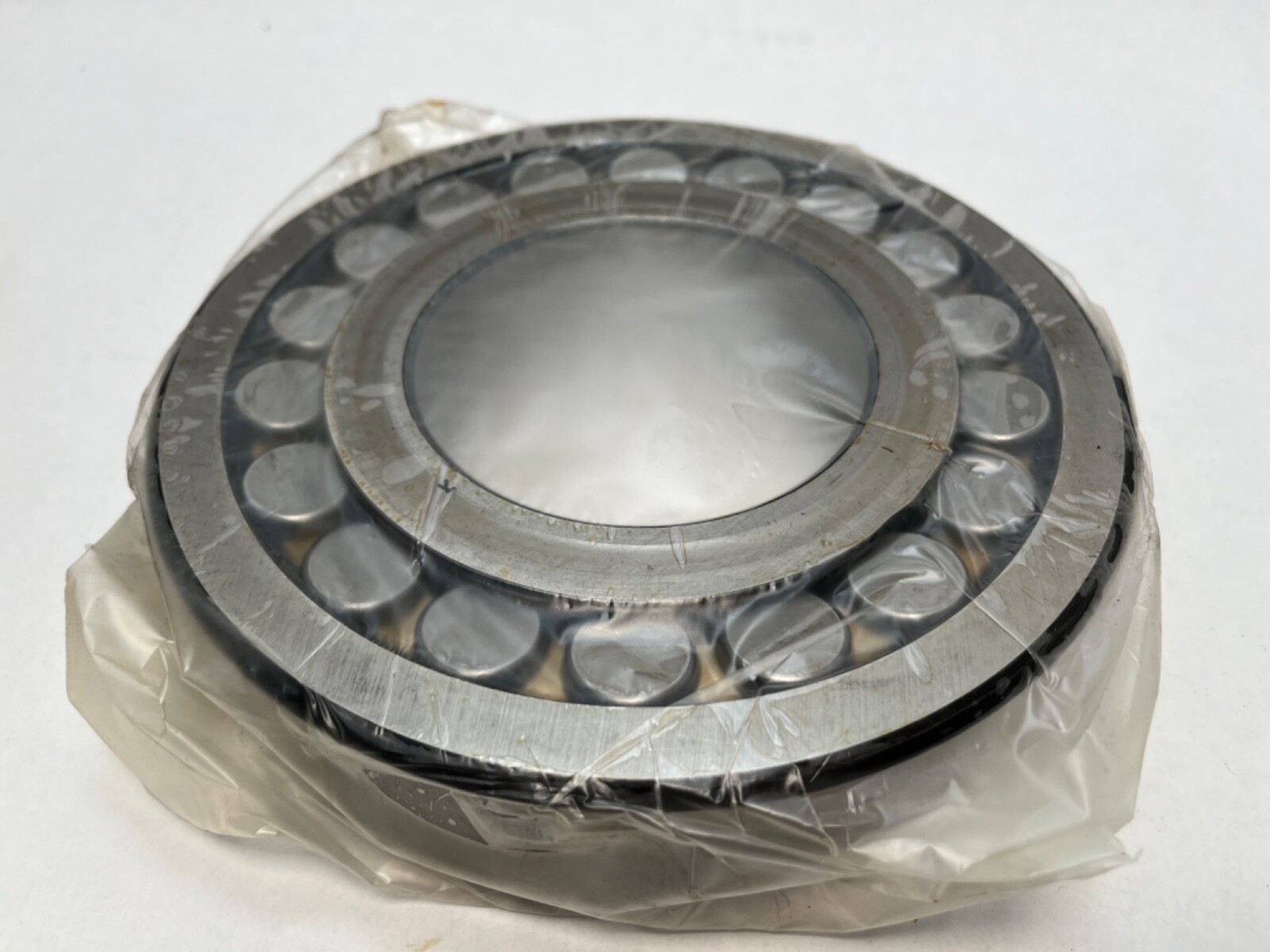

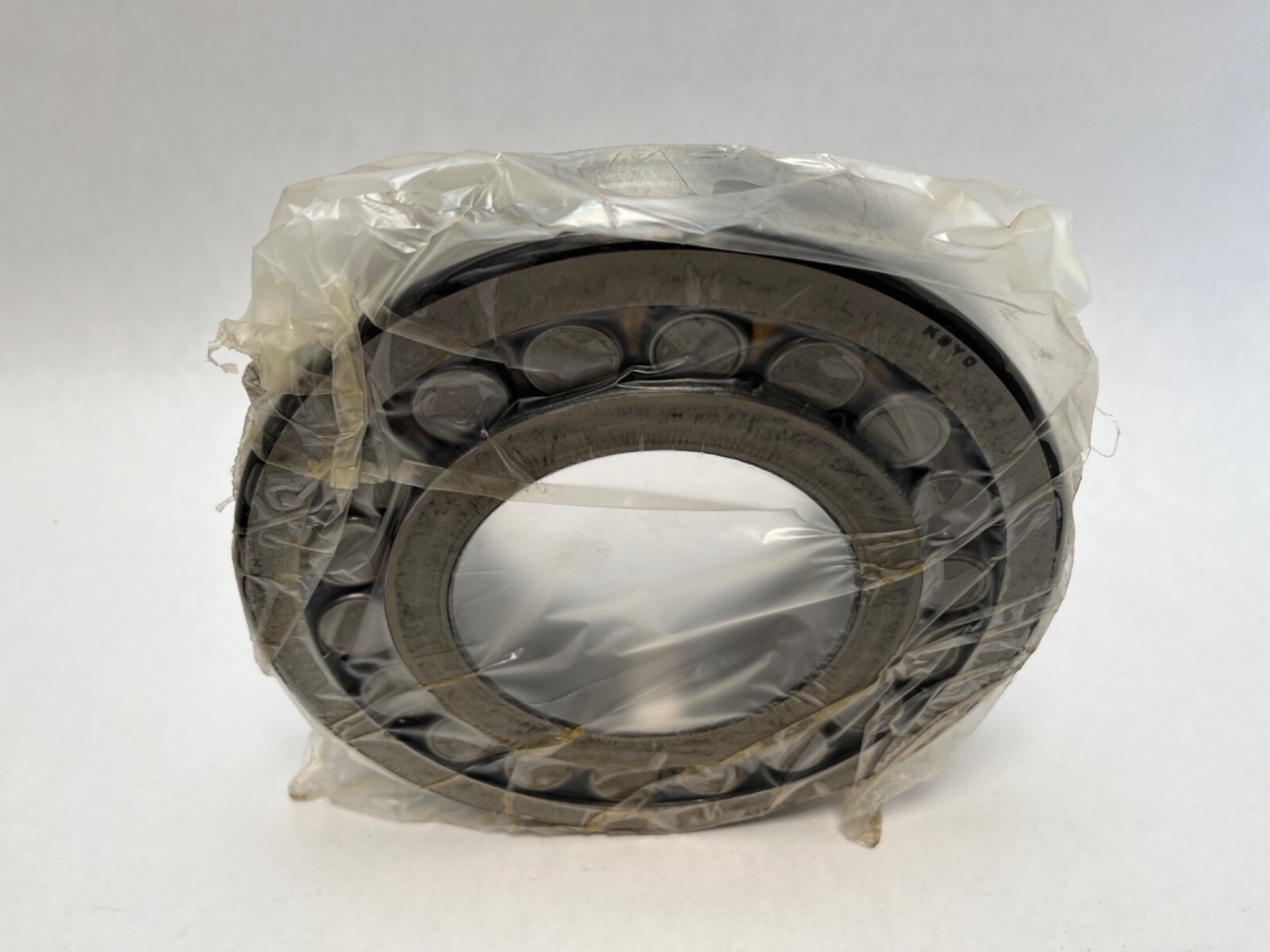

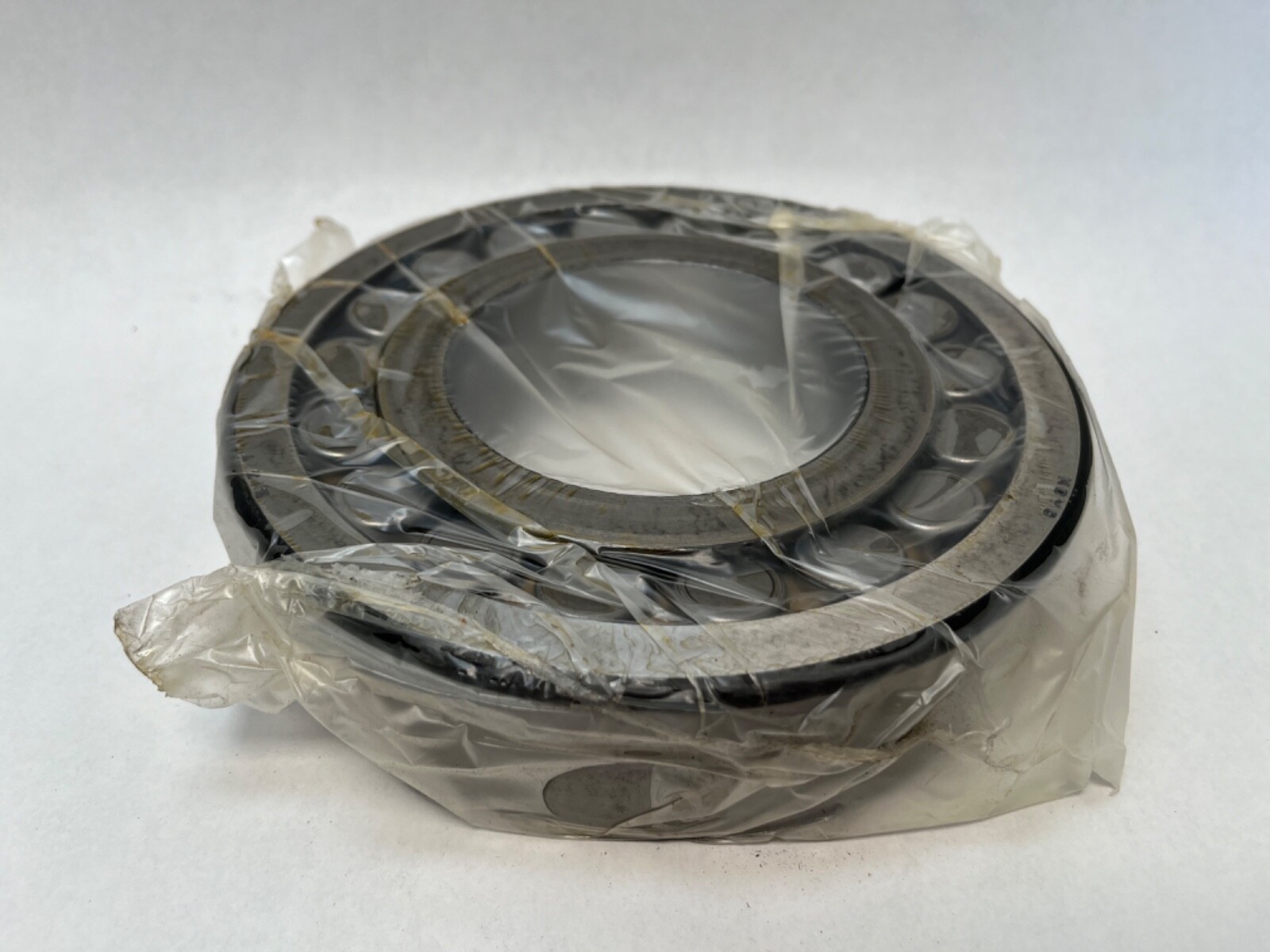

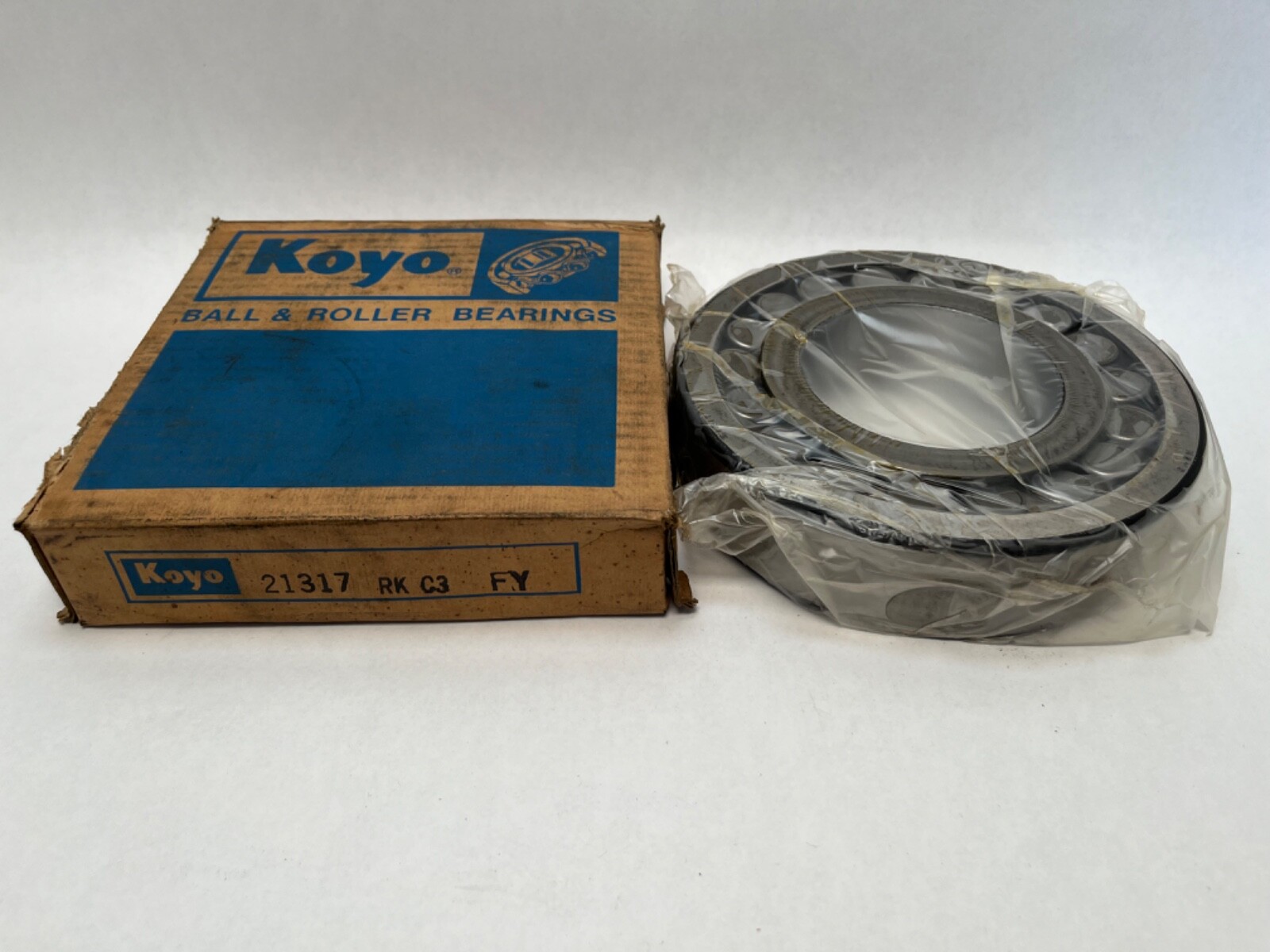

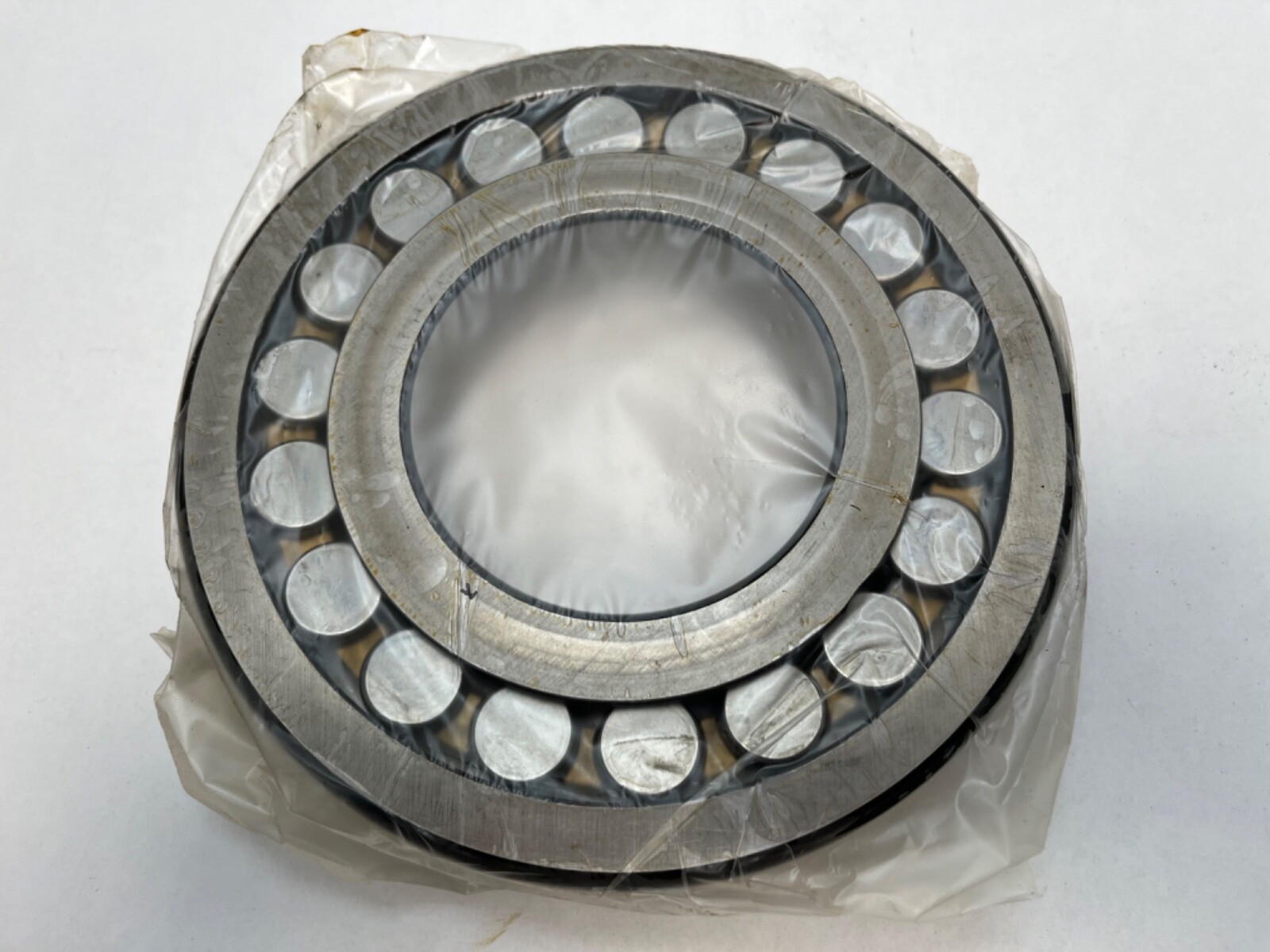

Koyo 21317RKC3FY spherical roller bearing, 85 mm tapered bore (1:12), 180 mm OD, 41 mm width, C3 clearance, brass cage. Mounts on an H317 adapter sleeve.
List Price
$152.21
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 21317 R K C3 FY |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 180 mm |
| Width | 41 mm |
| Material | Bearing Steel |
|---|---|
| Series | 21300 |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 21317RKC3FY, 21317 R K C3 FY, 21317-R-K-C3-FY, 21317M, 21317MB |
| Compatible With Replaces | Mounts on H317 adapter sleeve (KM17 locknut, MB17 washer) |
| Cross Reference 1 | SKF 21317 EK/C3 - steel cage vs brass |
|---|---|
| Cross Reference 2 | FAG 21317-E1-K-C3 - steel cage vs brass |
| Cross Reference 3 | NSK 21317EAKE4C3 - steel cage vs brass |
The Koyo 21317RKC3FY is a spherical roller bearing in the 21300 series with a 1:12 tapered bore. The spherical outer raceway lets the bearing self-align under shaft deflection or housing misalignment.
21317 — 213 series spherical roller bearing, bore code 17 = 85 mm bore, 180 mm OD, 41 mm width.
R — Koyo R-type internal design with machined brass cage.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
Bore Diameter: 85 mm (large end of taper). Outside Diameter: 180 mm. Overall Width: 41 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Cage Material: Brass. Internal Clearance: C3. Closure Type: Open.
The tapered bore allows the bearing to be drawn up on an adapter sleeve onto a plain shaft, and the drive-up sets the final running clearance. C3 gives extra clearance margin for that reduction.
Related part: H317 adapter sleeve (75 mm shaft seat), with KM17 locknut and MB17 lock washer.
Unit Quantity: 1 Pc.
Same 85 x 180 x 41 mm envelope with 1:12 tapered bore: SKF 21317 EK, FAG 21317-E1-K, NSK 21317EAK, each in its C3 clearance execution.
$67.31
10 in stock
