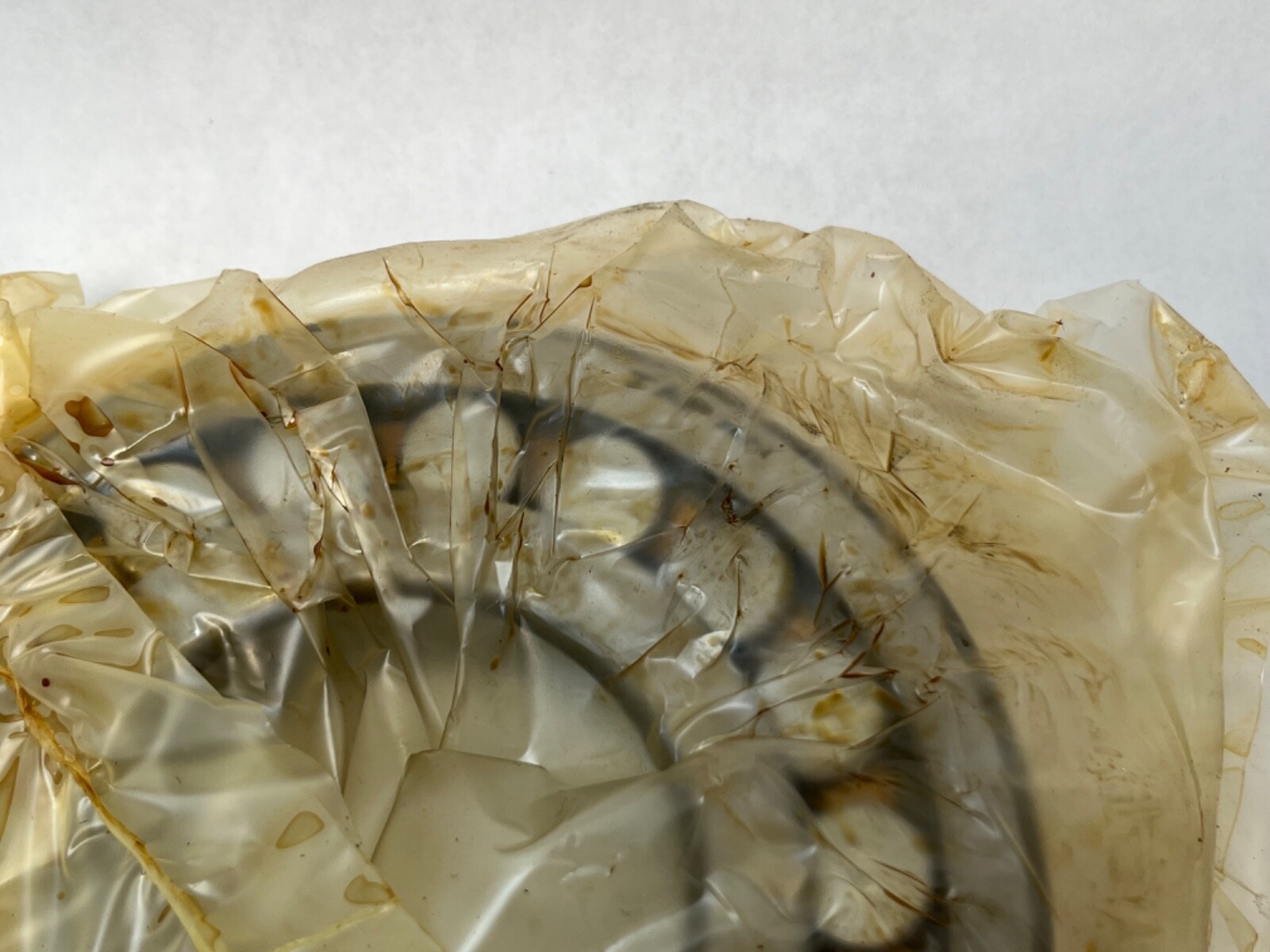

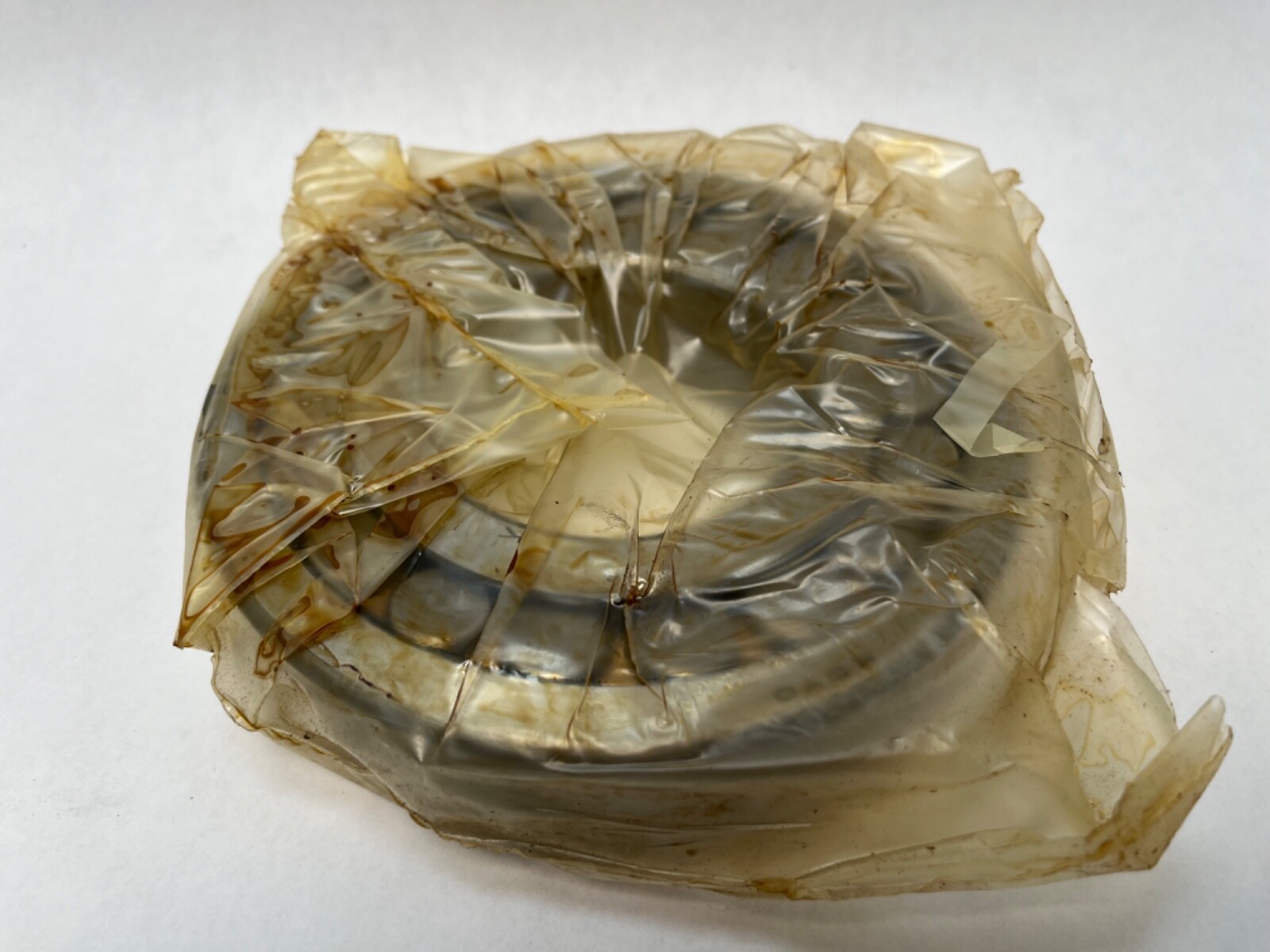

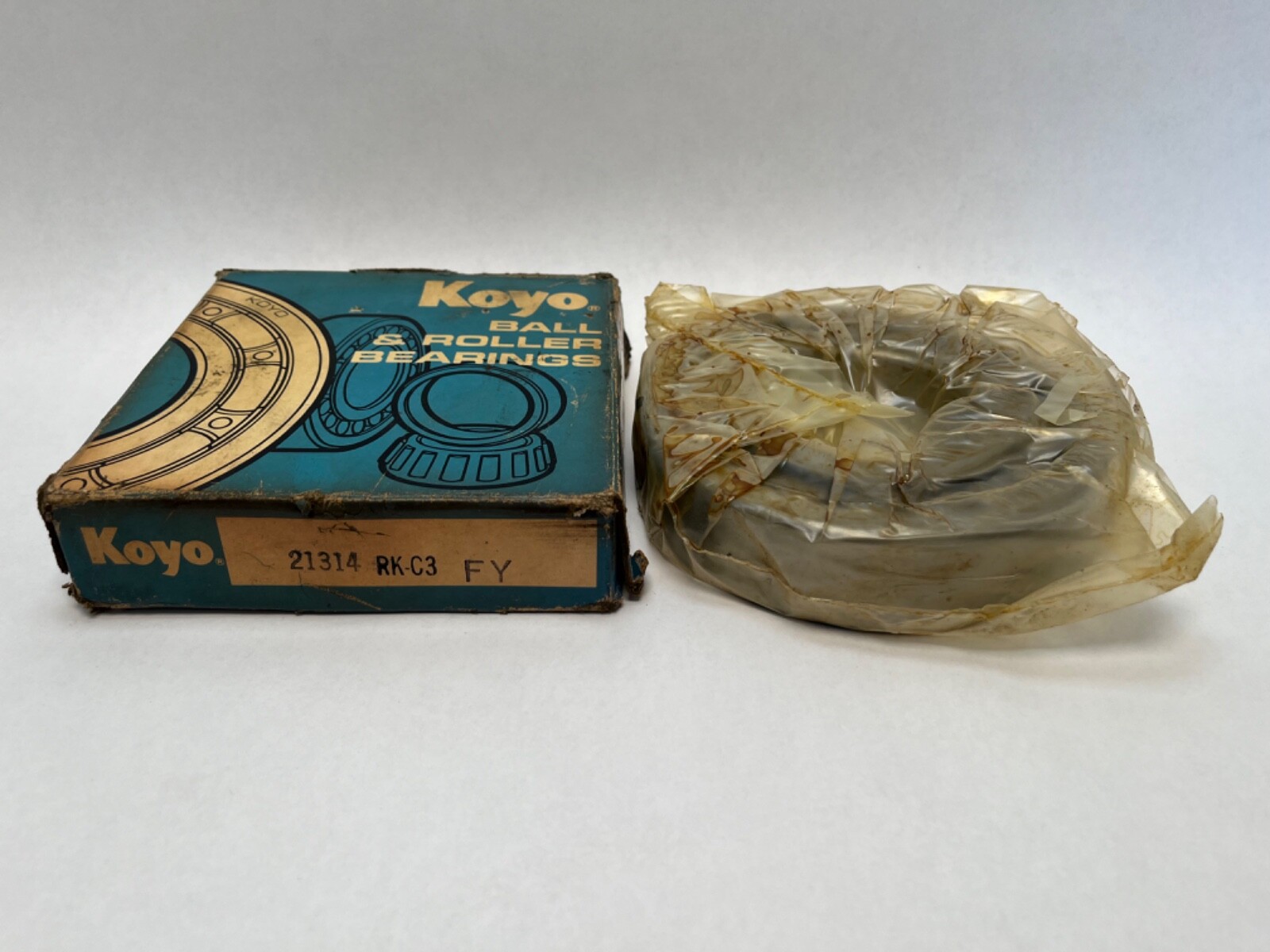

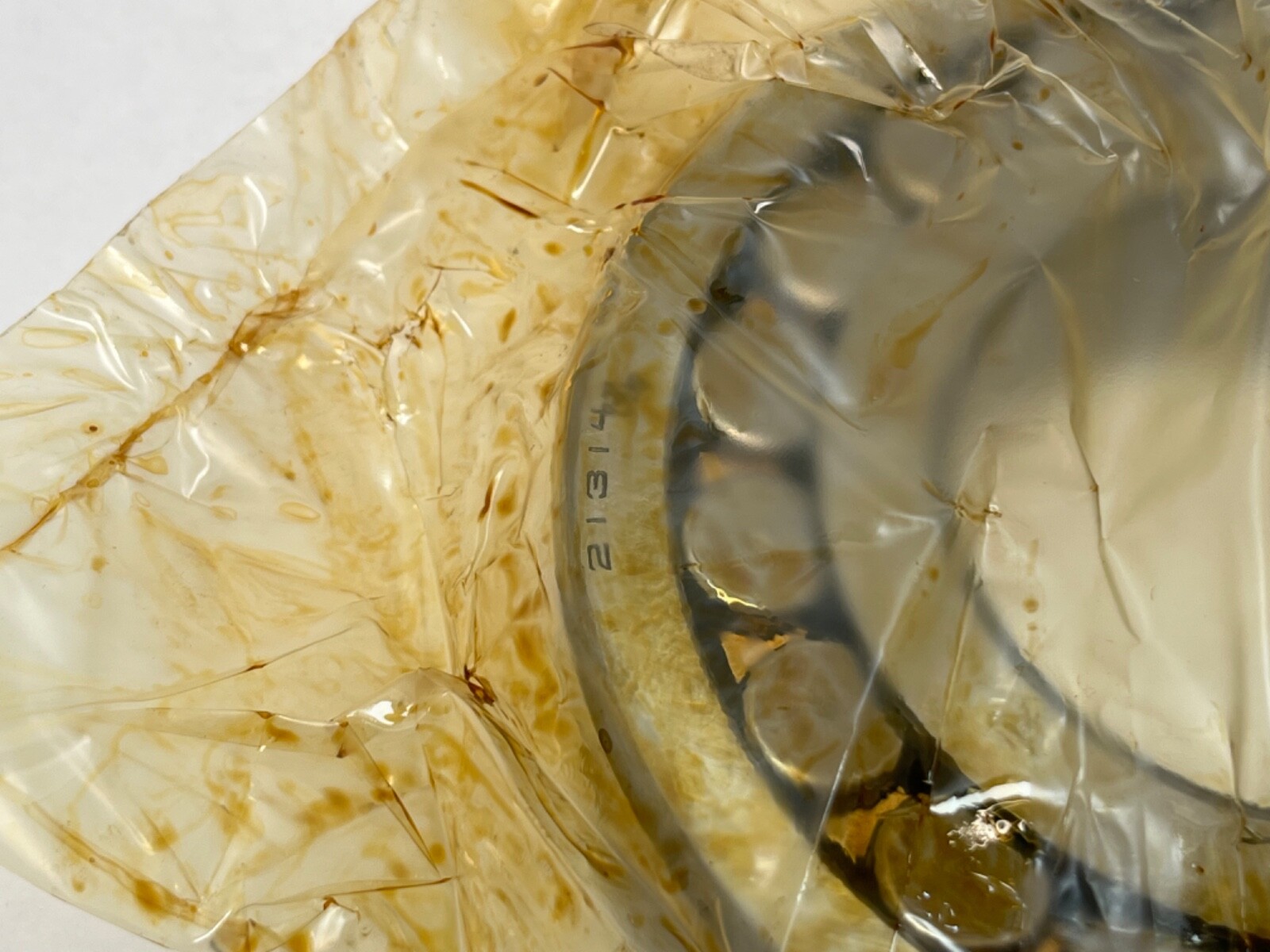

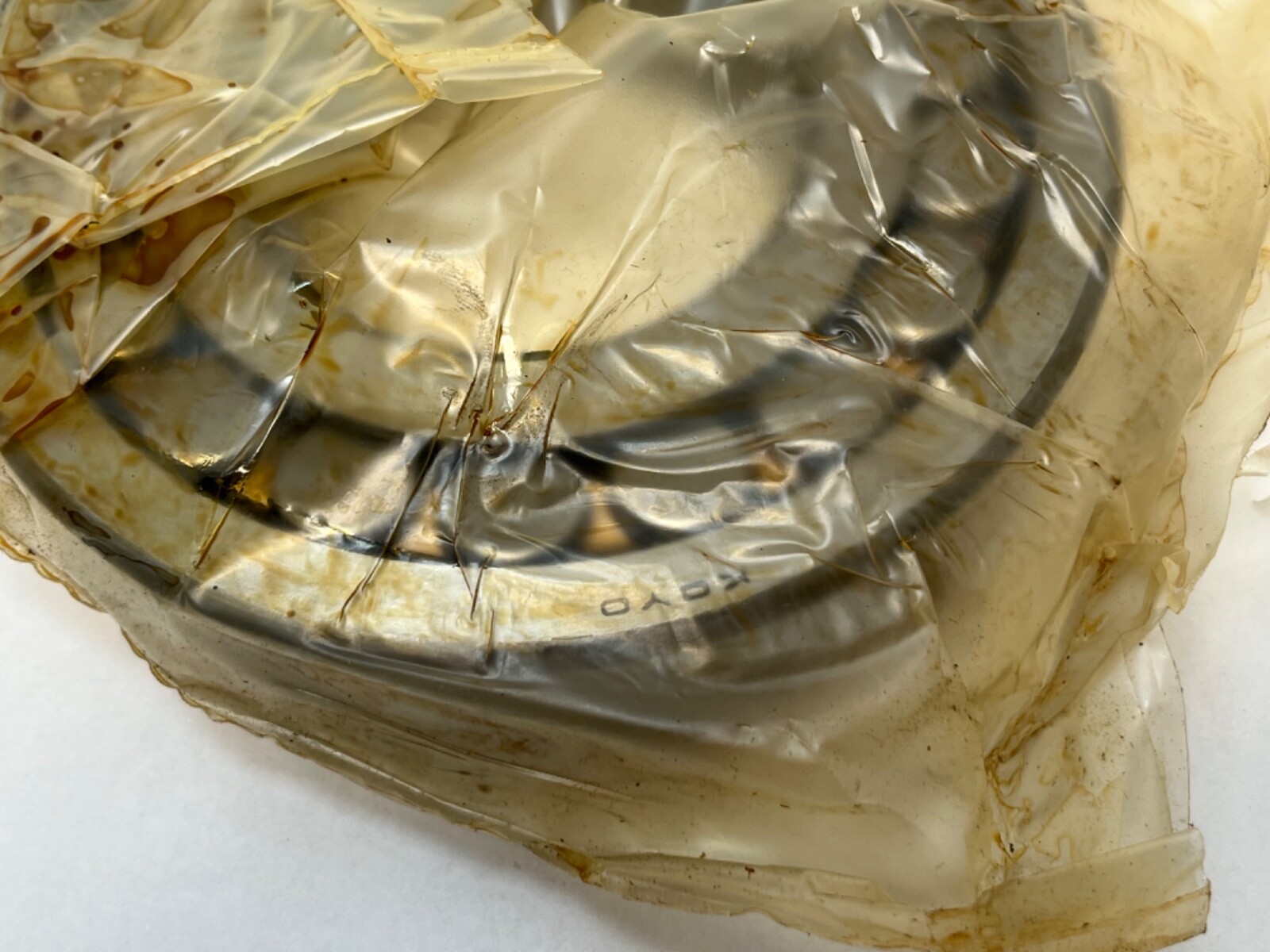

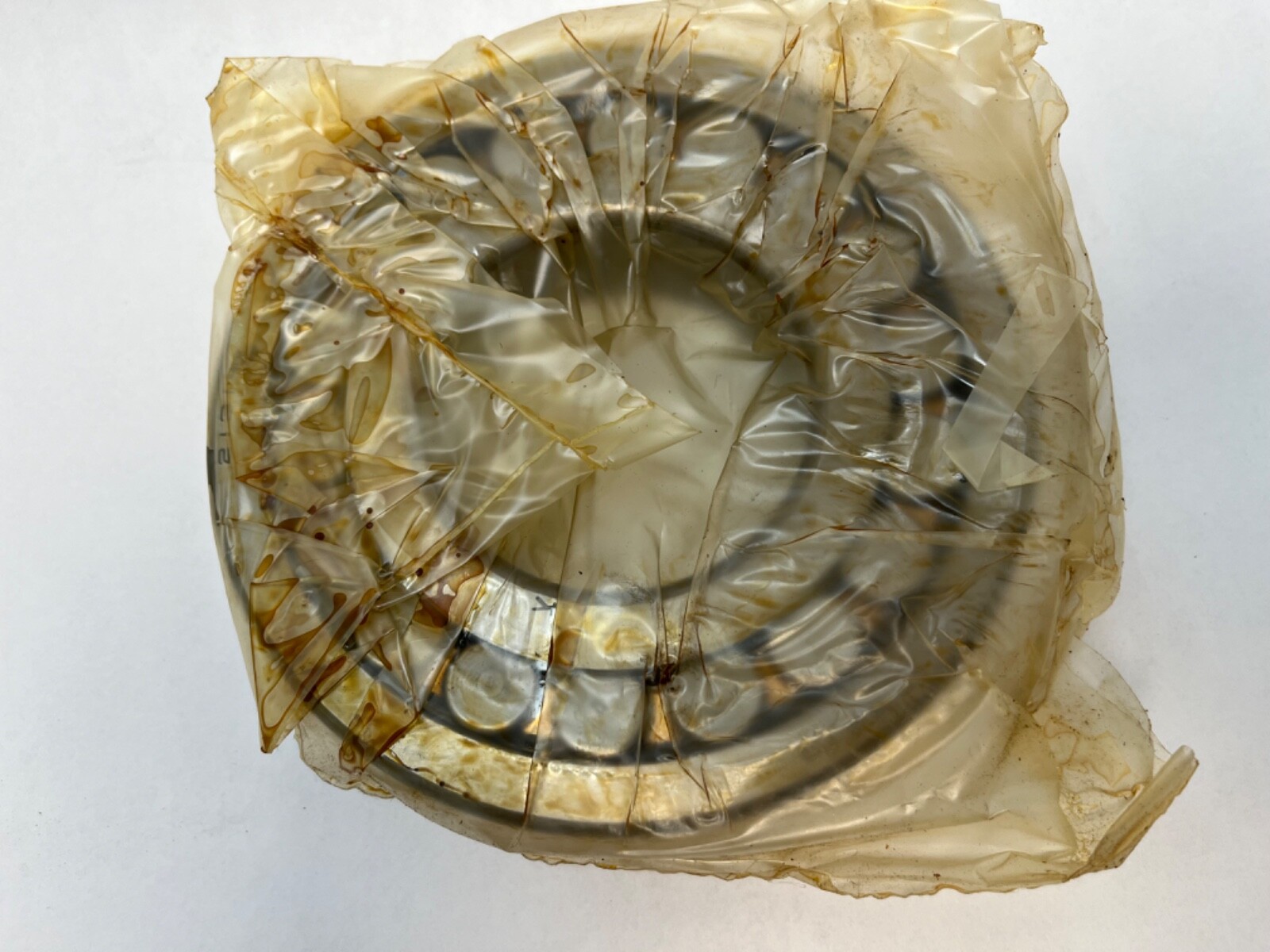

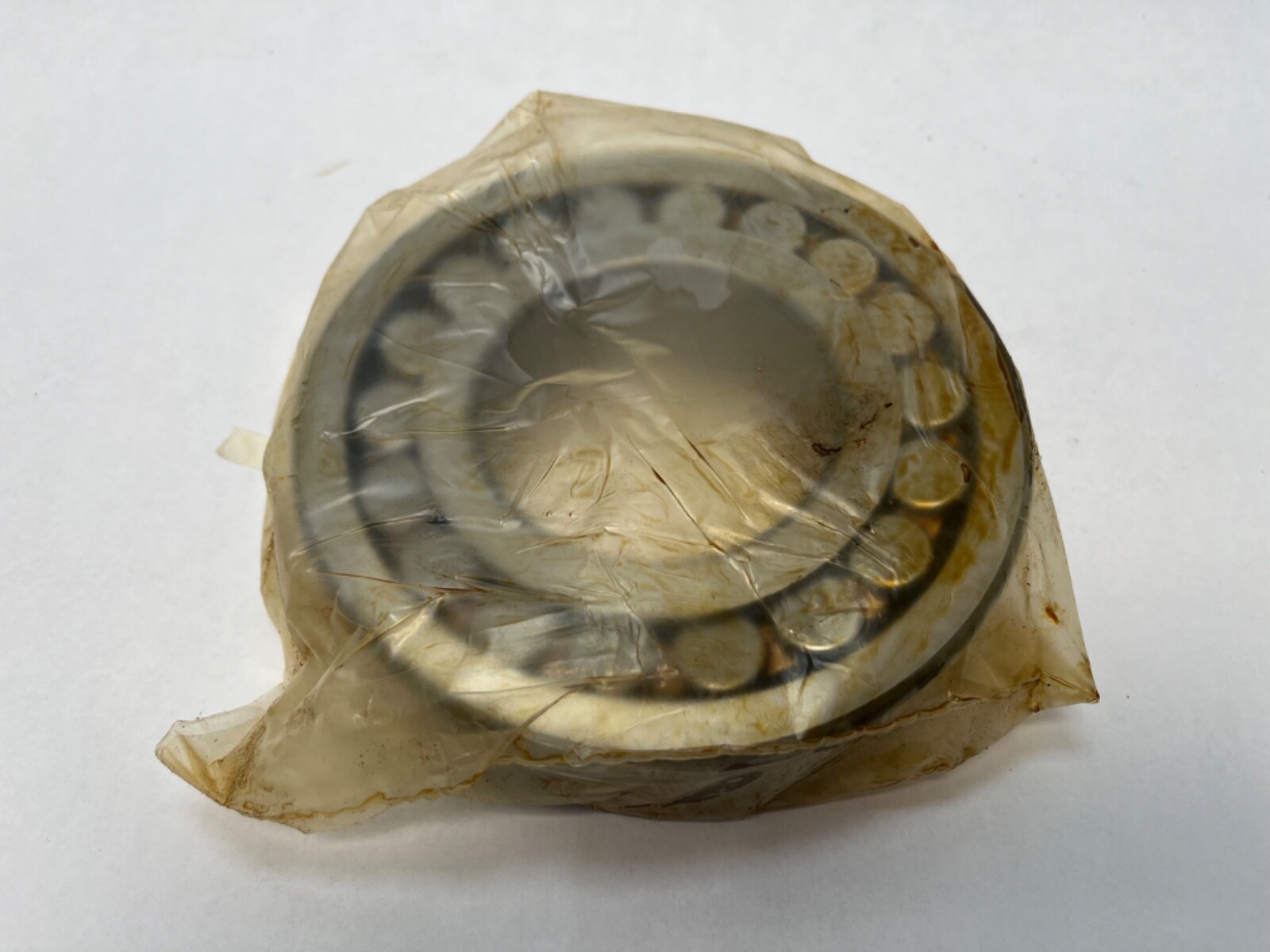

Koyo 21314RKC3FY spherical roller bearing, 70 mm tapered bore (1:12), 150 mm OD, 35 mm width, C3 clearance, brass cage. Mounts on an H314 adapter sleeve.
List Price
$87.02
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 21314 R K C3 FY |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Chrome Steel |
|---|---|
| Series | 21300 |
| Condition | New |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 21314RKC3FY, 21314 R K C3 FY, 21314-R-K-C3-FY, 21314KMBC3, 21314M, 21314MB |
| Compatible With Replaces | Mounts on H314 adapter sleeve (KM14 locknut, MB14 washer) |
| Cross Reference 1 | SKF 21314 EK/C3 (E design, higher ratings) |
|---|---|
| Cross Reference 2 | FAG 21314-E1-K-C3 (E1 design, higher ratings) |
| Cross Reference 3 | NSK 21314EAKC3 (EA design, higher ratings) |
The Koyo 21314RKC3FY is a spherical roller bearing in the 21300 series with a 1:12 tapered bore. The spherical outer raceway lets the bearing self-align under shaft deflection or housing misalignment.
21314 — 213 series spherical roller bearing, bore code 14 = 70 mm bore, 150 mm OD, 35 mm width.
R — Koyo R-type internal design with machined brass cage.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
Bore Diameter: 70 mm (large end of taper). Outside Diameter: 150 mm. Overall Width: 35 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Cage Material: Brass. Internal Clearance: C3. Closure Type: Open.
The tapered bore mounts on an adapter sleeve on a plain shaft. C3 gives extra clearance margin for the clearance reduction that comes with drive-up on the taper.
Related part: H314 adapter sleeve (60 mm shaft seat), with KM14 locknut and MB14 lock washer.
Unit Quantity: 1 Pc.
Cross-references, 70 x 150 x 35 mm with 1:12 tapered bore, C3 clearance: SKF 21314 EK/C3 (E design, higher ratings), FAG 21314-E1-K-C3 (E1 design, higher ratings), NSK 21314EAKC3 (EA design, higher ratings).
