Double-row spherical roller bearing, 70 x 150 x 35 mm, SKF 213 series. Cylindrical bore, pressed steel window cage, C3 clearance, open, one piece.
List Price
$97.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 21314 CC/C3 |
| Model | 21314EW/C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Bearing steel |
|---|---|
| Series | 213 |
| Base Number | 21314 |
| Mpn Variants | 21314-CC/C3; 21314 CC EW C3; 21314CCC3; 21314C3; 21314 |
| Cage Type | Window type, inner-ring guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00.80 |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Cross Reference 1 | FAG 21314-E1-C3 - E1 reinforced design |
|---|---|
| Cross Reference 2 | NSK 21314EAEC3 - EAE reinforced design |
| Cross Reference 3 | NTN 21314C3 |
| Cross Reference 4 | Koyo 21314RC3 |
| Cross Reference 5 | Timken 21314EJC3 - EJ reinforced design |

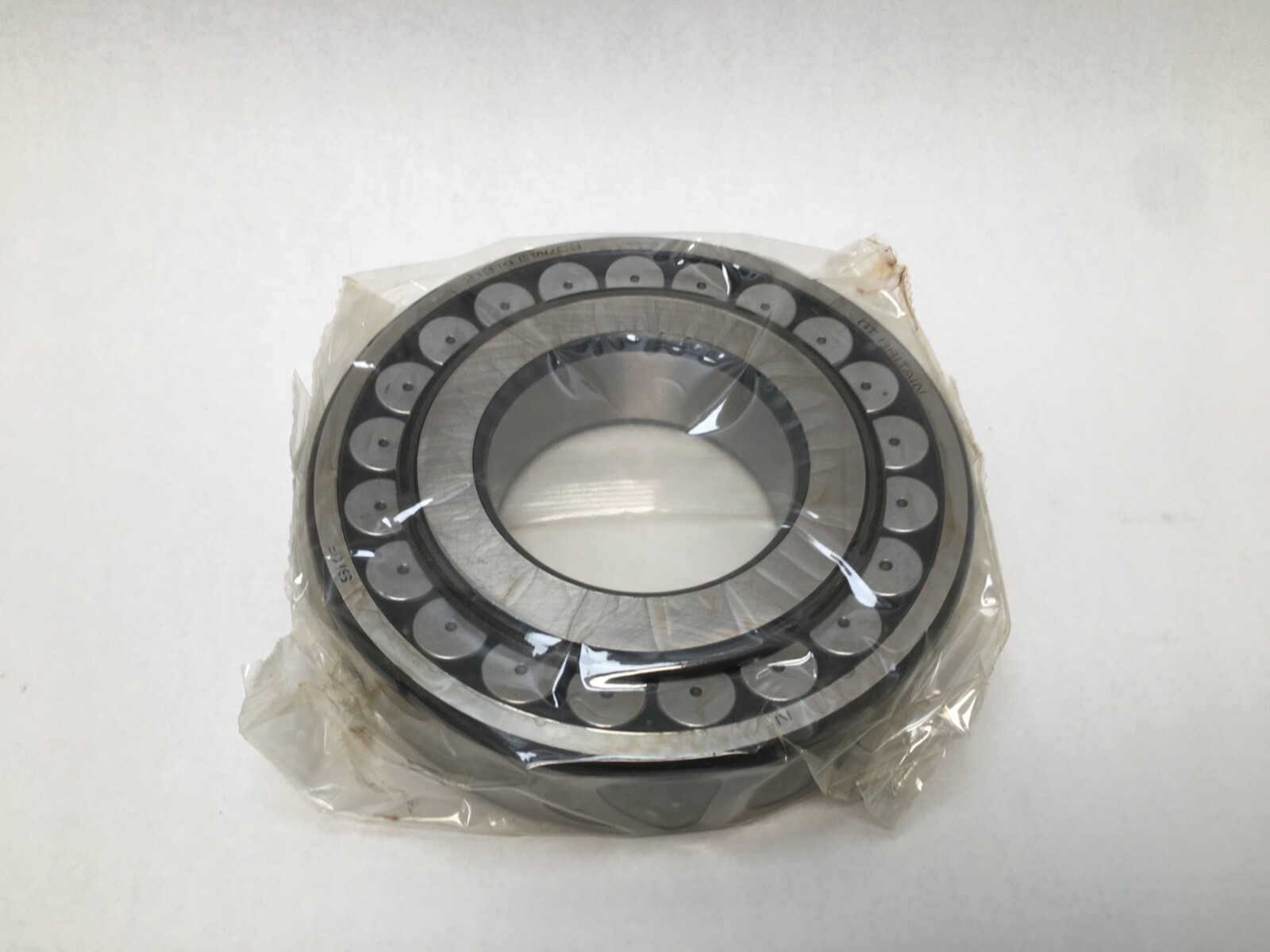

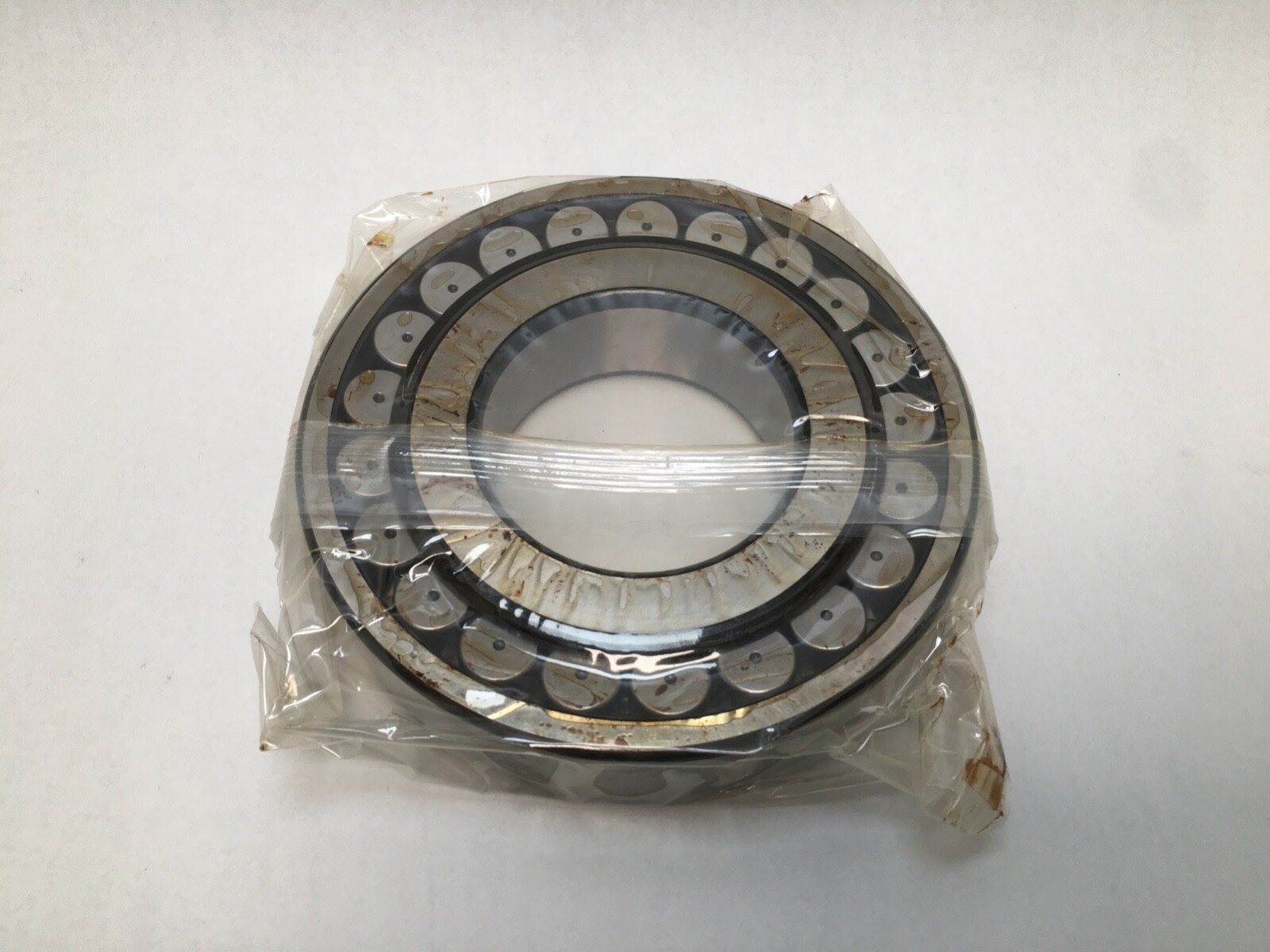

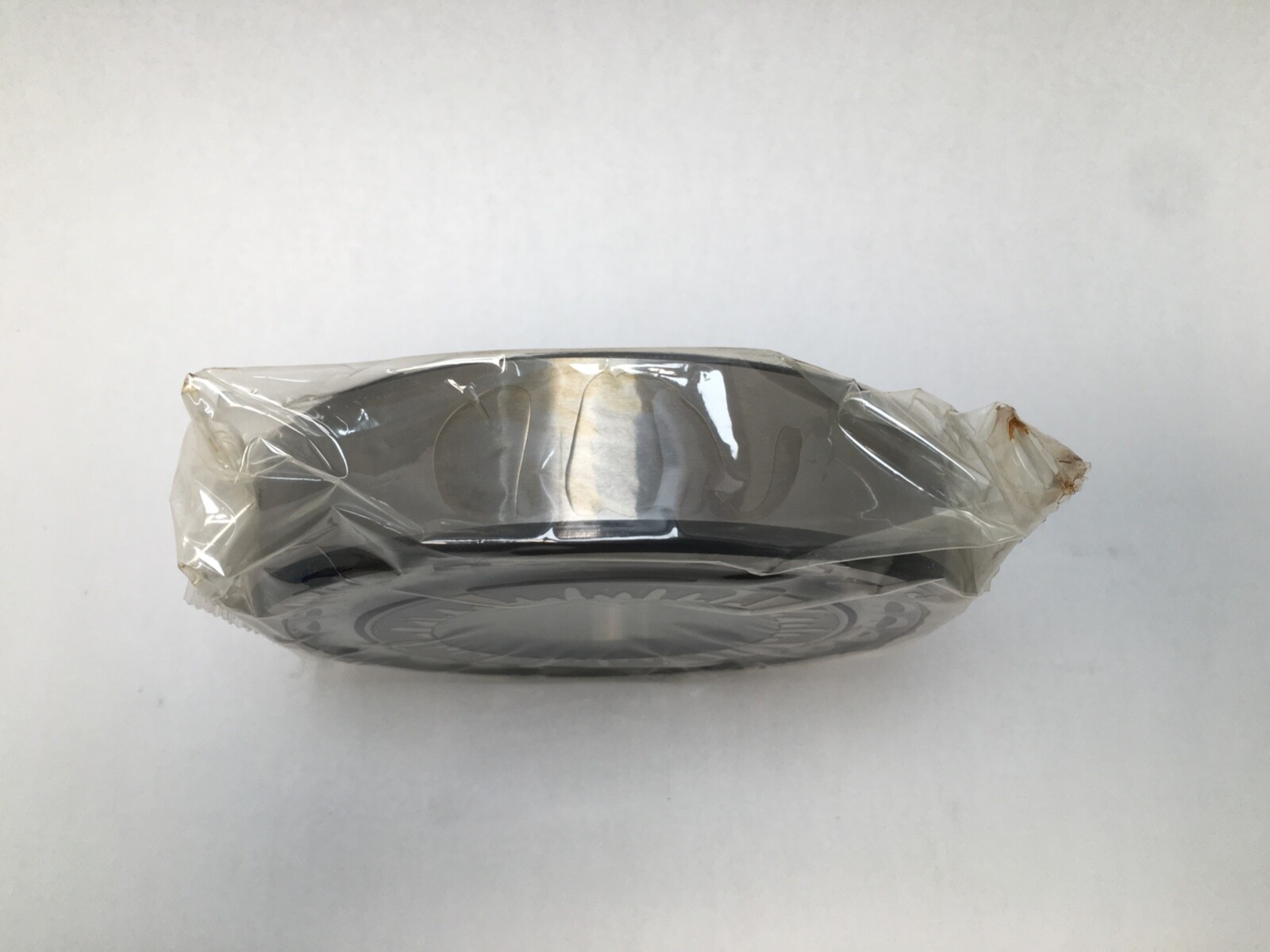

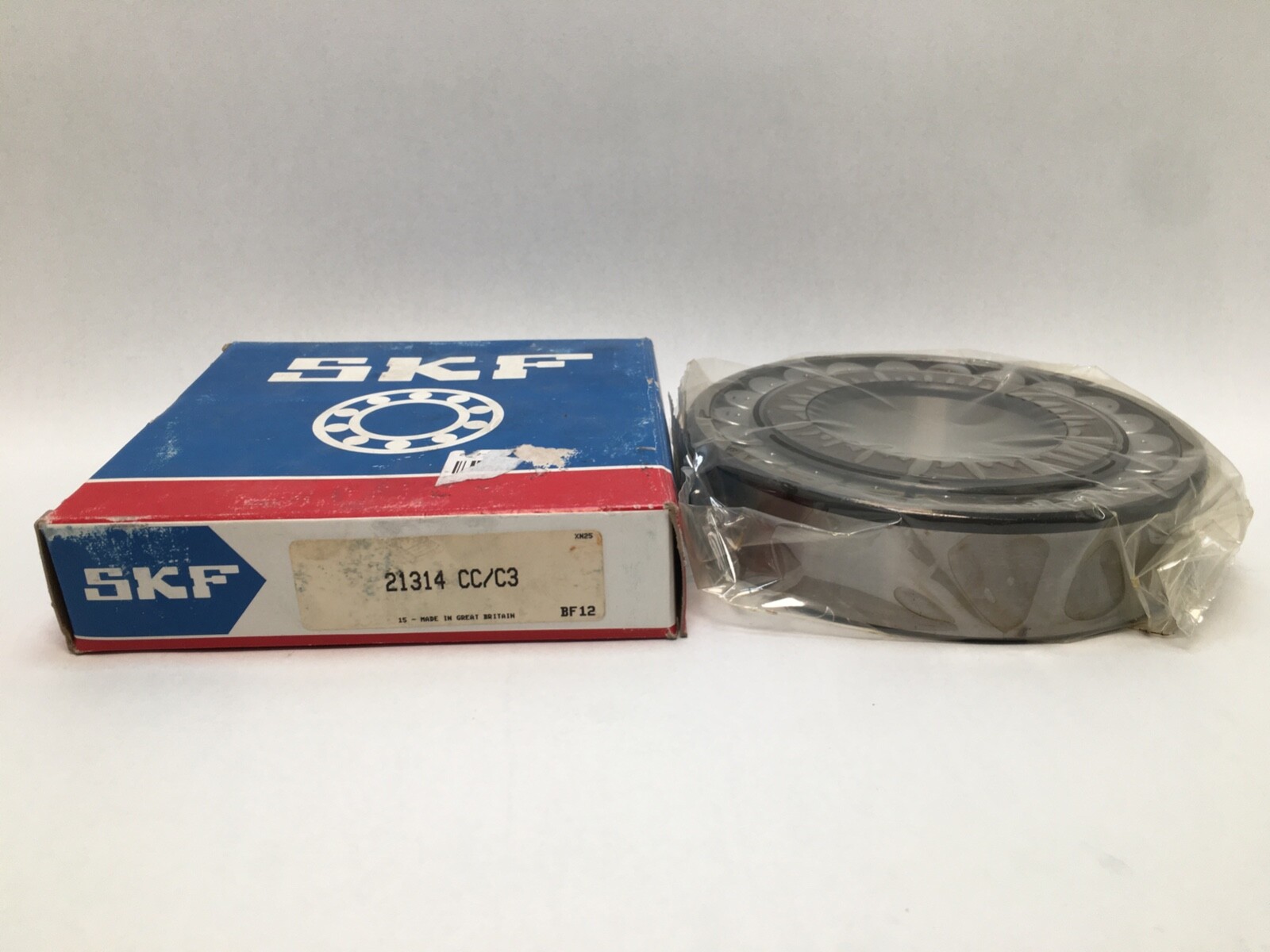

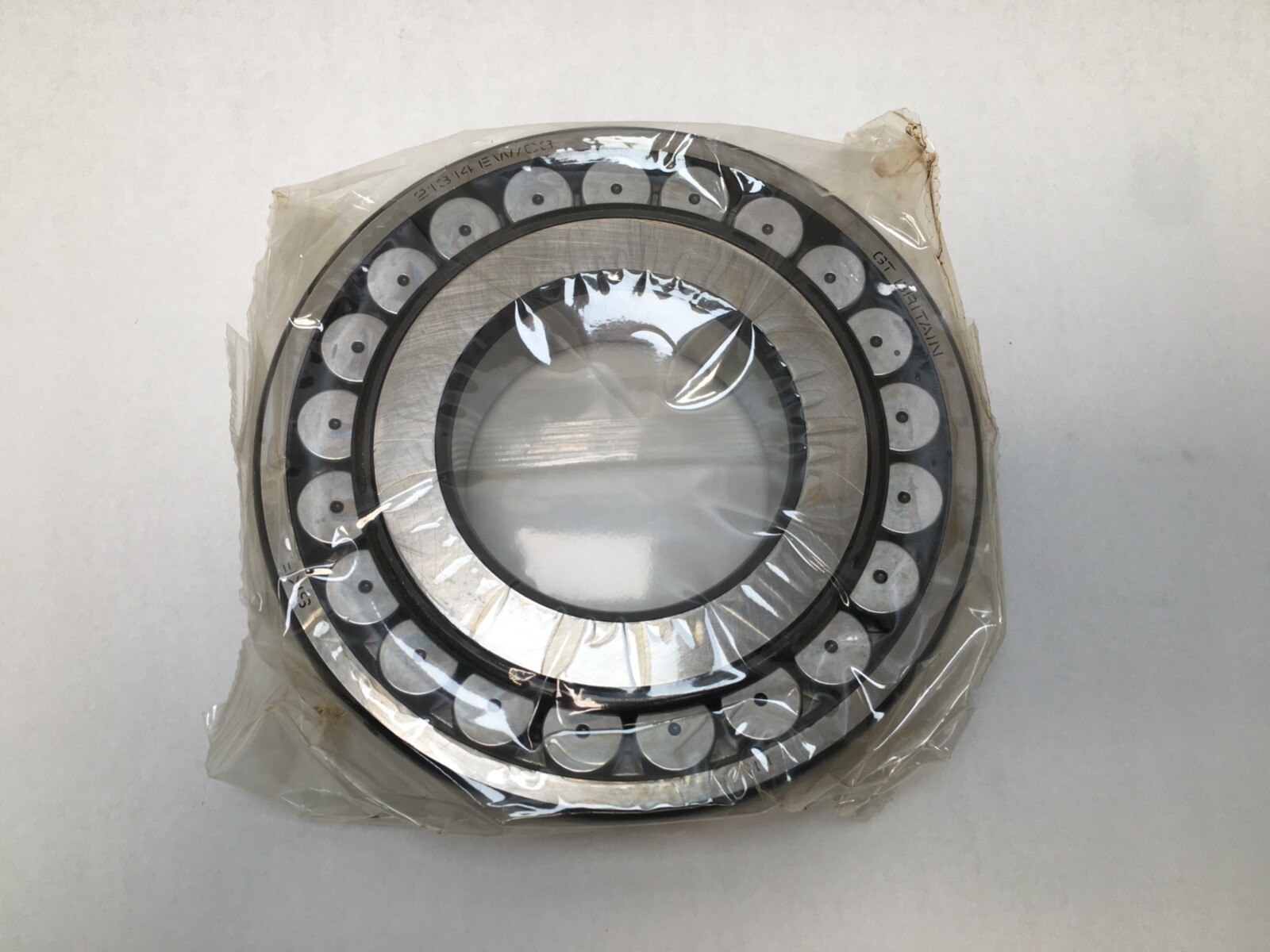

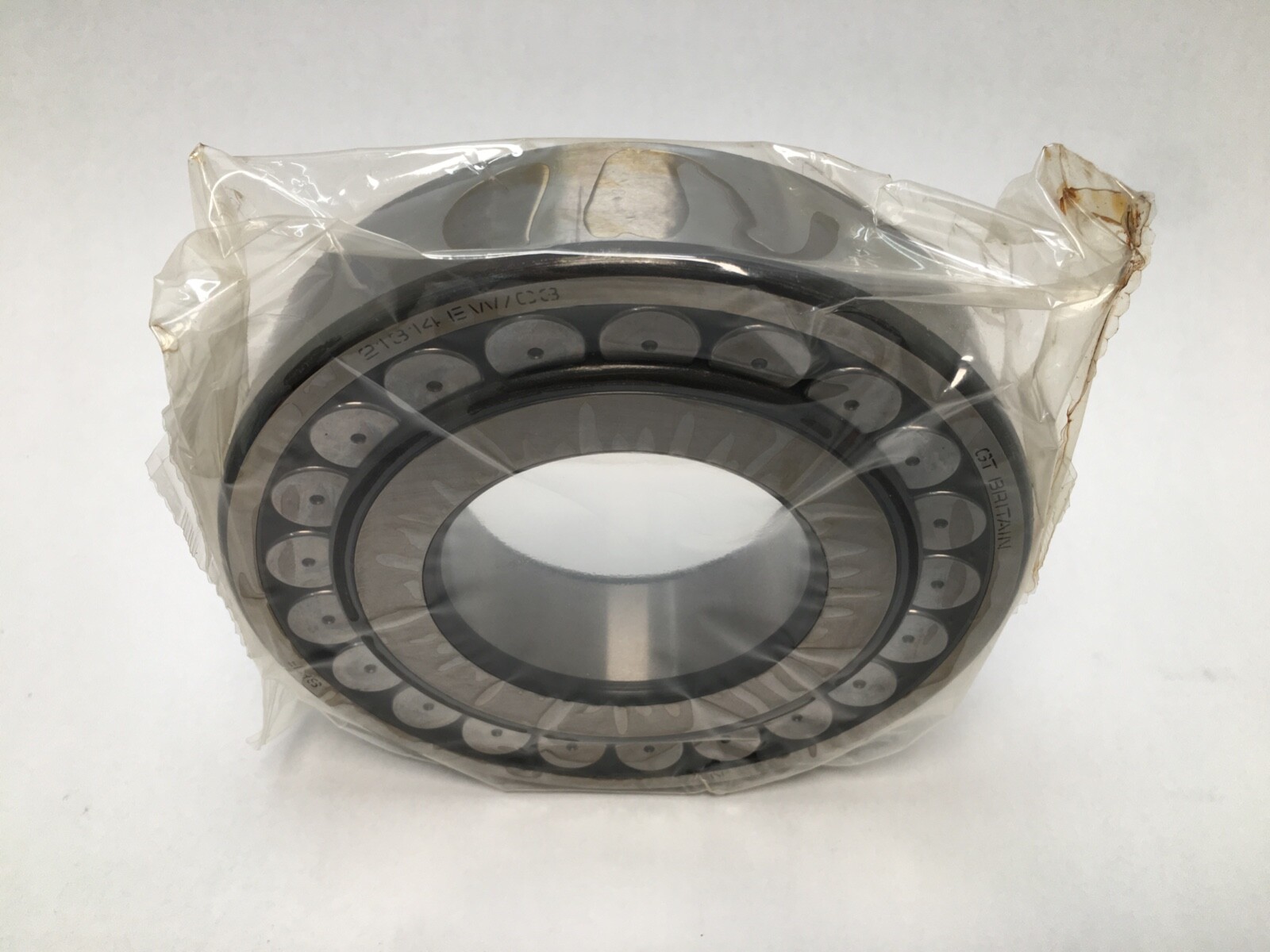

SKF 21314 CC/C3 double-row spherical roller bearing, one piece, open on both faces, cylindrical bore, pressed steel window cage, C3 internal clearance.
21314 — the 213 spherical roller series at a 70 mm bore.
CC — SKF pressed steel window cage, guided on the inner ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Cylindrical. Cage Material: Pressed steel. Cage Type: Window type, inner-ring guided. Internal Clearance: C3. Closure Type: Open. Bearing Material: Bearing steel. Series: 213. Base Number: 21314. Unit Quantity: 1 Pc.
Shaft abutment diameter: 82 mm minimum. Housing abutment diameter: 138 mm maximum. Shaft and housing fillet radius: 2 mm maximum. Bearing chamfer r1,2: 2.1 mm minimum. Inner ring shoulder diameter: approximately 101 mm. Outer ring shoulder diameter: approximately 133 mm.
Related designations: FAG 21314-E1-C3 (E1 reinforced design), NSK 21314EAEC3 (EAE reinforced design), NTN 21314C3, Koyo 21314RC3, Timken 21314EJC3 (EJ reinforced design). Also written 21314-CC/C3, 21314 CC C3, 21314CCC3 and 21314C3.
Bore 70 mm, outside diameter 150 mm, width 35 mm.
A pressed steel window cage guided on the inner ring.
C3 radial internal clearance, greater than normal, with a cylindrical bore.
