FAG22213HLMDouble-Row Spherical Roller Bearing – Straight Bore, 65 mm ID, 120 mm OD, 31 mm Width, Open, Machined Brass Cage, CN Clearance, 1.5° Misalignment

Product Description

What this part is

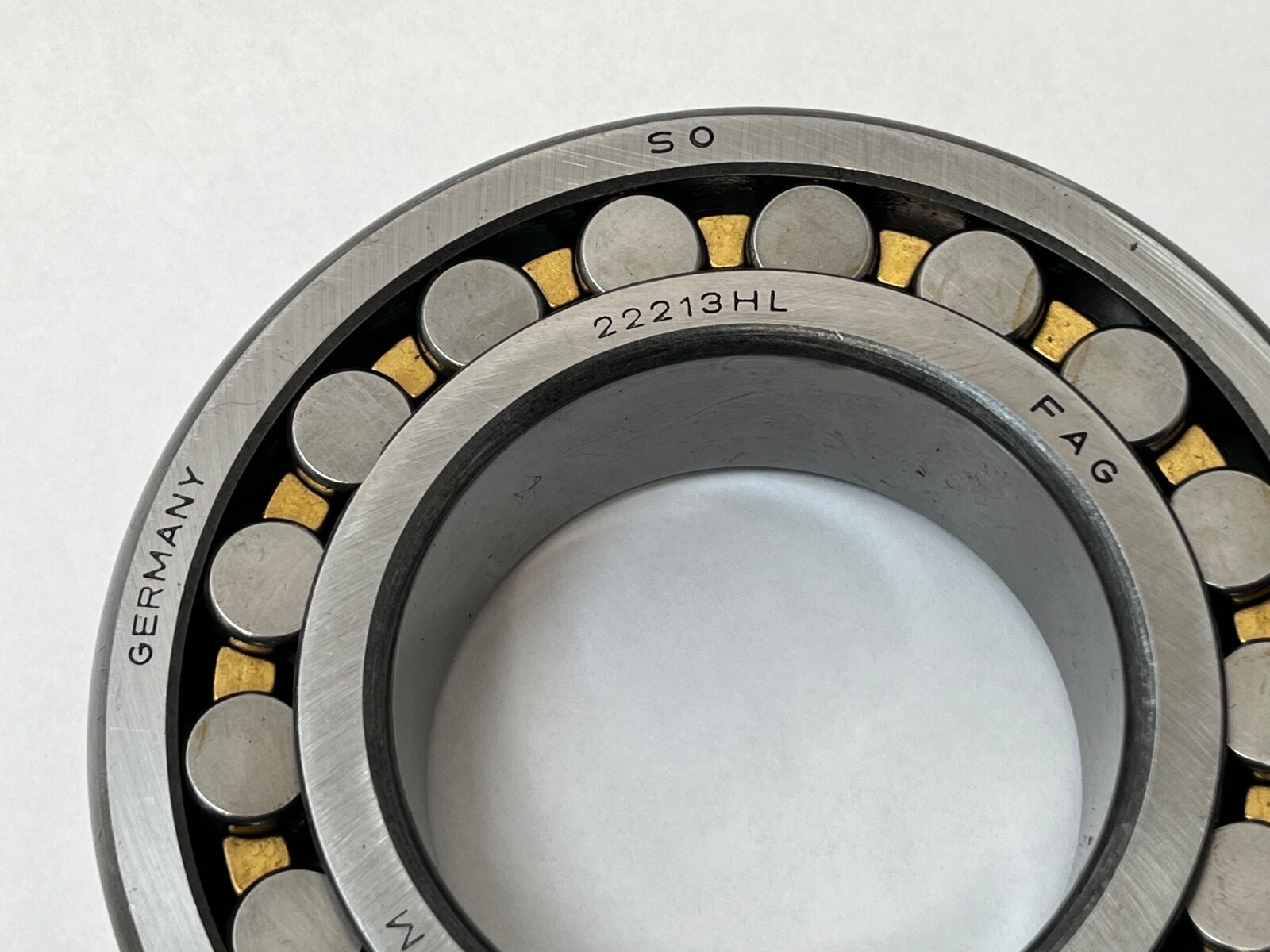

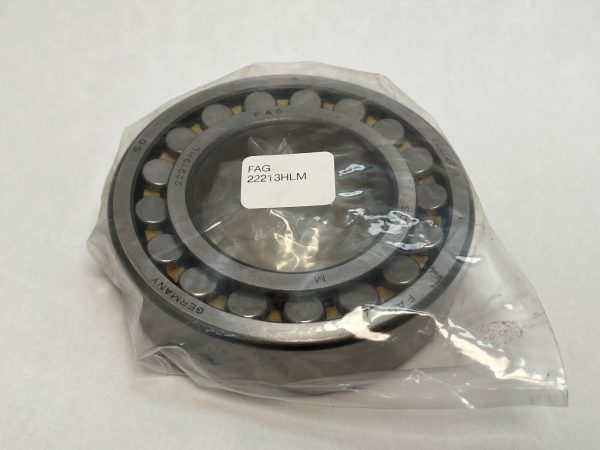

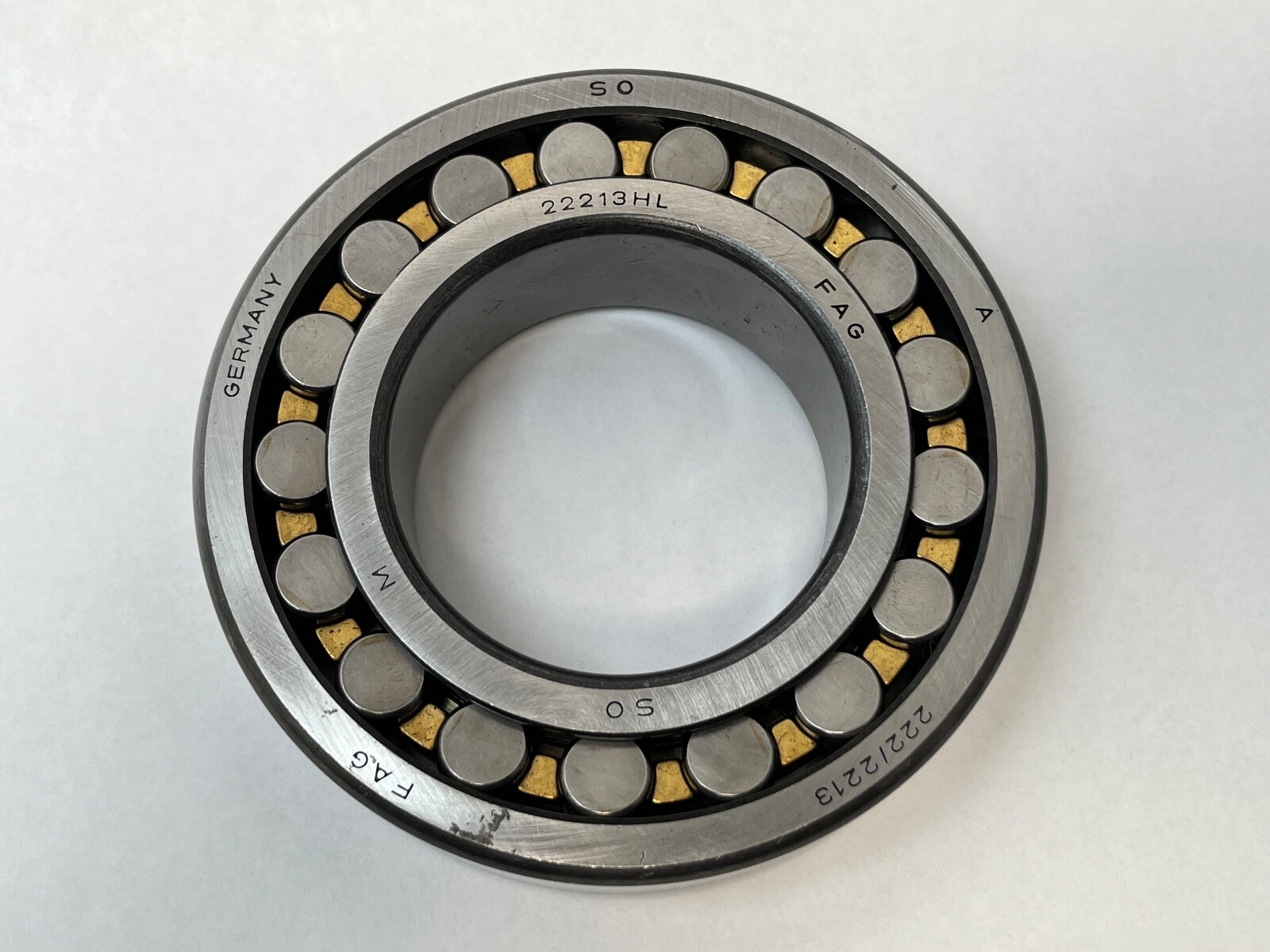

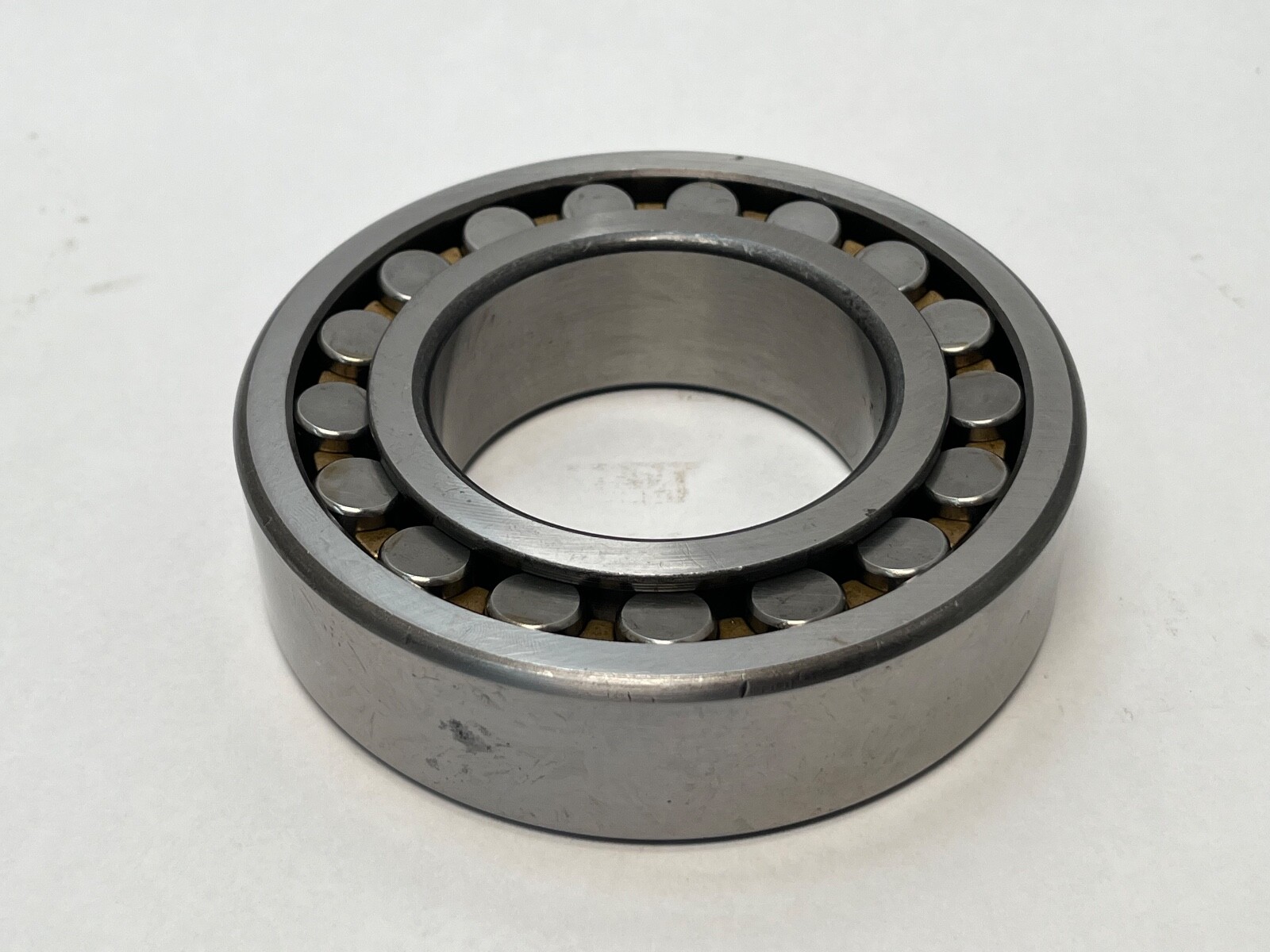

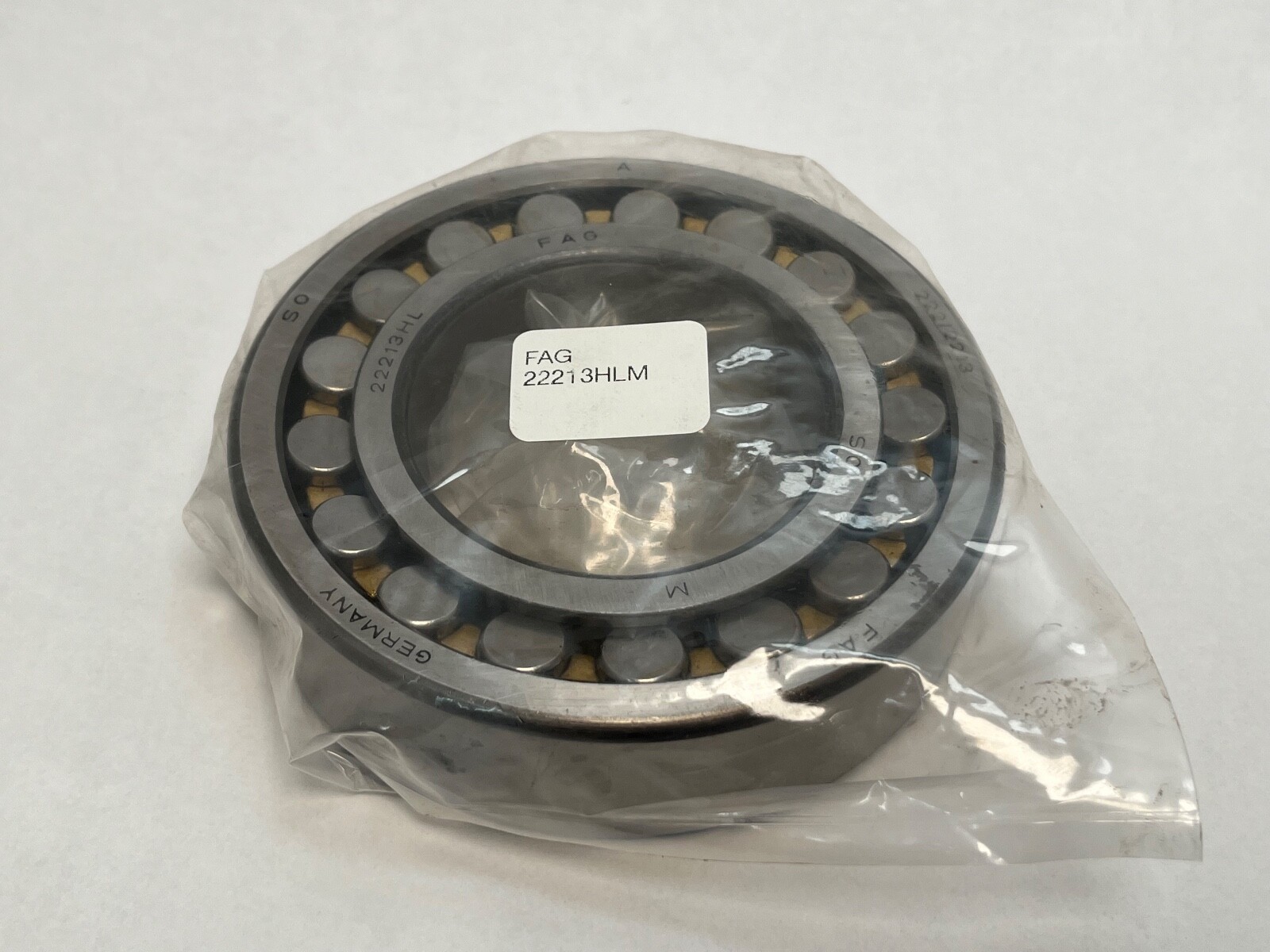

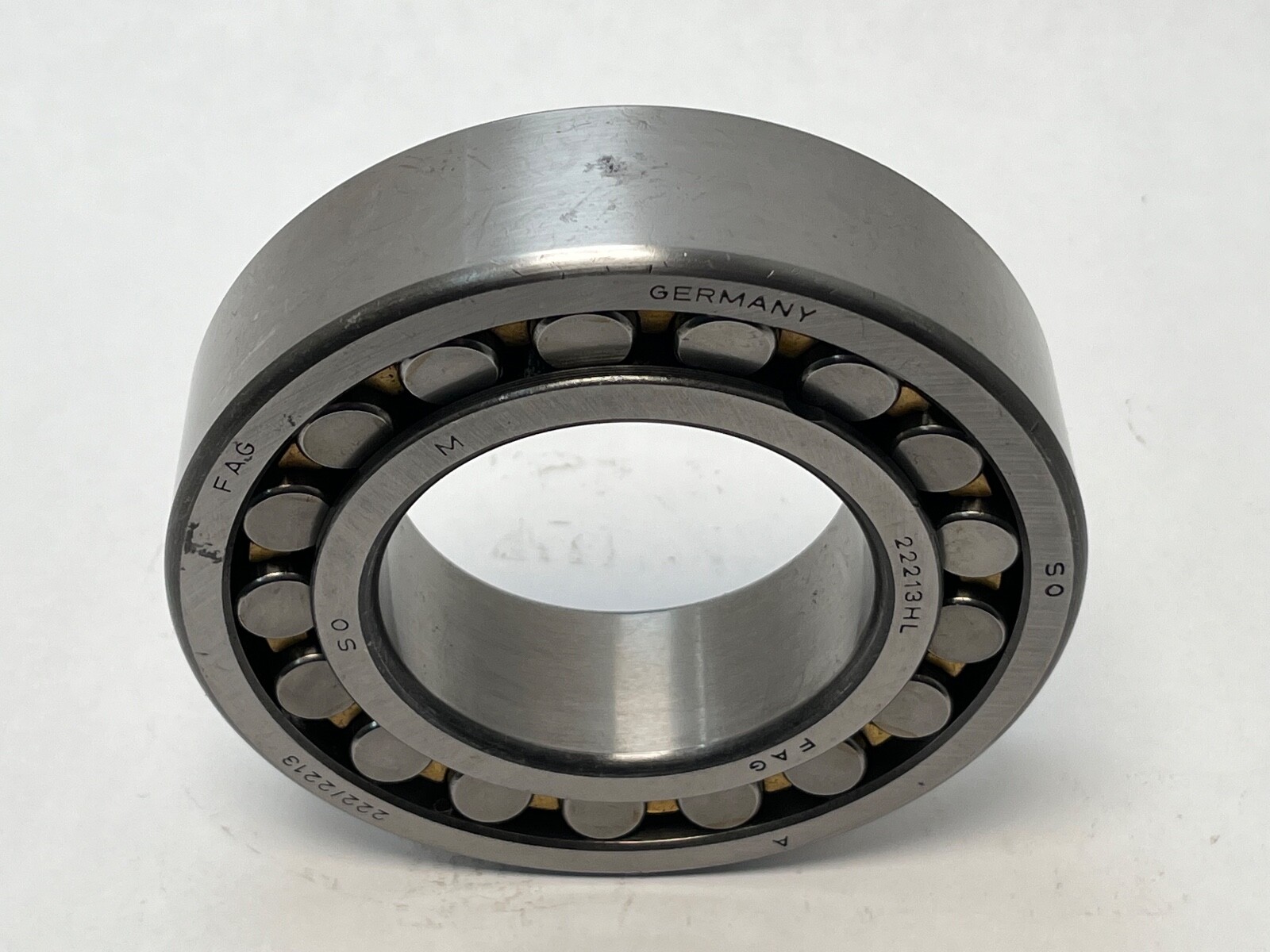

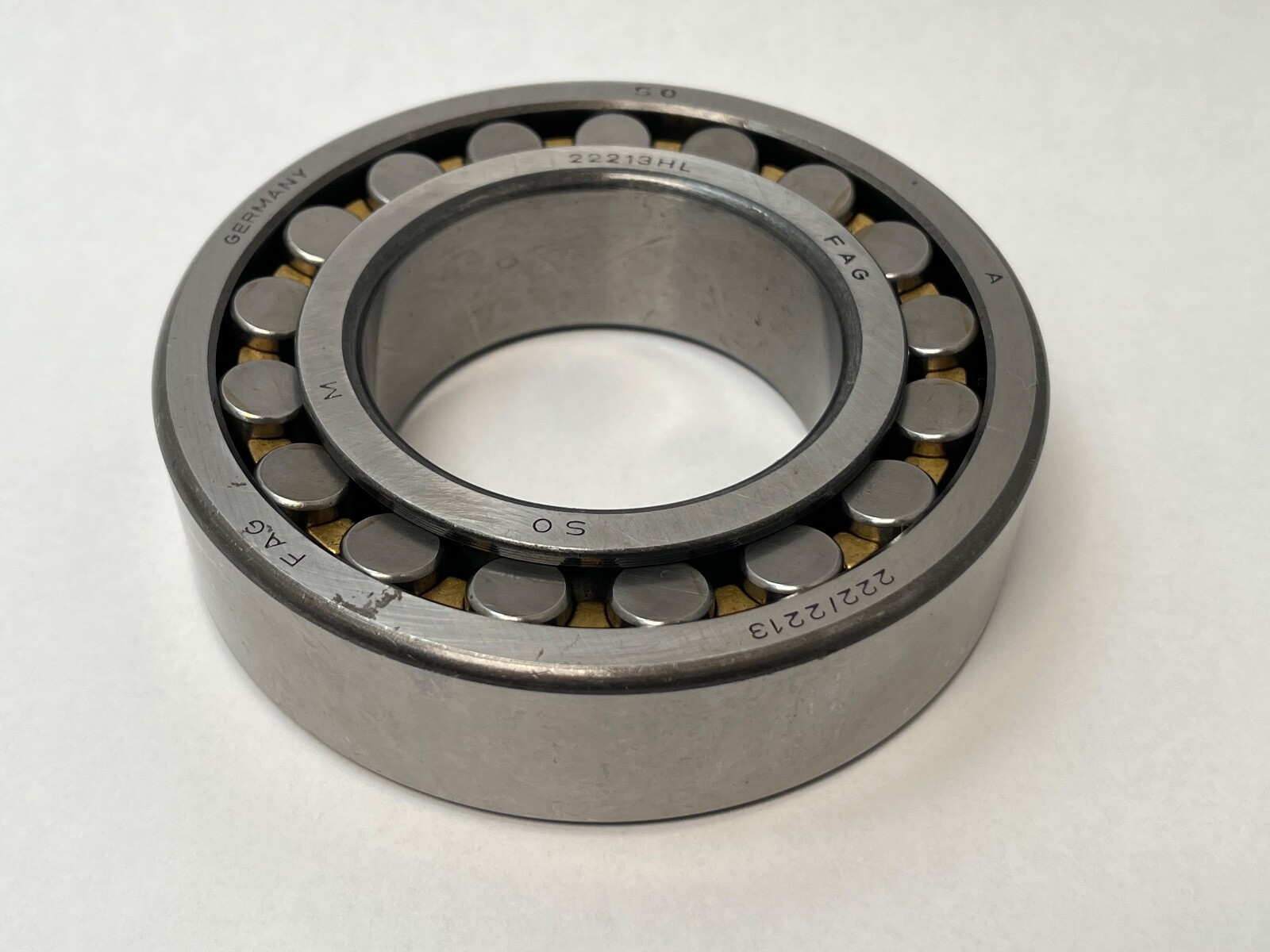

FAG 22213HLM double-row spherical roller bearing, 222 series, 65 mm bore x 120 mm outside diameter x 31 mm width. Bore: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Bore Type: Straight, cylindrical. Number Of Rows: 2. Rolling Elements: Spherical rollers. Closure Type: Open. Cage Material: Brass. Cage Type: Machined. Internal Clearance: CN, normal. Precision Class: ABEC 1, ISO normal. Permissible Misalignment: 1.5°. Maximum Operating Temperature: 200 °C. Minimum Operating Temperature: -30 °C. Design Units: Metric. Material: Bearing steel. Country of Origin: Germany.

Decoding the designation

222: the double-row spherical roller series. 13: the bore code, giving 65 mm. M: machined brass cage. No K appears in the designation, so the bore is straight and cylindrical. No clearance code appears, so the clearance is CN. Searchable variants: 22213-HL-M, 22213 HL M, 22213HL, 22213M.

What these specs mean in practice

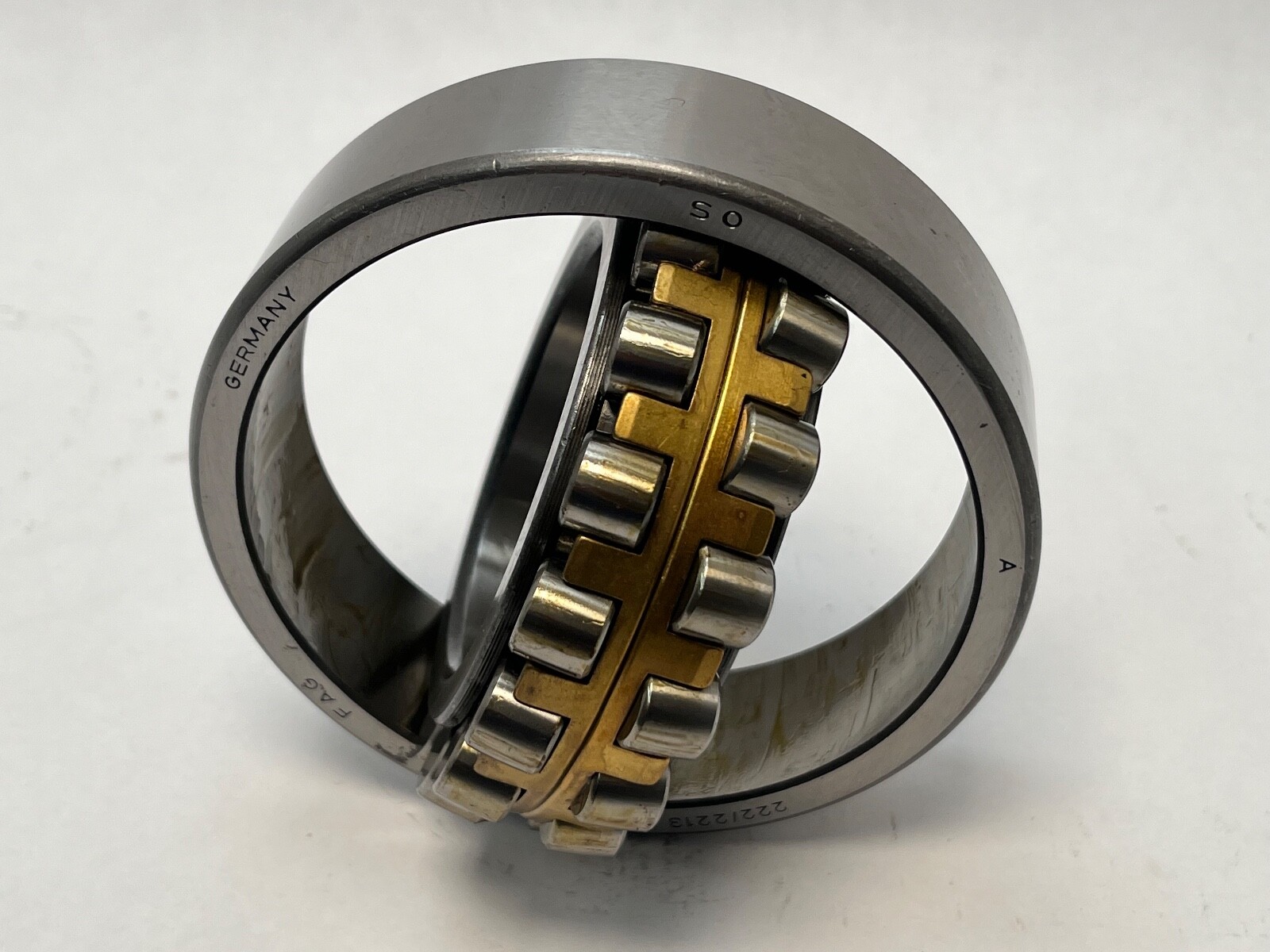

Two rows of barrel-shaped rollers run in a common spherical outer raceway, so the inner ring, rollers and cage swivel as an assembly relative to the outer ring. That gives 1.5° of permissible misalignment and makes the bearing tolerant of shaft deflection and housing bore misalignment. Because both rows are angled, a double-row spherical roller bearing carries thrust in either direction as well as heavy radial load. Internal Clearance: CN, the normal class, which is correct on a clearance-set bearing. Lubricant: grease or oil. Rings are dimensionally stabilised for continuous running to 200 °C. A machined brass cage takes higher temperature and shock loading than a pressed cage and adds no restriction on lubricant choice.

Quantity and configuration

Unit Quantity: 1 Pc. Straight-bore execution, which mounts directly on a cylindrical shaft seat.

Interchange guidance

Same-envelope designations: SKF 22213 E, NTN 22213E, Timken 22213CJ, NSK 22213EAE4. Related part in the same series: the 22213K, which shares the 65 x 120 x 31 mm envelope with a 1:12 tapered bore and mounts on an H313 adapter sleeve.
