This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing - 65 mm Straight Bore, 120 mm OD, 31 mm Width, Brass Cage, C3, W33$44.35
Spherical Roller Bearing - Double Row, Straight Bore, 65 mm ID, 120 mm OD, 31 mm Width, W33 Lubrication Groove, C3 Internal Clearance$59.65
Spherical Roller Bearing - 65 mm Bore, 120 mm OD, 31 mm Width, W33 Lube Groove, C3$60.40
Spherical Roller Bearing - 65 mm ID, 120 mm OD, 31 mm Width, Cylindrical Bore, C3 Clearance, W33 Lubrication Groove$67.30| MFR / Brand | FAG |
|---|---|
| MPN | 22213ESTVPBC3W33 |
| Model | 22213 E S TVP B C3 W33 22213E |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Molded |
| Dynamic Load Rating | 198 kN / 44500 lbf |
| Static Load Rating | 216 kN / 48500 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 120 °C |
| Item Weight | 3.42 lbs |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Limiting Speed | 5300 rpm |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | SKF 22213 E/C3 |
|---|---|
| Cross Reference 2 | NTN 22213E/C3 |
| Cross Reference 3 | Timken 22213CJ-C3 |

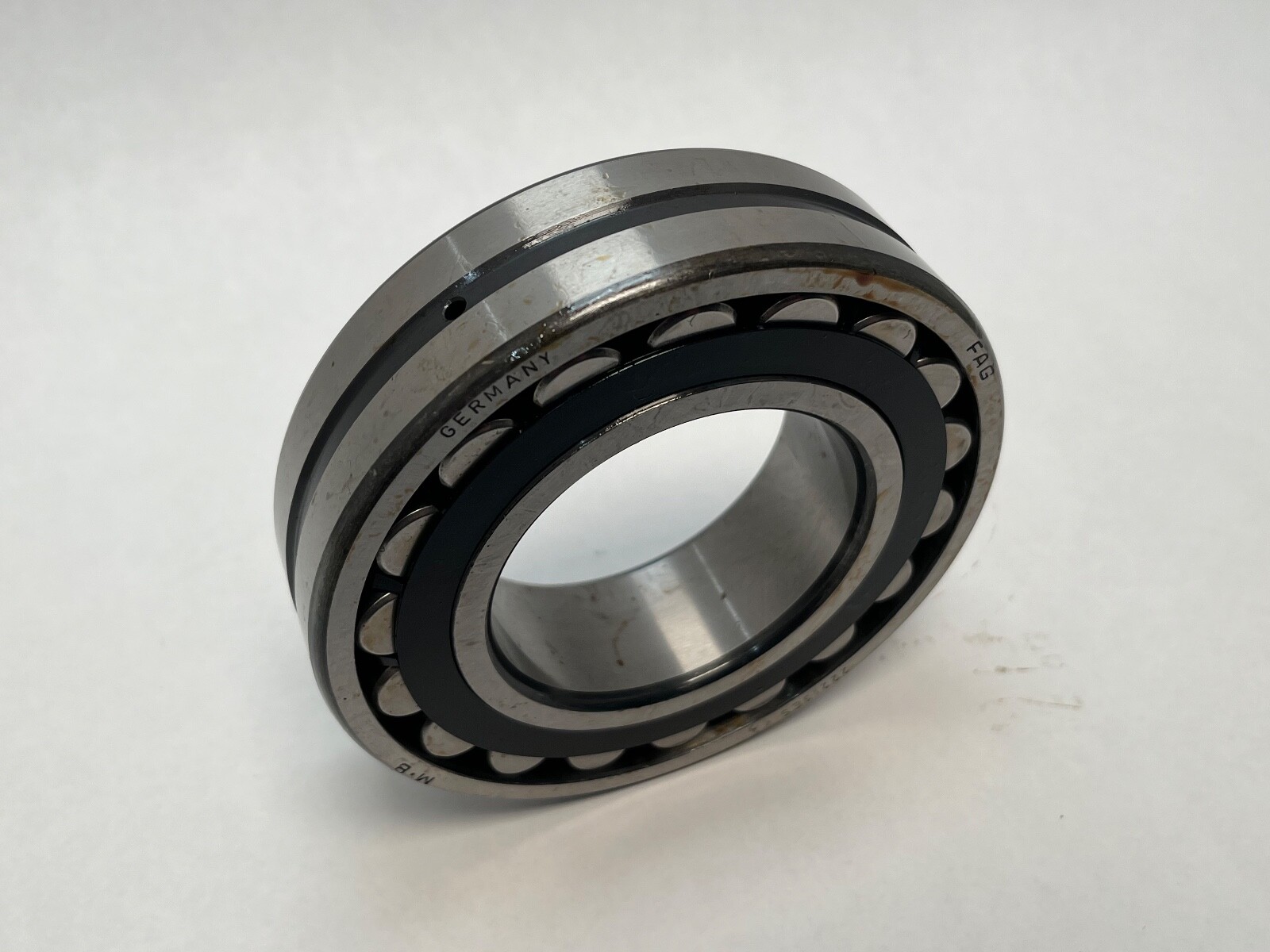

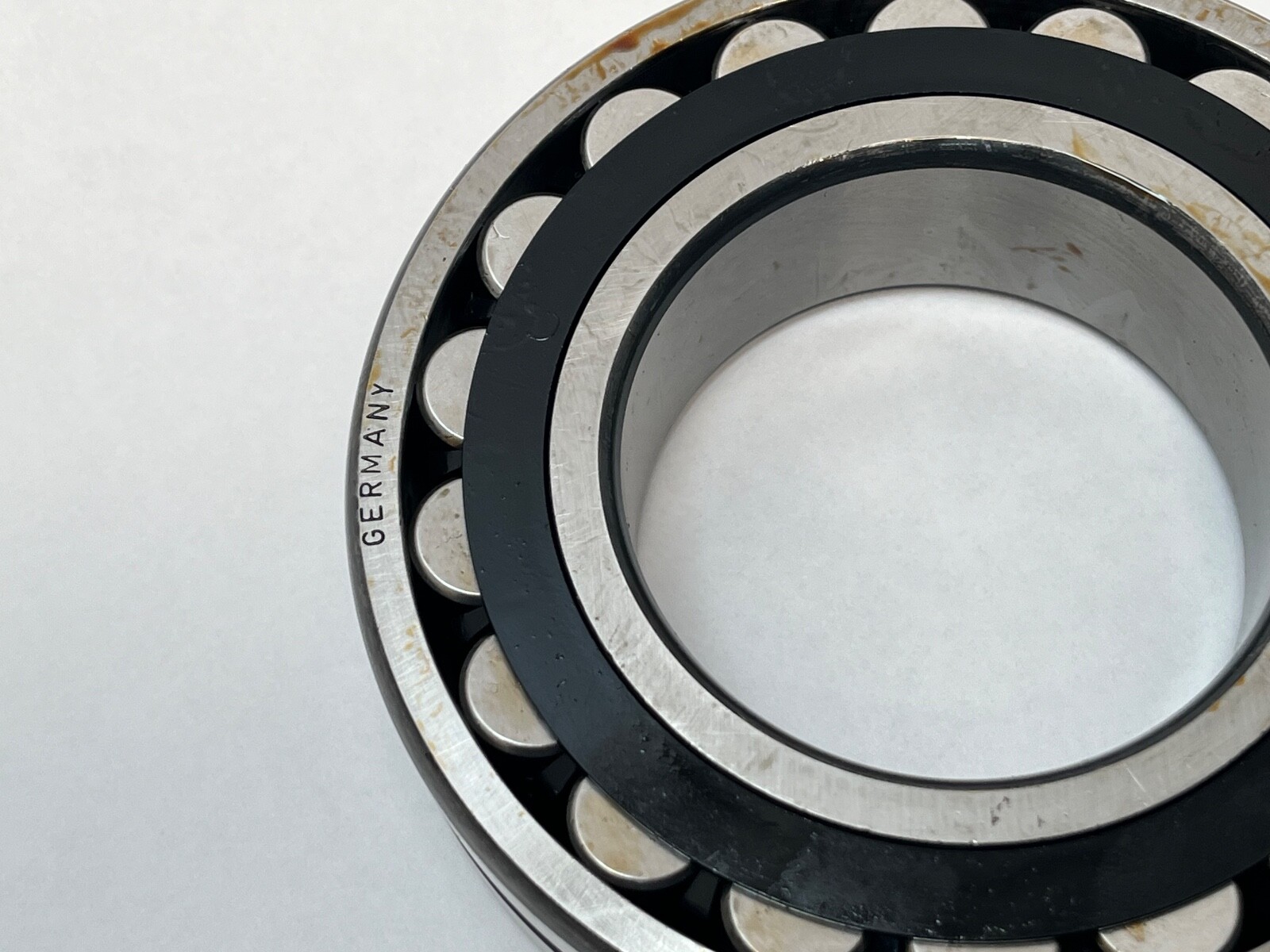

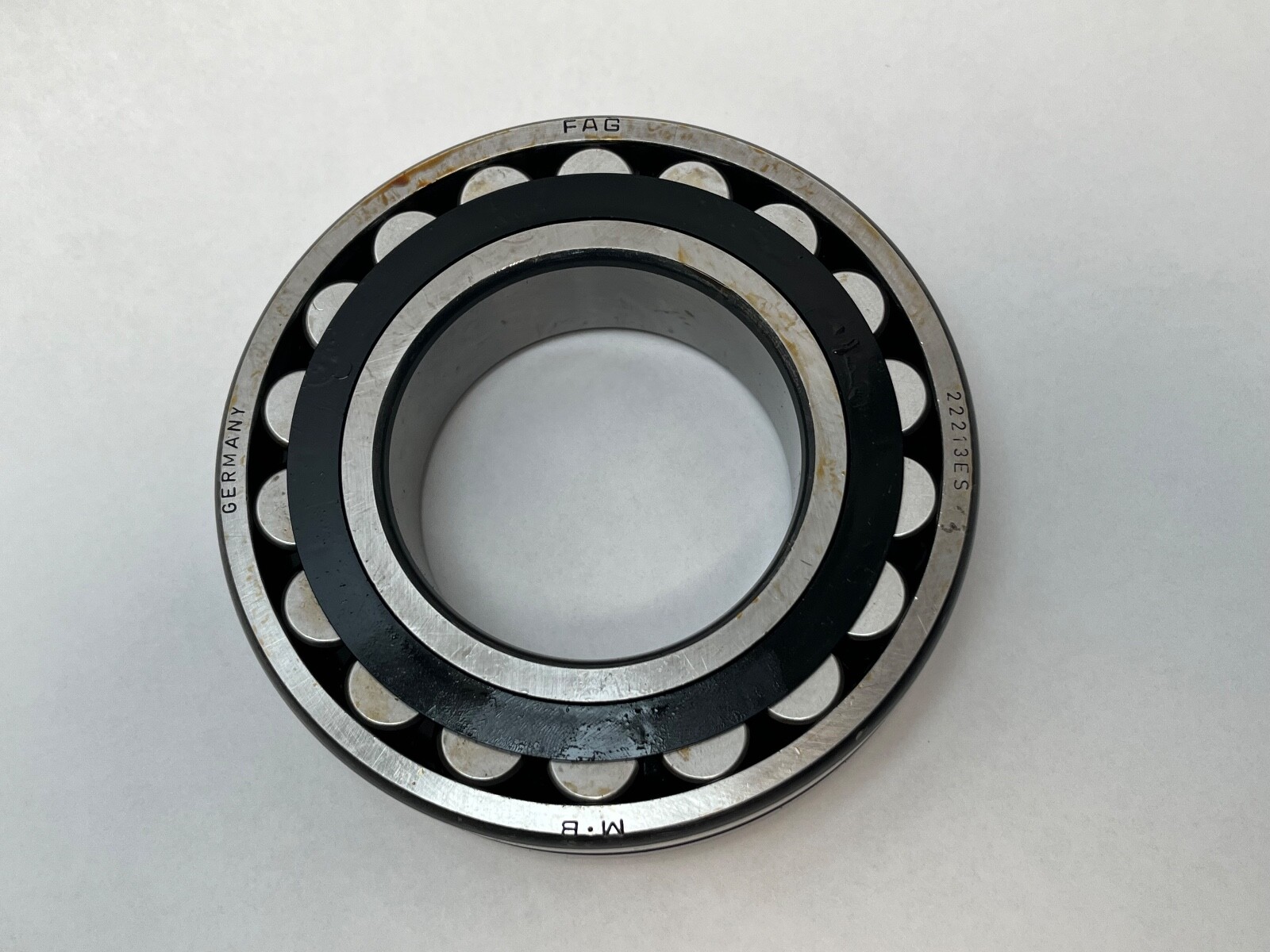

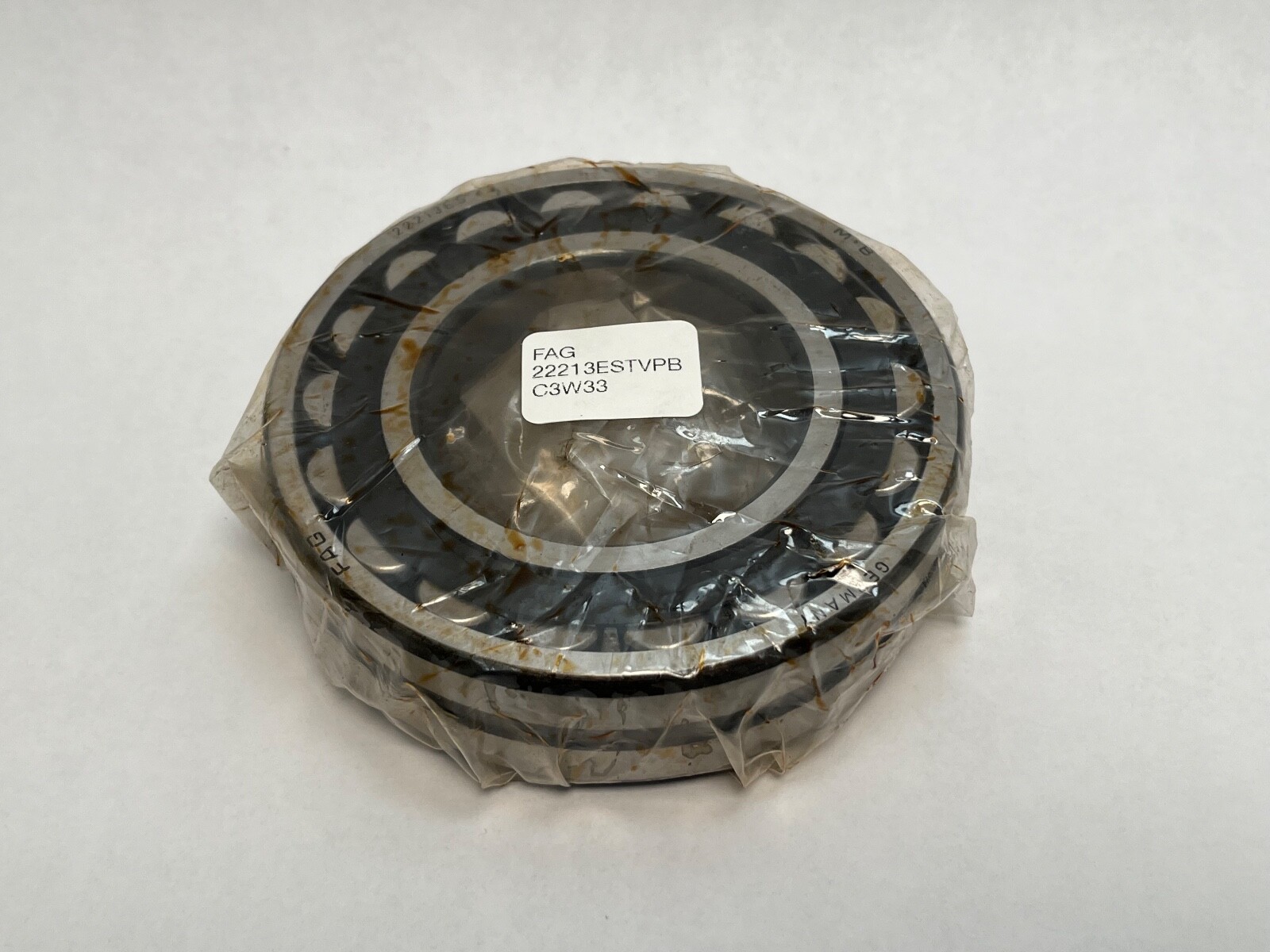

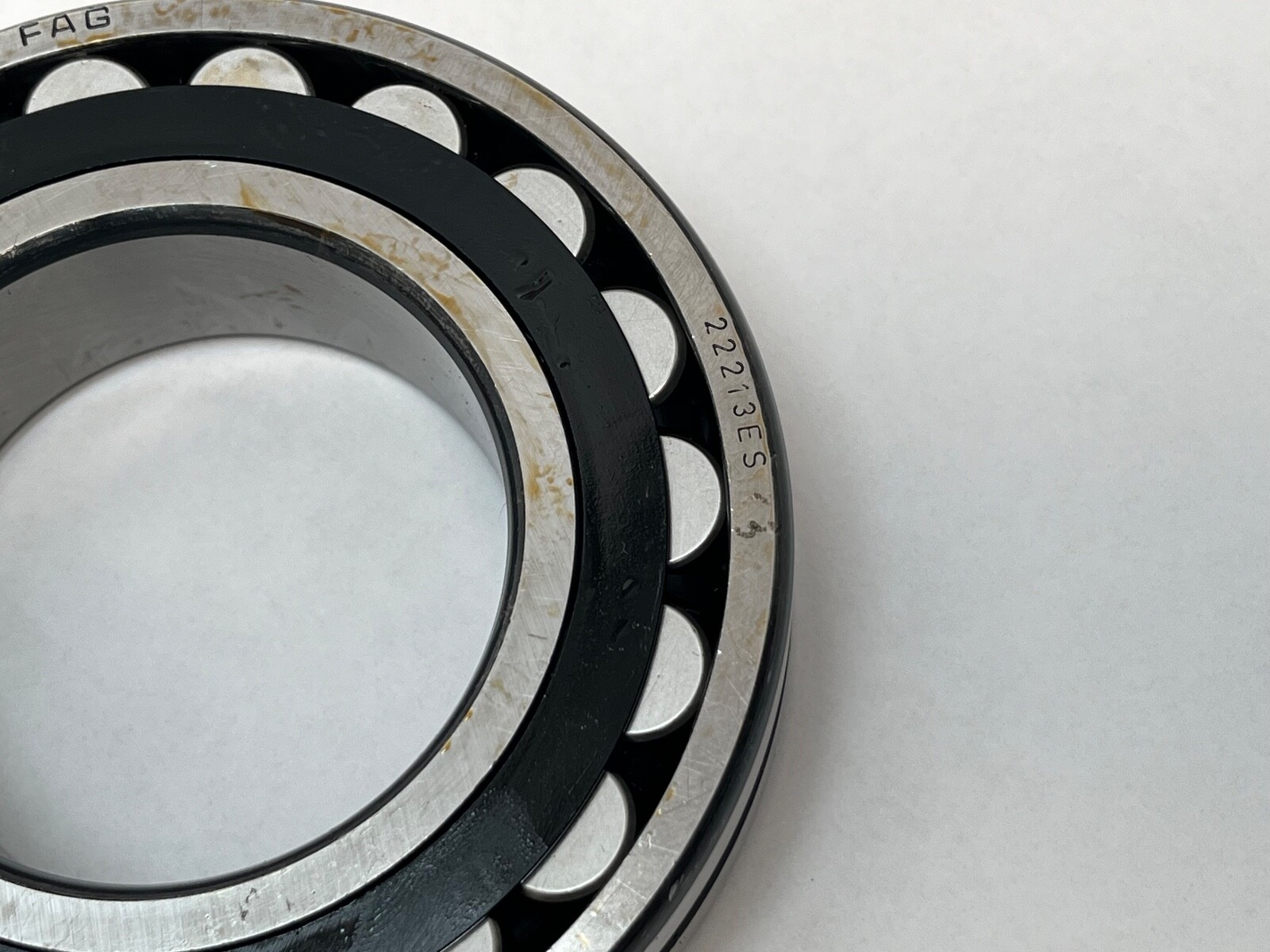

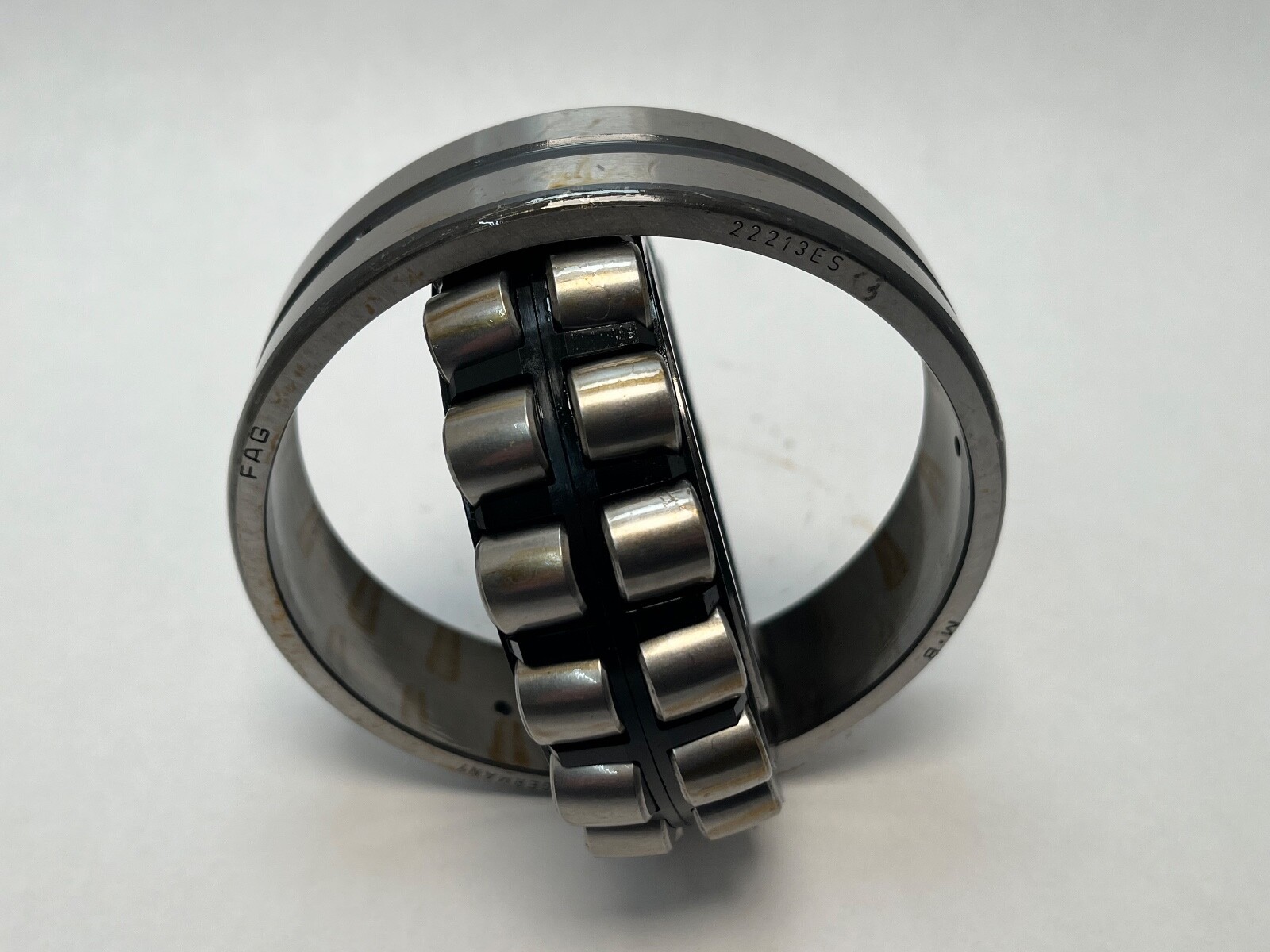

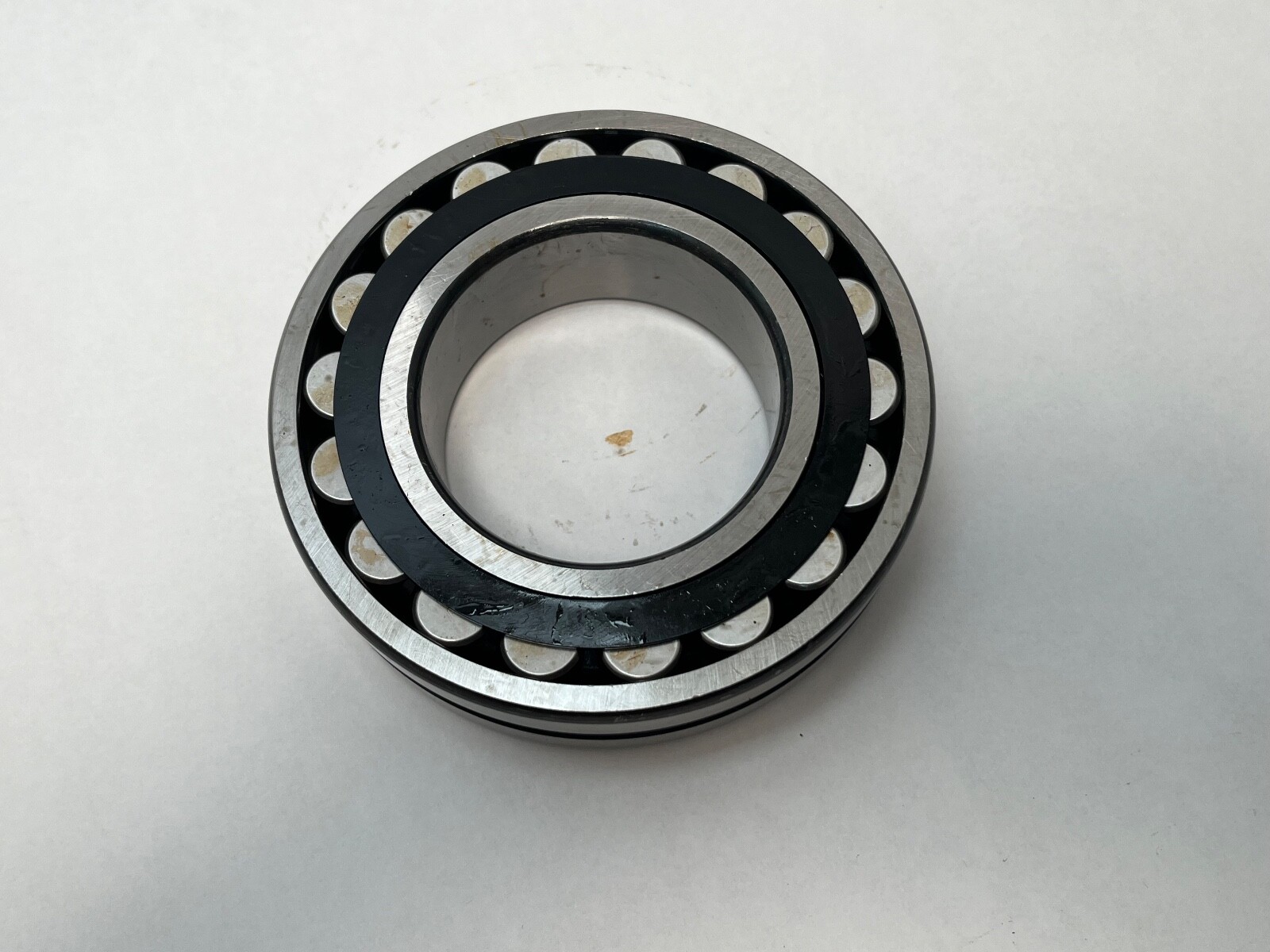

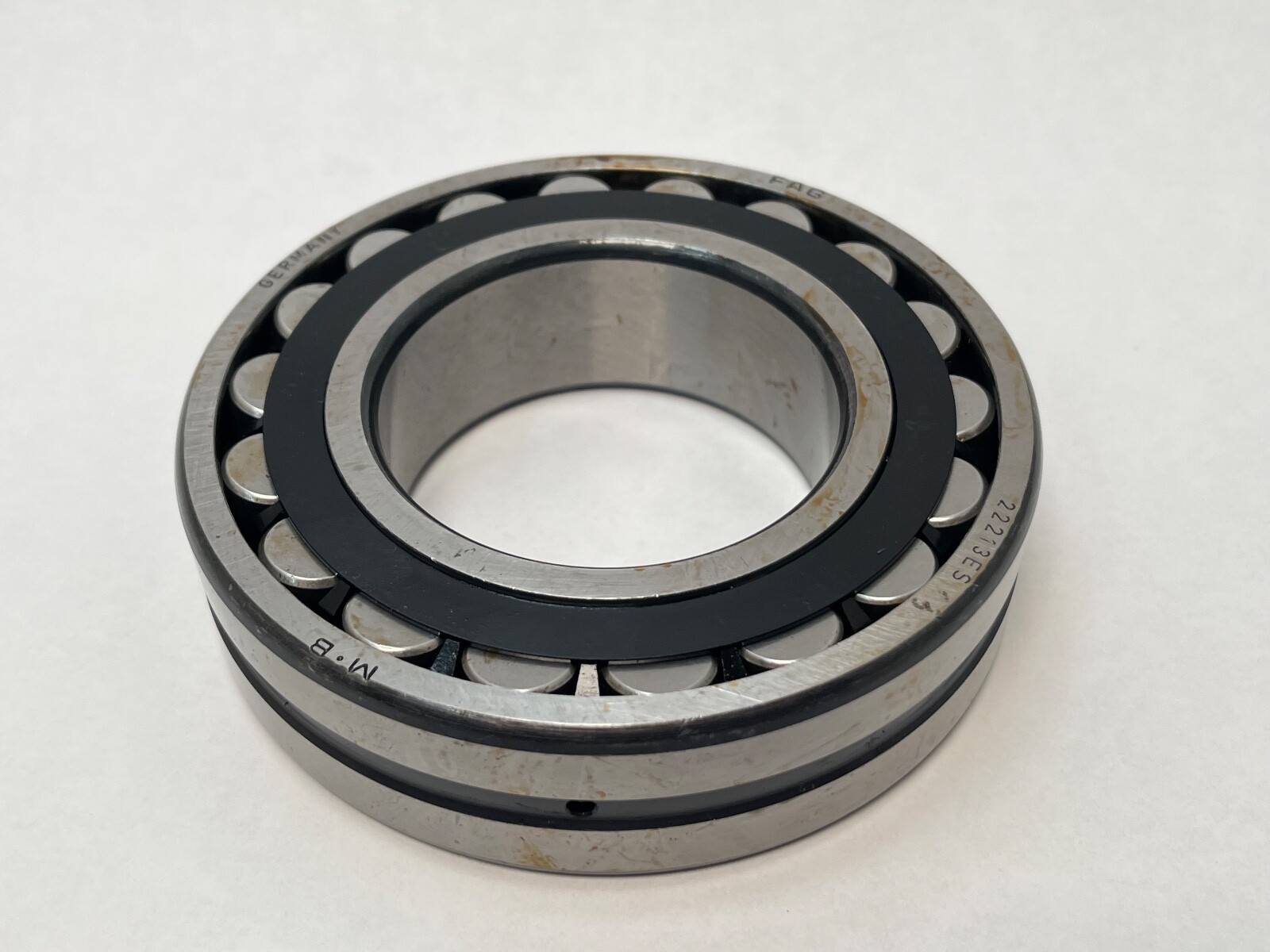

Spherical Roller Bearing – Straight Bore, 65 mm ID, 120 mm OD, 31 mm Width, Open, C3 Internal clearance
$151.33
29 in stock
$44.26
14 in stock
$144.52
4 in stock
