Double-row spherical roller bearing, FAG 22213HLM, 65 x 120 x 31 mm, straight bore, open, machined brass cage, CN clearance, 1.5° misalignment.
List Price
$61.18
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing - Double Row, Straight Bore, 65 mm ID, 120 mm OD, 31 mm Width, Open, W33 Lubrication Groove, C3 Internal Clearance$75.70
Double Row Spherical Roller Bearing - Straight Bore, 65 mm Bore x 120 mm OD x 31 mm Width, Open, Machined Brass Cage, W33 Lubrication$84.09
Spherical Roller Bearing — 65 mm Tapered Bore, 120 mm OD, 31 mm Width, W33 Lubrication Groove, C3 Clearance$59.02
Spherical Roller Bearing - Double Row, Straight Bore, 65 mm ID, 120 mm OD, 31 mm Width, W33 Lubrication Groove, C3 Internal Clearance$59.65| MFR / Brand | FAG |
|---|---|
| MPN | 22213-HL-M |
| Model | 22213 HL M / MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Lubricant | Grease or oil |
| Base Number | 22213 |
| Industry Terms | double row spherical roller bearing; self-aligning roller bearing |
| Bore Shaft Size | 65 mm |
| Mpn Variants | 22213HLM; 22213 HL M; 22213HL; 22213M; 22213 HL MB |
| Compatible With Replaces | Related: 22213K, tapered bore, H313 adapter sleeve |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight (cylindrical) |
| Harmonization Code | 8482.30.00 |
| Part Number | 22213HLM |
| Maximum Permissible Misalignment | 1.5° |
| Common Misspellings | FAG 22213 HLM; FAG 22213-HLM; FAG 22213HL-M; Schaeffler 22213HLM |
| Application Types | Gearboxes; pumps; industrial machinery; heavy-duty fans |
| Cross Reference 1 | FAG 22213-E1A-XL-M (E1A, XL design) |
|---|---|
| Cross Reference 2 | Timken 22213CJ |
| Cross Reference 3 | NSK 22213EAE4 (E design) |
| Cross Reference 4 | SKF 22213 E (E design) |
| Cross Reference 5 | NTN 22213E (E design) |

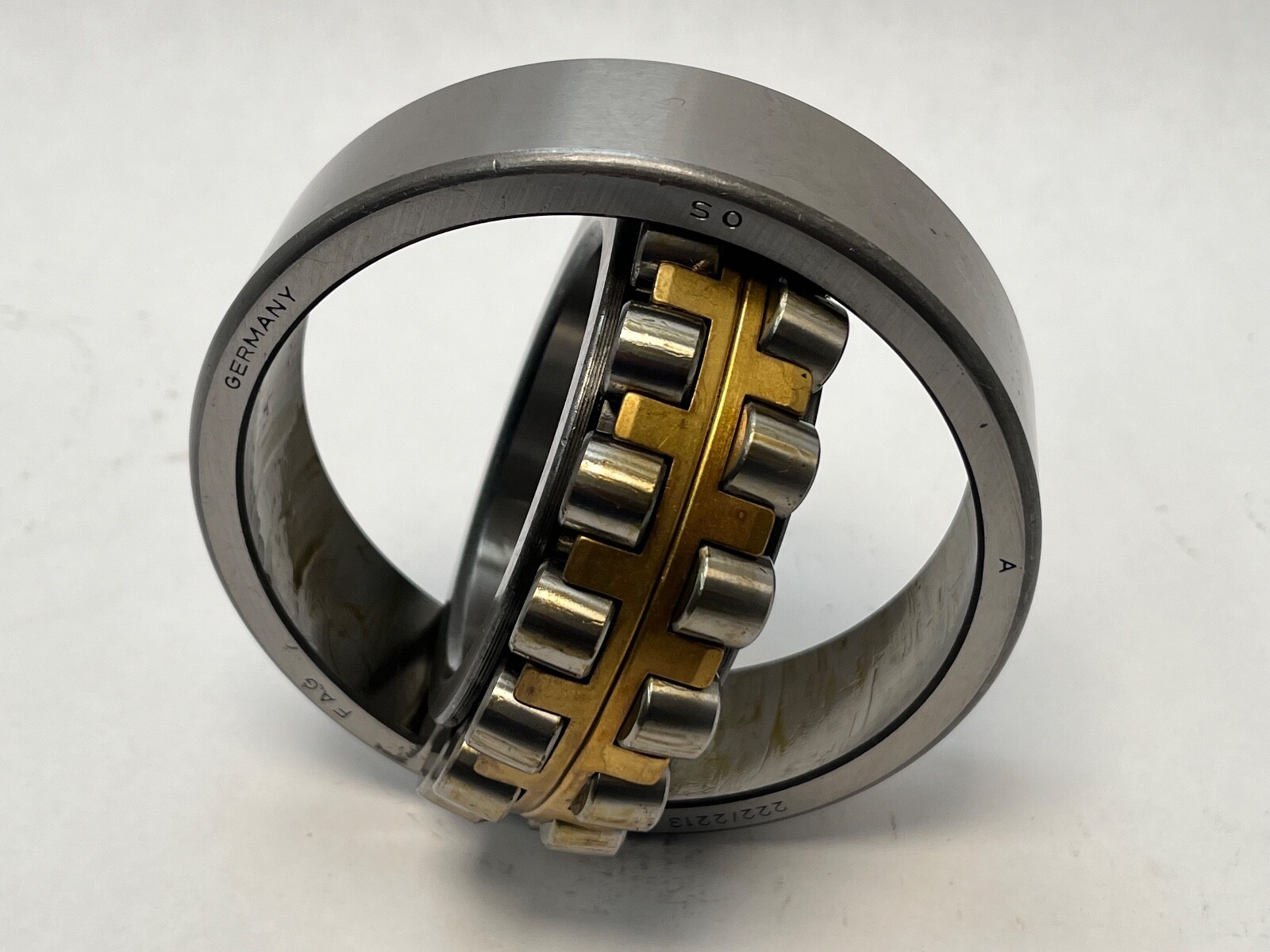

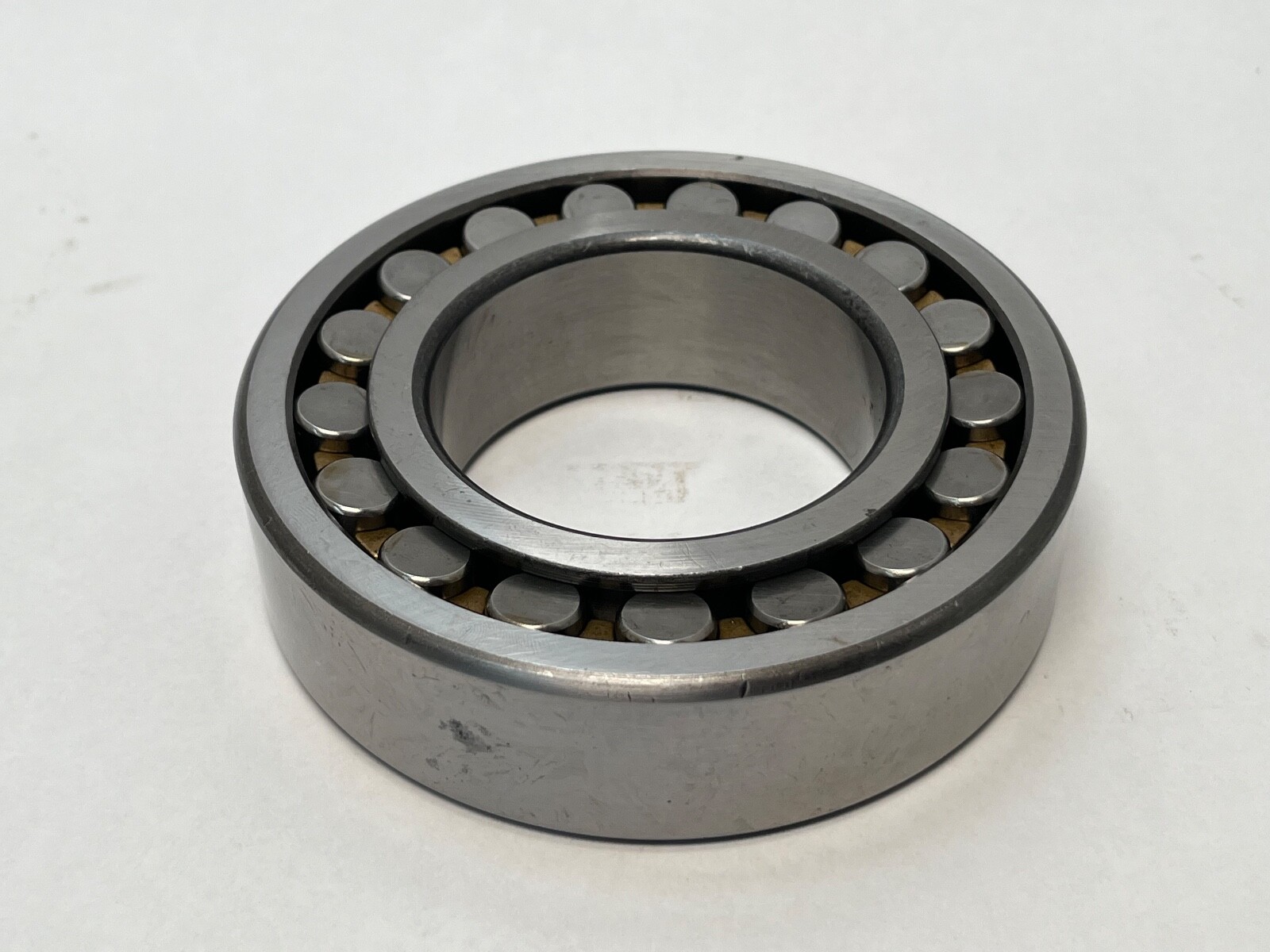

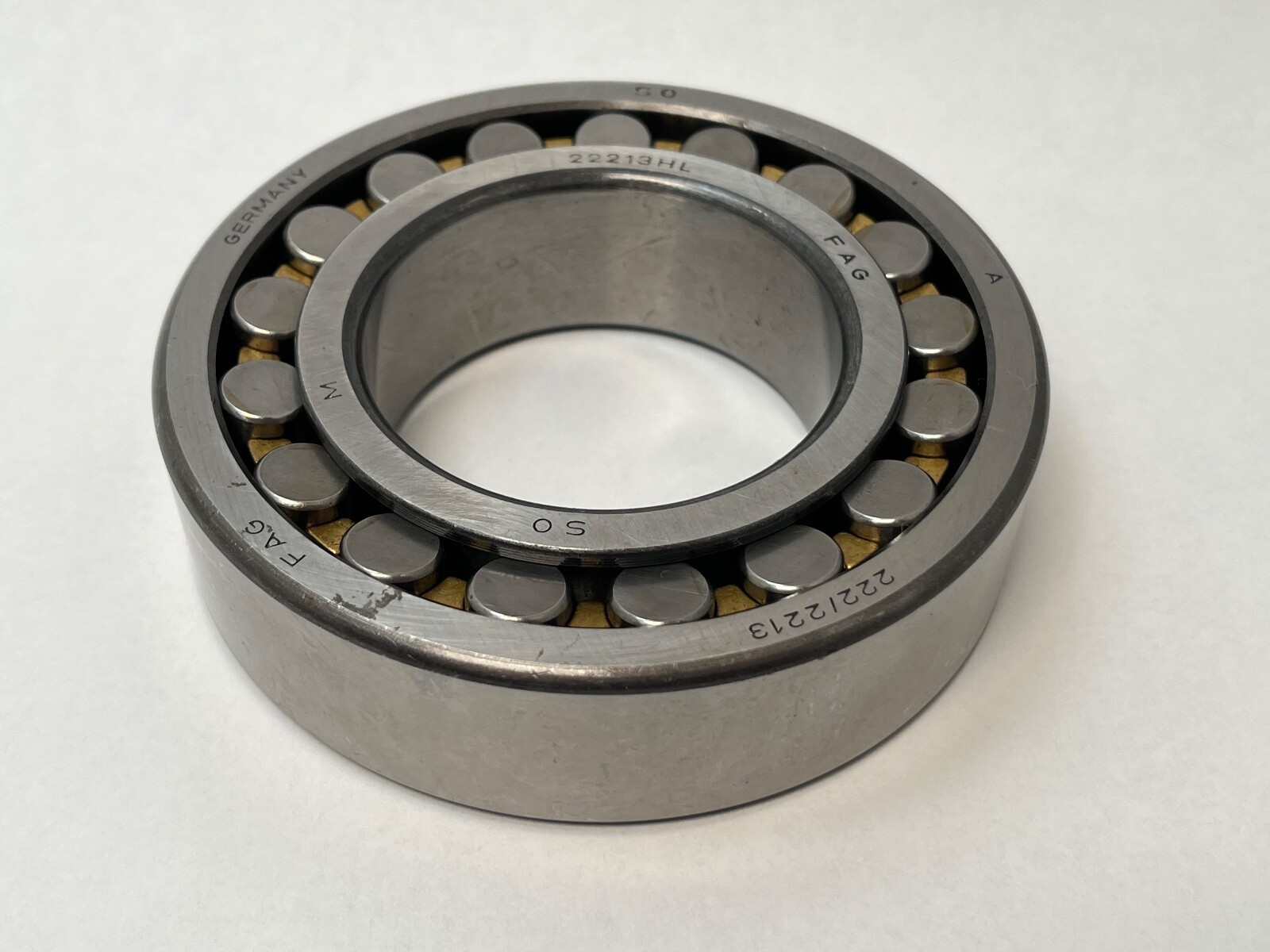

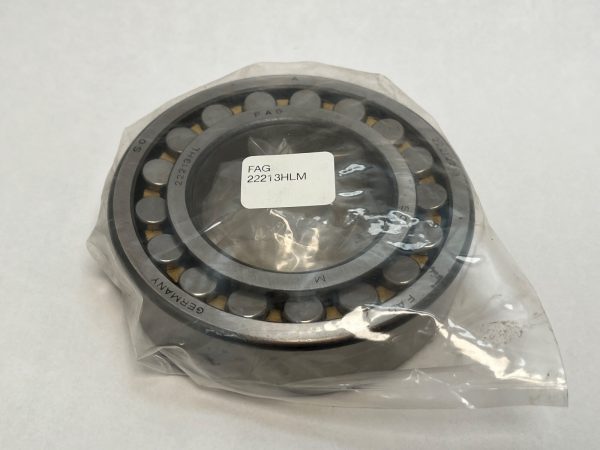

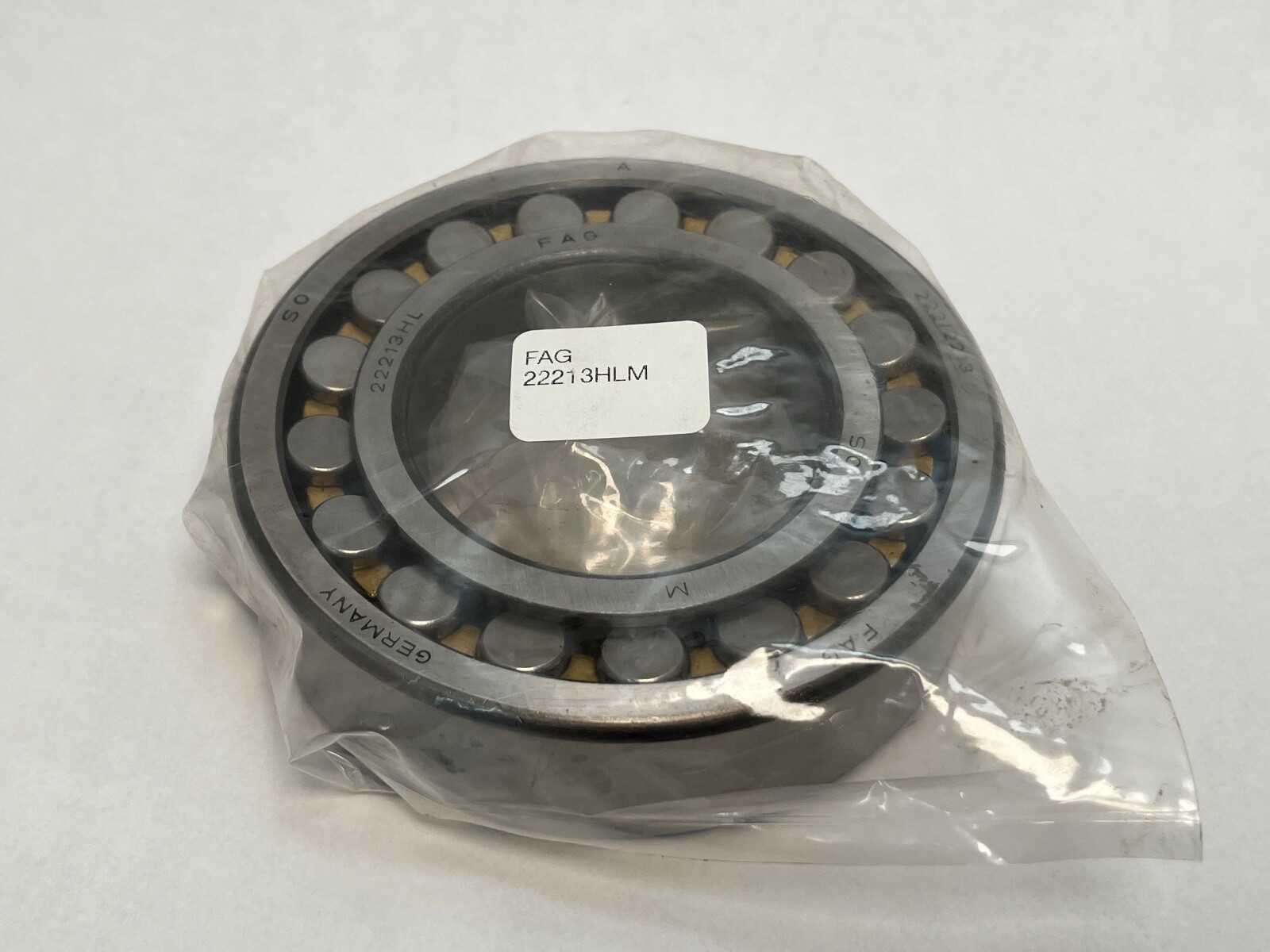

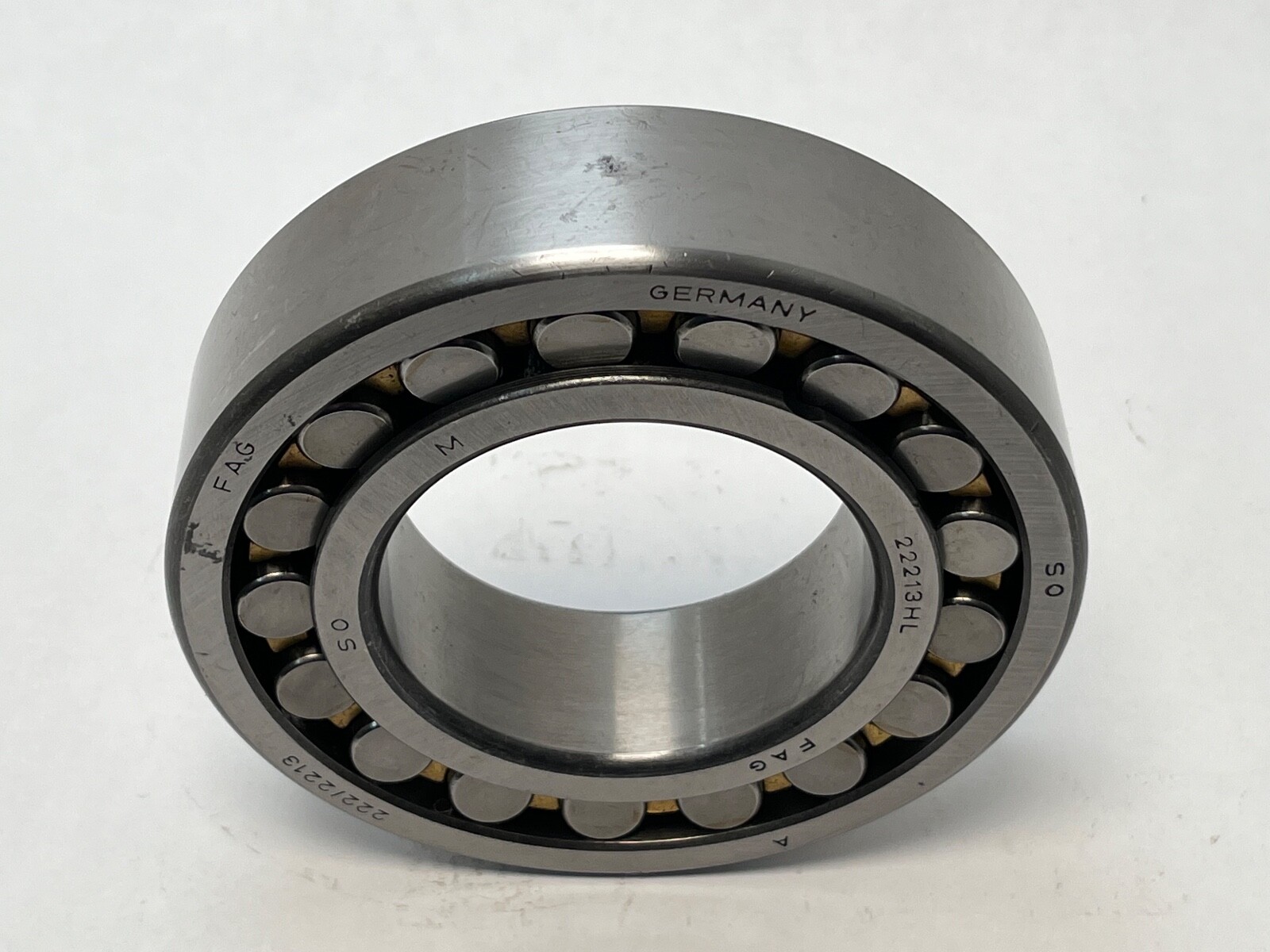

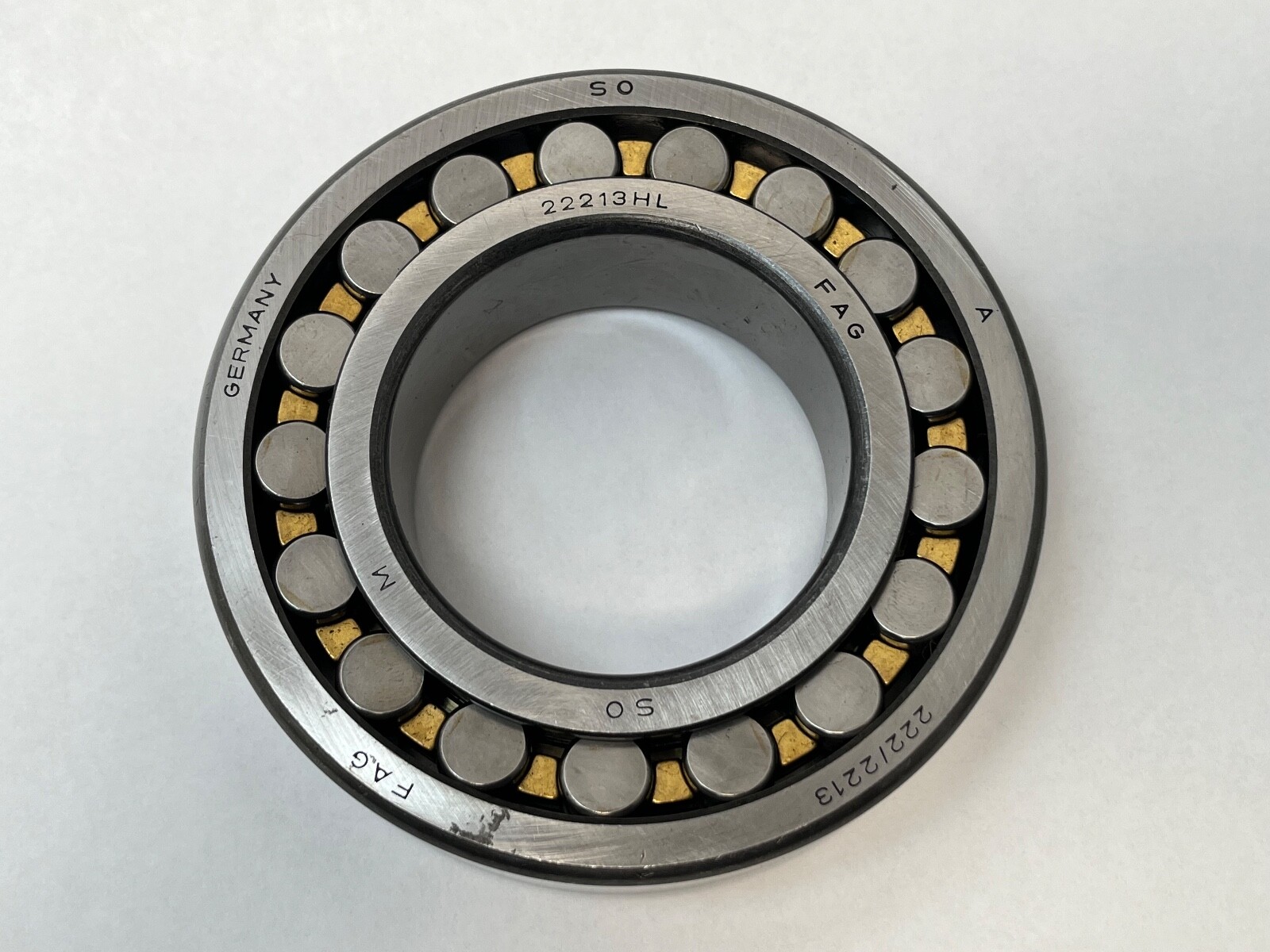

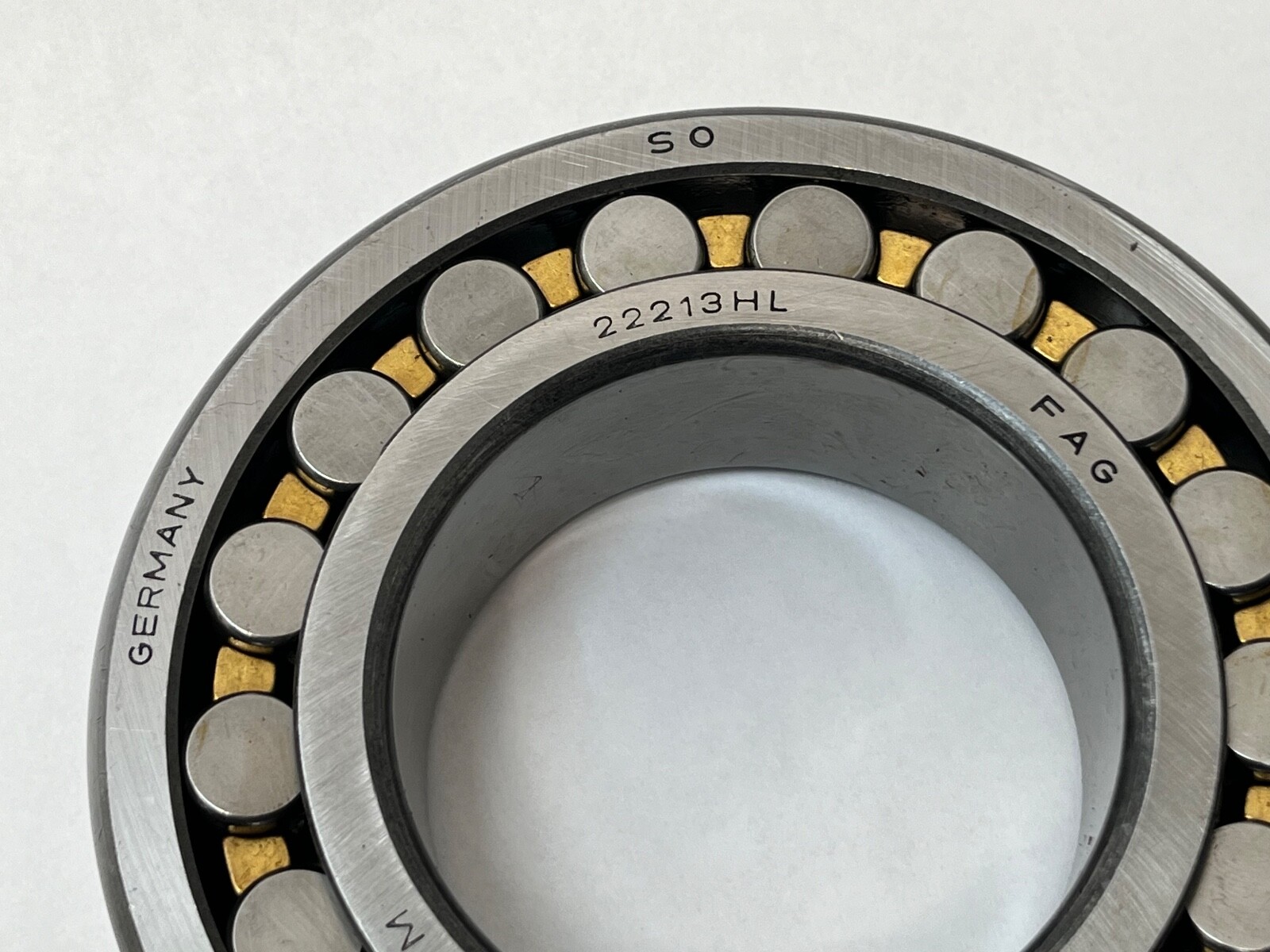

FAG 22213HLM double-row spherical roller bearing, 222 series, 65 mm bore x 120 mm outside diameter x 31 mm width. Bore: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Bore Type: Straight, cylindrical. Number Of Rows: 2. Rolling Elements: Spherical rollers. Closure Type: Open. Cage Material: Brass. Cage Type: Machined. Internal Clearance: CN, normal. Precision Class: ABEC 1, ISO normal. Design Units: Metric. Material: Bearing steel. Unit Quantity: 1 Pc.
222 — the double-row spherical roller series.
13 — bore code, 65 mm.
M — machined brass cage.
No K appears in the designation, so the bore is straight and cylindrical. No clearance code appears, so the clearance is CN.
Permissible Misalignment: 1.5°. Maximum Operating Temperature: 200 °C. Minimum Operating Temperature: -30 °C. Lubricant: Grease or oil. Series: 222. Harmonization Code: 8482.30.00.
Envelope: 65 x 120 x 31 mm. Straight-bore execution, mounting directly on a cylindrical shaft seat.
Cross-references: FAG 22213-E1A-XL-M (E1A, XL design), Timken 22213CJ, NSK 22213EAE4 (E design), SKF 22213 E (E design), NTN 22213E (E design). Related part in the same series: the 22213K, which has a 65 x 120 x 31 mm envelope with a 1:12 tapered bore and mounts on an H313 adapter sleeve. Searchable variants: 22213-HL-M, 22213 HL M, 22213HL, 22213M.
Bore: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm.
A machined brass cage and CN (normal) internal clearance.
A straight, cylindrical bore. The tapered-bore version is the 22213K.
