Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
5 in stock

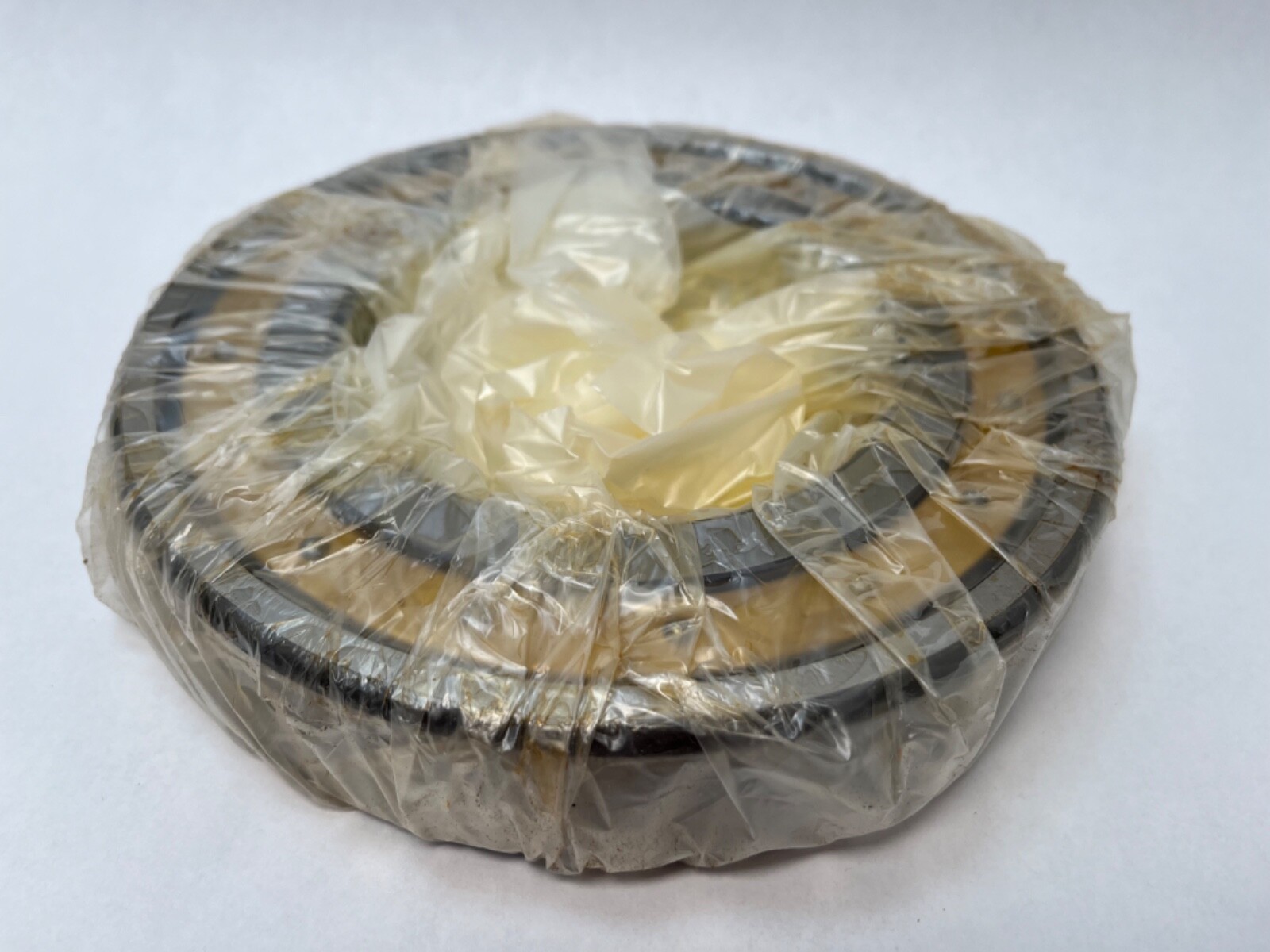

Single-row barrel roller bearing, 100 mm bore x 180 mm OD x 34 mm wide. 1:12 tapered bore, machined brass cage, C3 clearance, radial load with self-alignment. 1 Pc.
List Price
$274.80
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20220KMBC3 |
| Model | 20220-K-MB-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 20200 Series |
| Lubricant | None |
| Base Number | 20220 |
| Industry Terms | barrel roller bearing, tapered bore barrel roller, self-aligning roller bearing |
| Bore Shaft Size | 100 mm (3.9370 in), tapered 1:12 |
| Mpn Variants | 20220K.MB.C3, 20220-K-MB-C3, 20220KMBC3, 20220K, 20220 K MB C3 |
| Compatible With Replaces | Adapter sleeve H220 (90 mm shaft seat) |
| Rolling Elements | Roller |
| Number Of Rows | 1 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 20220-K-MB-C3 |

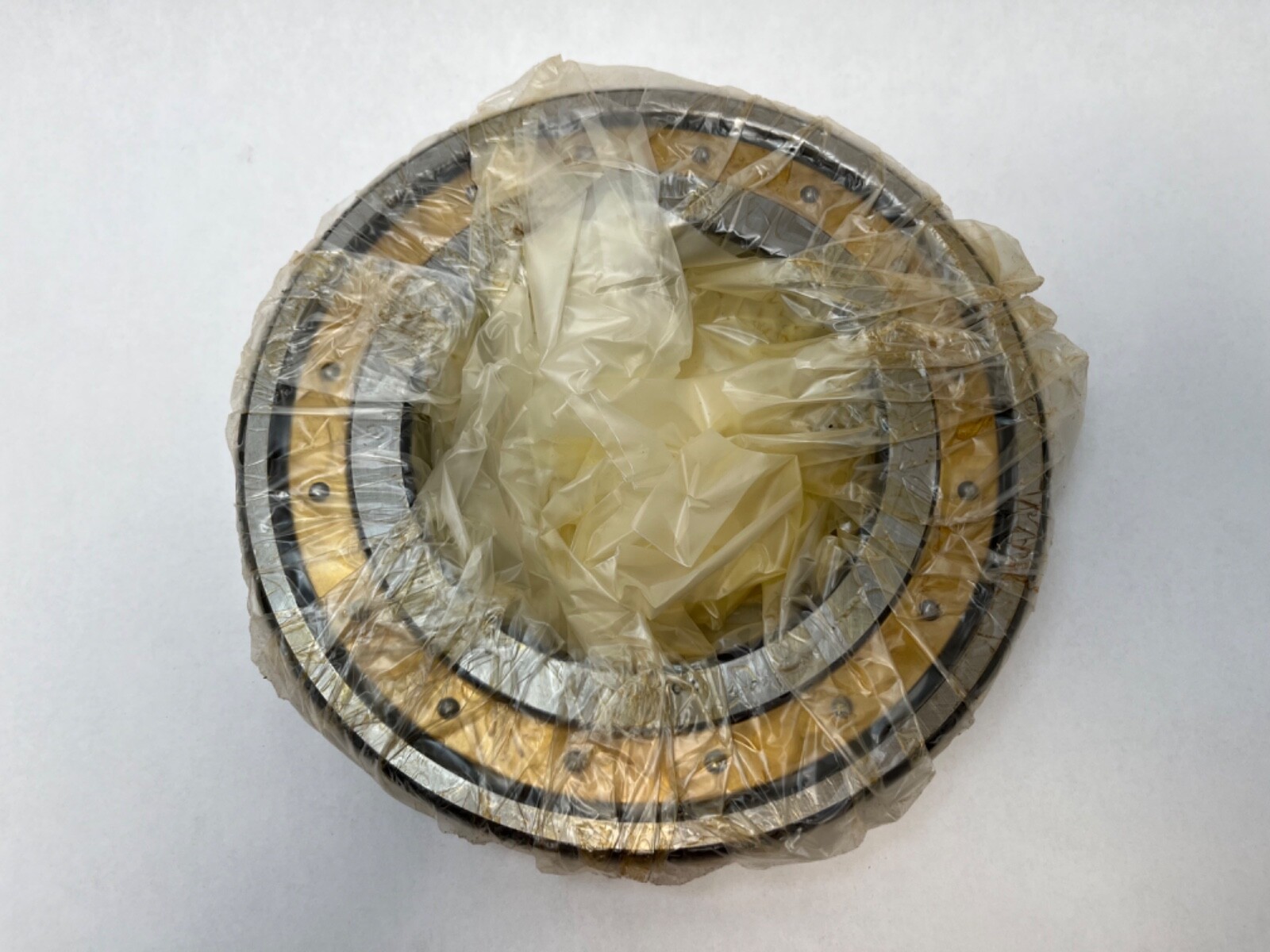

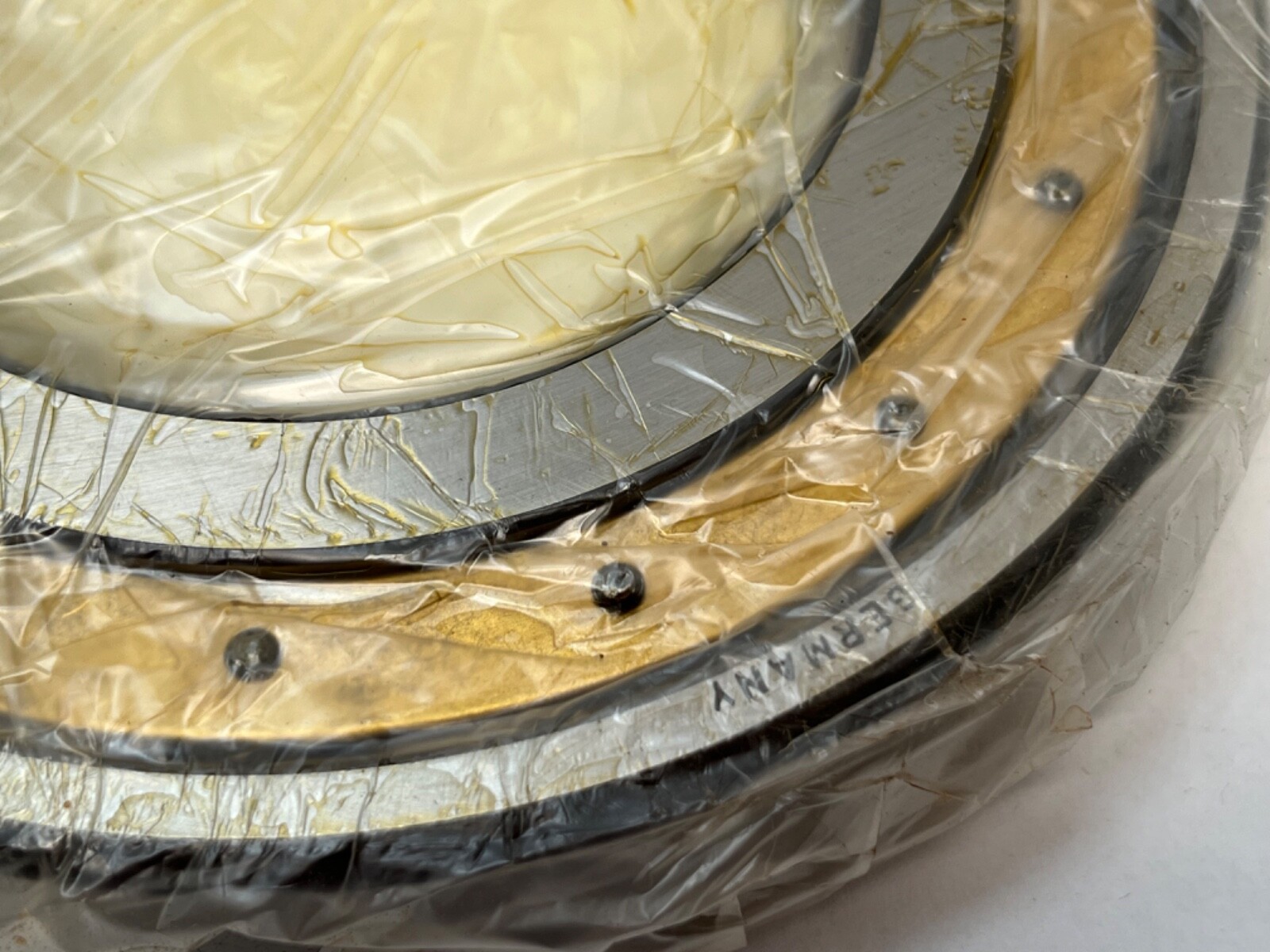

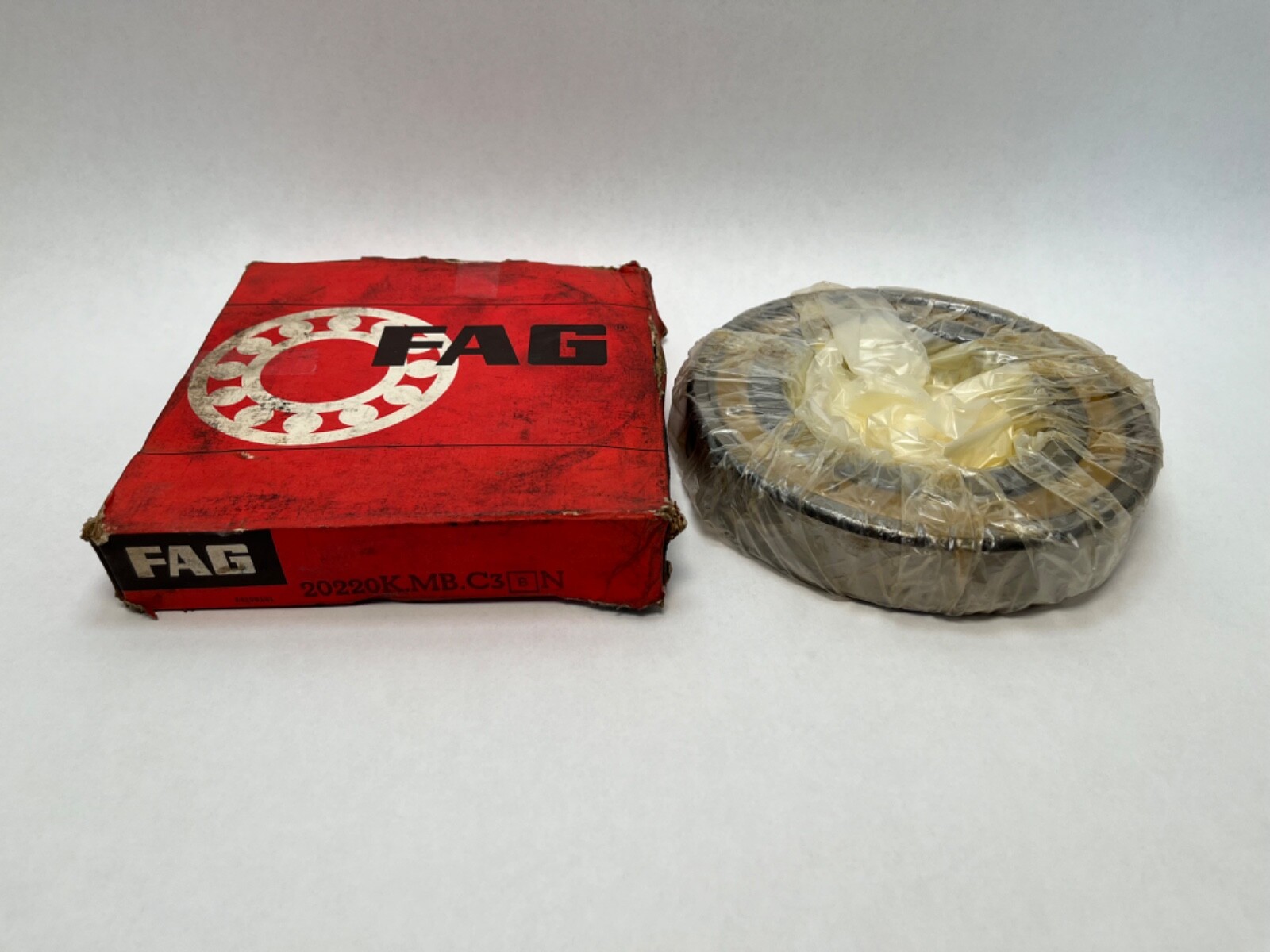

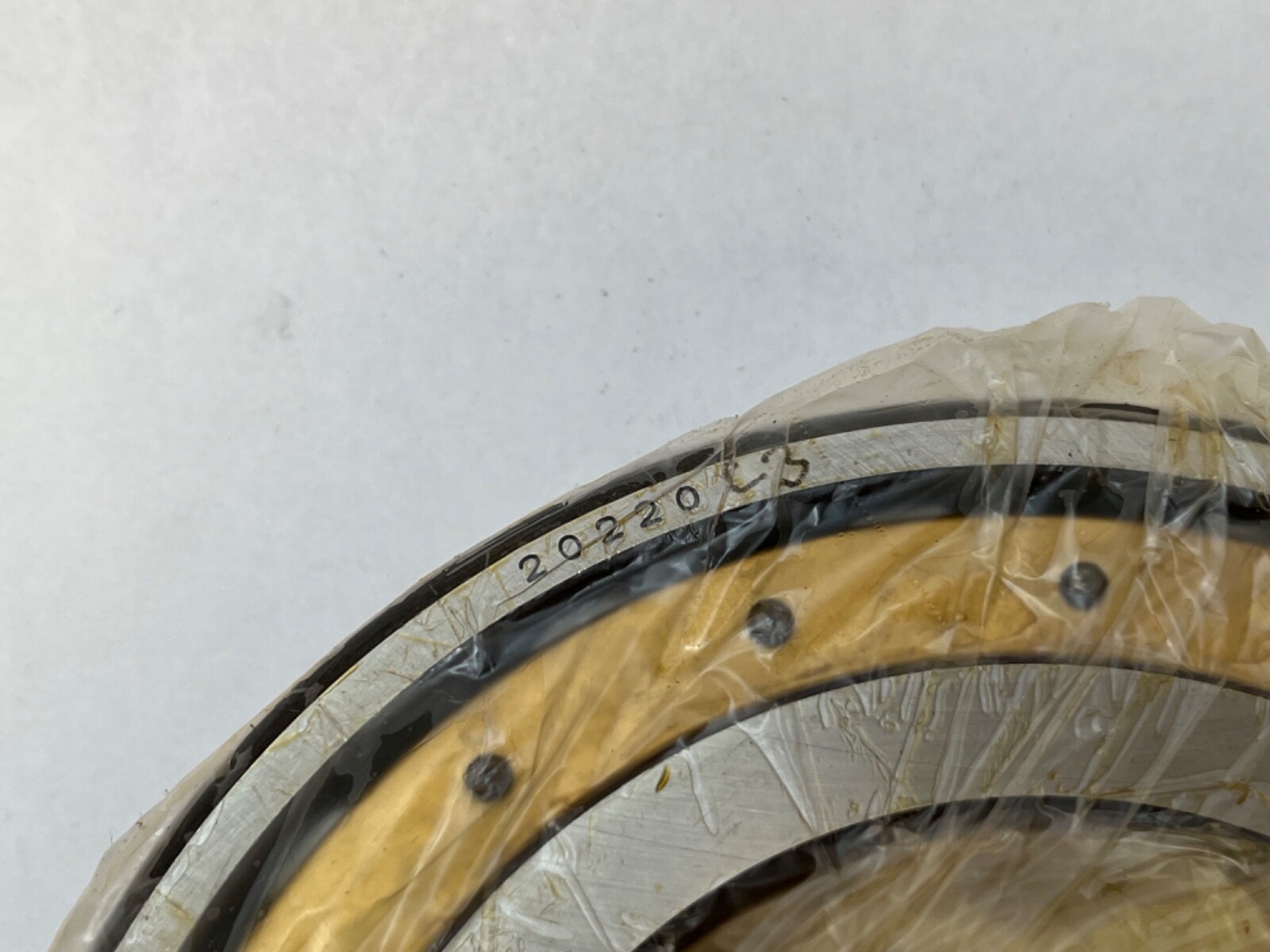

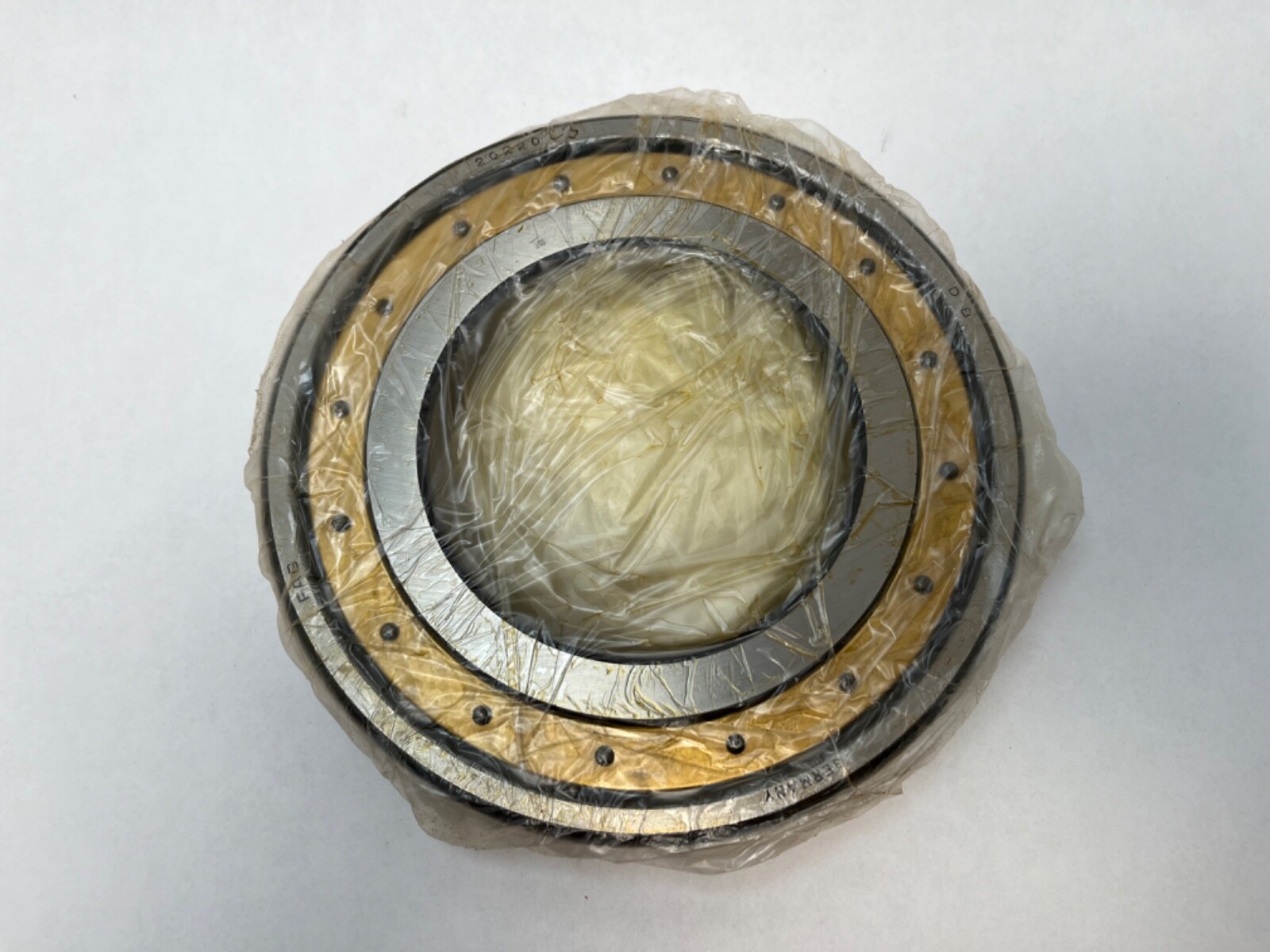

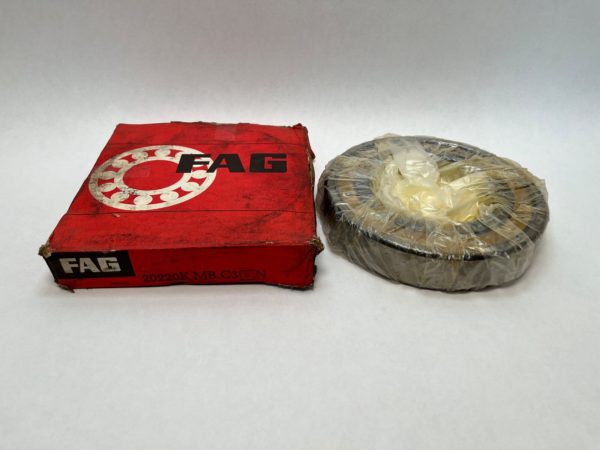

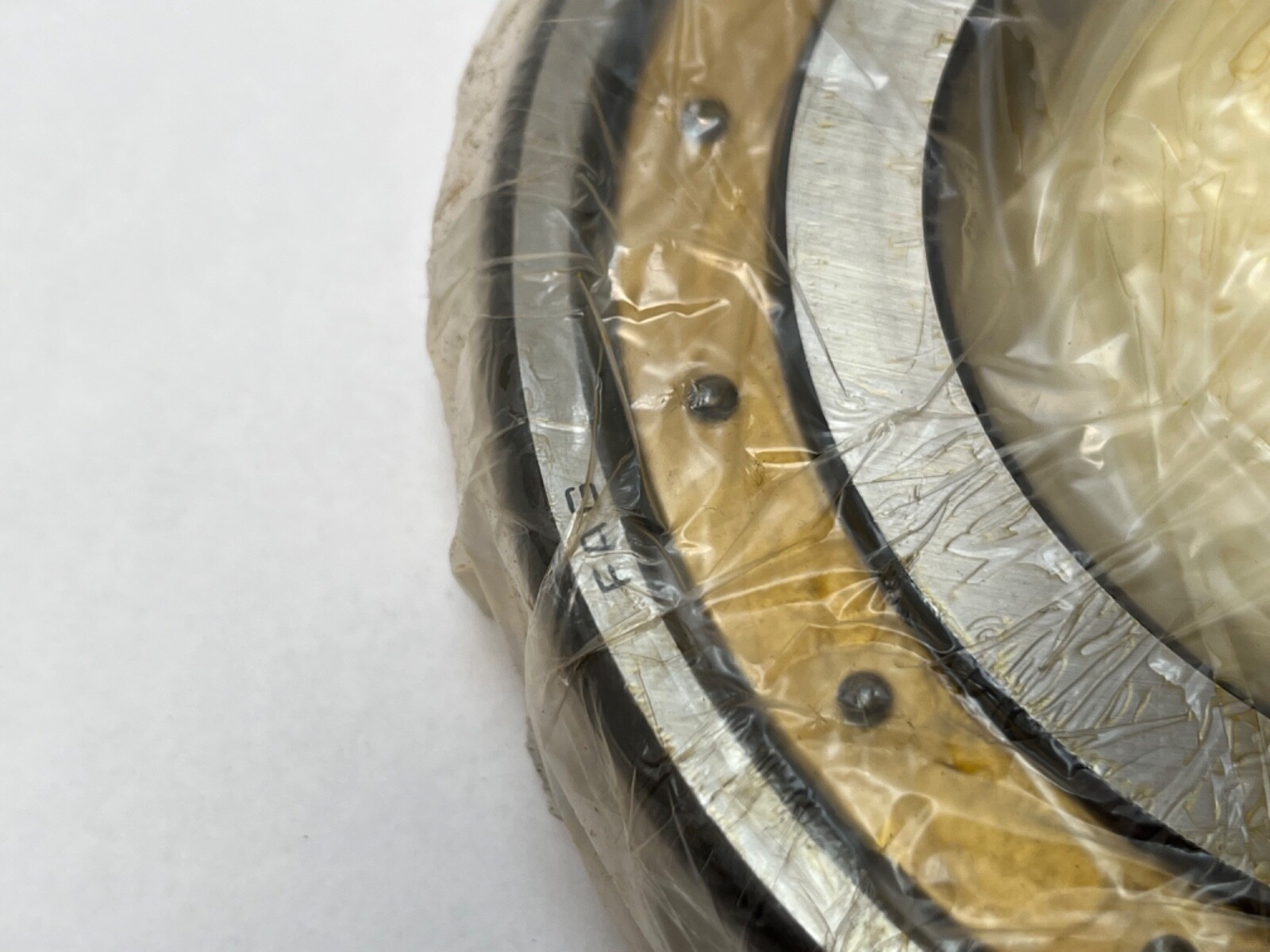

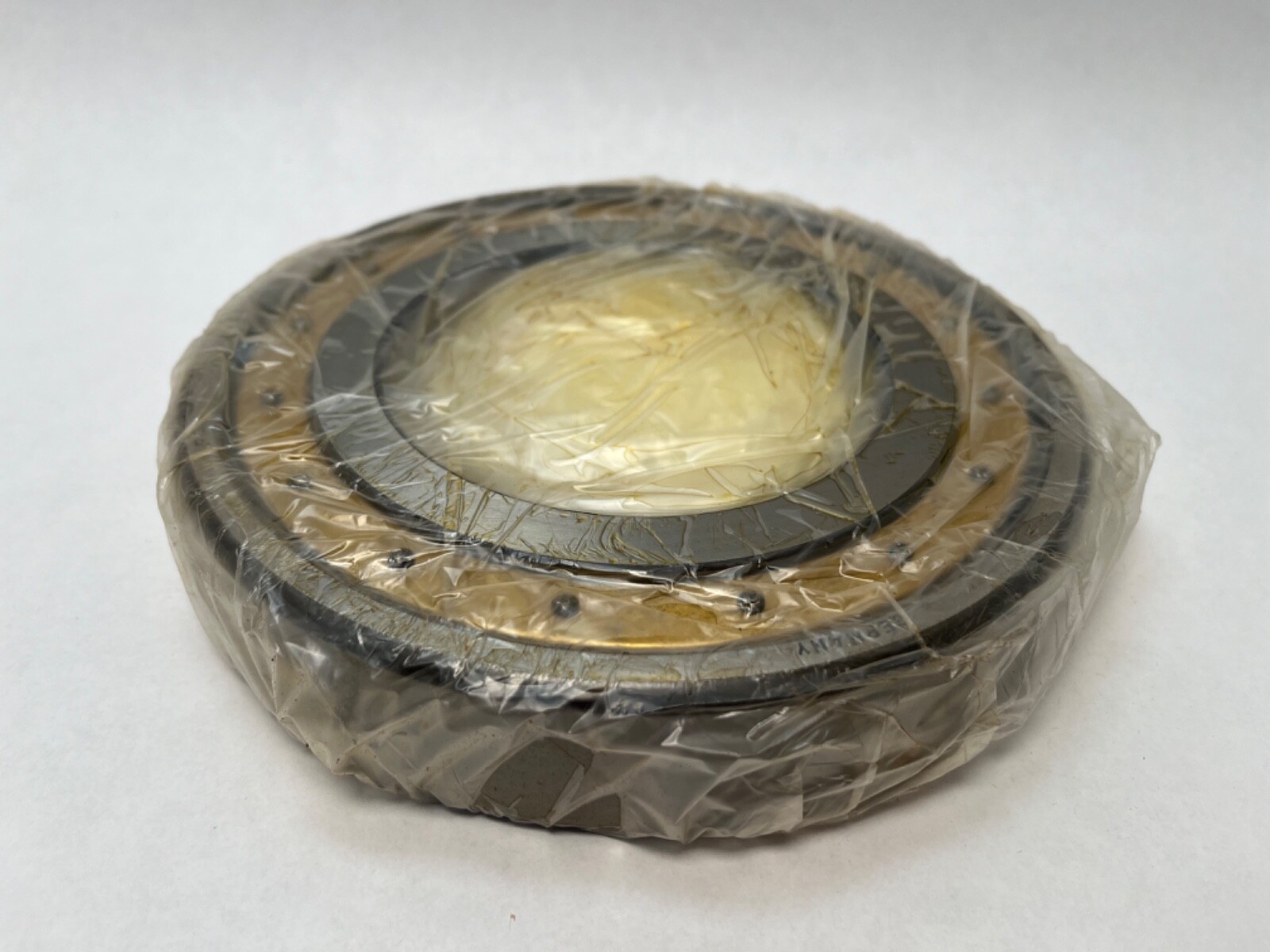

FAG 20220-K-MB-C3, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 100 mm bore × 180 mm outside diameter × 34 mm width. Tapered bore, 1:12.
20 – barrel roller, single row2 – ISO dimension series20 – bore code, 20 × 5 = 100 mm boreK – tapered bore, taper 1:12MB – machined brass cage, inner-ring guidedC3 – radial internal clearance greater than normal
The barrel roller carries radial load and self-aligns on its spherical outer raceway, absorbing shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. On a tapered bore the drive-up distance sets the final radial clearance, and C3 leaves room for that drive-up plus thermal growth of the inner ring.
Bore: 100 mm (3.9370 in)Outside diameter: 180 mm (7.0866 in)Width: 34 mm (1.3386 in)Rows: 1Bore form: tapered, 1:12Cage: machined brass, MBInternal clearance: C3
1 Pc. Bearing only. Supplied without adapter sleeve.
A tapered-bore barrel roller seats on an adapter sleeve when it goes onto a plain cylindrical shaft; the sleeve for a 20220K is an H220, whose shaft seat is 90 mm, one bore-code step below the bearing bore.
Alternate written forms of the same bearing: 20220K.MB.C3, 20220-K-MB-C3, 20220KMBC3, 20220K. The cylindrical-bore 20220MB.C3 is a related size with a different bore form. The 22220K is a double-row spherical roller bearing.
