Single-row barrel roller bearing, 100 mm bore x 180 mm OD x 34 mm wide. 1:12 tapered bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$199.76
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Single Row Barrel Roller Bearing 100x180x34 mm 1:12 Tapered Bore C3 Machined Brass Cage$274.80
Double Row Spherical Roller Bearing 100 x 180 x 46 mm, Cylindrical Bore, W33 Lube Groove, Polyamide Cage$151.33
Double Row Spherical Roller Bearing 100 x 180 x 46 mm, 1:12 Tapered Bore, W33 Lube Groove, Polyamide Cage, C3$151.33
Spherical Roller Bearing 100x180x46 mm Double Row 1:12 Tapered Bore Lubrication Groove and Holes Polyamide Cage$151.33| MFR / Brand | FAG |
|---|---|
| MPN | 20220KMB |
| Model | 20220 K MB / 20220 K M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Base Number | 20220 |
| Industry Terms | barrel roller bearing, tapered bore barrel roller, self-aligning roller bearing |
| Bore Shaft Size | 100 mm (3.9370 in), tapered 1:12 |
| Mpn Variants | 20220K.MB, 20220-K-MB, 20220KMB, 20220K, 20220 K MB |
| Compatible With Replaces | Adapter sleeve H220 (90 mm shaft seat) |
| Min Temp | -40 °C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 225 kN |
| Static Load Rating | 290 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Barrel Roller |
| Max Temp | 200 °C |
| Item Weight | 8.40 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 20220-K-MB |
| Limiting Speed | 4000 rpm |
| Cross Reference 1 | SKF 20220 CK |
|---|

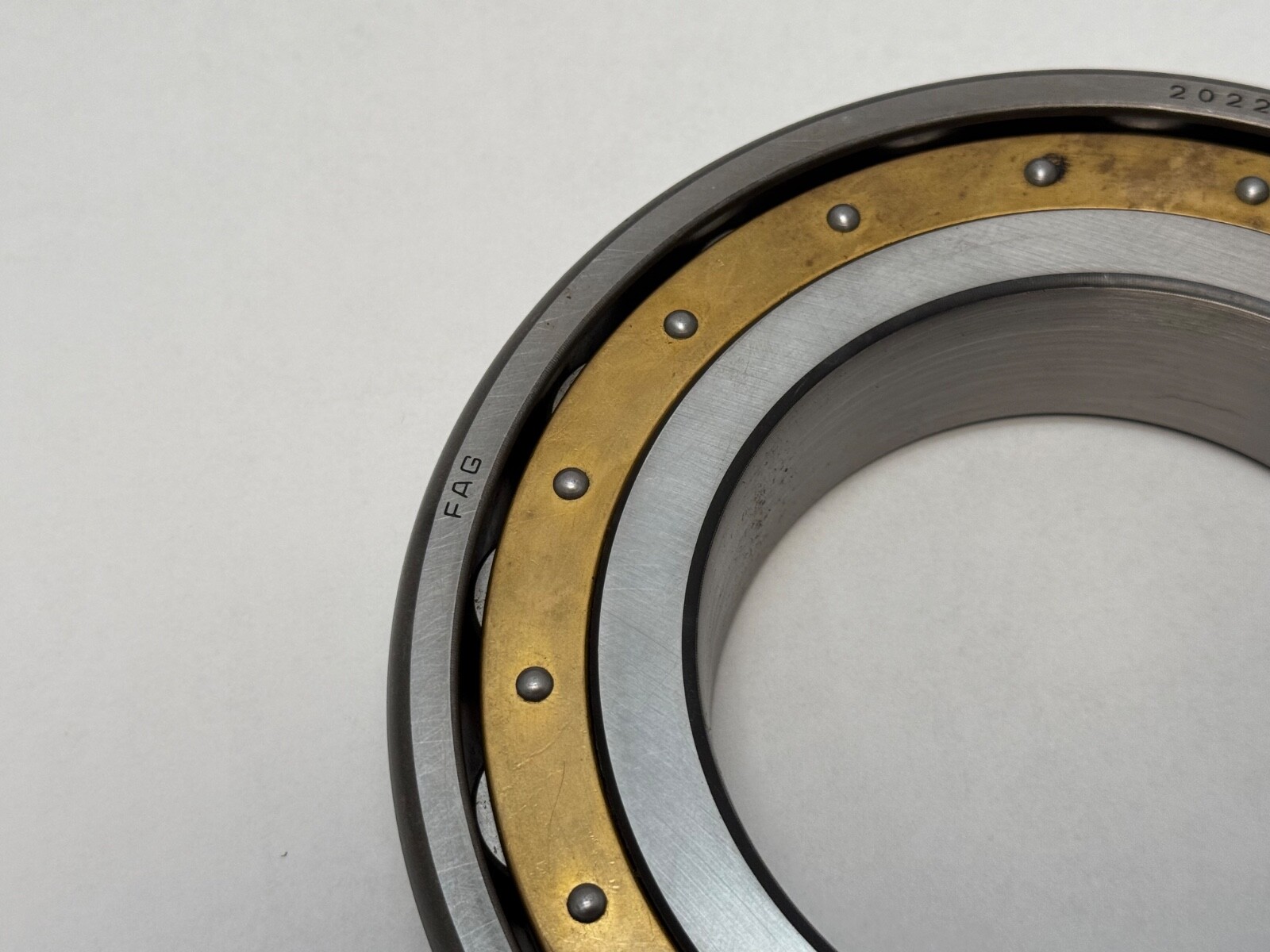

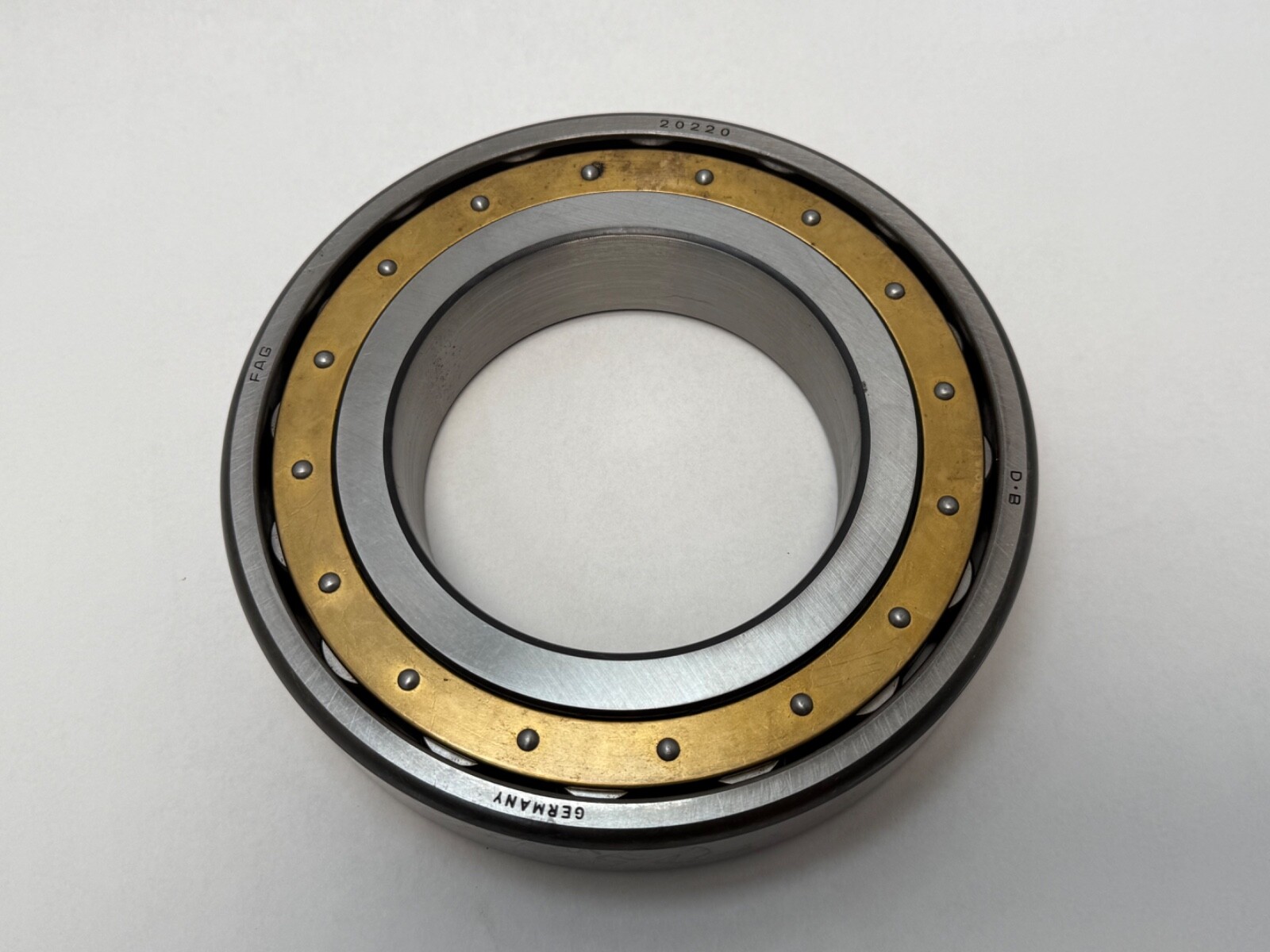

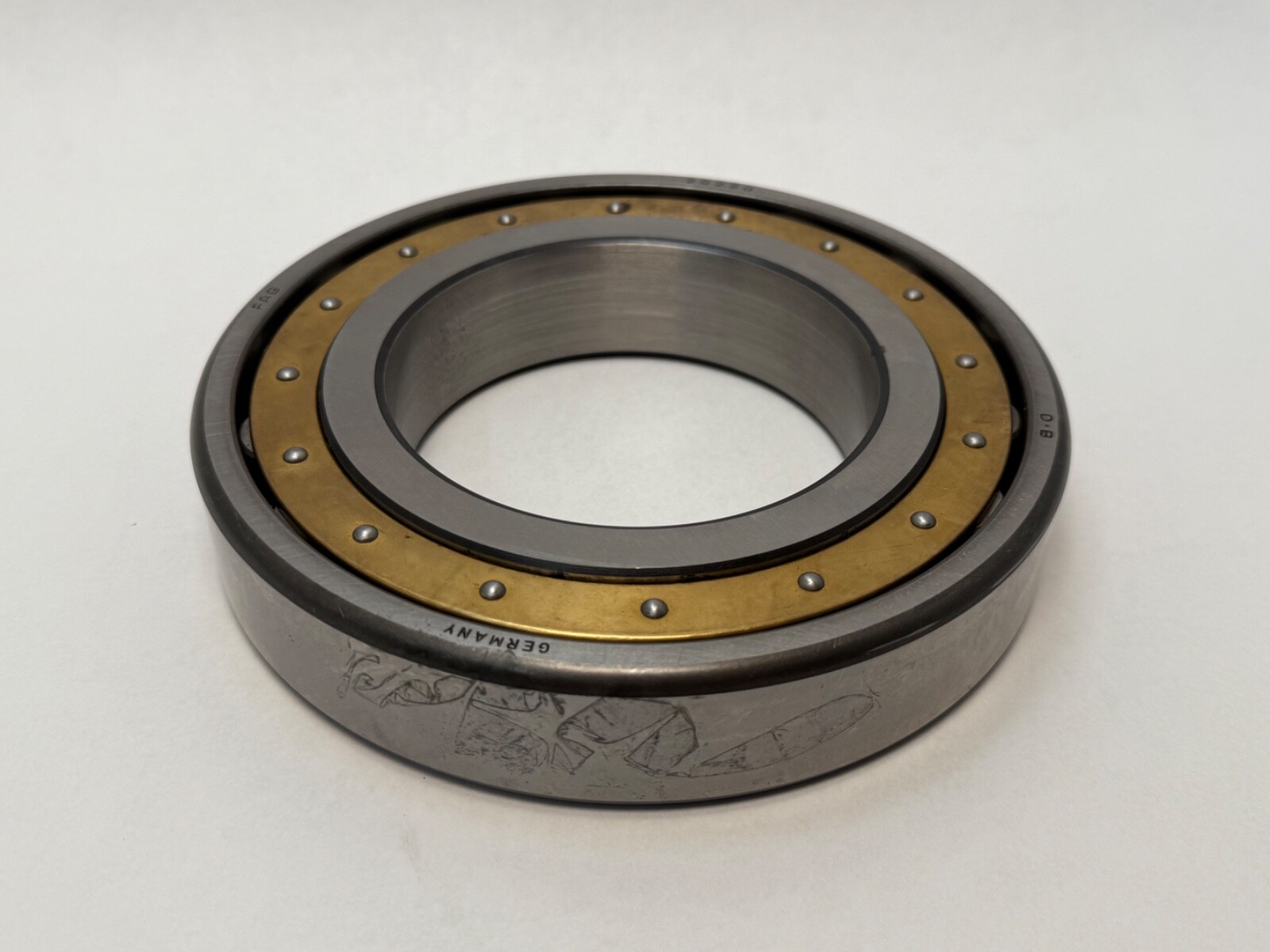

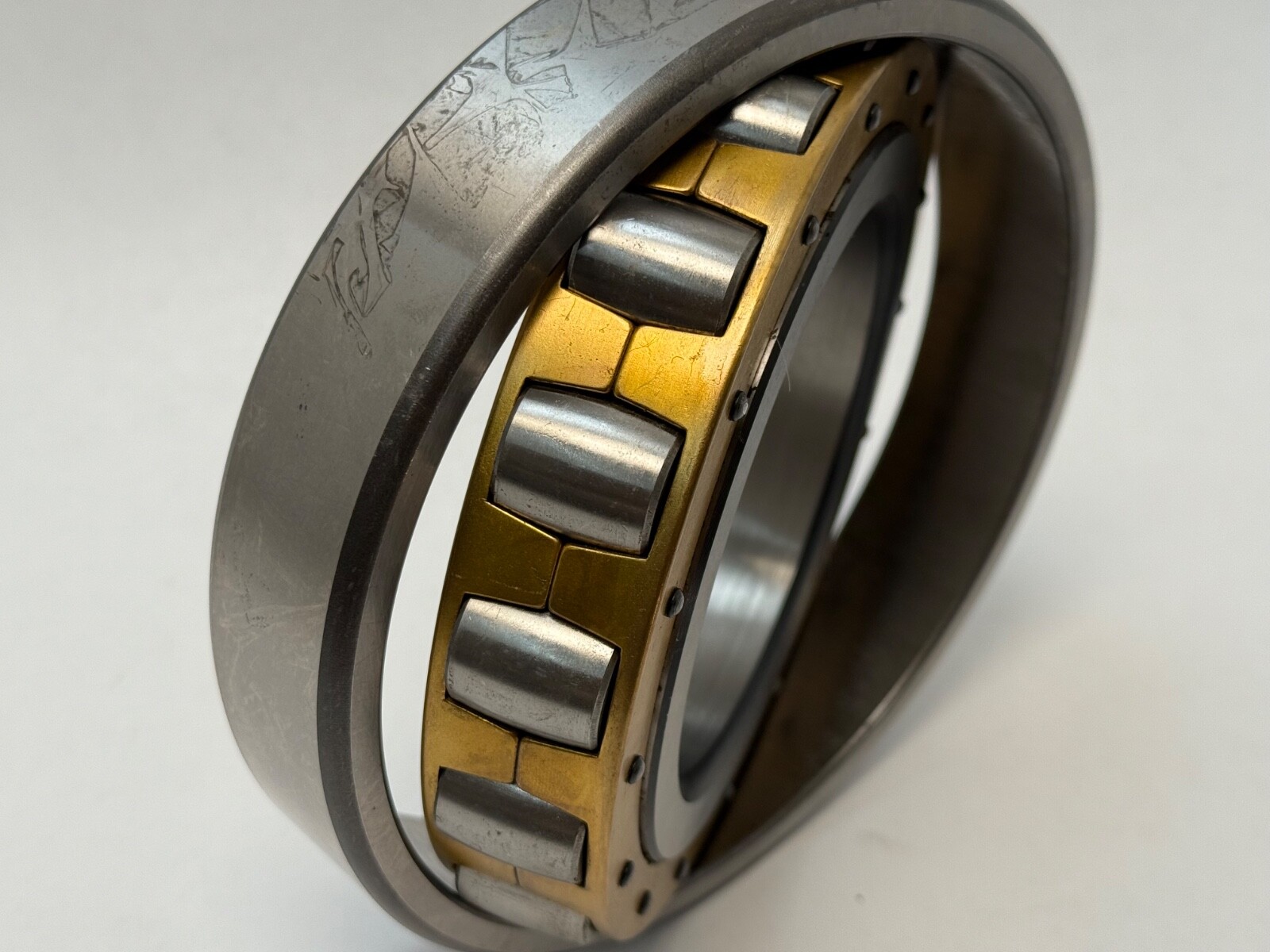

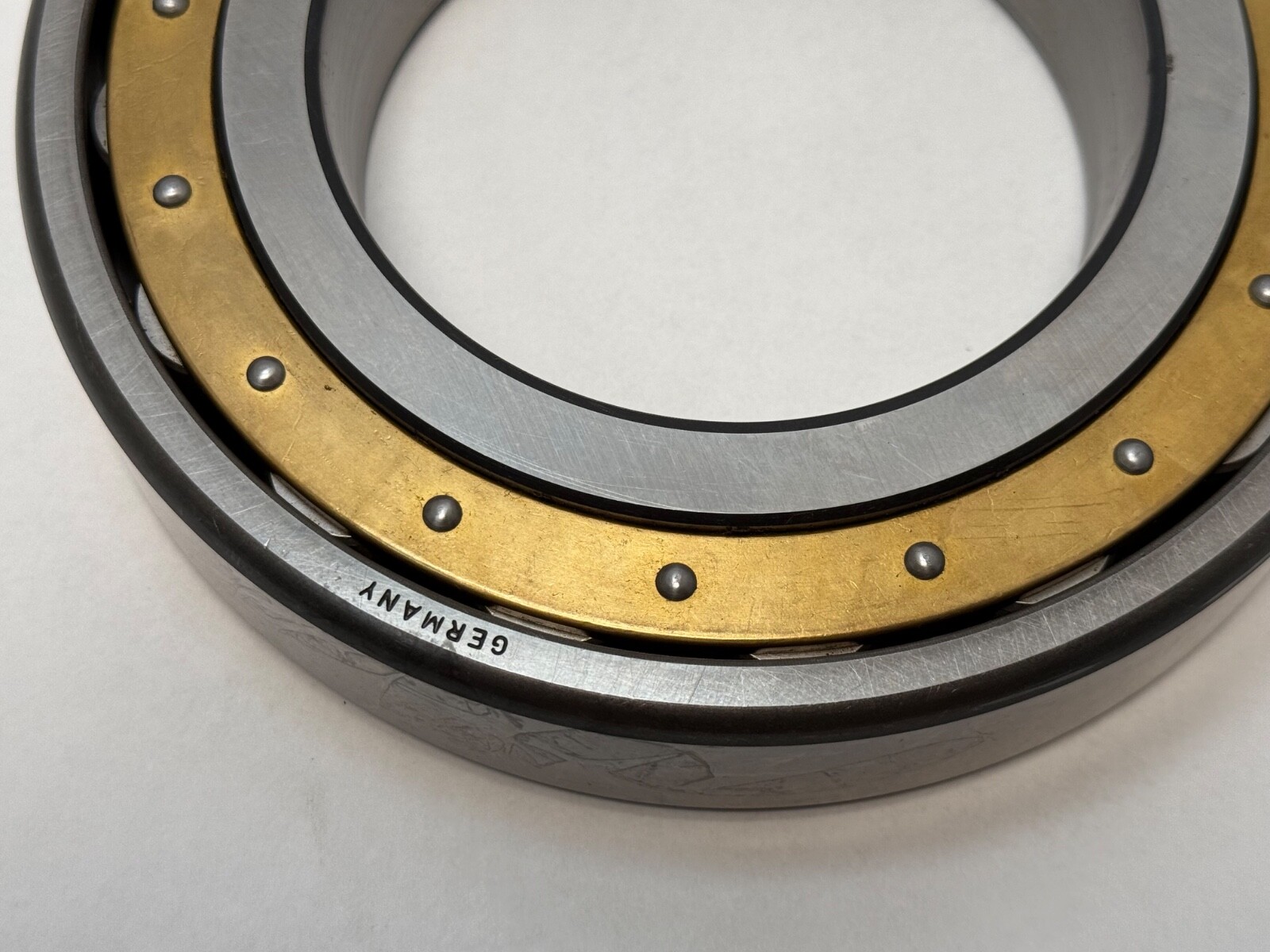

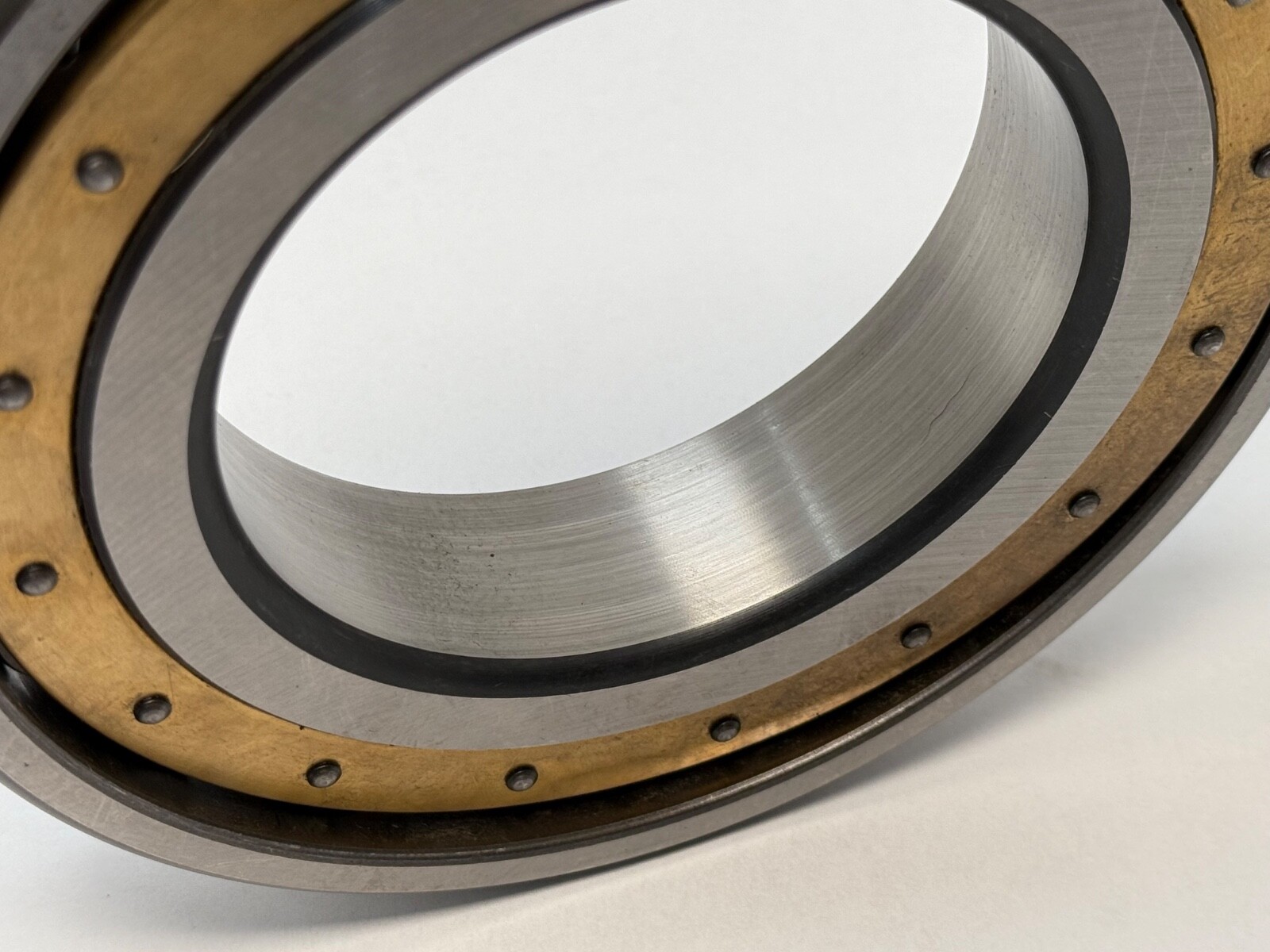

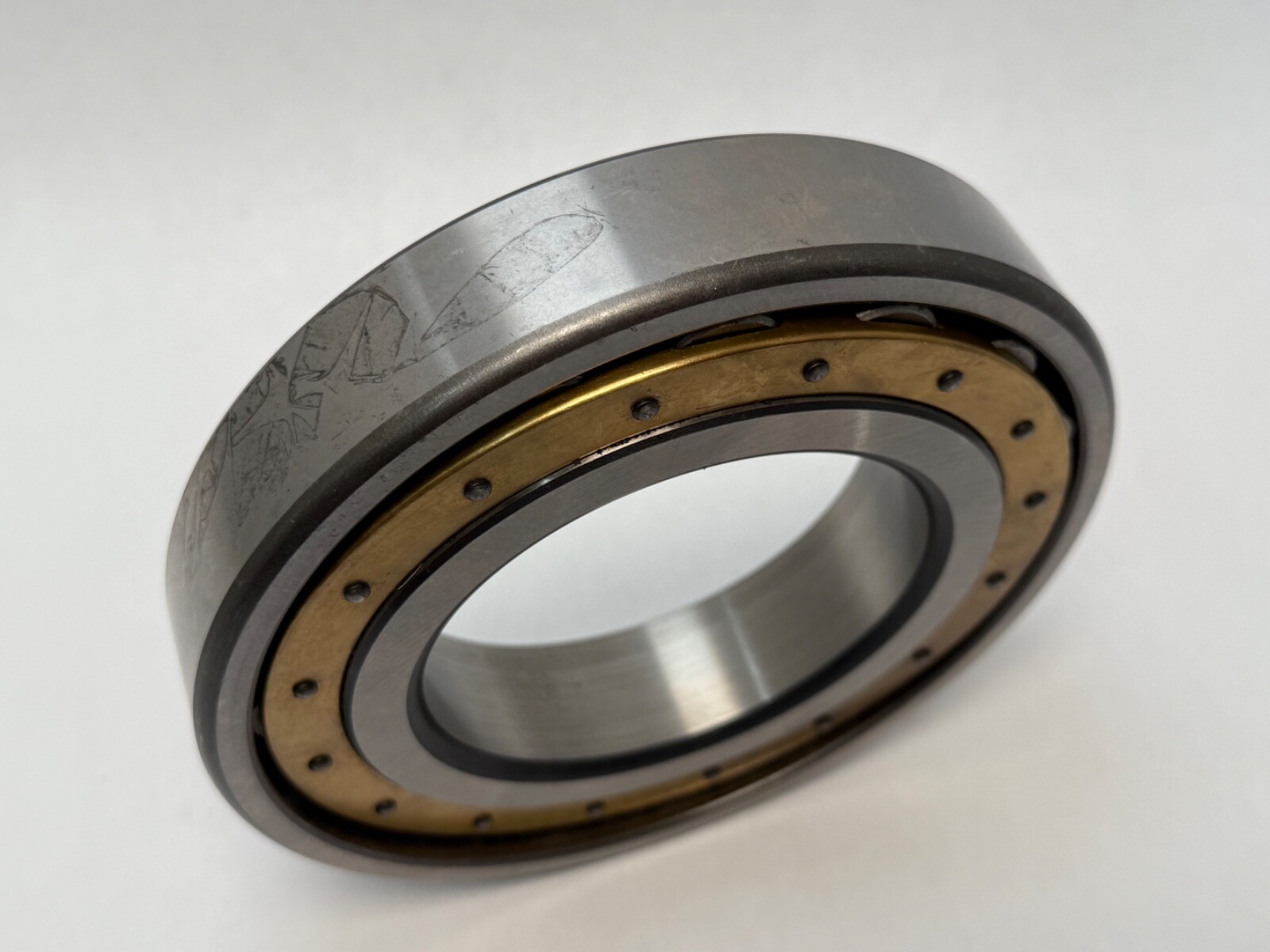

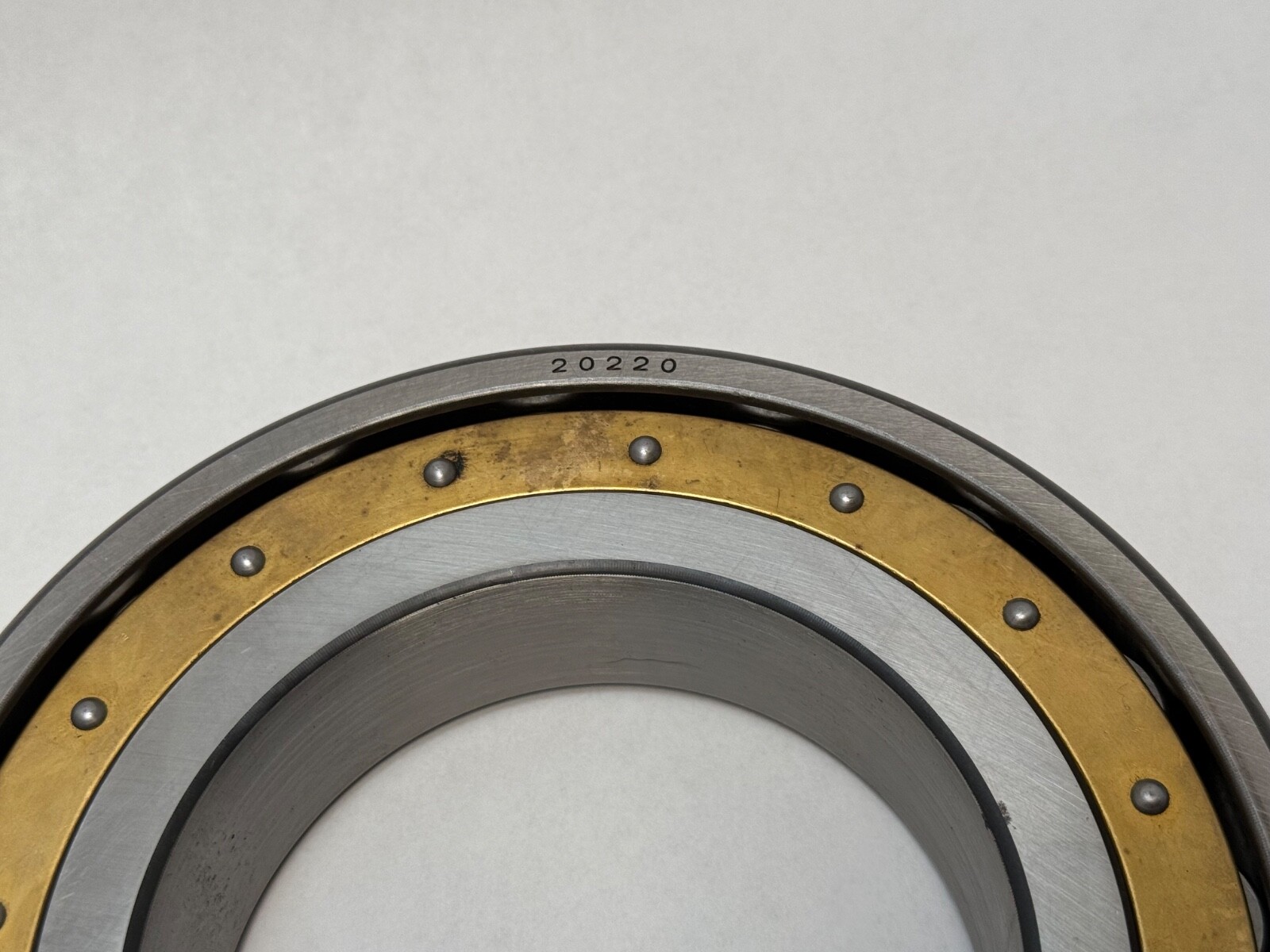

FAG 20220-K-MB, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 100 mm bore × 180 mm outside diameter × 34 mm width. Tapered bore, 1:12.
20 – barrel roller, single row2 – ISO dimension series20 – bore code, 20 × 5 = 100 mm boreK – tapered bore, taper 1:12MB – machined brass cage, inner-ring guided
The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. The tapered bore sets radial clearance by drive-up distance rather than by interference fit alone. The machined brass cage runs at higher speed and temperature than a pressed steel cage.
Bore: 100 mm (3.9370 in)Outside diameter: 180 mm (7.0866 in)Width: 34 mm (1.3386 in)Rows: 1Bore form: tapered, 1:12Cage: machined brass, MBInternal clearance: CN (normal)
1 Pc. Bearing only. Supplied without adapter sleeve.
A tapered-bore barrel roller seats on an adapter sleeve when it goes onto a plain cylindrical shaft; the sleeve for a 20220K is an H220, whose shaft seat is 90 mm, one bore-code step below the bearing bore.

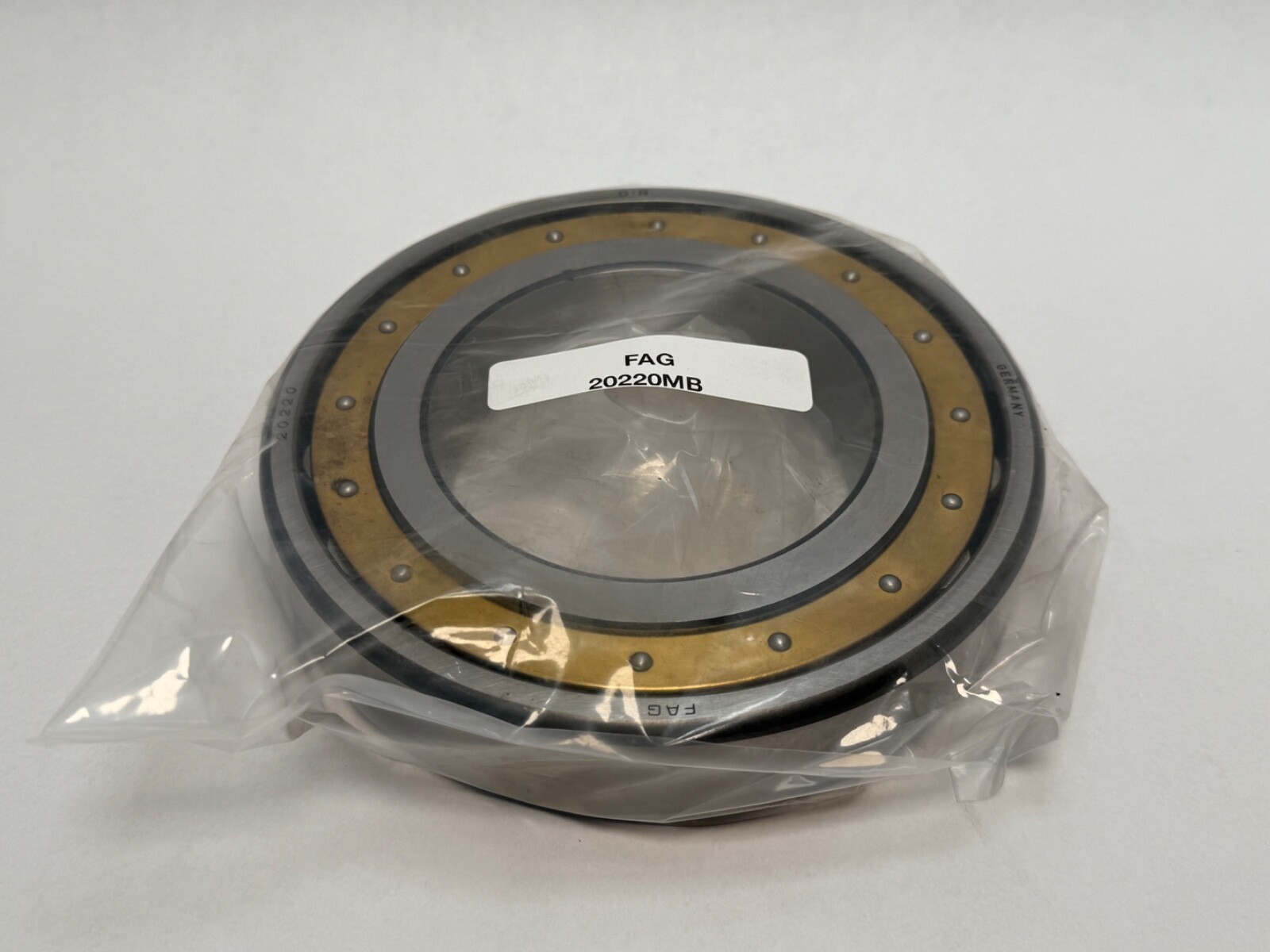

Alternate written forms of the same bearing: 20220-K-MB, 20220K.MB, 20220KMB, 20220K. The cylindrical-bore 20220MB is a related size on the same envelope with a different bore form. The 22220K is a double-row spherical roller bearing, a different bearing type.
