Availability:
3 in stock
Self-aligning ball bearing, 45 x 85 x 19 mm, 1:12 tapered bore, polyamide cage, 2.5° misalignment. Dynamic load rating 22.9 kN. Mounts on an H 209 sleeve.
List Price
$51.82
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 1209E K TN9 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 1200 Series |
| Lubricant | Grease |
| Mpn Variants | 1209 EKTN9, 1209-EKTN9, 1209EKTN9, 1209-EK-TN9, 1209E K TN9, 1209K |
| Compatible With Replaces | Mounts on SKF H 209 adapter sleeve |
| Dynamic Load Rating | 22,900 N |
| Static Load Rating | 7,800 N |
| Rolling Elements | Ball |
| Cage Material | Polyamide (glass-fibre reinforced) |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Limiting Speed | 11,000 rpm |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | FAG 1209-K-TVH |
|---|---|
| Cross Reference 2 | NSK 1209KTN |
| Cross Reference 3 | NTN 1209SK |

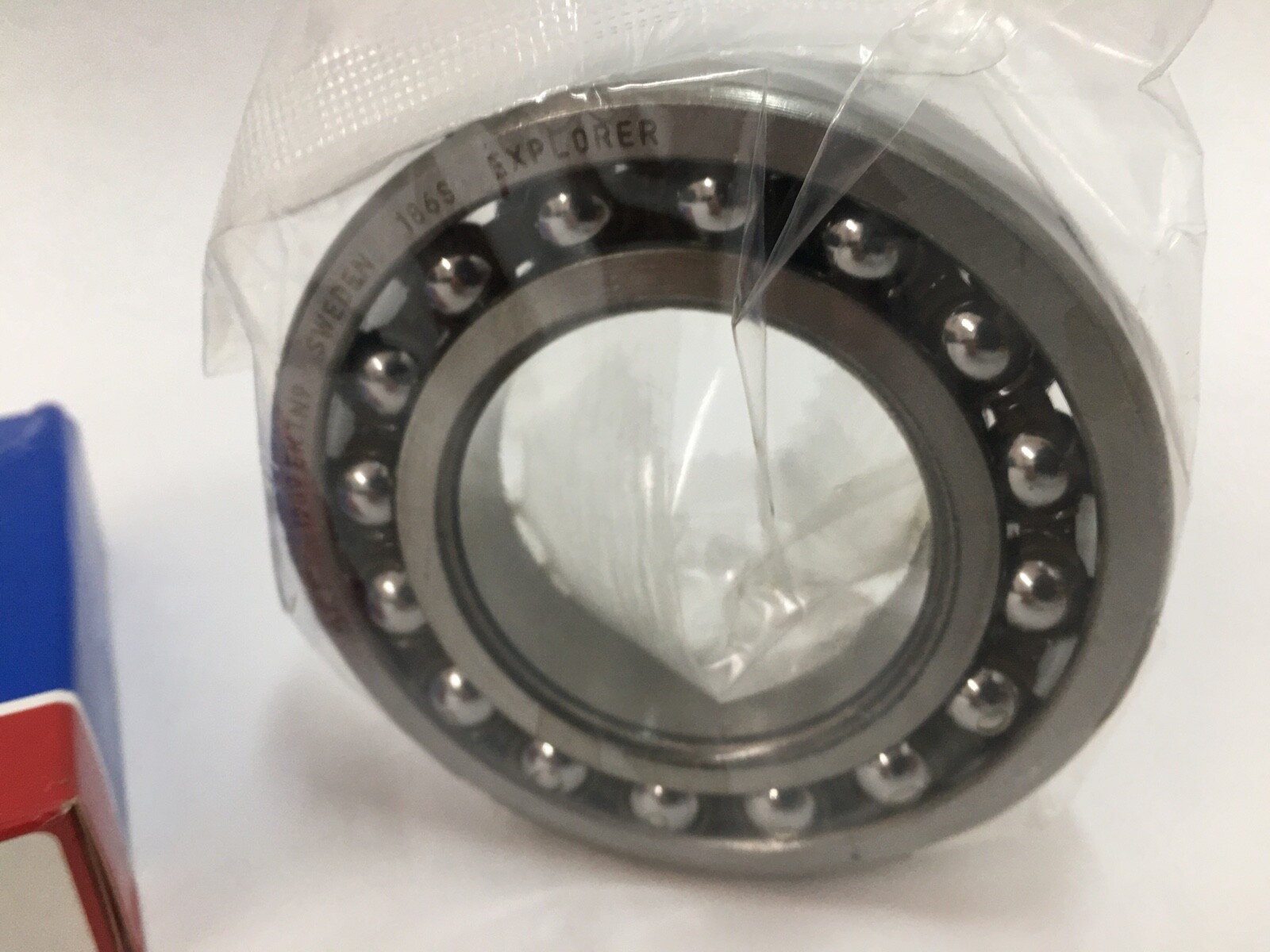

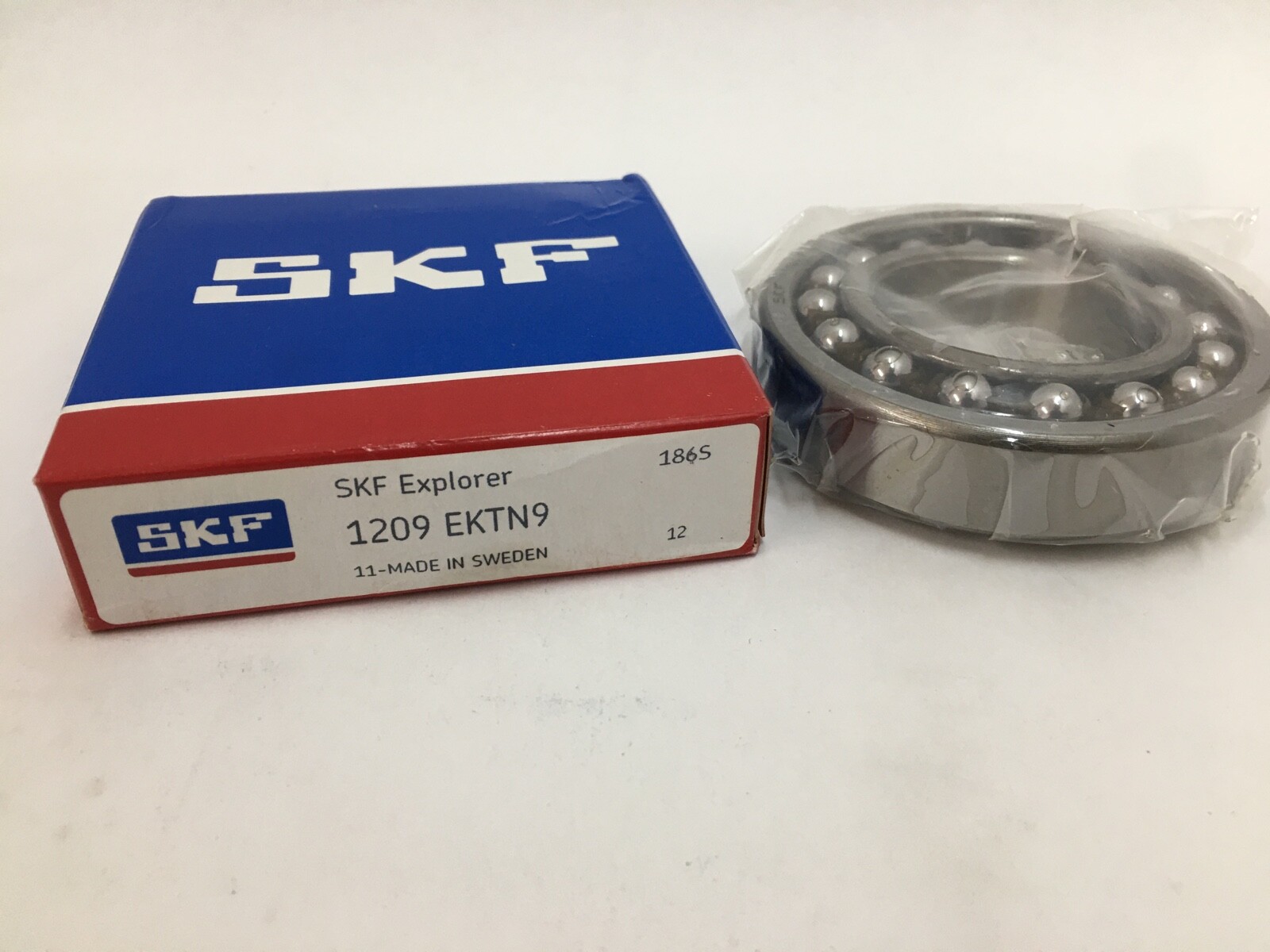

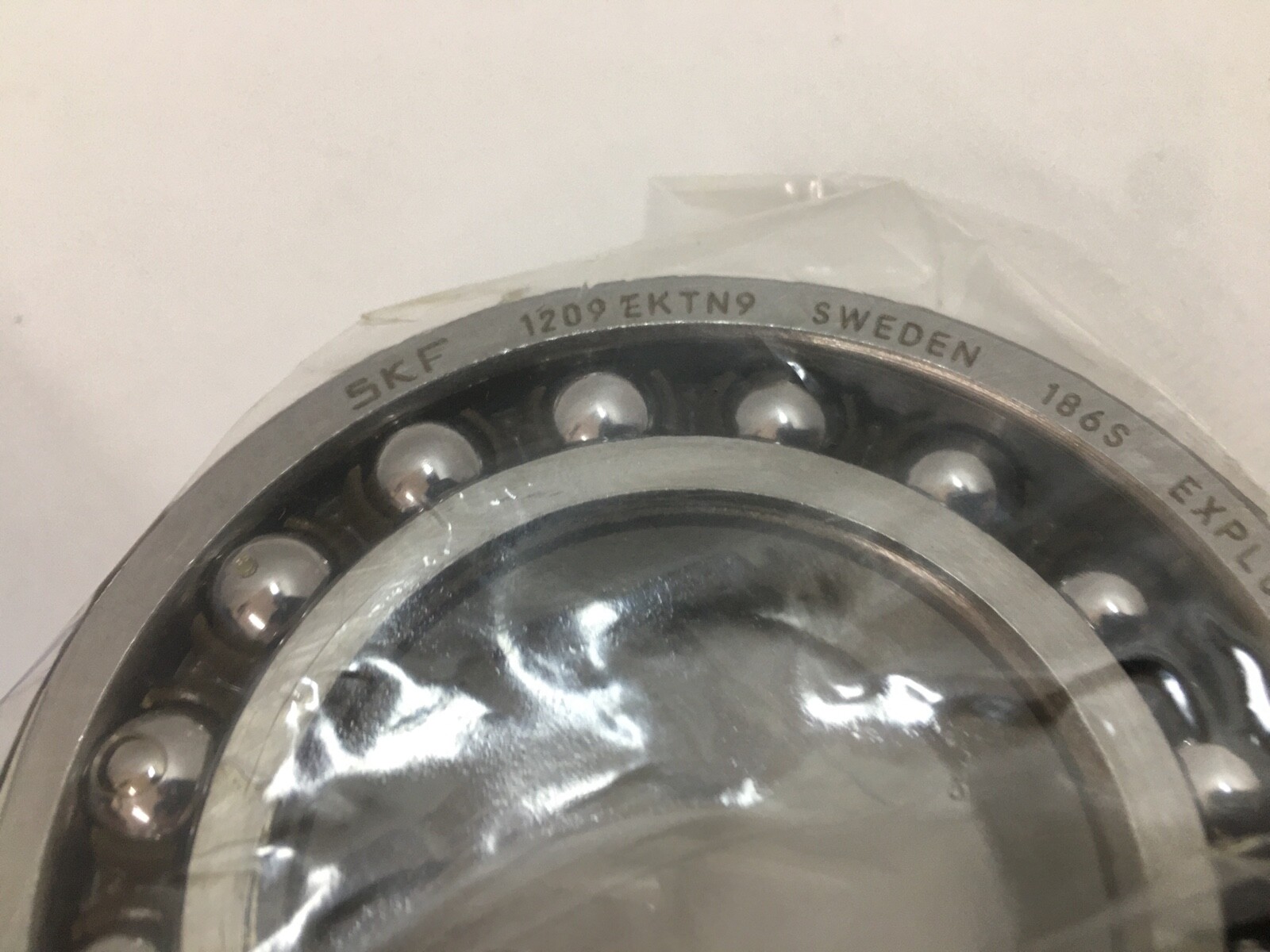

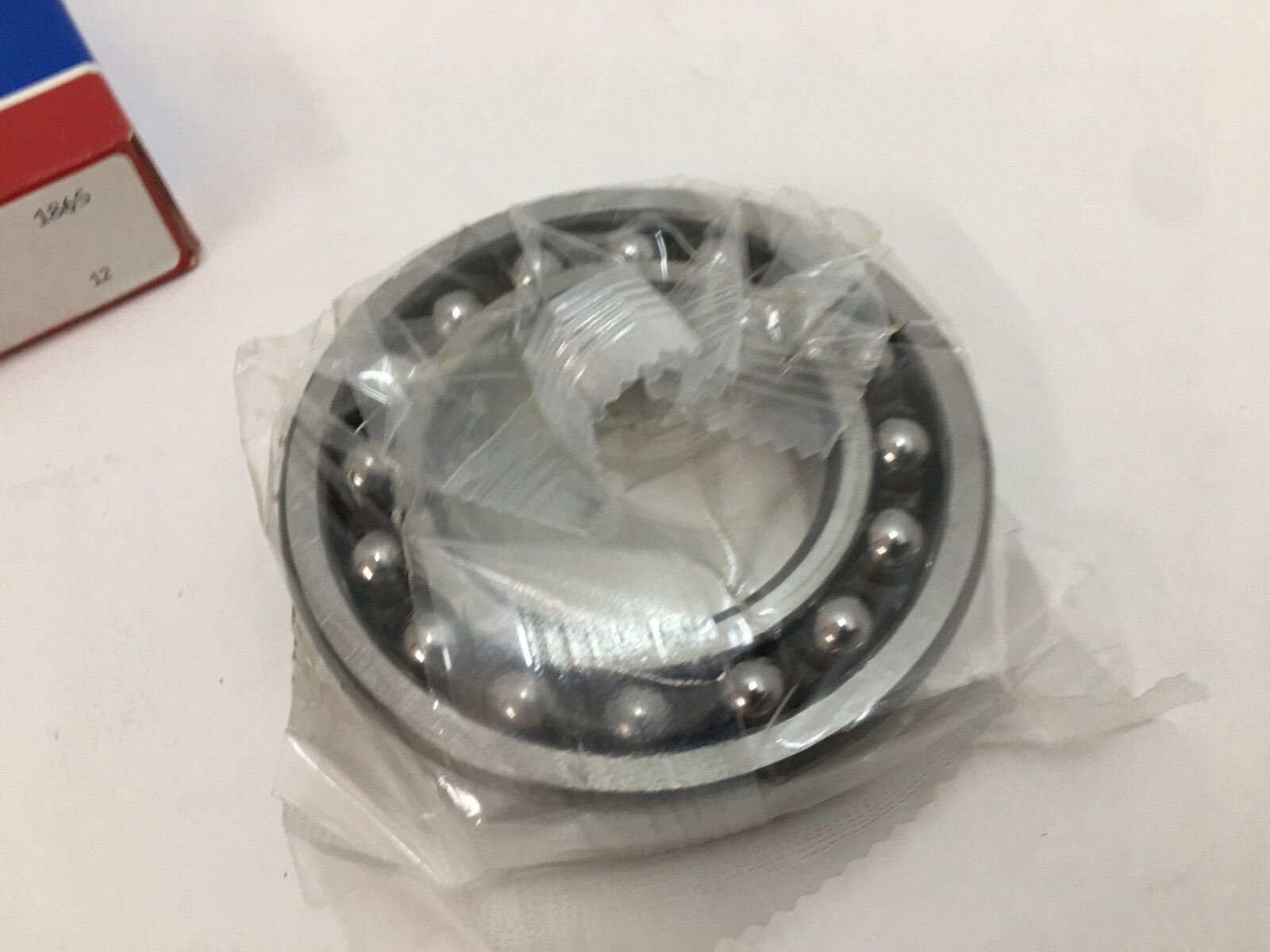

SKF 1209 EKTN9 self-aligning ball bearing with 1:12 tapered bore. Two rows of balls run on a common sphered outer-ring raceway, so the bearing accommodates shaft misalignment and deflection. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 19 mm.
12 — ISO 02 dimension series, self-aligning ball bearing.
09 — bore code, 9 x 5 = 45 mm.
E — SKF optimized internal design for higher load capacity.
K — tapered bore, taper 1:12.
TN9 — glass-fibre reinforced polyamide cage.
Dynamic Load Rating: 22,900 N. Static Load Rating: 7,800 N. Fatigue Load Limit: 400 N. Reference Speed: 17,000 rpm. Limiting Speed: 11,000 rpm. Permissible Angular Misalignment: 2.5°. Cage Material: Polyamide (glass-fibre reinforced). Internal Clearance: CN. Closure Type: Open. Number Of Rows: 2.
Inner Ring Shoulder Diameter (d1): 57.51 mm. Outer Ring Shoulder Diameter (D1): 72.5 mm. Housing Abutment Diameter (Da max): 78 mm. Fillet Radius (ra max): 1.1 mm. Chamfer (r1,2 min): 1.1 mm. Mounts on an SKF H 209 adapter sleeve (40 mm shaft).
Unit Quantity: 1 Pc. Bore Type: Tapered 1:12.
Same 45 x 85 x 19 mm envelope with 1:12 tapered bore: FAG 1209-K-TVH, NSK 1209KTN, NTN 1209SK.
