Availability:
3 in stock

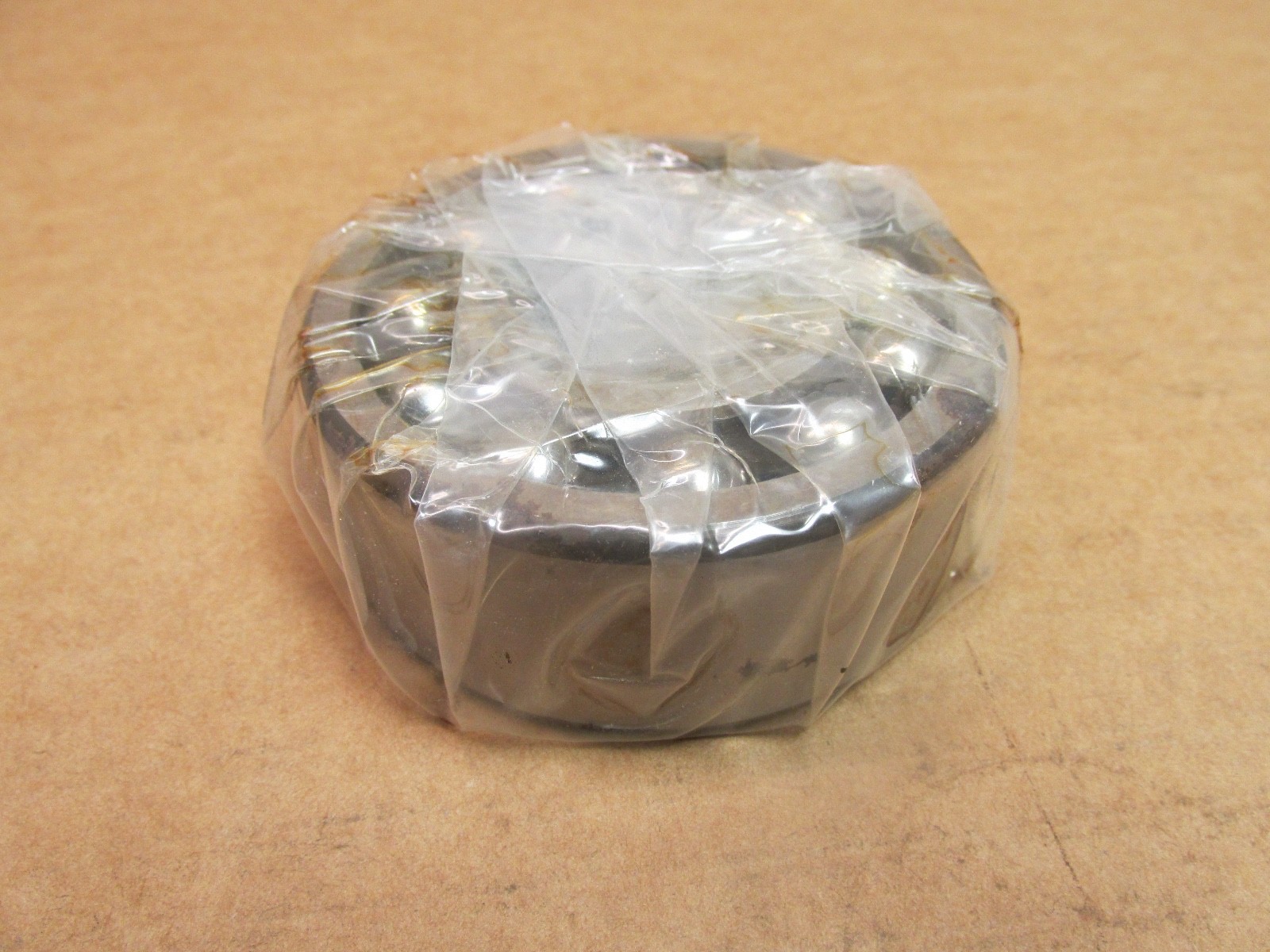

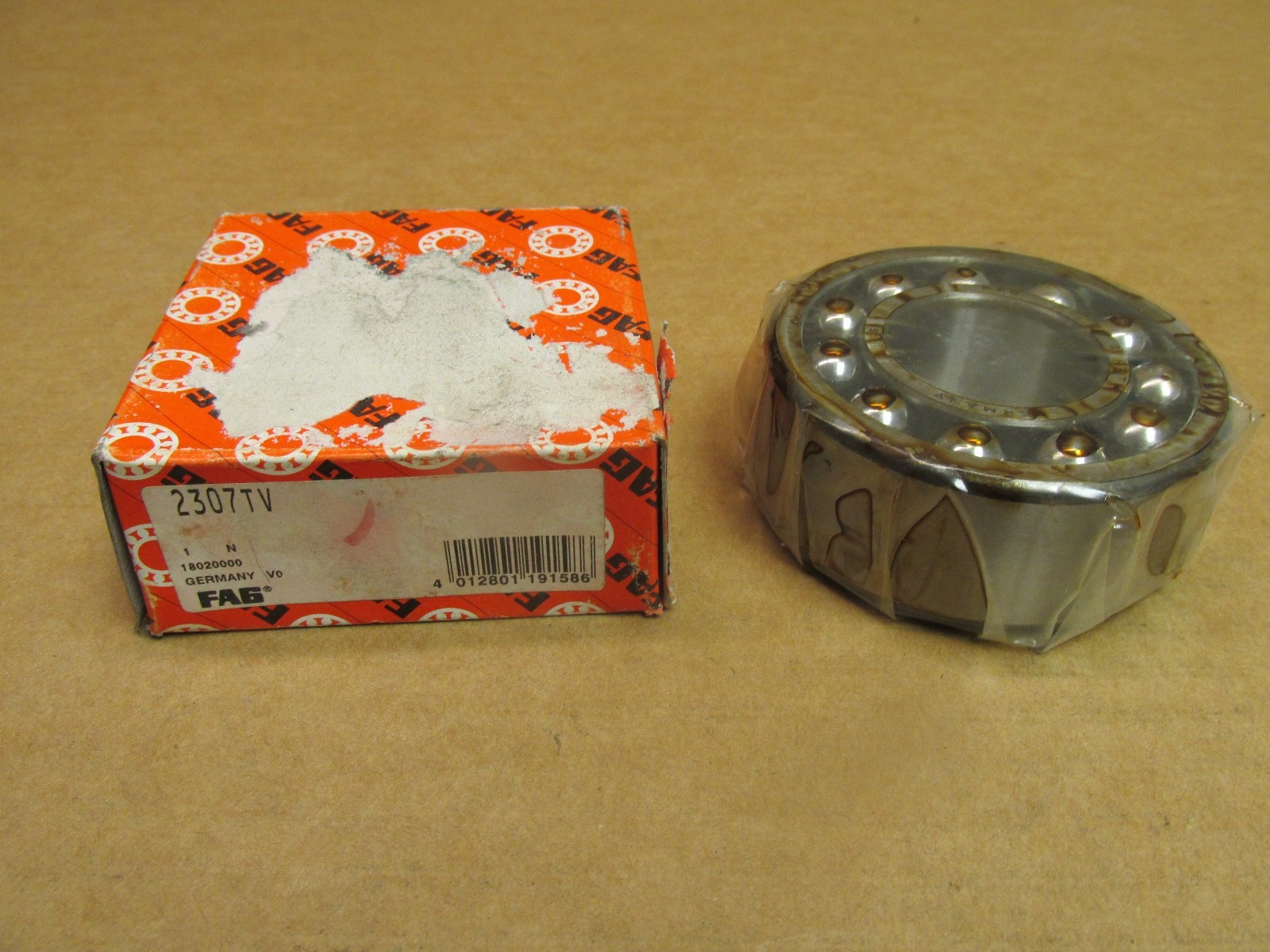

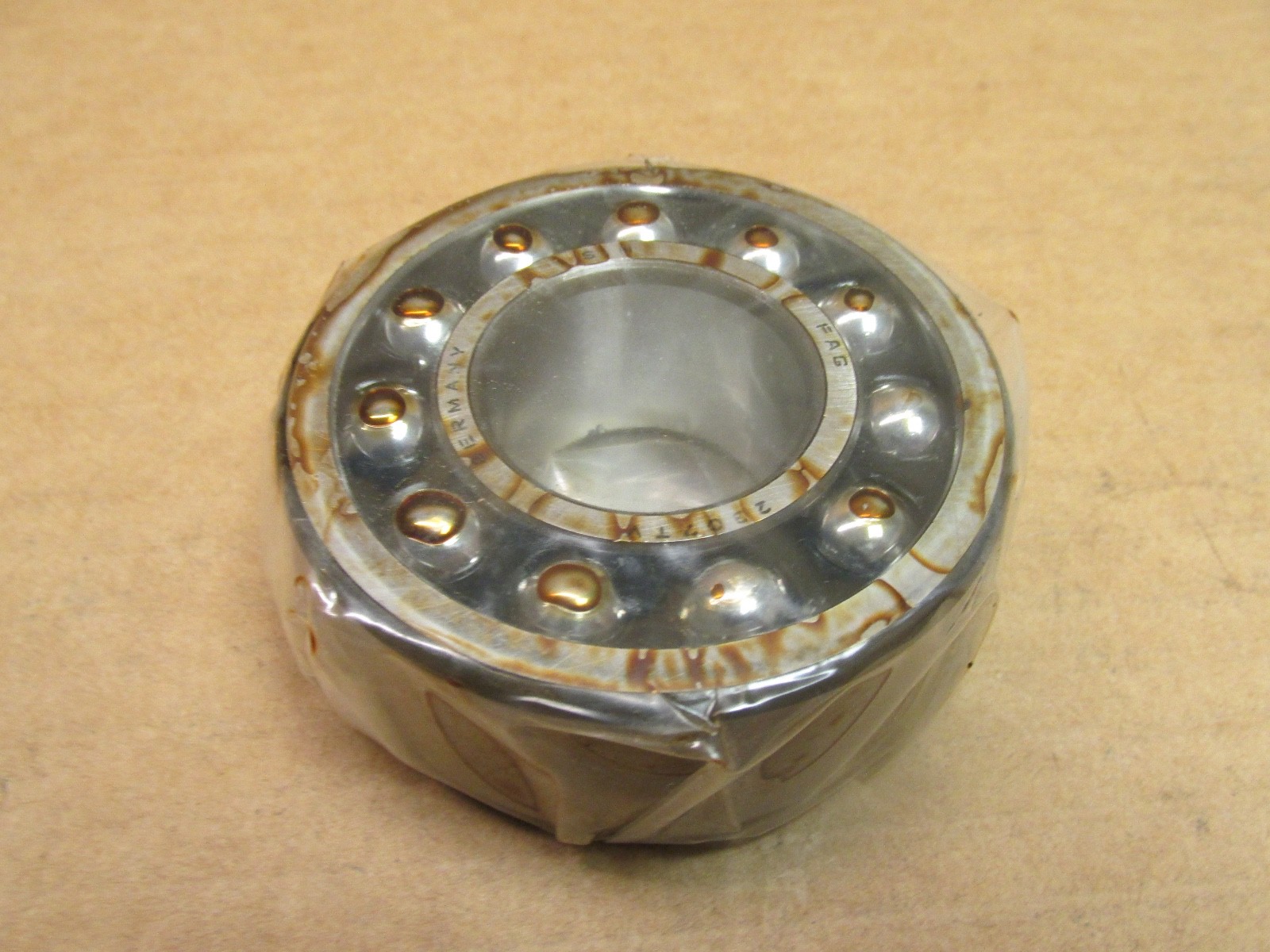

FAG 2307-TV self-aligning ball bearing, 35 mm bore, 80 mm OD, 31 mm wide, polyamide cage, open, cylindrical bore. Rated 40,500 N dynamic, 11,200 N static.
List Price
$50.07
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2307-TVH |
| Model | 2307-TVH |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 35 mm |
| OD | 80 mm |
| Width | 31 mm |
| Series | 23 |
|---|---|
| Condition | New – Open box |
| Condition Note | Made In Germany |
| Min Temp | -30 °C |
| Dynamic Load Rating | 40,500 N |
| Static Load Rating | 11,200 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.66 kg (1.46 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 8,900 rpm |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | CN |
| Maximum Permissible Misalignment | 2.5° |
| Base Number | 2307 |
| Mpn Variants | 2307TV, 2307-TV, 2307 TV, 2307TVH |
| Compatible With Replaces | FAG 2307-TVH (current designation, replaces 2307TV) |
| Cross Reference 1 | SKF 2307 ETN9 |
|---|---|
| Cross Reference 2 | NSK 2307 |
| Cross Reference 3 | NTN 2307 |
The FAG 2307-TV, current designation 2307-TVH, is a double-row self-aligning ball bearing with a cylindrical bore and a glass-fibre reinforced polyamide cage. Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 31 mm. Closure Type: Open. Number Of Rows: 2.
23 — self-aligning ball bearing, 23 (medium wide) dimension series.
07 — bore code, 7 x 5 = 35 mm bore.
TV / TVH — solid cage of glass-fibre reinforced polyamide. TVH is the current Schaeffler form of TV.
The spherical outer raceway lets the inner ring, balls and cage swivel, so the bearing runs with shaft deflection or housing misalignment. Dynamic Load Rating: 40,500 N. Static Load Rating: 11,200 N. Fatigue load limit: 710 N. Limiting Speed: 8,900 rpm. Thermal speed rating: 9,800 rpm. Cage Material: Polyamide. Internal Clearance: CN. Operating temperature: −30 °C to +120 °C. Item Weight: 0.66 kg (1.46 lb).
Minimum chamfer: 1.5 mm. Maximum fillet radius: 1.5 mm. Minimum shaft shoulder diameter: 44 mm. Maximum housing shoulder diameter: 71 mm. Axial load factor e: 0.46; Y dynamic 1.36; Y static 1.42.
Compatible With / Replaces: Schaeffler lists 2307-TVH as the current designation replacing 2307TV. Same 35 x 80 x 31 mm self-aligning envelope with cylindrical bore: SKF 2307 ETN9, NSK 2307, NTN 2307.
