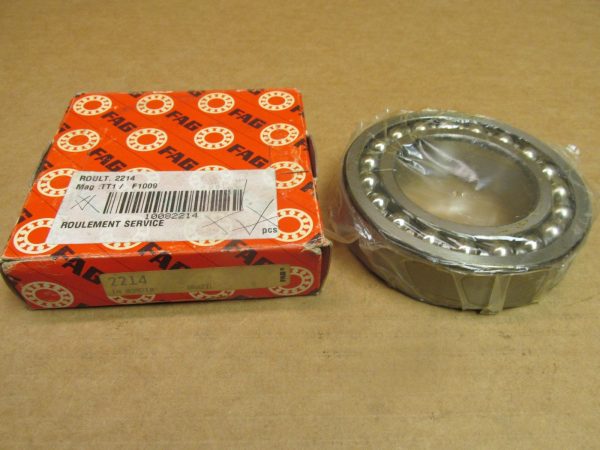

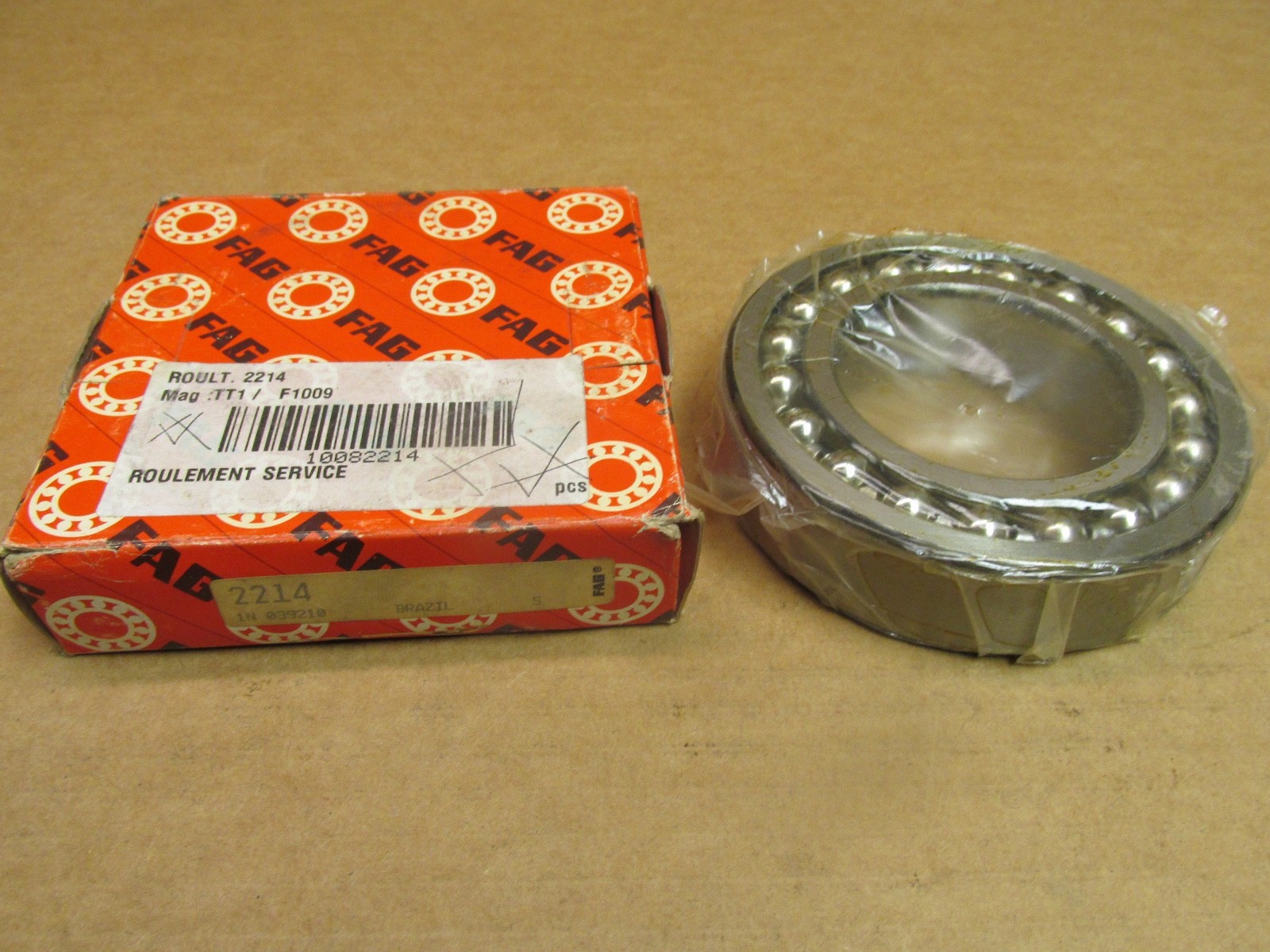

FAG2214Self-Aligning Ball Bearing, 70x125x31 mm, Double Row, Open

Condition: New

Availability:

2 in stock

FAG 2214 self-aligning ball bearing, 70 x 125 x 31 mm, double row, cylindrical bore, open, normal radial clearance. Crosses: SKF 2214, NSK 2214.

Same day shipment

List Price

$46.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN2214
Model2214
Bearing TypeSelf Aligning Ball Bearing, Open
ID70 mm
OD125 mm
Width31 mm

Technical Specifications

Series22
Rolling ElementsBall
Number Of Rows2
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50.68
Internal ClearanceCN
Base Number2214
Industry Termsself-aligning ball bearing, double row ball bearing, 2200 series
Common Misspellings2214 bearing, 22-14, 1214
Application TypesFans, agricultural machinery, textile machinery, long line shafts
Overall Width31 mm
Mpn Variants2214, FAG2214, 2214-TVH, 2214-M
Compatible With ReplacesCurrent FAG executions: 2214-M, 2214-2RS-TVH (sealed)
Additional AttributesMinimum chamfer 1.5 mm
Closure TypeOpen

Cross-References

Cross Reference 1SKF 2214
Cross Reference 2NSK 2214
Cross Reference 3NTN 2214
Cross Reference 4Koyo 2214
Seller Part Number: BG2#II9EXN

Product Description

What this part is:

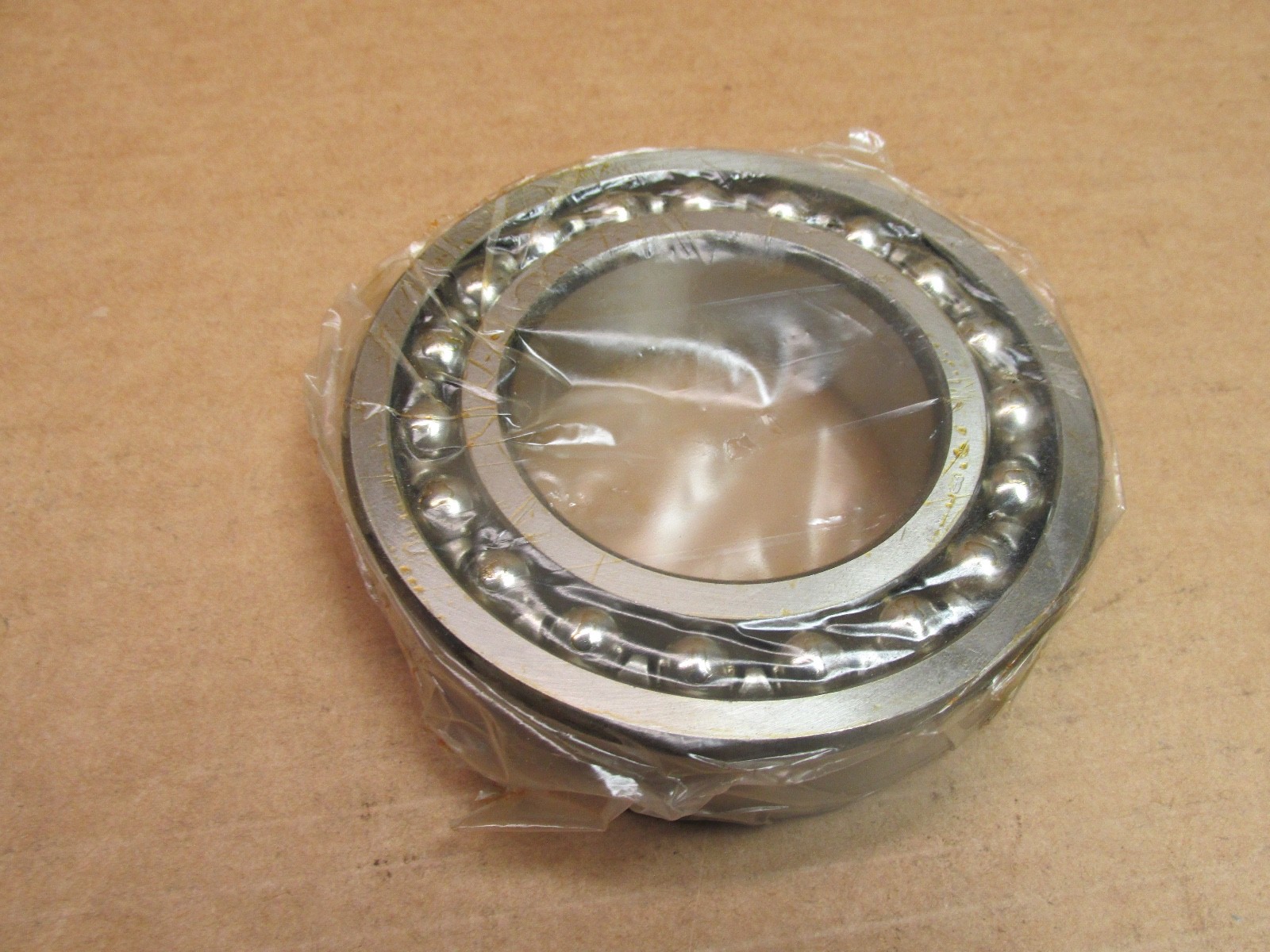

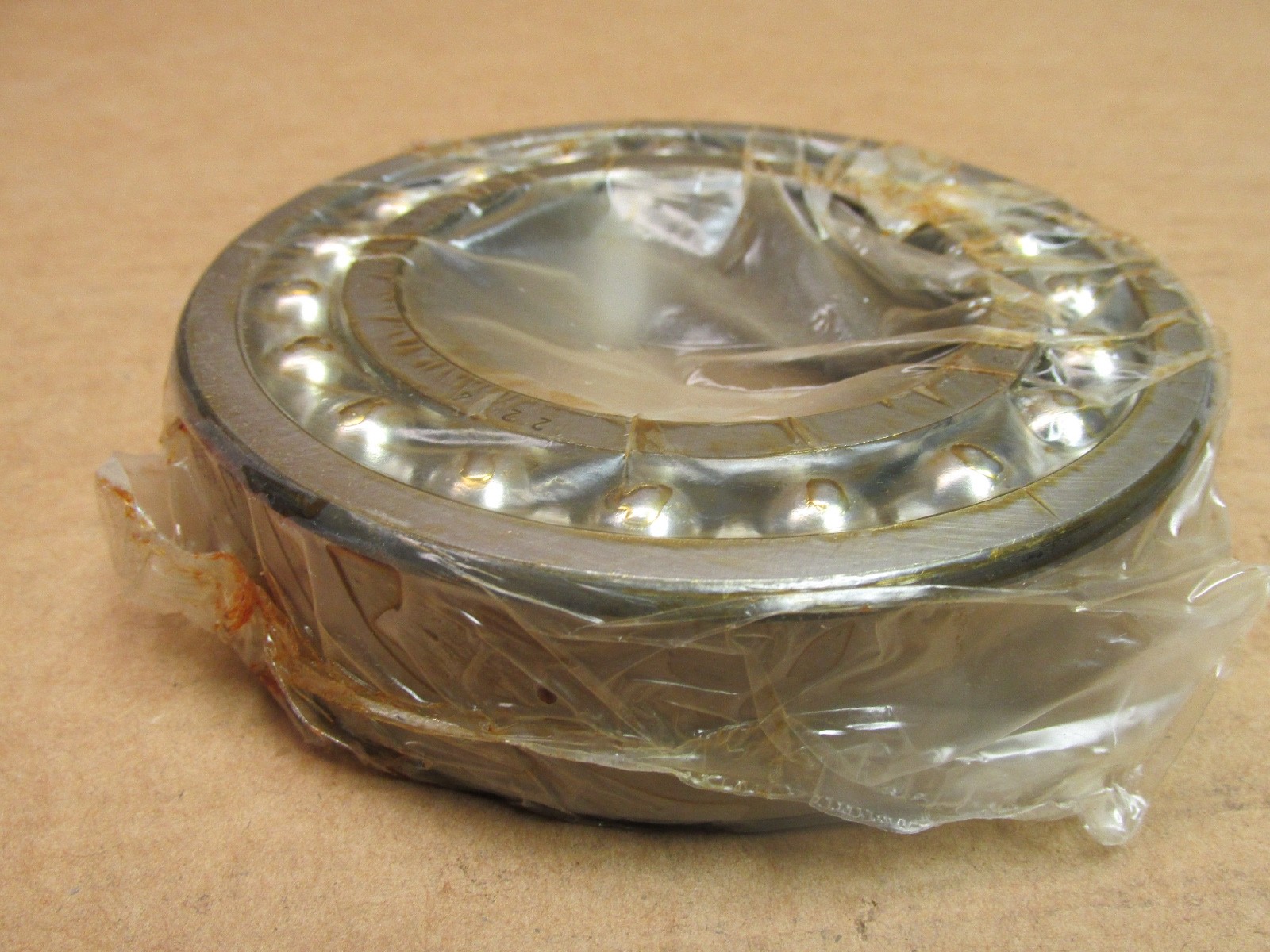

FAG 2214 double-row self-aligning ball bearing, 70 x 125 x 31 mm, cylindrical bore, open, normal radial internal clearance. The spherical outer-ring raceway lets the inner ring, balls and cage swivel, so the bearing runs with shaft misalignment and deflection. Unit Quantity: 1 Pc.

Decoding the designation:

2214 — self-aligning ball bearing, dimension series 22, bore code 14 = 70 mm.

No clearance suffix — normal radial internal clearance (CN).

Specifications:

Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 31 mm. Series: 22. Base Number: 2214. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Cylindrical. Internal Clearance: CN. Closure Type: Open.

Dimensions and mounting:

Minimum chamfer: 1.5 mm. Envelope: 70 x 125 x 31 mm.

Compatibility and replacement:

Cross-Reference 1: SKF 2214. Cross-Reference 2: NSK 2214. Cross-Reference 3: NTN 2214. Cross-Reference 4: Koyo 2214. Current Schaeffler executions on this envelope: FAG 2214-M with a machined brass cage and FAG 2214-2RS-TVH, sealed. MPN Variants: 2214, FAG2214, 2214-TVH, 2214-M.

Frequently asked questions:

What are the dimensions of the FAG 2214?

Bore 70 mm, outside diameter 125 mm, width 31 mm.

Is the FAG 2214 open or sealed?

Open, with a cylindrical bore and normal radial internal clearance (CN).

How many rows of balls does it have?

Two rows of balls on a spherical outer-ring raceway.
