Self-aligning ball bearing, 75 mm cylindrical bore, 130 mm OD, 25 mm wide, open, polyamide cage, normal CN clearance. Double-row design takes misalignment.
List Price
$38.15
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1215-TV |
| Model | 1215 TV |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 12 |
|---|---|
| Condition | New |
| Closure Type | Open |
| Min Temp | -30 °C |
| Cage Type | Solid cage |
| Dynamic Load Rating | 39,000 N |
| Static Load Rating | 15,700 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.42 kg |
| Cage Material | Glass-fibre reinforced polyamide PA66 |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Limiting Speed | 5,700 rpm |
| Base Number | 1215 |
| Overall Width | 25 mm |
| Mpn Variants | 1215-TV, 1215TV, 1215 TV, 1215-TVH |
| Compatible With Replaces | Successor: FAG 1215-TVH |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Successor 1215-TVH data: reference speed 5,500 rpm; operating temperature -30 to +120 °C; da min 84 mm; Da max 121 mm; ra max 1.5 mm; r min 1.5 mm; supplied not greased |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 1215 ETN9 |
|---|---|
| Cross Reference 2 | NSK 1215 |
| Cross Reference 3 | NTN 1215 |

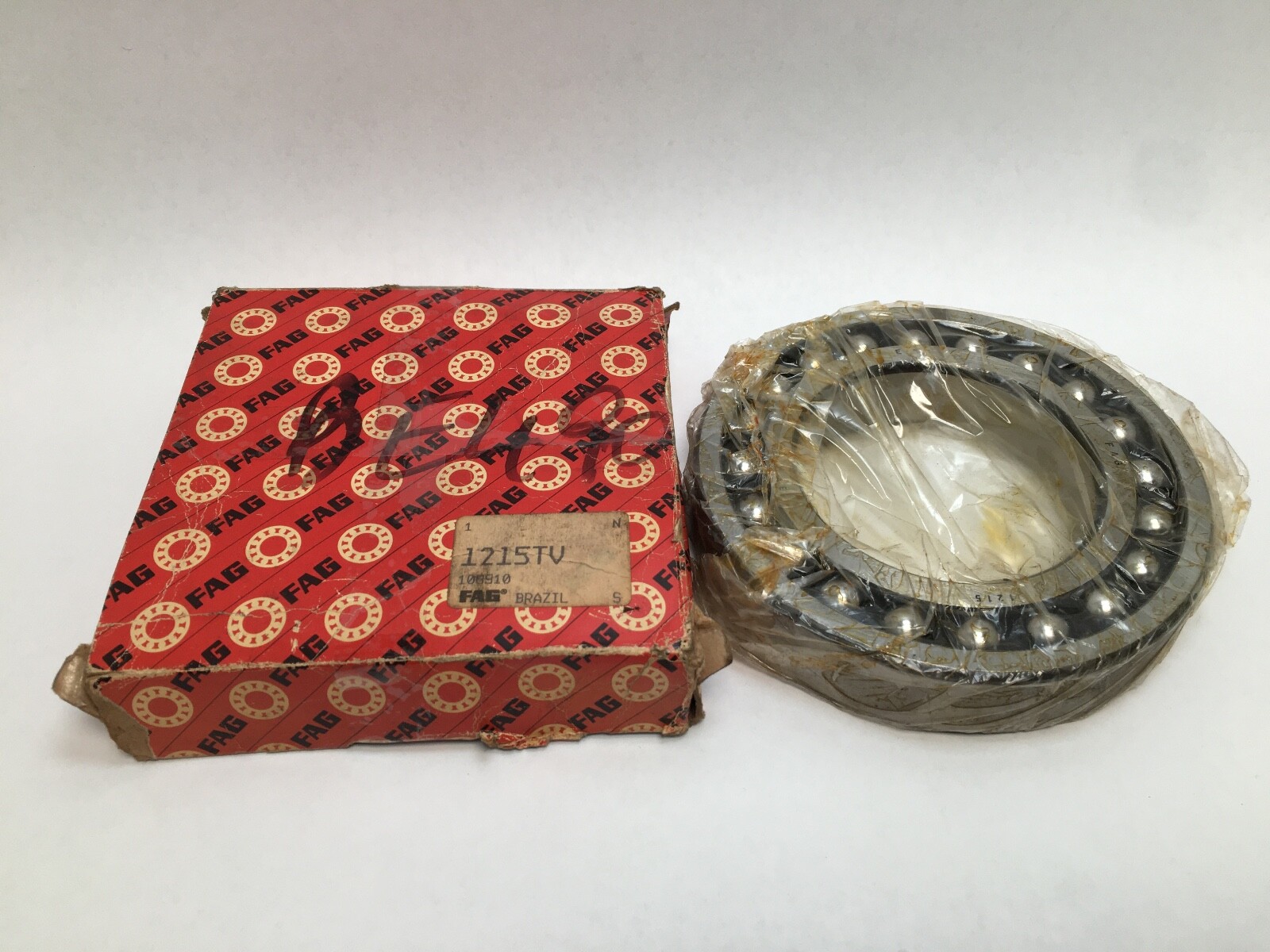

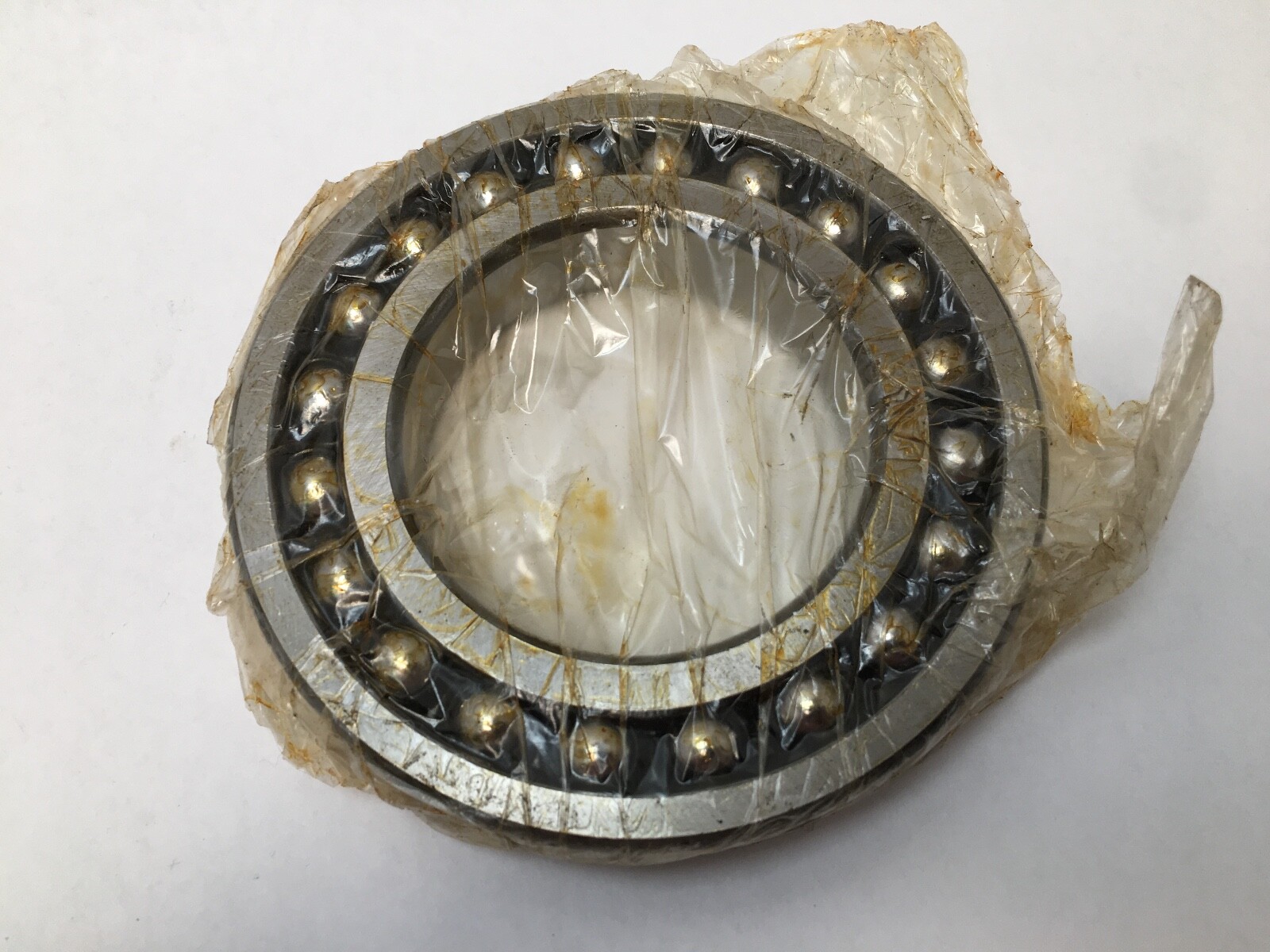

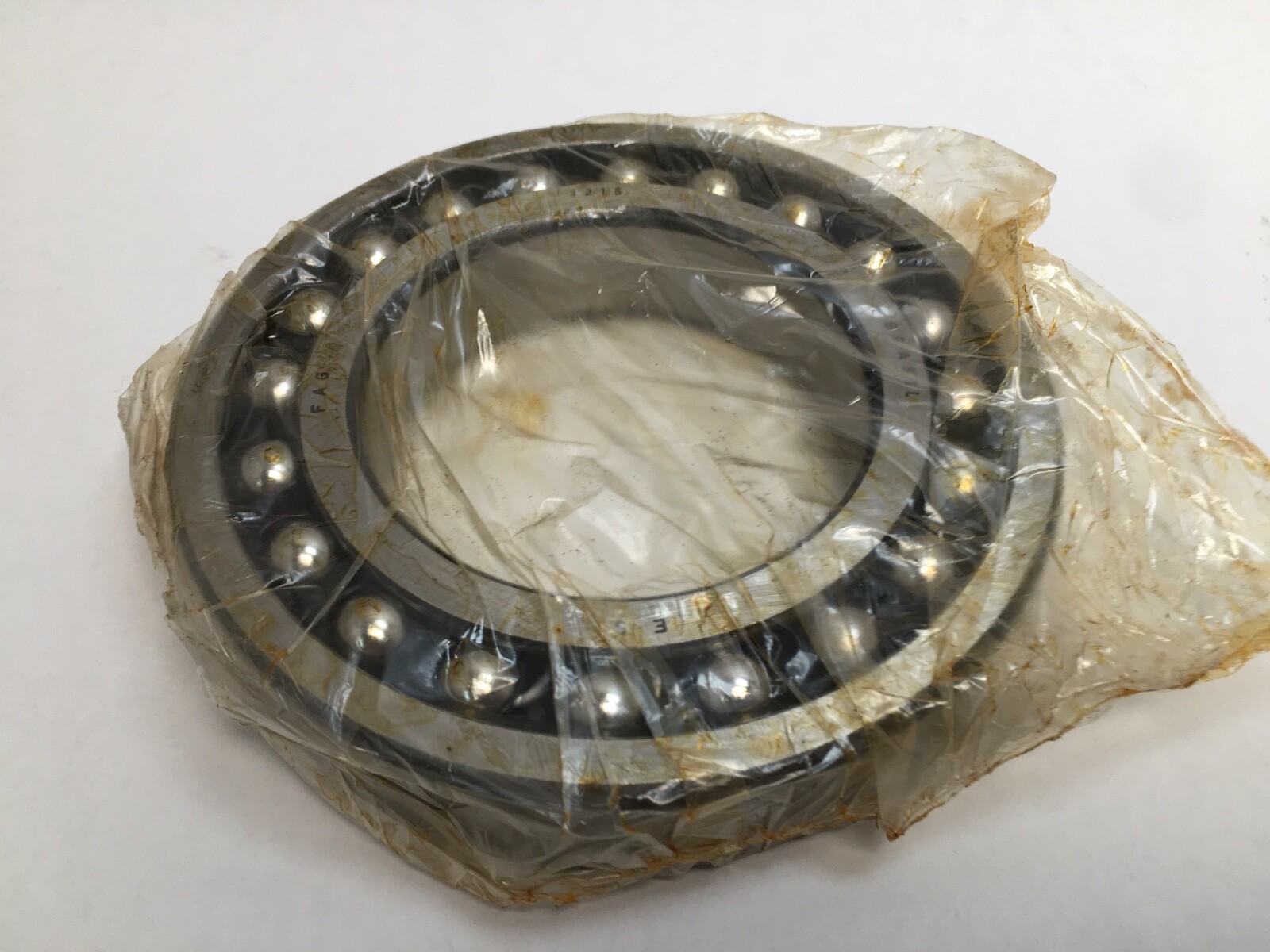

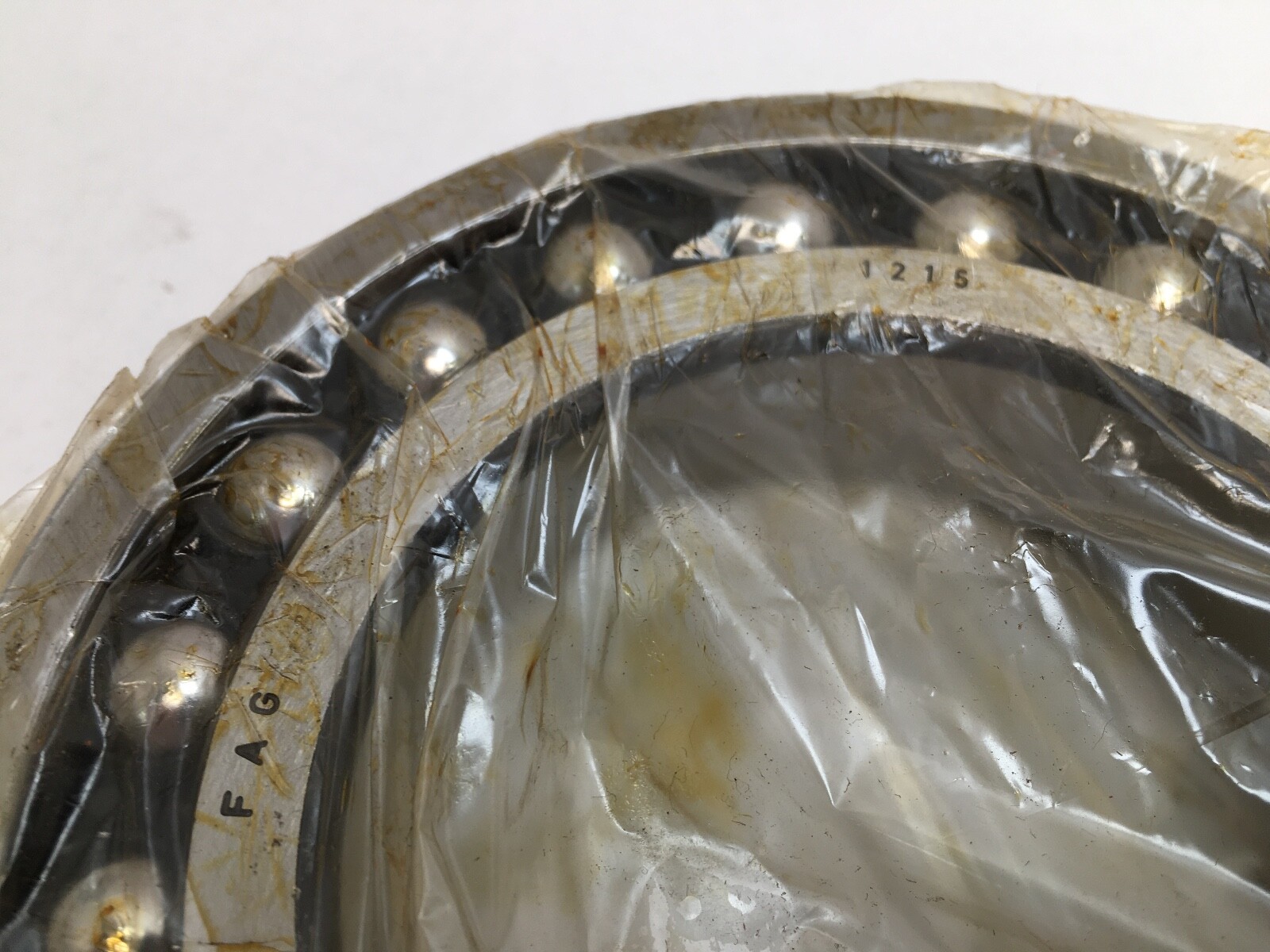

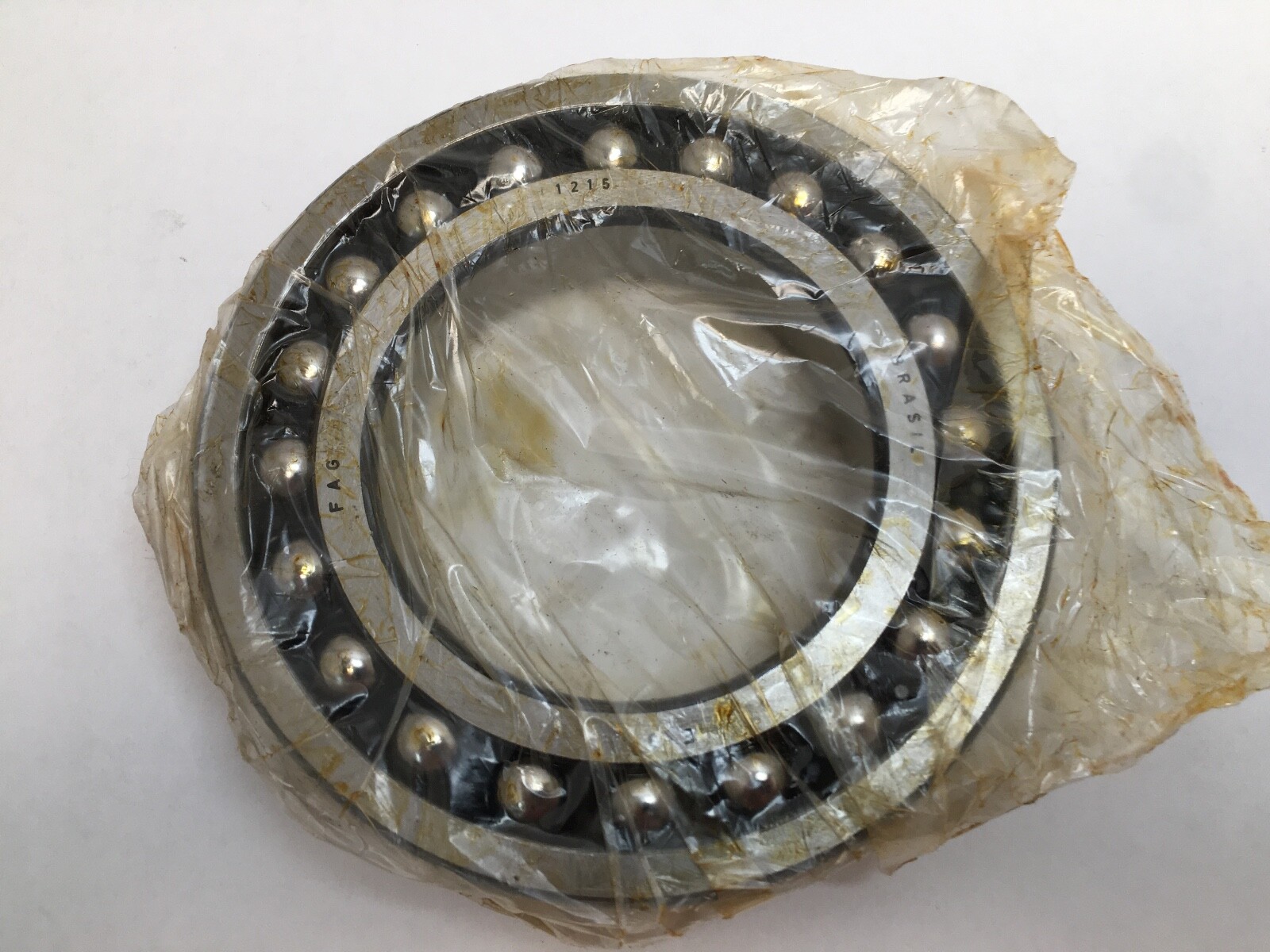

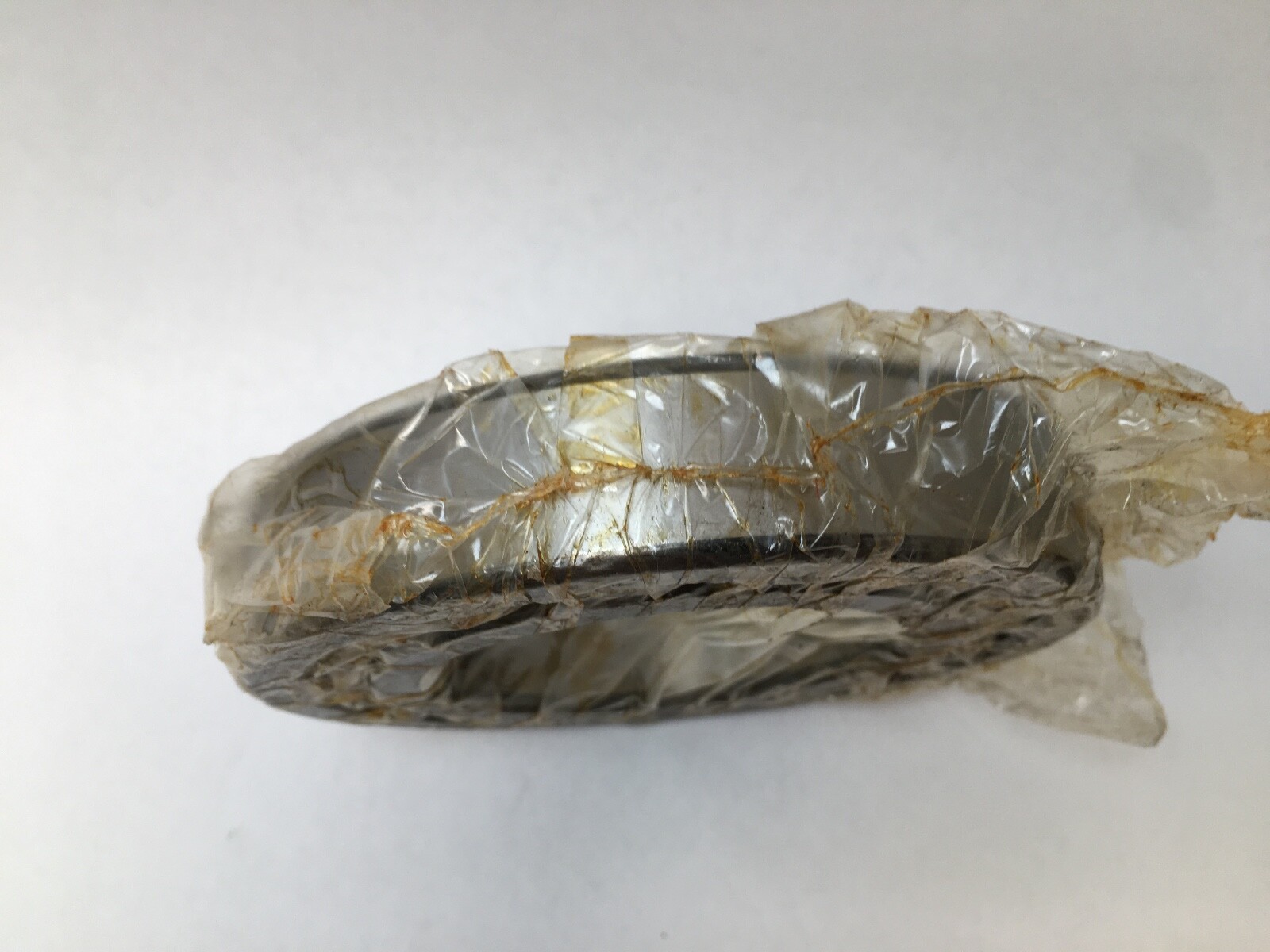

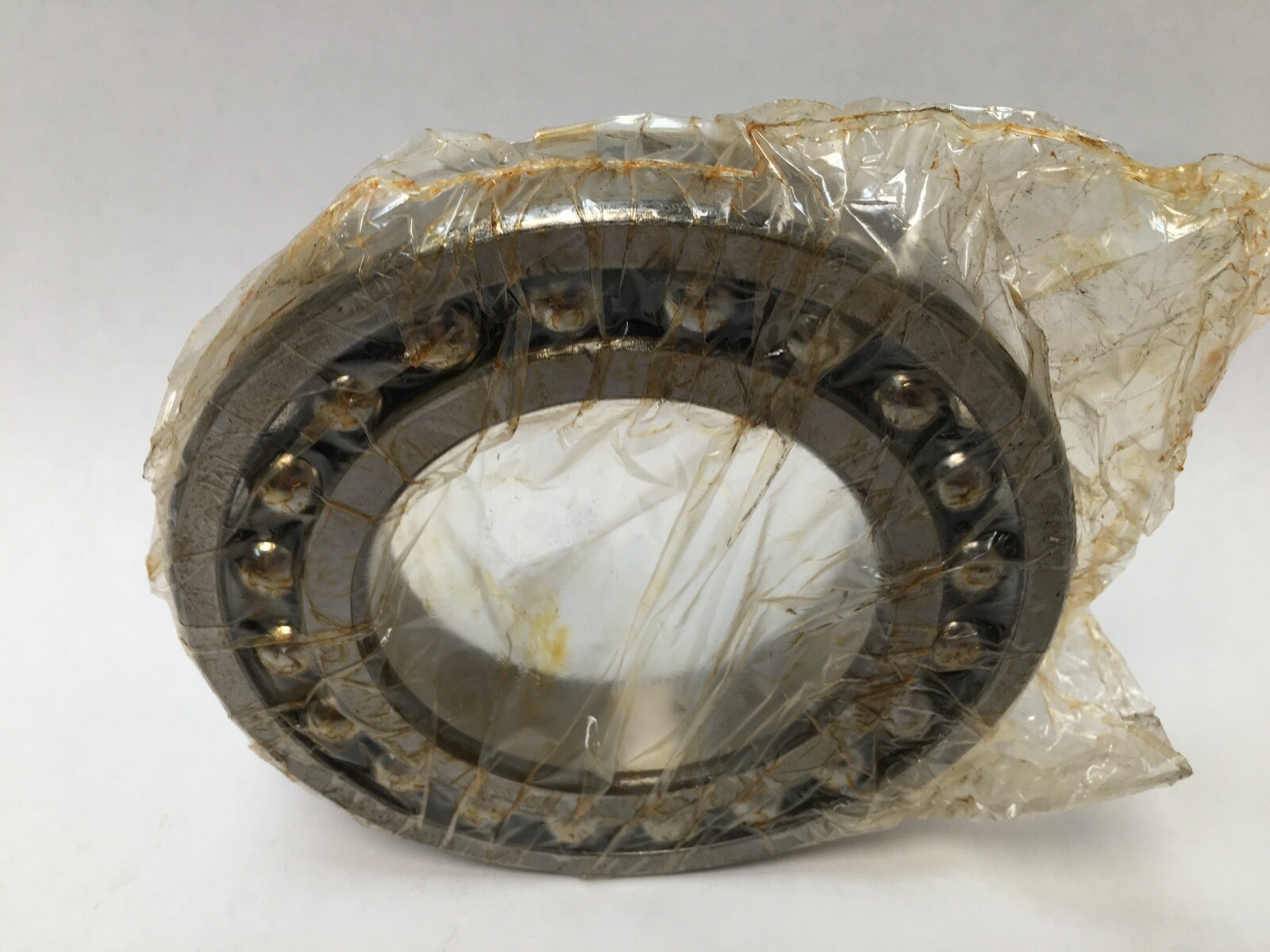

FAG 1215-TV is an open double-row self-aligning ball bearing with a cylindrical bore. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Bore Type: Cylindrical. Rolling Elements: Ball. Number Of Rows: 2. Closure Type: Open. Internal Clearance: CN. Precision Class: Normal tolerance (PN).
1215 — self-aligning ball bearing, 02 dimension series, 75 x 130 x 25 mm.
TV — glass-fibre reinforced polyamide solid cage. Current Schaeffler designation uses TVH.
Successor 1215-TVH data: Dynamic Load Rating: 39,000 N. Static Load Rating: 15,700 N. Limiting Speed: 5,700 rpm. Reference Speed: 5,500 rpm. Item Weight: 1.42 kg. Cage Material: Glass-fibre reinforced polyamide PA66. Operating Temperature: -30 °C to +120 °C.
The two ball rows run in a spherical outer-ring raceway, so the bearing accommodates shaft misalignment. The bearing is supplied open and not greased, for grease or oil lubrication.
Successor 1215-TVH data: Shaft abutment diameter da min: 84 mm. Housing abutment diameter Da max: 121 mm. Fillet radius ra max: 1.5 mm. Chamfer dimension r min: 1.5 mm.
Same envelope, cylindrical bore, open: SKF 1215 ETN9, NSK 1215, NTN 1215. Current FAG designation: 1215-TVH.
