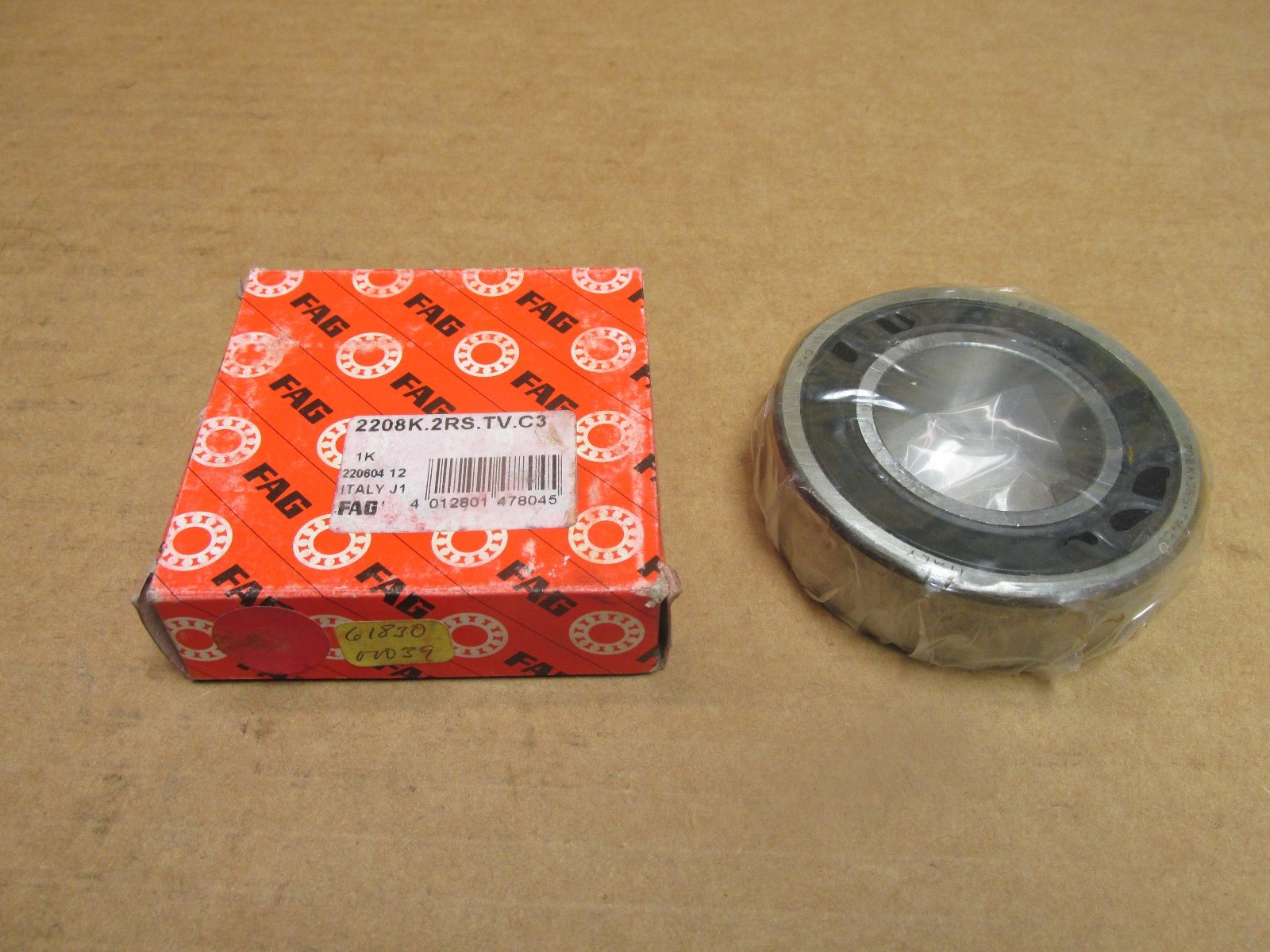

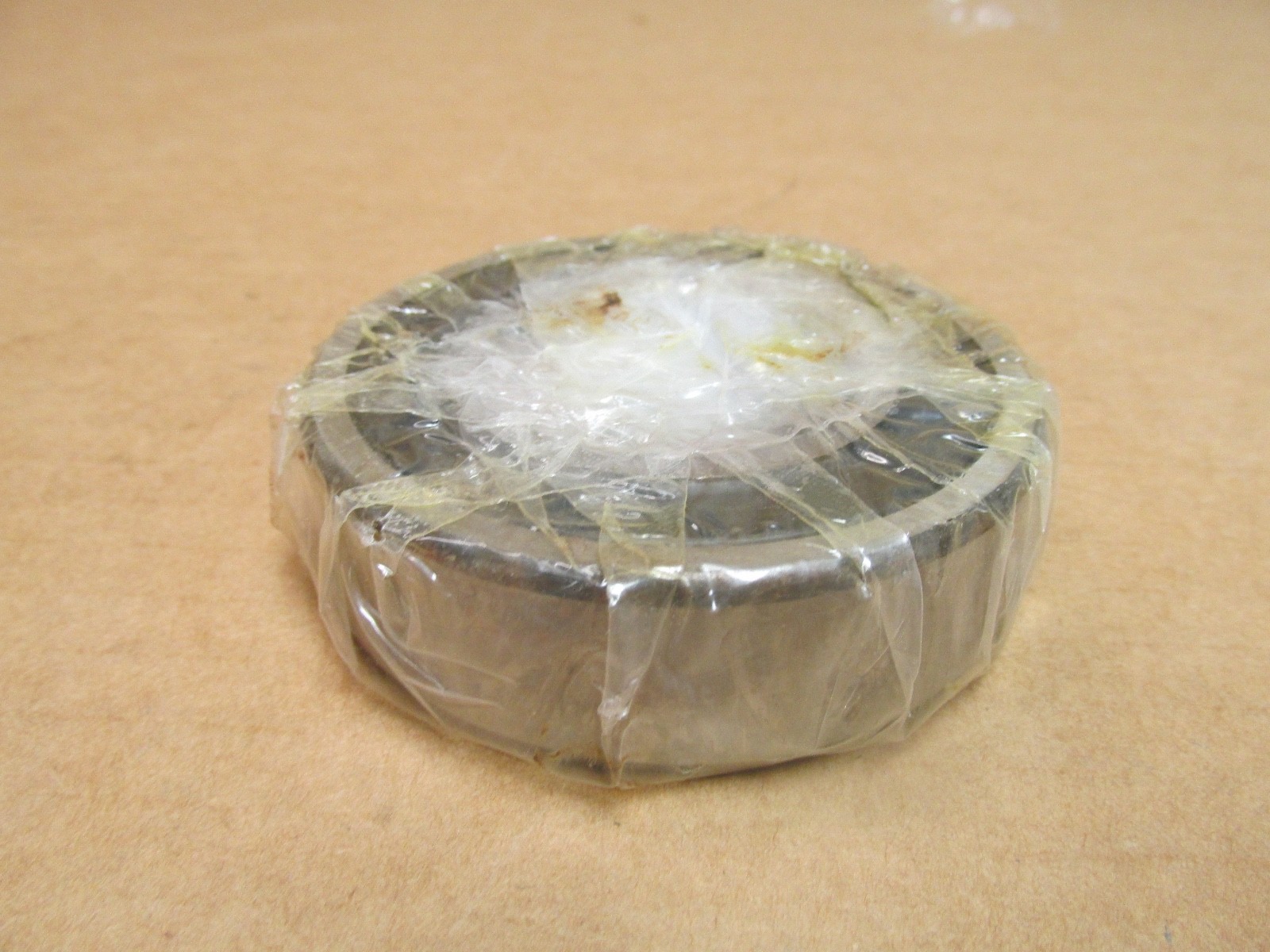

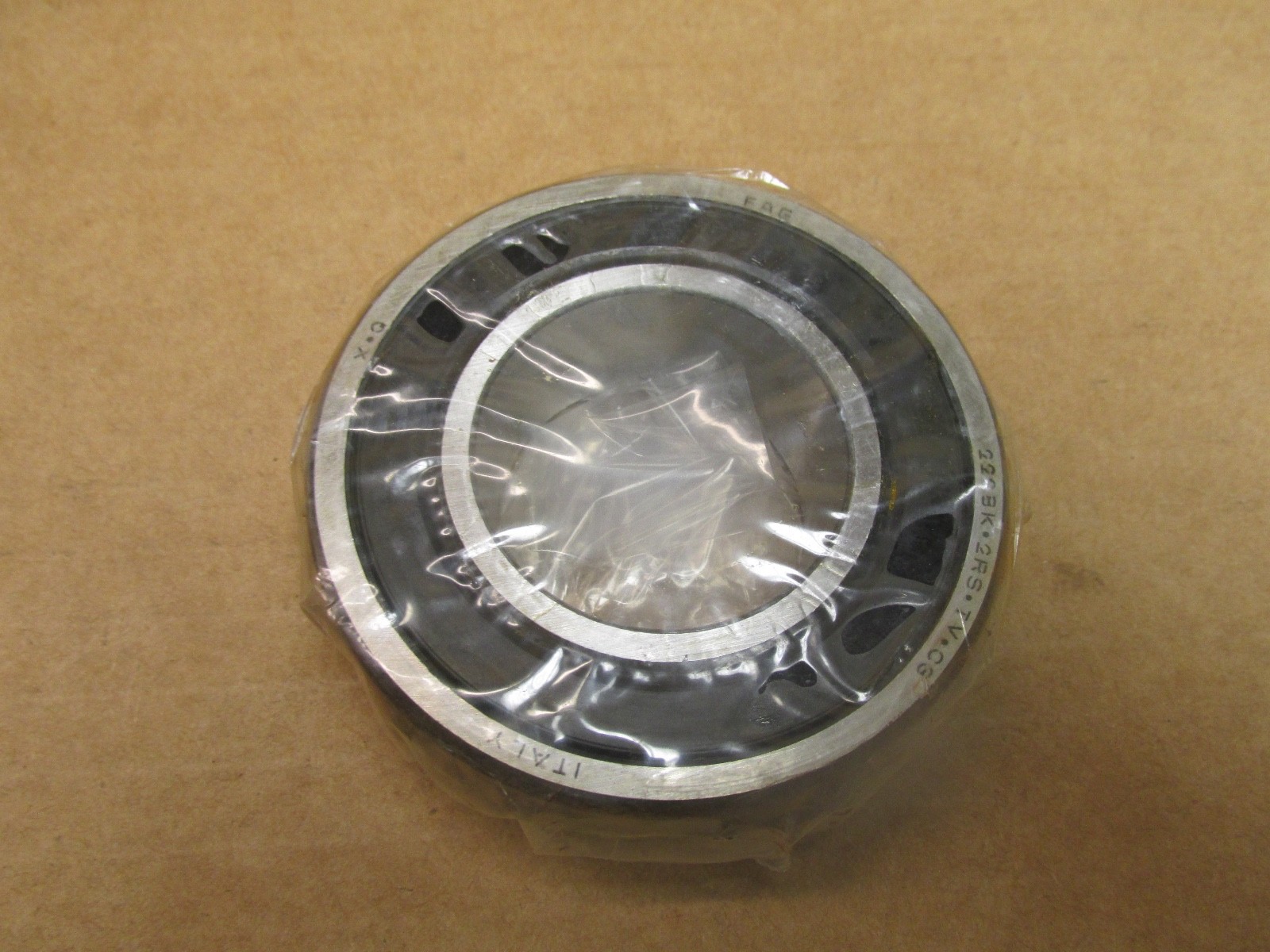

FAG2208-K-2RS-TV-C3Self-Aligning Ball Bearing – Tapered Bore 1:12, 40 mm ID, 80 mm OD, 23 mm Width, Contact Seals Both Sides, C3

Condition: New

Availability:

2 in stock

Self-aligning ball bearing, 40 mm tapered bore (1:12), 80 mm OD, 23 mm wide, contact seals both sides, C3 clearance. Mounts on an H308 adapter sleeve.

Same day shipment

List Price

$41.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN2208-K-2RS-TV-C3
Model2208-K-2RS-TV-C3
Bearing TypeSelf Aligning Ball Bearing, Contact seals both sides (2RS)
ID40 mm
OD80 mm
Width23 mm

Technical Specifications

Series22
LubricantGrease (GA13)
Closure TypeContact seals both sides
Min Temp-20 °C
Cage TypeSolid cage
Dynamic Load Rating19,400 N
Static Load Rating6,500 N
Rolling ElementsBall
Max Temp100 °C
Item Weight0.486 kg (1.07 lb)
Cage MaterialGlass-fibre reinforced polyamide PA66
Number Of Rows2
Bore TypeTapered, 1:12
Snap Ring IncludedNo
Harmonization Code8482.10.50.68
Internal ClearanceC3
Limiting Speed5,400 rpm
Base Number2208
Overall Width23 mm
Mpn Variants2208-K-2RS-TV-C3, 2208K.2RS.TV.C3, 2208K2RSTVC3, 2208 K 2RS TV C3, 2208-K-2RS-TVH-C3
Compatible With ReplacesSuccessor: FAG 2208-K-2RS-TVH-C3. Adapter sleeve: H308
Precision ClassABEC 1 / P0

Cross-References

Cross Reference 1SKF 2208 E-2RS1KTN9/C3
Seller Part Number: B-AD4B4#AKNR4U

Product Description

What this part is:

FAG 2208-K-2RS-TV-C3 is a double-row self-aligning ball bearing with a tapered bore and contact seals on both sides. Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm. Bore Type: Tapered, 1:12. Rolling Elements: Ball. Number Of Rows: 2. Closure Type: Contact seals both sides. Internal Clearance: C3. Precision Class: Normal tolerance (PN). Unit Quantity: 1 Pc.

Decoding the designation:

2208 — self-aligning ball bearing, 22 dimension series, 40 x 80 x 23 mm.

K — tapered bore, taper 1:12.

2RS — contact seals on both sides, grease filled at the factory.

TV — glass-fibre reinforced polyamide solid cage. Current Schaeffler designation uses TVH.

C3 — radial internal clearance greater than normal.

Specifications:

Successor 2208-K-2RS-TVH-C3 data: Dynamic Load Rating: 19,400 N. Static Load Rating: 6,500 N. Fatigue Limit Load: 415 N. Limiting Speed: 5,400 rpm. Item Weight: 0.486 kg (1.07 lb). Cage Material: Glass-fibre reinforced polyamide PA66. Lubricant: Grease (GA13), factory filled. Operating Temperature: -20 °C to +100 °C.

Dimensions and mounting:

Successor 2208-K-2RS-TVH-C3 data: Shaft abutment diameter da min: 47 mm. da max: 52 mm. Housing abutment diameter Da max: 73 mm. Fillet radius ra max: 1 mm. Chamfer dimension r min: 1.1 mm. Two ball rows run in a spherical outer-ring raceway, so the bearing accommodates shaft misalignment. Related part: H308 adapter sleeve for a 35 mm shaft.

Compatibility and replacement:

Same envelope, tapered bore, sealed, C3: SKF 2208 E-2RS1KTN9/C3. Current FAG designation: 2208-K-2RS-TVH-C3. Searchable forms: 2208-K-2RS-TV-C3, 2208K.2RS.TV.C3, 2208K2RSTVC3, 2208 K 2RS TV C3.

Frequently asked questions:

What adapter sleeve fits the FAG 2208-K-2RS-TV-C3?

H308, for a 35 mm shaft.

What does TV mean in the designation?

A glass-fibre reinforced polyamide solid cage. The current Schaeffler designation uses TVH.

What size is it?

Bore Diameter: 40 mm, tapered 1:12. Outside Diameter: 80 mm. Overall Width: 23 mm.
