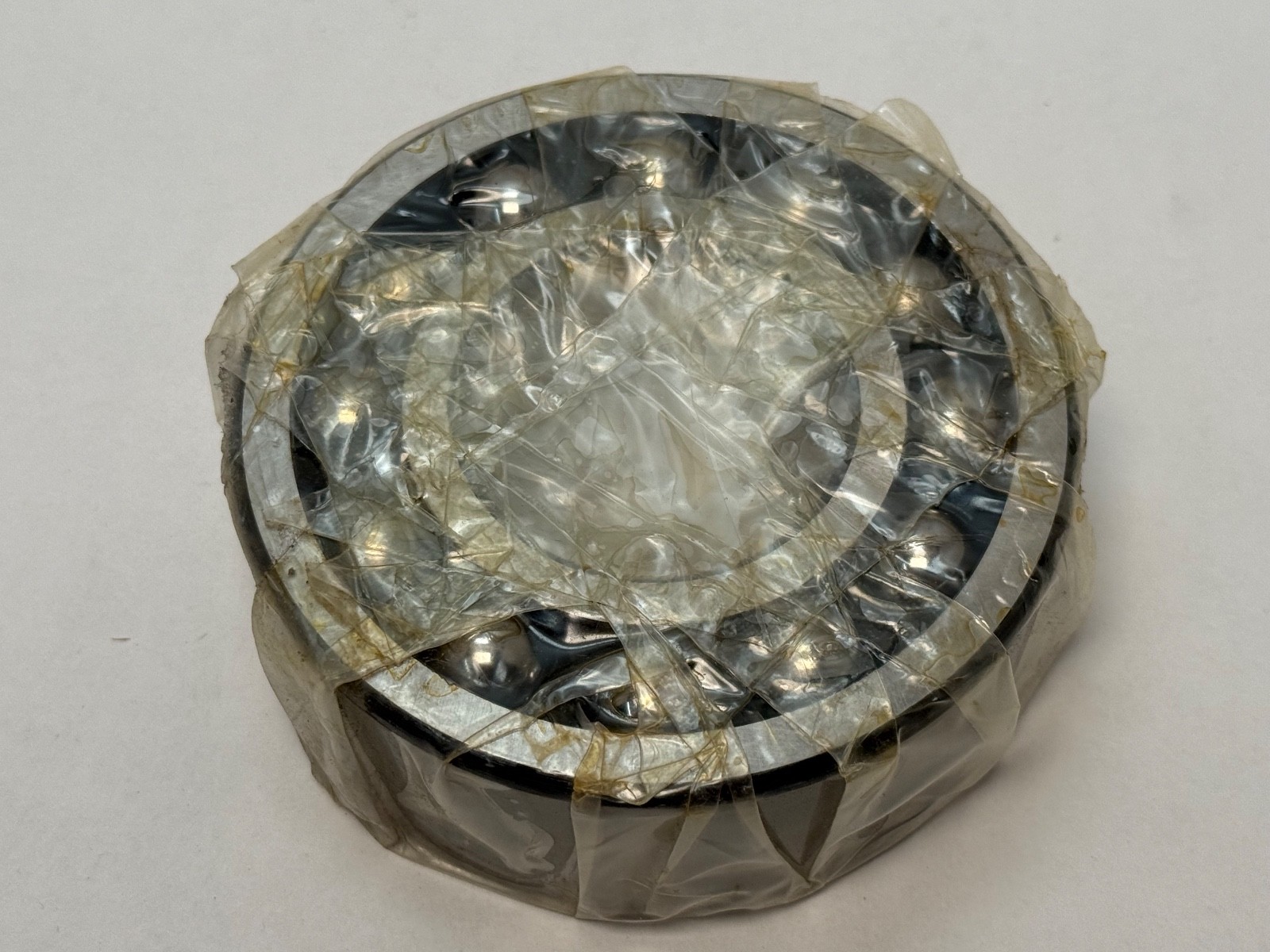

FAG2309-TV-C3Self-Aligning Ball Bearing 45 x 100 x 36 mm, Double Row, Straight Bore, Polyamide Cage, C3

Condition: New

Availability:

2 in stock

Double-row self-aligning ball bearing, 45 mm bore x 100 mm OD x 36 mm wide, straight bore, glass-fibre polyamide cage, C3 clearance, open both faces.

Same day shipment

List Price

$52.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN2309-TV-C3
GTIN4012801191722
Model2309TVC3
Bearing TypeSelf Aligning Ball Bearing
ID45 mm
OD100 mm
Width36 mm

Technical Specifications

MaterialSteel
Base Number2309
Industry TermsSelf-aligning ball bearing; double row ball bearing; misalignment bearing; 23 series; spherical outer raceway
Common Misspellings2309TCV3; 2309-TV-C-3; 2309TVHC3; FAG 2309 TVC3
Application TypesLong unsupported shafts; agricultural and material-handling drives; conveyor shafts; woodworking machinery; textile machinery; line shafting with deflection
Bore Shaft Size45 mm (1.7717 in)
Mpn Variants2309-TV-C3; 2309TVC3; 2309TV.C3; 2309 TV C3; 2309-TVH-C3; 2309
Manufacturer StatusActive FAG/Schaeffler catalogue designation
Cage MaterialGlass-fibre reinforced polyamide
Number Of Rows2
Part Number2309-TV-C3
Internal ClearanceC3
Bore TypeStraight
Seller Part Number: B-AH4B1#PQ7HMK

Product Description

What this part is:

A FAG 2309-TV-C3 double-row self-aligning ball bearing. Bore 45 mm, outside diameter 100 mm, width 36 mm. Two rows of balls run on a common spherical outer raceway, so the inner ring, ball complement and cage swivel inside the outer ring and the bearing tolerates shaft deflection and housing-bore misalignment. Open on both faces, straight bore.

Decoding the designation:

23 — ISO wide dimension series of the double-row self-aligning ball family.

09 — bore code, 45 mm.

TV — glass-fibre reinforced polyamide cage.

C3 — radial internal clearance greater than normal.

No K — straight cylindrical bore, no adapter sleeve.

Specifications:

Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 100 mm. Width: 36 mm. Rolling Elements: Steel balls. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Series: 23 (ISO wide dimension series, 2309). Base Number: 2309. Material: Steel. UPC: 4012801191722. Unit Quantity: 1 Pc.

Dimensions and mounting:

The straight bore seats on a cylindrical shaft seat. Because the bearing self-aligns, the housing bore need not be square to the shaft.

Compatibility and replacement:

Related sizes: 2309-K-TV-C3 (1:12 tapered bore, takes an H2309 adapter sleeve) and FAG 22309 (spherical roller bearing, same 45 x 100 x 36 mm envelope). MPN variants: 2309-TV-C3; 2309TVC3; 2309TV.C3; 2309 TV C3; 2309-TVH-C3; 2309.

Frequently asked questions:

What does TV mean in 2309-TV-C3?

A glass-fibre reinforced polyamide cage.

Does it have a tapered bore?

No. There is no K in the designation, so the bore is straight.

What are the dimensions?

45 mm bore, 100 mm outside diameter, 36 mm width.
