Availability:
6 in stock

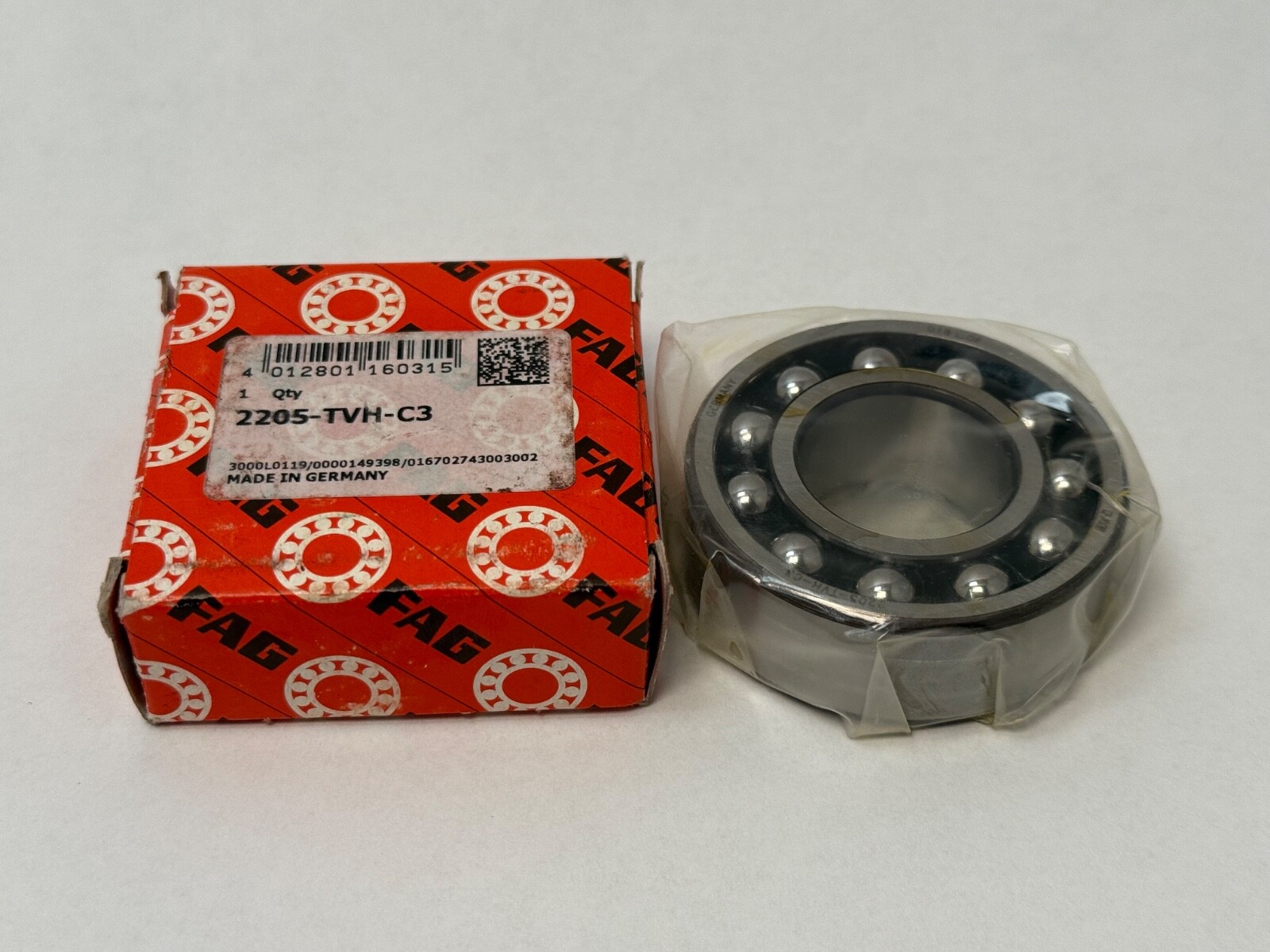

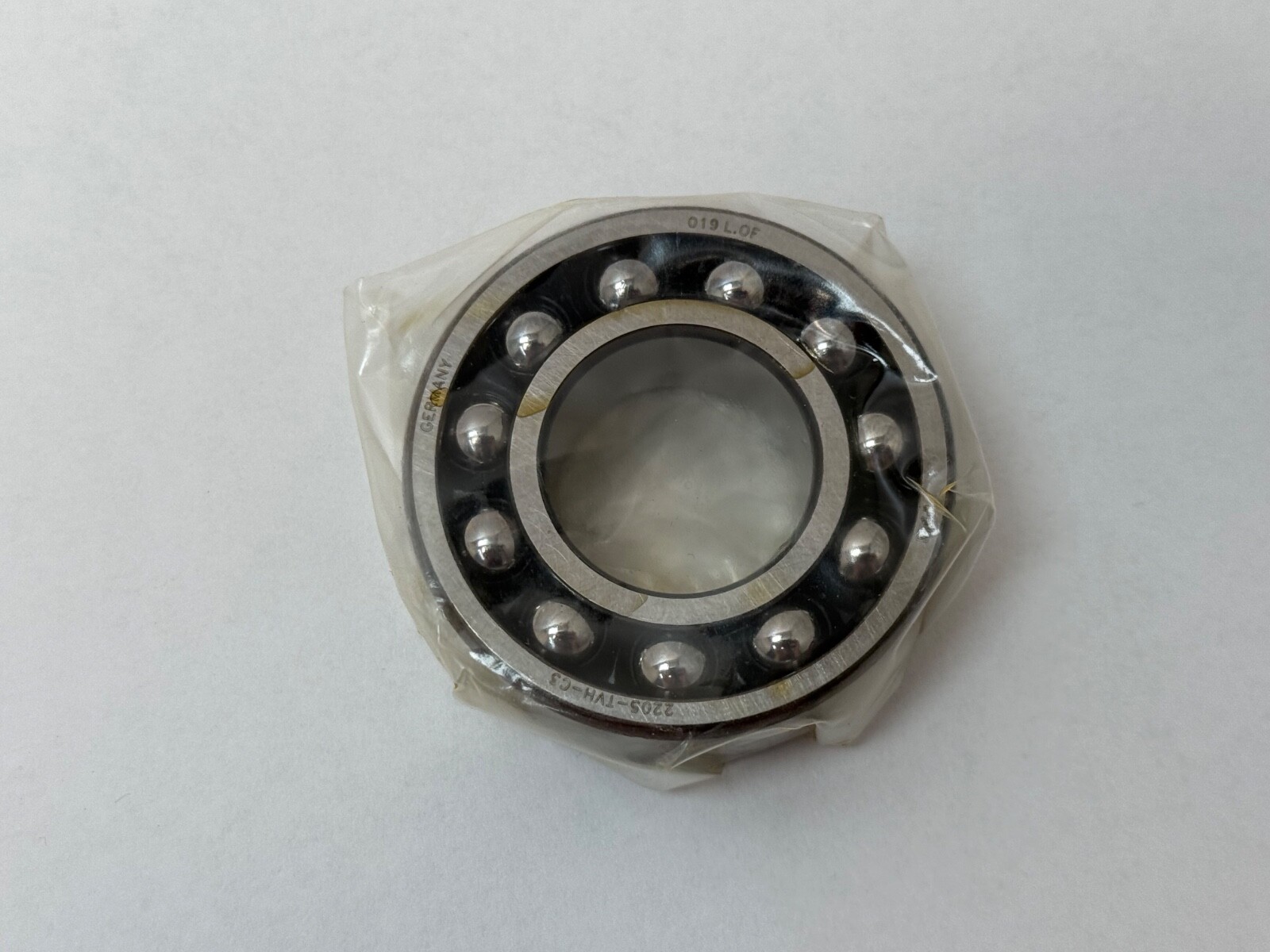

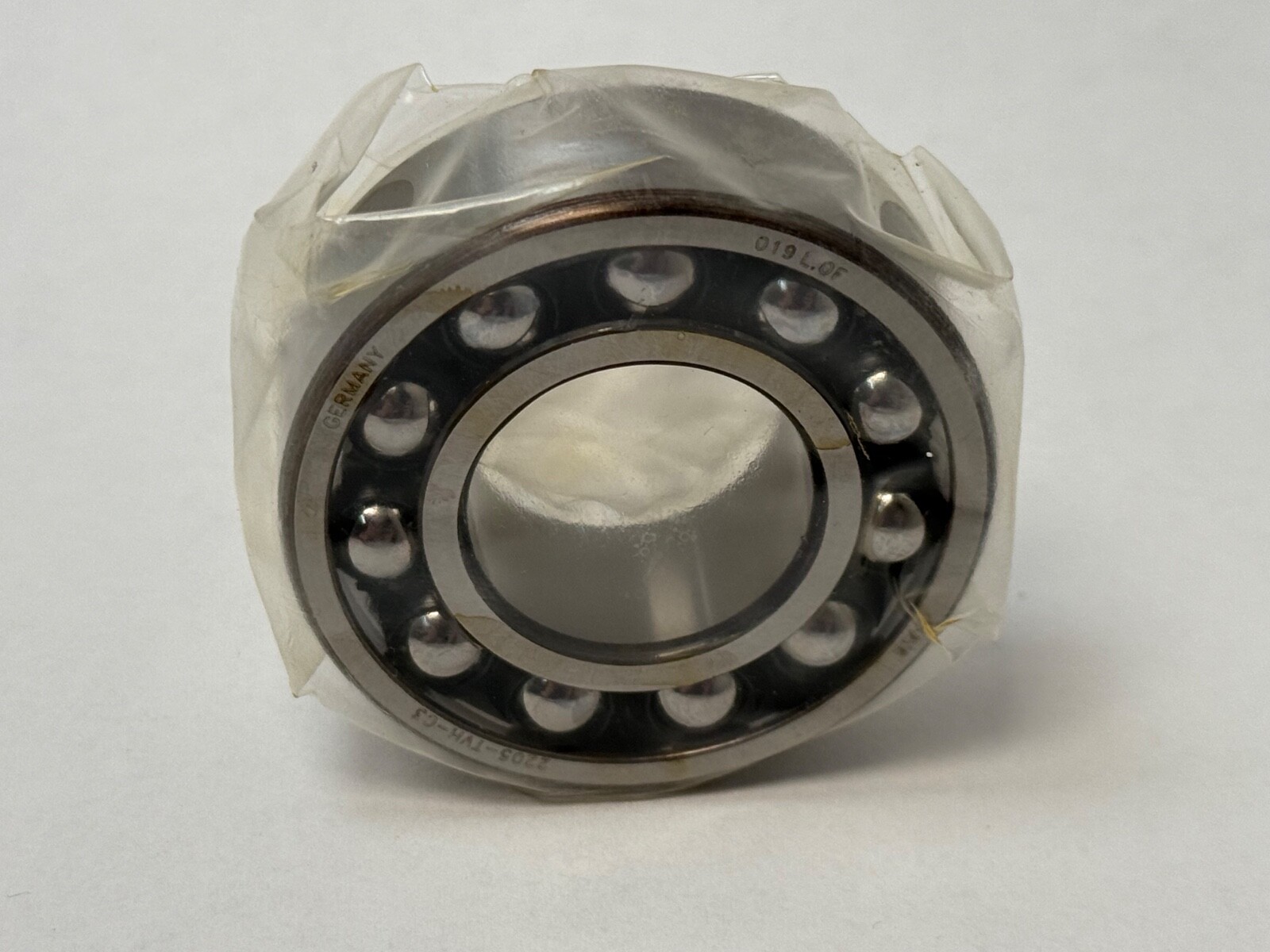

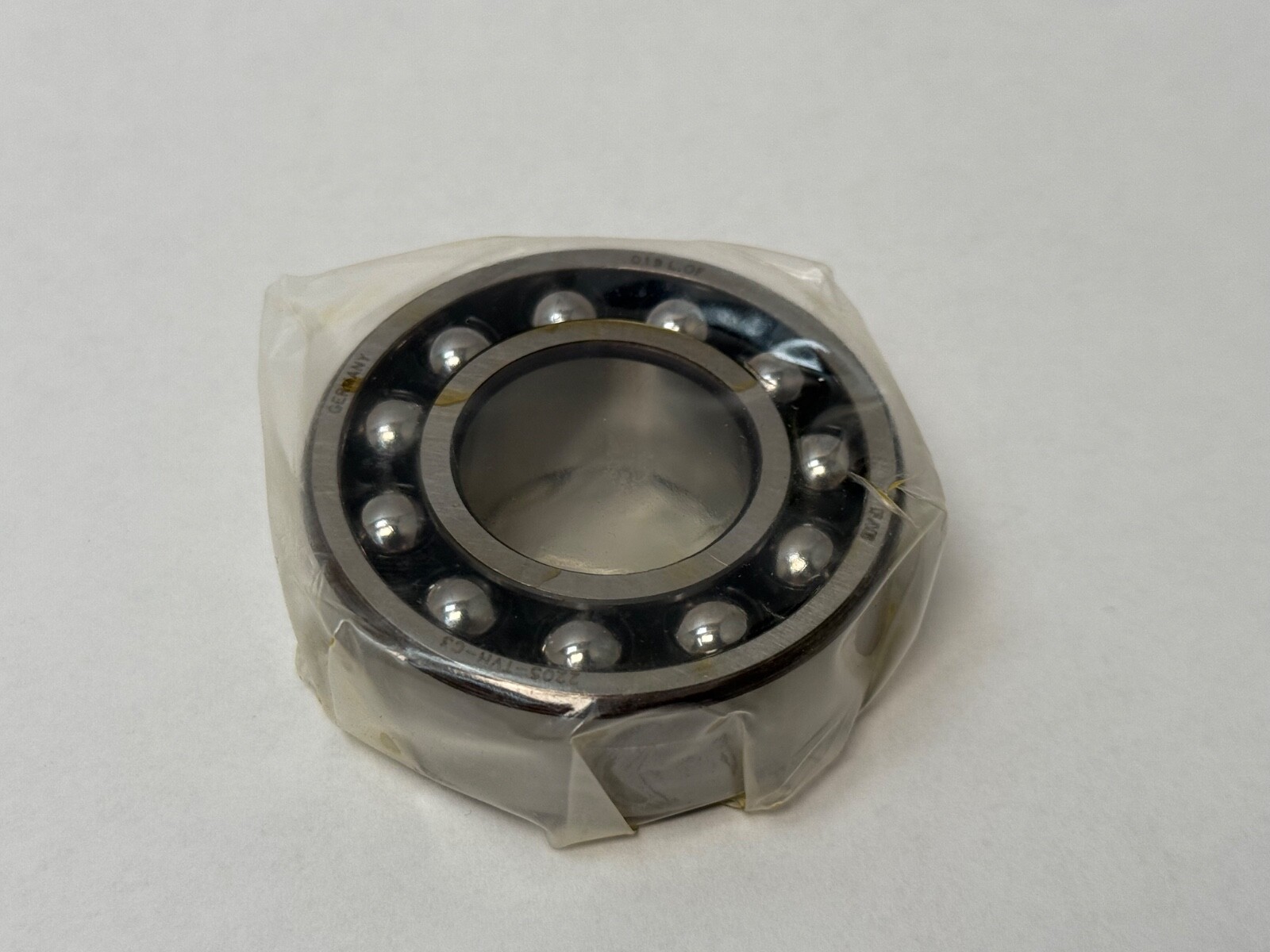

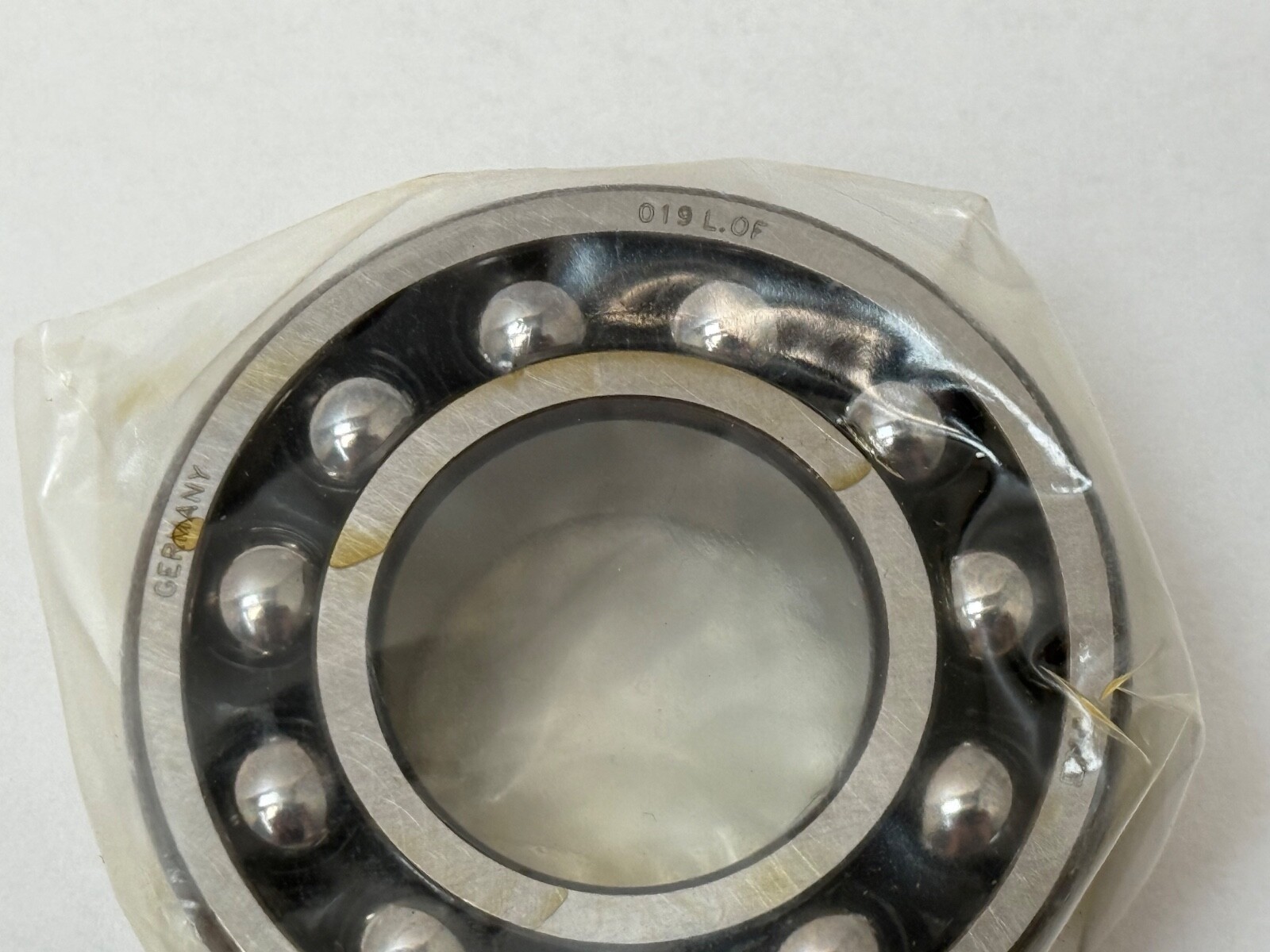

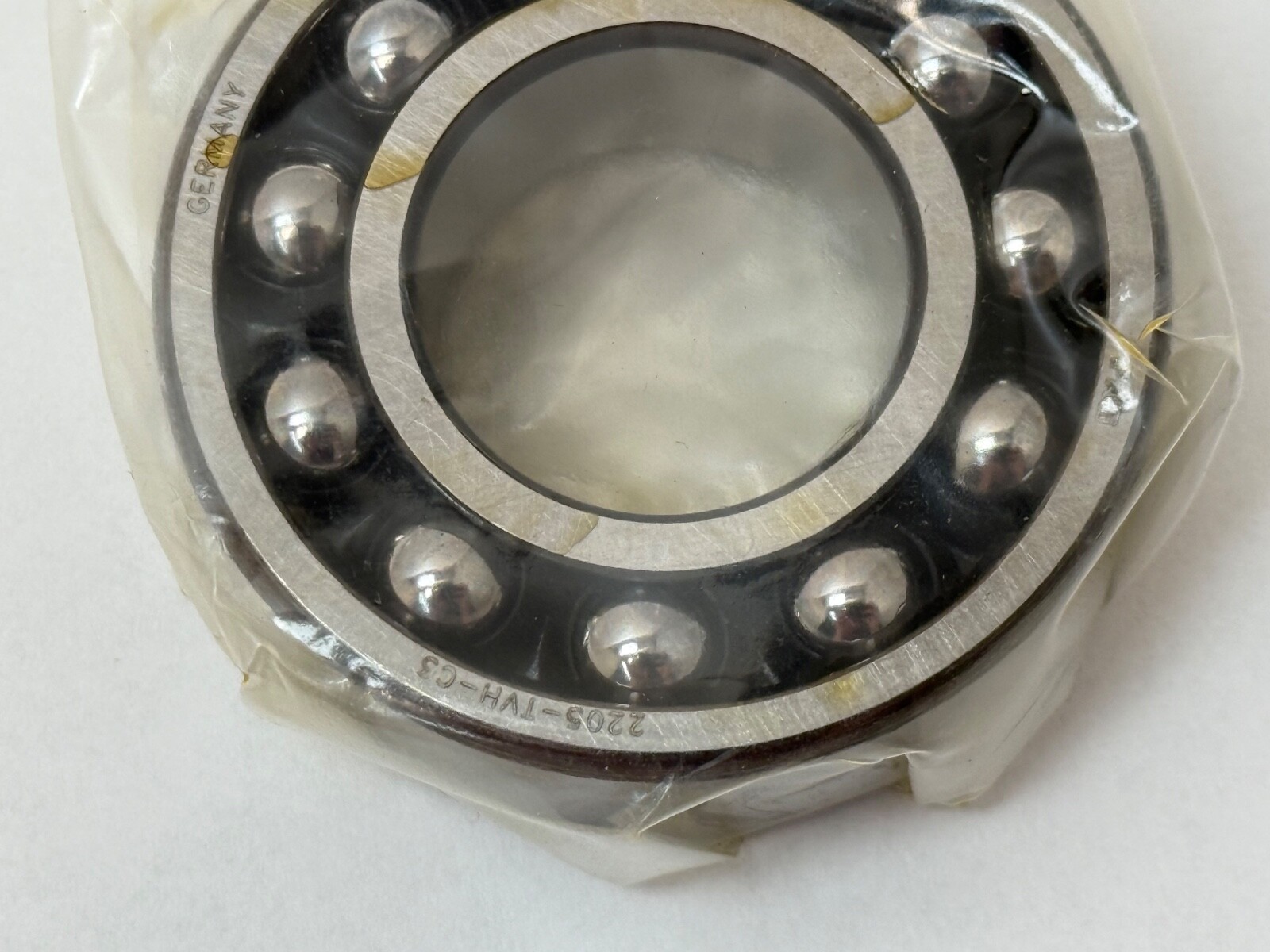

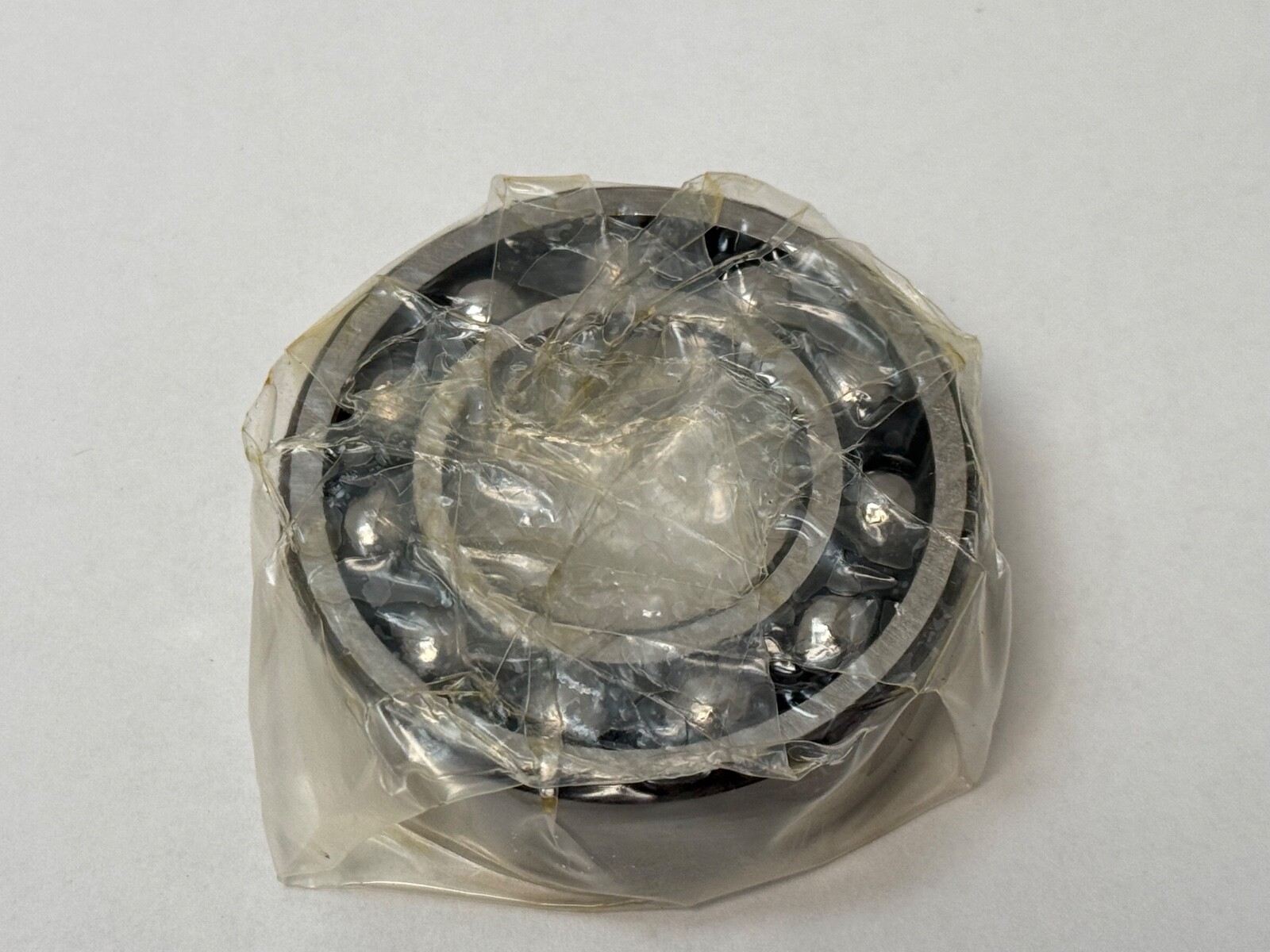

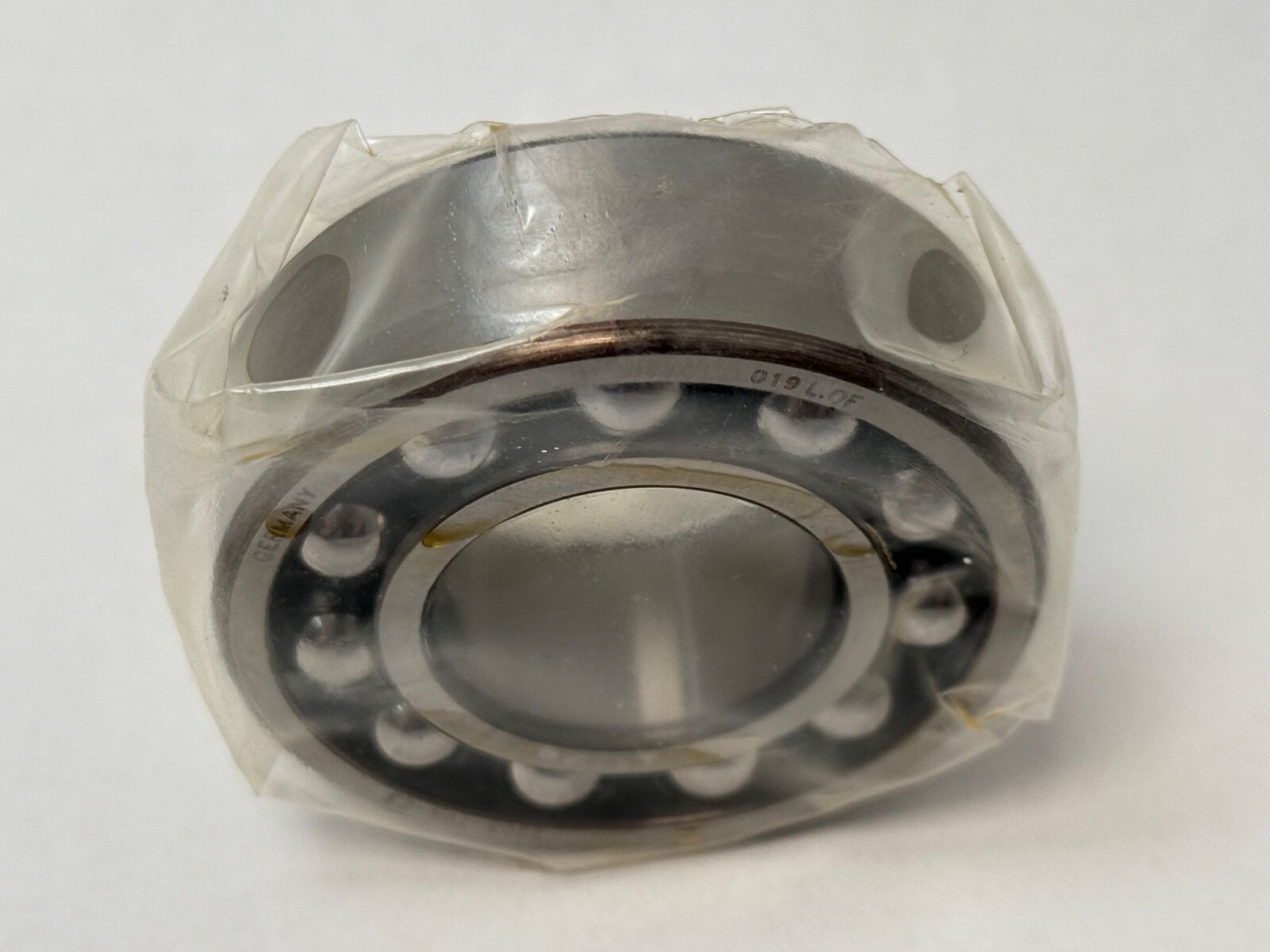

FAG 2205-TVH-C3 self-aligning ball bearing, 25 x 52 x 18 mm, cylindrical bore, C3 clearance, glass-fibre polyamide cage. Dynamic load rating 17,300 N, limiting speed 14,400 rpm.
List Price
$35.59
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2205-TVH-C3 |
| GTIN | 4012801160315 |
| Model | 2205-TVH-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 18 mm |
| Series | 2200 |
|---|---|
| Condition | New |
| Lubricant | Supplied not greased; grease or oil |
| Base Number | 2205 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, self aligning bearing, 22 series |
| Common Misspellings | 2205TVHC3, 2205 TVH-C3, 2205-TVHC3, 2205TV.C3 |
| Application Types | Conveyors, fans, agricultural machinery, textile machinery, shafts with deflection or misalignment |
| Overall Width | 18 mm |
| Mpn Variants | 2205TVH.C3, 2205-TVH-C3, 2205 TVH C3, 2205TVHC3 |
| Precision Class | Normal (PN, ISO 492) |
| Additional Attributes | Reference speed: 13,400 rpm; Fatigue load limit: 285 N; Load factor e: 0.35; Y1: 1.78; Y2: 2.75; Y0: 1.86; Operating temperature: -30 °C to +120 °C; Min shaft shoulder diameter: 30.6 mm; Max housing shoulder diameter: 46.4 mm; Max fillet radius: 1 mm; Min chamfer: 1 mm; Inner ring shoulder diameter: 32.25 mm; Outer ring shoulder diameter: 44.42 mm; Rolling Elements: Ball |
| Closure Type | Open |
| Dynamic Load Rating | 17,300 N |
| Static Load Rating | 4,450 N |
| Rolling Elements | Ball |
| Item Weight | 0.15 kg (0.33 lb) |
| Cage Material | Glass-fibre reinforced polyamide PA66 |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 14,400 rpm |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 2205 ETN9/C3 |
|---|---|
| Cross Reference 2 | NSK 2205C3 |
| Cross Reference 3 | NTN 2205C3 |
| Cross Reference 4 | Koyo 2205C3 |
FAG 2205-TVH-C3 (2205TVH.C3) is a double-row self-aligning ball bearing in the wide 22 series. Bearing type: Self-aligning ball bearing. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 18 mm. Number Of Rows: 2. GTIN: 4012801160315.
22 — double-row self-aligning ball bearing, wide dimension series 22.
05 — bore code, 25 mm.
TVH — solid cage of glass-fibre reinforced polyamide PA66.
C3 — radial internal clearance larger than CN.
Dynamic load rating: 17,300 N. Static load rating: 4,450 N. Limiting Speed: 14,400 rpm. Reference speed: 13,400 rpm. Fatigue load limit: 285 N. Bore Type: Cylindrical. Cage Material: Glass-fibre reinforced polyamide PA66. Internal Clearance: C3. Precision Class: Normal (PN, ISO 492). Seal type: Open. Closure Type: Open. Lubricant: Supplied not greased; grease or oil. Item weight: 0.15 kg (0.33 lb). Operating temperature: −30 °C to +120 °C. The spherical outer raceway lets the inner ring, balls and cage swivel, so the bearing runs with shaft deflection or housing misalignment. C3 clearance suits shafts that run warmer than the housing.
e: 0.35. Y1: 1.78. Y2: 2.75. Y0: 1.86.
Minimum shaft shoulder diameter: 30.6 mm. Maximum housing shoulder diameter: 46.4 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1 mm. Inner ring shoulder diameter: 32.25 mm. Outer ring shoulder diameter: 44.42 mm.
Cross-Reference: SKF 2205 ETN9/C3, NSK 2205C3, NTN 2205C3, Koyo 2205C3. Tapered-bore version: FAG 2205-K-TVH-C3. MPN Variants: 2205TVH.C3, 2205-TVH-C3, 2205 TVH C3, 2205TVHC3.
Frequently asked questions
What is the FAG 2205-TVH-C3?
It is a double-row self-aligning ball bearing in the wide 22 series, 25 mm bore, 52 mm outside diameter and 18 mm width, with a cylindrical bore. The spherical outer raceway lets the inner ring, balls and cage swivel to run with shaft deflection or housing misalignment.
What does the TVH-C3 suffix mean?
TVH is a solid cage of glass-fibre reinforced polyamide PA66, and C3 is radial internal clearance larger than CN. On the FAG 2205-TVH-C3, the C3 clearance suits shafts that run warmer than the housing.
What does the FAG 2205-TVH-C3 cross-reference to?
Cross-references are SKF 2205 ETN9/C3, NSK 2205C3, NTN 2205C3 and Koyo 2205C3. The tapered-bore version is FAG 2205-K-TVH-C3.
What are the load ratings and speed of the FAG 2205-TVH-C3?
Dynamic load rating is 17,300 N and static load rating is 4,450 N. Limiting speed is 14,400 rpm and reference speed is 13,400 rpm.
