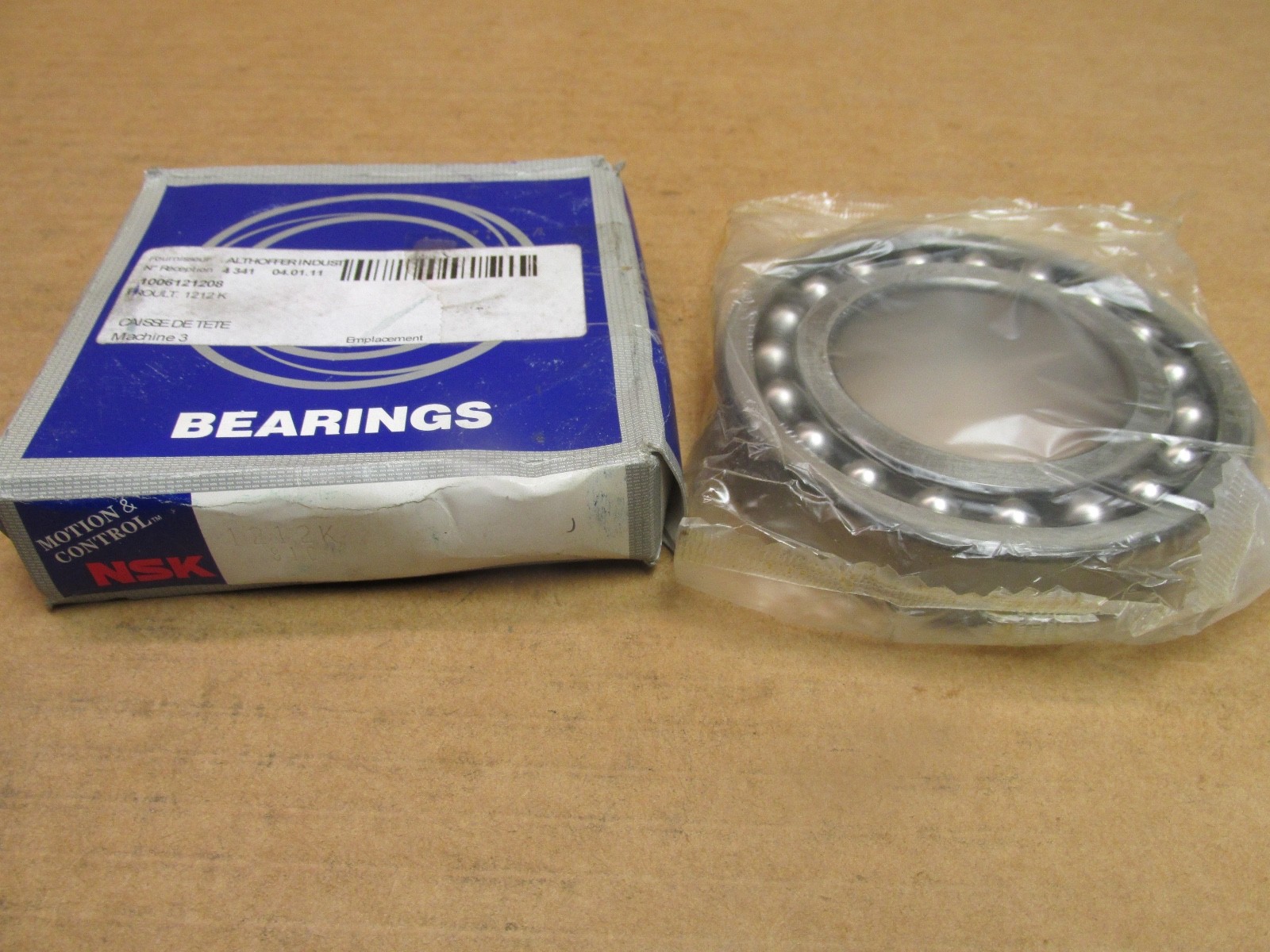

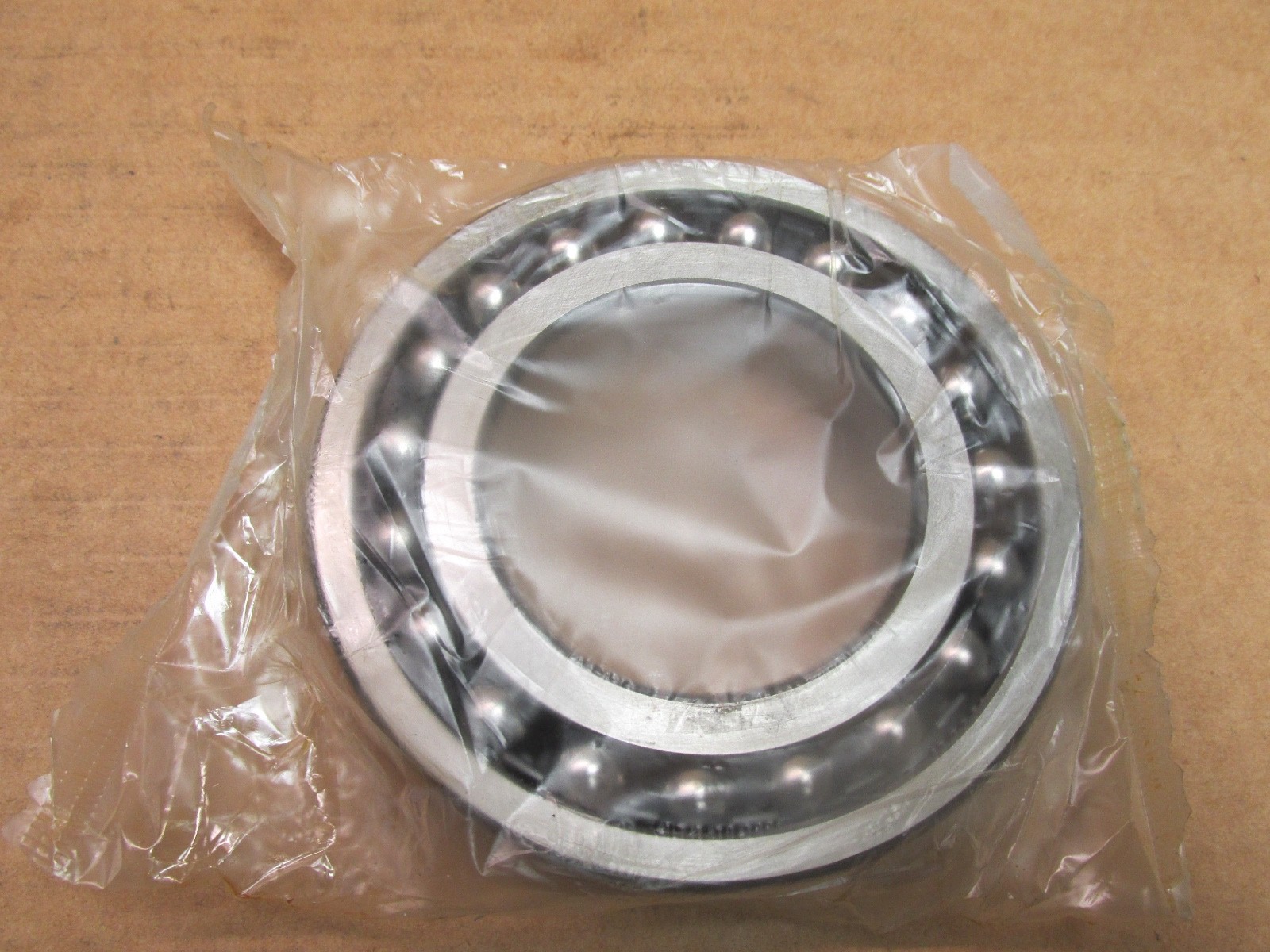

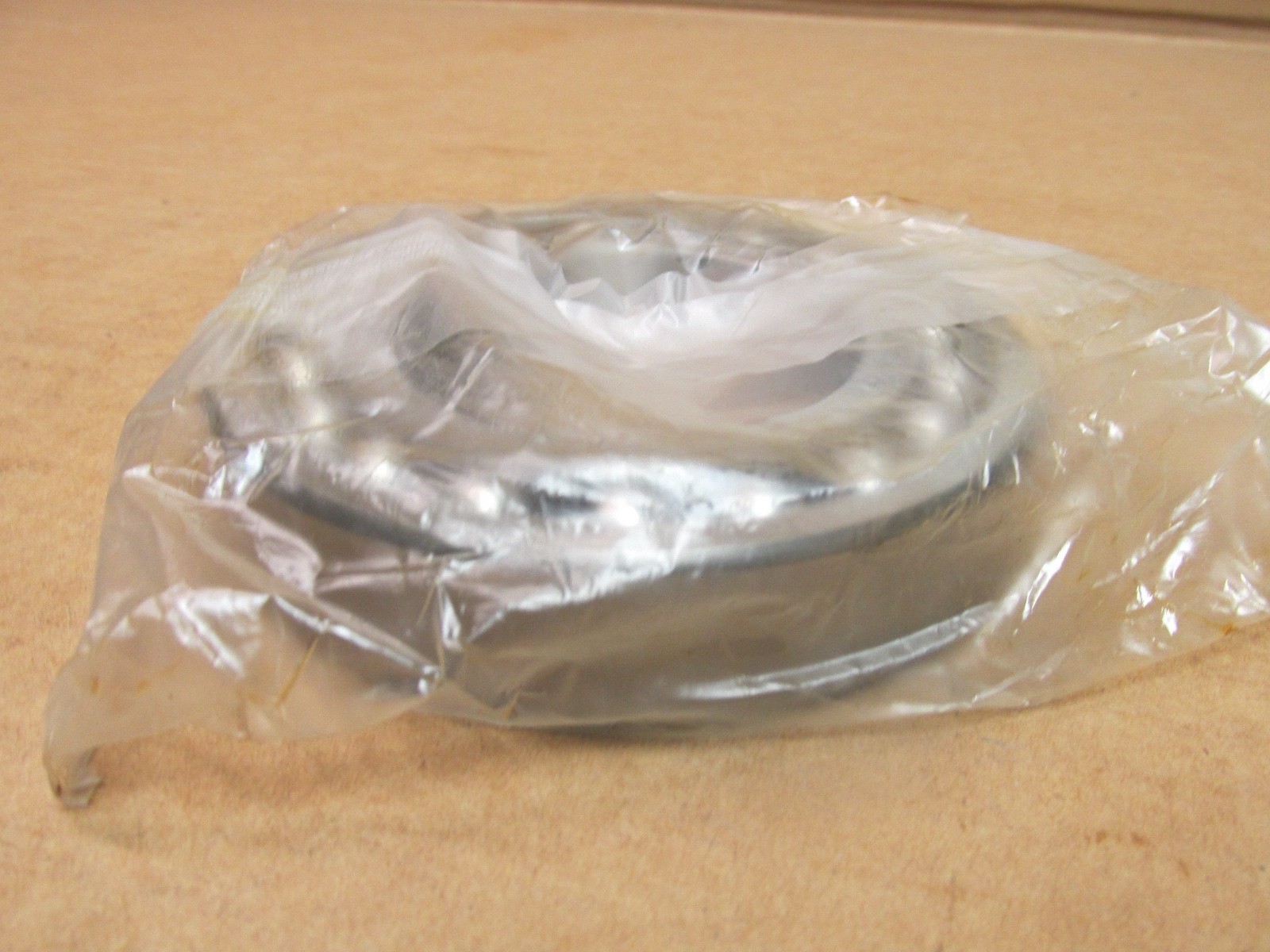

NSK1212KSelf Aligning Ball Bearing — 60 mm ID, 110 mm OD, 22 mm Width, Tapered Bore, Open, CN Clearance

Condition: New

Availability:

4 in stock

Self-aligning ball bearing, 60 x 110 x 22 mm, 1:12 tapered bore, double row, open, CN clearance. NSK 1212K, 30,500 N dynamic rating, H212 sleeve.

Same day shipment

List Price

$39.79

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

4 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNSK
MPN1212K
Model1212-K
Bearing TypeSelf Aligning Ball Bearing, Open
ID60 mm
OD110 mm
Width22 mm

Technical Specifications

MaterialHigh Carbon Chrome Steel
Series1200
Dynamic Load Rating30,500 N
Static Load Rating11,500 N
Rolling ElementsBall
Item Weight0.90 kg (1.98 lb)
Limiting Speed5,300 rpm grease; 6,300 rpm oil
Number Of Rows2
Bore TypeTapered 1:12
Snap Ring IncludedNo
Harmonization Code8482.10.50
Internal ClearanceCN
Base Number1212
Industry Termsself-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve bearing
Common Misspellings1212KNSK, 12l2K, 1221K
Application TypesFans, conveyors, agricultural machinery, line shafts
Mpn Variants1212K, 1212 K, 1212-K
Compatible With ReplacesH212 adapter sleeve
Additional AttributesShaft abutment da min 68 mm; housing abutment Da max 102 mm; fillet ra max 1.5 mm; chamfer r min 1.5 mm
Closure TypeOpen

Cross-References

Cross Reference 1SKF 1212 EKTN9 - E design, polyamide cage
Cross Reference 2FAG 1212-K-TVH
Cross Reference 3NTN 1212K
Cross Reference 4Koyo 1212K
Cross Reference 5SNR 1212K
Seller Part Number: B-BF2#1QD00P

Product Description

What this part is:

The NSK 1212K is a double-row self-aligning ball bearing with a tapered bore, 60 mm bore, 110 mm outside diameter and 22 mm width. The outer ring has a common spherical raceway, so the inner ring, balls and cage swivel to accommodate shaft deflection and housing misalignment. Unit Quantity: 1 Pc.

Decoding the designation:

12 — light 02 dimension series self-aligning ball bearing.

12 (bore code) — 12 x 5 = 60 mm bore.

K — 1:12 tapered bore, for mounting on an adapter sleeve or a tapered shaft seat.

No clearance suffix — normal (CN) radial internal clearance.

Specifications:

Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Ball. Closure Type: Open. Internal Clearance: CN. Dynamic Load Rating: 30,500 N. Static Load Rating: 11,500 N. Limiting Speed: 5,300 rpm grease; 6,300 rpm oil. Item Weight: 0.90 kg (1.98 lb). Series: 1200.

Dimensions and mounting:

Shaft abutment diameter da min: 68 mm. Housing abutment diameter Da max: 102 mm. Fillet radius ra max: 1.5 mm. Chamfer r min: 1.5 mm. Adapter sleeve: H212, for a 55 mm shaft.

Compatibility and replacement:

Same 60 x 110 x 22 mm tapered-bore envelope: SKF 1212 EKTN9 (E design, polyamide cage), FAG 1212-K-TVH, NTN 1212K, Koyo 1212K, SNR 1212K. The plain cylindrical-bore NSK 1212 has the same envelope without the taper. MPN Variants: 1212K, 1212 K, 1212-K.

Frequently asked questions:

What are the dimensions of the NSK 1212K?

Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.

What are the load ratings and speeds?

Dynamic Load Rating: 30,500 N. Static Load Rating: 11,500 N. Limiting Speed: 5,300 rpm grease; 6,300 rpm oil.

What does K mean in 1212K?

K is a 1:12 tapered bore, for mounting on an adapter sleeve or a tapered shaft seat. The matching sleeve is H212.
