Availability:
73 in stock
SKF 2308 EKTN9 self-aligning ball bearing, 40 x 90 x 33 mm, 1:12 tapered bore, polyamide cage, CN clearance. 54 kN dynamic rating, 10,000 rpm limit.
List Price
$49.05
73 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 2308EKTN9 |
| GTIN | 7316576638114 |
| Model | 2308 E K TN9 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 40 mm |
| OD | 90 mm |
| Width | 33 mm |
| Material | Chrome Steel |
|---|---|
| Condition | New |
| Bore | Tapered |
| Base Number | 2308 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve bearing |
| Common Misspellings | 2308EKTN, 2308 EKT9, 2308EKTNG, 2380 EKTN9 |
| Overall Width | 33 mm |
| Mpn Variants | 2308 EKTN9, 2308EKTN9, 2308-E-K-TN9, 2308 E K TN9, 2308EK |
| Precision Class | Normal (ISO P0) |
| Additional Attributes | Reference speed: 14,000 rpm; Dynamic load rating (imperial): 12,140 lbf; Static load rating (imperial): 3,597 lbf; eClass code: 23-05-08-06; UNSPSC code: 31171532 |
| Dynamic Load Rating | 54,000 N |
| Static Load Rating | 16,000 N |
| Item Weight | 0.86 kg (1.89 lb) |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Limiting Speed | 10,000 rpm |
| Internal Clearance | CN |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG 2308-K-TVH |
|---|---|
| Cross Reference 2 | NSK 2308K |
| Cross Reference 3 | NTN 2308SK |
| Cross Reference 4 | Koyo 2308K |

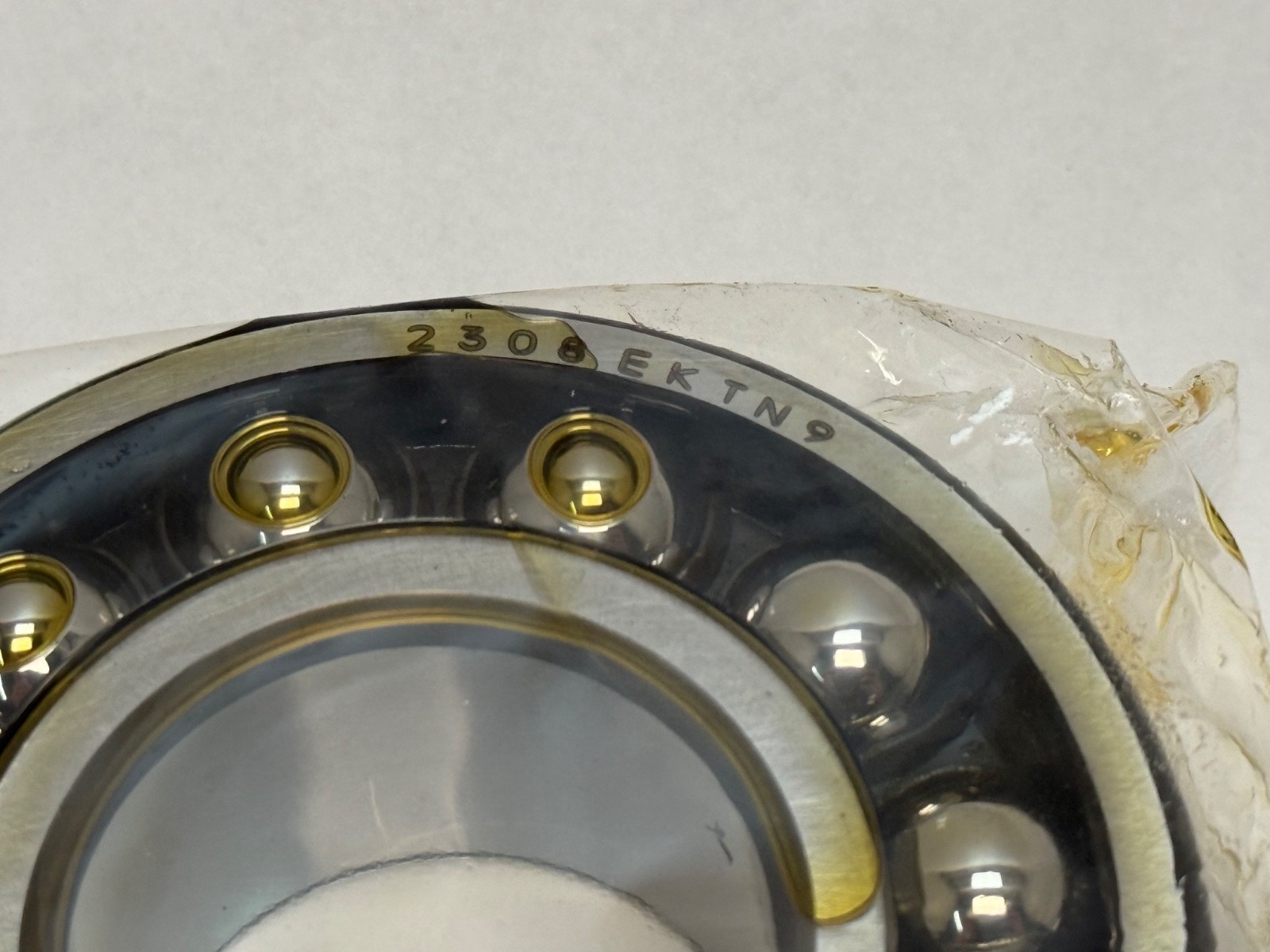

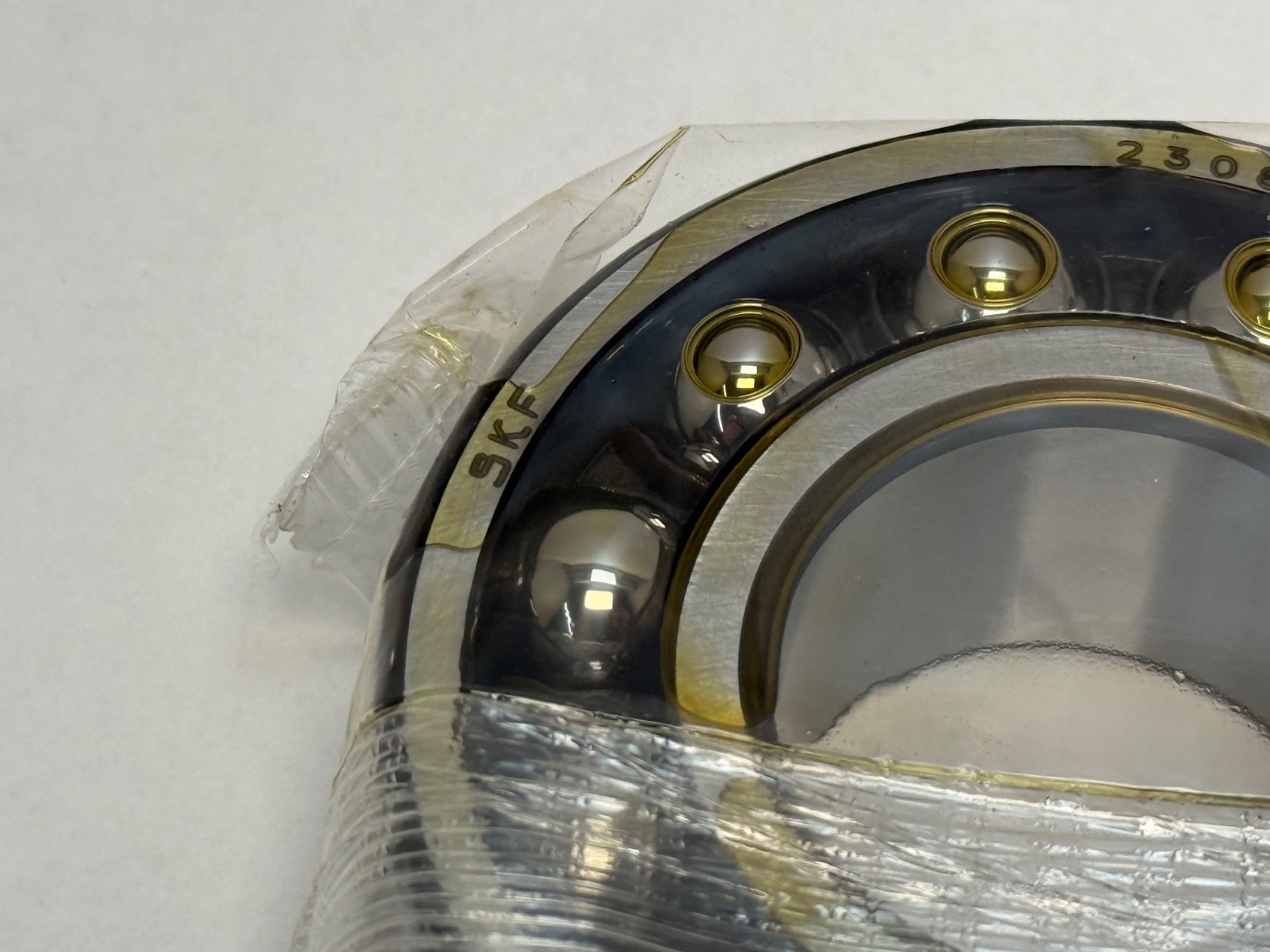

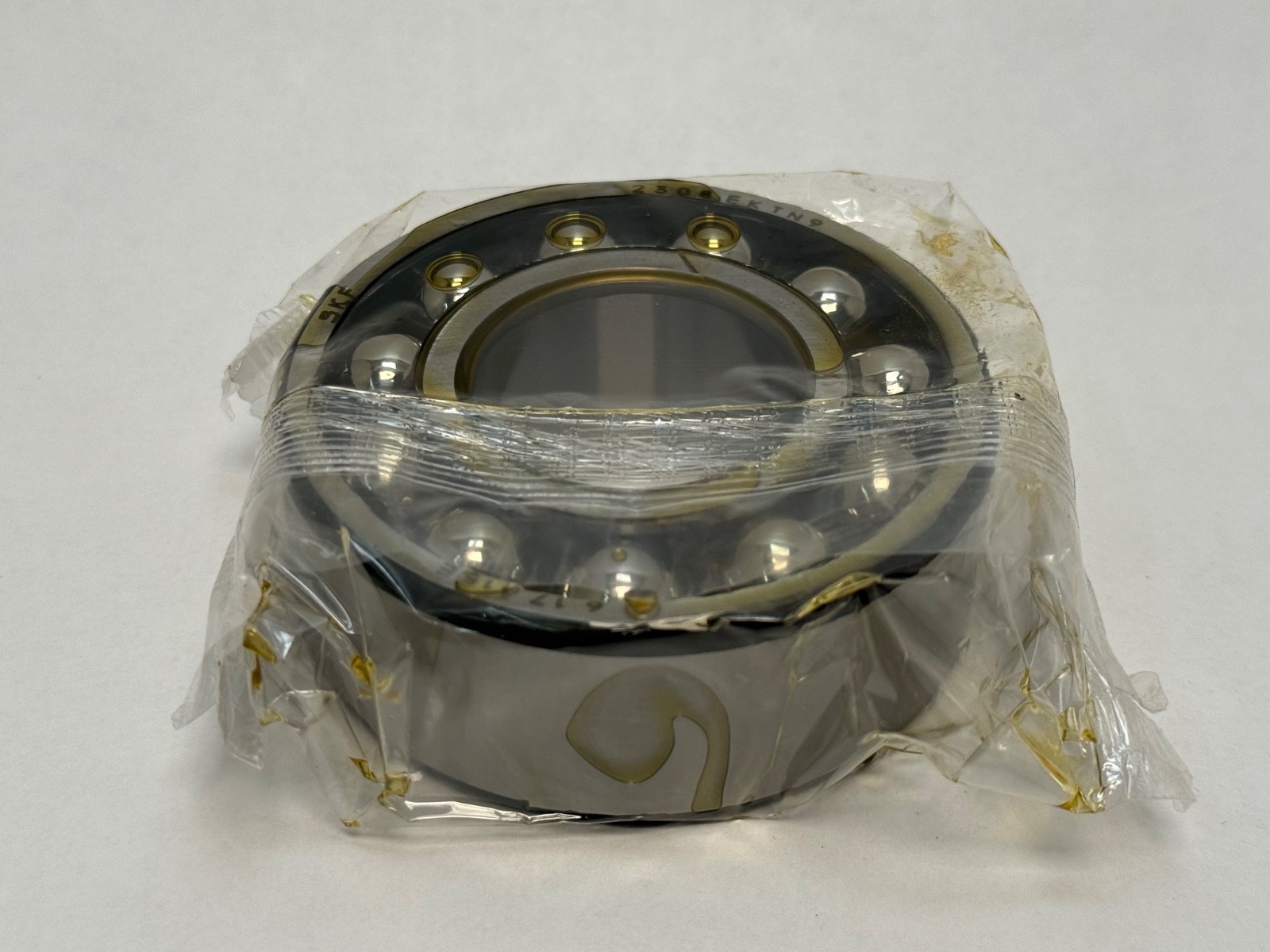

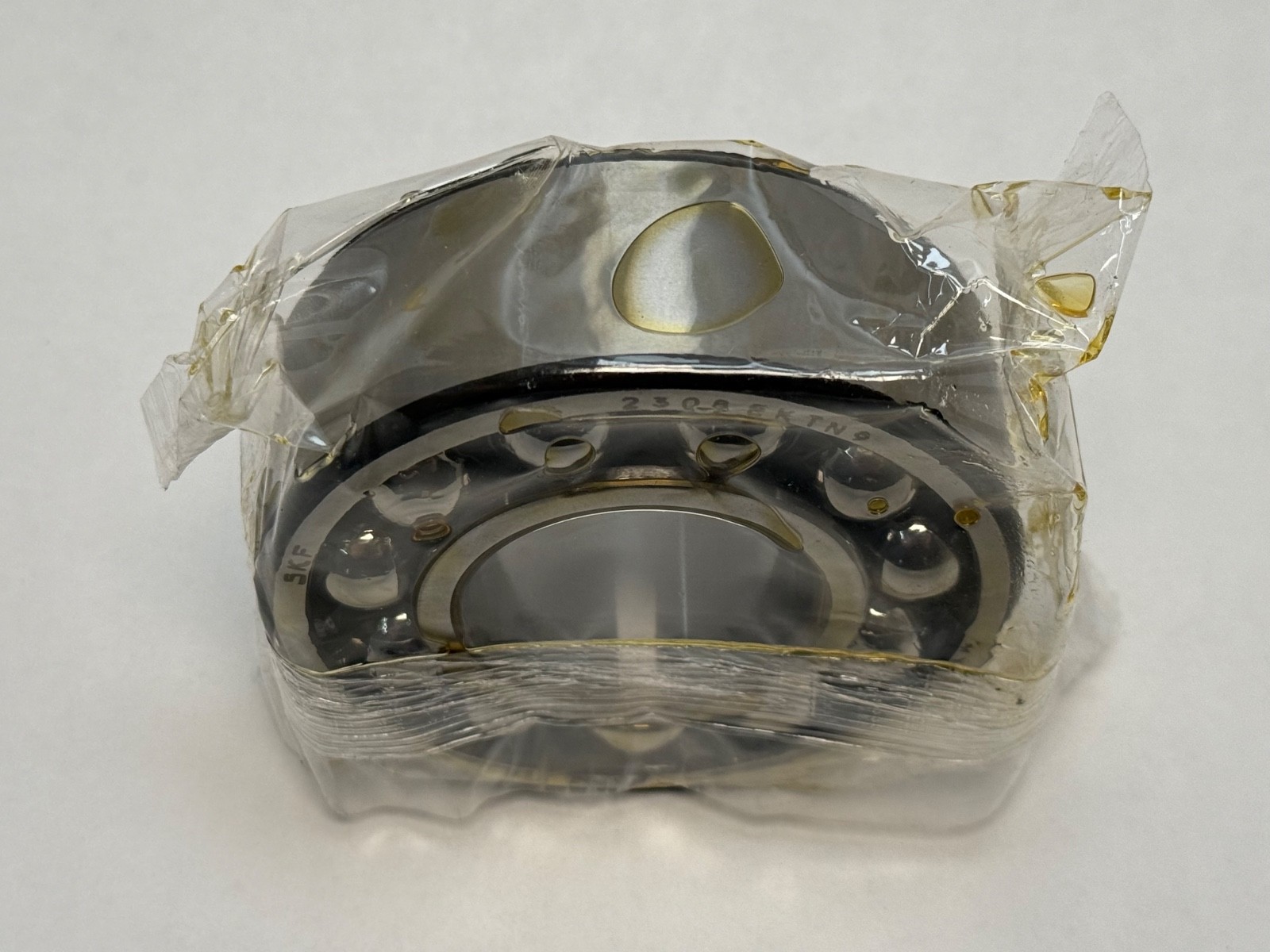

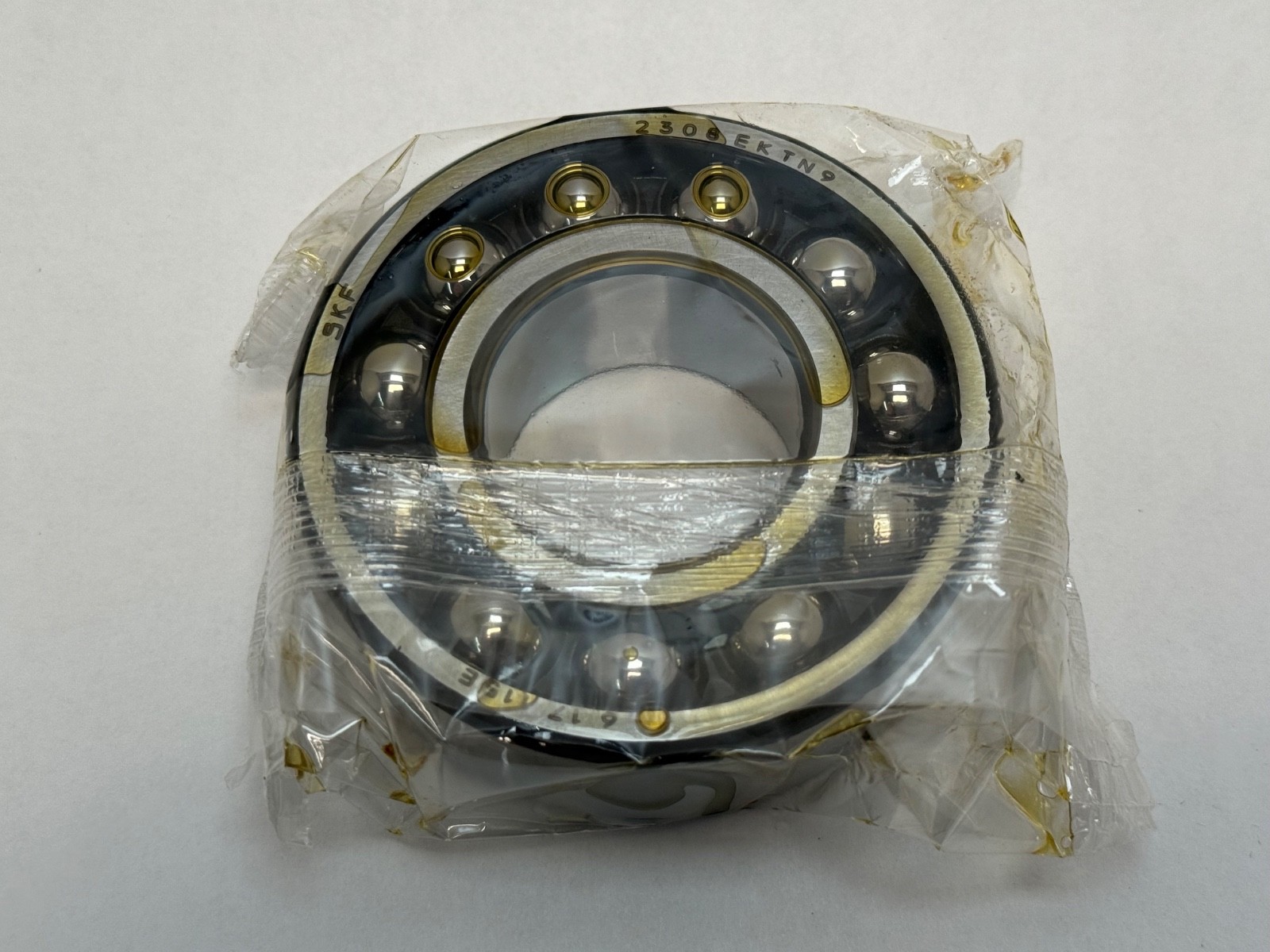

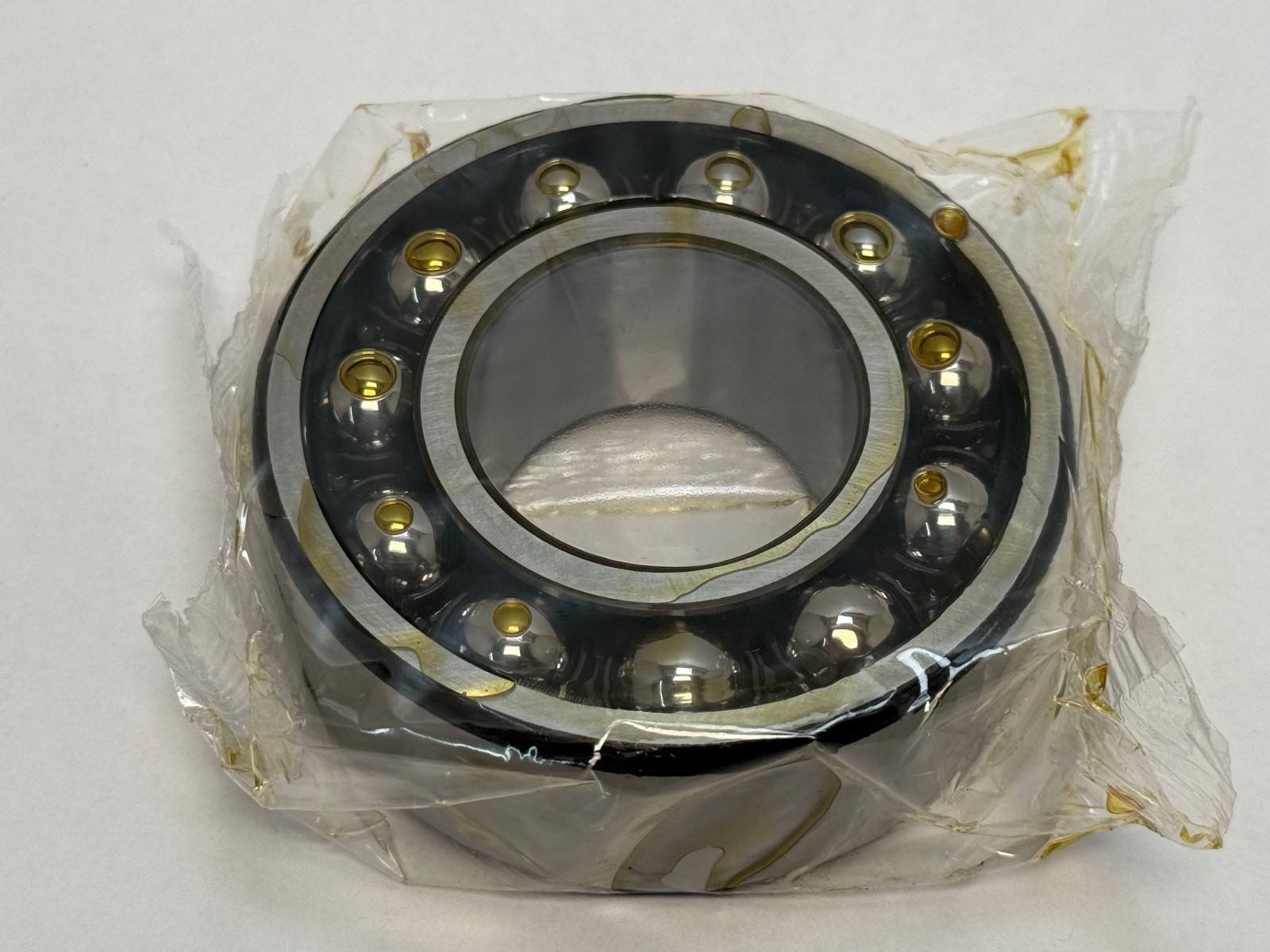

SKF 2308 EKTN9 is a double-row self-aligning ball bearing with a 1:12 tapered bore and a glass-fibre reinforced polyamide cage. Bore Diameter: 40 mm. Outside Diameter: 90 mm. Overall Width: 33 mm. The sphered outer-ring raceway lets the bearing accommodate static and dynamic misalignment between shaft and housing, including shaft deflection.
23 — SKF dimension series 23, the wide medium series of self-aligning ball bearings.
08 — bore code, 08 x 5 = 40 mm.
E — SKF optimised internal design with higher load ratings.
K — tapered bore, taper 1:12, for mounting on an adapter sleeve or withdrawal sleeve.
TN9 — injection-moulded cage of glass-fibre reinforced polyamide.
Dynamic Load Rating: 54,000 N (12,140 lbf). Static Load Rating: 16,000 N (3,597 lbf). Limiting Speed: 10,000 rpm. Reference Speed: 14,000 rpm. Number Of Rows: 2. Bore Type: Tapered 1:12. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: CN. Precision Class: Normal (ISO P0). Bearing Material: Bearing steel. Closure Type: Open. Snap ring included: No. The self-aligning design runs with low friction and performs well at high speed and light load.
Item Weight: 0.86 kg (1.89 lb). The tapered bore mounts on an adapter sleeve or withdrawal sleeve. eClass code: 23-05-08-06. UNSPSC code: 31171532.

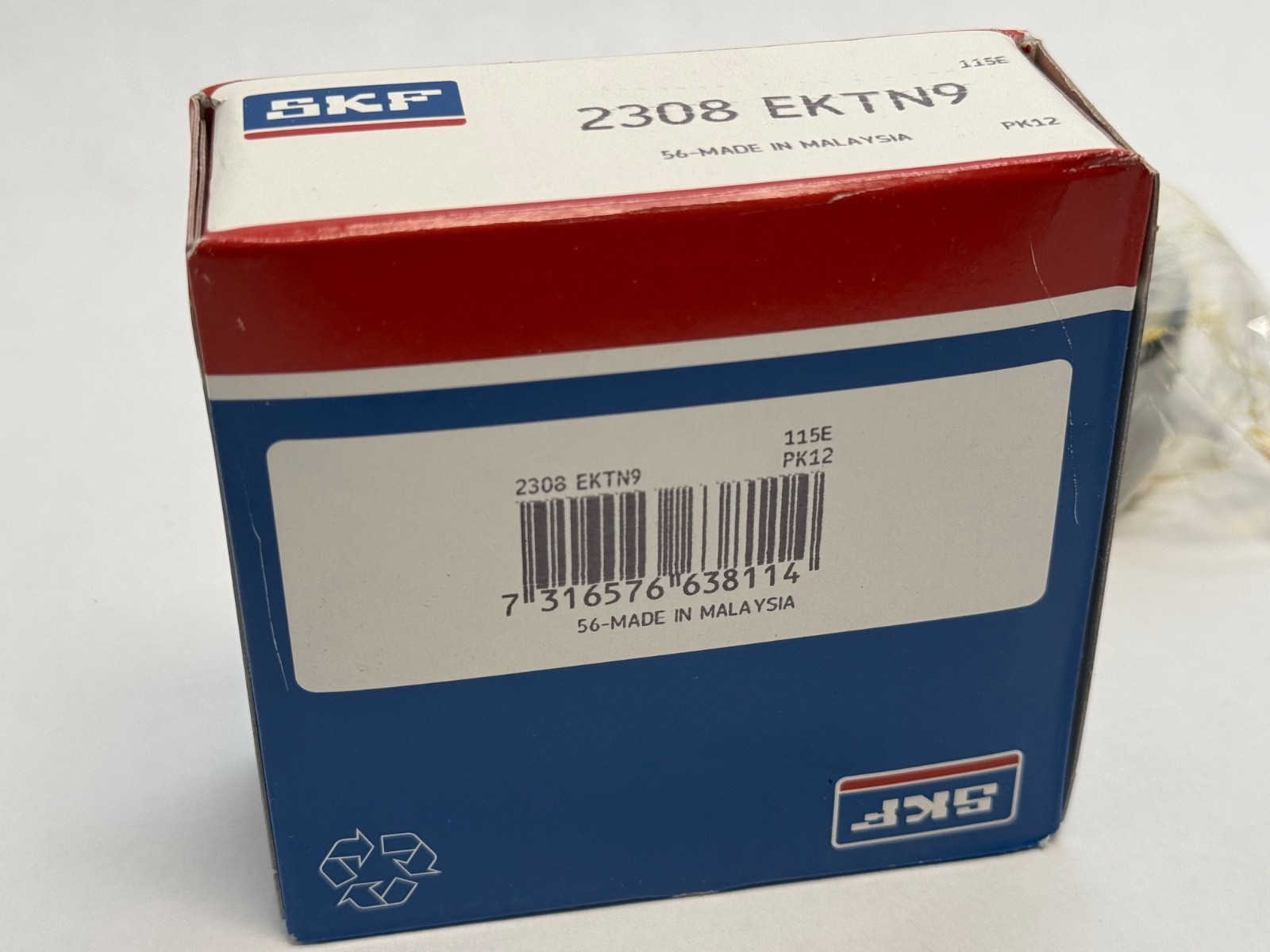

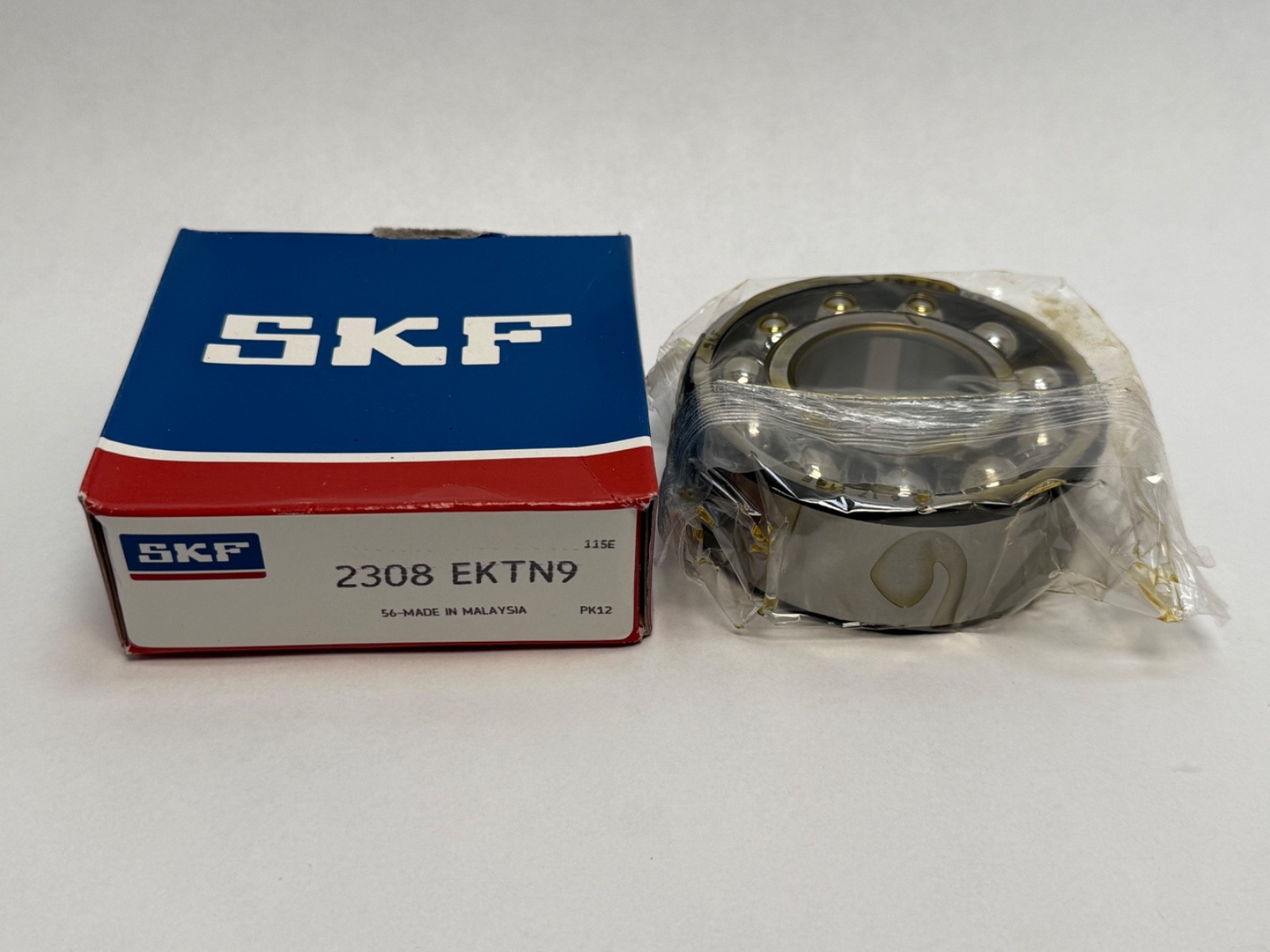

Unit Quantity: 1 Pc. Single bearing, open, in the original SKF carton marked 2308 EKTN9. GTIN: 7316576638114.
Same 40 x 90 x 33 mm tapered-bore self-aligning ball bearing envelope: FAG 2308-K-TVH, NSK 2308K, NTN 2308SK, Koyo 2308K. Also listed as 2308EKTN9, 2308-E-K-TN9 and 2308 E K TN9.
