Self-Aligning Ball Bearing — 60 mm Bore, 110 mm OD, 28 mm Width, Straight Bore, Open, Polyamide Cage$35.08
Self Aligning Ball Bearing — 60 mm ID, 110 mm OD, 22 mm Width, Tapered Bore, Open, CN Clearance$39.79
Self-Aligning Ball Bearing — 60 mm Tapered Bore, 110 mm OD, 22 mm Width, Open, C3 Clearance$42.05
Self-Aligning Ball Bearing — Tapered Bore 1:12, 60 mm ID, 130 mm OD, 31 mm Width, E Design, Glass-Fibre Polyamide Cage, CN Clearance$76.48| MFR / Brand | FAG |
|---|---|
| MPN | 2212 |
| Model | 2212 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Series | 2200 |
|---|---|
| Lubricant | Oil |
| Material | Bearing Steel |
| Min Temp | -30 C |
| Cage Type | Pressed |
| Dynamic Load Rating | 47.5 kN / 10678 lbf |
| Static Load Rating | 15.6 kN / 3507 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120 C |
| Item Weight | 1.96 lbs |
| Cage Material | Steel |
| Limiting Speed | 8000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard Duty |
| Internal Clearance | CN |
| Maximum Permissible Misalignment | 2.5 degrees |
| Cross Reference 1 | SKF 2212 E |
|---|---|
| Cross Reference 2 | NTN 2212 |
| Cross Reference 3 | NSK 2212 |
| Cross Reference 4 | KOYO 2212 |
| Cross Reference 5 | TIMKEN 2212 |

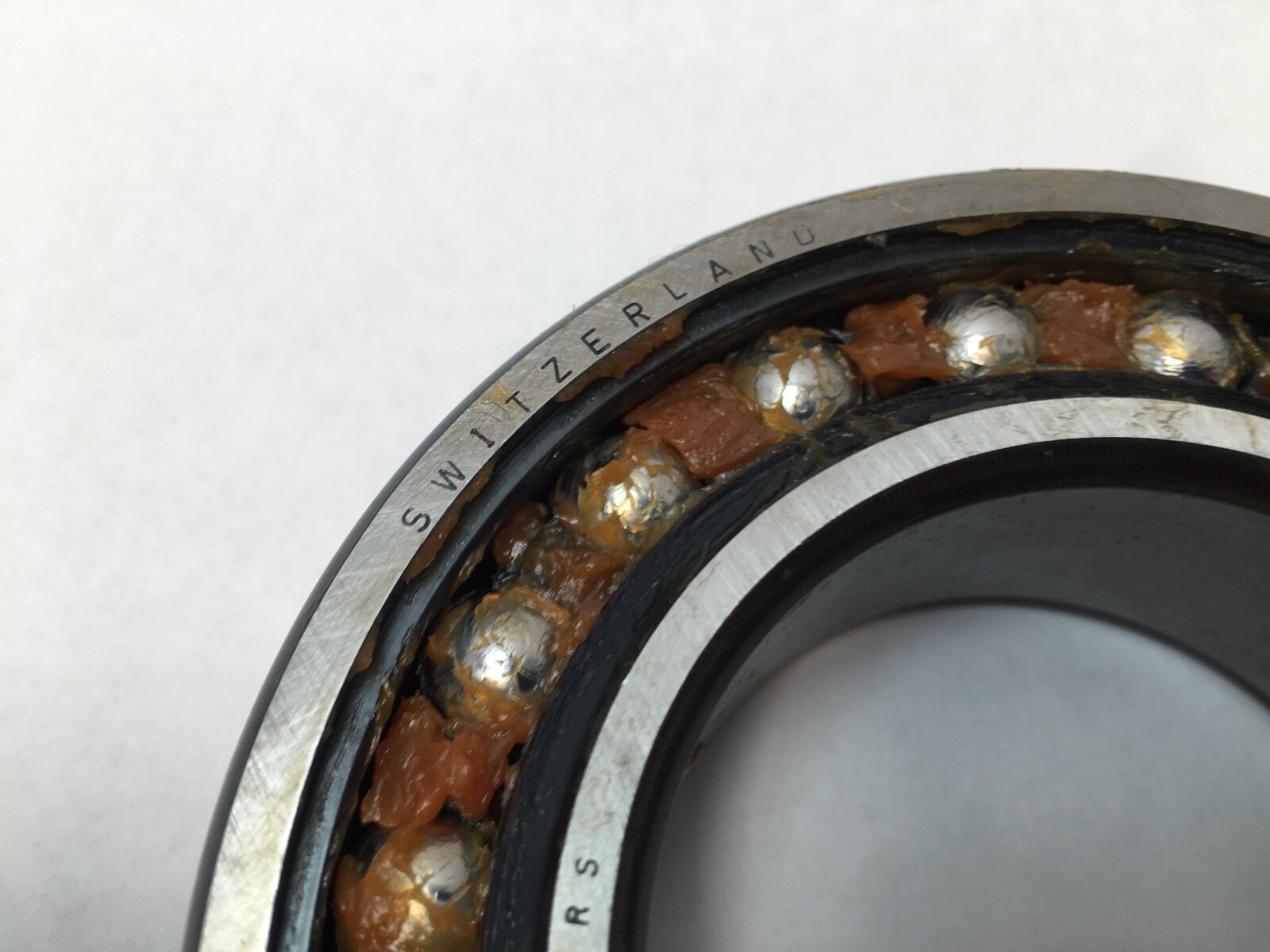

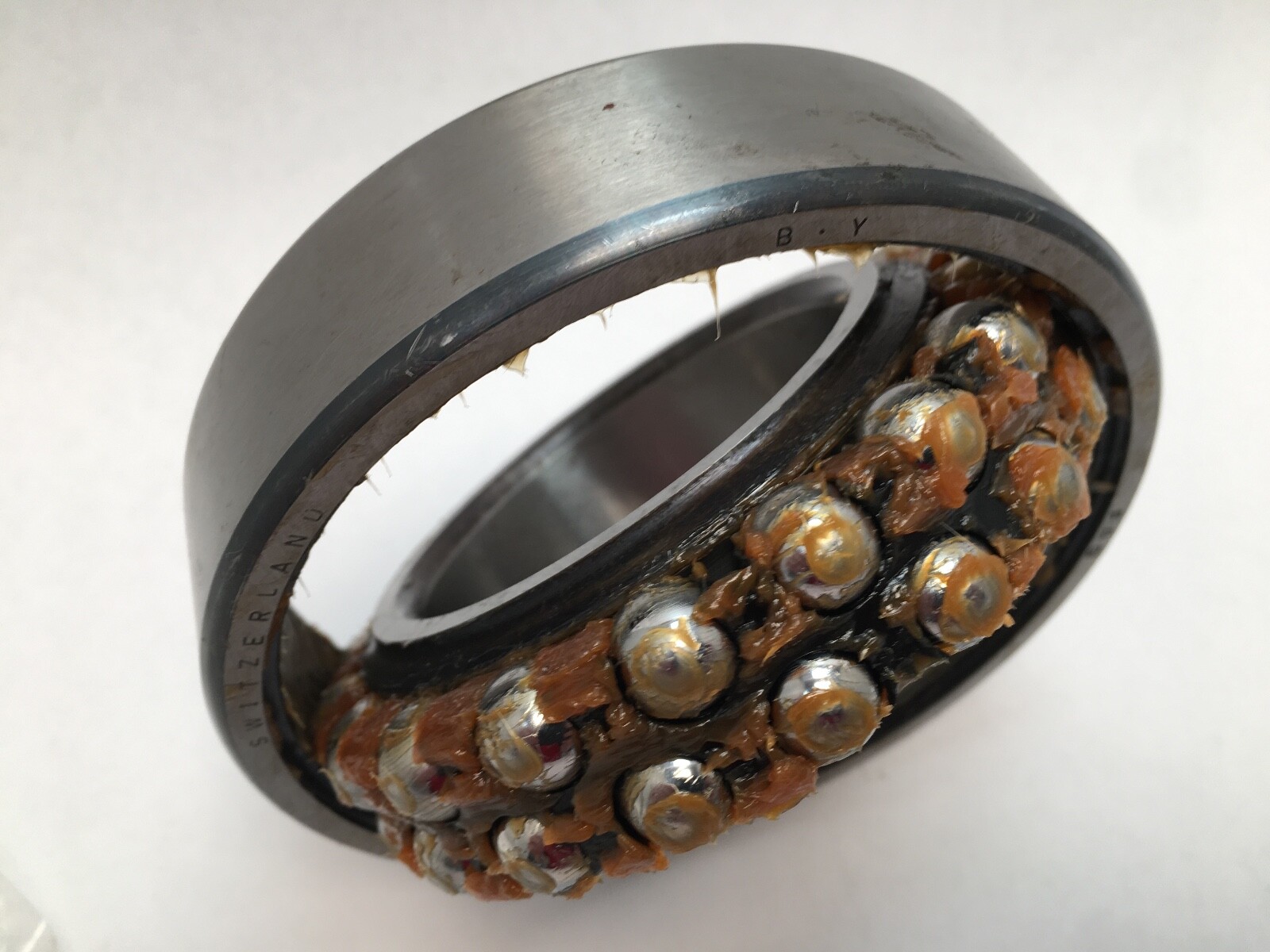

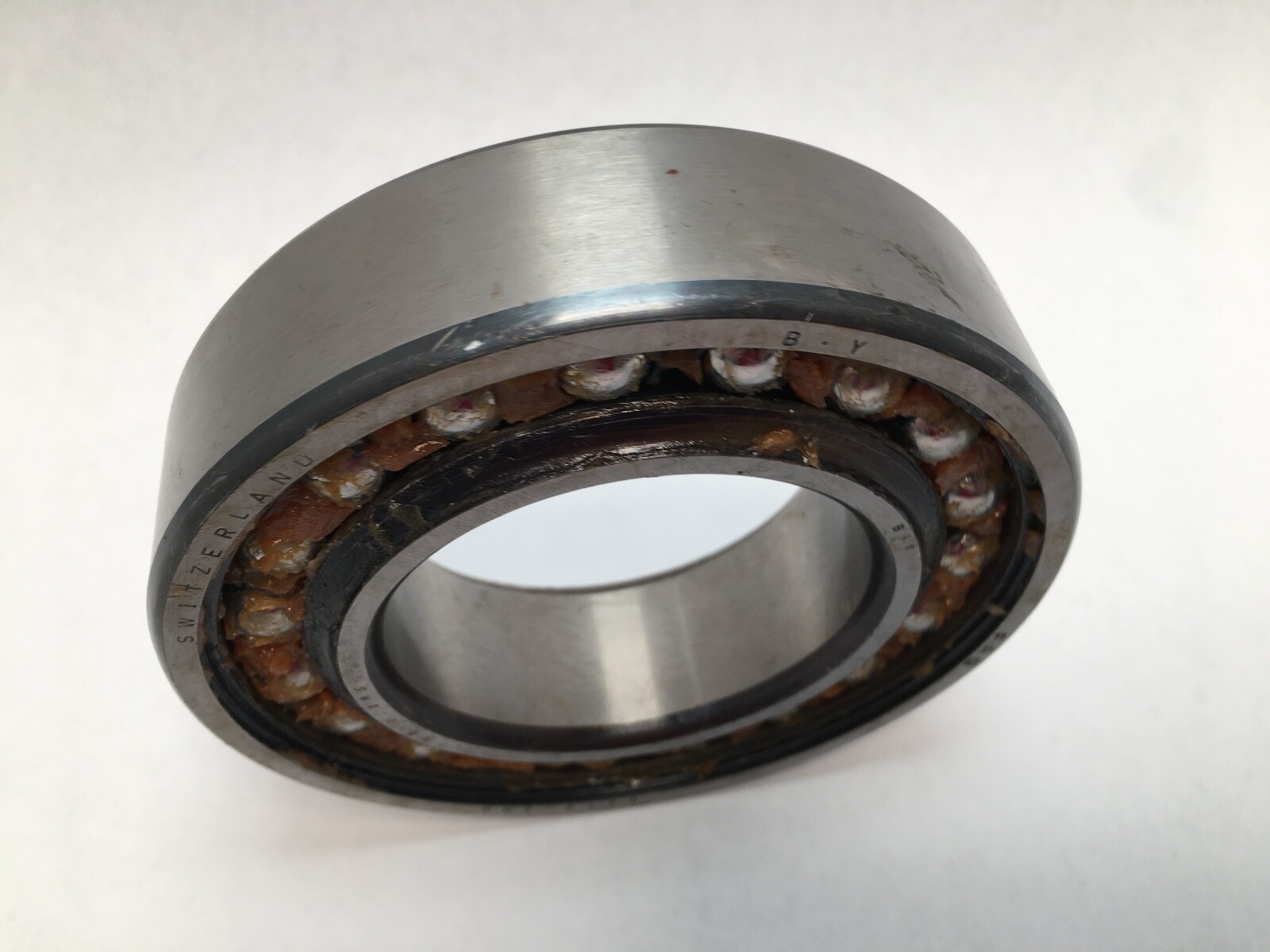

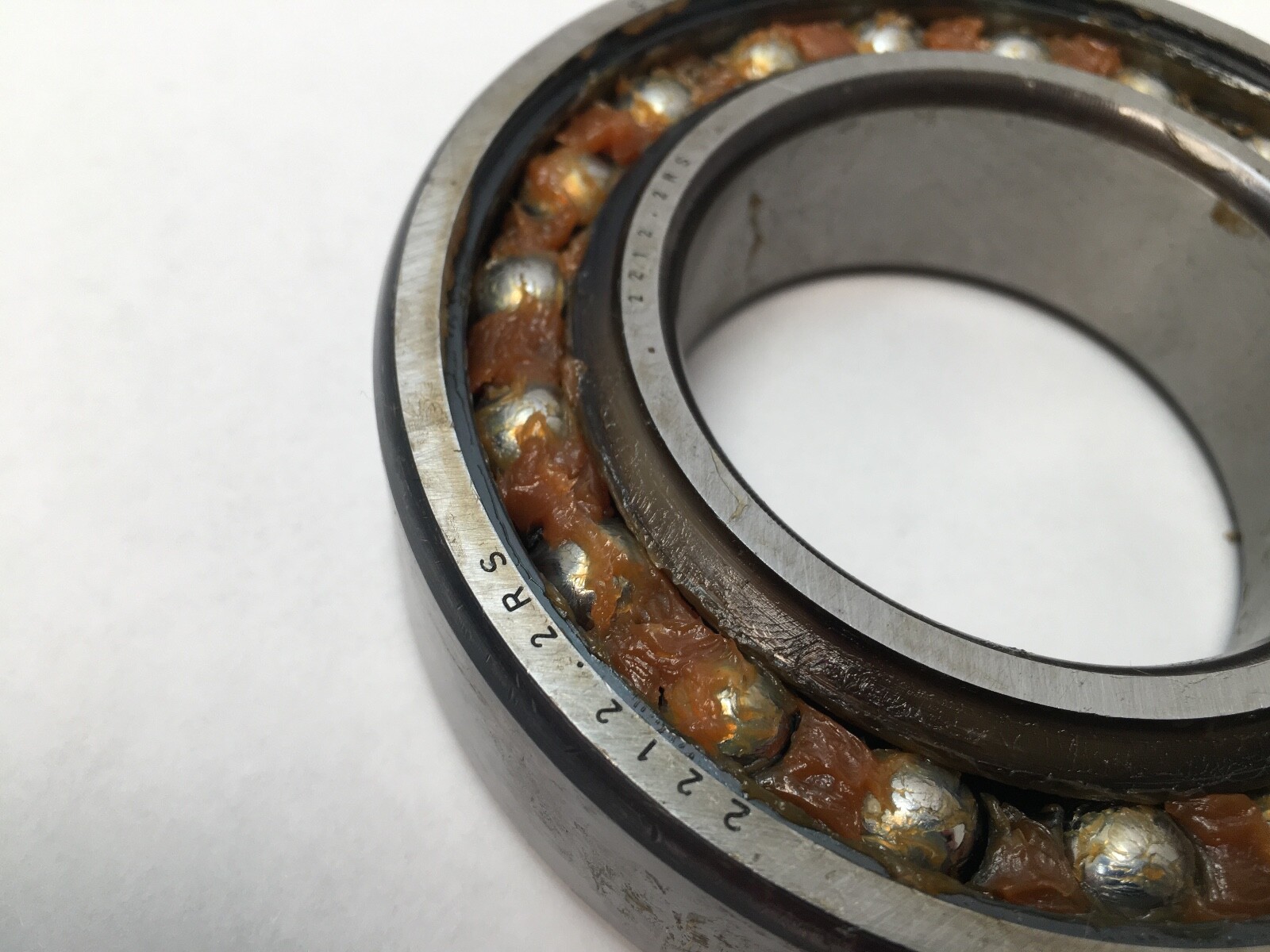

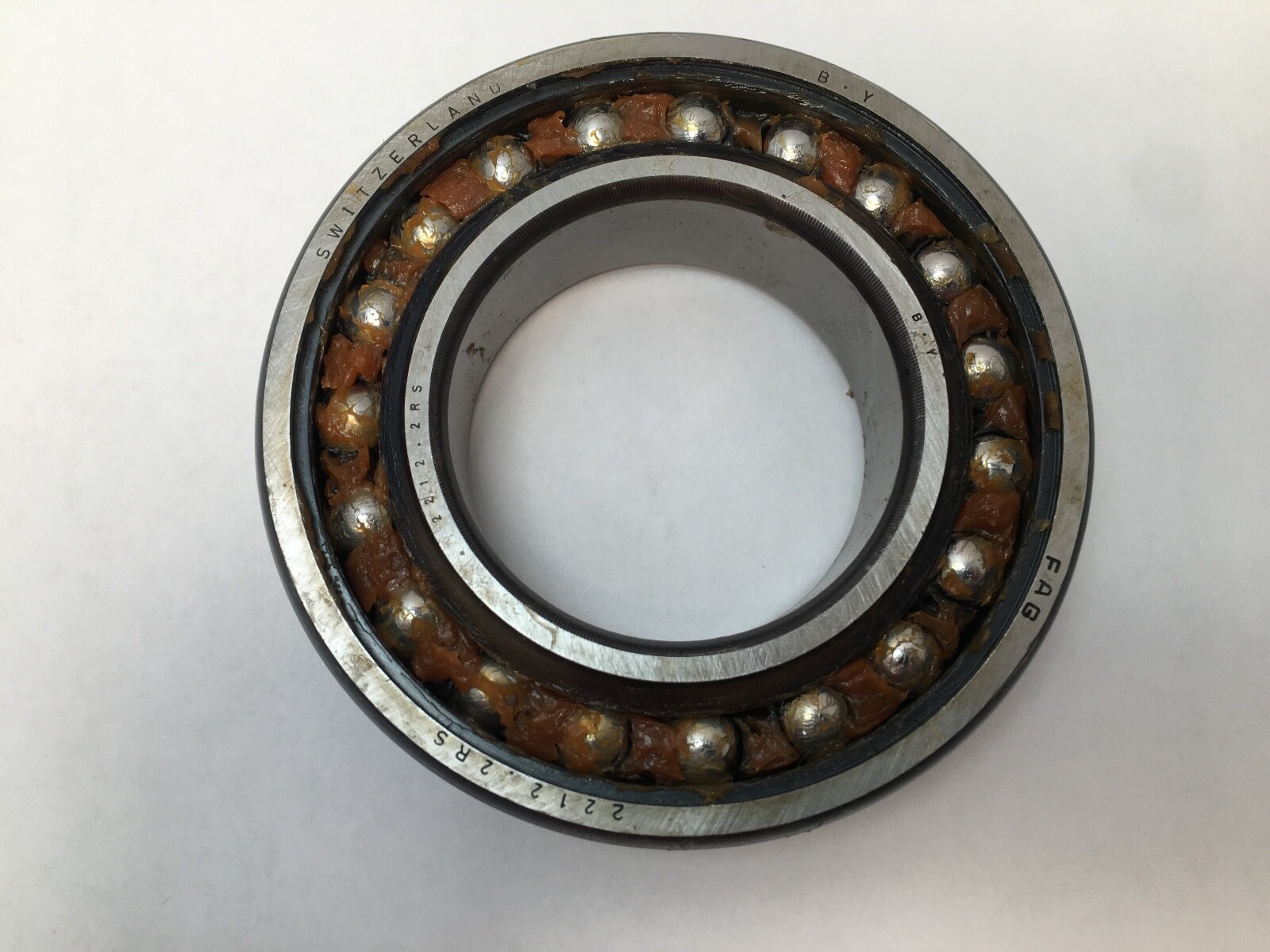

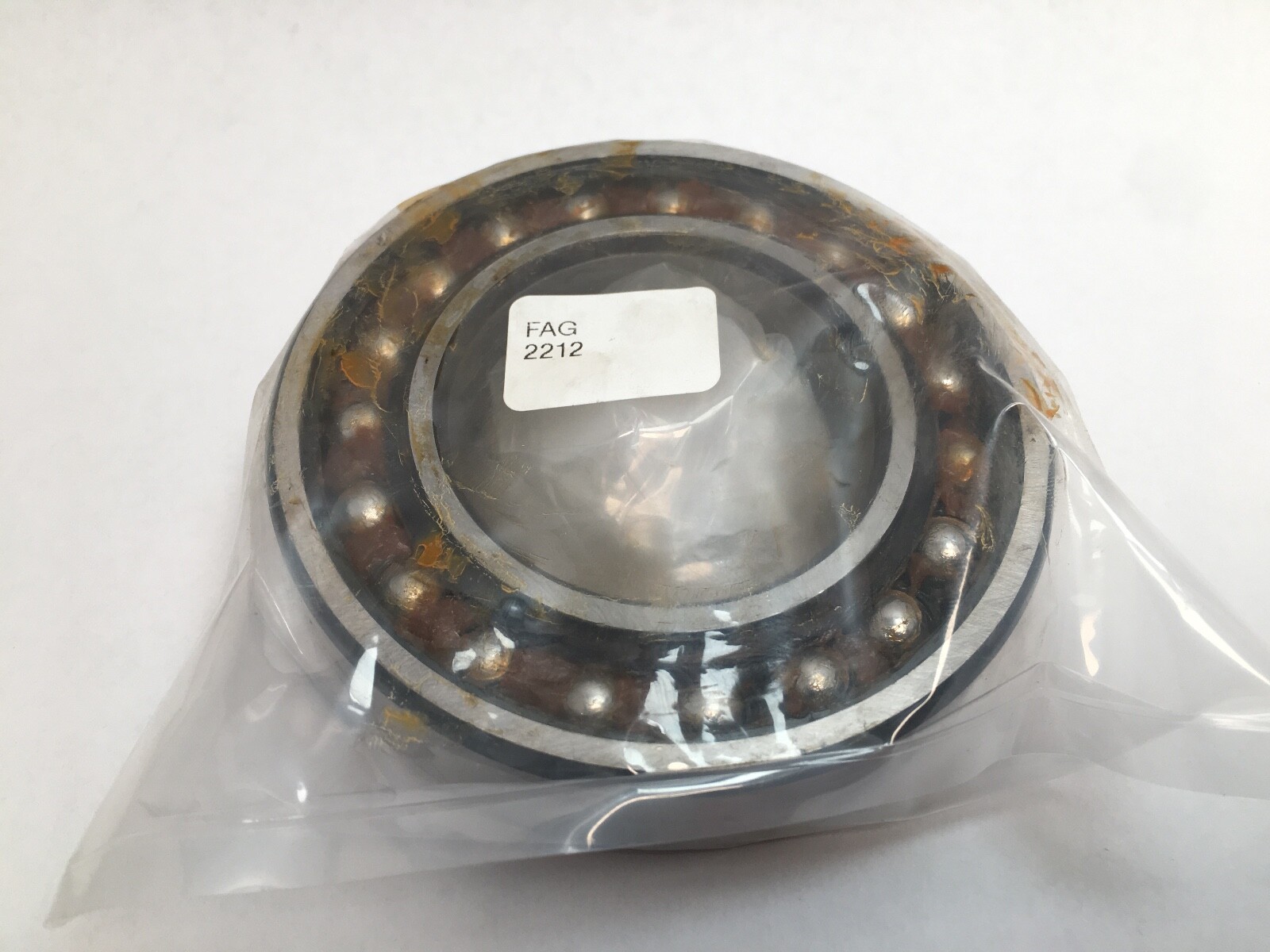

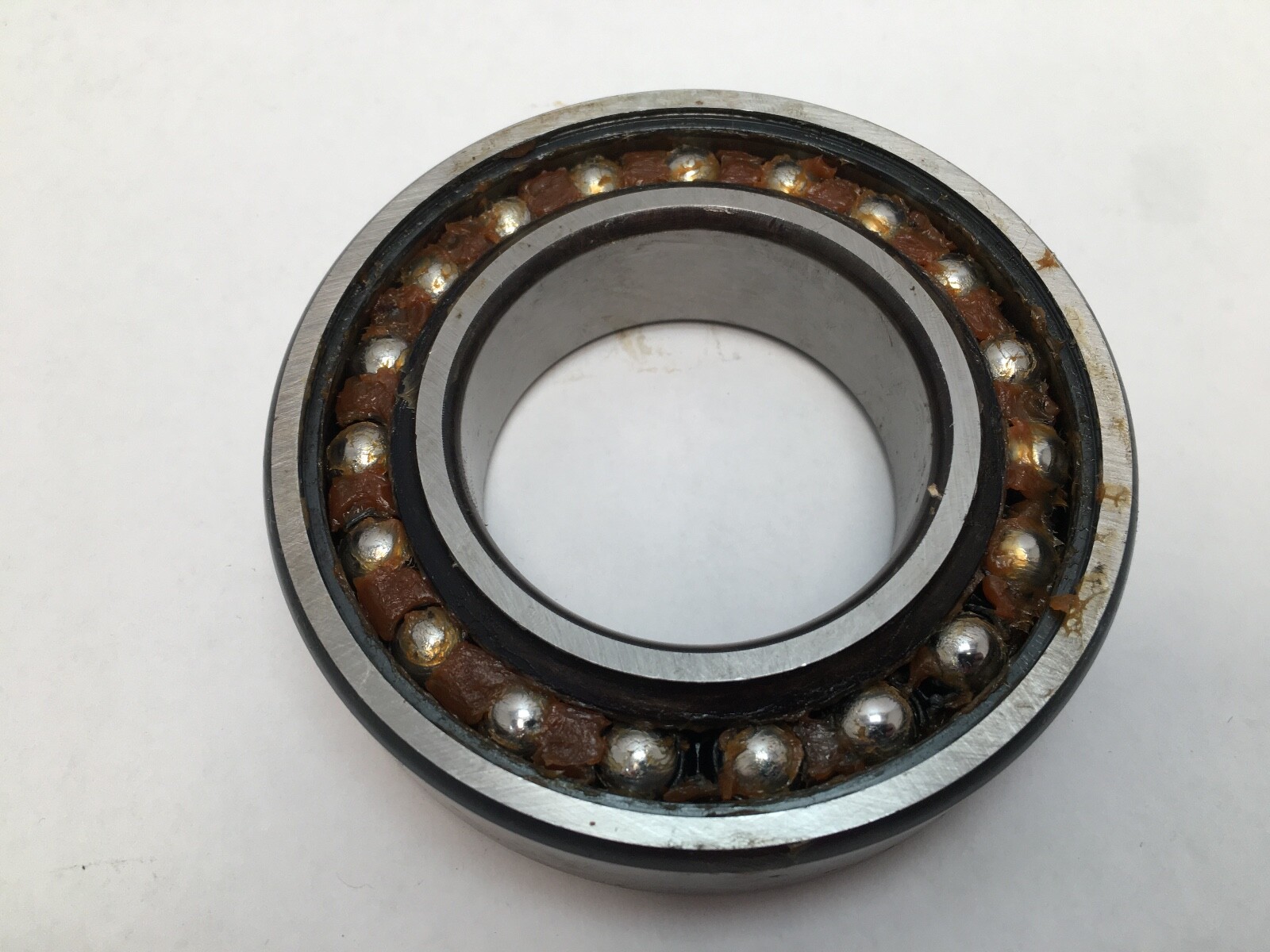

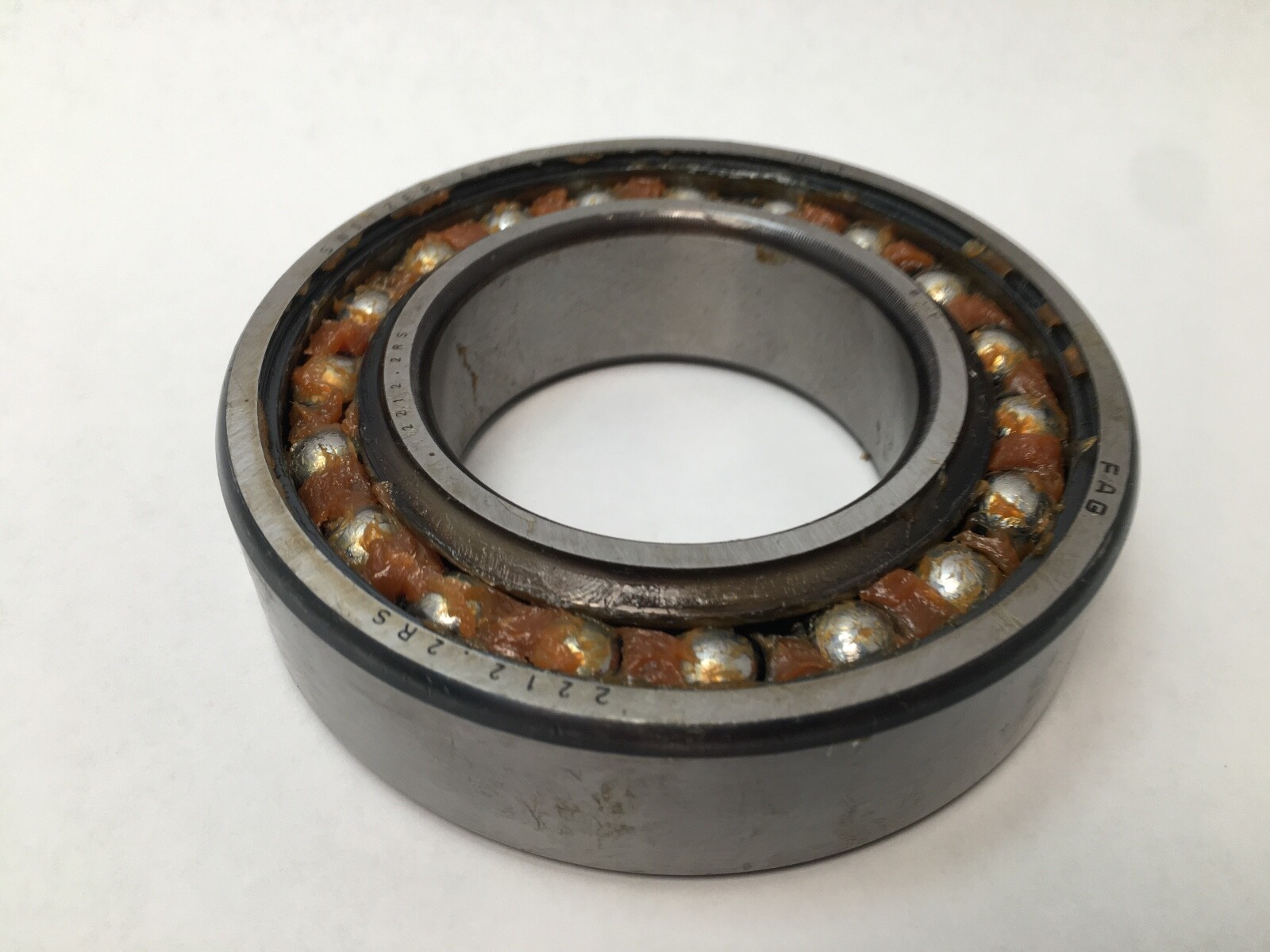

FAG 2212 Self-Aligning Ball Bearing 60x110x28mm. Steel cage, open design. Ideal for machinery where shaft bending or misalignment is anticipated.
$51.58
2 in stock
$49.15
2 in stock
$35.59
6 in stock
