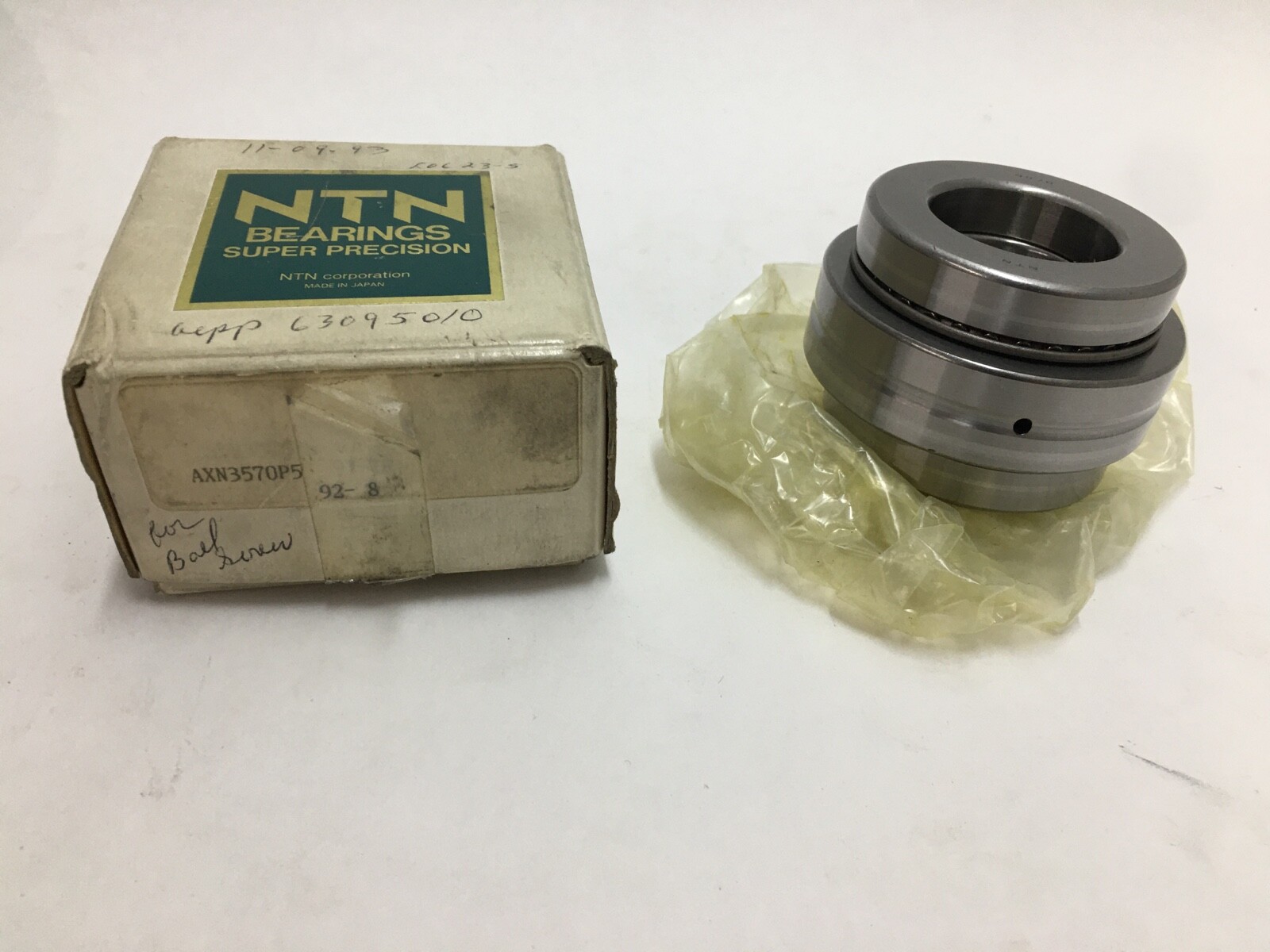

NTN AXN3570P5 needle roller bearing on plastic wrap next to its original NTN Super Precision box

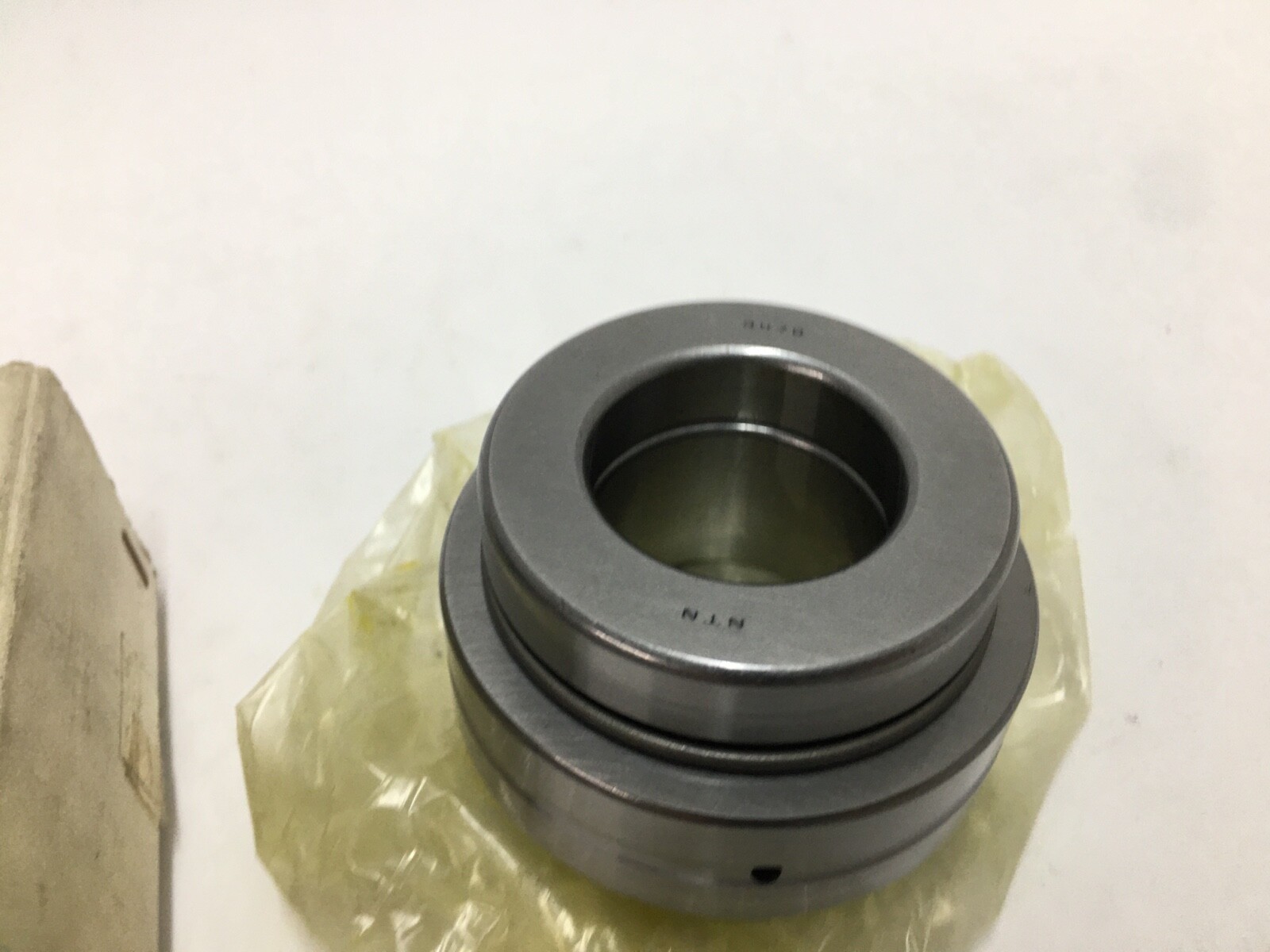

NTN AXN3570P5 needle roller thrust bearing standing on protective plastic wrap

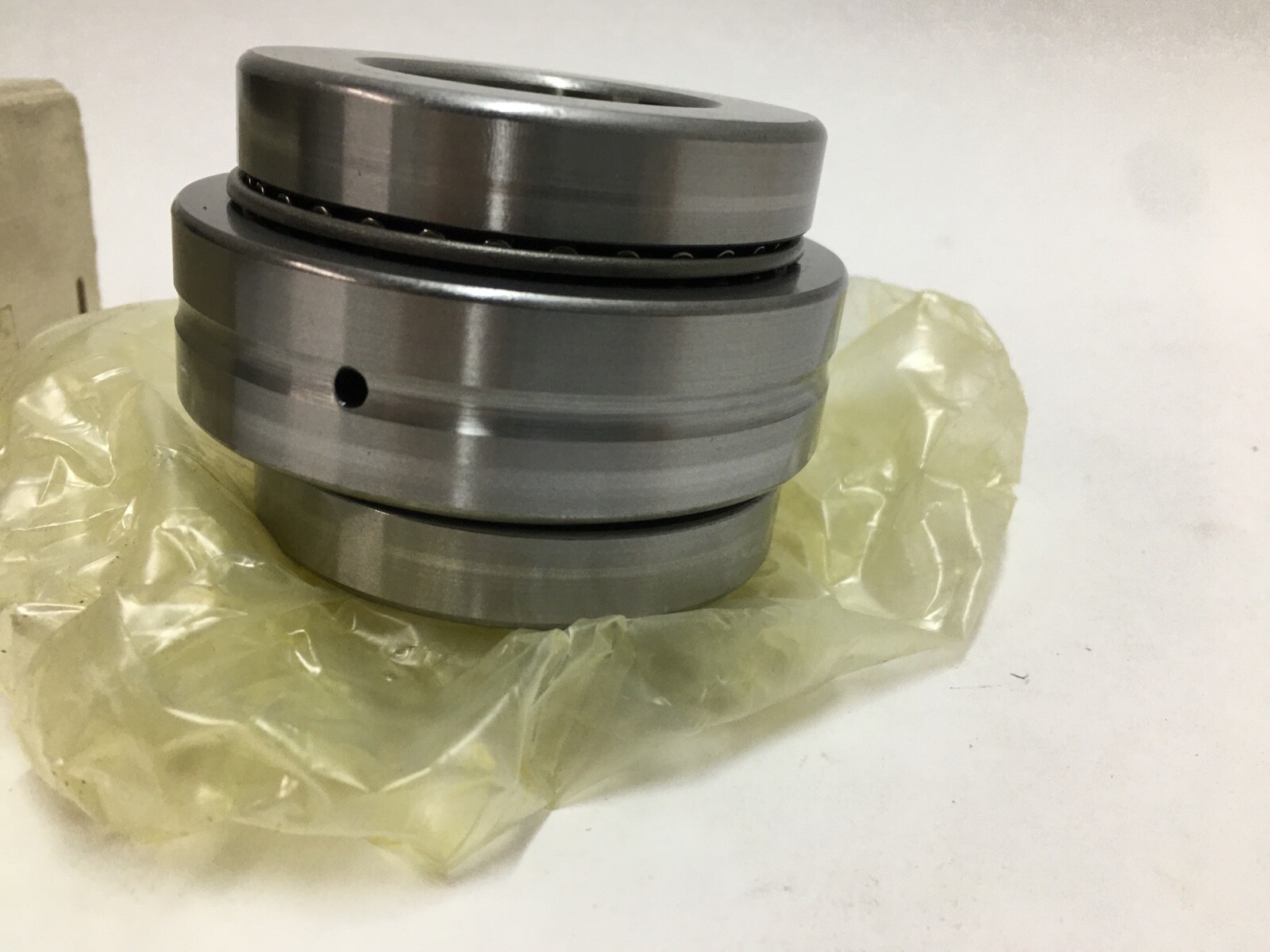

NTN AXN3570P5 needle roller bearing with double-direction thrust needle roller bearing, resting on protective wrap

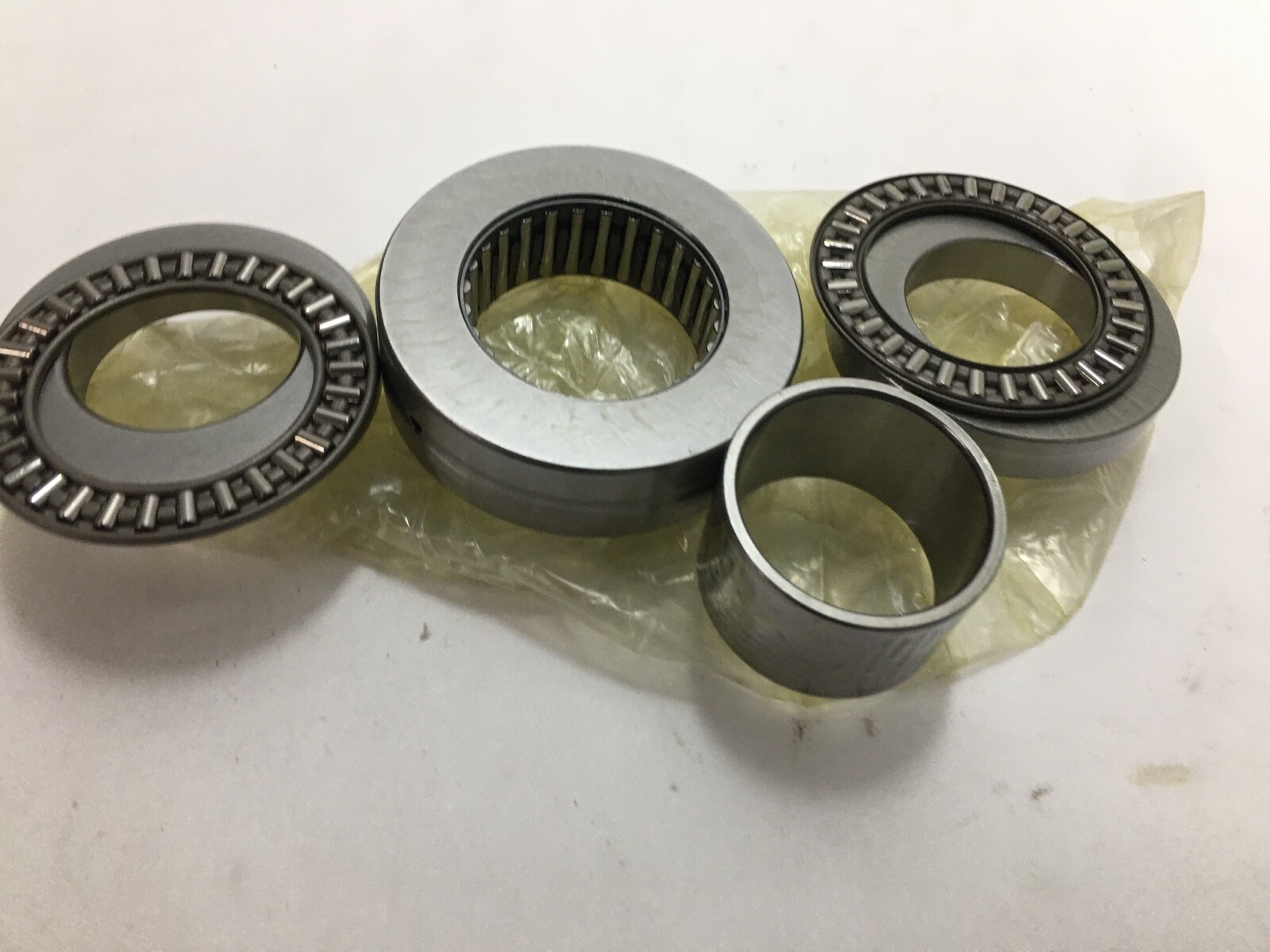

NTN AXN3570P5 needle roller bearing components with inner ring, thrust washers, and needle rollers on wrapping

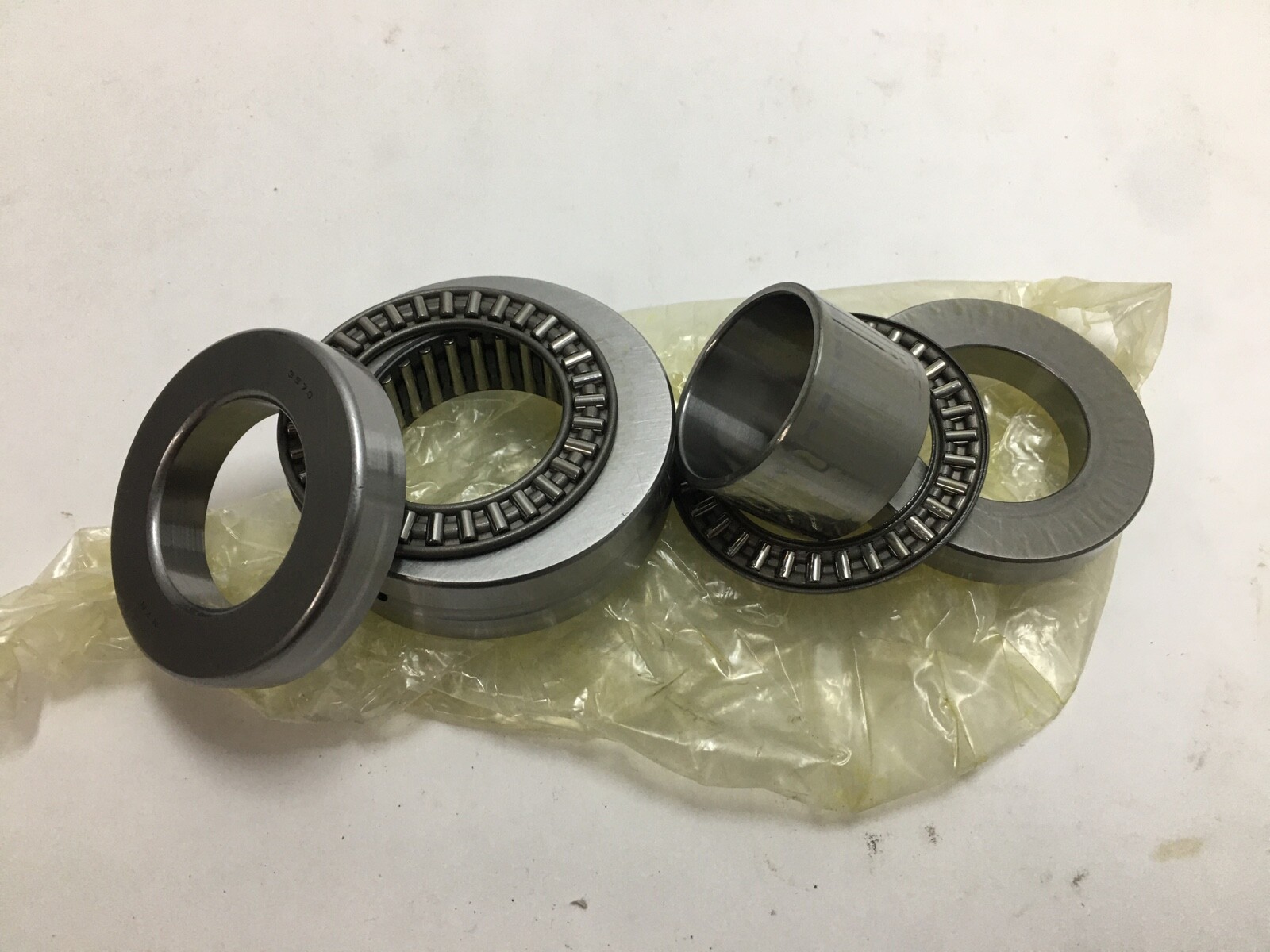

NTN AXN3570P5 needle roller bearing components, including two thrust washers and a needle roller cage, on a surface

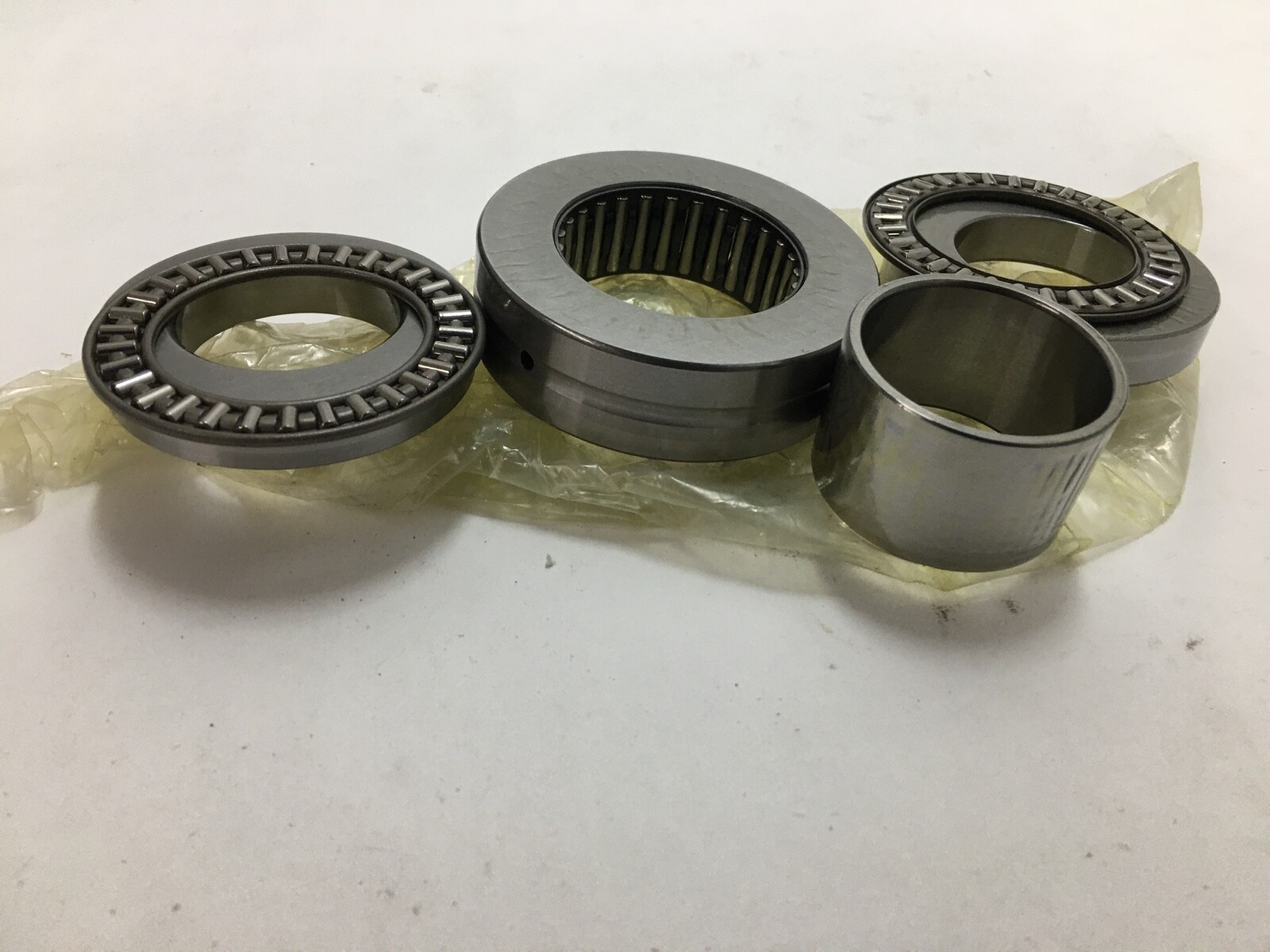

NTN AXN3570P5 needle roller bearing components with separate inner ring, cage, and thrust washers

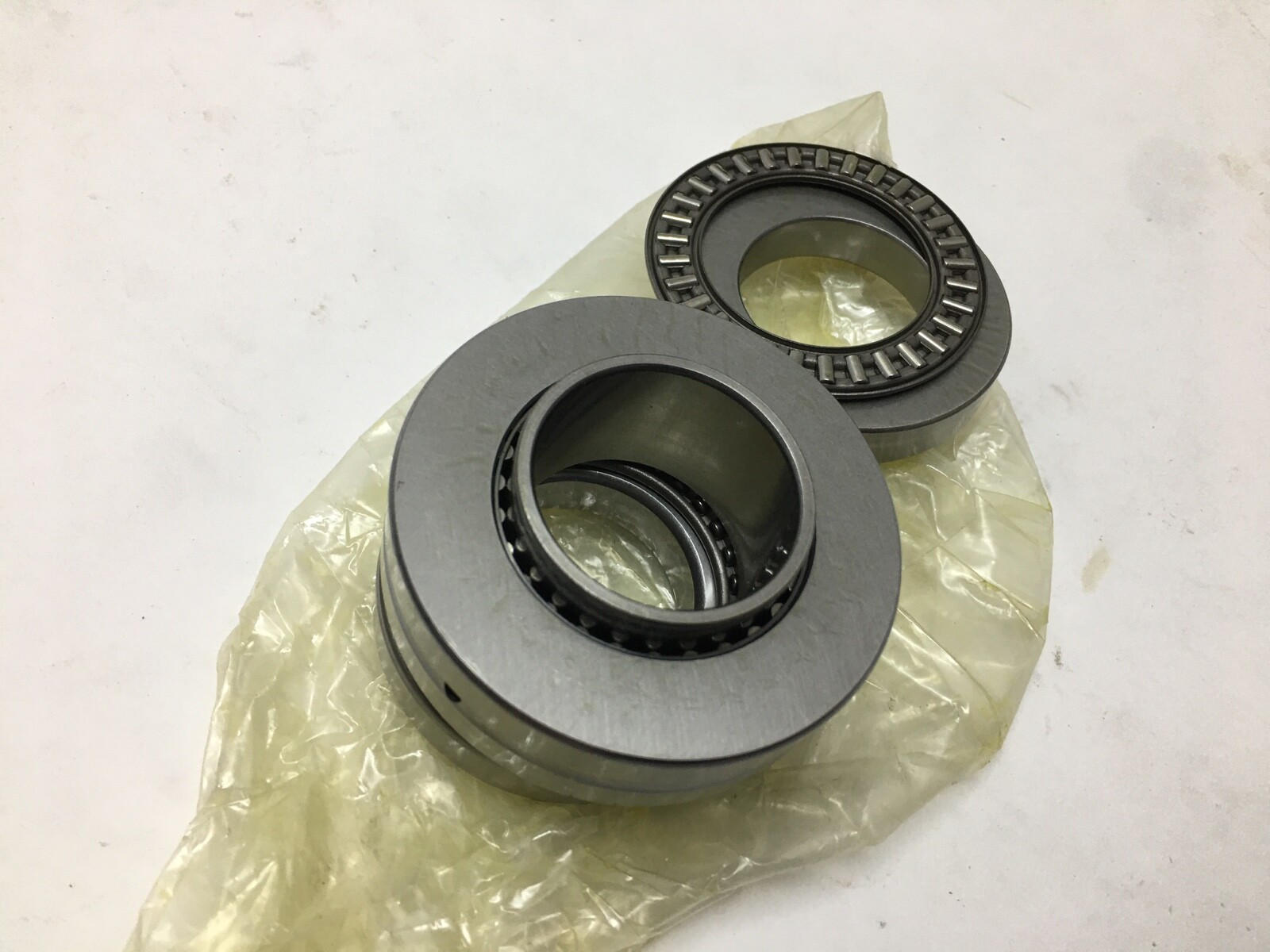

NTN AXN3570P5 needle roller thrust bearing, two components with visible needle rollers, on plastic wrap

13k+ reviews

See our eBay reviews

NTNAXN3570P5Needle Roller Bearing with Double-Direction Thrust Needle Roller Bearing — 35 mm Bore, 70 mm OD, 48 mm Width, P5 Precision

Name: NTN AXN3570P5 Needle Roller Bearing with Double-Direction Thrust Needle Roller Bearing — 35 mm Bore, 70 mm OD, 48 mm Width, P5 Precision
Brand: NTN
SKU: AH5B1#QOJLQY
Price: 355.64 USD
Availability: InStock

Condition: New – Open box

Condition Note: Super Precision, Made in Japan, 6 Piece Set, AXN3570-P5

Availability:

1 in stock

Categories: Bearings, Needle Roller Bearing

NTN AXN3570P5 needle roller bearing with double-direction thrust needle roller bearing, 35 mm bore x 70 mm OD x 48 mm wide, P5 precision. Six-piece set.

Same day shipment

List Price

$355.64

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	NTN
MPN	AXN3570P5
Model	AXN3570P5
Bearing Type	Needle Roller Bearing
ID	35 mm
OD	70 mm

Technical Specifications

Base Number	AXN3570
Industry Terms	combined needle roller bearing, complex bearing, needle thrust bearing, double direction thrust bearing
Common Misspellings	AXN 3570, AX N3570, AXN3570 P5
Overall Width	48 mm
Mpn Variants	AXN3570P5, AXN3570-P5, AXN 3570 P5, AXN-3570, AXN3570
Precision Class	P5 (ISO Class 5)
Additional Attributes	D1: 60 mm; F: 40 mm; C1: 20 mm; Dw: 3 mm; r: 1.0 mm; r1: 0.6 mm; da min: 56 mm; Da max: 64 mm; Operating temperature: -40 to 120 °C
Dynamic Load Rating	26,400 N (radial); 27,400 N (axial)
Static Load Rating	47,000 N (radial); 110,000 N (axial)
Series	AXN
Rolling Elements	Needle Roller
Cage Material	Steel
Internal Clearance	CN
Bearing Material	High carbon chrome steel

Seller Part Number: AH5B1#QOJLQY

Product Description

What this part is

The NTN AXN3570P5 is a complex bearing that combines a radial needle roller bearing with a double-direction thrust needle roller bearing in one assembly. It carries radial load and axial load in both directions.

Decoding the designation

AXN — NTN needle roller bearing with double-direction thrust needle roller bearing, AXN type.

3570 — 35 mm bore, 70 mm outside diameter.

P5 — NTN precision class 5 (ISO Class 5), a tighter tolerance grade than the standard Class 0 execution.

What these specs mean in practice

Bore Diameter: 35 mm. Outside Diameter: 70 mm. Overall Width: 48 mm. Precision Class: P5 (ISO Class 5). Internal Clearance: CN. Cage Material: Steel. Bearing Material: High carbon chrome steel. Closure Type: Open.

Radial Dynamic Load Rating: 26,400 N. Radial Static Load Rating: 47,000 N. Axial Dynamic Load Rating: 27,400 N. Axial Static Load Rating: 110,000 N. Operating Temperature Range: -40 to 120 °C.

The 110,000 N axial static rating supports heavy thrust in both directions inside a 48 mm axial length.

Mounting data

D1: 60 mm. F: 40 mm. C1: 20 mm. Roller diameter Dw: 3 mm. Chamfer r: 1.0 mm. Chamfer r1: 0.6 mm. Abutment diameter da min: 56 mm. Abutment diameter Da max: 64 mm. Fillet ras max: 1.0 mm. Fillet r1as max: 0.6 mm.
