Single-row deep groove ball bearing, 90 x 160 x 30 mm, non-contact metal shields both sides, P6 tolerance class with C3 internal clearance. 1 Pc.
List Price
$88.71
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6218-ZZ.C3.P6 |
| Model | 6218 ZZ C3 P6 |
| Bearing Type | Ball Bearing, Double Shield |
| ID | 90 mm |
| OD | 160 mm |
| Width | 30 mm |
| Series | 6200 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel |
| Base Number | 6218 |
| Industry Terms | deep groove ball bearing; shielded ball bearing; 2Z ball bearing; ZZ ball bearing; P6 precision ball bearing; 90mm bore ball bearing |
| Common Misspellings | 6218ZZC3P6; 6218 ZZ C3 P6; 6128ZZ; 6218ZC3; 6218-ZZ-C3-P63; deep grove ball bearing; ball bearring |
| Application Types | Electric motors; pumps; fan and blower shafts; gearbox idlers; machine tool feed drives; conveyor rollers |
| Bore Shaft Size | 90 mm |
| Mpn Variants | 6218-ZZ.C3.P6; 6218-ZZ-C3-P6; 6218ZZC3P6; 6218-2Z-P63; 6218ZZ; 6218Z; 6218-2Z; 6218 |
| Compatible With Replaces | ISO base 6218. Same-spec shielded: SKF 6218-2Z/C3, NSK 6218ZZC3, NTN 6218ZZC3. FAG shorthand 6218-2Z-P63. Related sizes: 6218-2RSR / 6218DDU (contact sealed), 6218-Z (one shield), 6218-2Z-C3 (standard tolerance) |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 6218-ZZ-C3-P6 |
| Cross Reference 1 | FAG 6218-2Z-P63 (FAG shorthand for this same spec) |
|---|---|
| Cross Reference 2 | SKF 6218-2Z/C3 (standard tolerance, not P6) |
| Cross Reference 3 | NSK 6218ZZC3 (standard tolerance, not P6) |
| Cross Reference 4 | NTN 6218ZZC3 (standard tolerance, not P6) |
| Cross Reference 5 | Koyo 6218ZZC3 (standard tolerance, not P6) |
| Cross Reference 6 | 6218-2RSR (contact seals, not shielded) |

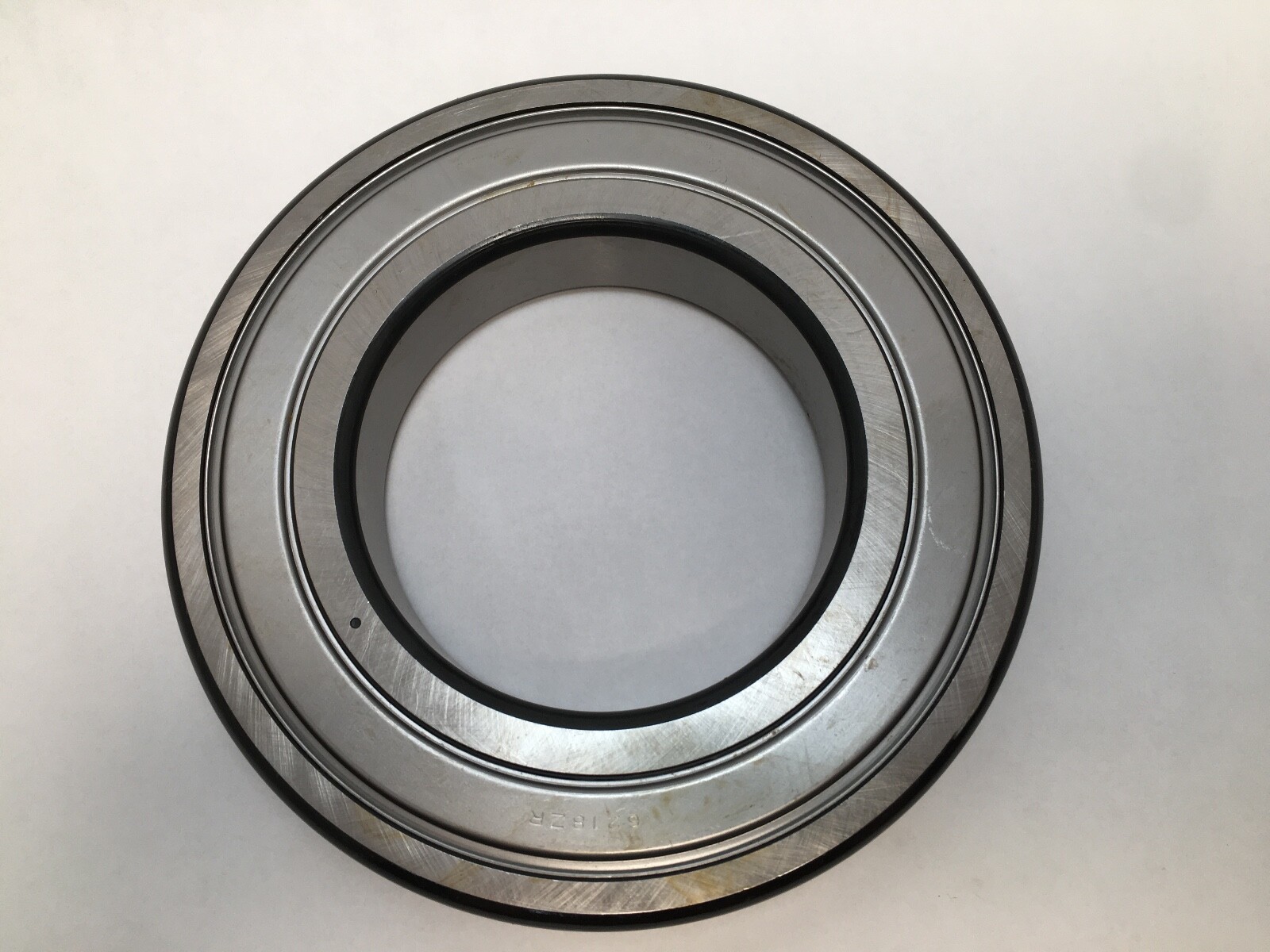

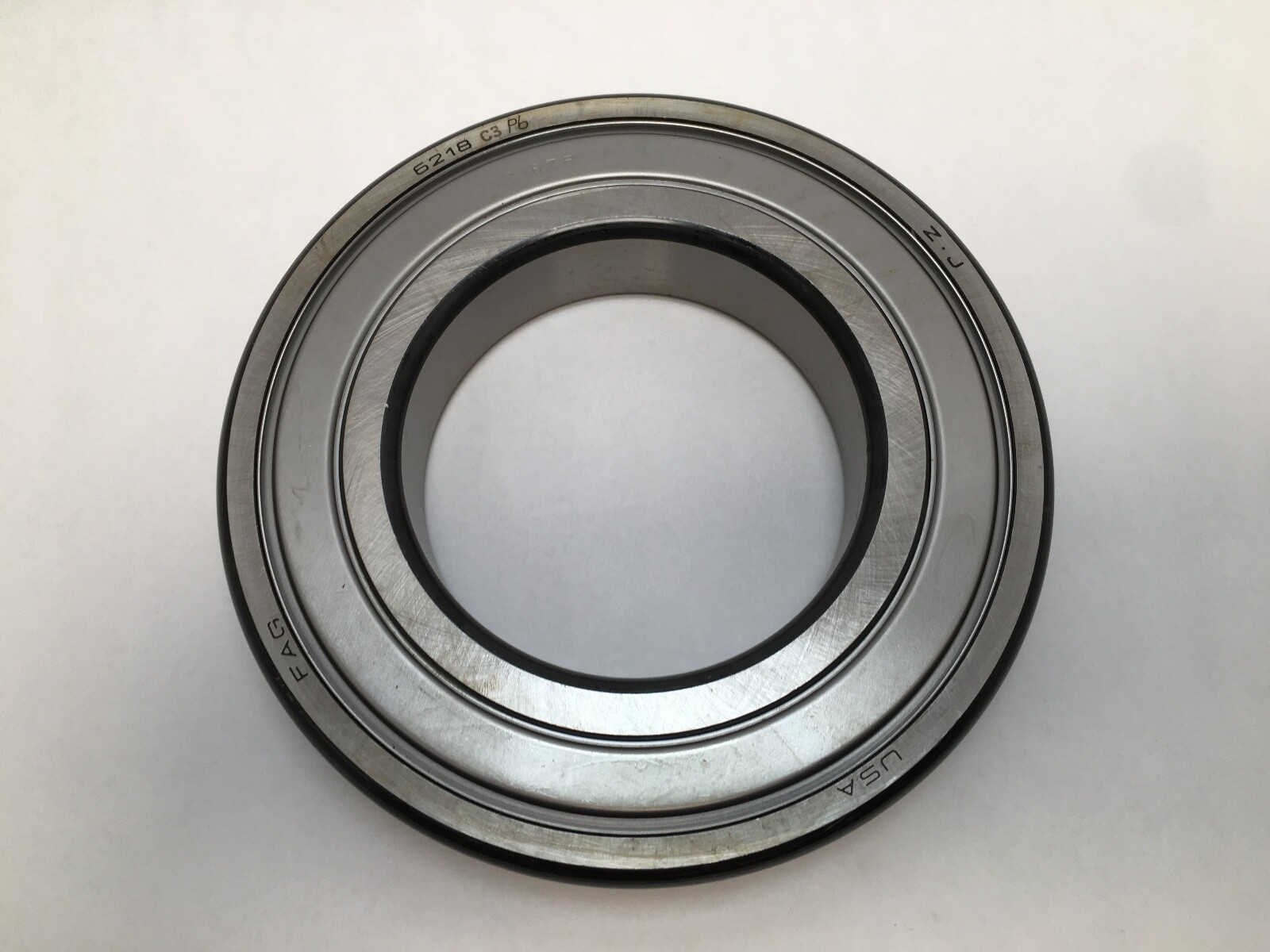

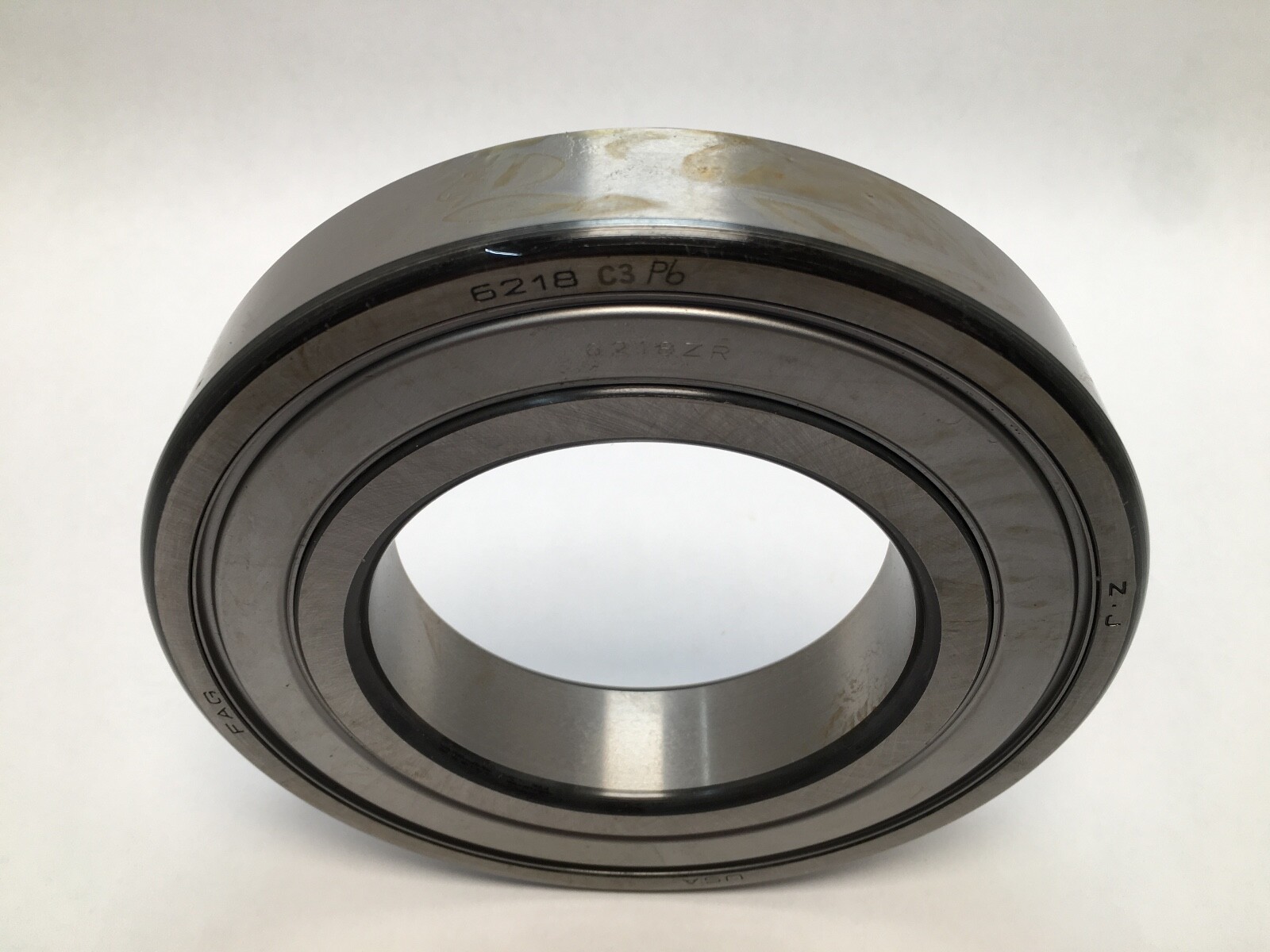

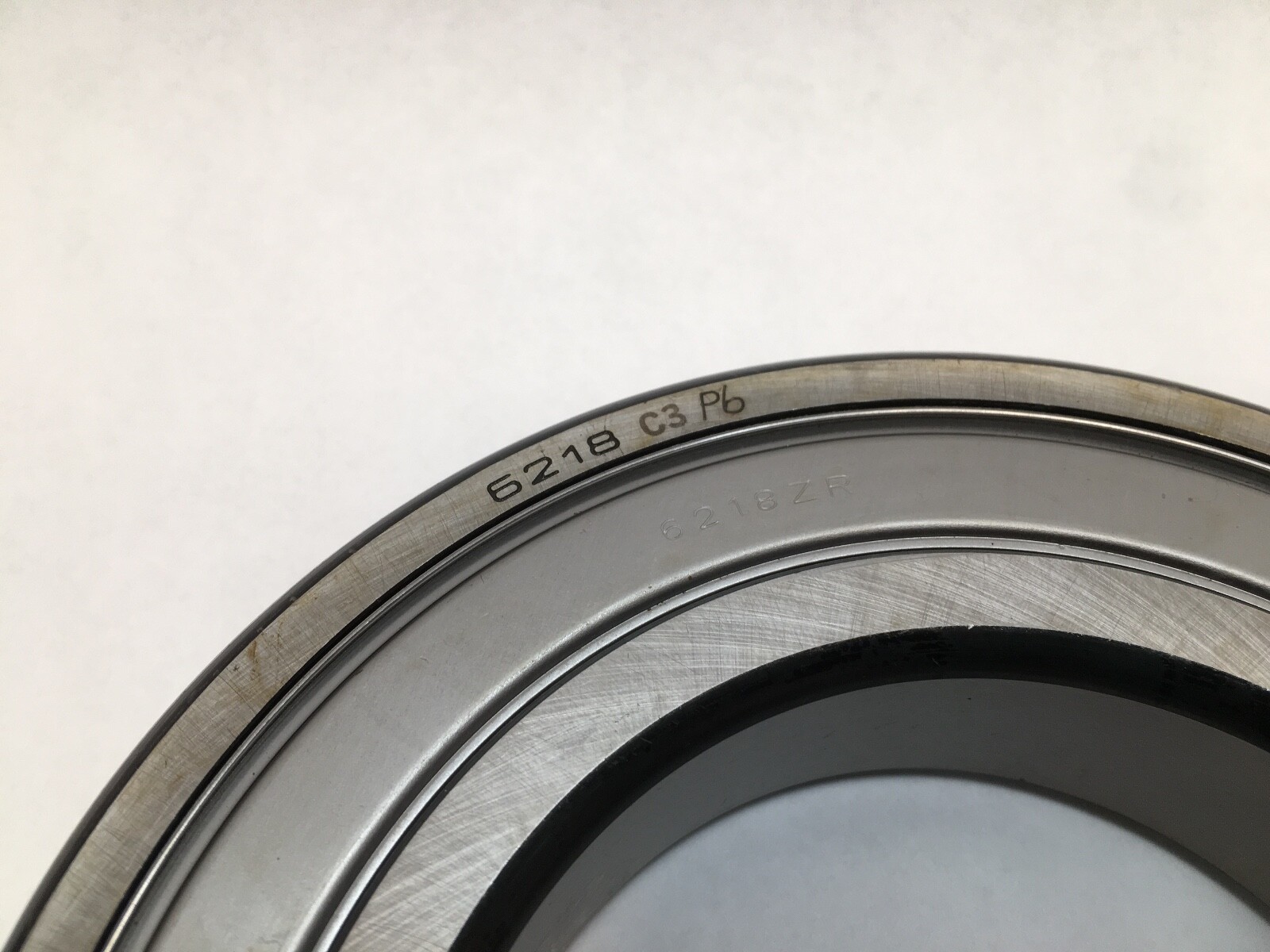

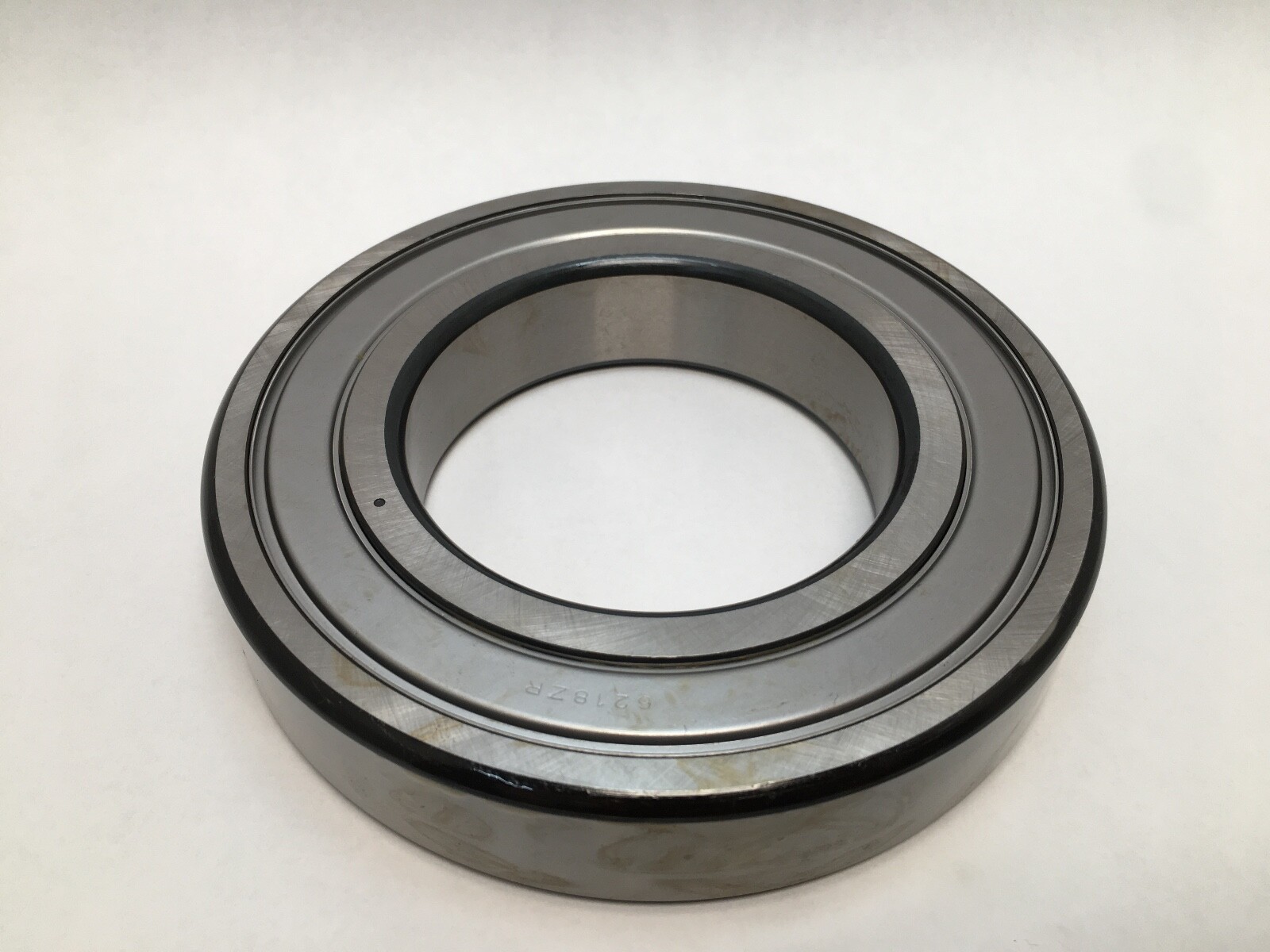

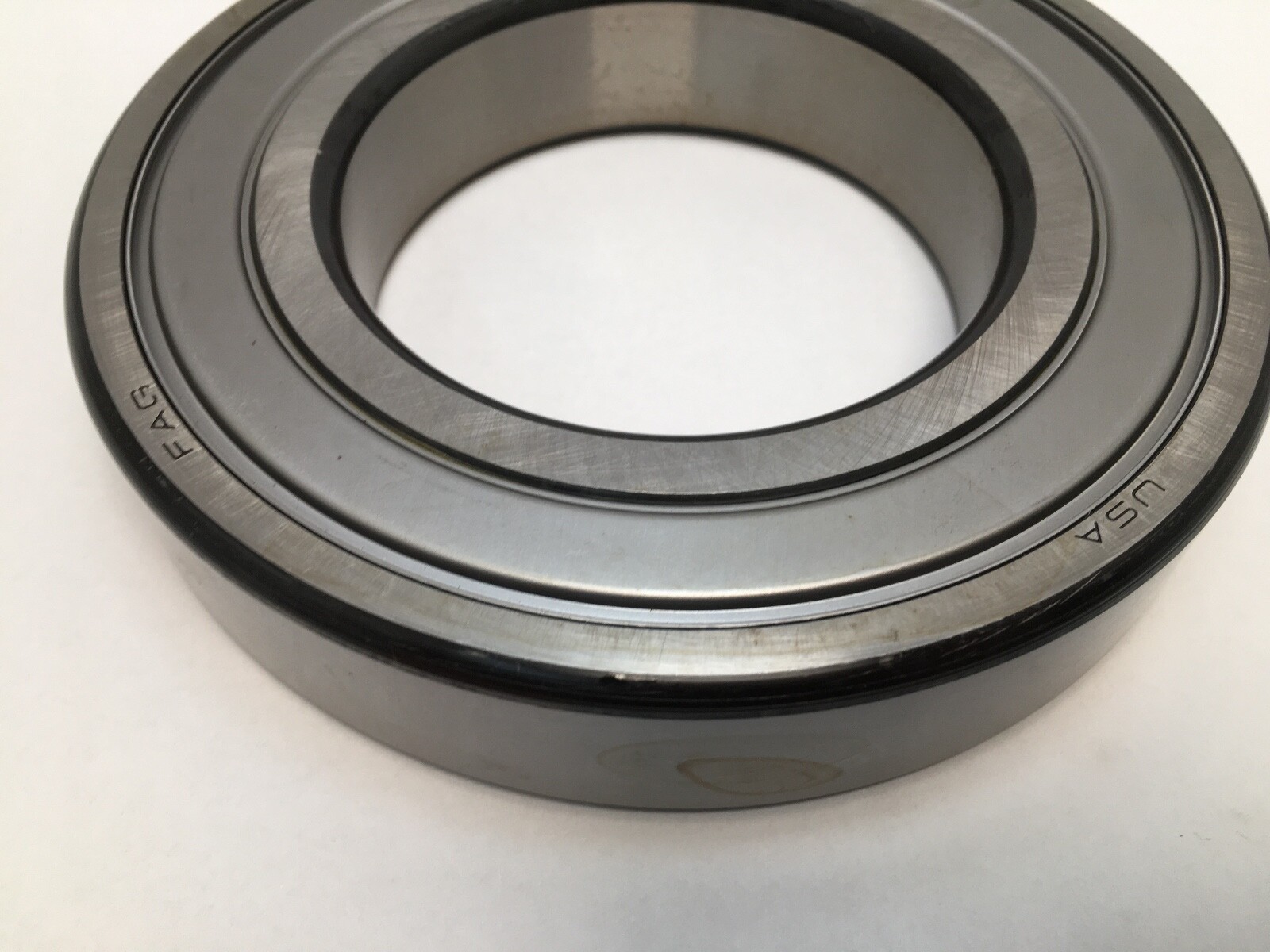

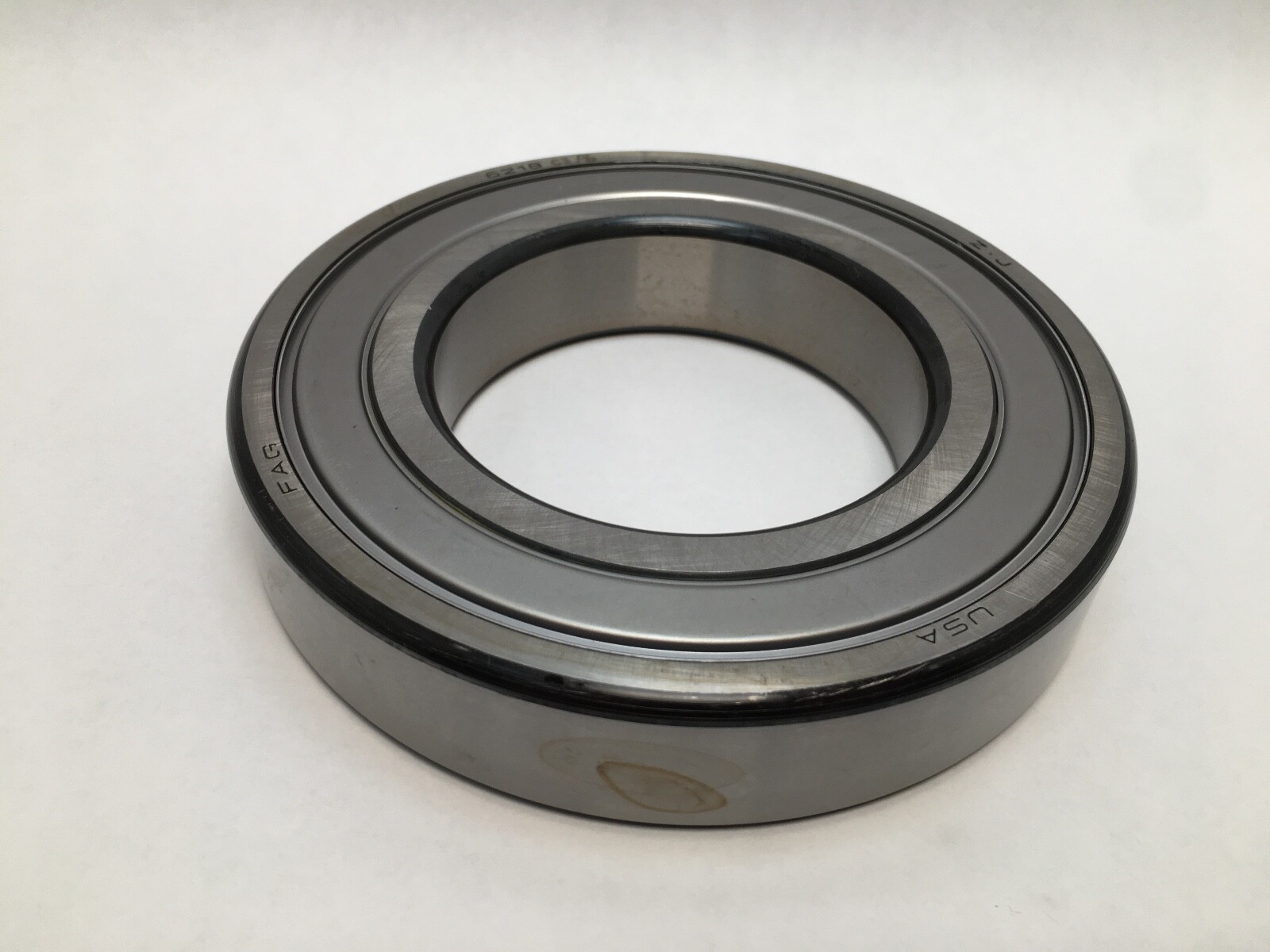

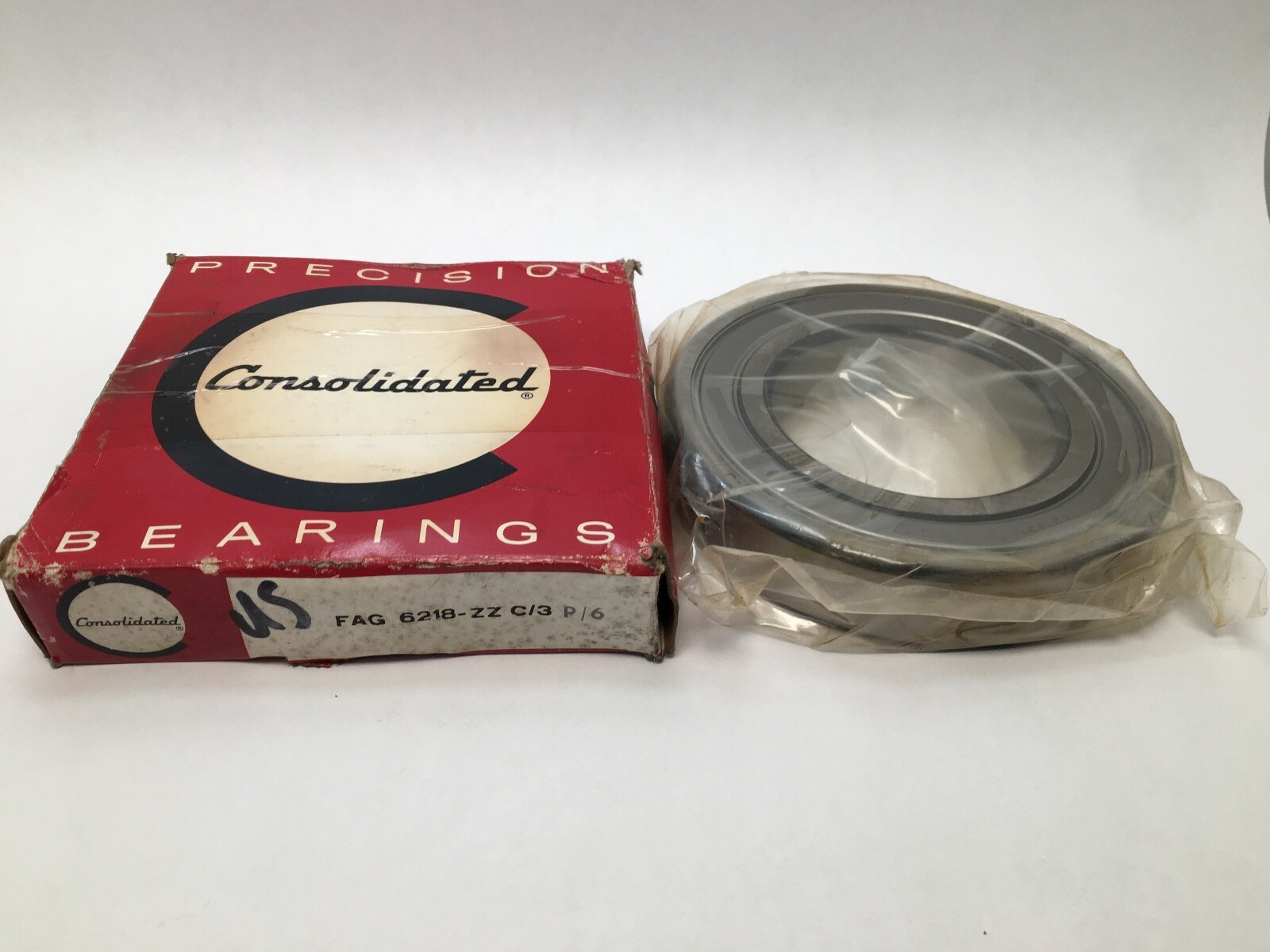

FAG 6218-ZZ-C3-P6 single-row deep groove ball bearing — 90 mm bore, 160 mm outside diameter, 30 mm wide, with metal shields on both faces, C3 internal clearance and P6 tolerance class. Unit Quantity: 1 Pc.
6218 — single-row deep groove ball bearing, ISO 62 light series, 90 mm bore.
ZZ — metal shield on each face, non-contact; the doubled letter means both sides.
C3 — radial internal clearance greater than normal.
P6 — ISO tolerance class 6, approximately ABEC 3.
P63 — FAG’s combined code for this pairing of P6 tolerance and C3 clearance.
Bearing Type: Deep groove ball bearing, single row. Rolling Elements: Ball. Number Of Rows: 1. Seal Type: Double Shield, non-contact metal shields on both faces. Internal Clearance: C3. Tolerance Class: P6 (ISO class 6, approximately ABEC 3). Series: 6200, ISO 62 light series. Bearing Material: Bearing Steel. Lubricant: Grease. Harmonization Code: 8482.10.50.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Width: 30 mm. Bore Type: Straight.
ISO base number: 6218. FAG shorthand: 6218-2Z-P63. Shielded equivalents at standard tolerance: SKF 6218-2Z/C3, NSK 6218ZZC3, NTN 6218ZZC3. Related sizes: 6218-2RSR and 6218DDU (contact sealed), 6218-Z (one shield), 6218-2Z-C3 (standard tolerance).
MPN Variants: 6218-ZZ.C3.P6, 6218-ZZ-C3-P6, 6218ZZC3P6, 6218-2Z-P63, 6218ZZ, 6218Z, 6218-2Z, 6218.
ZZ is a non-contact metal shield on both faces, C3 is radial internal clearance greater than normal, and P6 is ISO tolerance class 6.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Width: 30 mm.
P63 is FAG’s combined code for P6 tolerance with C3 clearance.
