Availability:
1 in stock

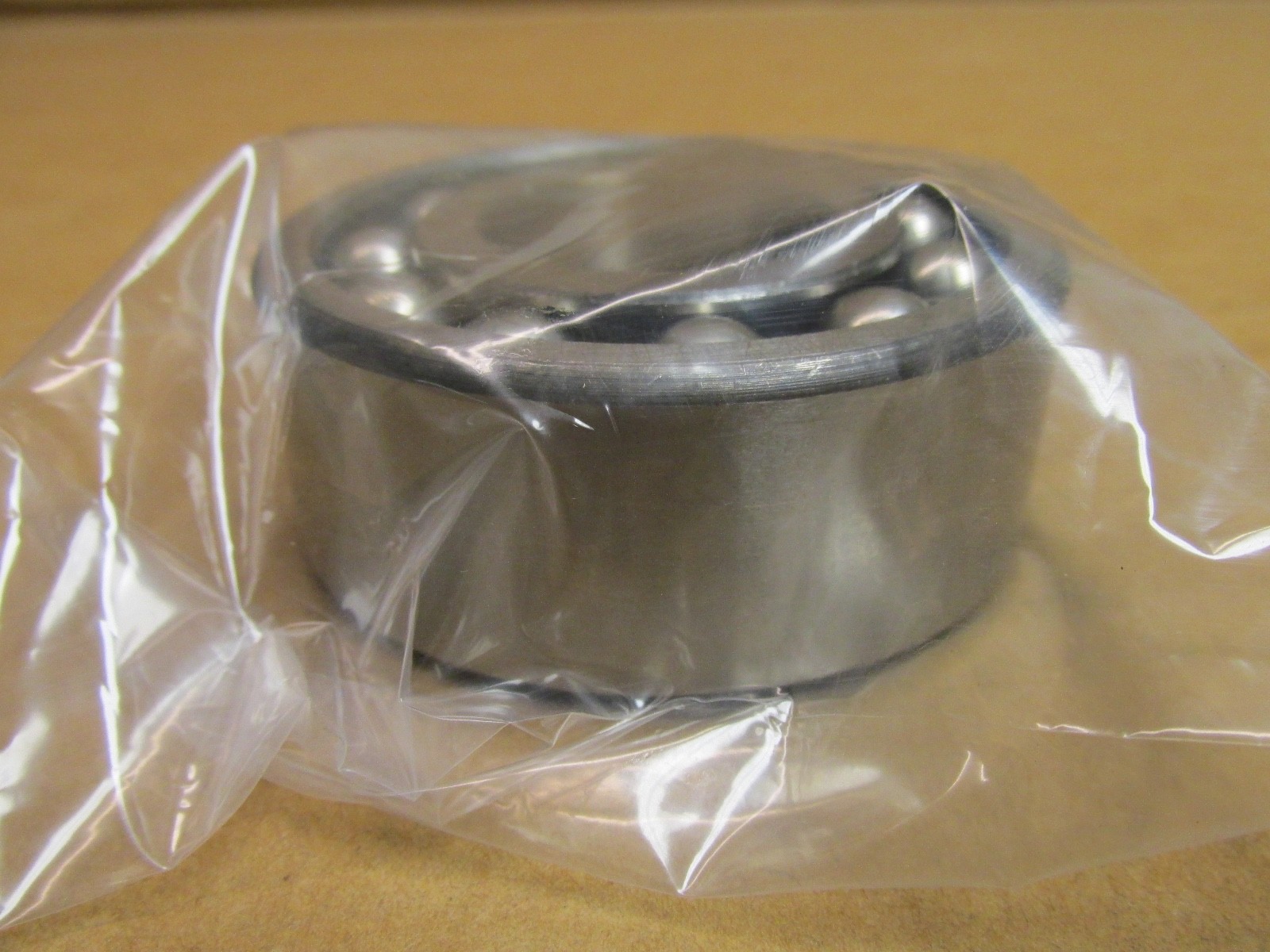

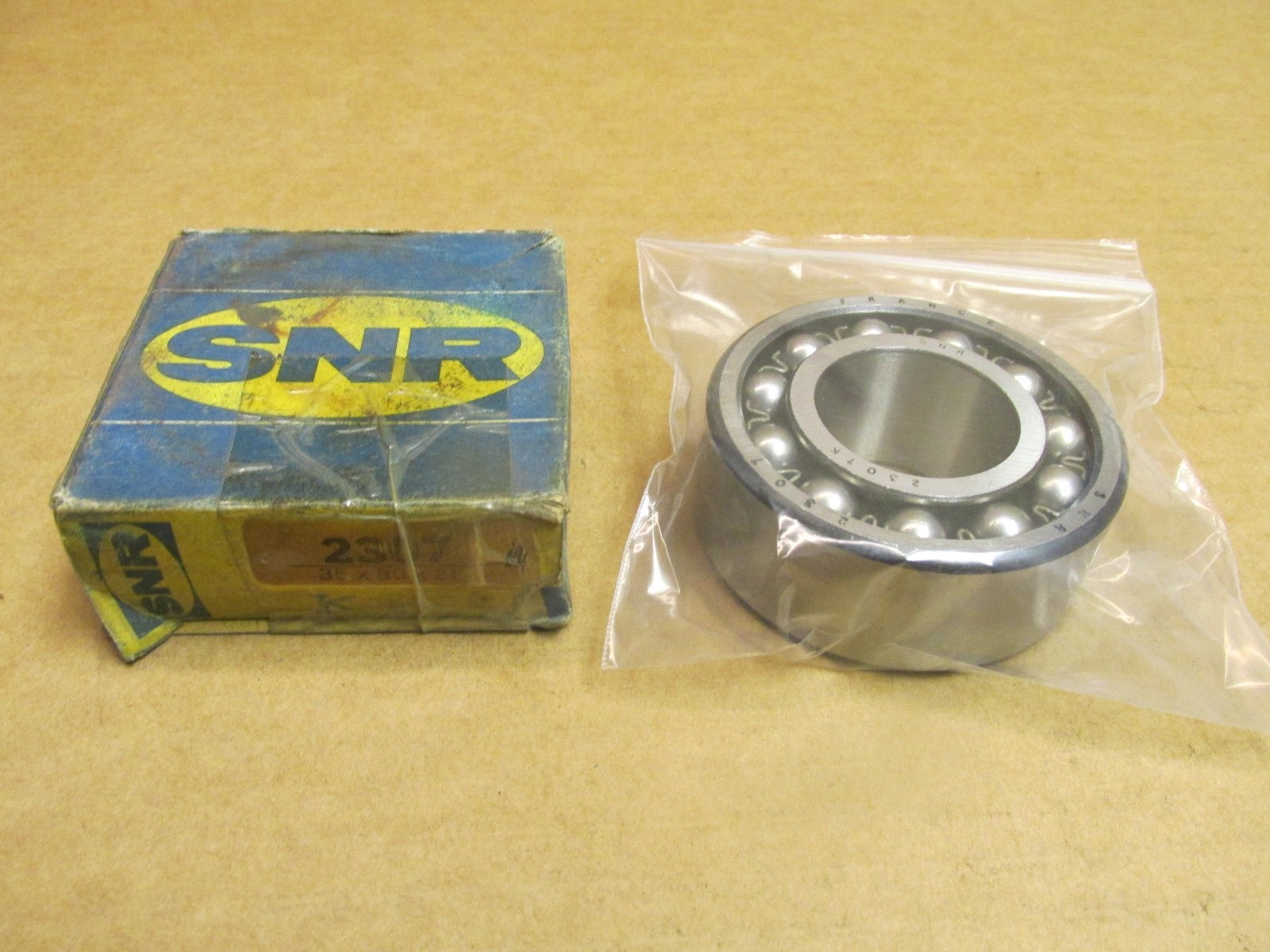

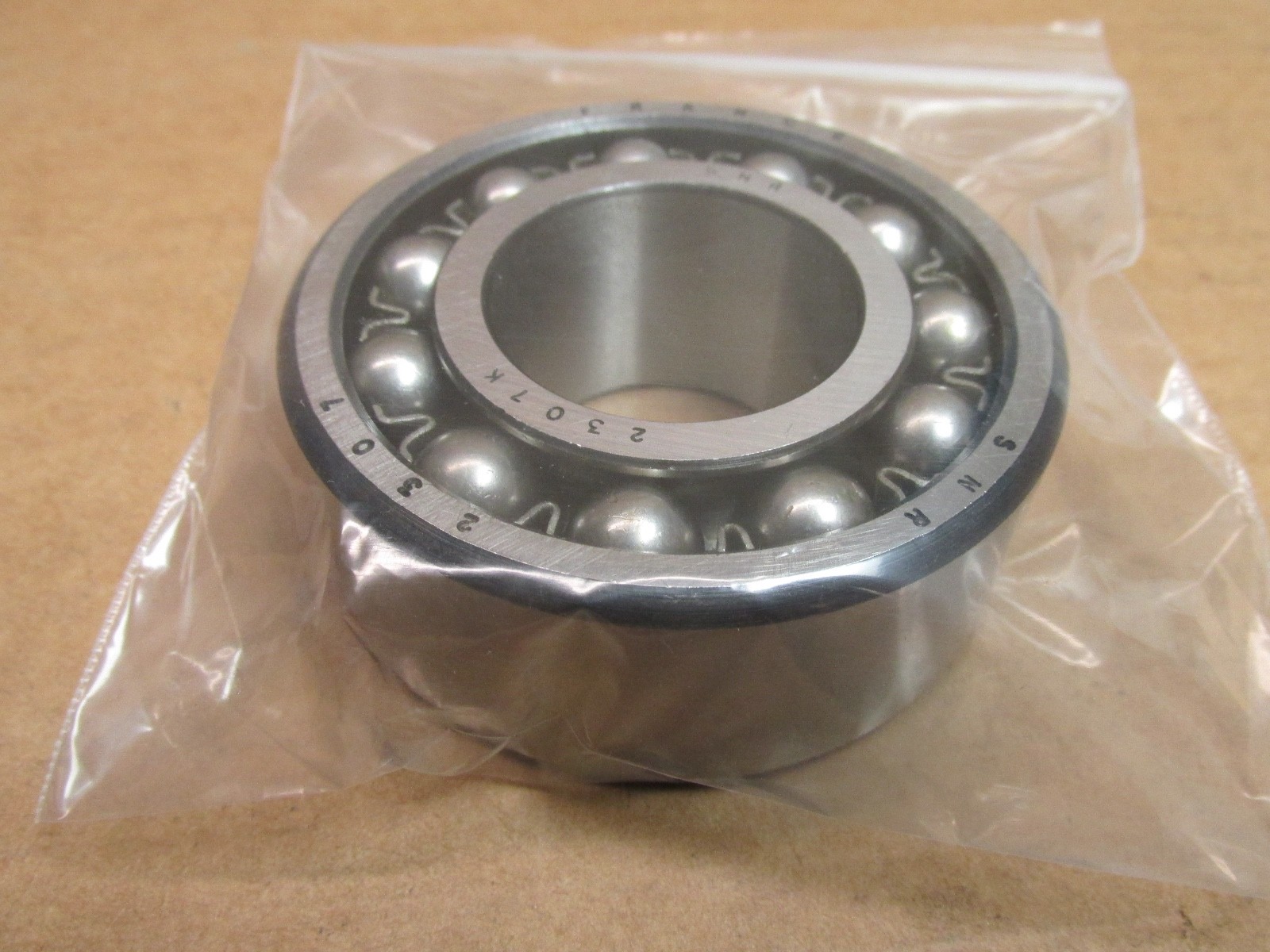

Double-row self-aligning ball bearing, 35 mm 1:12 tapered bore x 80 mm OD x 31 mm wide, open, CN clearance. Mounts on an H2307 sleeve for a 30 mm shaft.
List Price
$42.05
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 2307K |
| Model | 2307-K |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 35 mm |
| OD | 80 mm |
| Width | 31 mm |
| Series | 2300 |
|---|---|
| Lubricant | Grease or oil |
| Base Number | 2307 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve bearing, 2300 series |
| Common Misspellings | 2307X, 2370K, 237K, 2307KK |
| Overall Width | 31 mm |
| Mpn Variants | 2307K, 2307 K, 2307-K, 2307.K, 2307K CN |
| Compatible With Replaces | Mounts on H2307 adapter sleeve (30 mm shaft) with KM7 locknut and MB7 lock washer |
| Precision Class | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Application Types | Line shafts; fans; conveyors; agricultural drives; general machinery |
| Cross Reference 1 | SKF 2307 EKTN9 |
|---|---|
| Cross Reference 2 | FAG 2307-K-TVH |
| Cross Reference 3 | NSK 2307K |
| Cross Reference 4 | NTN 2307SK |
| Cross Reference 5 | Koyo 2307K |
The SNR 2307K is a double-row self-aligning ball bearing with a 1:12 tapered bore, from the ISO 23 wide medium series. Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 31 mm. Two rows of balls run on a common spherical raceway in the outer ring, so the inner ring, balls and cage swivel relative to the outer ring and absorb shaft deflection and housing misalignment. Unit Quantity: 1 Pc.
23 — double-row self-aligning ball bearing, ISO dimension series 23 (wide medium).
07 — bore code 07: 35 mm bore, 80 mm outside diameter, 31 mm width.
K — 1:12 tapered bore.
Bearing Type: Self-aligning ball bearing. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Tapered 1:12. Closure Type: Open. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Lubricant: grease or oil. Series: 2300.
Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 31 mm. The 1:12 tapered bore mounts on an H2307 adapter sleeve with a 30 mm shaft seat, a KM7 locknut and an MB7 lock washer, or directly on a matching 1:12 tapered journal.
Cross-references: SKF 2307 EKTN9, FAG 2307-K-TVH, NSK 2307K, NTN 2307SK, Koyo 2307K. Each is a 35 x 80 x 31 mm double-row self-aligning ball bearing with a 1:12 tapered bore. The SKF and FAG parts carry polyamide cages. Adapter sleeve: H2307.
35 mm tapered bore, 80 mm outside diameter, 31 mm width.
H2307, with a 30 mm shaft seat, a KM7 locknut and an MB7 lock washer.
A 1:12 tapered bore.
