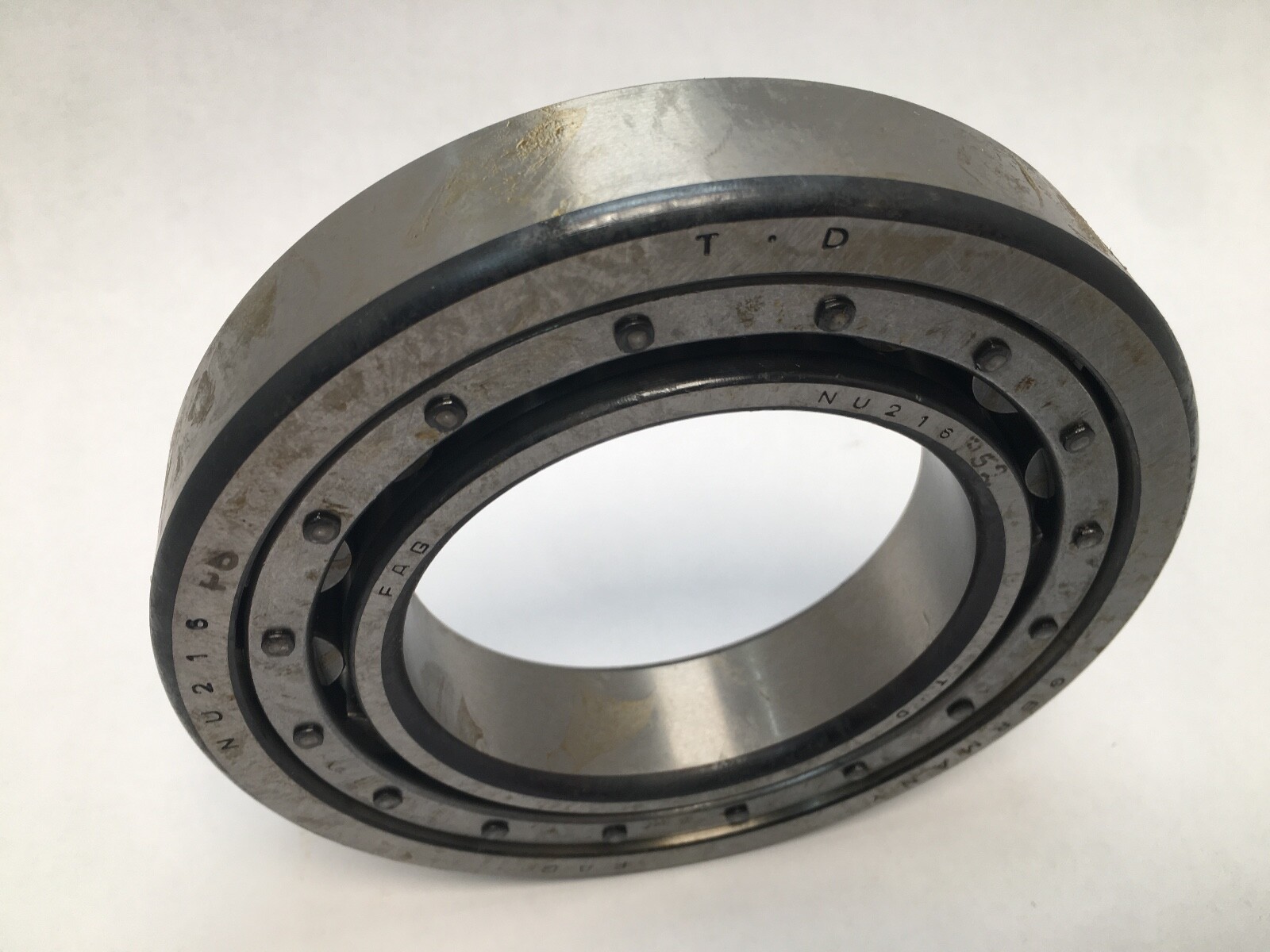

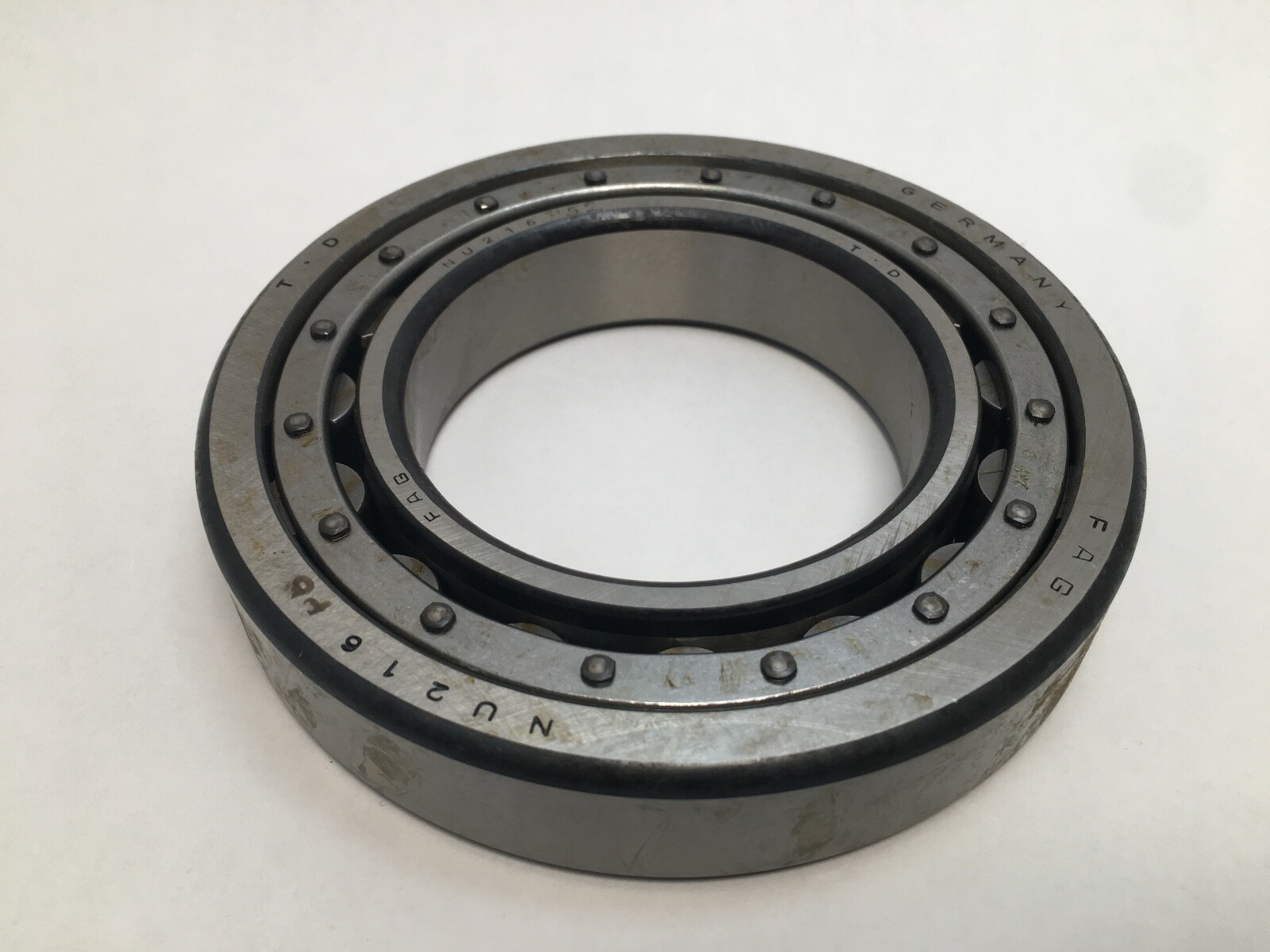

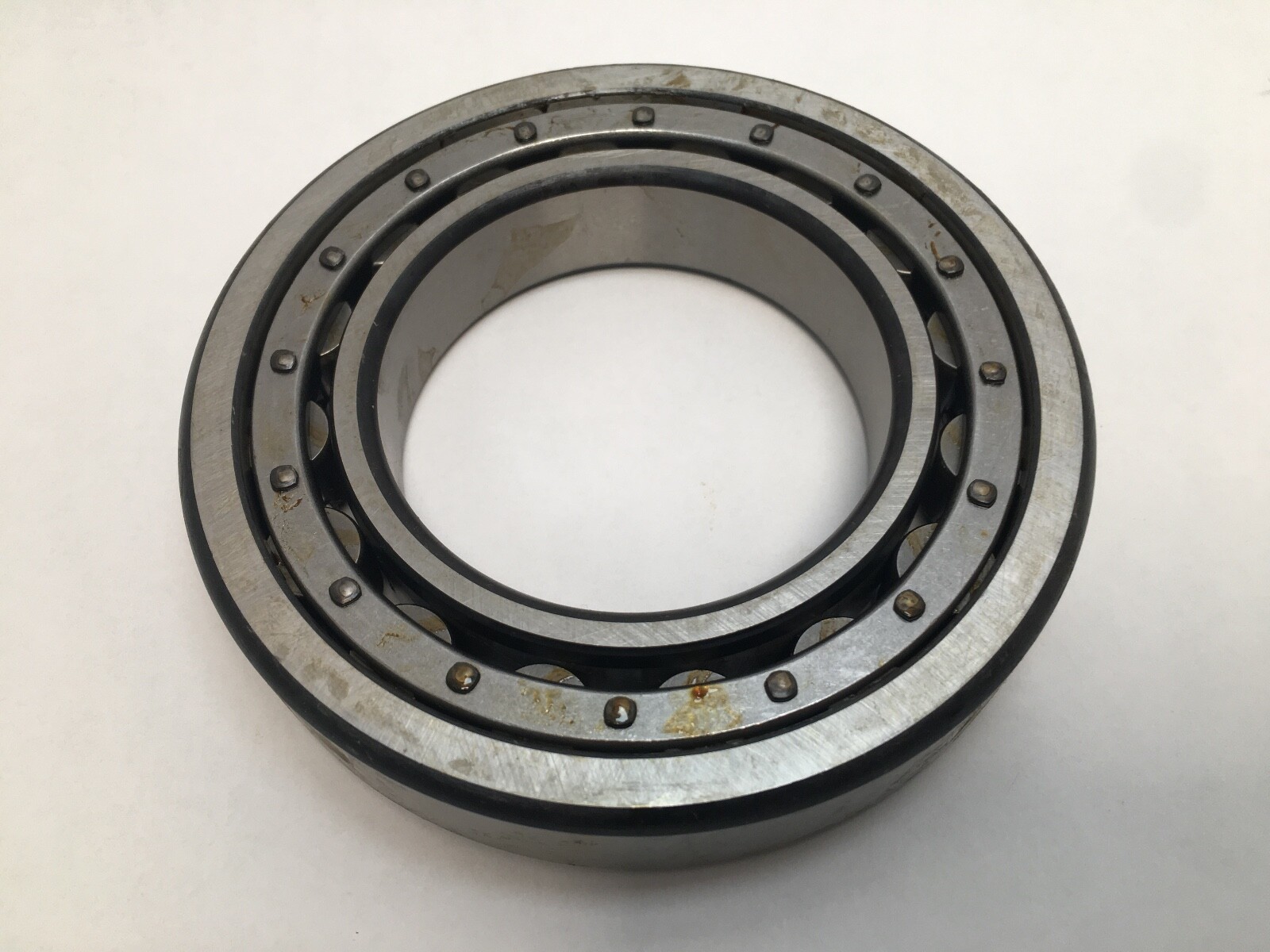

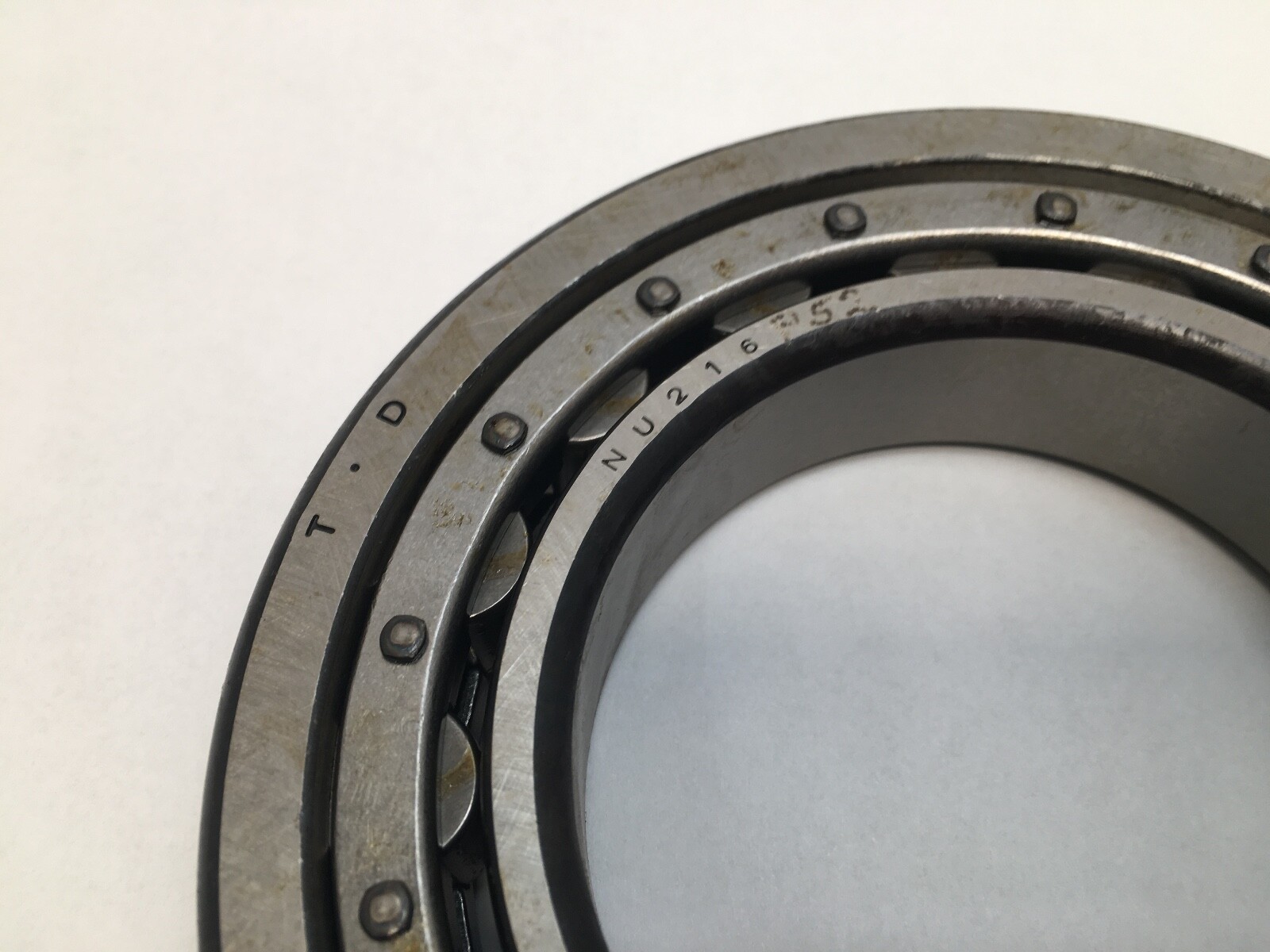

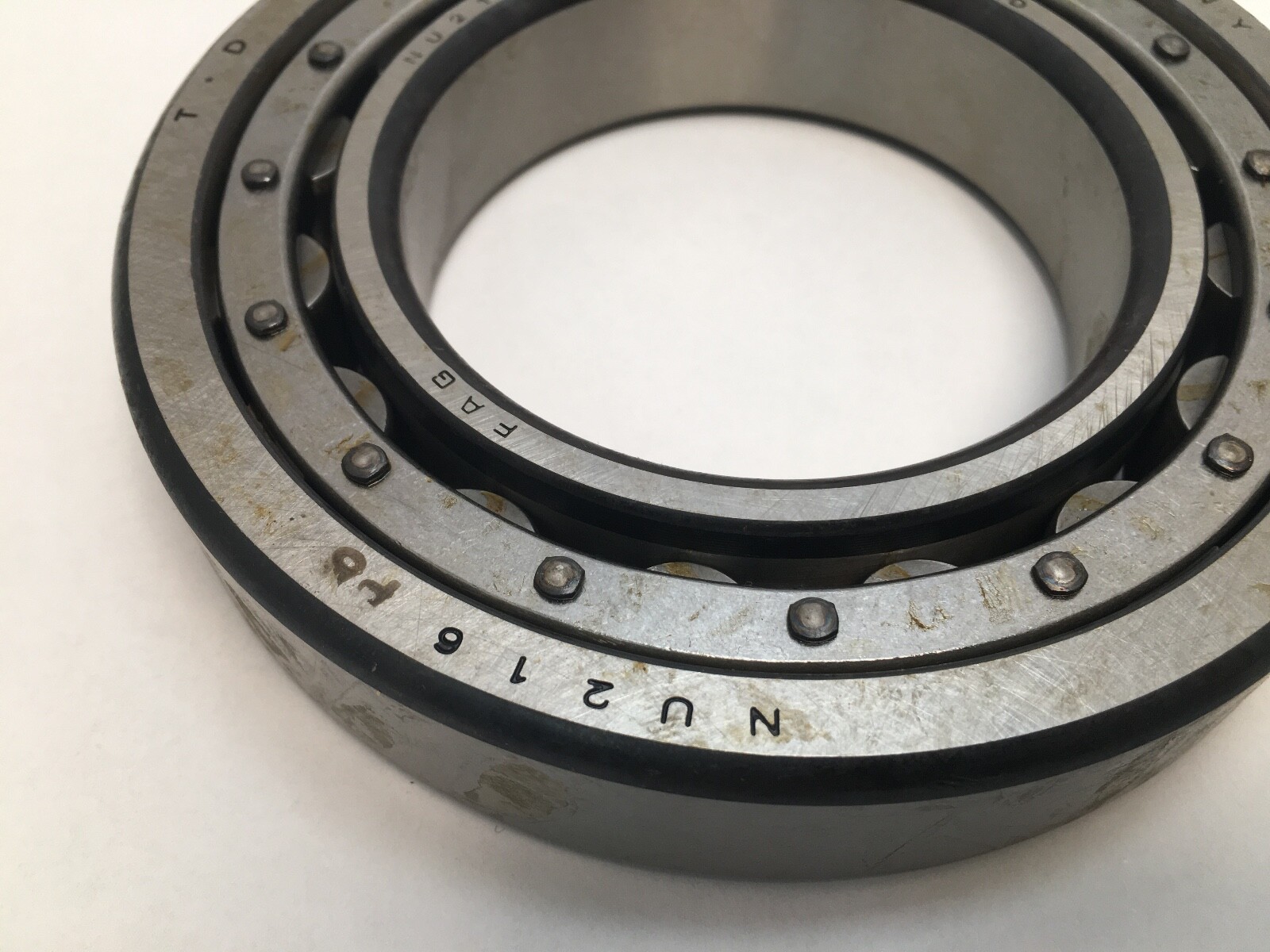

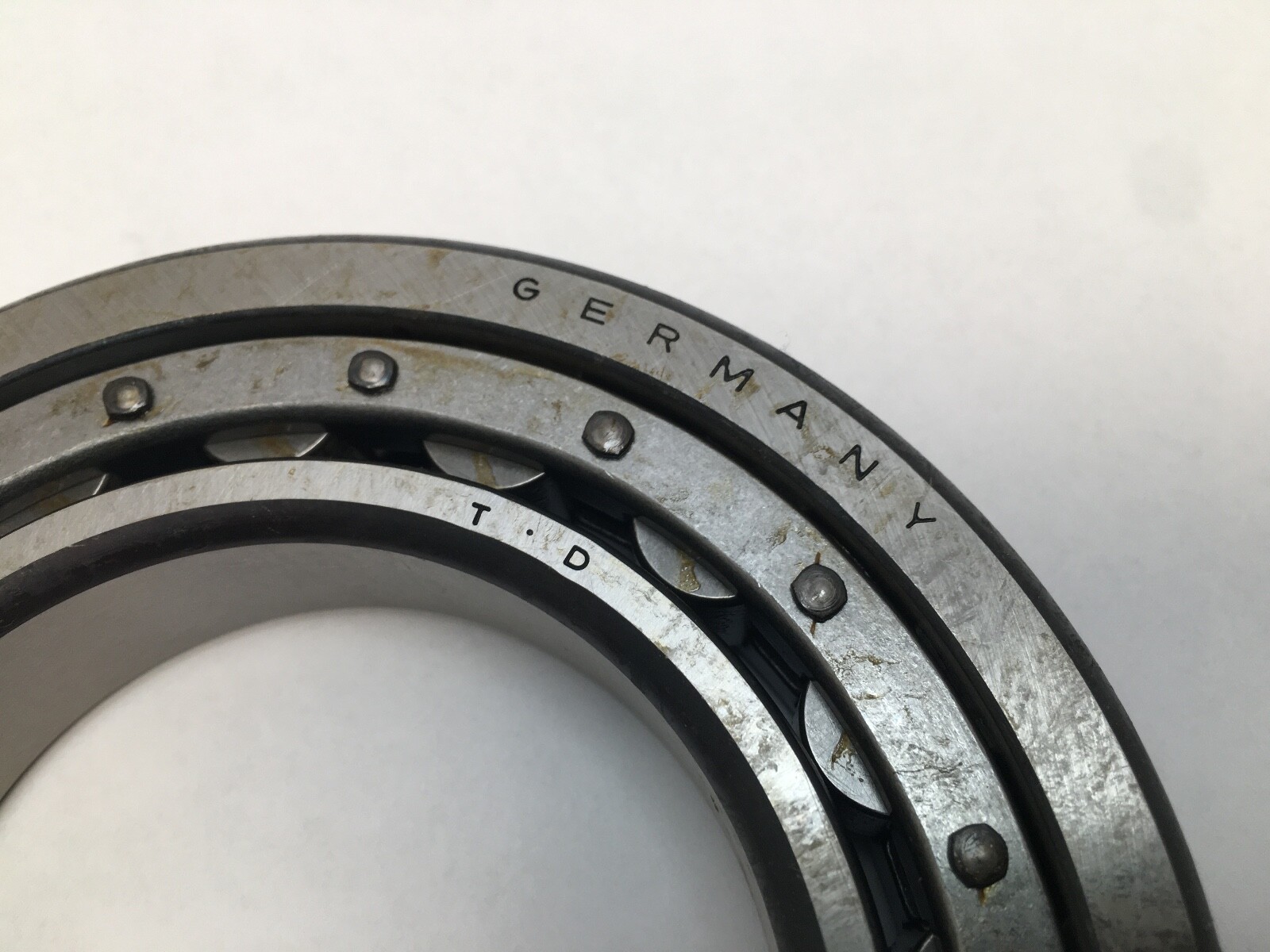

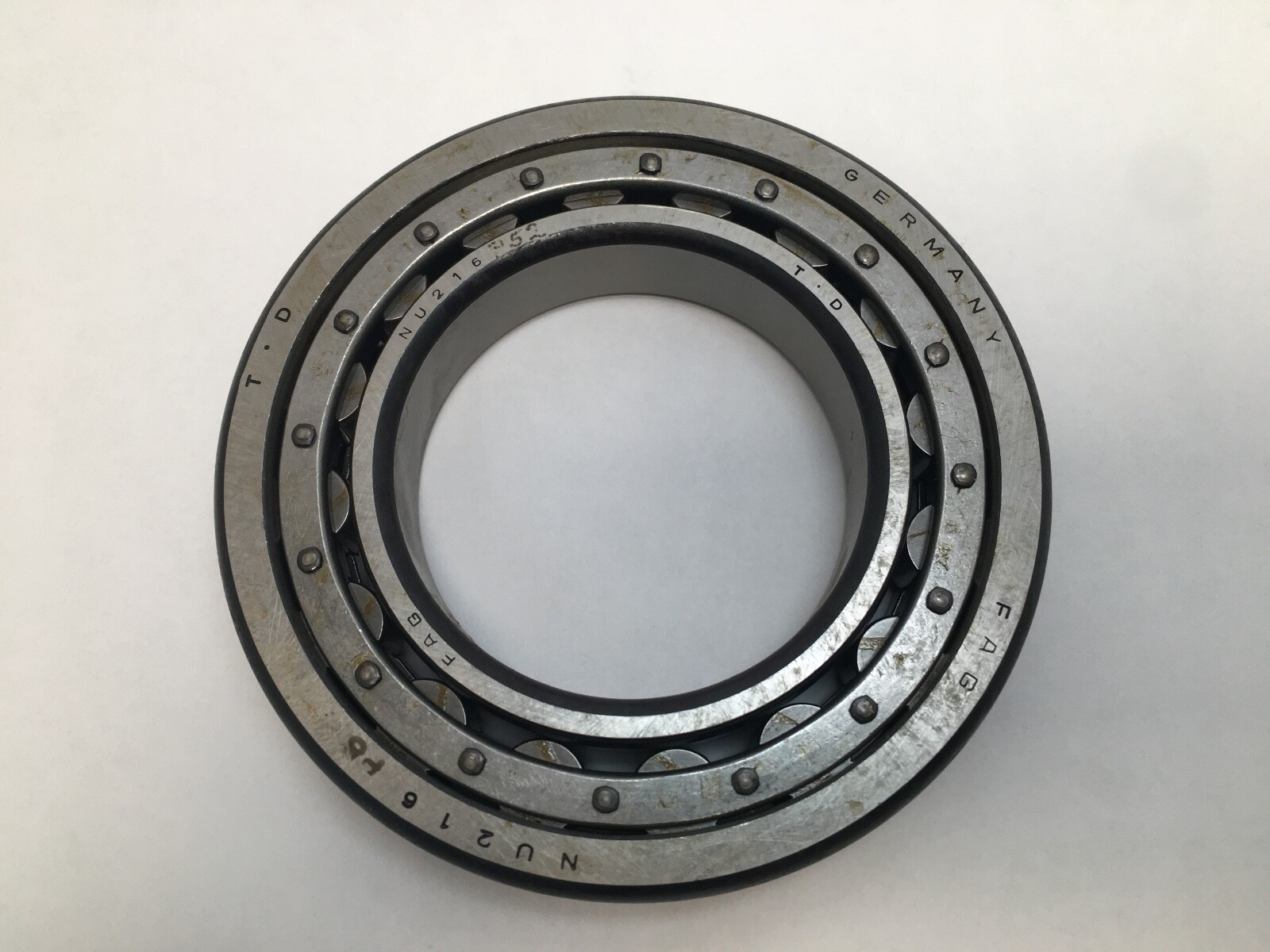

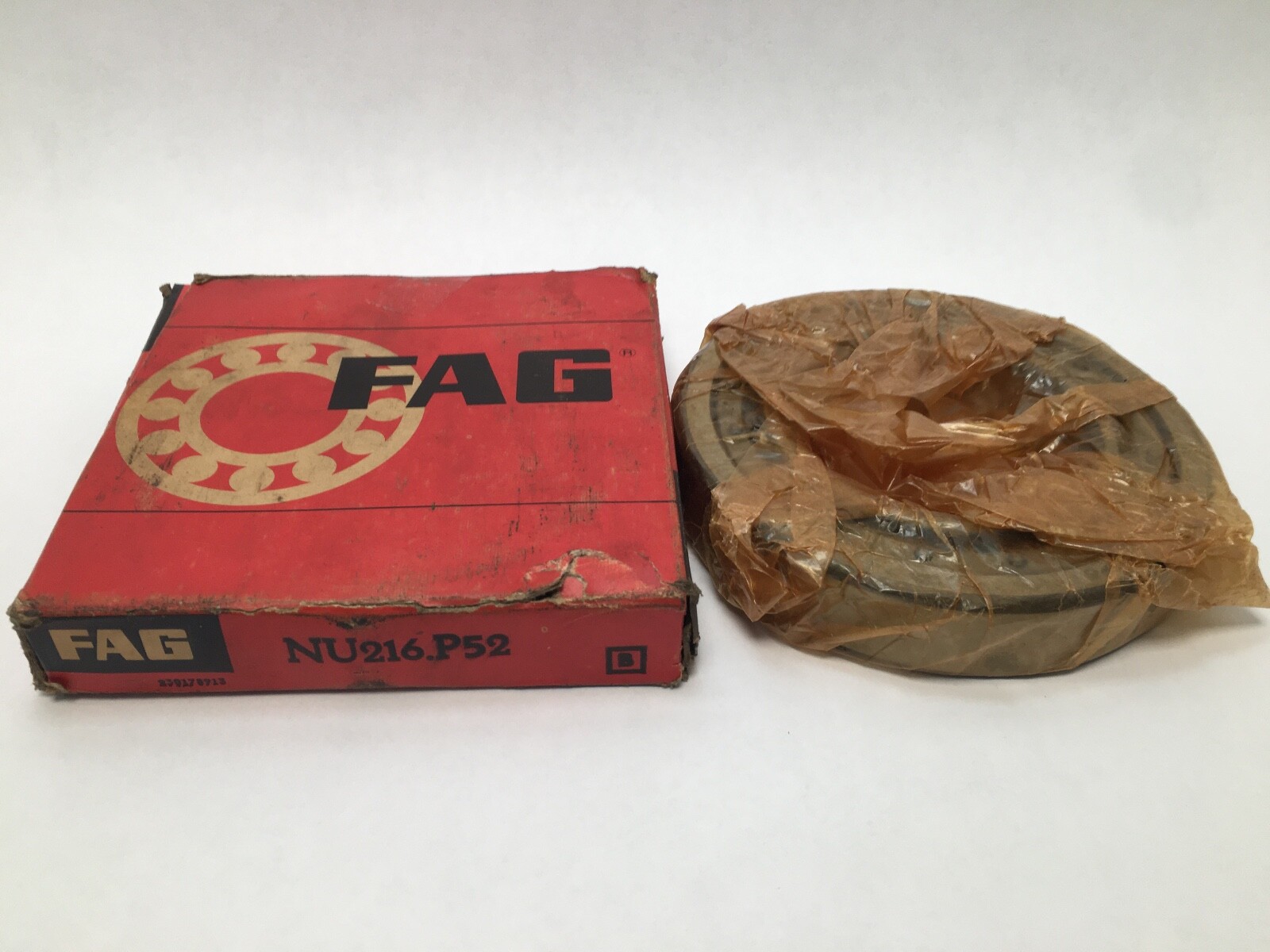

FAG NU216.P52 cylindrical roller bearing, 80x140x26 mm, type NU non-locating, P5 precision with C2 clearance. Single row, separable inner ring. New old stock.
List Price
$137.67
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NU216.P52 |
| Model | NU 216 P52 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | NU200 |
| Base Number | NU216 |
| Industry Terms | cylindrical roller bearing, NU type, non-locating bearing, floating bearing, P5 precision |
| Common Misspellings | NU216P52, NU 216.P52, NU216-P52, UN216 |
| Application Types | machine tool spindles, gearboxes, pumps, electric motors |
| Overall Width | 26 mm |
| Mpn Variants | NU216.P52, NU216P52, NU-216-P52, NU 216 P52, NU216 |
| Precision Class | RBEC 5 / P5 |
| Additional Attributes | Axial location: Non-locating; Ribs: Two on outer ring, none on inner ring; Dimension series: 02 |
| Precision Rating | RBEC 5 / P5 |
| Rolling Elements | Cylindrical |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C2 |
| Harmonization Code | 8482.50.00 |
| Closure Type | Open |
| Cross Reference 1 | SKF NU 216 - P0/CN vs P5/C2 |
|---|---|
| Cross Reference 2 | NTN NU216 - P0/CN vs P5/C2 |
| Cross Reference 3 | NSK NU216 - P0/CN vs P5/C2 |
| Cross Reference 4 | Timken NU216 - P0/CN vs P5/C2 |
| Cross Reference 5 | FAG NU216-E-XL-TVP2 - E-XL design |
FAG NU216.P52 single-row cylindrical roller bearing, type NU, P5 precision with C2 internal clearance, separable inner ring. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Precision Class: RBEC 5 / P5. Internal Clearance: C2. Unit Quantity: 1 Pc.
NU — two ribs on the outer ring, inner ring without ribs; non-locating bearing.
2 — ISO dimension series 02 (light series).
16 — bore code, 16 x 5 = 80 mm.
P52 — FAG code for P5 tolerance class combined with C2 internal clearance.
Bore Diameter: 80 mm.
Outside Diameter: 140 mm.
Overall Width: 26 mm.
Bore Type: Cylindrical.
Number Of Rows: 1.
Rolling Elements: Cylindrical Roller.
Precision Class: RBEC 5 / P5.
Internal Clearance: C2.
Closure Type: Open.
Axial location: non-locating.
Series: NU200.
Harmonization Code: 8482.50.00.

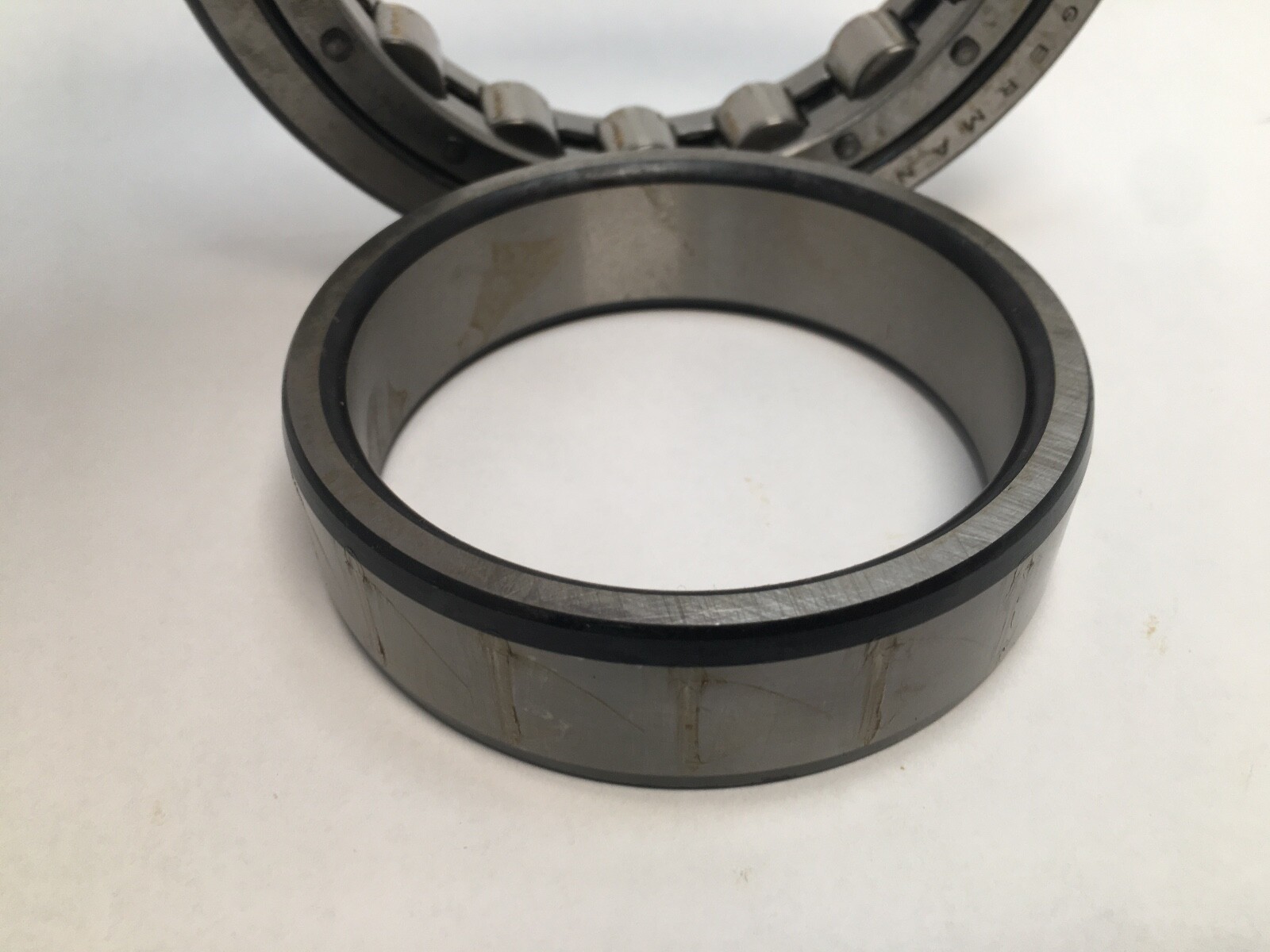

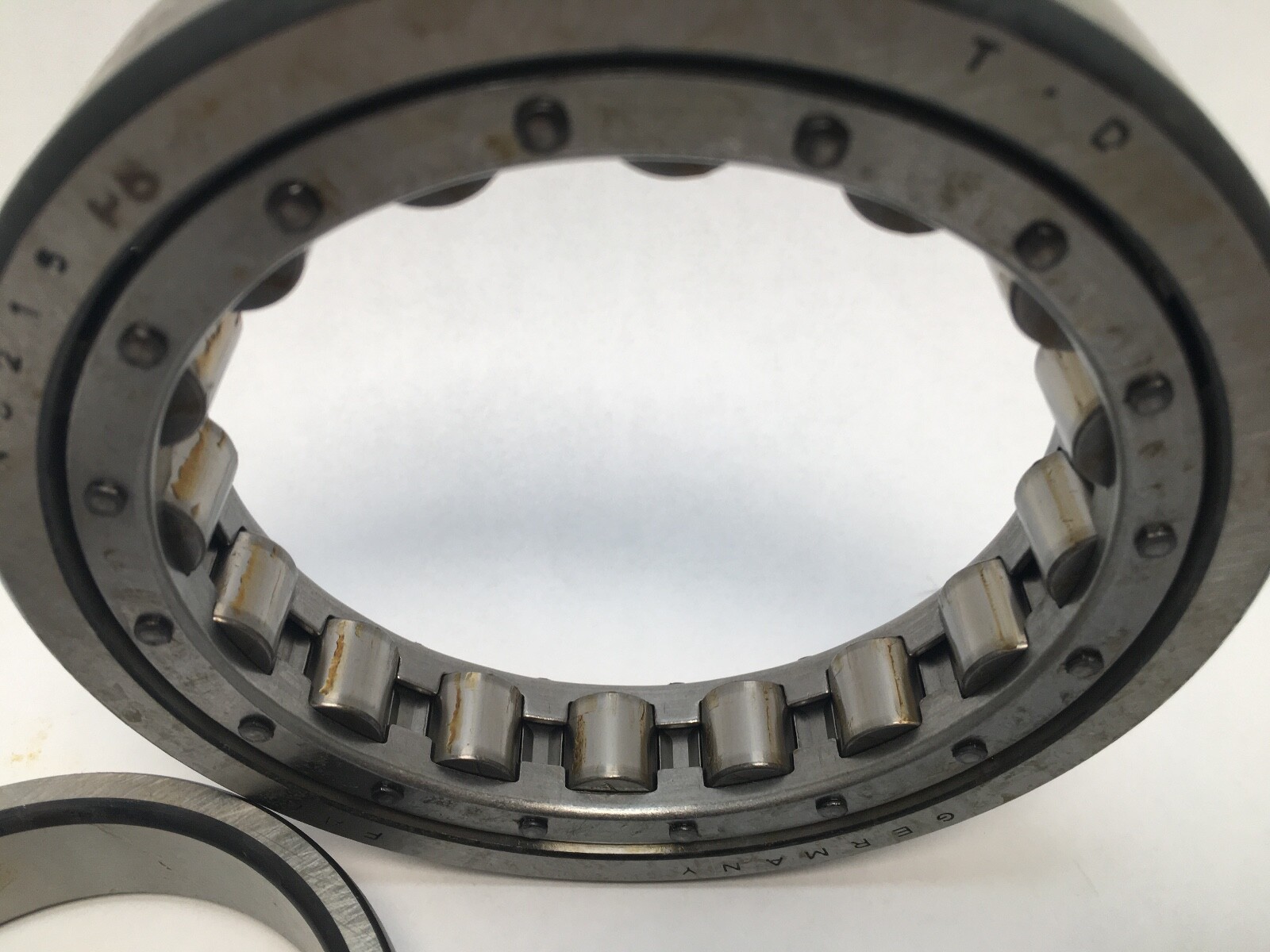

Bore 80 mm, outside diameter 140 mm, width 26 mm. Cylindrical bore. The inner ring separates from the outer ring and roller set, so each ring is mounted independently.
Related parts in the 80 x 140 x 26 mm size: SKF NU 216, NTN NU216, NSK NU216 and Timken NU216 are standard P0 with normal clearance. Current FAG NU216 designs: NU216-E-XL-TVP2 and NU216-E-XL-M1, reinforced E executions. MPN variants: NU216.P52, NU216P52, NU-216-P52, NU 216 P52, NU216.
Bore 80 mm, outside diameter 140 mm, width 26 mm.
P52 is the FAG code for P5 tolerance class combined with C2 internal clearance.
NU means two ribs on the outer ring and none on the inner ring, a non-locating cylindrical roller bearing with separable inner ring.
